2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#60863) — 33 parça

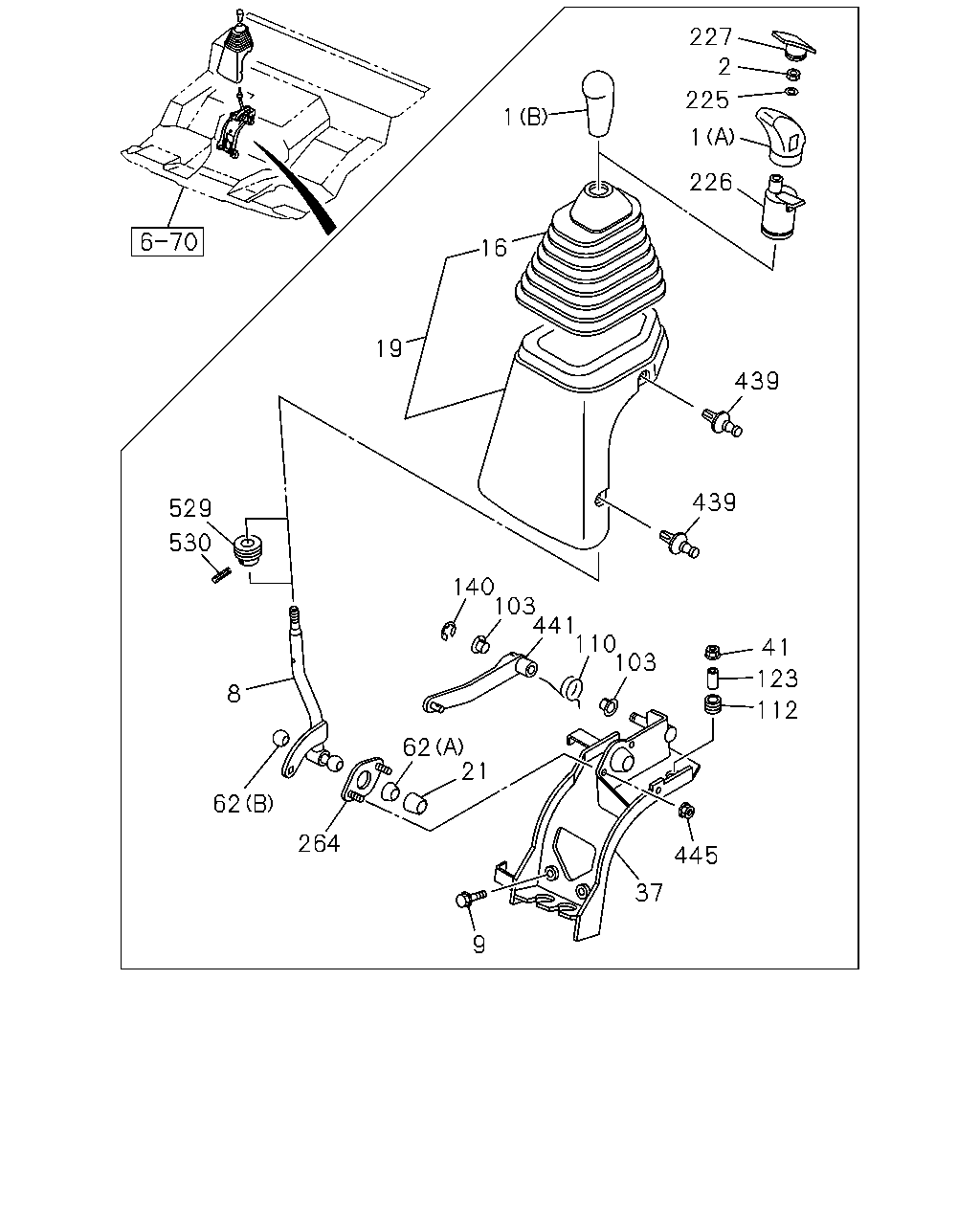

çizim 164637
227 2 225 1 1 226 16 19 439 439 529 530 140 103 441 110 103 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
ZF6S1000 M/T(Y5D) (A) 		1-33611-070-1 01 1 0906-1011
1 KNOB; CHANGE LEVER
MZW6P M/T(RSZ),ZF6S1000 M/T(Y5D) (A) 		1-33611-070-1 01 1 1012-
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) (B) 		1-33611-038-0 01 1 0906-
2 NUT; KNOB
ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 01 1 0906-
8 LEVER; CHANGE
ZF6S1000 M/T(Y5D) 		8-98071-282-0 01 1 0906-1011
8 LEVER; CHANGE
MZW6P M/T(RSZ),ZF6S1000 M/T(Y5D) 		8-98071-282-0 01 1 1012-
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) 		8-98071-308-0 01 1 0906-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0906-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0906-
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 0906-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0906-
37 BRACKET; CHANGE LEVER SUPPORT
ZF6S1000 M/T(Y5D) 		8-98071-302-0 01 1 0906-1011
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ),ZF6S1000 M/T(Y5D) 		8-98071-302-0 01 1 1012-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) 		8-98071-307-0 01 1 0906-
41 NUT; CHANGE LEVER
MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER 		8-97329-625-0 02 1 0906-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0906-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 0906-
103 BUSHING; RELAY LEVER
ZF9S1110 M/T(Y5E) ID=14 OD=16 		8-94252-671-0 02 1 0906-
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 0906-
112 RUBBER; CUSHION 1-33619-442-0 04 1 0906-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0906-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0906-
225 WASHER; PL,KNOB
ZF9S1110 M/T(Y5E) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0906-
226 VALVE; SELECTOR
ZF9S1110 M/T(Y5E) 		1-33710-008-0 01 1 0906-
227 COVER; KNOB
ZF9S1110 M/T(Y5E) 		8-98013-168-0 01 1 0906-
264 PLATE; COVER 1-33619-430-0 01 1 0906-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0906-
441 LEVER; SELECT 8-98071-283-0 01 1 0906-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0906-
529 RING; BOOT
ZF6S1000 M/T(Y5D) 		1-33619-504-0 01 1 0906-1011
529 RING; BOOT
MZW6P M/T(RSZ),ZF6S1000 M/T(Y5D) 		1-33619-504-0 01 1 1012-
530 PIN; SPRING
ZF6S1000 M/T(Y5D) 		1-33619-505-0 01 1 0906-1011
530 PIN; SPRING
MZW6P M/T(RSZ),ZF6S1000 M/T(Y5D) 		1-33619-505-0 01 1 1012-
