Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#60861) — 511 parça

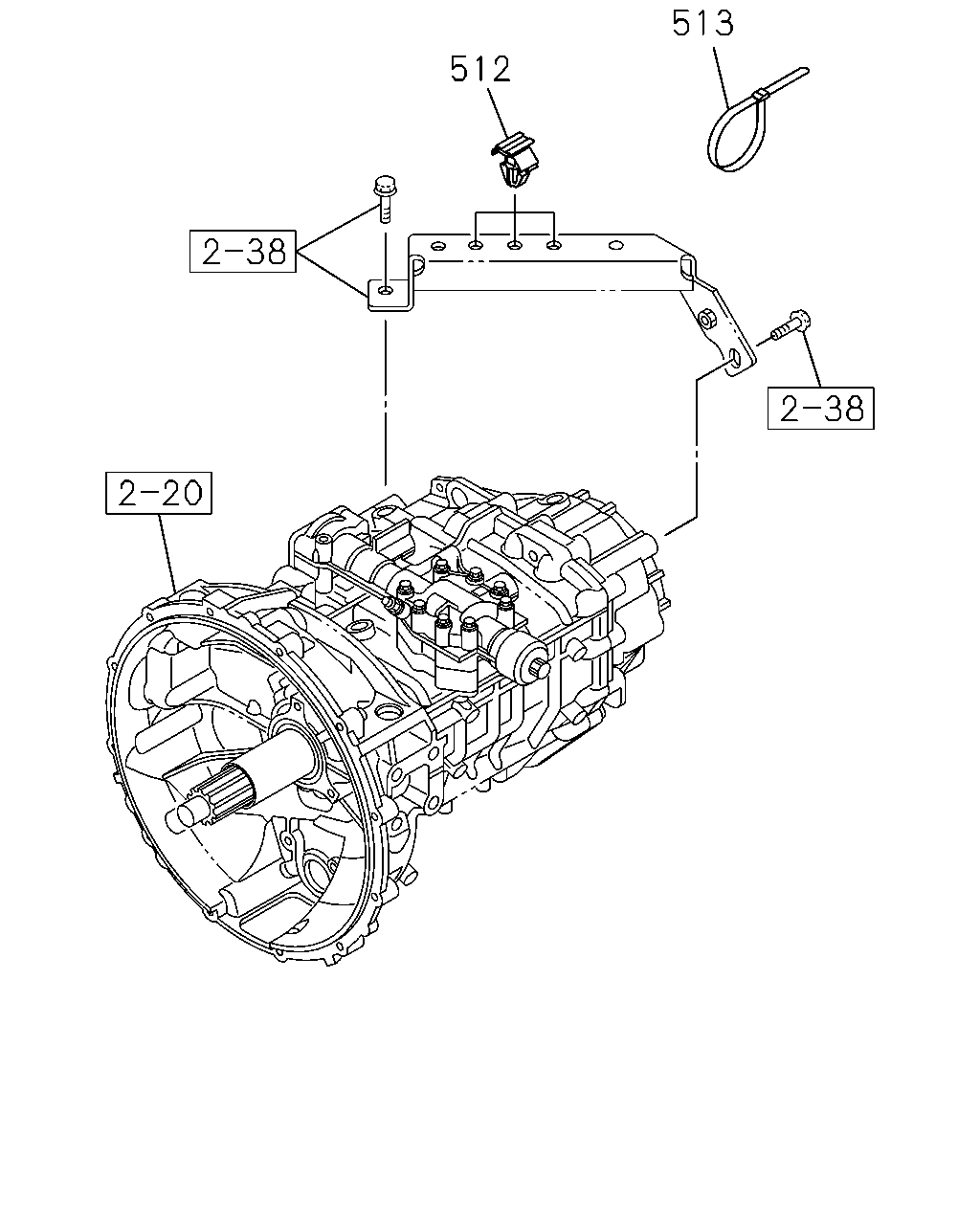

513 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	03	1	0906-	●
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	05	1	0906-		●
513	CLIP; BAND L=250	5-09707-030-1	03	1	0906-	●
513	CLIP; BAND L=250	5-09707-030-1	05	1	0906-		●

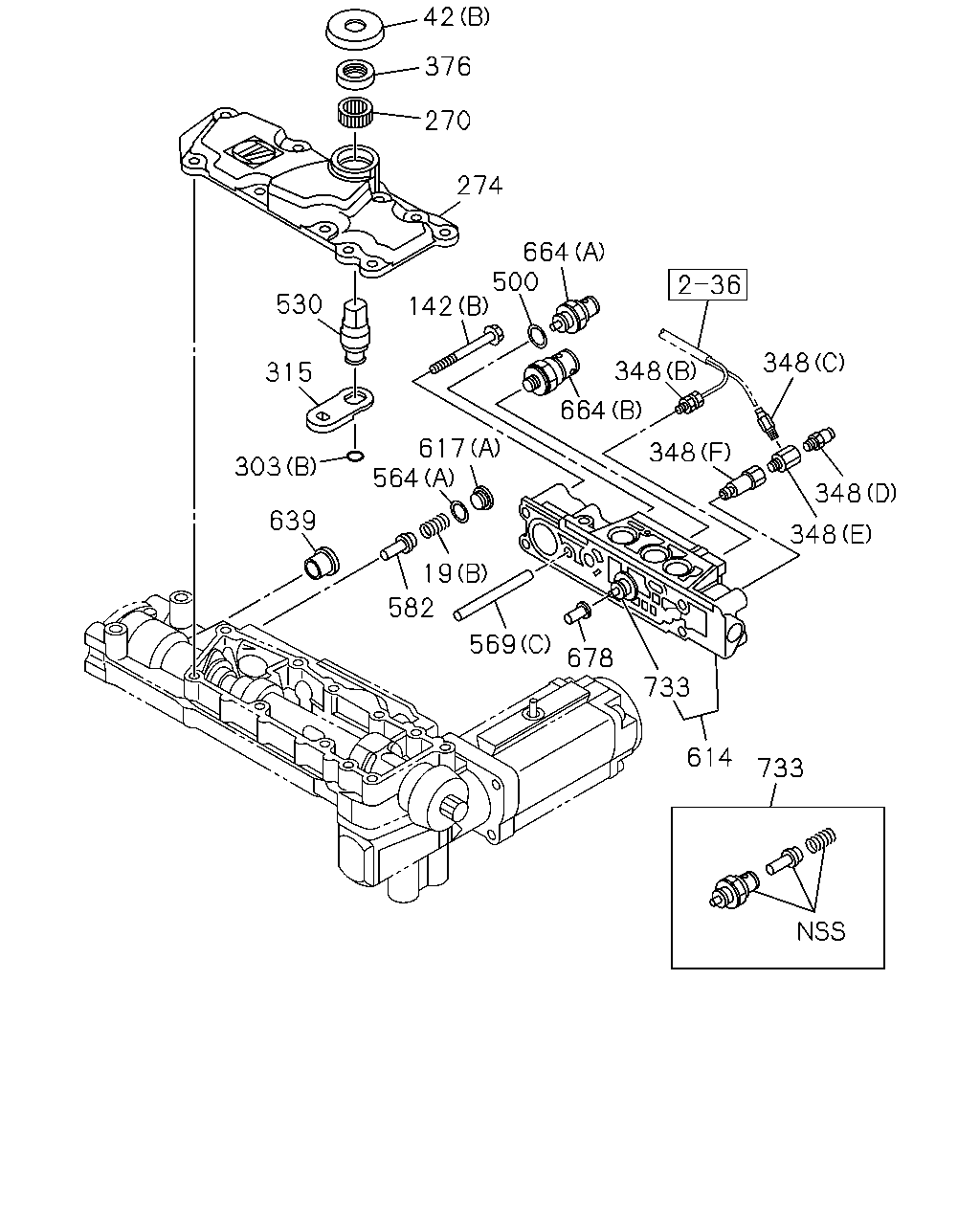

42 270 664 274 530 315 142 500 348 348 348 348 617 303 582 569 678 19 564 639 733 614 733 348 664 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP (A)	1-33539-041-0	01	1	1312-	●
19	SPRING; COIL COMP (B)	1-33539-022-0	01	1	0906-1305	●
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	0906-1305		●
19	SPRING; COIL COMP (B)	1-33539-022-0	01	1	1306-1311	●
19	SPRING; COIL COMP (B)	1-33549-189-0	01	1	1312-	●
19	SPRING; COIL COMP (C)	1-33539-027-0	01	1	0906-	●
19	SPRING; COIL COMP (A)	1-33539-089-0	01	1	0906-		●
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) (B)	1-33539-090-0	01	1	0906-1305		●
19	SPRING; COIL COMP (B)	1-33539-090-0	01	1	1306-		●
42	CAP; QUAD BOX (C)	1-33549-509-0	01	1	0906-1311	●
42	CAP; QUAD BOX (C)	1-33549-613-0	01	1	1312-	●
42	CAP; QUAD BOX (D)	1-37249-107-0	01	1	0906-1311	●
42	CAP; QUAD BOX (E)	1-37249-212-0	01	1	0906-1311	●
42	CAP; QUAD BOX (F)	1-37249-213-0	01	1	0906-1311	●
42	CAP; QUAD BOX (G)	1-37249-214-0	01	1	0906-1311	●
42	CAP; QUAD BOX (A)	1-33549-456-0	01	1	0906-1305		●
42	CAP; QUAD BOX (A)	1-33549-548-0	01	1	1306-		●
42	CAP; QUAD BOX (B)	1-33549-463-0	01	1	0906-1305		●
42	CAP; QUAD BOX (B)	1-33549-619-0	01	1	1306-		●
142	BOLT; QUAD BOX (C)	1-33549-290-0	01	1	0906-1311	●
142	BOLT; QUAD BOX (C) M8X100	1-33549-622-0	01	1	1312-	●
142	BOLT; QUAD BOX (A)	1-33549-476-0	12	1	0906-1311	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	12	1	1312-	●
142	BOLT; QUAD BOX (B)	1-33549-467-0	05	1	0906-1305		●
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-		●
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) (A)	1-33549-476-0	13	1	0906-1305		●
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-		●
142	BOLT; QUAD BOX EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	0906-1305		●
270	BEARING; NEEDLE,QUAD BOX	1-33549-459-0	01	1	0906-		●
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM)	1-33549-477-0	01	1	0906-1305		●
274	COVER; SHAFT,QUAD BOX	1-33549-477-0	01	1	1306-		●
274	COVER; SHAFT,QUAD BOX EXC. PTO ZF TRANS RR(BDM)	1-33549-457-0	01	1	0906-1305		●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1312-		●
303	RING; SNAP,SHAFT (C)	1-44519-224-0	01	1	0906-	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	0906-1311	●	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	02	1	1312-	●
303	RING; SNAP,SHAFT (B)	1-33549-461-0	01	1	0906-		●
315	LEVER; SELECT	1-33549-556-0	01	1	0906-	●
315	LEVER; SELECT	1-33549-458-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (A) PT1/4	1-09654-396-0	01	1	0906-	●	●
348	CONNECTOR; AIR HOSE (B)	1-09660-466-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (C)	1-09661-174-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (D)	1-09661-481-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (E)	8-94338-417-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (F)	8-98068-125-0	01	1	0906-		●
376	SEAL; OIL	1-33549-462-0	01	1	0906-		●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	0906-	●	●
530	SHAFT; SELECT	1-33549-557-0	01	1	0906-	●
530	SHAFT; SELECT	1-33549-460-0	01	1	0906-		●
564	SEAL; RING (B)	1-33549-444-0	01	1	0906-1305		●
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-		●
564	SEAL; RING (A) T=2.0	1-82449-010-0	01	1	0906-		●
569	PIN; QUADRANT BOX (D)	1-33119-586-0	01	1	0906-	●
569	PIN; QUADRANT BOX (B)	1-33549-558-0	01	1	0906-	●
569	PIN; QUADRANT BOX (A)	1-33529-106-0	01	1	0906-	●	●
569	PIN; QUADRANT BOX (B)	1-33549-452-0	01	1	0906-		●
569	PIN; QUADRANT BOX (C)	1-33549-468-0	01	1	0906-		●
582	BOLT; SPRING GUIDE	1-33549-471-0	01	1	0906-1311		●
582	BOLT; SPRING GUIDE	1-33549-471-0	01	1	1312-	●	●
614	VALVE ASM	1-33549-464-0	01	1	0906-1305		●
614	VALVE ASM	1-33549-549-0	01	1	1306-		●
617	PLUG (A)	1-33119-171-0	01	1	0906-1305		●
617	PLUG (A)	1-33119-619-0	01	1	1306-		●
617	PLUG (B)	1-34129-061-0	01	1	0906-1305		●
617	PLUG (B)	1-33539-109-0	01	1	1306-		●
639	CAP	1-33549-465-0	01	1	0906-1305		●
639	CAP	1-33549-576-0	01	1	1306-		●
664	SWITCH (C)	1-38119-062-0	01	1	0906-	●
664	SWITCH (A)	1-33549-469-0	01	1	0906-1305		●
664	SWITCH (A)	1-33119-627-0	01	1	1306-		●
664	SWITCH (B)	1-33549-470-0	01	1	0906-		●
678	TAPPET	1-33549-466-0	01	1	0906-		●
733	REPAIR KIT	1-33549-617-0	01	1	1306-		●

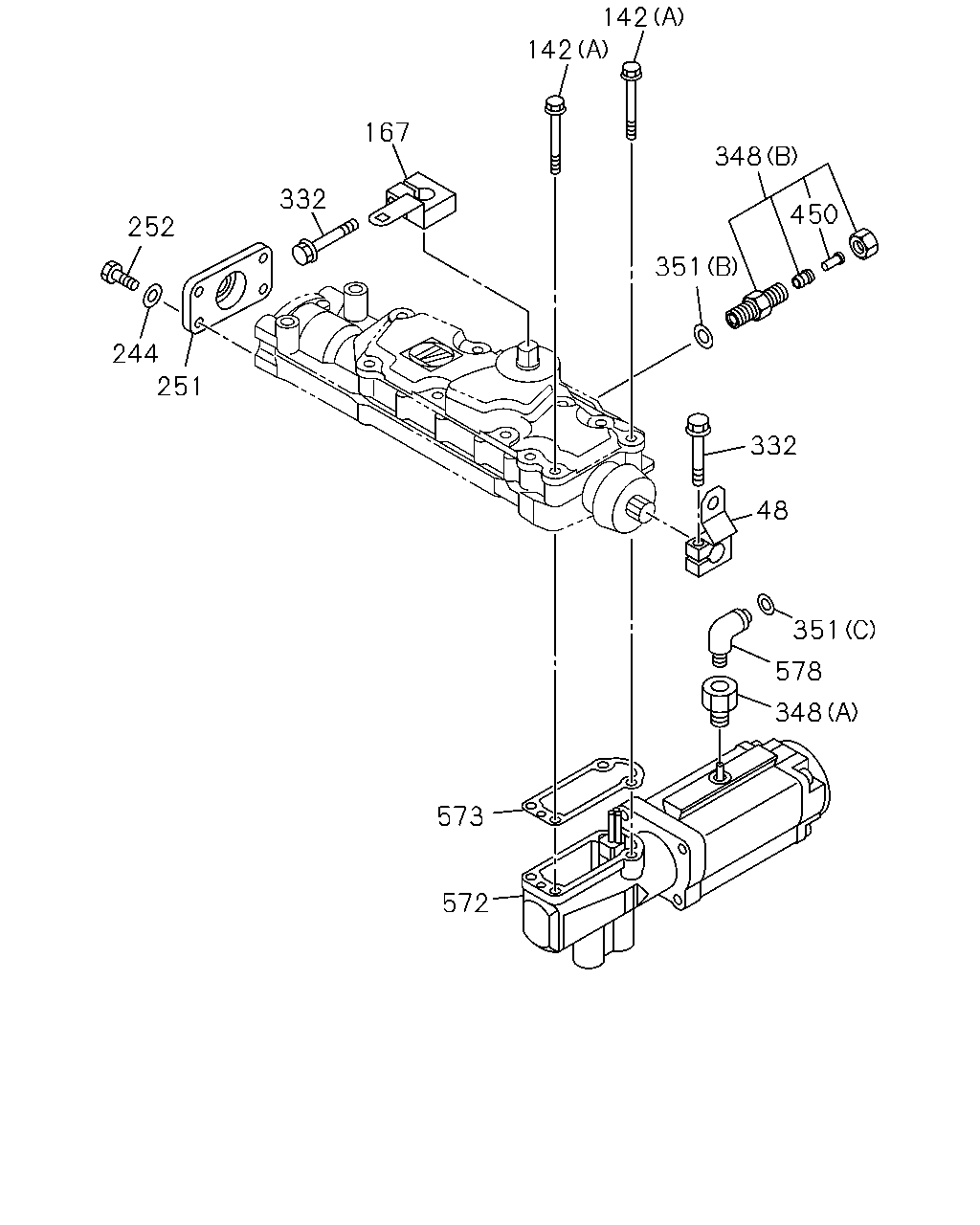

142 142 167 348 332 450 252 351 244 251 332 48 351 578 348 573 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	LEVER; 4TH,SHIFT	8-98101-105-0	01	1	0906-	●
48	LEVER; 4TH,SHIFT	1-33651-827-1	01	1	0906-		●
142	BOLT; QUAD BOX (C)	1-33549-290-0	01	1	0906-1311	●
142	BOLT; QUAD BOX (C) M8X100	1-33549-622-0	01	1	1312-	●
142	BOLT; QUAD BOX (A)	1-33549-476-0	12	1	0906-1311	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	12	1	1312-	●
142	BOLT; QUAD BOX (B)	1-33549-467-0	05	1	0906-1305		●
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-		●
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) (A)	1-33549-476-0	13	1	0906-1305		●
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-		●
142	BOLT; QUAD BOX EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	0906-1305		●
167	LEVER; SELECT,EXTERNAL	8-98101-114-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL	1-33651-831-1	01	1	0906-		●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-1311		●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1312-	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	0906-1305	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	1306-1311	●
251	COVER; SIDE	1-33549-478-0	01	1	0906-1305	●
251	COVER; SIDE PTO ZF TRANS RR(BDM)	1-33549-478-0	01	1	0906-1305		●
251	COVER; SIDE	1-33549-478-0	01	1	1306-1311	●
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM)	1-33549-472-0	01	1	0906-1305		●
251	COVER; SIDE	1-33549-590-0	01	1	1306-1311		●
251	COVER; SIDE	1-33549-590-0	01	1	1312-	●	●
252	BOLT; SIDE COVER M8X20	1-33549-591-0	04	1	1306-1311		●
252	BOLT; SIDE COVER M8X20	1-33549-591-0	04	1	1312-	●	●
252	BOLT; SIDE COVER	1-33119-296-0	04	1	0906-1305	●	●
252	BOLT; SIDE COVER	1-33119-296-0	04	1	1306-1311	●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28650-840-0	01	1	0906-	●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28650-840-0	02	1	0906-		●
348	CONNECTOR; AIR HOSE (A) PT1/4	1-09654-396-0	01	1	0906-	●	●
348	CONNECTOR; AIR HOSE (B)	1-09660-466-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (C)	1-09661-174-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (D)	1-09661-481-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (E)	8-94338-417-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (F)	8-98068-125-0	01	1	0906-		●
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	0906-1312	●
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1401-	●
351	GASKET; CONNECTOR (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0906-		●
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	02	1	0906-1312		●
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	02	1	1401-		●
351	GASKET; CONNECTOR (A)	1-33549-444-0	04	1	0906-1305		●
351	GASKET; CONNECTOR (A)	1-33549-578-0	04	1	1306-		●
450	INSERT; SHIFT ARM ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0906-		●
572	SERVO UNIT; GEAR SHIFT	1-33549-561-0	01	1	0906-	●
572	SERVO UNIT; GEAR SHIFT	1-33549-331-0	01	1	0906-		●
573	GASKET; SERVO UNIT	1-33549-332-0	01	1	0906-	●	●
578	CONNECTOR DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	0906-	●	●

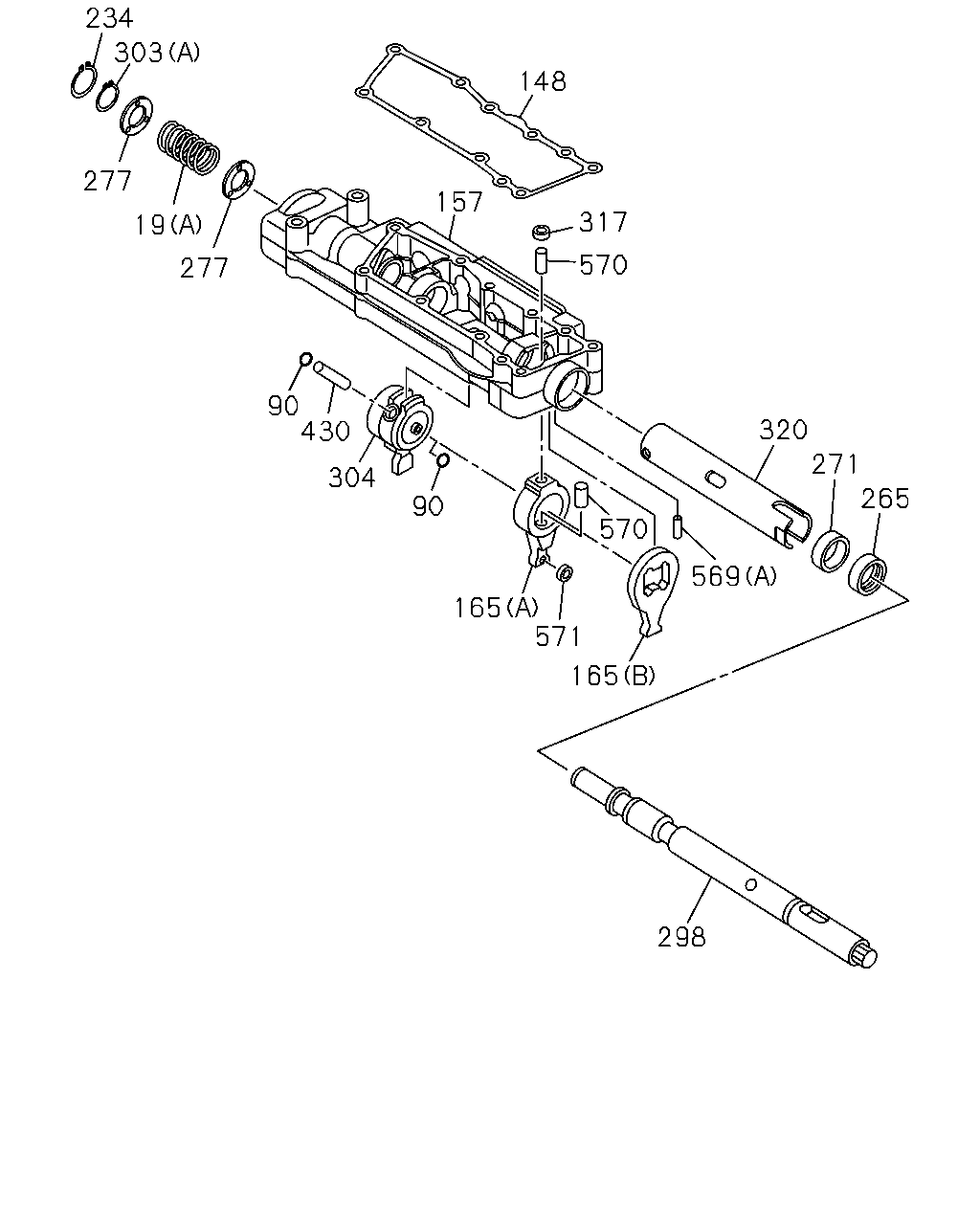

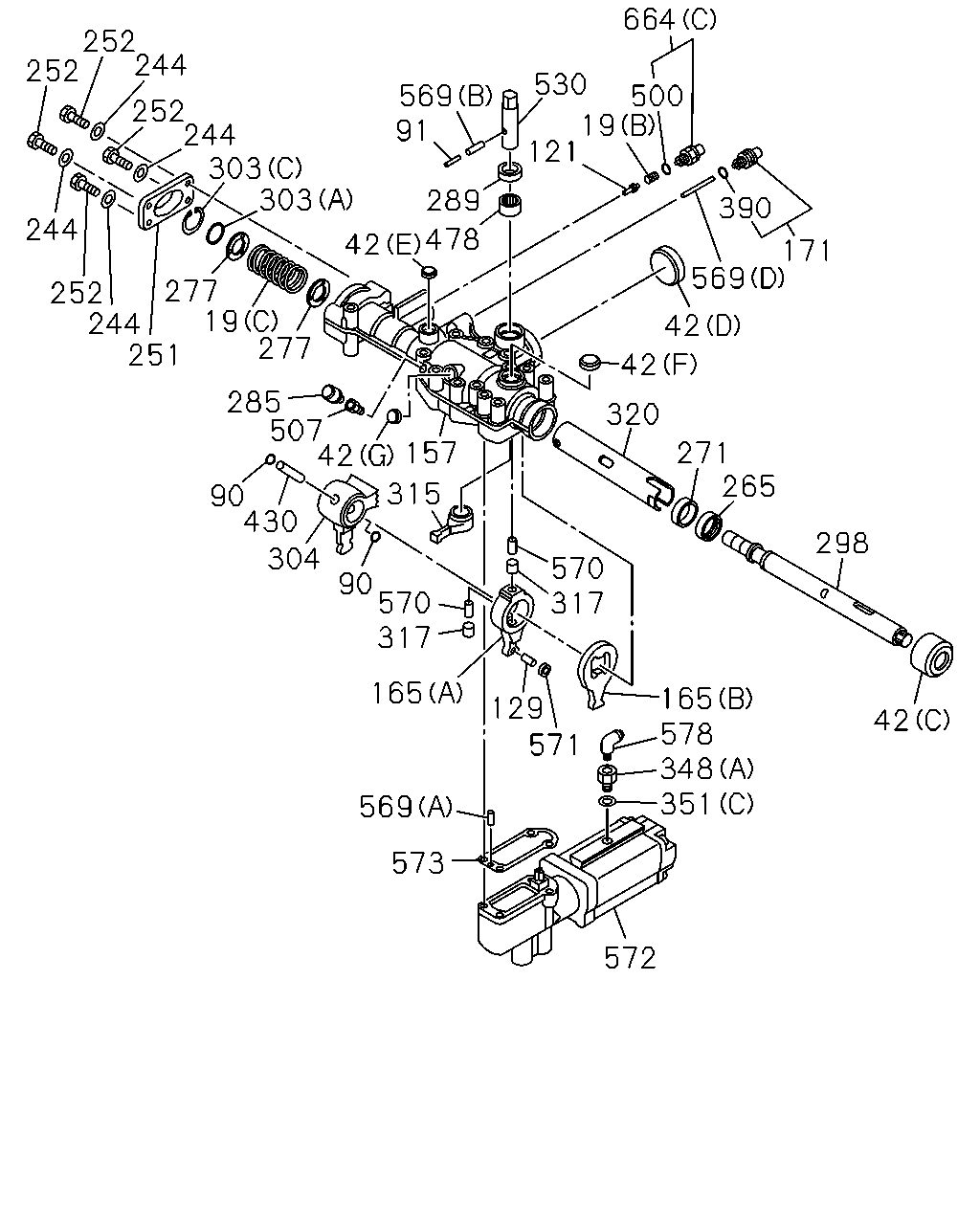

664 252 244 252 530 569 91 500 19 121 252 244 303 303 289 390 244 42 478 171 569 277 19 277 252 244 251 42 42 285 507 42 320 157 271 265 315 90 430 298 304 570 317 90 570 317 165 165 578 348 351 129 42 571 569 573 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP (A)	1-33539-041-0	01	1	1312-	●
19	SPRING; COIL COMP (B)	1-33539-022-0	01	1	0906-1305	●
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	0906-1305		●
19	SPRING; COIL COMP (B)	1-33539-022-0	01	1	1306-1311	●
19	SPRING; COIL COMP (B)	1-33549-189-0	01	1	1312-	●
19	SPRING; COIL COMP (C)	1-33539-027-0	01	1	0906-	●
19	SPRING; COIL COMP (A)	1-33539-089-0	01	1	0906-		●
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) (B)	1-33539-090-0	01	1	0906-1305		●
19	SPRING; COIL COMP (B)	1-33539-090-0	01	1	1306-		●
42	CAP; QUAD BOX (C)	1-33549-509-0	01	1	0906-1311	●
42	CAP; QUAD BOX (C)	1-33549-613-0	01	1	1312-	●
42	CAP; QUAD BOX (D)	1-37249-107-0	01	1	0906-1311	●
42	CAP; QUAD BOX (E)	1-37249-212-0	01	1	0906-1311	●
42	CAP; QUAD BOX (F)	1-37249-213-0	01	1	0906-1311	●
42	CAP; QUAD BOX (G)	1-37249-214-0	01	1	0906-1311	●
42	CAP; QUAD BOX (A)	1-33549-456-0	01	1	0906-1305		●
42	CAP; QUAD BOX (A)	1-33549-548-0	01	1	1306-		●
42	CAP; QUAD BOX (B)	1-33549-463-0	01	1	0906-1305		●
42	CAP; QUAD BOX (B)	1-33549-619-0	01	1	1306-		●
90	RING; SNAP,SHIFT ROD	1-33529-109-0	02	1	0906-	●
90	RING; SNAP,SHIFT ROD	1-33529-109-0	01	1	0906-		●
91	PIN; SPR,SHIFT ARM	1-33529-054-0	01	1	0906-	●
121	PLUG; DETENT SPR	1-33549-471-0	01	1	0906-1311	●
129	PIN; SPR,SHIFT	1-33529-107-0	01	1	0906-	●
157	BOX; QUAD,TRANS	1-33541-544-0	01	1	0906-1311	●
157	BOX; QUAD,TRANS	1-33541-549-0	01	1	1312-	●
157	BOX; QUAD,TRANS	1-33549-445-0	01	1	0906-		●
165	LEVER; SHIFT (B)	1-33549-325-0	01	1	0906-	●	●
165	LEVER; SHIFT (A)	1-33549-450-0	01	1	0906-	●	●
171	SWITCH; NEUTRAL PTO ZF TRANS RR(BDM)	1-33119-587-0	01	1	0906-1311	●
171	SWITCH; NEUTRAL	1-33119-627-0	01	1	1312-	●
171	SWITCH; NEUTRAL EXC. PTO ZF TRANS RR(BDM)	1-82440-127-0	01	1	0906-1311	●
171	SWITCH; NEUTRAL EXC. PTO ZF TRANS RR(BDM)	1-33549-338-0	01	1	0906-1305		●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-1311		●
244	WASHER; LK,COVER	1-33549-583-0	04	1	1312-	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	0906-1305	●	●
244	WASHER; LK,COVER	1-33549-159-0	04	1	1306-1311	●
251	COVER; SIDE	1-33549-478-0	01	1	0906-1305	●
251	COVER; SIDE PTO ZF TRANS RR(BDM)	1-33549-478-0	01	1	0906-1305		●
251	COVER; SIDE	1-33549-478-0	01	1	1306-1311	●
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM)	1-33549-472-0	01	1	0906-1305		●
251	COVER; SIDE	1-33549-590-0	01	1	1306-1311		●
251	COVER; SIDE	1-33549-590-0	01	1	1312-	●	●
252	BOLT; SIDE COVER M8X20	1-33549-591-0	04	1	1306-1311		●
252	BOLT; SIDE COVER M8X20	1-33549-591-0	04	1	1312-	●	●
252	BOLT; SIDE COVER	1-33119-296-0	04	1	0906-1305	●	●
252	BOLT; SIDE COVER	1-33119-296-0	04	1	1306-1311	●
265	SEAL; OIL,SHIFT	1-33549-544-0	01	1	0906-1305	●
265	SEAL; OIL,SHIFT	1-33549-544-0	01	1	1306-	●	●
265	SEAL; OIL,SHIFT	1-33549-446-0	01	1	0906-1305		●
271	BUSHING; QUAD BOX	1-33539-115-0	01	1	1312-	●
271	BUSHING; QUAD BOX	1-33549-318-0	01	1	0906-	●	●
277	PLATE; SPRING SEAT	1-33539-107-0	02	1	1306-		●
277	PLATE; SPRING SEAT	1-33539-114-0	01	1	1312-	●
277	PLATE; SPRING SEAT PTO ZF TRANS RR(BDM)	1-33539-039-0	02	1	0906-1305	●
277	PLATE; SPRING SEAT	1-33539-039-0	02	1	0906-1305		●
277	PLATE; SPRING SEAT PTO ZF TRANS RR(BDM)	1-33539-039-0	02	1	1306-1311	●
277	PLATE; SPRING SEAT	1-33539-107-0	01	1	1312-	●
277	PLATE; SPRING SEAT EXC. PTO ZF TRANS RR(BDM)	1-33539-039-0	01	1	0906-1311	●
277	PLATE; SPRING SEAT	1-33539-108-0	02	1	1312-	●
285	BREATHER; AIR,QUAD BOX	1-36122-004-0	01	1	0906-1311	●
285	BREATHER; AIR,QUAD BOX	1-36122-006-0	01	1	1312-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	1-33549-560-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER	1-33522-210-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM)	1-33522-204-0	01	1	0906-1305		●
298	SHAFT; SHIFT LEVER	1-33522-204-0	01	1	1306-		●
298	SHAFT; SHIFT LEVER EXC. PTO ZF TRANS RR(BDM)	1-33522-203-0	01	1	0906-1305		●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1312-		●
303	RING; SNAP,SHAFT (C)	1-44519-224-0	01	1	0906-	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	0906-1311	●	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	02	1	1312-	●
303	RING; SNAP,SHAFT (B)	1-33549-461-0	01	1	0906-		●
304	BLOCK; SHIFT SHAFT	1-33549-555-0	01	1	0906-	●
304	BLOCK; SHIFT SHAFT	1-33549-448-0	01	1	0906-		●
315	LEVER; SELECT	1-33549-556-0	01	1	0906-	●
315	LEVER; SELECT	1-33549-458-0	01	1	0906-		●
317	BUSHING; LEVER	1-33549-322-0	01	1	0906-	●	●
320	SHAFT; LEVER	1-33549-562-0	01	1	0906-	●
320	SHAFT; LEVER	1-33549-447-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (A) PT1/4	1-09654-396-0	01	1	0906-	●	●
348	CONNECTOR; AIR HOSE (B)	1-09660-466-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (C)	1-09661-174-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (D)	1-09661-481-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (E)	8-94338-417-0	01	1	0906-		●
348	CONNECTOR; AIR HOSE (F)	8-98068-125-0	01	1	0906-		●
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	0906-1312	●
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1401-	●
351	GASKET; CONNECTOR (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0906-		●
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	02	1	0906-1312		●
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	02	1	1401-		●
351	GASKET; CONNECTOR (A)	1-33549-444-0	04	1	0906-1305		●
351	GASKET; CONNECTOR (A)	1-33549-578-0	04	1	1306-		●
390	GASKET; NEUTRAL SW	1-33119-249-0	01	1	0906-1305	●
390	GASKET; NEUTRAL SW EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	0906-1305		●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1306-	●
430	PIN; SPR,SHIFT ROD	1-33529-108-0	01	1	0906-	●
430	PIN; SPR,SHIFT ROD	1-33549-449-0	01	1	0906-		●
478	SLEEVE; SHIFT LEVER	1-33549-559-0	01	1	0906-	●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	0906-	●	●
507	ADAPTER; BREATHER	1-33549-545-0	01	1	0906-1311	●
530	SHAFT; SELECT	1-33549-557-0	01	1	0906-	●
530	SHAFT; SELECT	1-33549-460-0	01	1	0906-		●
569	PIN; QUADRANT BOX (D)	1-33119-586-0	01	1	0906-	●
569	PIN; QUADRANT BOX (B)	1-33549-558-0	01	1	0906-	●
569	PIN; QUADRANT BOX (A)	1-33529-106-0	01	1	0906-	●	●
569	PIN; QUADRANT BOX (B)	1-33549-452-0	01	1	0906-		●
569	PIN; QUADRANT BOX (C)	1-33549-468-0	01	1	0906-		●
570	PIN; SHIFT LEVER	1-33529-117-0	02	1	1306-1311		●
570	PIN; SHIFT LEVER	1-33529-117-0	02	1	1312-	●	●
570	PIN; SHIFT LEVER	1-33549-451-0	02	1	0906-1305	●	●
570	PIN; SHIFT LEVER	1-33549-451-0	02	1	1306-1311	●
571	ROLLER; LEVER	1-33549-324-0	01	1	0906-	●	●
572	SERVO UNIT; GEAR SHIFT	1-33549-561-0	01	1	0906-	●
572	SERVO UNIT; GEAR SHIFT	1-33549-331-0	01	1	0906-		●
573	GASKET; SERVO UNIT	1-33549-332-0	01	1	0906-	●	●
578	CONNECTOR DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	0906-	●	●
664	SWITCH (C)	1-38119-062-0	01	1	0906-	●
664	SWITCH (A)	1-33549-469-0	01	1	0906-1305		●
664	SWITCH (A)	1-33119-627-0	01	1	1306-		●
664	SWITCH (B)	1-33549-470-0	01	1	0906-		●

234 303 148 277 157 317 19 570 277 90 430 320 271 304 265 90 570 569 165 571 165 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP (A)	1-33539-041-0	01	1	1312-	●
19	SPRING; COIL COMP (B)	1-33539-022-0	01	1	0906-1305	●
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	0906-1305		●
19	SPRING; COIL COMP (B)	1-33539-022-0	01	1	1306-1311	●
19	SPRING; COIL COMP (B)	1-33549-189-0	01	1	1312-	●
19	SPRING; COIL COMP (C)	1-33539-027-0	01	1	0906-	●
19	SPRING; COIL COMP (A)	1-33539-089-0	01	1	0906-		●
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) (B)	1-33539-090-0	01	1	0906-1305		●
19	SPRING; COIL COMP (B)	1-33539-090-0	01	1	1306-		●
90	RING; SNAP,SHIFT ROD	1-33529-109-0	02	1	0906-	●
90	RING; SNAP,SHIFT ROD	1-33529-109-0	01	1	0906-		●
148	GASKET; QUAD BOX	1-33544-056-0	01	1	0906-		●
157	BOX; QUAD,TRANS	1-33541-544-0	01	1	0906-1311	●
157	BOX; QUAD,TRANS	1-33541-549-0	01	1	1312-	●
157	BOX; QUAD,TRANS	1-33549-445-0	01	1	0906-		●
165	LEVER; SHIFT (B)	1-33549-325-0	01	1	0906-	●	●
165	LEVER; SHIFT (A)	1-33549-450-0	01	1	0906-	●	●
234	RING; SNAP	1-44519-224-0	01	1	0906-		●
265	SEAL; OIL,SHIFT	1-33549-544-0	01	1	0906-1305	●
265	SEAL; OIL,SHIFT	1-33549-544-0	01	1	1306-	●	●
265	SEAL; OIL,SHIFT	1-33549-446-0	01	1	0906-1305		●
271	BUSHING; QUAD BOX	1-33539-115-0	01	1	1312-	●
271	BUSHING; QUAD BOX	1-33549-318-0	01	1	0906-	●	●
277	PLATE; SPRING SEAT	1-33539-107-0	02	1	1306-		●
277	PLATE; SPRING SEAT	1-33539-114-0	01	1	1312-	●
277	PLATE; SPRING SEAT PTO ZF TRANS RR(BDM)	1-33539-039-0	02	1	0906-1305	●
277	PLATE; SPRING SEAT	1-33539-039-0	02	1	0906-1305		●
277	PLATE; SPRING SEAT PTO ZF TRANS RR(BDM)	1-33539-039-0	02	1	1306-1311	●
277	PLATE; SPRING SEAT	1-33539-107-0	01	1	1312-	●
277	PLATE; SPRING SEAT EXC. PTO ZF TRANS RR(BDM)	1-33539-039-0	01	1	0906-1311	●
277	PLATE; SPRING SEAT	1-33539-108-0	02	1	1312-	●
298	SHAFT; SHIFT LEVER	1-33522-210-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM)	1-33522-204-0	01	1	0906-1305		●
298	SHAFT; SHIFT LEVER	1-33522-204-0	01	1	1306-		●
298	SHAFT; SHIFT LEVER EXC. PTO ZF TRANS RR(BDM)	1-33522-203-0	01	1	0906-1305		●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1312-		●
303	RING; SNAP,SHAFT (C)	1-44519-224-0	01	1	0906-	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	0906-1311	●	●
303	RING; SNAP,SHAFT (A)	1-33539-040-0	02	1	1312-	●
303	RING; SNAP,SHAFT (B)	1-33549-461-0	01	1	0906-		●
304	BLOCK; SHIFT SHAFT	1-33549-555-0	01	1	0906-	●
304	BLOCK; SHIFT SHAFT	1-33549-448-0	01	1	0906-		●
317	BUSHING; LEVER	1-33549-322-0	01	1	0906-	●	●
320	SHAFT; LEVER	1-33549-562-0	01	1	0906-	●
320	SHAFT; LEVER	1-33549-447-0	01	1	0906-		●
430	PIN; SPR,SHIFT ROD	1-33529-108-0	01	1	0906-	●
430	PIN; SPR,SHIFT ROD	1-33549-449-0	01	1	0906-		●
569	PIN; QUADRANT BOX (D)	1-33119-586-0	01	1	0906-	●
569	PIN; QUADRANT BOX (B)	1-33549-558-0	01	1	0906-	●
569	PIN; QUADRANT BOX (A)	1-33529-106-0	01	1	0906-	●	●
569	PIN; QUADRANT BOX (B)	1-33549-452-0	01	1	0906-		●
569	PIN; QUADRANT BOX (C)	1-33549-468-0	01	1	0906-		●
570	PIN; SHIFT LEVER	1-33529-117-0	02	1	1306-1311		●
570	PIN; SHIFT LEVER	1-33529-117-0	02	1	1312-	●	●
570	PIN; SHIFT LEVER	1-33549-451-0	02	1	0906-1305	●	●
570	PIN; SHIFT LEVER	1-33549-451-0	02	1	1306-1311	●
571	ROLLER; LEVER	1-33549-324-0	01	1	0906-	●	●

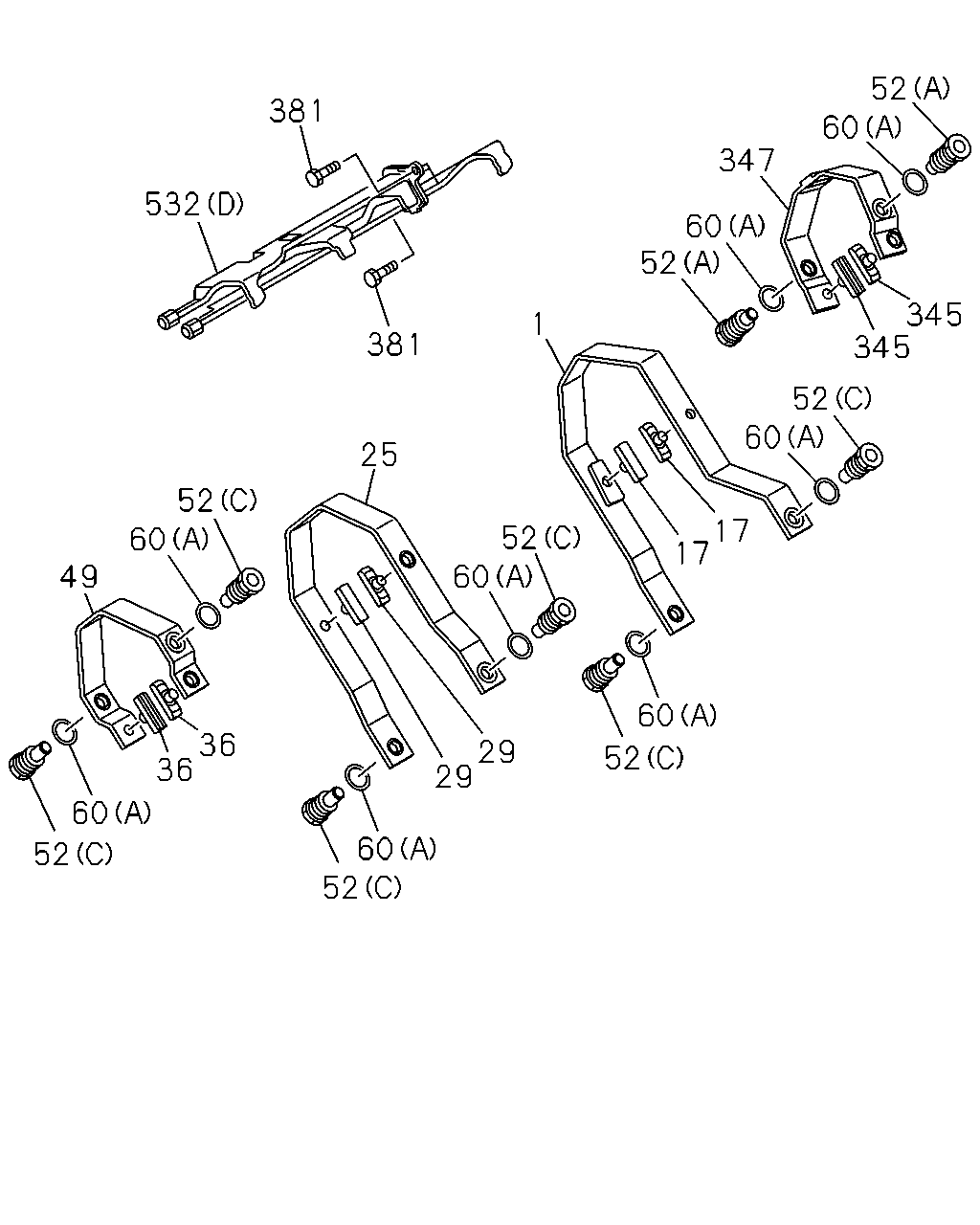

52 60 381 347 532 60 52 345 345 1 381 52 60 25 52 60 17 17 52 60 49 60 36 36 29 29 52 60 60 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-647-0	01	1	0906-1311	●
1	ARM; SHIFT,1ST & REV	1-33511-670-0	01	1	1312-	●
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33511-645-0	01	1	0906-1305		●
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-		●
1	ARM; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	0906-1305		●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	0906-1305	●
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	0906-1305		●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	1306-	●
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	0906-1305		●
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-648-0	01	1	0906-1311	●
25	ARM; SHIFT,2ND & 3RD	1-33511-666-0	01	1	1312-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	0906-		●
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	0906-	●	●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-173-0	02	1	0906-	●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	0906-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-649-0	01	1	0906-1311	●
49	ARM; SHIFT,4TH & 5TH	1-33511-667-0	01	1	1312-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	0906-		●
52	BOLT; SHIFT ARM (A)	1-33519-174-0	02	1	0906-1311	●
52	BOLT; SHIFT ARM (A)	1-33519-199-0	02	1	1312-	●
52	BOLT; SHIFT ARM (C)	1-33519-175-0	06	1	0906-1311	●
52	BOLT; SHIFT ARM (C)	1-33519-200-0	06	1	1312-	●
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	0906-1305		●
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-		●
52	BOLT; SHIFT ARM (D)	1-33519-084-0	07	1	0906-1305		●
52	BOLT; SHIFT ARM (D)	1-33519-190-0	07	1	1306-		●
60	WASHER; LK (A)	1-33519-085-0	08	1	0906-1311	●
60	WASHER; LK (B)	1-33519-059-0	02	1	0906-1305		●
60	WASHER; LK (A)	1-33519-085-0	07	1	0906-1305		●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-173-0	02	1	0906-	●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	0906-		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-646-0	01	1	0906-1311	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-668-0	01	1	1312-	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	0906-		●
381	BOLT	1-33519-178-0	02	1	0906-1311	●
381	BOLT	1-33519-201-0	02	1	1312-	●
532	PLATE; SHIFT FORK (D)	1-33519-177-0	01	1	0906-1311	●
532	PLATE; SHIFT FORK (D)	1-33519-193-0	01	1	1312-	●
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	0906-		●
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	0906-		●
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	0906-		●

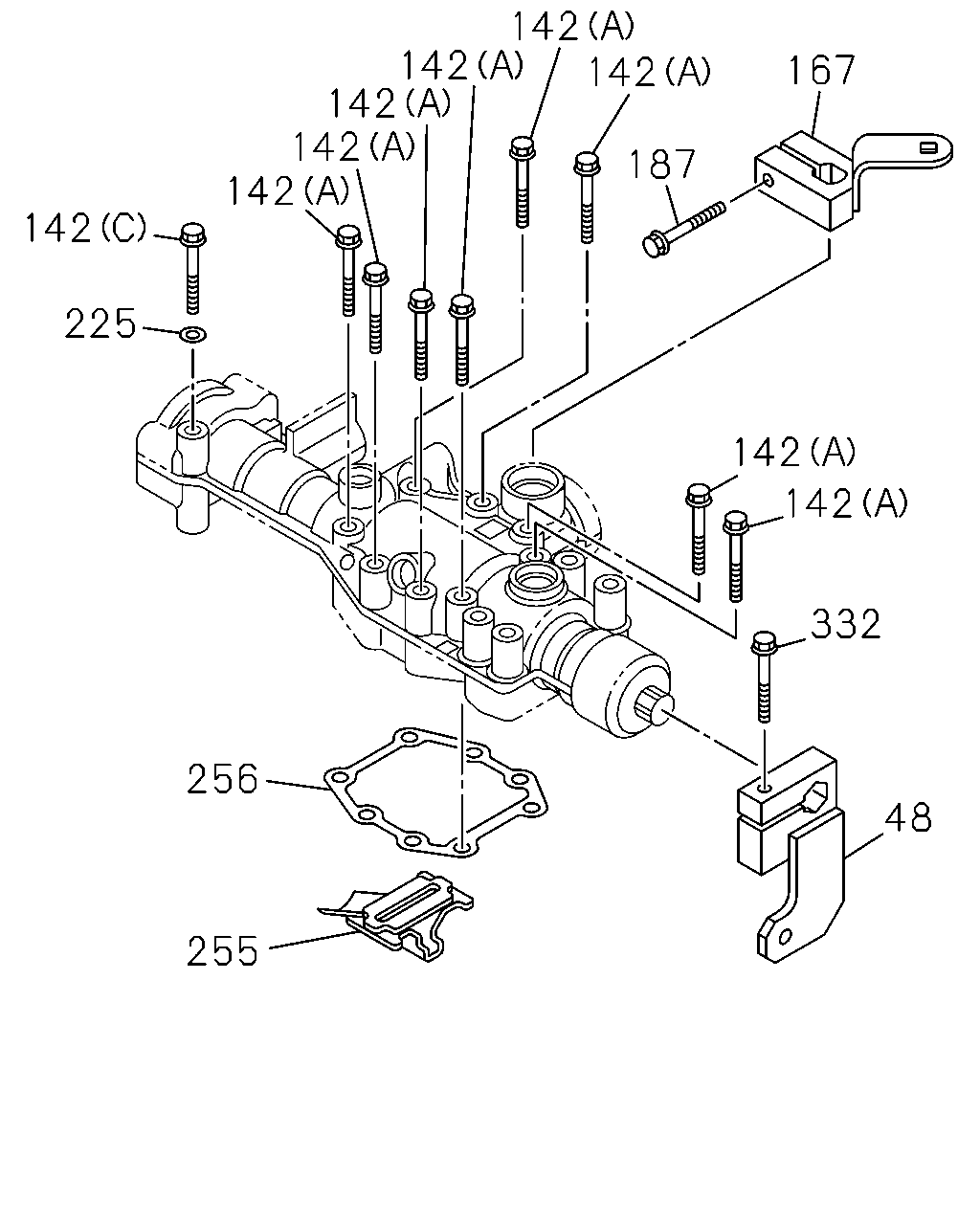

142 142 142 142 142 142 167 187 142 225 142 142 332 256 48 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	LEVER; 4TH,SHIFT	8-98101-105-0	01	1	0906-	●
48	LEVER; 4TH,SHIFT	1-33651-827-1	01	1	0906-		●
142	BOLT; QUAD BOX (C)	1-33549-290-0	01	1	0906-1311	●
142	BOLT; QUAD BOX (C) M8X100	1-33549-622-0	01	1	1312-	●
142	BOLT; QUAD BOX (A)	1-33549-476-0	12	1	0906-1311	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	12	1	1312-	●
142	BOLT; QUAD BOX (B)	1-33549-467-0	05	1	0906-1305		●
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-		●
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) (A)	1-33549-476-0	13	1	0906-1305		●
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-		●
142	BOLT; QUAD BOX EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	0906-1305		●
167	LEVER; SELECT,EXTERNAL	8-98101-114-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL	1-33651-831-1	01	1	0906-		●
187	BOLT; SELECT LEVER M8X40 FLANGE	0-28650-840-0	01	1	0906-	●
225	WASHER; LK,QUAD BOX	1-33549-159-0	01	1	0906-1311	●
225	WASHER; LK,QUAD BOX	1-33549-583-0	01	1	1312-	●
255	PLATE; DIST,QUAD BOX	1-33549-505-0	01	1	0906-	●
256	GASKET; QUAD BOX TO TRANS CASE	1-33549-504-0	01	1	0906-	●
256	GASKET; QUAD BOX TO TRANS CASE	1-33542-062-0	01	1	0906-		●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28650-840-0	01	1	0906-	●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28650-840-0	02	1	0906-		●

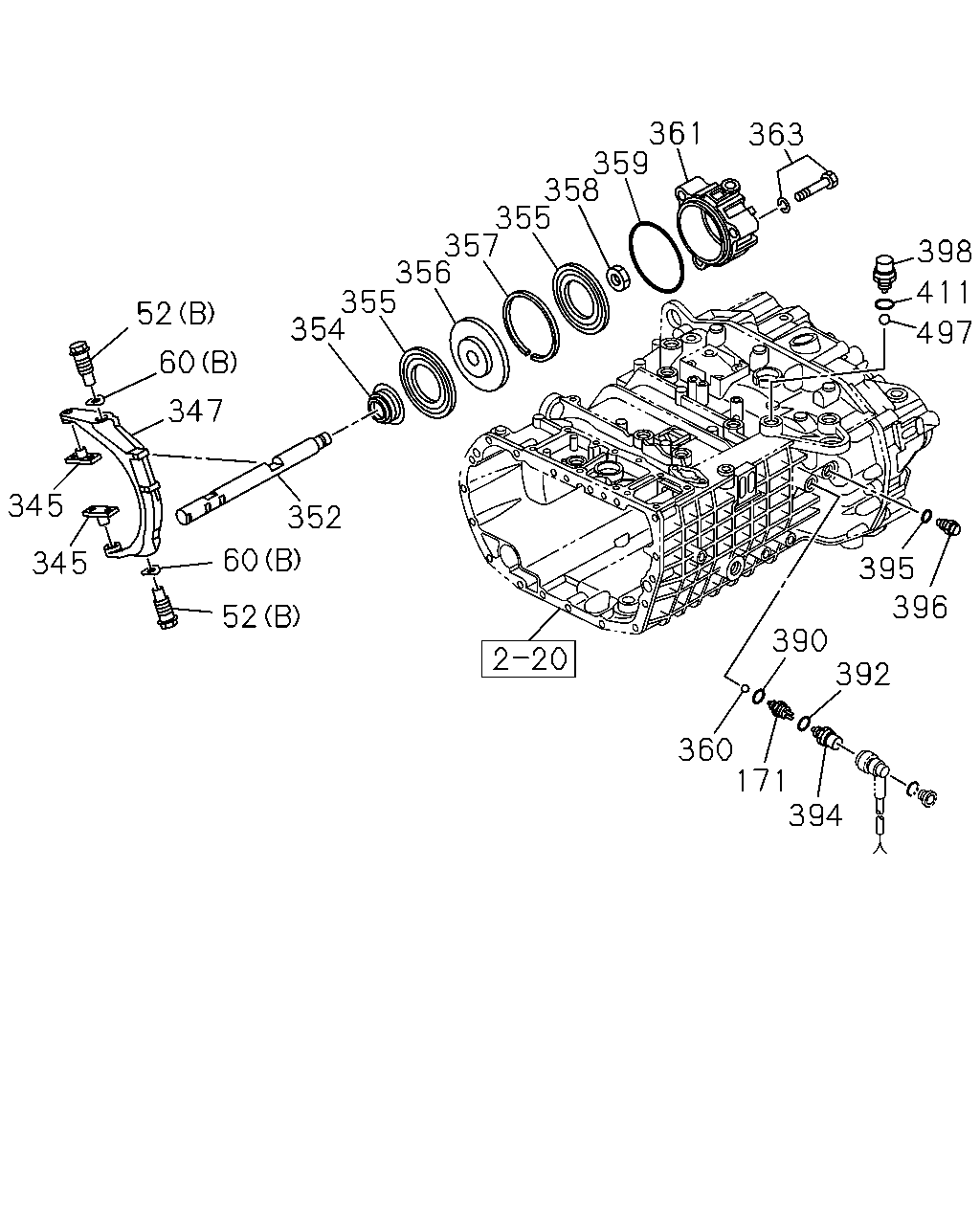

361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 345 352 60 345 395 396 52 390 392 360 171 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BOLT; SHIFT ARM (A)	1-33519-174-0	02	1	0906-1311	●
52	BOLT; SHIFT ARM (A)	1-33519-199-0	02	1	1312-	●
52	BOLT; SHIFT ARM (C)	1-33519-175-0	06	1	0906-1311	●
52	BOLT; SHIFT ARM (C)	1-33519-200-0	06	1	1312-	●
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	0906-1305		●
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-		●
52	BOLT; SHIFT ARM (D)	1-33519-084-0	07	1	0906-1305		●
52	BOLT; SHIFT ARM (D)	1-33519-190-0	07	1	1306-		●
60	WASHER; LK (A)	1-33519-085-0	08	1	0906-1311	●
60	WASHER; LK (B)	1-33519-059-0	02	1	0906-1305		●
60	WASHER; LK (A)	1-33519-085-0	07	1	0906-1305		●
171	SWITCH; NEUTRAL PTO ZF TRANS RR(BDM)	1-33119-587-0	01	1	0906-1311	●
171	SWITCH; NEUTRAL	1-33119-627-0	01	1	1312-	●
171	SWITCH; NEUTRAL EXC. PTO ZF TRANS RR(BDM)	1-82440-127-0	01	1	0906-1311	●
171	SWITCH; NEUTRAL EXC. PTO ZF TRANS RR(BDM)	1-33549-338-0	01	1	0906-1305		●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-173-0	02	1	0906-	●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	0906-		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-646-0	01	1	0906-1311	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-668-0	01	1	1312-	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	0906-		●
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	0906-1305		●
352	ROD; SHIFT,RANGE CHANGE	1-33531-497-0	01	1	1306-		●
354	SEAL; AIR CYL	1-33519-045-0	01	1	0906-		●
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	0906-1305		●
356	PISTON; AIR CYL	1-33519-087-0	01	1	0906-1305		●
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-		●
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	0906-1305		●
358	NUT; SHIFT ROD	1-33519-049-0	01	1	0906-1305		●
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-		●
359	GASKET; AIR CYL	1-33519-093-0	01	1	0906-		●
360	BALL; AIR CYL	1-33119-252-0	01	1	0906-		●
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	0906-		●
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	0906-1305		●
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-		●
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	0906-1305		●
390	GASKET; NEUTRAL SW	1-33119-249-0	01	1	0906-1305	●
390	GASKET; NEUTRAL SW EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	0906-1305		●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1306-	●
392	GASKET; PLUG & SW	1-33119-249-0	01	1	0906-		●
394	SWITCH; RANGE CHANGE	1-33549-469-0	01	1	0906-1305		●
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-		●
395	GASKET; PLUNGER	1-33519-171-0	01	1	0906-1305		●
395	GASKET; PLUNGER	1-33549-497-0	01	1	1306-		●
396	PLUNGER; SHIFT ROD	1-33519-073-0	01	1	0906-1305		●
396	PLUNGER; SHIFT ROD	1-33519-189-0	01	1	1306-		●
398	SWITCH; REV LAMP	1-38119-062-0	01	1	0906-		●
411	GASKET; REV LAMP SW	1-33119-249-0	01	1	0906-		●
497	BALL; SWITCH	1-33119-252-0	01	1	0906-		●

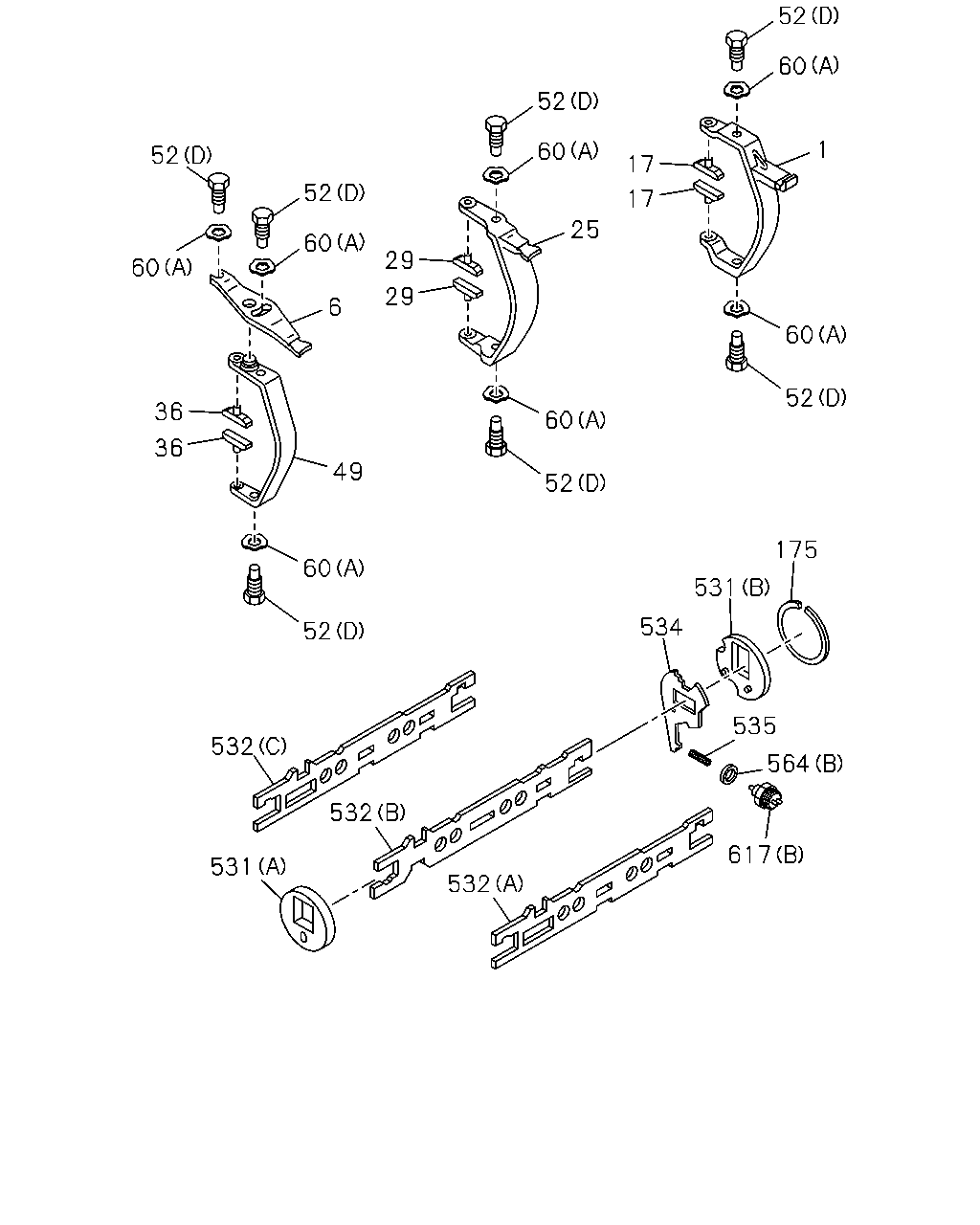

52 52 1 52 17 52 17 25 29 60 29 6 60 52 36 60 36 49 52 175 60 531 534 52 535 532 564 532 617 531 532 60 60 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-647-0	01	1	0906-1311	●
1	ARM; SHIFT,1ST & REV	1-33511-670-0	01	1	1312-	●
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33511-645-0	01	1	0906-1305		●
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-		●
1	ARM; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	0906-1305		●
6	LEVER; RELAY	1-33511-641-0	01	1	0906-1305		●
6	LEVER; RELAY	1-33511-658-0	01	1	1306-		●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	0906-1305	●
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	0906-1305		●
17	BLOCK; SHIFT,1ST & REV	1-33519-081-0	02	1	1306-	●
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	0906-1305		●
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-648-0	01	1	0906-1311	●
25	ARM; SHIFT,2ND & 3RD	1-33511-666-0	01	1	1312-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	0906-		●
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	0906-	●	●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-173-0	02	1	0906-	●
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	0906-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-649-0	01	1	0906-1311	●
49	ARM; SHIFT,4TH & 5TH	1-33511-667-0	01	1	1312-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	0906-		●
52	BOLT; SHIFT ARM (A)	1-33519-174-0	02	1	0906-1311	●
52	BOLT; SHIFT ARM (A)	1-33519-199-0	02	1	1312-	●
52	BOLT; SHIFT ARM (C)	1-33519-175-0	06	1	0906-1311	●
52	BOLT; SHIFT ARM (C)	1-33519-200-0	06	1	1312-	●
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	0906-1305		●
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-		●
52	BOLT; SHIFT ARM (D)	1-33519-084-0	07	1	0906-1305		●
52	BOLT; SHIFT ARM (D)	1-33519-190-0	07	1	1306-		●
60	WASHER; LK (A)	1-33519-085-0	08	1	0906-1311	●
60	WASHER; LK (B)	1-33519-059-0	02	1	0906-1305		●
60	WASHER; LK (A)	1-33519-085-0	07	1	0906-1305		●
175	RING; STOPPER,SHIFT LEVER	1-33539-088-0	01	1	0906-1305		●
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-		●
531	PLATE; BEARING (A)	1-33539-044-0	01	1	0906-		●
531	PLATE; BEARING (B)	1-33539-047-0	01	1	0906-		●
532	PLATE; SHIFT FORK (D)	1-33519-177-0	01	1	0906-1311	●
532	PLATE; SHIFT FORK (D)	1-33519-193-0	01	1	1312-	●
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	0906-		●
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	0906-		●
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	0906-		●
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	0906-		●
535	SPRING; LEVER	1-33539-049-0	01	1	0906-		●
564	SEAL; RING (B)	1-33549-444-0	01	1	0906-1305		●
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-		●
564	SEAL; RING (A) T=2.0	1-82449-010-0	01	1	0906-		●
617	PLUG (A)	1-33119-171-0	01	1	0906-1305		●
617	PLUG (A)	1-33119-619-0	01	1	1306-		●
617	PLUG (B)	1-34129-061-0	01	1	0906-1305		●
617	PLUG (B)	1-33539-109-0	01	1	1306-		●

142 677 310 569 42 256 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	CAP; QUAD BOX (C)	1-33549-509-0	01	1	0906-1311	●
42	CAP; QUAD BOX (C)	1-33549-613-0	01	1	1312-	●
42	CAP; QUAD BOX (D)	1-37249-107-0	01	1	0906-1311	●
42	CAP; QUAD BOX (E)	1-37249-212-0	01	1	0906-1311	●
42	CAP; QUAD BOX (F)	1-37249-213-0	01	1	0906-1311	●
42	CAP; QUAD BOX (G)	1-37249-214-0	01	1	0906-1311	●
42	CAP; QUAD BOX (A)	1-33549-456-0	01	1	0906-1305		●
42	CAP; QUAD BOX (A)	1-33549-548-0	01	1	1306-		●
42	CAP; QUAD BOX (B)	1-33549-463-0	01	1	0906-1305		●
42	CAP; QUAD BOX (B)	1-33549-619-0	01	1	1306-		●
142	BOLT; QUAD BOX (C)	1-33549-290-0	01	1	0906-1311	●
142	BOLT; QUAD BOX (C) M8X100	1-33549-622-0	01	1	1312-	●
142	BOLT; QUAD BOX (A)	1-33549-476-0	12	1	0906-1311	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	12	1	1312-	●
142	BOLT; QUAD BOX (B)	1-33549-467-0	05	1	0906-1305		●
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-		●
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) (A)	1-33549-476-0	13	1	0906-1305		●
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-		●
142	BOLT; QUAD BOX EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	0906-1305		●
256	GASKET; QUAD BOX TO TRANS CASE	1-33549-504-0	01	1	0906-	●
256	GASKET; QUAD BOX TO TRANS CASE	1-33542-062-0	01	1	0906-		●
310	PLATE; LOCK,SHIFT LEVER	1-33549-453-0	01	1	0906-		●
418	PIECE; DIST,QUAD BOX	1-33549-454-0	01	1	0906-		●
569	PIN; QUADRANT BOX (D)	1-33119-586-0	01	1	0906-	●
569	PIN; QUADRANT BOX (B)	1-33549-558-0	01	1	0906-	●
569	PIN; QUADRANT BOX (A)	1-33529-106-0	01	1	0906-	●	●
569	PIN; QUADRANT BOX (B)	1-33549-452-0	01	1	0906-		●
569	PIN; QUADRANT BOX (C)	1-33549-468-0	01	1	0906-		●
677	PIN; PLATE	1-33549-452-0	01	1	0906-		●

622 346 349 351 349 513 351 513 351 346 353 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
346	HOSE; AIR (A)	1-33549-473-0	01	1	0906-		●
346	HOSE; AIR (B)	1-33549-474-0	01	1	0906-		●
349	BOLT; EYE,AIR HOSE	1-33549-155-0	02	1	0906-1305		●
349	BOLT; EYE,AIR HOSE M14	1-33549-592-0	02	1	1306-		●
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	0906-1312	●
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1401-	●
351	GASKET; CONNECTOR (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0906-		●
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	02	1	0906-1312		●
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	02	1	1401-		●
351	GASKET; CONNECTOR (A)	1-33549-444-0	04	1	0906-1305		●
351	GASKET; CONNECTOR (A)	1-33549-578-0	04	1	1306-		●
353	CLIP; AIR HOSE	1-33549-475-0	02	1	0906-1305		●
353	CLIP; AIR HOSE	1-33549-530-0	02	1	1306-		●
513	CLIP; BAND L=250	5-09707-030-1	03	1	0906-	●
513	CLIP; BAND L=250	5-09707-030-1	05	1	0906-		●
622	TUBE; CORRUGATE	1-83129-021-0	01	1	0906-1004		●
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1005-		●

443 512 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
443	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0906-		●
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	03	1	0906-	●
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	05	1	0906-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
