Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#6086) — 300 parça

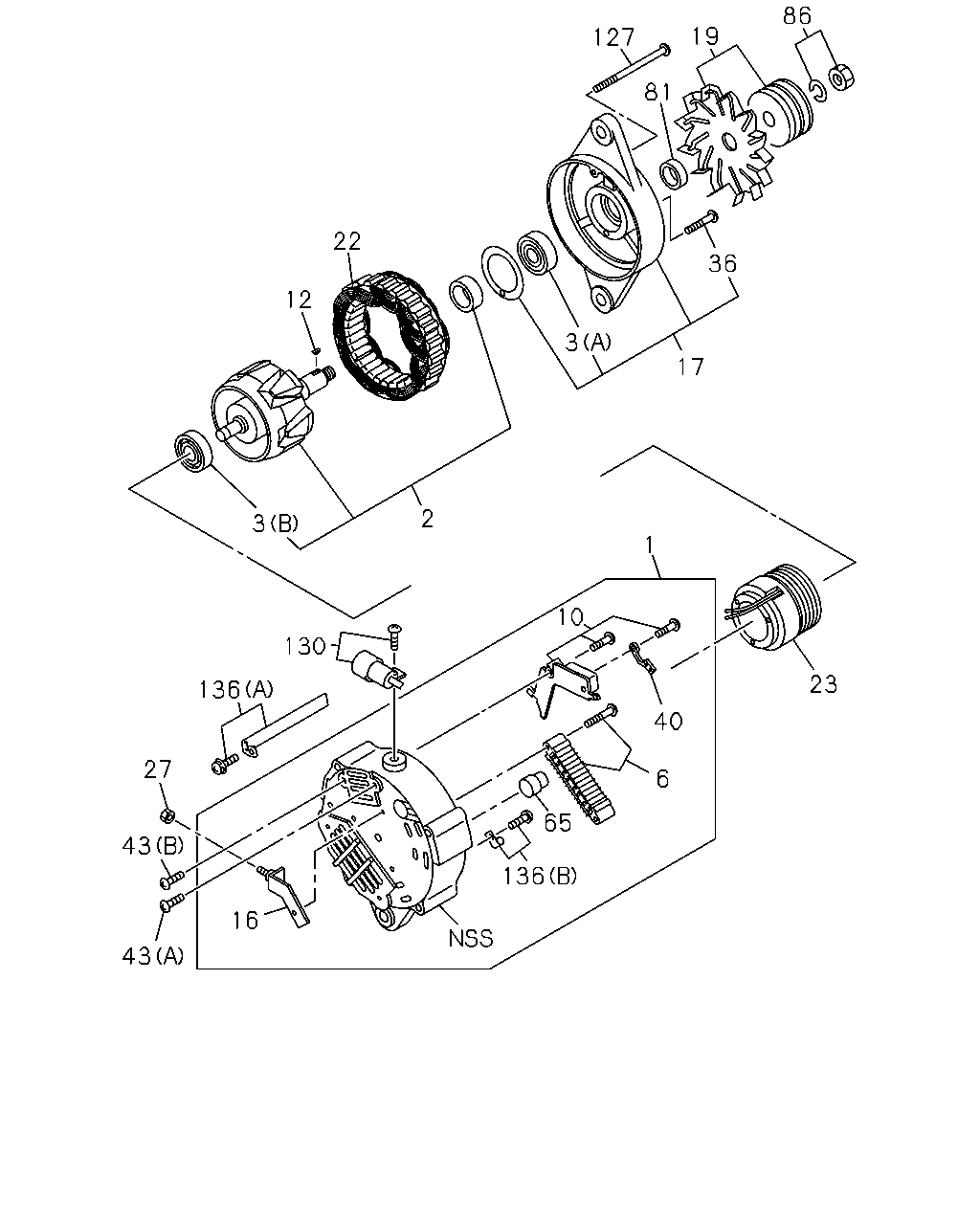

86 19 127 81 22 36 12 3 17 2 3 1 10 130 23 136 40 27 6 65 43 136 16 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81214-337-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81214-377-0	01	1	-0506
1	COVER ASM; RR,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-104-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81222-165-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	8-98024-557-3	01	1	0507-
2	ROTOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-121-0	01	1	-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81211-127-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81221-102-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81221-105-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-437-4	1-81229-678-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: B = 1-81200-469-4	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: B = 1-81200-469-4	1-81229-740-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81260-008-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81260-015-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81260-019-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81219-108-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81219-117-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81219-121-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81219-141-0	01	1	-
12	KEY; ROTOR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-771-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-890-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81213-093-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81213-094-0	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81213-117-0	01	1	-
19	PULLEY; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81222-101-0	01	1	-9905
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-123-0	01	1	-9905
19	PULLEY; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81222-130-1	01	1	-
19	PULLEY; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81222-139-1	01	1	-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81222-154-0	01	1	9906-
22	STATOR; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81211-110-0	01	1	-
22	STATOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-122-0	01	1	-9905
22	STATOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-124-0	01	1	9906-
22	STATOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81211-129-0	01	1	-
22	STATOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81211-131-0	01	1	-9907
22	STATOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81211-135-0	01	1	9908-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81212-027-0	01	1	-9907
23	COIL; ROTOR GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81212-031-0	01	1	9908-
23	COIL; ROTOR GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-092-0	01	1	-
23	COIL; ROTOR GEN NIKKO ASM PART: B = 1-81200-469-4	1-81222-102-0	01	1	-
27	NUT; RECTIFIER,GEN MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	1-81229-772-0	01	1	-
36	SCREW; FRT COVER MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-768-0	01	1	-
36	SCREW; FRT COVER MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-814-0	01	1	-
40	PLATE; RR COVER MITSUBISHI ASM PART: D = 1-81200-572-8	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: A = 1-81200-437-4	1-81229-473-0	03	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: B = 1-81200-469-4	1-81229-733-0	03	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (A) MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-817-0	01	1	-
65	CONDENSER; GEN NIKKO ASM PART: A = 1-81200-437-4	1-84132-008-0	01	1	-
65	CONDENSER; GEN NIKKO ASM PART: B = 1-81200-469-4	1-84132-012-0	01	1	-
65	CONDENSER; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-84132-016-0	01	1	-
81	SPACER; ROTOR,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-642-0	01	1	-
81	SPACER; ROTOR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-813-0	01	1	-
86	NUT SET; PULLEY,GEN MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	8-97178-134-0	01	1	-
127	BOLT SET; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-767-0	01	1	-
127	BOLT SET; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-812-0	01	1	-
130	CONNECTOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-776-0	01	1	-
130	CONNECTOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-897-0	01	1	-

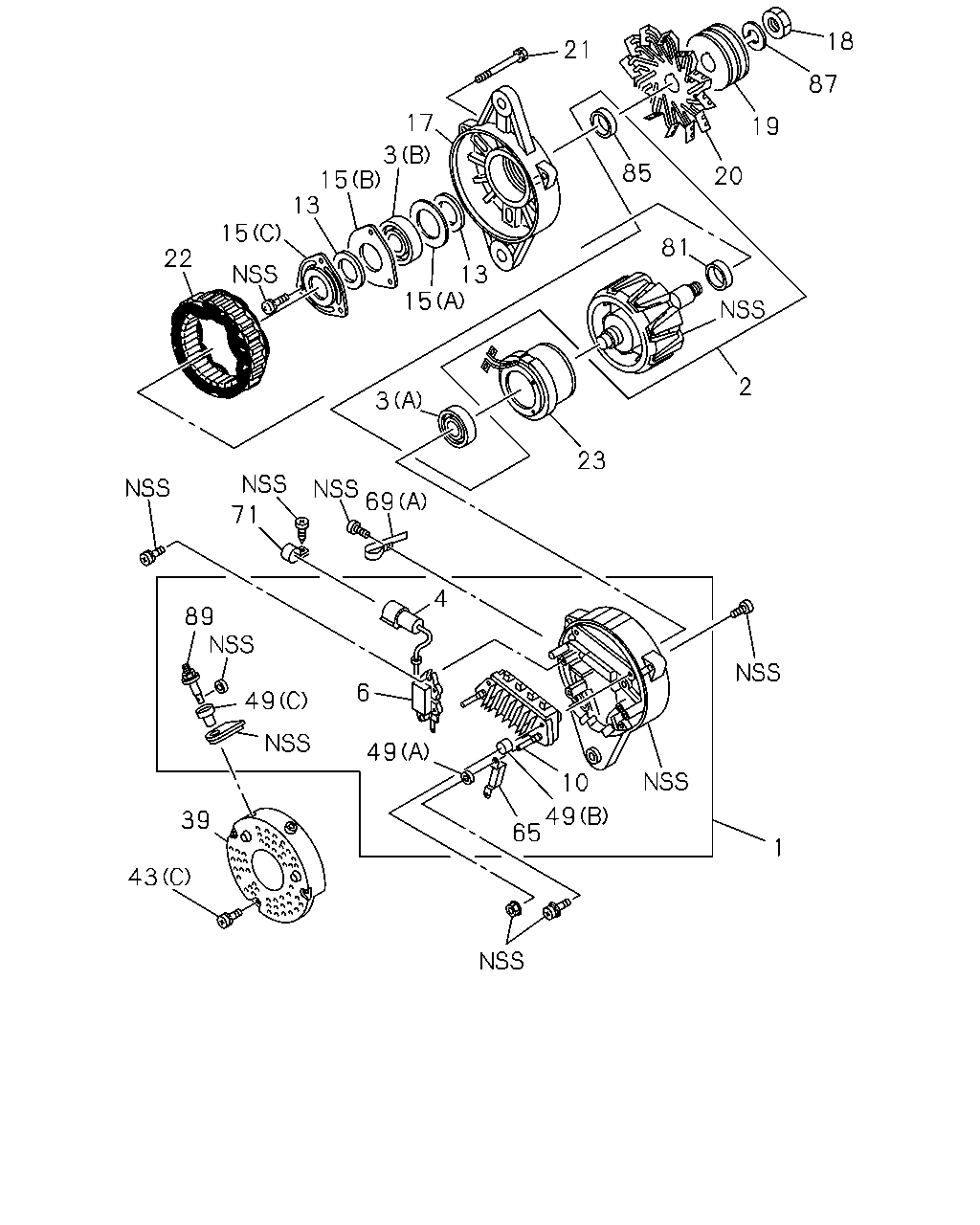

18 21 87 17 19 3 15 13 85 20 15 81 22 13 15 2 3 23 69 71 4 89 6 49 49 10 49 65 39 1 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81214-337-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81214-377-0	01	1	-0506
1	COVER ASM; RR,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-104-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81222-165-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	8-98024-557-3	01	1	0507-
2	ROTOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-121-0	01	1	-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81211-127-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81221-102-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81221-105-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-437-4	1-81229-678-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: B = 1-81200-469-4	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: B = 1-81200-469-4	1-81229-740-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-816-0	01	1	-
4	TERMINAL; BRUSH,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-679-0	01	1	-
4	TERMINAL; BRUSH,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81229-725-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81260-008-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81260-015-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81260-019-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81219-108-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81219-117-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81219-121-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81219-141-0	01	1	-
13	GASKET; ROTOR,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-644-0	02	1	-
15	RETAINER; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-643-0	01	1	-
15	RETAINER; ROTOR,GEN (B) NIKKO ASM PART: B = 1-81200-469-4	8-97094-161-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81213-093-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81213-094-0	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81213-117-0	01	1	-
18	NUT; PULLEY,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-474-0	01	1	-
19	PULLEY; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81222-101-0	01	1	-9905
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-123-0	01	1	-9905
19	PULLEY; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81222-130-1	01	1	-
19	PULLEY; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81222-139-1	01	1	-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81222-154-0	01	1	9906-
20	FAN; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81223-017-0	01	1	-
20	FAN; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81223-019-0	01	1	-
21	BOLT; THROUGH,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-382-0	04	1	-
21	BOLT; THROUGH,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81229-382-0	03	1	-
22	STATOR; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81211-110-0	01	1	-
22	STATOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-122-0	01	1	-9905
22	STATOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-124-0	01	1	9906-
22	STATOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81211-129-0	01	1	-
22	STATOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81211-131-0	01	1	-9907
22	STATOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81211-135-0	01	1	9908-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81212-027-0	01	1	-9907
23	COIL; ROTOR GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81212-031-0	01	1	9908-
23	COIL; ROTOR GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-092-0	01	1	-
23	COIL; ROTOR GEN NIKKO ASM PART: B = 1-81200-469-4	1-81222-102-0	01	1	-
39	COVER; END,RR COVER,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81214-342-0	01	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: A = 1-81200-437-4	1-81229-473-0	03	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: B = 1-81200-469-4	1-81229-733-0	03	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (A) MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-817-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) NIKKO ASM PART: A = 1-81200-437-4	1-81229-648-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) NIKKO ASM PART: A = 1-81200-437-4	1-81229-649-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	1-81229-650-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) NIKKO ASM PART: B = 1-81200-469-4	1-81229-727-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) NIKKO ASM PART: B = 1-81200-469-4	1-81229-728-0	02	1	-
49	BUSHING; RECTIFIER,GEN (C) NIKKO ASM PART: B = 1-81200-469-4	1-81229-729-0	01	1	-
65	CONDENSER; GEN NIKKO ASM PART: A = 1-81200-437-4	1-84132-008-0	01	1	-
65	CONDENSER; GEN NIKKO ASM PART: B = 1-81200-469-4	1-84132-012-0	01	1	-
65	CONDENSER; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-84132-016-0	01	1	-
69	CLIP; WIRE,GEN (A) NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-516-0	01	1	-
69	CLIP; WIRE,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	9-82215-810-0	02	1	-
71	HOLDER; TERMINAL,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-642-0	01	1	-
81	SPACER; ROTOR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-813-0	01	1	-
85	SPACER; PULLEY,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-642-0	01	1	-
85	SPACER; PULLEY,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81229-722-0	01	1	-
87	WASHER; PULLEY,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-479-0	01	1	-
89	BOLT; RECTIFIER,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-646-0	01	1	-
89	BOLT; RECTIFIER,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81229-731-0	01	1	-

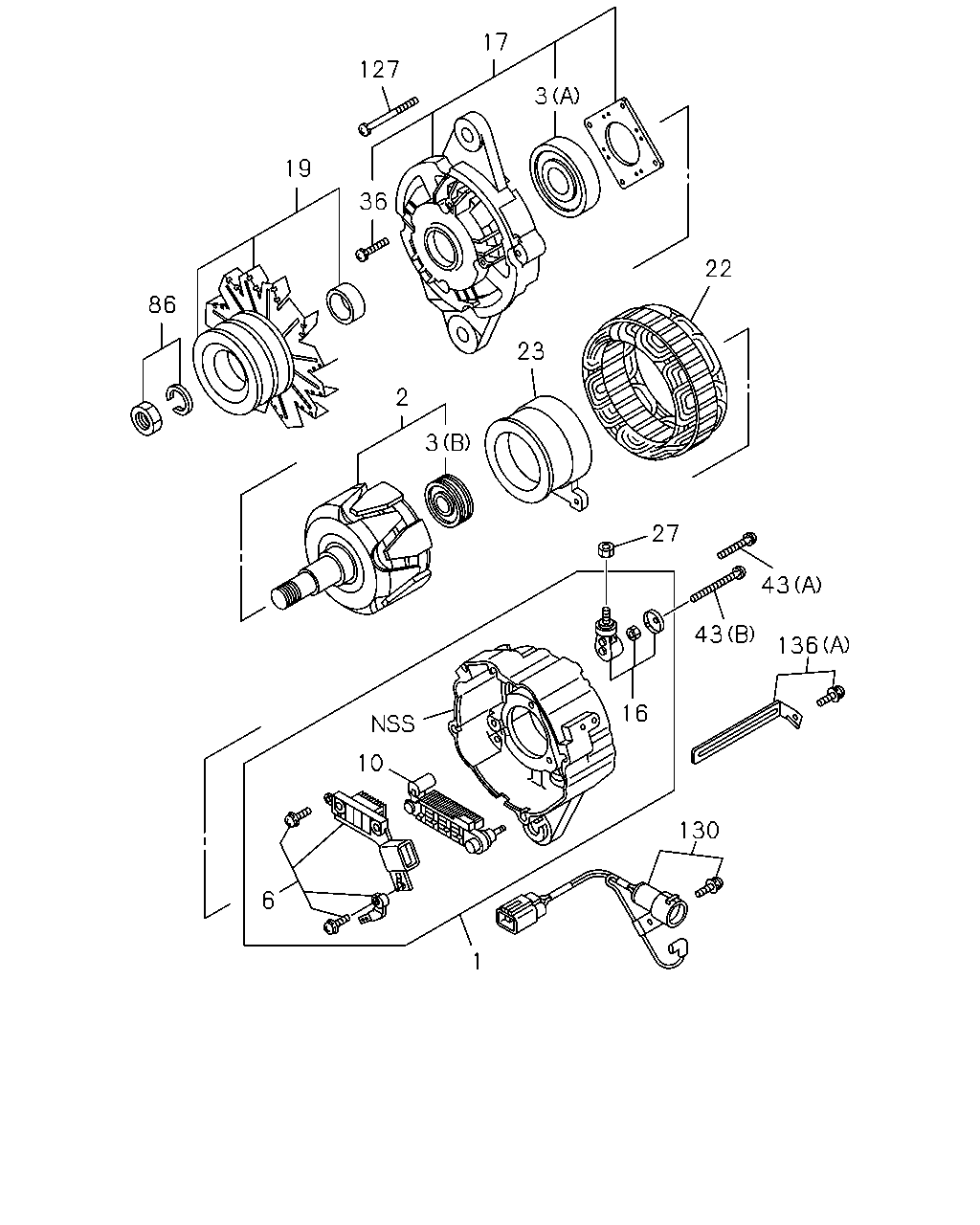

17 127 3 19 36 22 86 23 2 3 27 43 43 136 16 10 130 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81214-337-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81214-377-0	01	1	-0506
1	COVER ASM; RR,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-104-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81222-165-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	8-98024-557-3	01	1	0507-
2	ROTOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-121-0	01	1	-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81211-127-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81221-102-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81221-105-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-437-4	1-81229-678-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: B = 1-81200-469-4	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: B = 1-81200-469-4	1-81229-740-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81260-008-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81260-015-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81260-019-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81219-108-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81219-117-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81219-121-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81219-141-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-771-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-890-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81213-093-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81213-094-0	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81213-117-0	01	1	-
19	PULLEY; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81222-101-0	01	1	-9905
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-123-0	01	1	-9905
19	PULLEY; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81222-130-1	01	1	-
19	PULLEY; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81222-139-1	01	1	-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81222-154-0	01	1	9906-
22	STATOR; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81211-110-0	01	1	-
22	STATOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-122-0	01	1	-9905
22	STATOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-124-0	01	1	9906-
22	STATOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81211-129-0	01	1	-
22	STATOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81211-131-0	01	1	-9907
22	STATOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81211-135-0	01	1	9908-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81212-027-0	01	1	-9907
23	COIL; ROTOR GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81212-031-0	01	1	9908-
23	COIL; ROTOR GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-092-0	01	1	-
23	COIL; ROTOR GEN NIKKO ASM PART: B = 1-81200-469-4	1-81222-102-0	01	1	-
27	NUT; RECTIFIER,GEN MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	1-81229-772-0	01	1	-
36	SCREW; FRT COVER MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-768-0	01	1	-
36	SCREW; FRT COVER MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-814-0	01	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: A = 1-81200-437-4	1-81229-473-0	03	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: B = 1-81200-469-4	1-81229-733-0	03	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (A) MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-817-0	01	1	-
86	NUT SET; PULLEY,GEN MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	8-97178-134-0	01	1	-
127	BOLT SET; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-767-0	01	1	-
127	BOLT SET; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-812-0	01	1	-
130	CONNECTOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-776-0	01	1	-
130	CONNECTOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-897-0	01	1	-

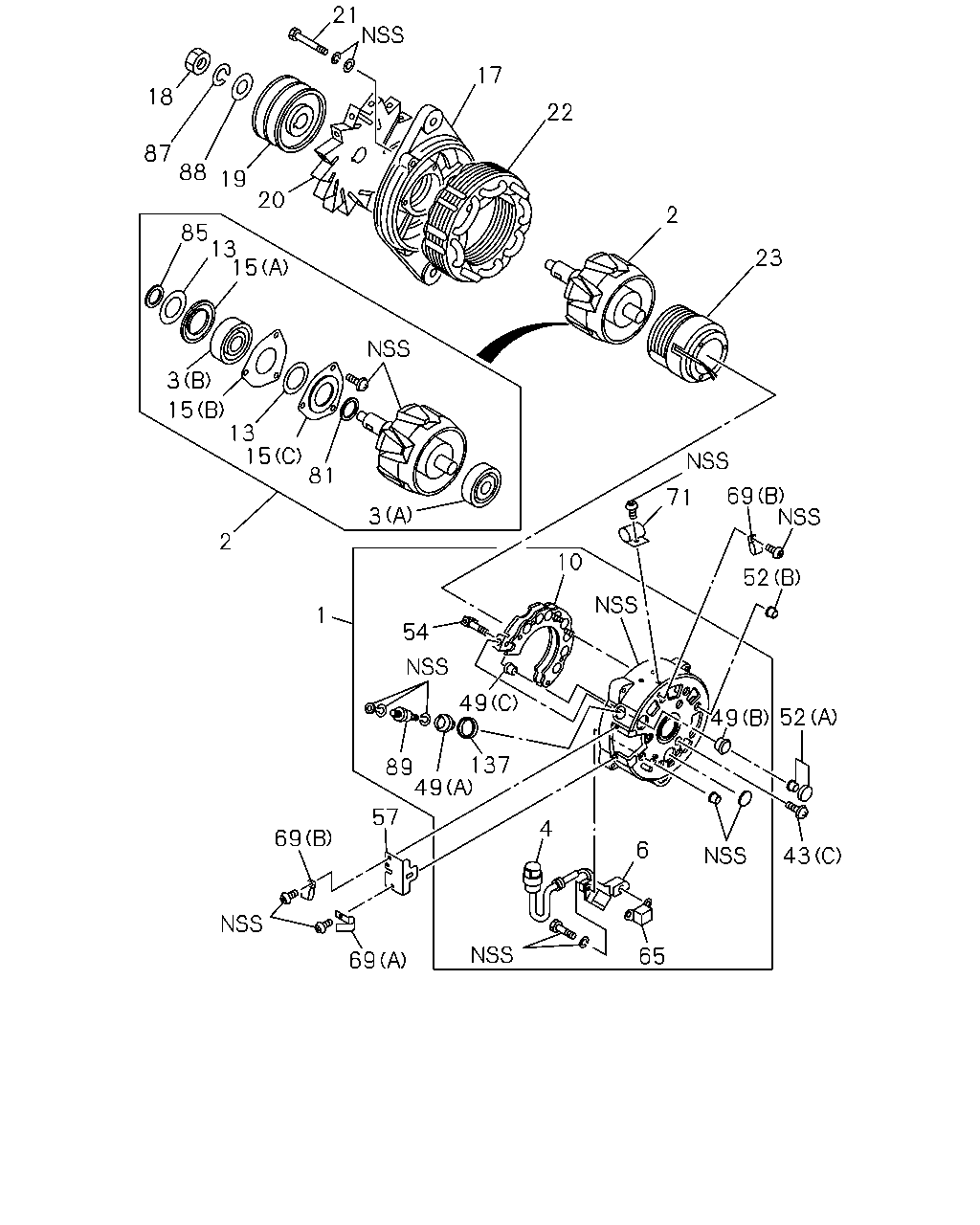

21 17 18 22 87 88 19 20 2 85 13 15 23 3 15 13 15 81 69 71 2 10 52 1 54 49 49 52 137 89 49 57 4 69 6 43 65 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81214-337-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81214-377-0	01	1	-0506
1	COVER ASM; RR,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-104-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81222-165-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	8-98024-557-3	01	1	0507-
2	ROTOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-121-0	01	1	-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81211-127-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81221-102-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81221-105-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-437-4	1-81229-678-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: B = 1-81200-469-4	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: B = 1-81200-469-4	1-81229-740-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-816-0	01	1	-
4	TERMINAL; BRUSH,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-679-0	01	1	-
4	TERMINAL; BRUSH,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81229-725-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81260-008-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81260-015-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81260-019-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81219-108-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81219-117-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81219-121-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81219-141-0	01	1	-
13	GASKET; ROTOR,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-644-0	02	1	-
15	RETAINER; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-643-0	01	1	-
15	RETAINER; ROTOR,GEN (B) NIKKO ASM PART: B = 1-81200-469-4	8-97094-161-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81213-093-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81213-094-0	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81213-117-0	01	1	-
18	NUT; PULLEY,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-474-0	01	1	-
19	PULLEY; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81222-101-0	01	1	-9905
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-123-0	01	1	-9905
19	PULLEY; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81222-130-1	01	1	-
19	PULLEY; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81222-139-1	01	1	-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81222-154-0	01	1	9906-
20	FAN; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81223-017-0	01	1	-
20	FAN; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81223-019-0	01	1	-
21	BOLT; THROUGH,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-382-0	04	1	-
21	BOLT; THROUGH,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81229-382-0	03	1	-
22	STATOR; GEN NIKKO ASM PART: A = 1-81200-437-4	1-81211-110-0	01	1	-
22	STATOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-122-0	01	1	-9905
22	STATOR; GEN NIKKO ASM PART: B = 1-81200-469-4	1-81211-124-0	01	1	9906-
22	STATOR; GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81211-129-0	01	1	-
22	STATOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81211-131-0	01	1	-9907
22	STATOR; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81211-135-0	01	1	9908-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: C = 1-81200-517-1	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81212-027-0	01	1	-9907
23	COIL; ROTOR GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81212-031-0	01	1	9908-
23	COIL; ROTOR GEN NIKKO ASM PART: A = 1-81200-437-4	1-81222-092-0	01	1	-
23	COIL; ROTOR GEN NIKKO ASM PART: B = 1-81200-469-4	1-81222-102-0	01	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: A = 1-81200-437-4	1-81229-473-0	03	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: B = 1-81200-469-4	1-81229-733-0	03	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: C = 1-81200-517-1	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (A) MITSUBISHI ASM PART: C = 1-81200-517-1, D = 1-81200-572-8	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-817-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) NIKKO ASM PART: A = 1-81200-437-4	1-81229-648-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) NIKKO ASM PART: A = 1-81200-437-4	1-81229-649-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	1-81229-650-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) NIKKO ASM PART: B = 1-81200-469-4	1-81229-727-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) NIKKO ASM PART: B = 1-81200-469-4	1-81229-728-0	02	1	-
49	BUSHING; RECTIFIER,GEN (C) NIKKO ASM PART: B = 1-81200-469-4	1-81229-729-0	01	1	-
52	CAP; RUBBER,TERMINAL (A) NIKKO ASM PART: A = 1-81200-437-4	1-81229-652-0	01	1	-
52	CAP; RUBBER,TERMINAL (B) NIKKO ASM PART: A = 1-81200-437-4	1-81229-653-0	01	1	-
54	BOLT; RECTIFIER,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-647-0	01	1	-
57	COVER; BRUSH,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81214-296-0	01	1	-
65	CONDENSER; GEN NIKKO ASM PART: A = 1-81200-437-4	1-84132-008-0	01	1	-
65	CONDENSER; GEN NIKKO ASM PART: B = 1-81200-469-4	1-84132-012-0	01	1	-
65	CONDENSER; GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-84132-016-0	01	1	-
69	CLIP; WIRE,GEN (A) NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-516-0	01	1	-
69	CLIP; WIRE,GEN (B) NIKKO ASM PART: A = 1-81200-437-4	9-82215-810-0	02	1	-
71	HOLDER; TERMINAL,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-642-0	01	1	-
81	SPACER; ROTOR,GEN MITSUBISHI ASM PART: D = 1-81200-572-8	1-81229-813-0	01	1	-
85	SPACER; PULLEY,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-642-0	01	1	-
85	SPACER; PULLEY,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81229-722-0	01	1	-
87	WASHER; PULLEY,GEN NIKKO ASM PART: A = 1-81200-437-4, B = 1-81200-469-4	1-81229-479-0	01	1	-
88	WASHER; PL,PULLEY GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-478-0	01	1	-
89	BOLT; RECTIFIER,GEN NIKKO ASM PART: A = 1-81200-437-4	1-81229-646-0	01	1	-
89	BOLT; RECTIFIER,GEN NIKKO ASM PART: B = 1-81200-469-4	1-81229-731-0	01	1	-
137	GASKET; RECTIFIER,GENERATOR NIKKO ASM PART: A = 1-81200-437-4	1-81229-651-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
