2-26A — MANUAL TRANSMISSION GEAR (#60859) — 548 parça

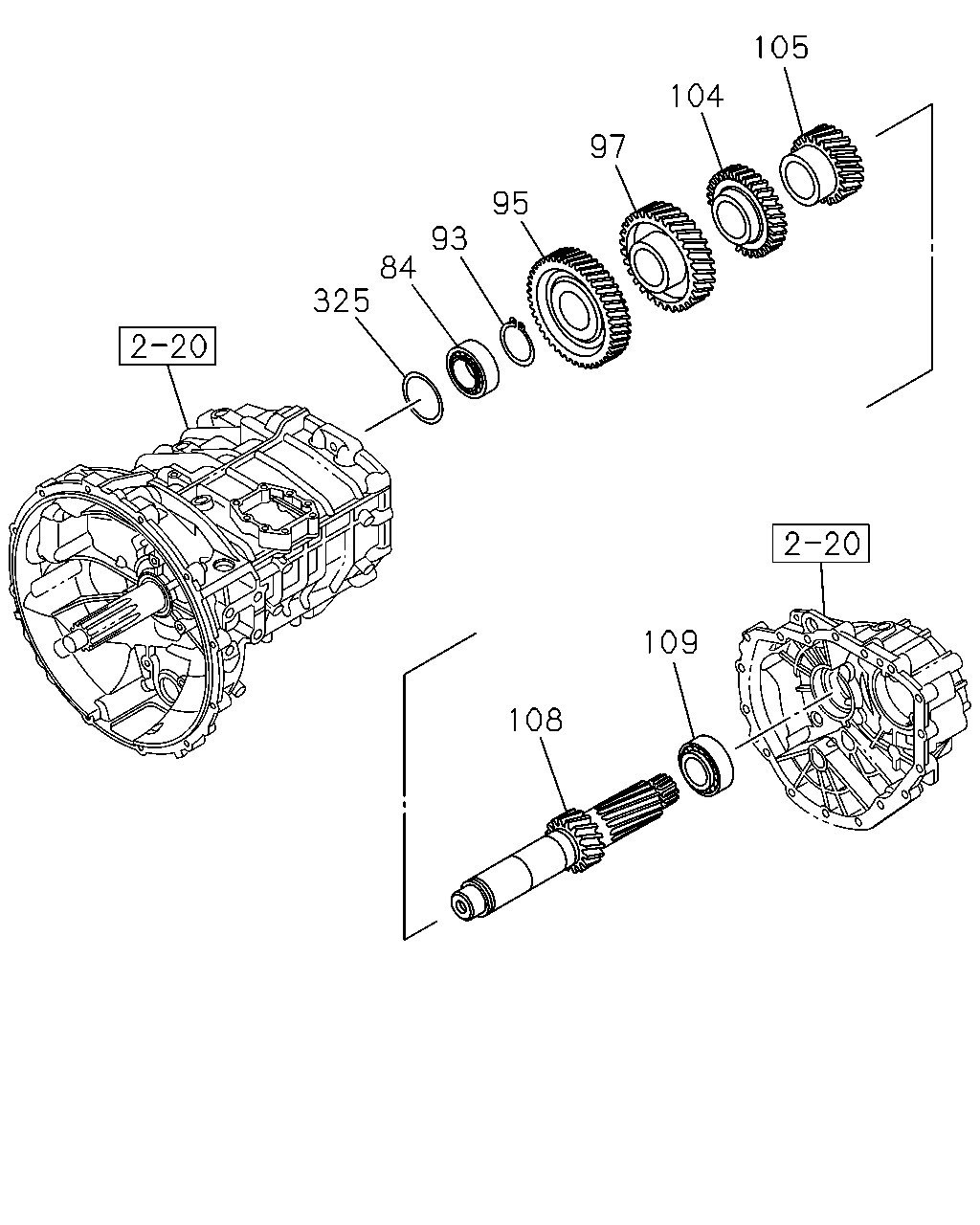

çizim 164593
105 104 97 95 93 84 325 109 108
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT 1-33239-360-0 01 1 0906- ●
84 BEARING; COUNTER SHAFT,FRT
PTO ZF TRANS RR(BDM) 		1-33312-016-0 01 1 0906-1305 ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
EXC. PTO ZF TRANS RR(BDM) 		1-33312-015-0 01 1 0906-1305 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG 1-33319-257-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 0906- ●
95 GEAR; REV,COUNTER 1-33338-404-0 01 1 0906- ●
97 GEAR; 5TH,COUNTER 1-33338-403-0 01 1 0906- ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 0906- ●
104 GEAR; 4TH,COUNTER 1-33338-401-0 01 1 0906- ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 0906- ●
105 GEAR; 3RD,COUNTER 1-33338-399-0 01 1 0906- ●
108 SHAFT; COUNTER 1-33311-349-0 01 1 0906- ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 0906- ●
109 BEARING; COUNTER SHAFT,RR 1-33239-361-0 01 1 0906- ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0906- ●

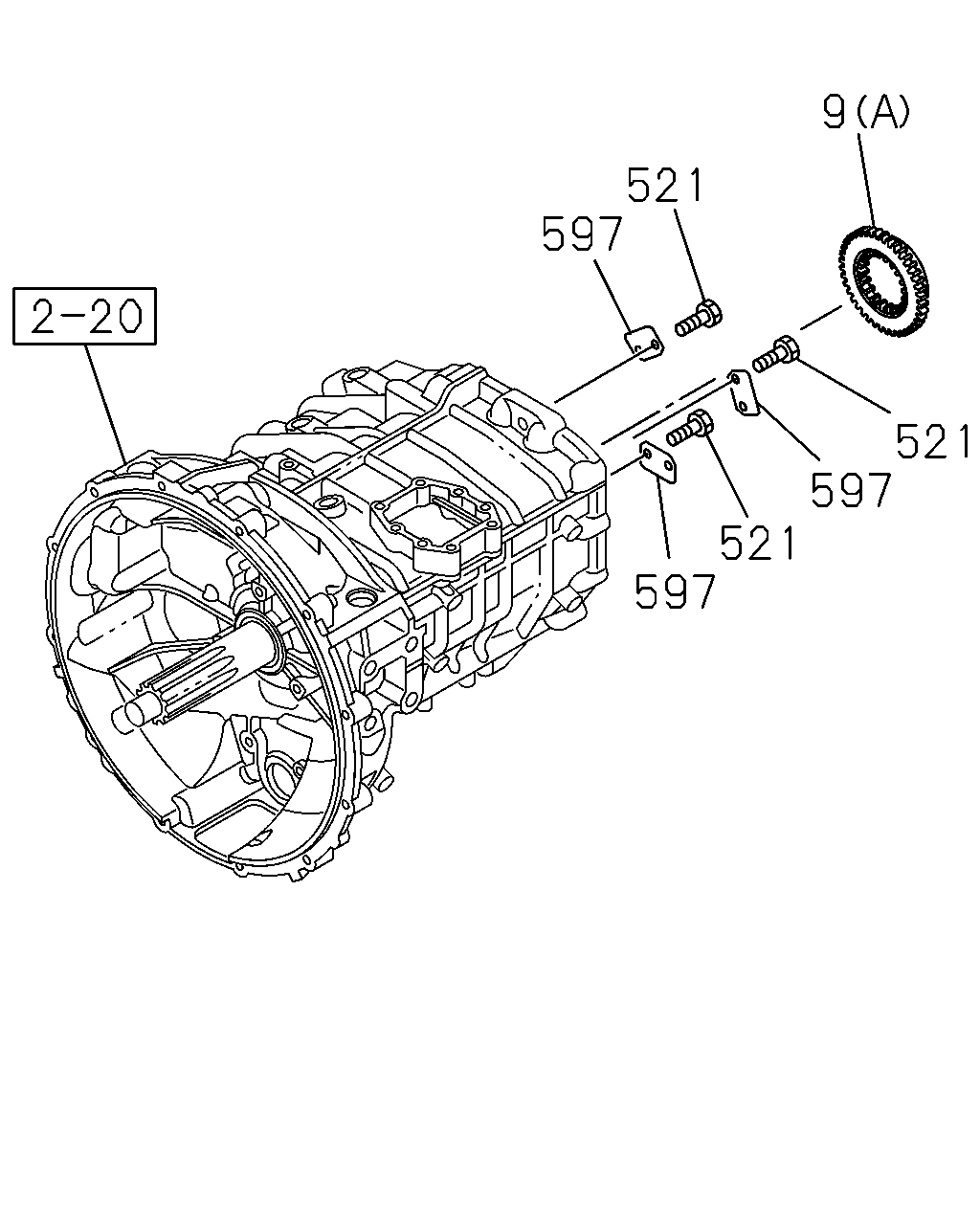

çizim 164595
9 521 597 521 597 521 597
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 0906- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 0906- ●
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 0906- ●
521 BOLT 1-33129-003-0 06 1 0906-1311 ●
521 BOLT 1-34129-134-0 06 1 1312- ●
597 WASHER; TAB 1-33219-329-0 03 1 0906- ●

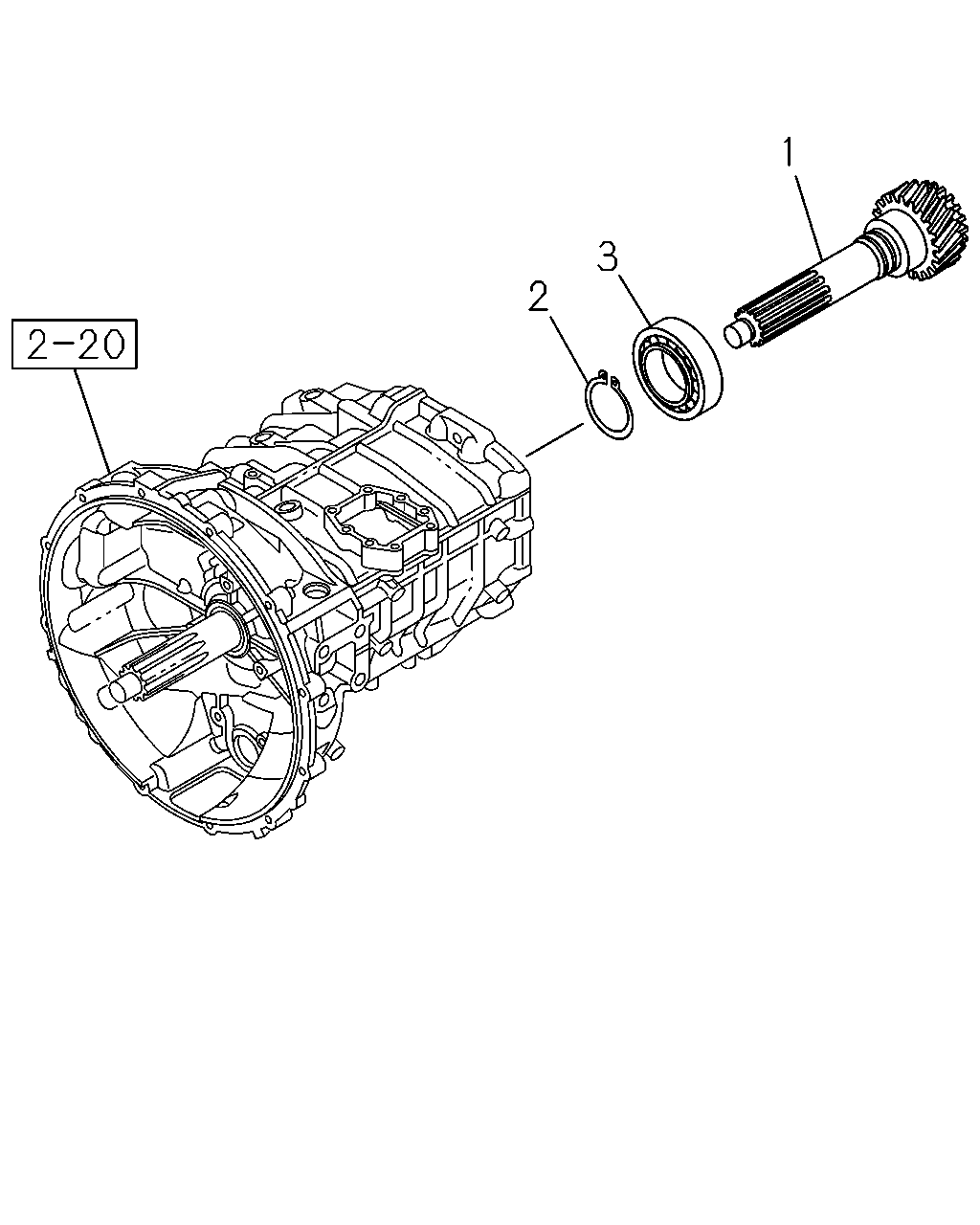

çizim 164597
1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-037-0 01 1 0906- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 0906- ●
2 RING; SNAP,TOP GEAR SHAFT 1-33319-257-0 01 1 0906-1311 ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-325-0 01 1 1312- ●
3 BEARING; TOP GEAR SHAFT 1-33219-324-0 01 1 0906- ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 0906- ●

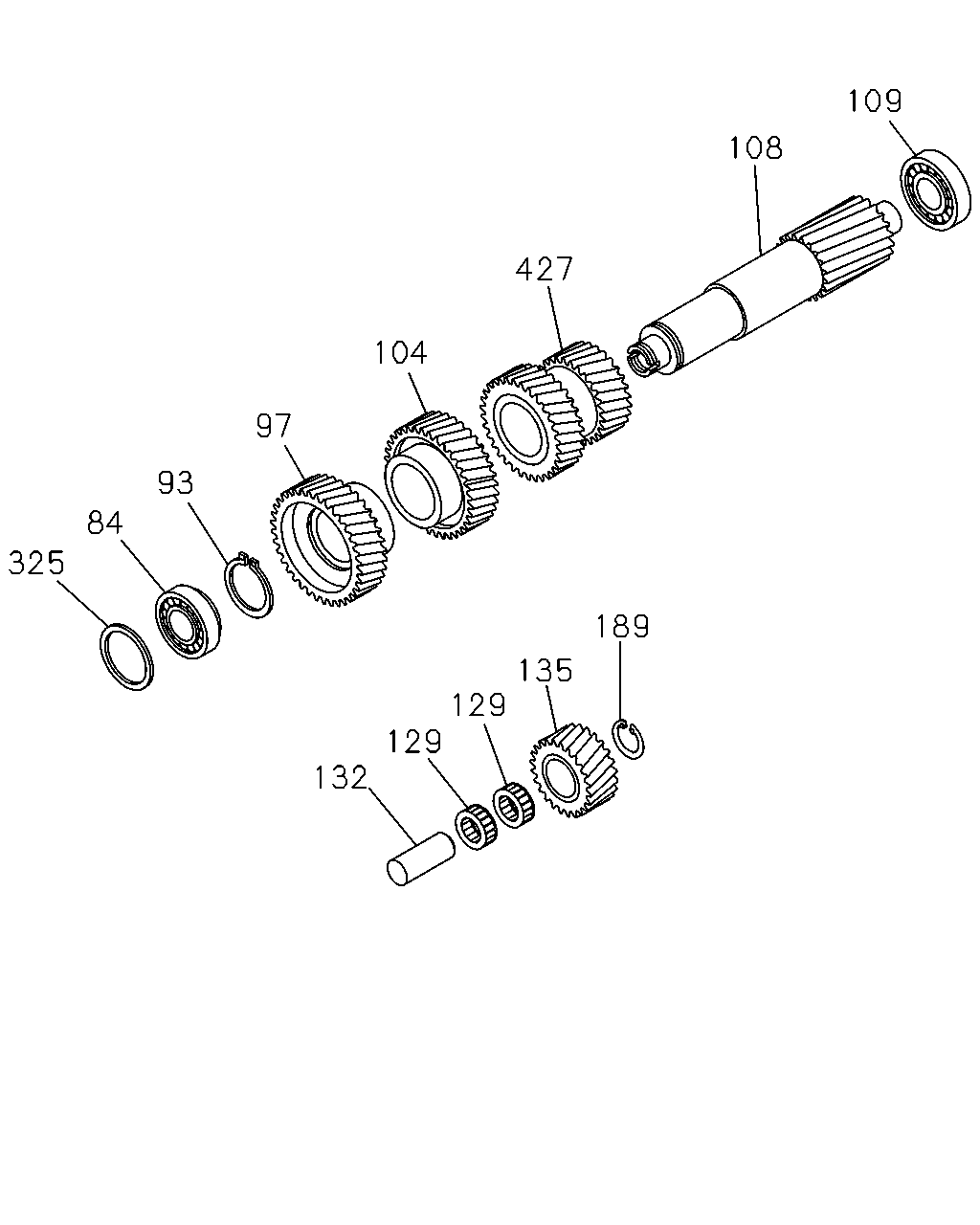

çizim 164599
109 108 427 104 97 93 84 325 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT 1-33239-360-0 01 1 0906- ●
84 BEARING; COUNTER SHAFT,FRT
PTO ZF TRANS RR(BDM) 		1-33312-016-0 01 1 0906-1305 ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
EXC. PTO ZF TRANS RR(BDM) 		1-33312-015-0 01 1 0906-1305 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG 1-33319-257-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 0906- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 0906- ●
97 GEAR; 5TH,COUNTER 1-33338-403-0 01 1 0906- ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 0906- ●
104 GEAR; 4TH,COUNTER 1-33338-401-0 01 1 0906- ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 0906- ●
108 SHAFT; COUNTER 1-33311-349-0 01 1 0906- ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 0906- ●
109 BEARING; COUNTER SHAFT,RR 1-33239-361-0 01 1 0906- ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0906- ●
129 BEARING; NEEDLE,IDLER 1-33369-025-0 02 1 0906- ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0906-1305 ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1306- ●
132 SHAFT; REV 1-33351-043-0 01 1 0906- ●
132 SHAFT; REV 1-33351-024-0 01 1 0906- ●
135 GEAR; REV IDLER
PTO ZF TRANS RR(BDM) 		1-33361-095-0 01 1 0906-1311 ●
135 GEAR; REV IDLER 1-33361-095-0 01 1 1312- ●
135 GEAR; REV IDLER
EXC. PTO ZF TRANS RR(BDM) 		1-33361-094-0 01 1 0906-1311 ●
135 GEAR; REV IDLER 1-33361-092-0 01 1 0906-1305 ●
135 GEAR; REV IDLER 1-33361-096-0 01 1 1306- ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0906- ●
427 GEAR; 2ND & 3RD,COUNTER
PTO ZF TRANS RR(BDM) 		1-33332-131-0 01 1 0906-1305 ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1306- ●
427 GEAR; 2ND & 3RD,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33332-130-0 01 1 0906-1305 ●

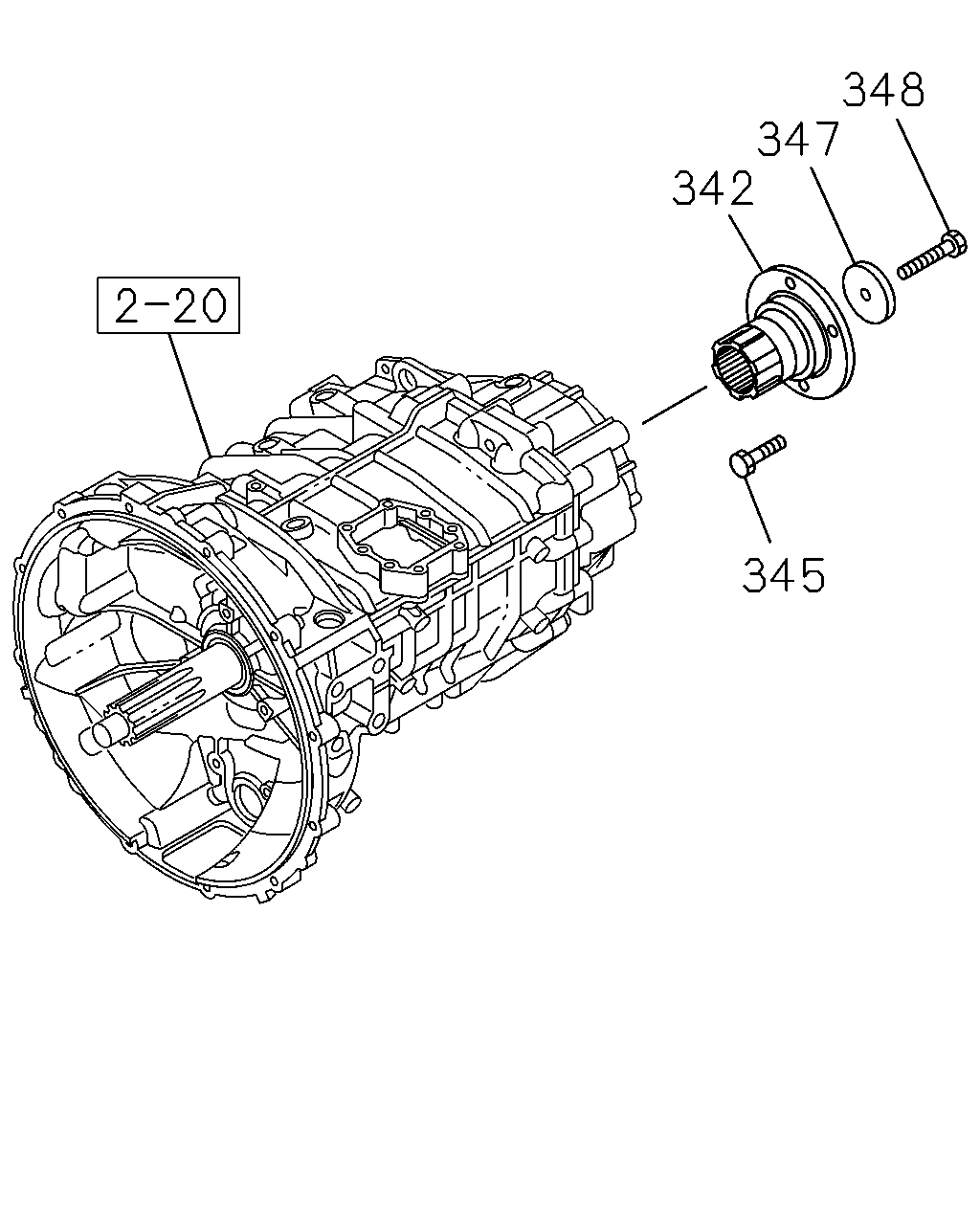

çizim 164601
348 347 342 345
BalonParca AdiParca NoAdetTipApplied Date A B
342 FLANGE; OUTPUT 1-37243-432-0 01 1 0906-1311 ●
342 FLANGE; OUTPUT 1-37243-434-0 01 1 1312- ●
342 FLANGE; OUTPUT 1-37243-429-0 01 1 0906- ●
345 BOLT; FLANGE TO YOKE 1-37249-210-0 04 1 0906- ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0906- ●
347 WASHER; FLANGE 1-37249-211-0 01 1 0906- ●
347 WASHER; FLANGE 1-09509-060-0 01 1 0906- ●
348 BOLT; SHAFT 1-36139-024-0 01 1 0906-1311 ●
348 BOLT; SHAFT 1-36139-025-0 01 1 1312- ●
348 BOLT; SHAFT 1-37249-207-0 02 1 0906-1305 ●
348 BOLT; SHAFT 1-37249-215-0 02 1 1306- ●

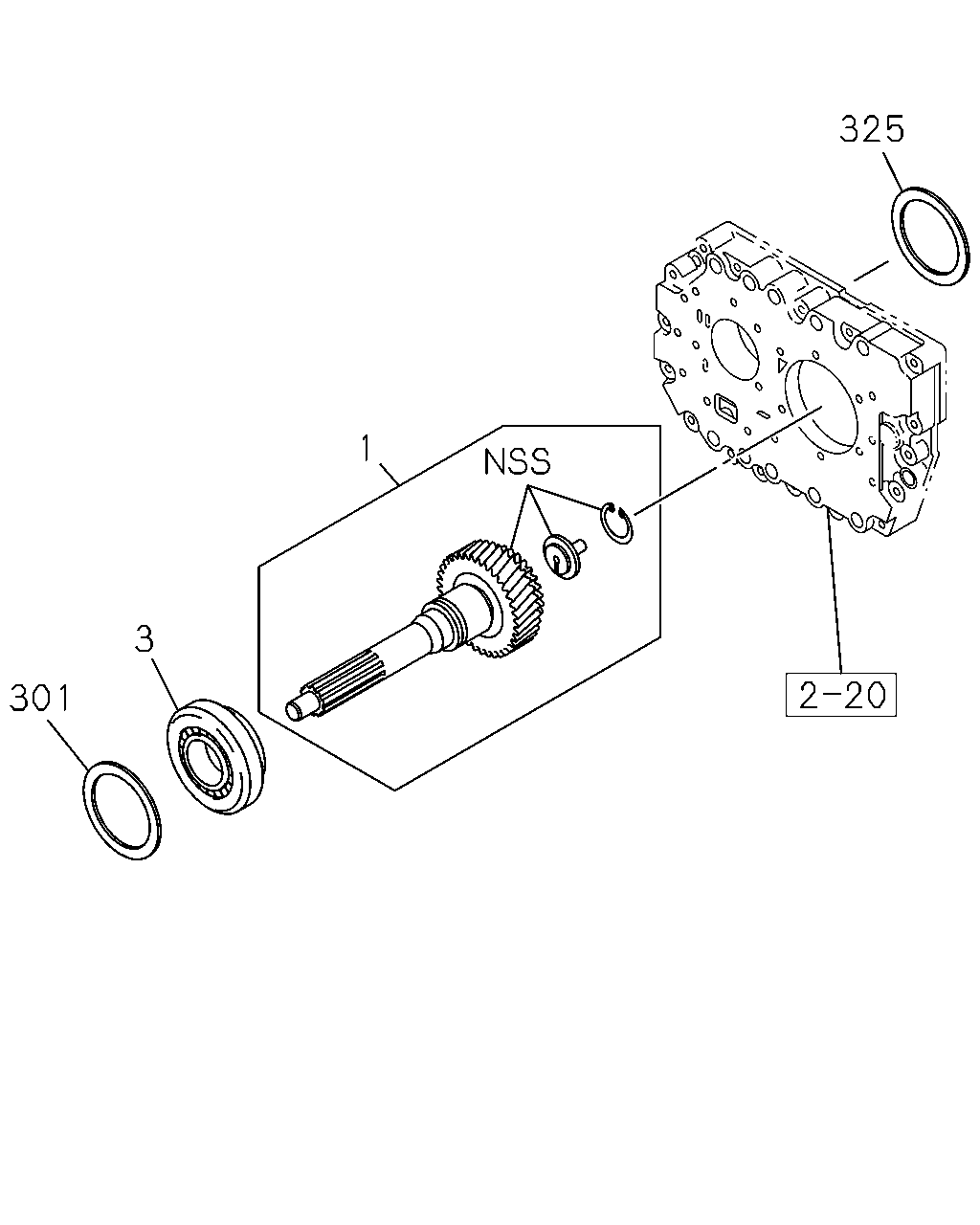

çizim 164604
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-037-0 01 1 0906- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 0906- ●
3 BEARING; TOP GEAR SHAFT 1-33219-324-0 01 1 0906- ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33139-203-0 01 1 0906-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 0906- ●
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33139-207-0 01 1 0906-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33139-208-0 01 1 0906-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33139-209-0 01 1 0906-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0906-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0906- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0906- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0906- ●

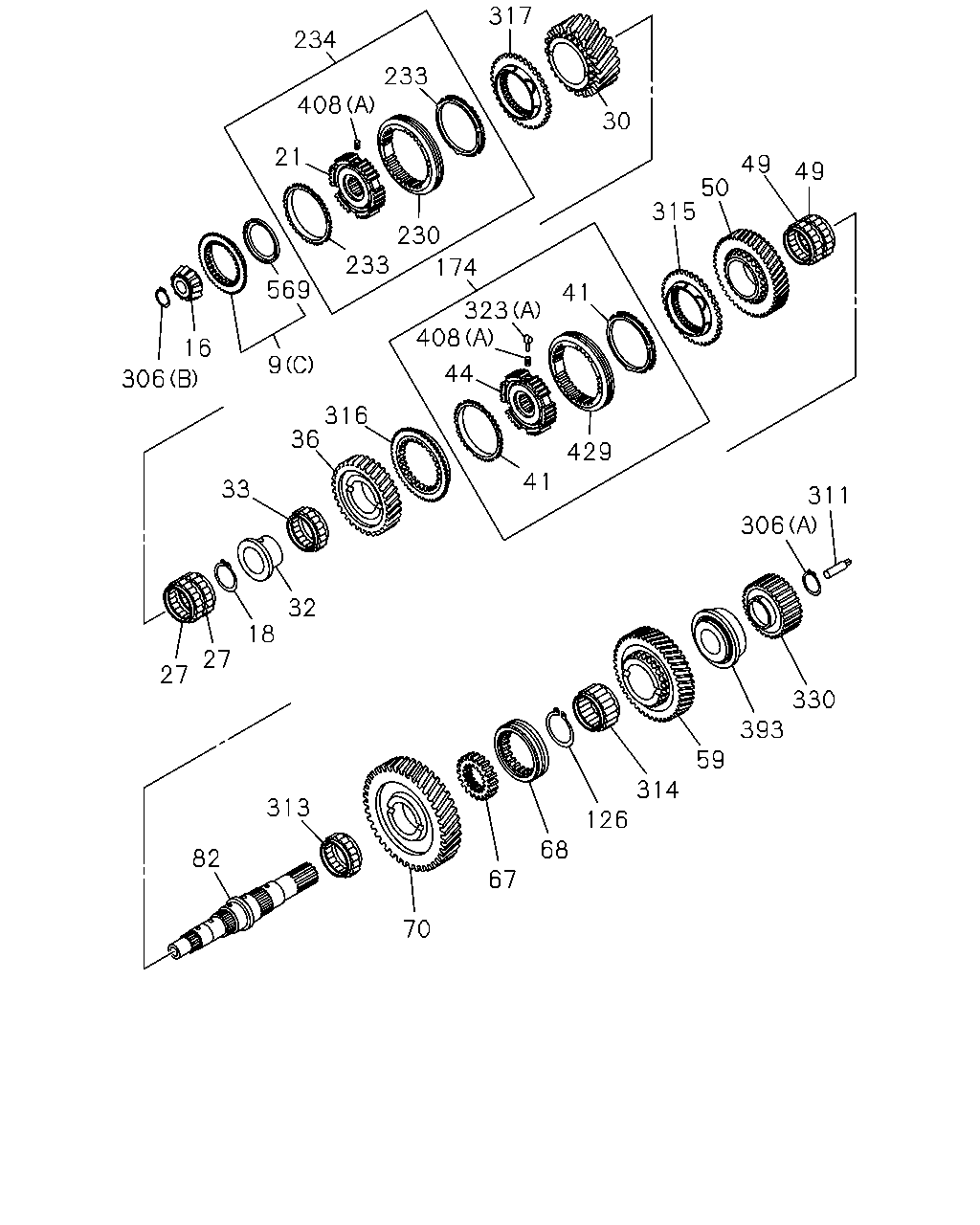

çizim 164606
317 234 233 408 30 21 49 49 50 315 230 233 174 569 41 323 408 16 9 44 306 316 36 429 41 33 311 306 32 18 27 27 330 393 59 314 313 126 68 82 67 70
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 0906- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 0906- ●
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 0906- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-362-0 01 1 0906- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0906- ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0906- ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 0906- ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 0906- ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 0906- ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 0906- ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 0906- ●
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 0906- ●
27 BEARING; 4TH GEAR 1-33259-116-0 01 1 0906-1311 ●
27 BEARING; 4TH GEAR 1-33259-142-0 01 1 1312- ●
27 BEARING; 4TH GEAR 1-33259-106-0 02 1 0906-1305 ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1306- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-440-0 01 1 0906- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 0906- ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 0906-1305 ●
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-107-0 01 1 0906-1311 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-136-0 01 1 1312- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0906-1305 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1306- ●
36 GEAR; 3RD,MAINSHAFT 1-33251-445-0 01 1 0906- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 0906- ●
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 0906- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 0906-1305 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1306- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-107-0 01 1 0906-1311 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-136-0 01 1 1312- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0906-1305 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1306- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-437-0 01 1 0906- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 0906-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1306- ●
59 GEAR; REV MAINSHAFT 1-33252-484-0 01 1 0906- ●
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 0906-1305 ●
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1306- ●
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 0906-1305 ●
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1306- ●
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 0906- ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0906- ●
70 GEAR; 1ST,MAINSHAFT 1-33252-481-0 01 1 0906- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 0906- ●
82 SHAFT; MAIN,TRANS 1-33231-341-0 01 1 0906- ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.8 		1-33259-050-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.7 		1-33259-051-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.6 		1-33259-052-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.5 		1-33259-053-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 0906- ●
174 SYNCHRONIZER ASM; 2ND-3RD 1-33260-169-0 01 1 0906-1305 ●
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 0906- ●
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 0906- ●
234 SYNCHRONIZER ASM; 4TH TO 5TH 1-33260-170-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-111-0 01 1 0906-1311 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-141-0 01 1 1312- ●
306 RING; SNAP,MAINSHAFT
(D) 		1-38249-037-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 0906- ●
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 0906- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-112-0 02 1 0906- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0906-1305 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1306- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 0906-1305 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1306- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 0906- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-636-0 01 1 0906- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 0906- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-637-0 01 1 0906- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 0906- ●
323 INSERT
(C) 		1-33263-043-0 03 1 0906- ●
323 INSERT
(A) 		1-33263-030-0 06 1 0906- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0906- ●
330 GEAR; SUN 1-33259-105-0 01 1 0906-1305 ●
330 GEAR; SUN 1-33259-134-0 01 1 1306- ●
393 BEARING; MAINSHAFT END 1-33219-330-0 01 1 0906- ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 0906- ●
408 SPRING
(D) 		1-33269-099-0 03 1 0906- ●
408 SPRING
(A) 		1-33269-042-0 06 1 0906- ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 0906- ●
408 SPRING
(C) 		1-33269-039-0 09 1 0906- ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 0906-1305 ●
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1306- ●
569 DAM; OIL 1-33269-097-0 01 1 0906- ●

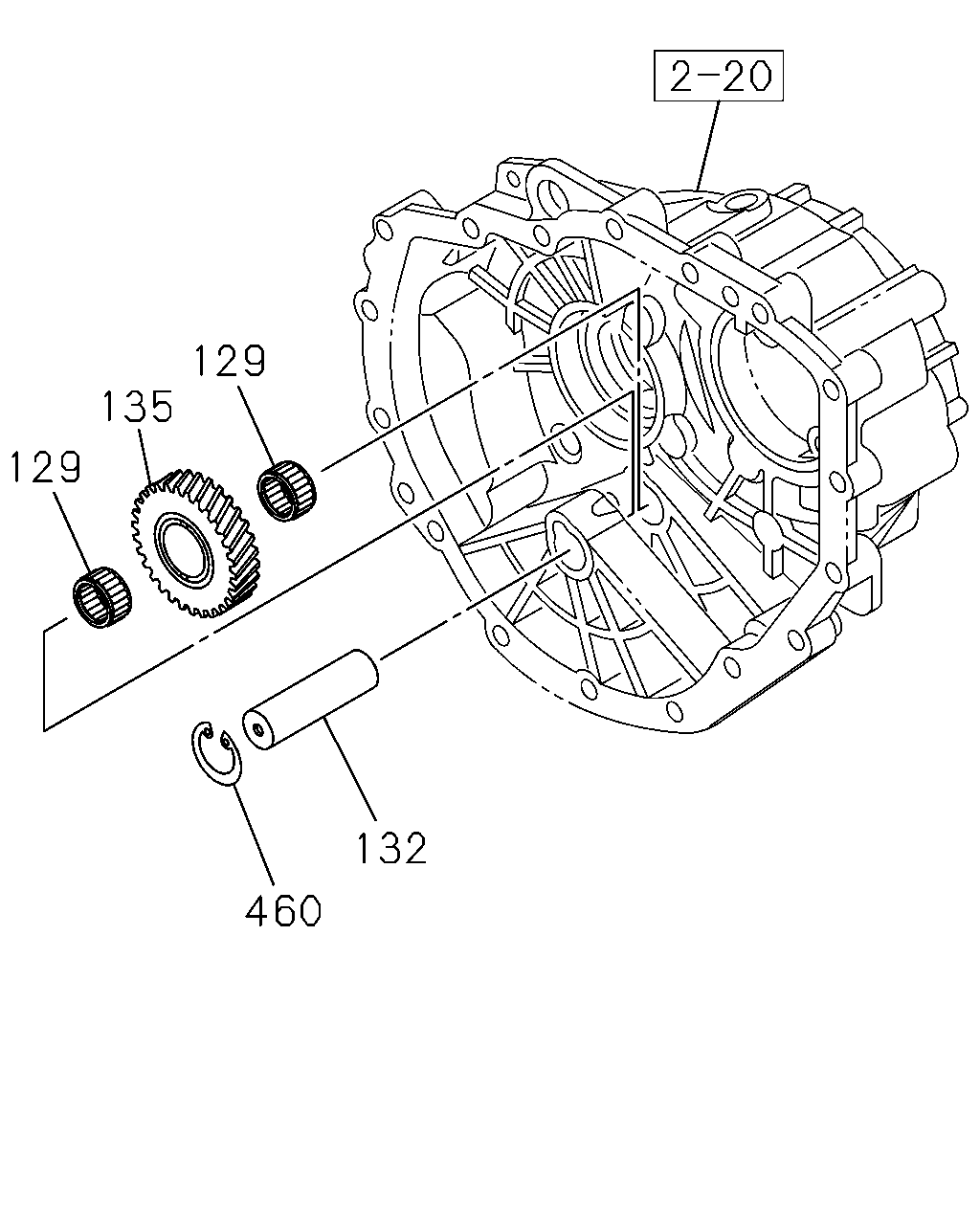

çizim 164607
129 135 129 132 460
BalonParca AdiParca NoAdetTipApplied Date A B
129 BEARING; NEEDLE,IDLER 1-33369-025-0 02 1 0906- ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0906-1305 ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1306- ●
132 SHAFT; REV 1-33351-043-0 01 1 0906- ●
132 SHAFT; REV 1-33351-024-0 01 1 0906- ●
135 GEAR; REV IDLER
PTO ZF TRANS RR(BDM) 		1-33361-095-0 01 1 0906-1311 ●
135 GEAR; REV IDLER 1-33361-095-0 01 1 1312- ●
135 GEAR; REV IDLER
EXC. PTO ZF TRANS RR(BDM) 		1-33361-094-0 01 1 0906-1311 ●
135 GEAR; REV IDLER 1-33361-092-0 01 1 0906-1305 ●
135 GEAR; REV IDLER 1-33361-096-0 01 1 1306- ●
460 RING; SNAP,REV SHAFT 1-34119-044-0 01 1 0906- ●

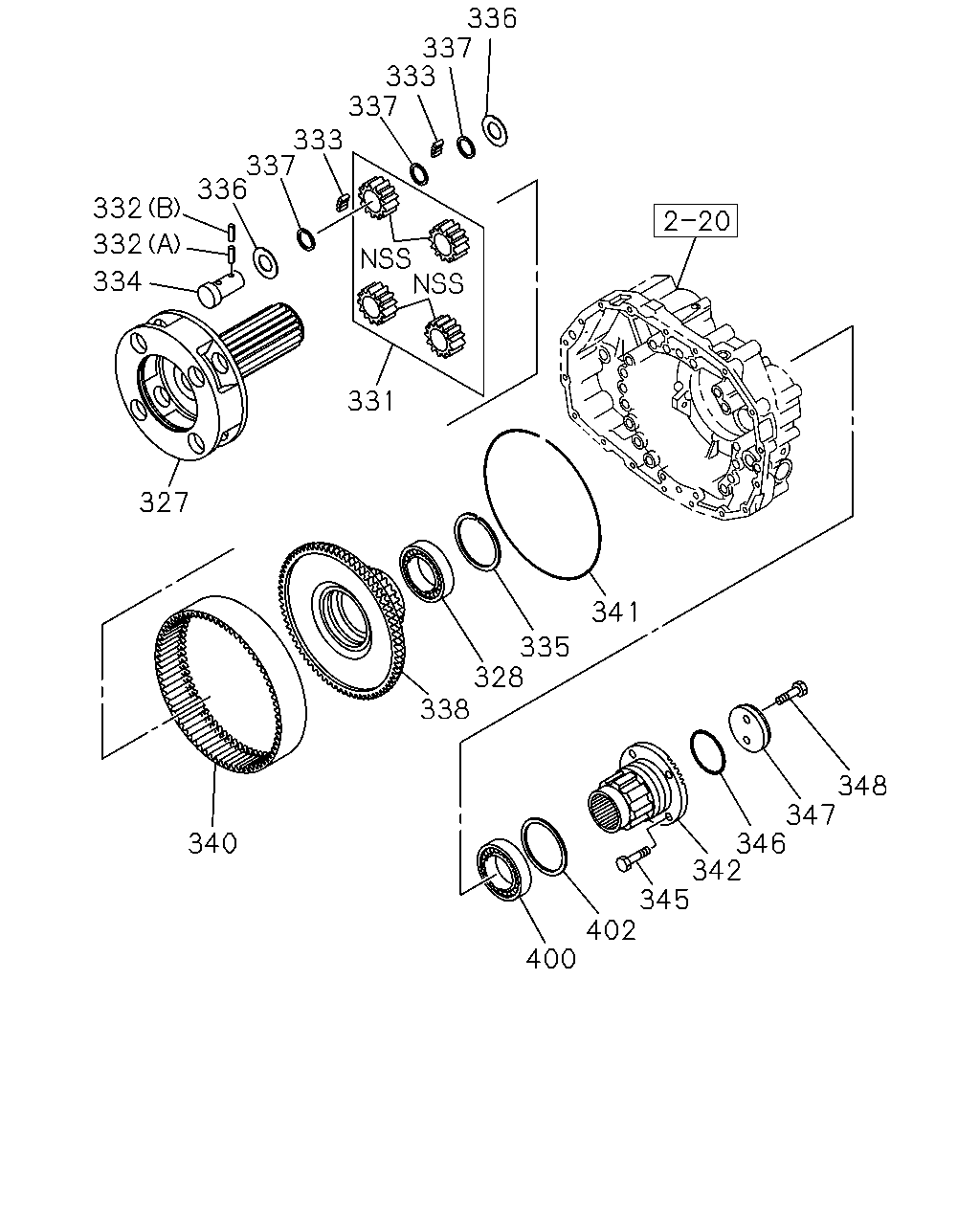

çizim 164608
336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 348 347 346 342 345 402 400 340
BalonParca AdiParca NoAdetTipApplied Date A B
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 0906- ●
328 BEARING; CARRIER 1-33339-094-0 01 1 0906- ●
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 0906- ●
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 0906- ●
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 0906- ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 0906- ●
334 SHAFT; PLANETARY GEAR 1-33239-351-0 04 1 0906-1305 ●
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1306- ●
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 0906- ●
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 0906- ●
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 0906- ●
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 0906- ●
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 0906- ●
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 0906- ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 0906- ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 0906- ●
338 CARRIER; RING GEAR 1-33331-275-0 01 1 0906- ●
340 GEAR; RING 1-33339-095-0 01 1 0906-1305 ●
340 GEAR; RING 1-33339-099-0 01 1 1306- ●
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 0906- ●
342 FLANGE; OUTPUT 1-37243-432-0 01 1 0906-1311 ●
342 FLANGE; OUTPUT 1-37243-434-0 01 1 1312- ●
342 FLANGE; OUTPUT 1-37243-429-0 01 1 0906- ●
345 BOLT; FLANGE TO YOKE 1-37249-210-0 04 1 0906- ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0906- ●
346 GASKET; FLANGE 1-37249-156-0 01 1 0906- ●
347 WASHER; FLANGE 1-37249-211-0 01 1 0906- ●
347 WASHER; FLANGE 1-09509-060-0 01 1 0906- ●
348 BOLT; SHAFT 1-36139-024-0 01 1 0906-1311 ●
348 BOLT; SHAFT 1-36139-025-0 01 1 1312- ●
348 BOLT; SHAFT 1-37249-207-0 02 1 0906-1305 ●
348 BOLT; SHAFT 1-37249-215-0 02 1 1306- ●
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 0906- ●
402 SHIM
T=2.20 		1-33139-064-0 01 1 0906-1305 ●
402 SHIM
T=2.10 		1-33139-065-0 01 1 0906-1305 ●
402 SHIM
T=2.00 		1-33139-066-0 01 1 0906-1305 ●
402 SHIM
T=1.90 		1-33139-067-0 01 1 0906-1305 ●
402 SHIM
T=1.80 		1-33139-068-0 01 1 0906-1305 ●
402 SHIM
T=1.70 		1-33139-069-0 01 1 0906-1305 ●
402 SHIM
T=1.60 		1-33139-070-0 01 1 0906-1305 ●
402 SHIM
T=1.50 		1-33139-071-0 01 1 0906-1305 ●
402 SHIM
T=1.40 		1-33139-072-0 01 1 0906-1305 ●
402 SHIM
T=1.30 		1-33139-073-0 01 1 0906-1305 ●

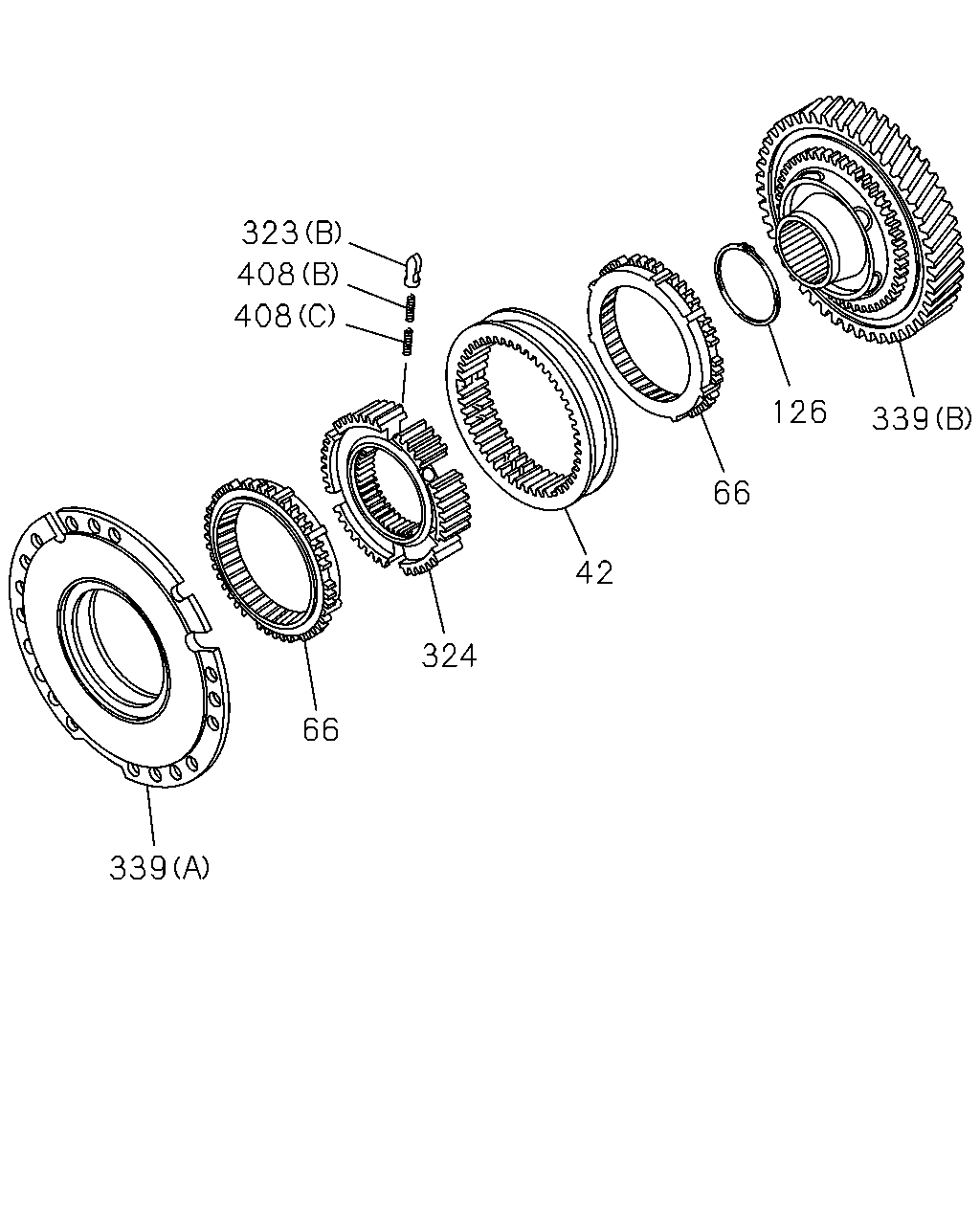

çizim 164617
323 408 408 126 339 66 42 324 66 339
BalonParca AdiParca NoAdetTipApplied Date A B
42 SLEEVE 1-33262-195-0 01 1 0906- ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.8 		1-33259-050-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.7 		1-33259-051-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.6 		1-33259-052-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.5 		1-33259-053-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 0906- ●
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 0906- ●
323 INSERT
(C) 		1-33263-043-0 03 1 0906- ●
323 INSERT
(A) 		1-33263-030-0 06 1 0906- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0906- ●
324 HUB; CLU 1-33261-230-0 01 1 0906- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 0906-1305 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-649-0 01 1 1306- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 0906- ●
408 SPRING
(D) 		1-33269-099-0 03 1 0906- ●
408 SPRING
(A) 		1-33269-042-0 06 1 0906- ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 0906- ●
408 SPRING
(C) 		1-33269-039-0 09 1 0906- ●

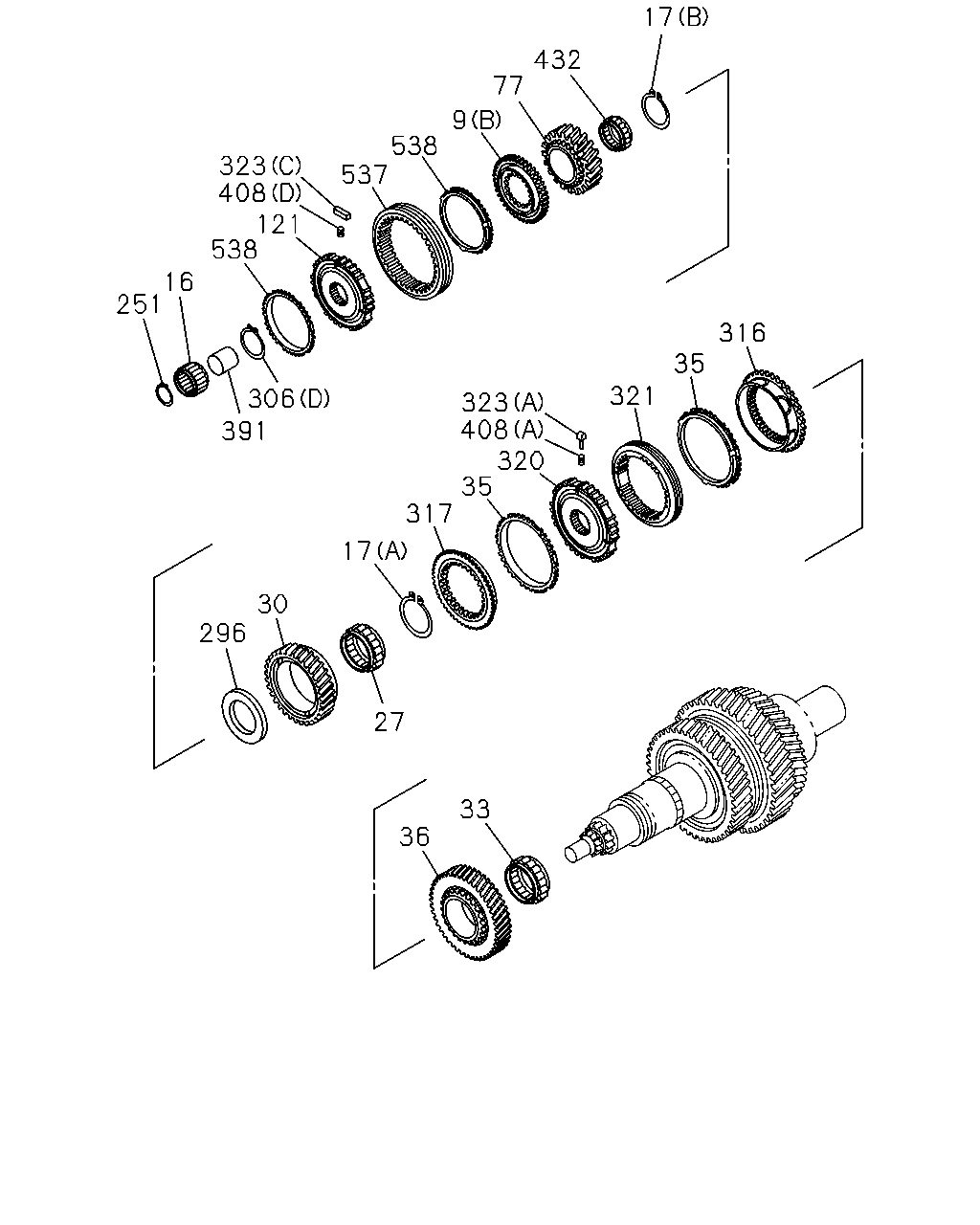

çizim 164621
17 432 77 9 538 537 323 408 121 538 16 251 316 35 321 306 391 323 408 320 35 317 17 30 296 27 33 36
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 0906- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 0906- ●
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 0906- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-362-0 01 1 0906- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0906- ●
17 RING; SNAP,4TH GEAR
(A) 		1-33259-115-0 01 1 0906- ●
17 RING; SNAP,4TH GEAR
(B) 		1-33259-118-0 01 1 0906-1311 ●
17 RING; SNAP,4TH GEAR
(B) 		1-33259-143-0 01 1 1312- ●
27 BEARING; 4TH GEAR 1-33259-116-0 01 1 0906-1311 ●
27 BEARING; 4TH GEAR 1-33259-142-0 01 1 1312- ●
27 BEARING; 4TH GEAR 1-33259-106-0 02 1 0906-1305 ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1306- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-440-0 01 1 0906- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 0906- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-107-0 01 1 0906-1311 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-136-0 01 1 1312- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0906-1305 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1306- ●
35 RING; BLOCK,4TH & 3RD 1-33265-498-0 02 1 0906- ●
36 GEAR; 3RD,MAINSHAFT 1-33251-445-0 01 1 0906- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 0906- ●
77 GEAR; 6TH,MAINSHAFT 1-33252-483-0 01 1 0906- ●
121 HUB; CLU,6TH 1-33261-299-0 01 1 0906- ●
251 RING; SNAP 1-33239-363-0 01 1 0906- ●
296 WASHER; THRUST 1-33259-117-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-111-0 01 1 0906-1311 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-141-0 01 1 1312- ●
306 RING; SNAP,MAINSHAFT
(D) 		1-38249-037-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 0906- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-636-0 01 1 0906- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 0906- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-637-0 01 1 0906- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 0906- ●
320 HUB; CLU,4TH & 3RD 1-33261-297-0 01 1 0906- ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-241-0 01 1 0906- ●
323 INSERT
(C) 		1-33263-043-0 03 1 0906- ●
323 INSERT
(A) 		1-33263-030-0 06 1 0906- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0906- ●
391 RING; INSIDE,SYN 1-33259-122-0 01 1 0906- ●
408 SPRING
(D) 		1-33269-099-0 03 1 0906- ●
408 SPRING
(A) 		1-33269-042-0 06 1 0906- ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 0906- ●
408 SPRING
(C) 		1-33269-039-0 09 1 0906- ●
432 BEARING; NEEDLE,4TH 1-33259-119-0 01 1 0906-1311 ●
432 BEARING; NEEDLE,4TH 1-33259-138-0 01 1 1312- ●
537 SLEEVE; SYN,5TH & 6TH 1-33259-120-0 01 1 0906-1311 ●
537 SLEEVE; SYN,5TH & 6TH 1-33259-139-0 01 1 1312- ●
538 RING; BLOCK,5TH & 6TH 1-33259-121-0 02 1 0906- ●

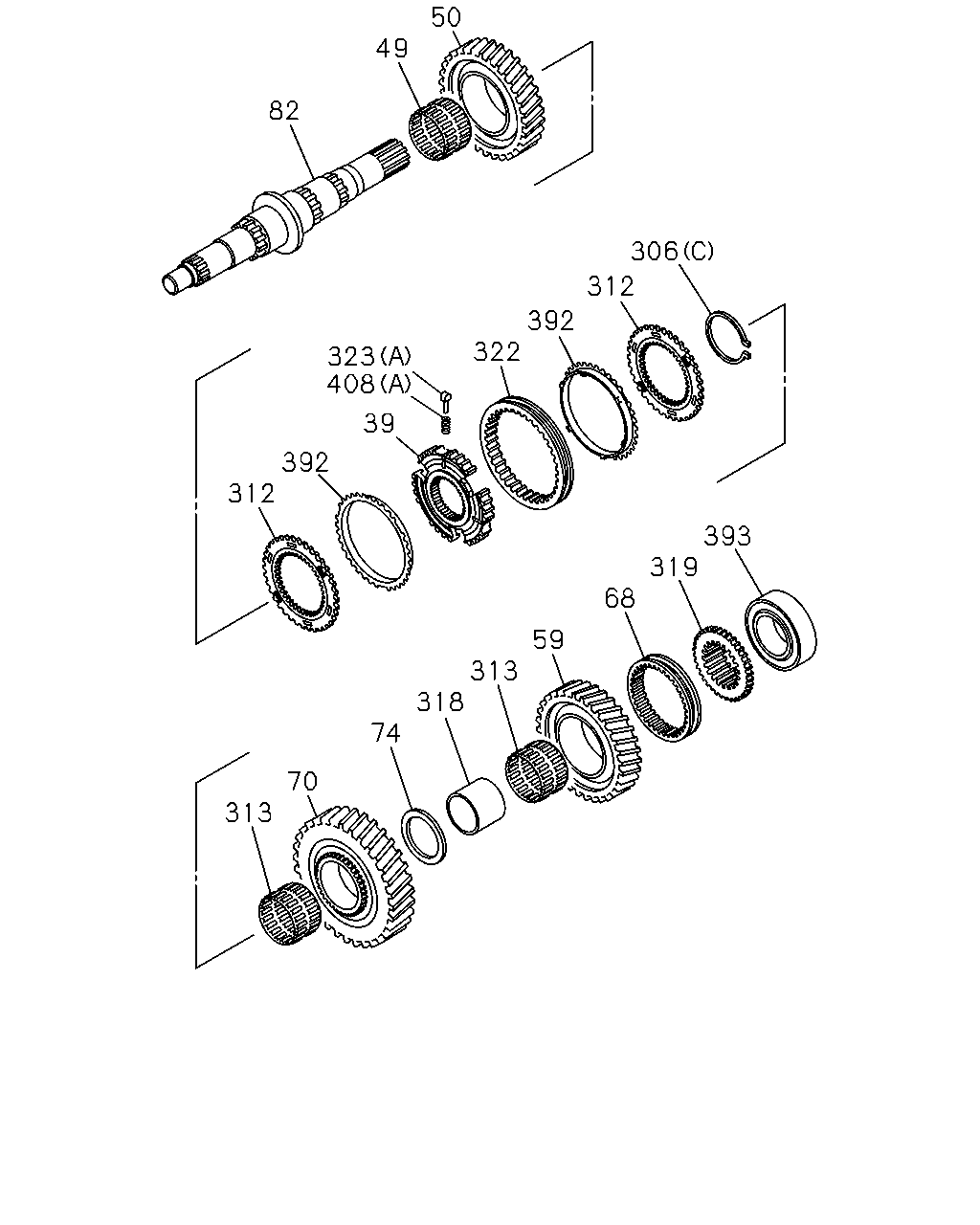

çizim 164622
50 49 82 306 312 392 322 323 408 39 392 312 393 319 68 59 313 318 74 70 313
BalonParca AdiParca NoAdetTipApplied Date A B
39 HUB; CLU,LOW & 2ND 1-33261-300-0 01 1 0906- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-107-0 01 1 0906-1311 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-136-0 01 1 1312- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0906-1305 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1306- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-437-0 01 1 0906- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 0906-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1306- ●
59 GEAR; REV MAINSHAFT 1-33252-484-0 01 1 0906- ●
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 0906-1305 ●
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1306- ●
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 0906- ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0906- ●
70 GEAR; 1ST,MAINSHAFT 1-33252-481-0 01 1 0906- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 0906- ●
74 WASHER; THRUST,REV GEAR 1-33259-113-0 01 1 0906- ●
82 SHAFT; MAIN,TRANS 1-33231-341-0 01 1 0906- ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-111-0 01 1 0906-1311 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-141-0 01 1 1312- ●
306 RING; SNAP,MAINSHAFT
(D) 		1-38249-037-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 0906-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 0906- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 0906- ●
312 CLUTCH; DOG,1ST GEAR 1-33265-636-0 02 1 0906- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-112-0 02 1 0906- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0906-1305 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1306- ●
318 COLLAR; DIST,REV GEAR 1-33259-114-0 01 1 0906- ●
319 CLUTCH; SLIDING 1-33265-635-0 01 1 0906-1311 ●
319 CLUTCH; SLIDING 1-33265-648-0 01 1 1312- ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-242-0 01 1 0906- ●
323 INSERT
(C) 		1-33263-043-0 03 1 0906- ●
323 INSERT
(A) 		1-33263-030-0 06 1 0906- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0906- ●
392 RING; OUTSIDE,SYN 1-33265-498-0 02 1 0906- ●
393 BEARING; MAINSHAFT END 1-33219-330-0 01 1 0906- ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 0906- ●
408 SPRING
(D) 		1-33269-099-0 03 1 0906- ●
408 SPRING
(A) 		1-33269-042-0 06 1 0906- ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 0906- ●
408 SPRING
(C) 		1-33269-039-0 09 1 0906- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
