2-20A — MANUAL TRANSMISSION ASM AND CASE (#60855) — 254 parça

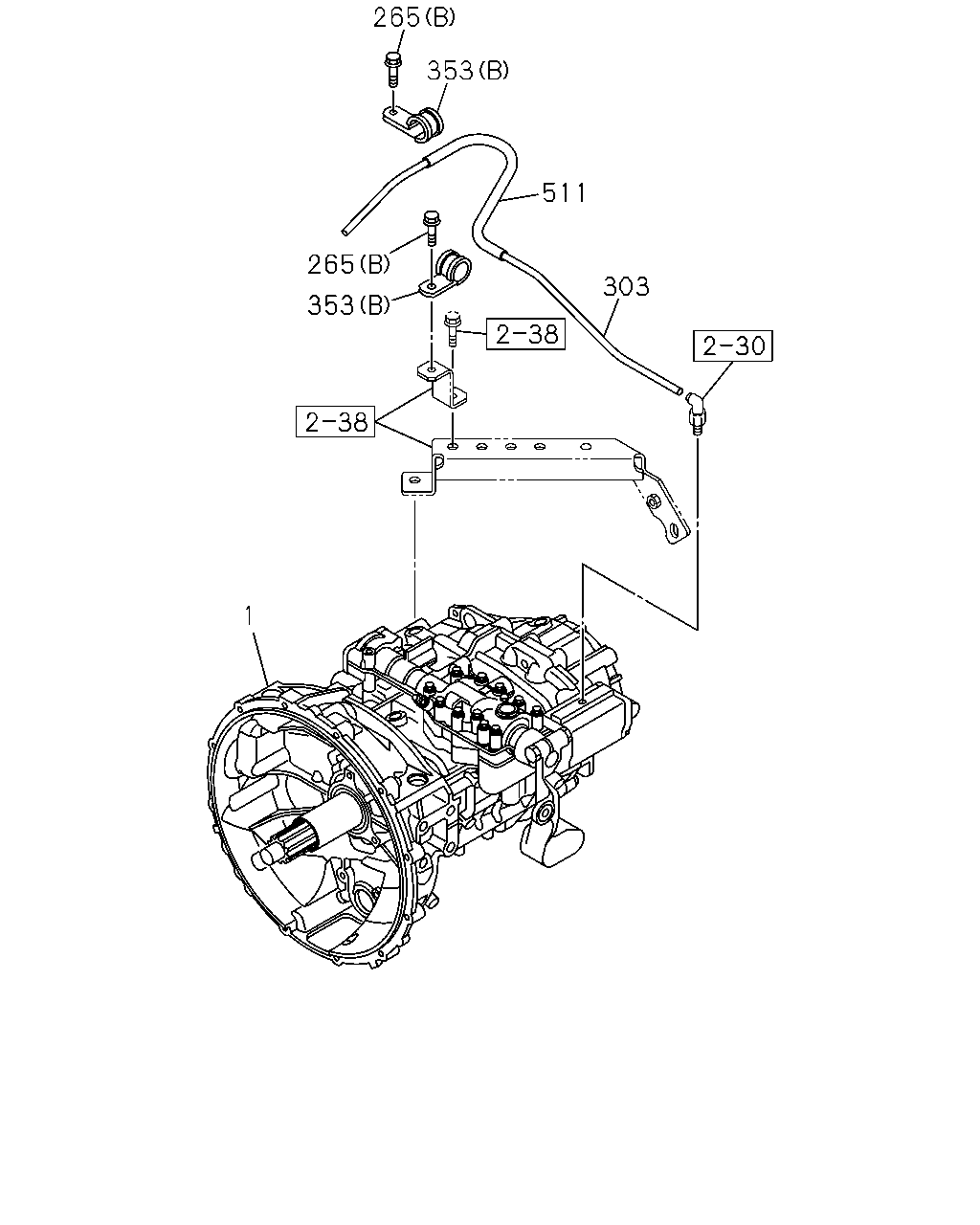

çizim 164577
265 353 511 265 303 353 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		8-98126-085-1 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		8-98126-084-1 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33044-084-1 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33043-933-1 01 1 0906- ●
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ●
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0906- ●
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0906- ●
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0906- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0906- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0906- ●
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0906- ● ●
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0906- ●
353 CLIP; NYLON TUBE
(A) ID=11 L=20 		0-95235-035-0 01 1 0906- ●
353 CLIP; NYLON TUBE
(A) ID=11 L=20 		0-95235-035-0 03 1 0906- ●
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 02 1 0906- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0906- ●

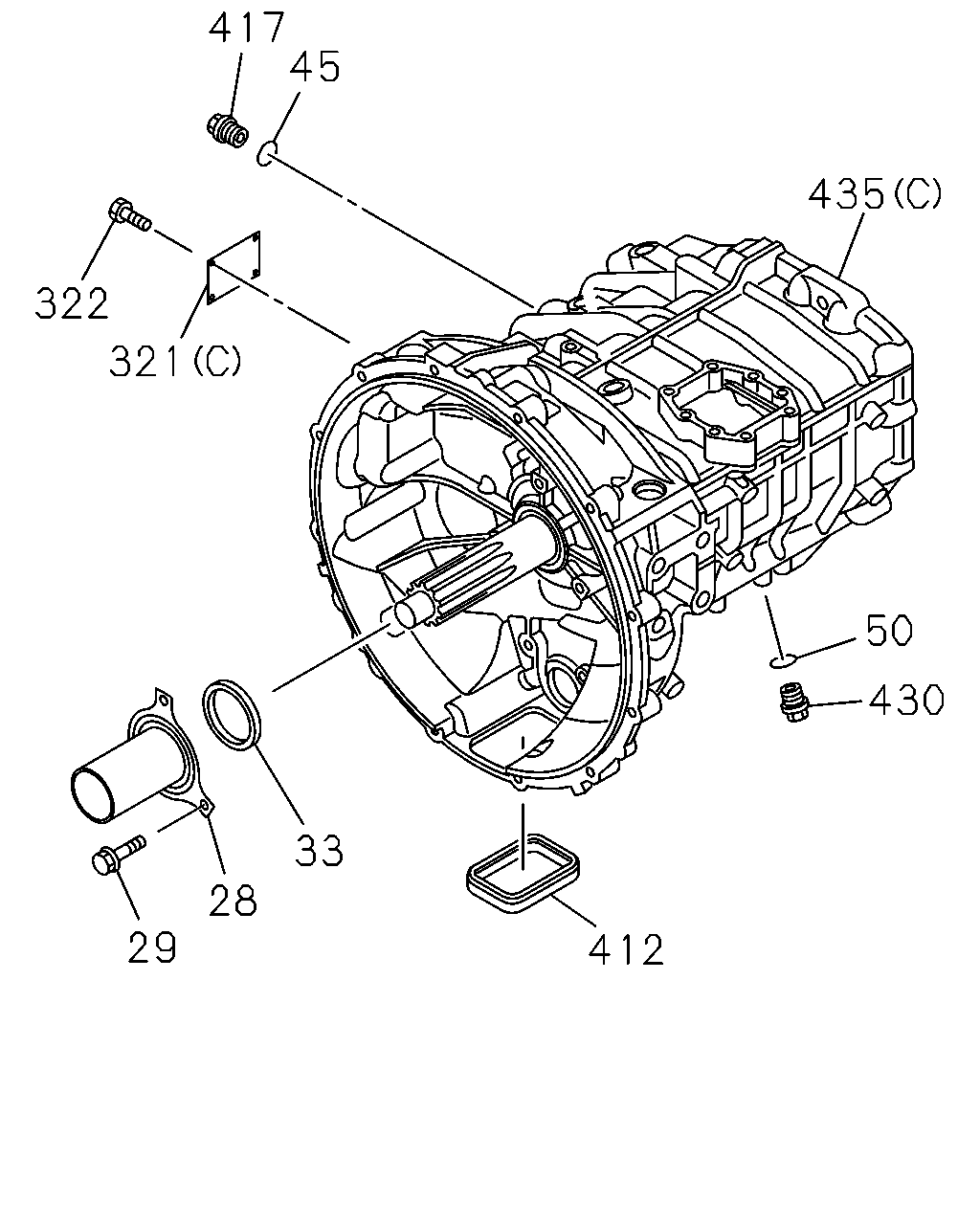

çizim 164587
417 45 435 322 321 50 430 33 28 29 412
BalonParca AdiParca NoAdetTipApplied Date A B
28 COVER; FRT,TRANS CASE 1-33219-327-0 01 1 0906- ●
28 COVER; FRT,TRANS CASE 1-33121-166-0 01 1 0906- ●
29 BOLT; FRT COVER 1-33129-003-0 03 1 0906-1311 ●
29 BOLT; FRT COVER 1-34129-134-0 03 1 1312- ●
29 BOLT; FRT COVER
M8X30 		1-33549-172-0 06 1 0906-1305 ●
29 BOLT; FRT COVER
M8X30 		1-33549-581-0 06 1 1306- ●
33 SEAL; OIL,FRT COVER,T/M 1-33219-328-0 01 1 0906- ●
33 SEAL; OIL,FRT COVER,T/M 1-33219-321-0 01 1 0906- ●
45 GASKET; FILLER PLUG 1-33119-435-0 01 1 0906- ●
50 GASKET; DRAIN PLUG 1-33119-435-0 01 1 0906- ●
50 GASKET; DRAIN PLUG 1-33119-293-0 01 1 0906- ●
321 PLATE; NAME
(C) 		1-31119-049-0 01 1 0906-1311 ●
321 PLATE; NAME
(C) 		1-31119-062-0 01 1 1312- ●
321 PLATE; NAME
(A) 		1-33119-519-0 01 1 0906- ●
321 PLATE; NAME
(B) 		1-33119-520-0 01 1 0906- ●
322 RIVET; NAME PLATE 1-33119-617-0 04 1 1306- ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 0906-1305 ● ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 1306-1311 ●
412 CAP; CLU HSG 1-31119-040-0 01 1 0906- ●
412 CAP; CLU HSG 1-31119-026-0 01 1 0906- ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 01 1 0906-1311 ●
417 PLUG; OIL FILLER,TRANS 1-33119-620-0 01 1 1312- ●
430 PLUG; OIL DRAIN 1-33119-376-0 01 1 0906-1311 ●
430 PLUG; OIL DRAIN 1-33119-624-0 01 1 1312- ●
430 PLUG; OIL DRAIN 1-33119-156-0 01 1 0906-1305 ●
430 PLUG; OIL DRAIN 1-33119-621-0 01 1 1306- ●
435 CASE; TRANS
(C) 		1-31111-227-0 01 1 0906-1311 ●
435 CASE; TRANS
(C) 		1-31111-233-0 01 1 1312- ●
435 CASE; TRANS
(D) 		1-31111-229-0 01 1 0906- ●
435 CASE; TRANS
(A) 		1-33111-368-0 01 1 0906-1305 ●
435 CASE; TRANS
(B) 		1-33111-371-0 01 1 1306- ●
435 CASE; TRANS
PTO ZF TRANS RR(BDM) (B) 		1-33111-371-0 01 1 0906-1305 ●
435 CASE; TRANS
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33111-369-0 01 1 0906-1305 ●
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1306- ●

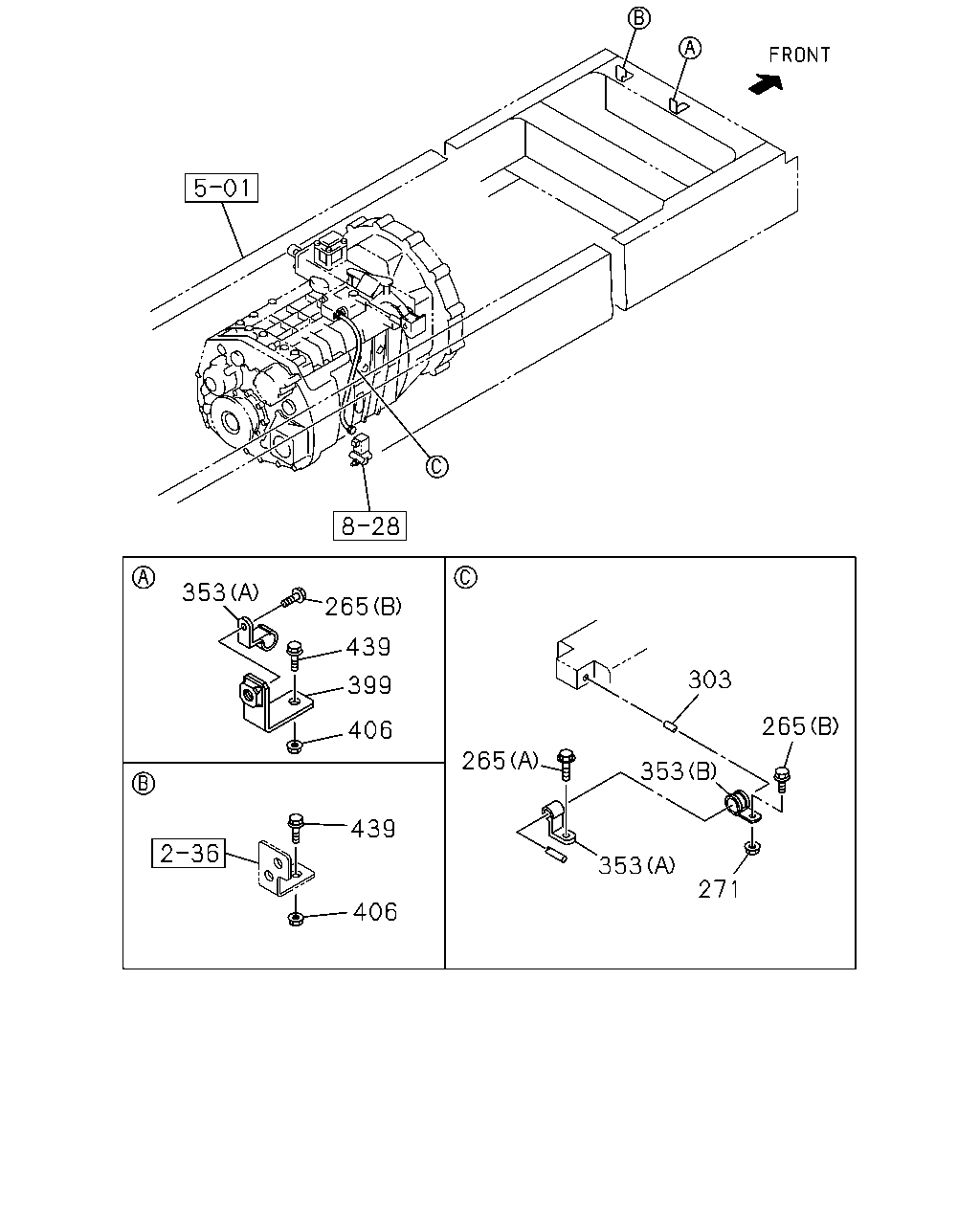

çizim 164591
353 265 439 303 399 265 406 265 353 439 353 271 406
BalonParca AdiParca NoAdetTipApplied Date A B
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ●
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0906- ●
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0906- ●
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0906- ●
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0906- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0906- ●
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0906- ● ●
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0906- ●
353 CLIP; NYLON TUBE
(A) ID=11 L=20 		0-95235-035-0 01 1 0906- ●
353 CLIP; NYLON TUBE
(A) ID=11 L=20 		0-95235-035-0 03 1 0906- ●
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 02 1 0906- ●
399 BRACKET; CLIP 8-98085-674-0 01 1 0906- ●
406 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906- ●
439 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0906- ●

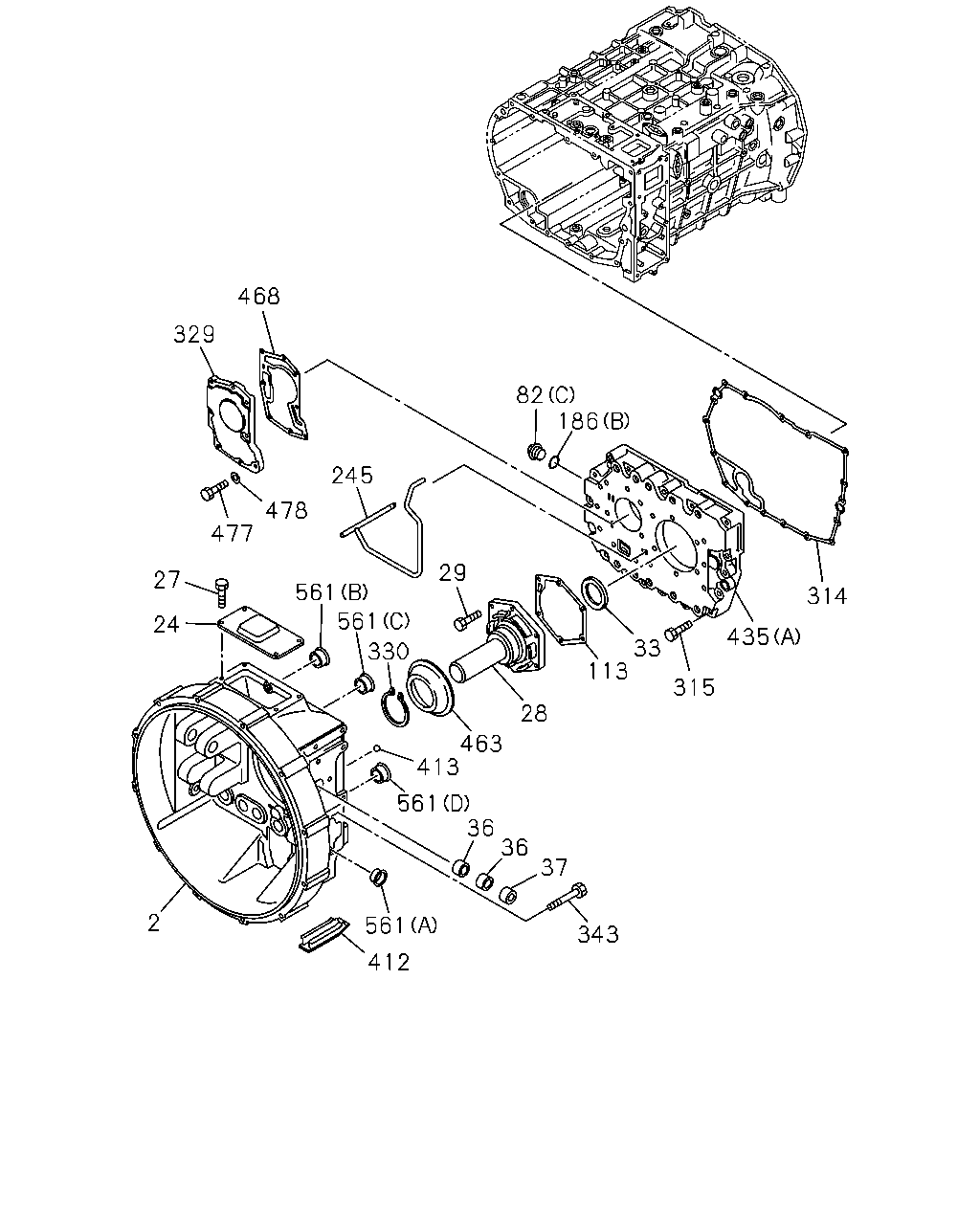

çizim 164596
468 329 82 186 245 478 477 29 27 561 314 561 24 435 33 113 330 315 28 463 413 561 36 36 37 2 561 343 412
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 1-31111-183-0 01 1 0906- ●
24 COVER; CHECK HOLE,DUST 1-31119-024-0 01 1 0906-1305 ●
24 COVER; CHECK HOLE,DUST 1-31119-059-0 01 1 1306- ●
27 BOLT; COVER TO CLU HSG 1-31119-025-0 04 1 0906-1305 ●
27 BOLT; COVER TO CLU HSG 1-31119-058-0 04 1 1306- ●
28 COVER; FRT,TRANS CASE 1-33219-327-0 01 1 0906- ●
28 COVER; FRT,TRANS CASE 1-33121-166-0 01 1 0906- ●
29 BOLT; FRT COVER 1-33129-003-0 03 1 0906-1311 ●
29 BOLT; FRT COVER 1-34129-134-0 03 1 1312- ●
29 BOLT; FRT COVER
M8X30 		1-33549-172-0 06 1 0906-1305 ●
29 BOLT; FRT COVER
M8X30 		1-33549-581-0 06 1 1306- ●
33 SEAL; OIL,FRT COVER,T/M 1-33219-328-0 01 1 0906- ●
33 SEAL; OIL,FRT COVER,T/M 1-33219-321-0 01 1 0906- ●
36 BEARING; NEEDLE,CLU HSG 1-09811-396-0 04 1 0906- ●
37 SEAL; DUST,CLU HSG 1-09625-002-0 02 1 0906- ●
82 PLUG; SCREW,CASE
(A) 		1-33119-171-0 01 1 0906-1305 ●
82 PLUG; SCREW,CASE
(A) 		1-33119-619-0 01 1 1306- ●
82 PLUG; SCREW,CASE
(B) 		1-33119-268-0 01 1 0906-1305 ●
82 PLUG; SCREW,CASE
(B) 		1-33119-620-0 02 1 1306- ●
82 PLUG; SCREW,CASE
(C) 		1-33119-285-0 02 1 0906-1305 ●
82 PLUG; SCREW,CASE
(C) 		1-33119-618-0 02 1 1306- ●
82 PLUG; SCREW,CASE
(D) 		1-33119-376-0 01 1 0906-1305 ●
113 GASKET; FRT COVER TO TRANS CASE 1-33122-023-0 01 1 0906-1305 ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-024-0 01 1 1306- ●
186 RING; SEAL
(A) 		1-33119-249-0 01 1 0906- ●
186 RING; SEAL
(B) 		1-33119-286-0 02 1 0906- ●
186 RING; SEAL
(C) 		1-33119-435-0 02 1 0906- ●
245 PIPE; OIL 1-33119-517-0 01 1 0906- ●
314 GASKET; CASE 1-33112-052-0 01 1 0906- ●
315 BOLT; CASE
PTO ZF TRANS RR(BDM) M10X70 		1-33119-522-0 17 1 0906-1305 ●
315 BOLT; CASE
M10X70 		1-33119-616-0 17 1 1306- ●
315 BOLT; CASE
EXC. PTO ZF TRANS RR(BDM) M10X70 		1-33119-518-0 17 1 0906-1305 ●
329 PUMP ASM; OIL
PTO ZF TRANS RR(BDM) 		1-34150-121-0 01 1 0906-1305 ●
329 PUMP ASM; OIL 1-34150-123-0 01 1 1306- ●
329 PUMP ASM; OIL
EXC. PTO ZF TRANS RR(BDM) 		1-34150-120-0 01 1 0906-1305 ●
330 RING; RET 1-33129-005-0 01 1 0906- ●
343 BOLT; CLU HSG TO PLATE
M10X75 FLANGE 		8-94399-669-1 01 1 0906- ●
412 CAP; CLU HSG 1-31119-040-0 01 1 0906- ●
412 CAP; CLU HSG 1-31119-026-0 01 1 0906- ●
413 BALL; CLU HSG 1-31119-014-0 04 1 0906- ●
435 CASE; TRANS
(C) 		1-31111-227-0 01 1 0906-1311 ●
435 CASE; TRANS
(C) 		1-31111-233-0 01 1 1312- ●
435 CASE; TRANS
(D) 		1-31111-229-0 01 1 0906- ●
435 CASE; TRANS
(A) 		1-33111-368-0 01 1 0906-1305 ●
435 CASE; TRANS
(B) 		1-33111-371-0 01 1 1306- ●
435 CASE; TRANS
PTO ZF TRANS RR(BDM) (B) 		1-33111-371-0 01 1 0906-1305 ●
435 CASE; TRANS
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33111-369-0 01 1 0906-1305 ●
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1306- ●
463 COVER; DUST,FRT COVER 1-33129-004-0 01 1 0906-1305 ●
463 COVER; DUST,FRT COVER 1-33129-018-0 01 1 1306- ●
468 GASKET; OIL PUMP 1-34159-063-0 01 1 0906-1305 ●
468 GASKET; OIL PUMP 1-34159-122-0 01 1 1306- ●
477 BOLT; OIL PUMP
M8X30 		1-33549-172-0 08 1 0906-1305 ●
477 BOLT; OIL PUMP
M8X30 		1-33549-581-0 08 1 1306- ●
478 WASHER; LK,OIL PUMP 1-36129-007-0 08 1 0906-1305 ●
478 WASHER; LK,OIL PUMP 1-33549-583-0 08 1 1306- ●
561 PLUG
(A) 		1-31119-044-0 02 1 0906-1305 ●
561 PLUG
(B) 		1-31119-045-0 03 1 0906-1305 ●
561 PLUG
(C) 		1-31119-046-0 02 1 0906-1305 ●
561 PLUG
(D) 		1-31119-047-0 01 1 0906-1305 ●

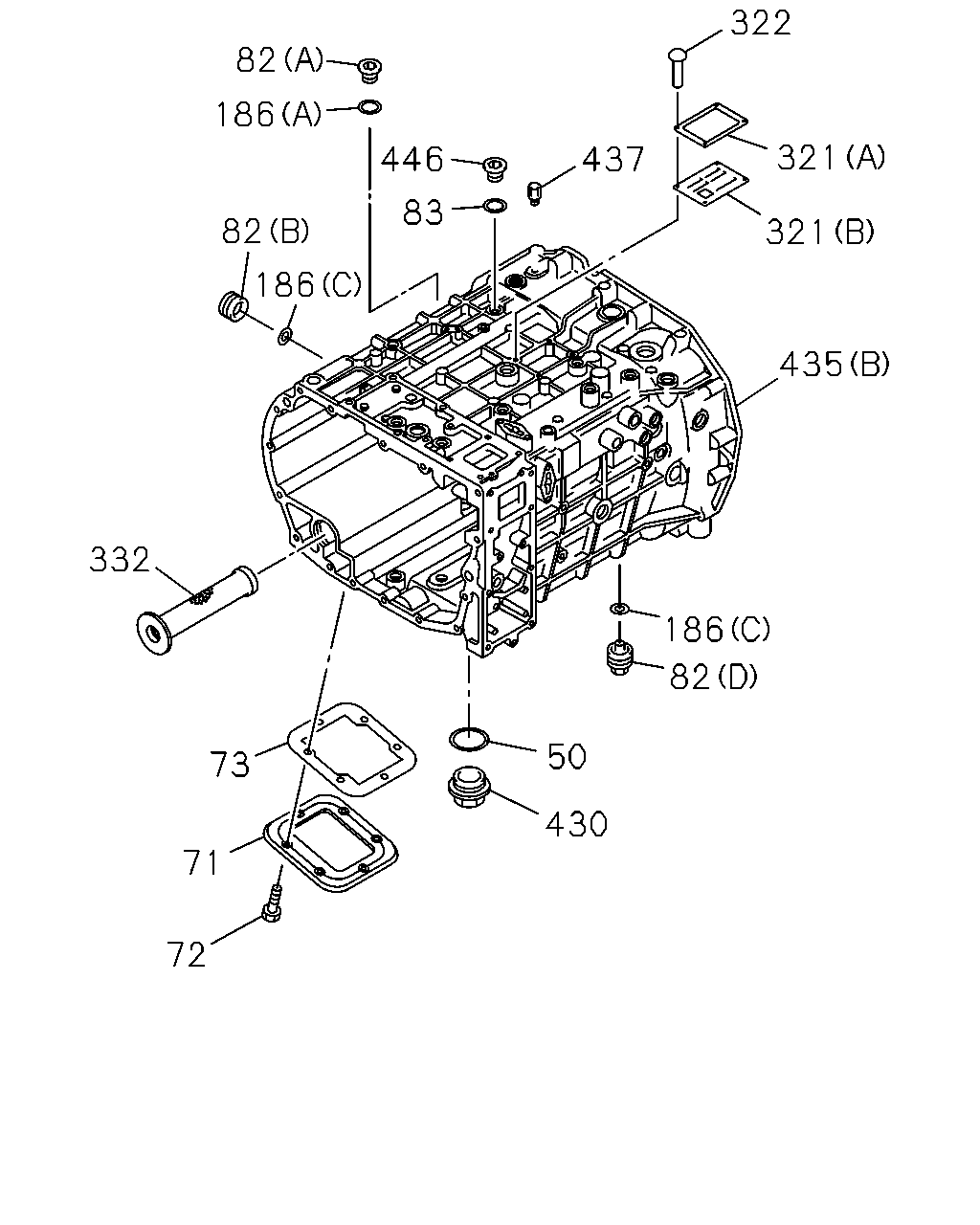

çizim 164603
322 82 186 321 446 437 83 82 321 186 435 332 186 82 50 73 430 71 72
BalonParca AdiParca NoAdetTipApplied Date A B
50 GASKET; DRAIN PLUG 1-33119-435-0 01 1 0906- ●
50 GASKET; DRAIN PLUG 1-33119-293-0 01 1 0906- ●
71 COVER; SIDE,TRANS CASE 1-33119-407-0 01 1 0906-1305 ●
71 COVER; SIDE,TRANS CASE 1-33119-622-0 01 1 1306- ●
72 BOLT; SIDE COVER
M10X22 		1-36129-014-1 06 1 0906-1305 ●
72 BOLT; SIDE COVER
M10X22 		1-33119-592-0 06 1 1306- ●
73 GASKET; SIDE COVER TO TRANS CASE 1-33119-237-0 01 1 0906- ●
82 PLUG; SCREW,CASE
(A) 		1-33119-171-0 01 1 0906-1305 ●
82 PLUG; SCREW,CASE
(A) 		1-33119-619-0 01 1 1306- ●
82 PLUG; SCREW,CASE
(B) 		1-33119-268-0 01 1 0906-1305 ●
82 PLUG; SCREW,CASE
(B) 		1-33119-620-0 02 1 1306- ●
82 PLUG; SCREW,CASE
(C) 		1-33119-285-0 02 1 0906-1305 ●
82 PLUG; SCREW,CASE
(C) 		1-33119-618-0 02 1 1306- ●
82 PLUG; SCREW,CASE
(D) 		1-33119-376-0 01 1 0906-1305 ●
83 GASKET; PLUG
EXC. PTO ZF TRANS RR(BDM) 		1-33119-249-0 01 1 0906-1305 ●
186 RING; SEAL
(A) 		1-33119-249-0 01 1 0906- ●
186 RING; SEAL
(B) 		1-33119-286-0 02 1 0906- ●
186 RING; SEAL
(C) 		1-33119-435-0 02 1 0906- ●
321 PLATE; NAME
(C) 		1-31119-049-0 01 1 0906-1311 ●
321 PLATE; NAME
(C) 		1-31119-062-0 01 1 1312- ●
321 PLATE; NAME
(A) 		1-33119-519-0 01 1 0906- ●
321 PLATE; NAME
(B) 		1-33119-520-0 01 1 0906- ●
322 RIVET; NAME PLATE 1-33119-617-0 04 1 1306- ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 0906-1305 ● ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 1306-1311 ●
332 FILTER; OIL 1-33119-437-0 01 1 0906- ●
430 PLUG; OIL DRAIN 1-33119-376-0 01 1 0906-1311 ●
430 PLUG; OIL DRAIN 1-33119-624-0 01 1 1312- ●
430 PLUG; OIL DRAIN 1-33119-156-0 01 1 0906-1305 ●
430 PLUG; OIL DRAIN 1-33119-621-0 01 1 1306- ●
435 CASE; TRANS
(C) 		1-31111-227-0 01 1 0906-1311 ●
435 CASE; TRANS
(C) 		1-31111-233-0 01 1 1312- ●
435 CASE; TRANS
(D) 		1-31111-229-0 01 1 0906- ●
435 CASE; TRANS
(A) 		1-33111-368-0 01 1 0906-1305 ●
435 CASE; TRANS
(B) 		1-33111-371-0 01 1 1306- ●
435 CASE; TRANS
PTO ZF TRANS RR(BDM) (B) 		1-33111-371-0 01 1 0906-1305 ●
435 CASE; TRANS
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33111-369-0 01 1 0906-1305 ●
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1306- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 0906-1305 ●
437 BREATHER; TRANS 1-36122-006-0 01 1 1306- ●
446 PLUG; CASE,TRANS
EXC. PTO ZF TRANS RR(BDM) 		1-33119-171-0 01 1 0906-1305 ●

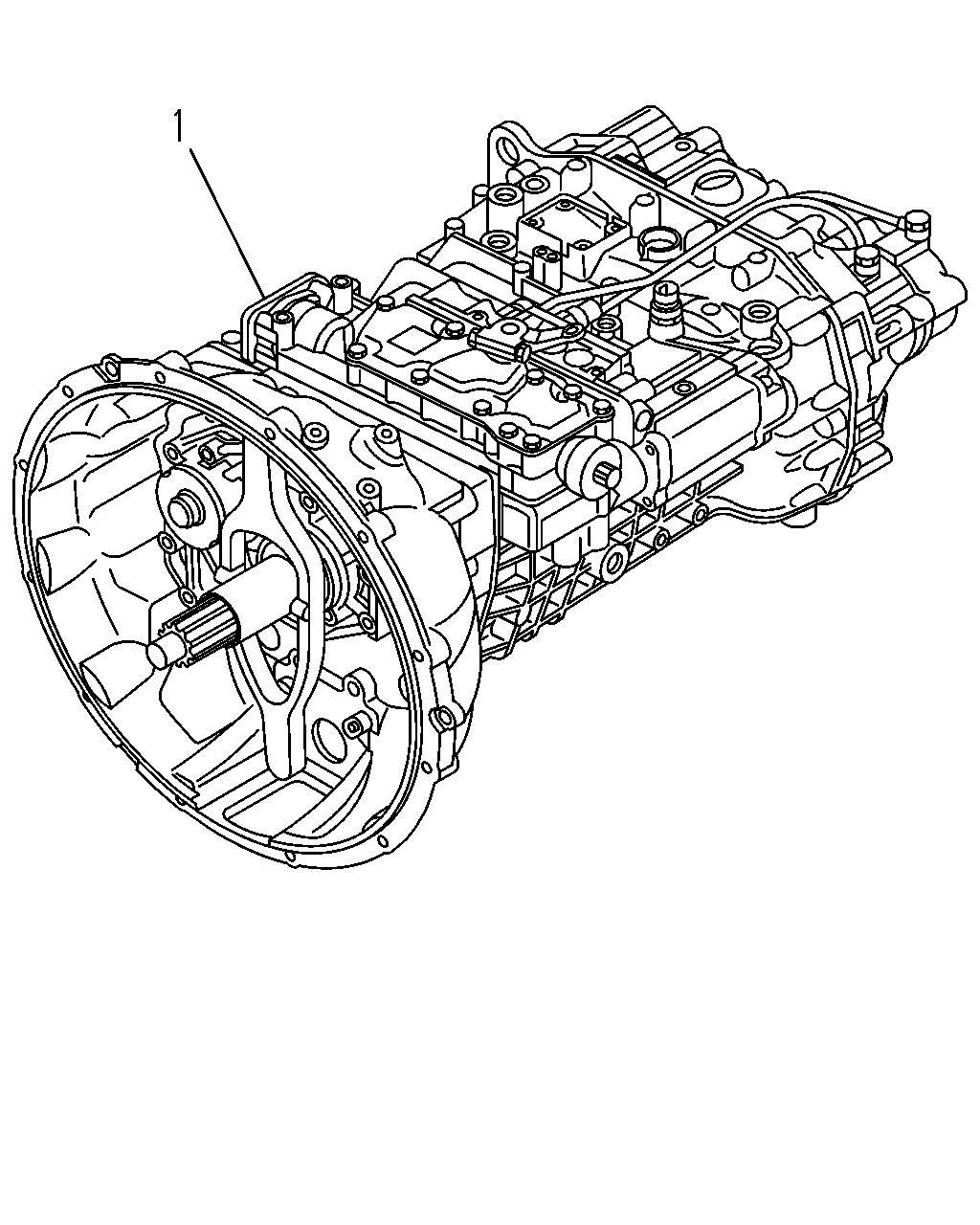

çizim 164605
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		8-98126-085-1 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		8-98126-084-1 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33044-084-1 01 1 0906- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33043-933-1 01 1 0906- ●

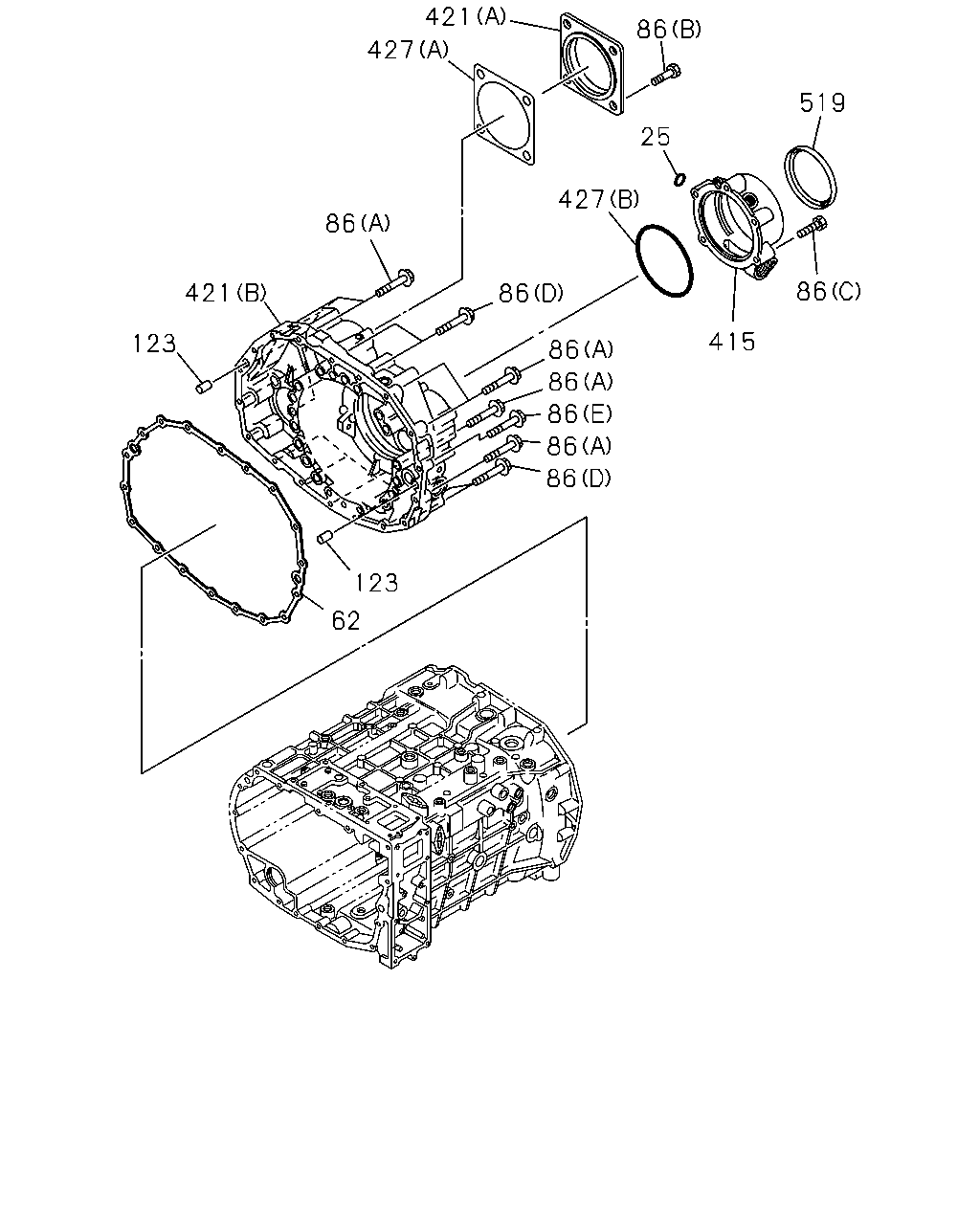

çizim 164609
421 86 427 519 25 427 86 86 421 86 86 415 123 86 86 86 86 123 62
BalonParca AdiParca NoAdetTipApplied Date A B
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33139-060-0 01 1 0906- ●
62 GASKET; RR COVER 1-33132-087-0 01 1 0906- ●
86 BOLT; RR COVER
(C) M10X60 		1-33139-118-0 21 1 0906-1311 ●
86 BOLT; RR COVER
(C) M10X60 		1-33139-237-0 21 1 1312- ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (B) M12X25 		1-33119-400-0 04 1 0906-1311 ●
86 BOLT; RR COVER
(C) M10X60 		1-33139-118-0 05 1 0906-1305 ●
86 BOLT; RR COVER
(C) M10X60 		1-33139-237-0 05 1 1306- ●
86 BOLT; RR COVER
PTO ZF TRANS RR(BDM) (A) M10X70 		1-33119-522-0 07 1 0906-1305 ●
86 BOLT; RR COVER
(A) M10X70 		1-33119-616-0 12 1 1306- ●
86 BOLT; RR COVER
PTO ZF TRANS RR(BDM) (D) M10X110 		1-33139-057-0 05 1 0906-1305 ●
86 BOLT; RR COVER
(D) M10X110 		1-33139-235-0 05 1 1306- ●
86 BOLT; RR COVER
PTO ZF TRANS RR(BDM) (E) M10X50 		1-33139-058-0 01 1 0906-1305 ●
86 BOLT; RR COVER
(E) M10X50 		1-33139-236-0 01 1 1306- ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (A) M10X70 M10X70 		1-33119-518-0 12 1 0906-1305 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (B) M12X25 		1-33119-594-0 04 1 1306-1311 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> (B) M12X25 		1-33119-594-0 04 1 1312- ● ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (B) M12X28 M12X28 		1-33139-051-0 04 1 0906-1305 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (D) M10X110 M10X110 		1-33139-210-0 05 1 0906-1305 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (E) M10X50 M10X50 		1-33139-211-0 01 1 0906-1305 ●
123 DOWEL; TRANS CASE 1-33119-292-0 04 1 0906- ●
415 COVER; BRG 1-33131-263-0 01 1 0906- ●
415 COVER; BRG
PTO ZF TRANS RR(BDM) 		1-33131-262-0 01 1 0906-1305 ●
415 COVER; BRG 1-33131-269-0 01 1 1306- ●
415 COVER; BRG
EXC. PTO ZF TRANS RR(BDM) 		1-33131-260-0 01 1 0906-1305 ●
421 COVER; RR,TRANS
PTO ZF TRANS RR(BDM) (B) 		1-33131-261-0 01 1 0906-1305 ●
421 COVER; RR,TRANS
(B) 		1-33131-275-0 01 1 1306- ●
421 COVER; RR,TRANS
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33131-165-0 01 1 0906-1305 ●
421 COVER; RR,TRANS
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33131-214-0 01 1 0906-1305 ●
427 GASKET; RR COVER
(C) 		1-33139-216-0 01 1 0906- ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> (A) 		1-33132-054-0 01 1 0906- ● ●
427 GASKET; RR COVER
(B) 		1-33132-078-0 01 1 0906-1305 ●
427 GASKET; RR COVER
(B) 		1-33132-088-0 01 1 1306- ●
519 GASKET; SHAFT 1-33139-214-0 01 1 0906- ●
519 GASKET; SHAFT 1-33139-059-0 01 1 0906- ●

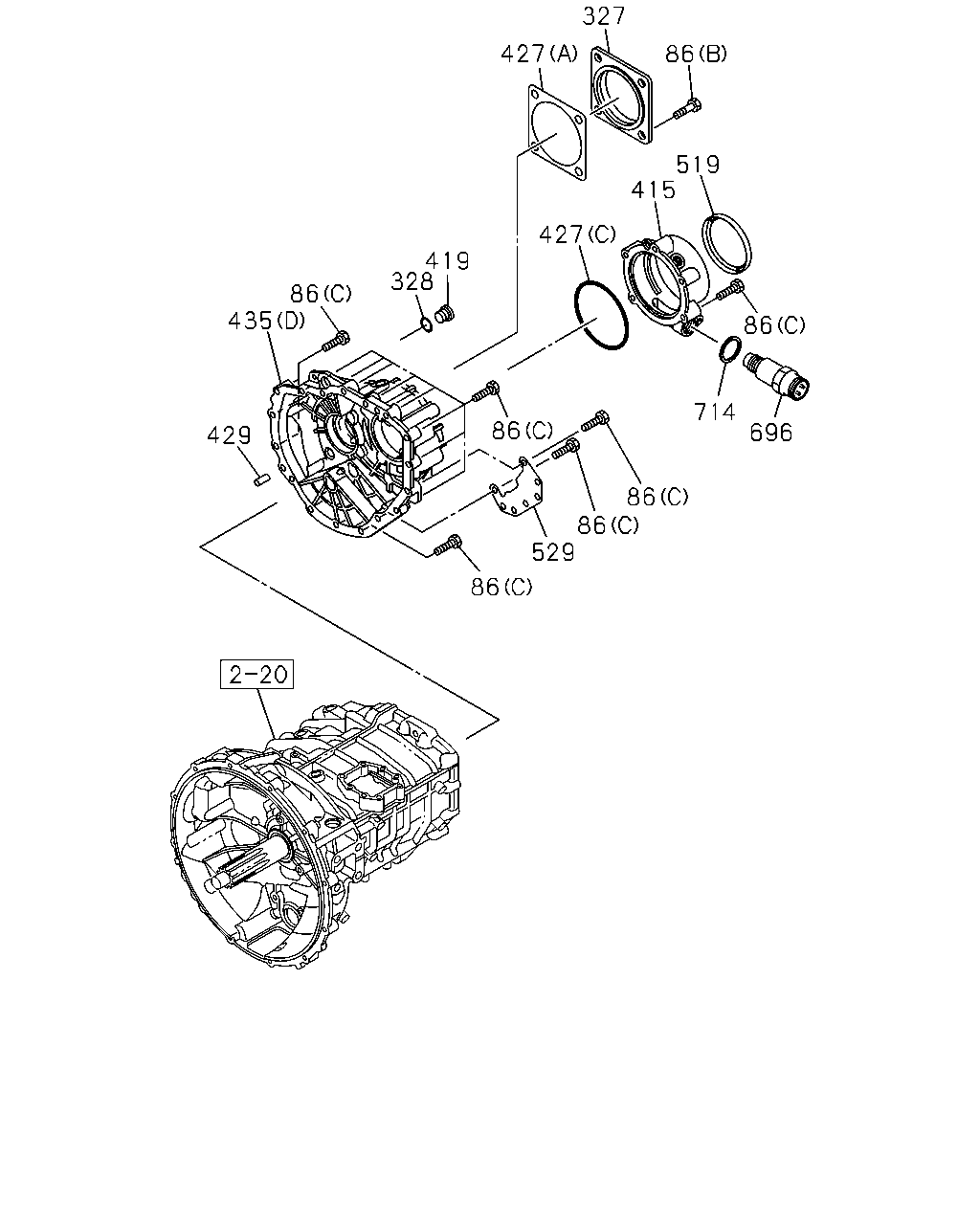

çizim 164611
327 427 86 519 415 427 86 714 696 429 435 86 328 419 86 86 86 529 86
BalonParca AdiParca NoAdetTipApplied Date A B
86 BOLT; RR COVER
(C) M10X60 		1-33139-118-0 21 1 0906-1311 ●
86 BOLT; RR COVER
(C) M10X60 		1-33139-237-0 21 1 1312- ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (B) M12X25 		1-33119-400-0 04 1 0906-1311 ●
86 BOLT; RR COVER
(C) M10X60 		1-33139-118-0 05 1 0906-1305 ●
86 BOLT; RR COVER
(C) M10X60 		1-33139-237-0 05 1 1306- ●
86 BOLT; RR COVER
PTO ZF TRANS RR(BDM) (A) M10X70 		1-33119-522-0 07 1 0906-1305 ●
86 BOLT; RR COVER
(A) M10X70 		1-33119-616-0 12 1 1306- ●
86 BOLT; RR COVER
PTO ZF TRANS RR(BDM) (D) M10X110 		1-33139-057-0 05 1 0906-1305 ●
86 BOLT; RR COVER
(D) M10X110 		1-33139-235-0 05 1 1306- ●
86 BOLT; RR COVER
PTO ZF TRANS RR(BDM) (E) M10X50 		1-33139-058-0 01 1 0906-1305 ●
86 BOLT; RR COVER
(E) M10X50 		1-33139-236-0 01 1 1306- ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (A) M10X70 M10X70 		1-33119-518-0 12 1 0906-1305 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (B) M12X25 		1-33119-594-0 04 1 1306-1311 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> (B) M12X25 		1-33119-594-0 04 1 1312- ● ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (B) M12X28 M12X28 		1-33139-051-0 04 1 0906-1305 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (D) M10X110 M10X110 		1-33139-210-0 05 1 0906-1305 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (E) M10X50 M10X50 		1-33139-211-0 01 1 0906-1305 ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-273-0 01 1 1306-1311 ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> 		1-33131-273-0 01 1 1312- ● ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 0906-1311 ●
328 GASKET; PLUG
EXC. PTO ZF TRANS RR(BDM) 		1-34119-130-0 01 1 0906-1311 ●
328 GASKET; PLUG 1-34119-130-0 01 1 1312- ●
415 COVER; BRG 1-33131-263-0 01 1 0906- ●
415 COVER; BRG
PTO ZF TRANS RR(BDM) 		1-33131-262-0 01 1 0906-1305 ●
415 COVER; BRG 1-33131-269-0 01 1 1306- ●
415 COVER; BRG
EXC. PTO ZF TRANS RR(BDM) 		1-33131-260-0 01 1 0906-1305 ●
419 PLUG; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-34119-008-0 01 1 0906-1311 ●
419 PLUG; RR COVER 1-34119-141-0 01 1 1312- ●
427 GASKET; RR COVER
(C) 		1-33139-216-0 01 1 0906- ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> (A) 		1-33132-054-0 01 1 0906- ● ●
427 GASKET; RR COVER
(B) 		1-33132-078-0 01 1 0906-1305 ●
427 GASKET; RR COVER
(B) 		1-33132-088-0 01 1 1306- ●
429 PIN; STRAIGHT 1-33119-292-0 02 1 0906- ●
435 CASE; TRANS
(C) 		1-31111-227-0 01 1 0906-1311 ●
435 CASE; TRANS
(C) 		1-31111-233-0 01 1 1312- ●
435 CASE; TRANS
(D) 		1-31111-229-0 01 1 0906- ●
435 CASE; TRANS
(A) 		1-33111-368-0 01 1 0906-1305 ●
435 CASE; TRANS
(B) 		1-33111-371-0 01 1 1306- ●
435 CASE; TRANS
PTO ZF TRANS RR(BDM) (B) 		1-33111-371-0 01 1 0906-1305 ●
435 CASE; TRANS
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33111-369-0 01 1 0906-1305 ●
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1306- ●
519 GASKET; SHAFT 1-33139-214-0 01 1 0906- ●
519 GASKET; SHAFT 1-33139-059-0 01 1 0906- ●
529 BRACKET; MISSION CASE 1-34119-132-0 02 1 0906-1311 ●
529 BRACKET; MISSION CASE 1-34119-142-0 02 1 1312- ●
696 SENSOR; PULSE 1-33139-215-0 01 1 0906-1311 ●
696 SENSOR; PULSE 1-33139-241-0 01 1 1312- ●
714 GASKET; SENSOR 1-33549-563-0 01 1 1312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
