Isuzu WW
▶
TRUCKS
▶
FVR
▶
11235 - FVR-RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-08 - CLUTCH MASTER CYLINDER
▶
2-08 — CLUTCH MASTER CYLINDER
(#60853) — 32 parça
◀

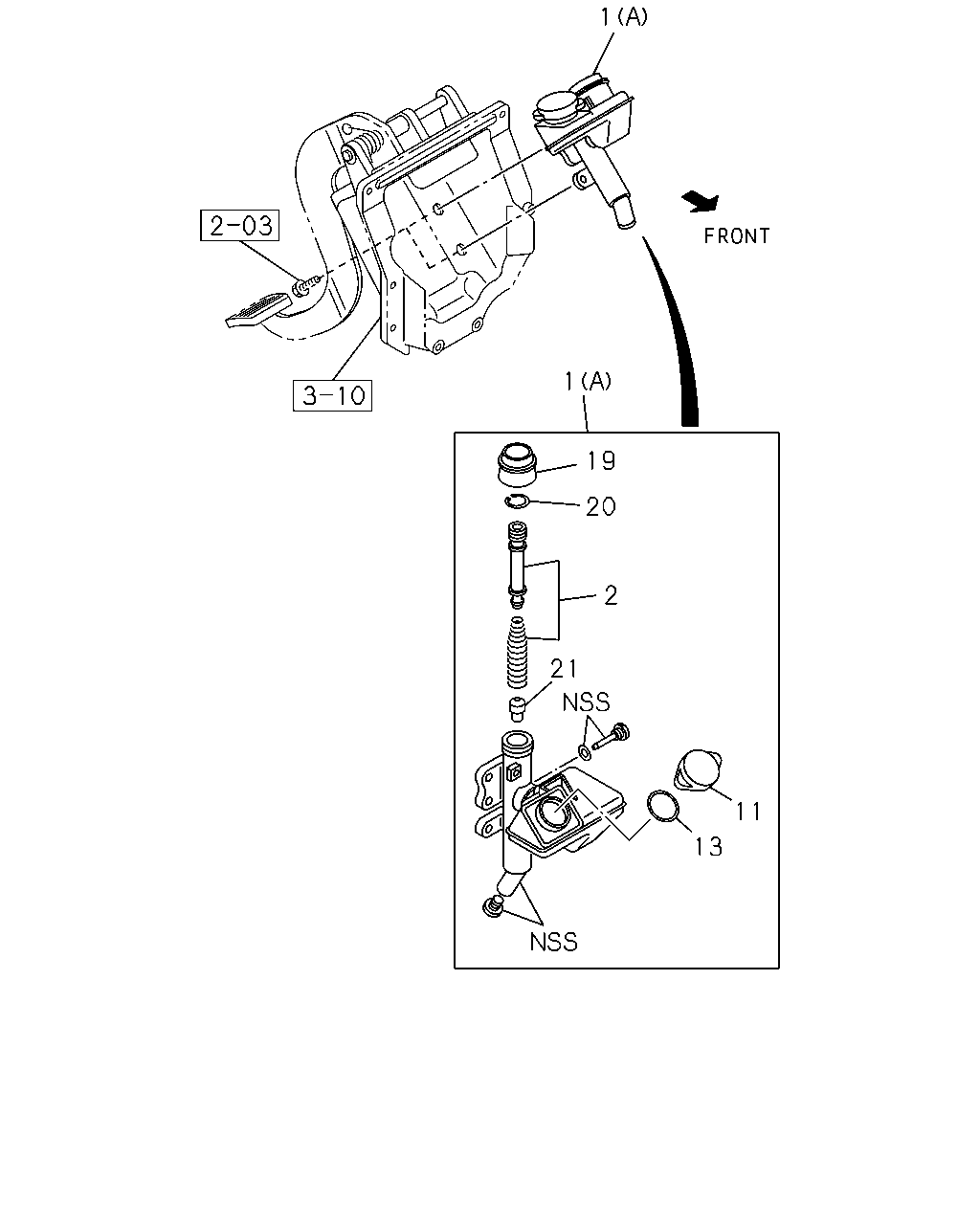

[208A] ZF6S1000 (13 parça)
[208A] ZF9S1110,MZW (19 parça)
▶
1
1
19
20
2
21
11
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER ASM; CLUTCH MASTER
ZF6S1000 M/T(Y5D) (A)
1-47500-357-3
01
1
0906-
1
CYLINDER ASM; CLUTCH MASTER
ZF9S1110 M/T(Y5E) (B)
1-47500-250-2
01
1
0906-1011
1
CYLINDER ASM; CLUTCH MASTER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B)
1-47500-250-2
01
1
1012-
2
REPAIR KIT; CLU M/CYL
ZF6S1000 M/T(Y5D)
1-47550-052-1
01
1
0906-
2
REPAIR KIT; CLU M/CYL
ZF9S1110 M/T(Y5E)
1-85576-461-0
01
1
0906-1011
2
REPAIR KIT; CLU M/CYL
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)
1-85576-461-0
01
1
1012-
11
CAP; OUTER,CLU M/CYL
ZF6S1000 M/T(Y5D)
1-47519-017-0
01
1
0906-
13
GASKET; OIL TANK
ZF6S1000 M/T(Y5D)
1-47519-016-0
01
1
0906-
19
BOOT; CLU M/CYL
ZF6S1000 M/T(Y5D)
1-47519-018-0
01
1
0906-
20
RING; SNAP,BODY
ZF6S1000 M/T(Y5D)
1-47515-009-0
01
1
0906-
20
RING; SNAP,BODY
ZF9S1110 M/T(Y5E)
1-47519-013-0
01
1
0906-1011
20
RING; SNAP,BODY
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)
1-47519-013-0
01
1
1012-
21
VALVE; CHECK
ZF6S1000 M/T(Y5D)
1-47565-004-0
01
1
0906-
1
1
47
20
2
91
36
89
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER ASM; CLUTCH MASTER
ZF6S1000 M/T(Y5D) (A)
1-47500-357-3
01
1
0906-
1
CYLINDER ASM; CLUTCH MASTER
ZF9S1110 M/T(Y5E) (B)
1-47500-250-2
01
1
0906-1011
1
CYLINDER ASM; CLUTCH MASTER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B)
1-47500-250-2
01
1
1012-
2
REPAIR KIT; CLU M/CYL
ZF6S1000 M/T(Y5D)
1-47550-052-1
01
1
0906-
2
REPAIR KIT; CLU M/CYL
ZF9S1110 M/T(Y5E)
1-85576-461-0
01
1
0906-1011
2
REPAIR KIT; CLU M/CYL
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)
1-85576-461-0
01
1
1012-
20
RING; SNAP,BODY
ZF6S1000 M/T(Y5D)
1-47515-009-0
01
1
0906-
20
RING; SNAP,BODY
ZF9S1110 M/T(Y5E)
1-47519-013-0
01
1
0906-1011
20
RING; SNAP,BODY
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)
1-47519-013-0
01
1
1012-
36
GASKET; CLU M/CYL
ZF9S1110 M/T(Y5E)
1-47519-014-0
01
1
0906-1011
36
GASKET; CLU M/CYL
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)
1-47519-014-0
01
1
1012-
47
COVER; DUST,PUSH ROD
ZF9S1110 M/T(Y5E)
1-47519-018-0
01
1
0906-1011
47
COVER; DUST,PUSH ROD
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)
1-47519-018-0
01
1
1012-
89
CAP; OIL FILLER,CLU M/CYL
ZF9S1110 M/T(Y5E)
1-47519-017-0
01
1
0906-1011
89
CAP; OIL FILLER,CLU M/CYL
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)
1-47519-017-0
01
1
1012-
90
GASKET; OIL FILLER,CLU M/CYL
ZF9S1110 M/T(Y5E)
1-47519-016-0
01
1
0906-1011
90
GASKET; OIL FILLER,CLU M/CYL
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)
1-47519-016-0
01
1
1012-
91
BOLT; STOPPER
ZF9S1110 M/T(Y5E)
1-47519-015-0
01
1
0906-1011
91
BOLT; STOPPER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E)
1-47519-015-0
01
1
1012-
