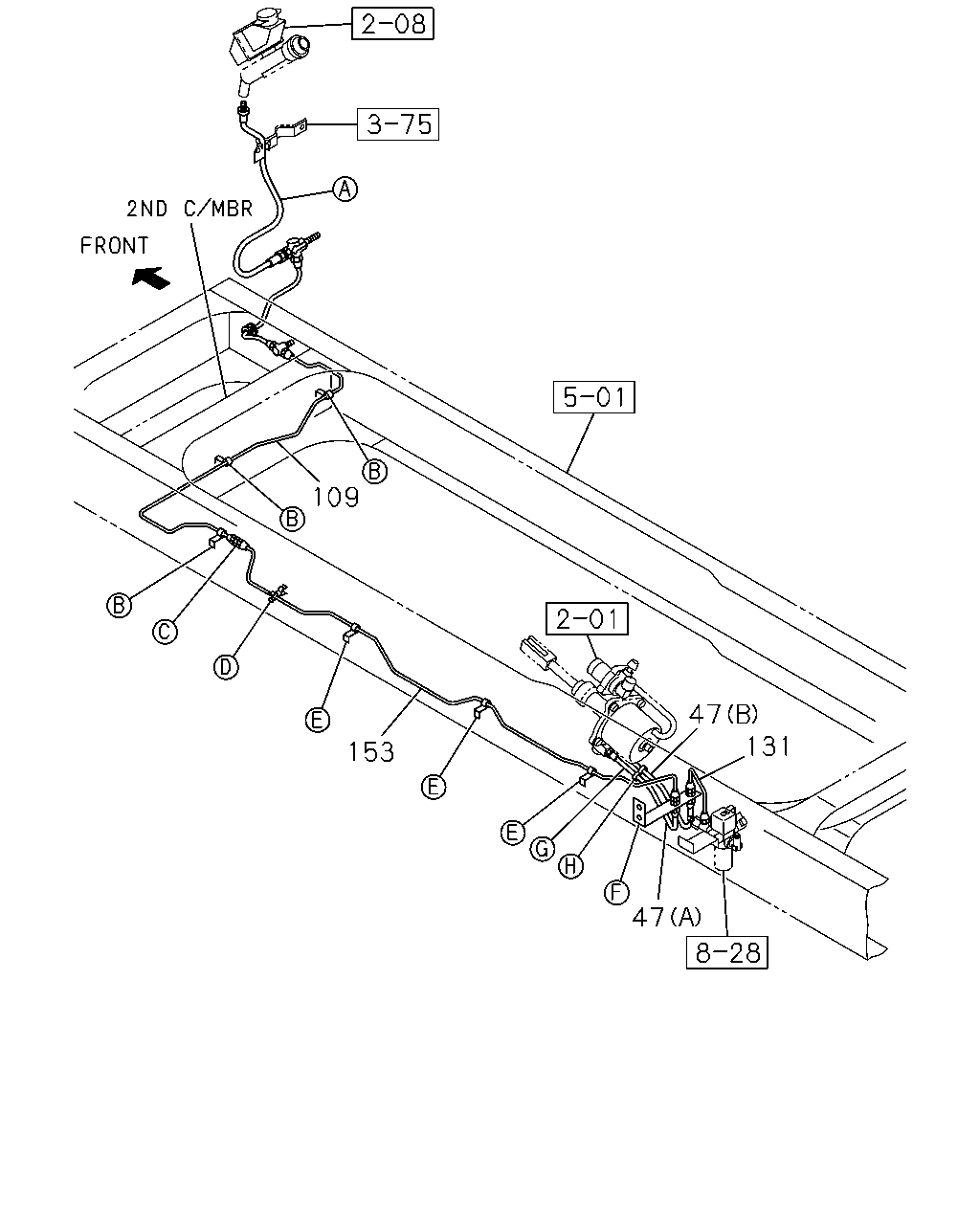

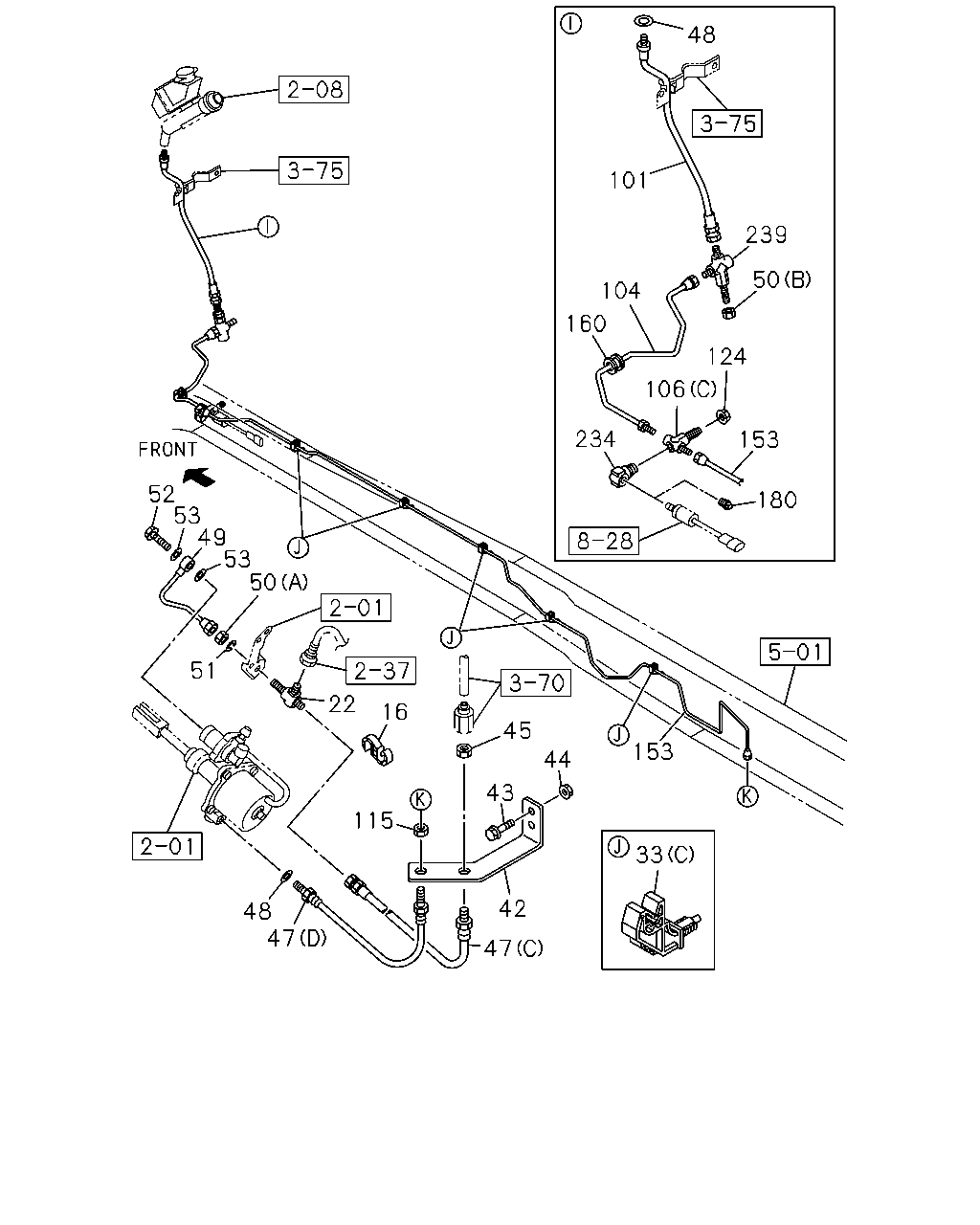

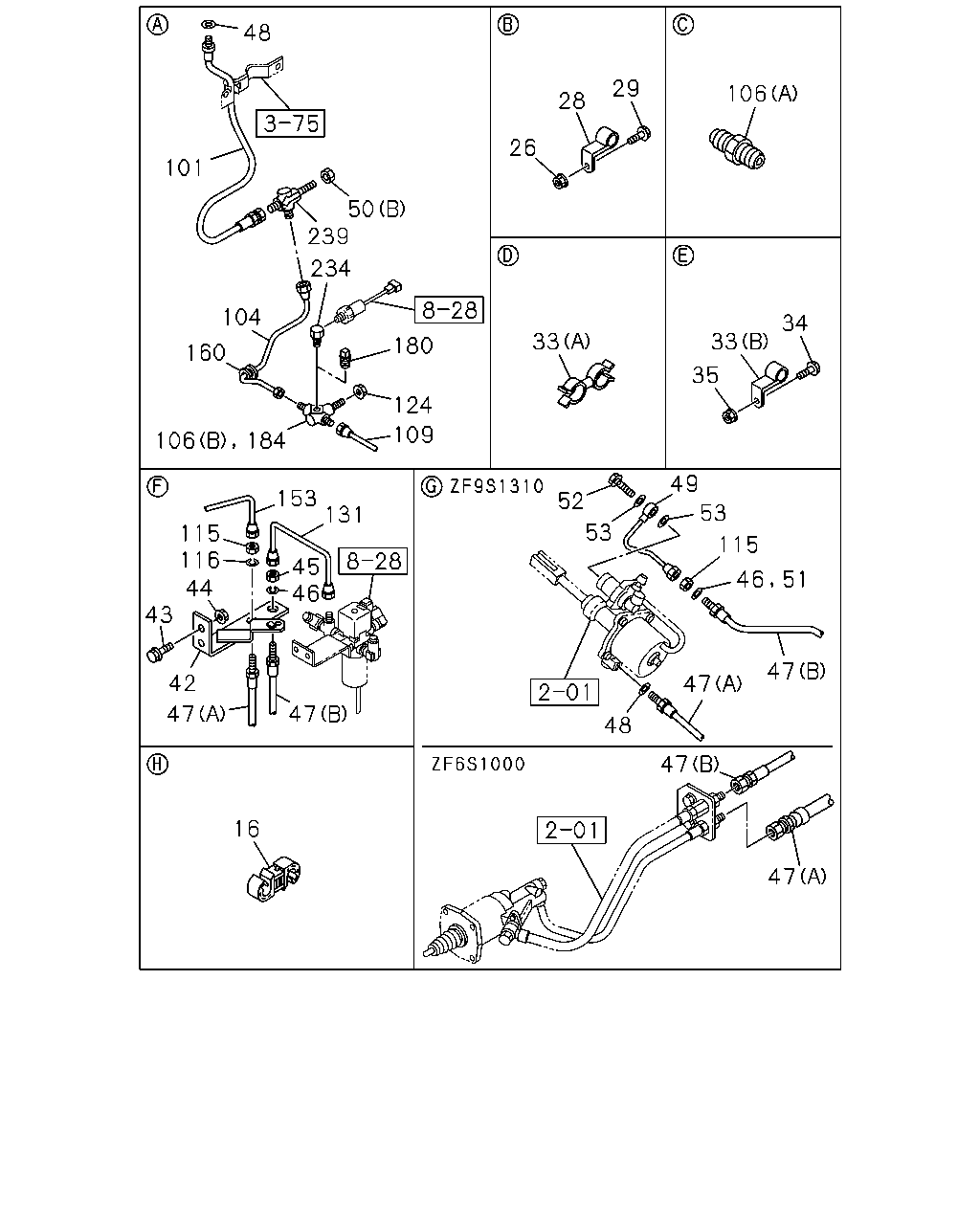

2-05 — CLUTCH PIPING (#60850) — 131 parça

109 47 131 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (C) L=380	1-09363-884-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (D) L=375	1-09364-407-0	01	1	1012-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (A) L=520	8-98130-713-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (B) L=280	1-09363-610-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0906-
109	PIPE; AIR,UNION TO UNION ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0906-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-
153	PIPE ASM; CLU,UNION TO FLEX ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-

48 101 50 239 234 104 160 106 184 109 124 180 153 131 115 116 44 43 42 47 47 46 45 16 47 47 47 47 46 51 115 53 49 52 53 48 29 28 26 106 33 35 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0906-
26	NUT; CLIP,OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0906-
28	CLIP; OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-
29	BOLT; CLIP,OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	0906-
29	BOLT; CLIP,OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0906-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	05	1	1012-
33	CLIP; OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-
33	CLIP; OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0906-
34	BOLT; PIPE CLIP ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0906-
35	NUT; PIPE CLIP ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0906-
42	BRACKET; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D)	8-98185-051-0	01	1	1012-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1012-
42	BRACKET; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0906-1011
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1012-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0906-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0906-
45	NUT; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D) M12	9-09840-280-0	01	1	0906-1011
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF6S1000 M/T(Y5D) M12	9-09840-280-0	01	1	1012-
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0906-
46	WASHER; LK,FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D) ID=12.2	0-91510-512-0	01	1	0906-1011
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0906-1011
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (C) L=380	1-09363-884-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (D) L=375	1-09364-407-0	01	1	1012-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (A) L=520	8-98130-713-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (B) L=280	1-09363-610-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0906-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0906-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1012-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0906-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1012-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0906-
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-
51	WASHER; LK MZW6P M/T(RSZ) ID=12.2	0-91510-512-0	01	1	1012-
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0906-1011
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1012-
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0906-1011
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION FULL FLOATING<W16> L=500	8-98072-350-0	01	1	0906-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK> L=440	8-98072-346-0	01	1	0906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	0906-
106	UNION; OIL PIPE MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (C) M12 3WAY	8-98051-113-0	01	1	1012-
106	UNION; OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0906-
106	UNION; OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0906-
109	PIPE; AIR,UNION TO UNION ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0906-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-
115	NUT; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0906-
116	WASHER; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0906-1011
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0906-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-
153	PIPE ASM; CLU,UNION TO FLEX ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
180	PLUG; PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0906-
184	UNION; FLEX HOSE MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1012-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1012-
234	CONNECTOR; ELBOW ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0906-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1012-
239	UNION; CLU HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	0906-

48 101 239 50 104 160 124 106 234 153 52 53 49 53 50 180 51 22 16 45 153 44 43 115 33 42 48 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0906-
22	UNION; CLU PIPE MZW6P M/T(RSZ) M12 3WAY	0-92138-706-0	01	1	1012-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	05	1	1012-
33	CLIP; OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-
33	CLIP; OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0906-
42	BRACKET; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D)	8-98185-051-0	01	1	1012-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1012-
42	BRACKET; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0906-1011
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1012-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0906-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0906-
45	NUT; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D) M12	9-09840-280-0	01	1	0906-1011
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF6S1000 M/T(Y5D) M12	9-09840-280-0	01	1	1012-
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0906-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (C) L=380	1-09363-884-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (D) L=375	1-09364-407-0	01	1	1012-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (A) L=520	8-98130-713-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF6S1000 M/T(Y5D) (B) L=280	1-09363-610-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0906-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0906-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1012-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0906-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1012-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0906-
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-
51	WASHER; LK MZW6P M/T(RSZ) ID=12.2	0-91510-512-0	01	1	1012-
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0906-1011
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1012-
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0906-1011
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION FULL FLOATING<W16> L=500	8-98072-350-0	01	1	0906-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK> L=440	8-98072-346-0	01	1	0906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	0906-
106	UNION; OIL PIPE MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (C) M12 3WAY	8-98051-113-0	01	1	1012-
106	UNION; OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0906-
106	UNION; OIL PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0906-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-
115	NUT; FLEX HOSE,CLU CONT ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0906-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0906-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-
153	PIPE ASM; CLU,UNION TO FLEX ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
180	PLUG; PIPE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0906-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1012-
234	CONNECTOR; ELBOW ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0906-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1012-
239	UNION; CLU HOSE ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	0906-
