Isuzu WW
▶
TRUCKS
▶
FVR
▶
11235 - FVR-RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

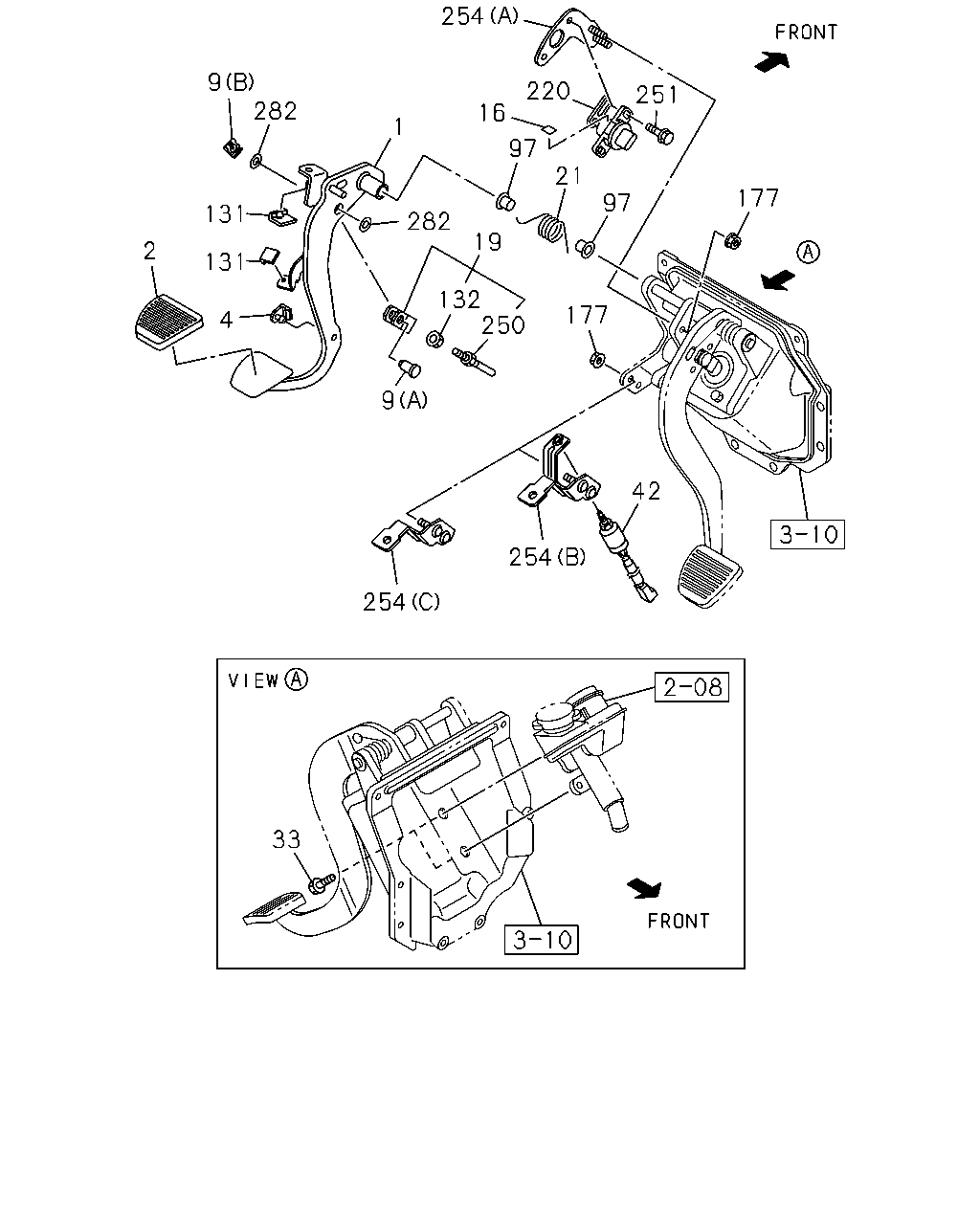

2-03 — CLUTCH PEDAL AND CONTROL
(#60849) — 32 parça
254
9
282
220
251
16
1
97
21
177
97
131
282
19
2
131
132
250
177
4
9
42
254
254
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP>
8-97613-941-1
01
1
1012-
1
PEDAL; CLU
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP>
8-98021-375-1
01
1
1012-
1
PEDAL; CLU
H.S.A SYSTEM<6EP>
8-98057-122-0
01
1
0906-1011
1
PEDAL; CLU
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>
8-98057-122-0
01
1
1012-
1
PEDAL; CLU
EXC. H.S.A SYSTEM<6EP>
8-98057-123-0
01
1
0906-1011
1
PEDAL; CLU
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP>
8-98057-123-0
01
1
1012-
2
COVER; CLU PEDAL
8-98056-865-0
01
1
0906-
4
STOPPER; CLU PEDAL
8-98079-251-0
01
1
0906-
9
PIN; CLU PEDAL
(A)
8-97387-230-0
01
1
0906-1007
9
PIN; CLU PEDAL
(A)
8-98147-657-0
01
1
1008-
9
PIN; CLU PEDAL
(B)
8-98007-161-0
01
1
0906-
16
SEAL; CLU PEDAL
H.S.A SYSTEM<6EP> 30X30
8-98142-344-0
01
1
1204-
19
ROD ASM; PUSH,CLU
8-98021-406-1
01
1
0906-
21
SPRING; RETURN,CLU PEDAL
8-98021-560-0
01
1
0906-
33
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE
0-28051-220-0
02
1
0906-
42
SWITCH; CLU
8-97620-841-0
01
1
0906-1011
42
SWITCH; CLU
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E)
8-97620-841-0
01
1
1012-
97
BUSHING; CLU PEDAL SHAFT
8-94238-596-0
02
1
0906-
131
STOPPER; CLU SW
MZW6P M/T(RSZ)
8-97302-305-0
01
1
1012-
131
STOPPER; CLU SW
8-97302-305-0
02
1
0906-1011
131
STOPPER; CLU SW
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E)
8-97302-305-0
02
1
1012-
132
NUT; LK,PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
0906-
177
NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
04
1
0906-
177
NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
02
1
0906-
220
SENSOR; CLUTCH
H.S.A SYSTEM<6EP>
1-80250-014-0
01
1
0906-
250
ROD; PUSH,CLU
8-97615-589-0
01
1
0906-
251
BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16
0-52000-616-0
02
1
0906-
254
BRACKET; CLU SENSOR
MZW6P M/T(RSZ) (C)
8-98021-377-1
01
1
1012-
254
BRACKET; CLU SENSOR
(B)
8-98057-131-1
01
1
0906-1011
254
BRACKET; CLU SENSOR
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B)
8-98057-131-1
01
1
1012-
254
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A)
8-98021-376-1
01
1
0906-
282
SPACER; CLU PEDAL
8-98070-329-0
02
1
0906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
