◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#60846) — 28 parça

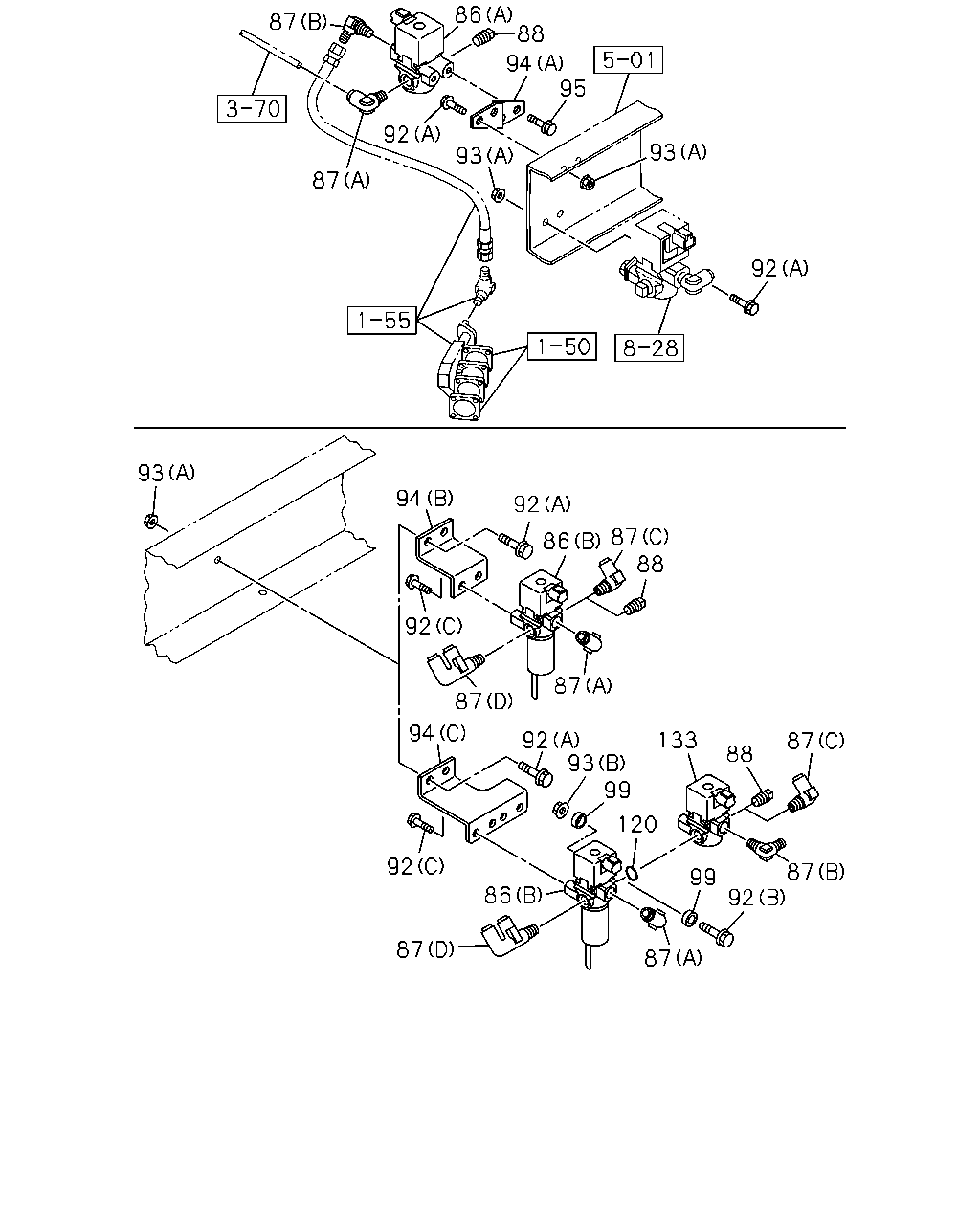

çizim 164575
86 88 87 94 95 92 93 93 87 92 93 94 92 87 88 86 92 87 87 94 133 92 93 99 87 88 120 92 87 92 99 86 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
MZW6P M/T(RSZ) (B) 		8-97633-075-0 01 1 1112- ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0906- ● ●
87 CONNECTOR
MZW6P M/T(RSZ) (D) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1112- ●
87 CONNECTOR
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ●
87 CONNECTOR
MZW6P M/T(RSZ) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1111 ● ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
87 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0906-1111 ● ●
87 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
MZW6P M/T(RSZ) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0906-1111 ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 1112- ● ●
88 PLUG
MZW6P M/T(RSZ) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112- ●
92 BOLT; MAG VLV
MZW6P M/T(RSZ) (C) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
92 BOLT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ●
92 BOLT; MAG VLV
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0906- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0906- ● ●
93 NUT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ●
93 NUT; MAG VLV
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98057-863-0 01 1 0906- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0906- ● ●
99 WASHER; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ●
120 GASKET; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ●
133 VALVE; MAG,PTO CONT
MZW6P M/T(RSZ) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ●
