1-50 — EXHAUST PIPE AND SILENCER (#60844) — 649 parça

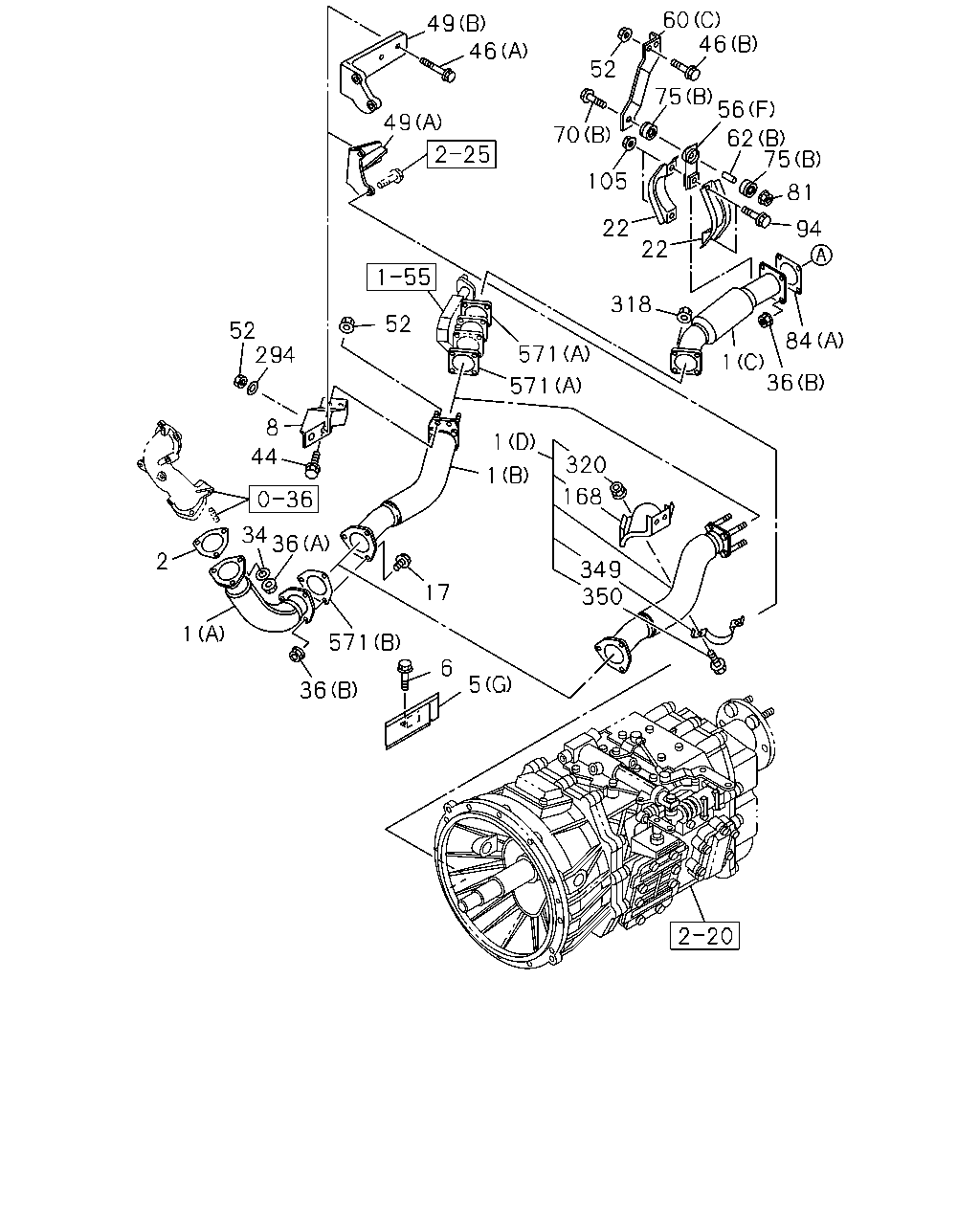

çizim 164560
60 46 49 46 52 75 56 49 70 62 75 105 81 22 94 22 318 52 52 294 84 571 1 36 571 8 1 44 320 168 1 34 36 2 349 350 17 1 571 6 5 36
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
MZW6P M/T(RSZ) (D) 		8-98115-164-0 01 1 1012-1209
1 PIPE; EXH
MZW6P M/T(RSZ) (D) 		8-98220-351-0 01 1 1210-
1 PIPE; EXH
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (C) 		8-98084-229-0 01 1 1012-
1 PIPE; EXH
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (C) 		1-22123-892-1 01 1 1012-
1 PIPE; EXH
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (C) 		1-22123-984-1 01 1 1012-
1 PIPE; EXH
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-98047-778-0 01 1 0906-1209
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1210-
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 0906-1209
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210-
1 PIPE; EXH
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W) (C) 		8-98070-119-0 01 1 0906-
1 PIPE; EXH
6HK1-TCS ENG(80L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		1-22123-893-1 01 1 0906-0907
1 PIPE; EXH
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) 		1-22123-893-1 01 1 0906-0907
1 PIPE; EXH
6HK1-TCS ENG(80L) (C) 		1-22123-893-1 01 1 0908-
1 PIPE; EXH
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (C) 		1-22123-893-1 01 1 0908-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0906-1011
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1012-
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 0906-1406
5 PROTECTOR; HEAT
(G) 		8-98255-001-0 01 1 1407-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (A) 		8-97605-172-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (B) 		8-97611-086-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (C) 		8-97611-087-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (D) 		8-97611-088-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (E) 		8-97611-089-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (F) 		8-97613-390-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (B) 		8-97611-098-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (C) 		8-97611-099-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (A) 		8-97611-100-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (F) 		8-97611-101-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (D) 		8-97611-102-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (E) 		8-97611-103-0 01 1 0906-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0906-
8 BRACKET; EXH PIPE
ZF6S1000 M/T(Y5D) 		8-98090-388-0 01 1 0906-
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) 		8-98120-522-0 01 1 0906-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 0906-1011
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 1012-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0906-1011
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0906-1011
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1012-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1012-
22 CLAMP; EXH PIPE
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> ID=80-84 		1-22133-233-0 02 1 1012-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0906-1011
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1012-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0906-1011
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1012-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0906-1011
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1012-
44 BOLT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10X30 FLANGE 		0-28651-030-0 02 1 0906-0907
44 BOLT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10X35 FLANGE 		0-28651-035-0 02 1 0908-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0906-
46 BOLT; BRKT,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) M10X35 FLANGE 		0-28651-035-0 02 1 1012-
46 BOLT; BRKT,EXH PIPE
(A) M10X25 L=40 		0-44011-025-0 02 1 0906-1011
46 BOLT; BRKT,EXH PIPE
(A) M10X25 L=40 		0-44011-025-0 02 1 1012-
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) (B) 		8-98120-493-0 01 1 1012-
49 BRACKET; EXH PIPE TO TRANS
ZF6S1000 M/T(Y5D) (A) 		8-98123-994-0 01 1 0906-
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (B) 		8-98120-497-0 01 1 0906-
52 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 0906-1011
52 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 1012-
52 NUT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0906-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (F) L=94 		1-22131-575-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (E) L=180 		1-22131-521-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98071-312-0 01 1 1012-1309
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98245-537-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98077-361-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (H) 		8-98078-088-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) (D) 		8-98101-361-0 01 1 0906-1301
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98070-639-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (I) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (I) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (I) 		8-98233-450-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (E) 		8-98233-552-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) (F) 		8-98234-014-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (C) 		8-98098-129-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98070-640-0 01 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98245-521-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98245-531-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98245-531-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-641-0 01 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98070-641-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-98070-641-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-98070-641-0 01 1 1012-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0906-0906
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) L=22 		9-22159-024-0 01 1 1012-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0906-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 02 1 1012-
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 02 1 1012-
62 TUBE; DIST,BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) L=39 		8-98060-852-0 02 1 1012-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) M10X50 FLANGE 		0-28051-050-0 01 1 1012-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
70 BOLT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
70 BOLT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
75 RUBBER; SUPPORT,BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) OD=40 		1-22159-094-0 02 1 1012-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-193-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1011
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0906-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 0906-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0906-1011
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0906-1011
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1012-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1012-
94 BOLT; CLAMP
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> M10X40 FLANGE 		0-28651-040-0 02 1 1012-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1012-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1012-
105 NUT; CLAMP
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ) 		8-98071-144-0 01 1 1012-1209
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ) 		8-98221-369-1 01 1 1210-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0906-1011
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1012-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0906-1011
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1012-
320 NUT; CLAMP,EXH PIPE
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1012-
349 CLAMP; EXH PIPE
MZW6P M/T(RSZ) 		8-98115-162-0 01 1 1012-
350 BOLT; CLAMP,EXH PIPE
MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 02 1 1012-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0906-1011
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1012-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0906-1011
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1012-

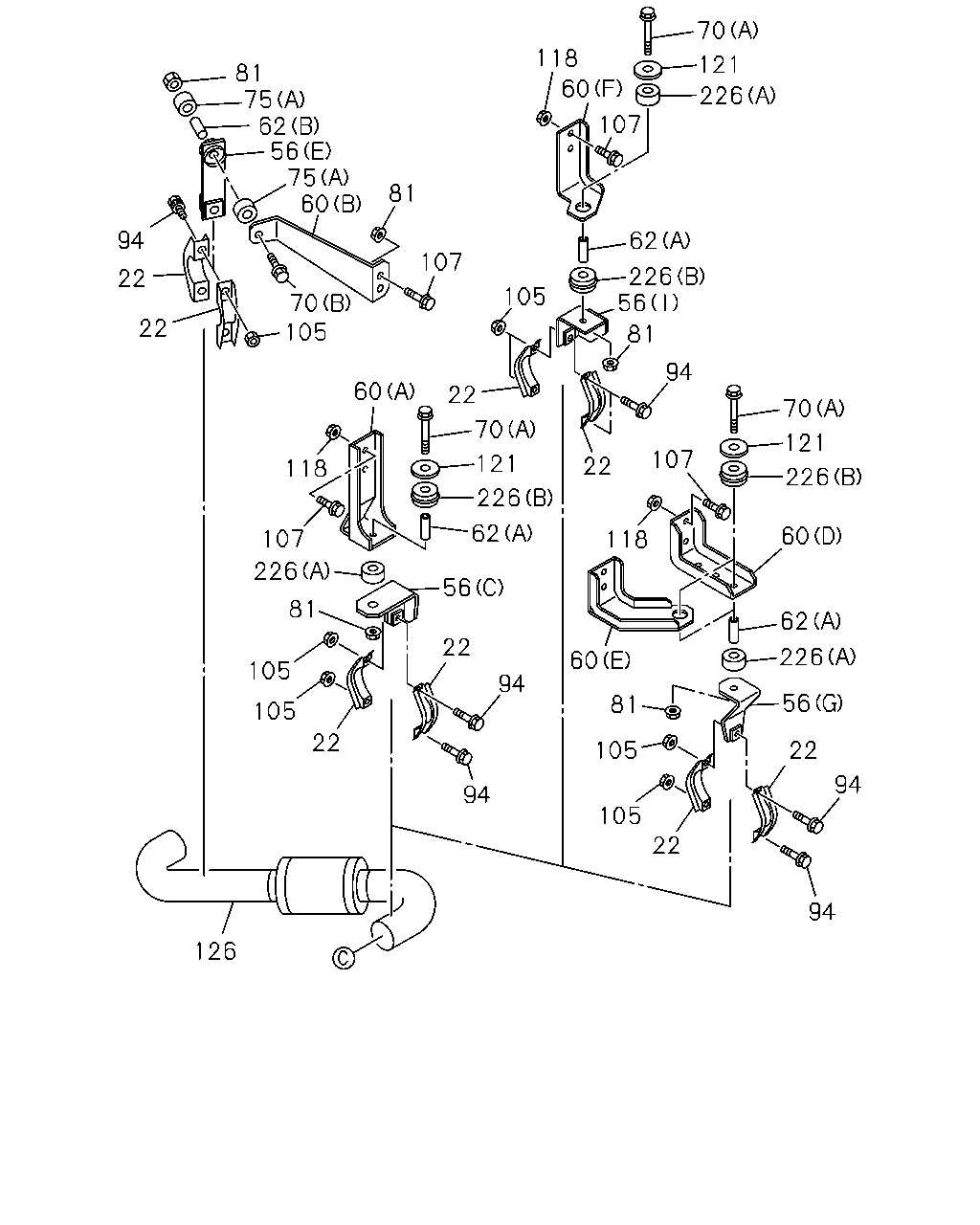

çizim 164561
81 62 75 56 81 107 60 70 94 22 22 105 118 107 70 226 121 60 62 56 226 105 81 70 226 121 107 22 118 70 22 60 118 107 226 81 105 105 22 22 94 94 56 62 121 62 226 94 60 81 105 105 22 94 22 94 56 226 60 126
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0906-1011
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0906-1011
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1012-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1012-
22 CLAMP; EXH PIPE
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> ID=80-84 		1-22133-233-0 02 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (F) L=94 		1-22131-575-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (E) L=180 		1-22131-521-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98071-312-0 01 1 1012-1309
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98245-537-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98077-361-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (H) 		8-98078-088-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) (D) 		8-98101-361-0 01 1 0906-1301
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98070-639-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (I) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (I) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (I) 		8-98233-450-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (E) 		8-98233-552-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) (F) 		8-98234-014-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (C) 		8-98098-129-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98070-640-0 01 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98245-521-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98245-531-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98245-531-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-641-0 01 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98070-641-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-98070-641-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-98070-641-0 01 1 1012-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0906-0906
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) L=22 		9-22159-024-0 01 1 1012-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0906-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 02 1 1012-
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 02 1 1012-
62 TUBE; DIST,BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) L=39 		8-98060-852-0 02 1 1012-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) M10X50 FLANGE 		0-28051-050-0 01 1 1012-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
70 BOLT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
70 BOLT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
75 RUBBER; SUPPORT,BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) OD=40 		1-22159-094-0 02 1 1012-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-193-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1011
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0906-1011
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0906-1011
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1012-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1012-
94 BOLT; CLAMP
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> M10X40 FLANGE 		0-28651-040-0 02 1 1012-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1012-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1012-
105 NUT; CLAMP
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0906-
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0906-1011
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1012-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0906-1011
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0906-1011
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 02 1 1012-
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 02 1 1012-
121 WASHER; PL,BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) ID=11 OD=54 		1-09503-154-2 02 1 1012-
126 PIPE; EXH,RR
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) EXC. VIN MODEL YEAR 2011<VZB> 		8-98105-813-0 01 1 1012-1301
126 PIPE; EXH,RR
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) EXC. VIN MODEL YEAR 2011<VZB> 		8-98234-298-0 01 1 1302-
126 PIPE; EXH,RR
MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> 		8-98043-365-2 01 1 1012-1301
126 PIPE; EXH,RR
MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> 		8-98233-516-0 01 1 1302-
126 PIPE; EXH,RR
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) 		8-98105-147-0 01 1 0906-1301
126 PIPE; EXH,RR
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) 		8-98234-299-0 01 1 1302-
126 PIPE; EXH,RR
6HK1-TCS ENG(80L) 		1-22126-646-2 01 1 0906-1011
126 PIPE; EXH,RR
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W) 		1-22126-646-2 01 1 0906-1011
126 PIPE; EXH,RR
6HK1-TCS ENG(80L) 		1-22126-646-2 01 1 1012-1301
126 PIPE; EXH,RR
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> 		1-22126-646-2 01 1 1012-1301
126 PIPE; EXH,RR
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> 		1-22126-646-2 01 1 1012-1301
126 PIPE; EXH,RR
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W) 		1-22126-646-2 01 1 1012-1301
126 PIPE; EXH,RR
6HK1-TCS ENG(80L) 		8-98233-519-0 01 1 1302-
126 PIPE; EXH,RR
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> 		8-98233-519-0 01 1 1302-
126 PIPE; EXH,RR
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> 		8-98233-519-0 01 1 1302-
126 PIPE; EXH,RR
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W) 		8-98233-519-0 01 1 1302-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 02 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 02 1 1012-
226 RUBBER; CUSHION
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-94457-278-1 02 1 1012-

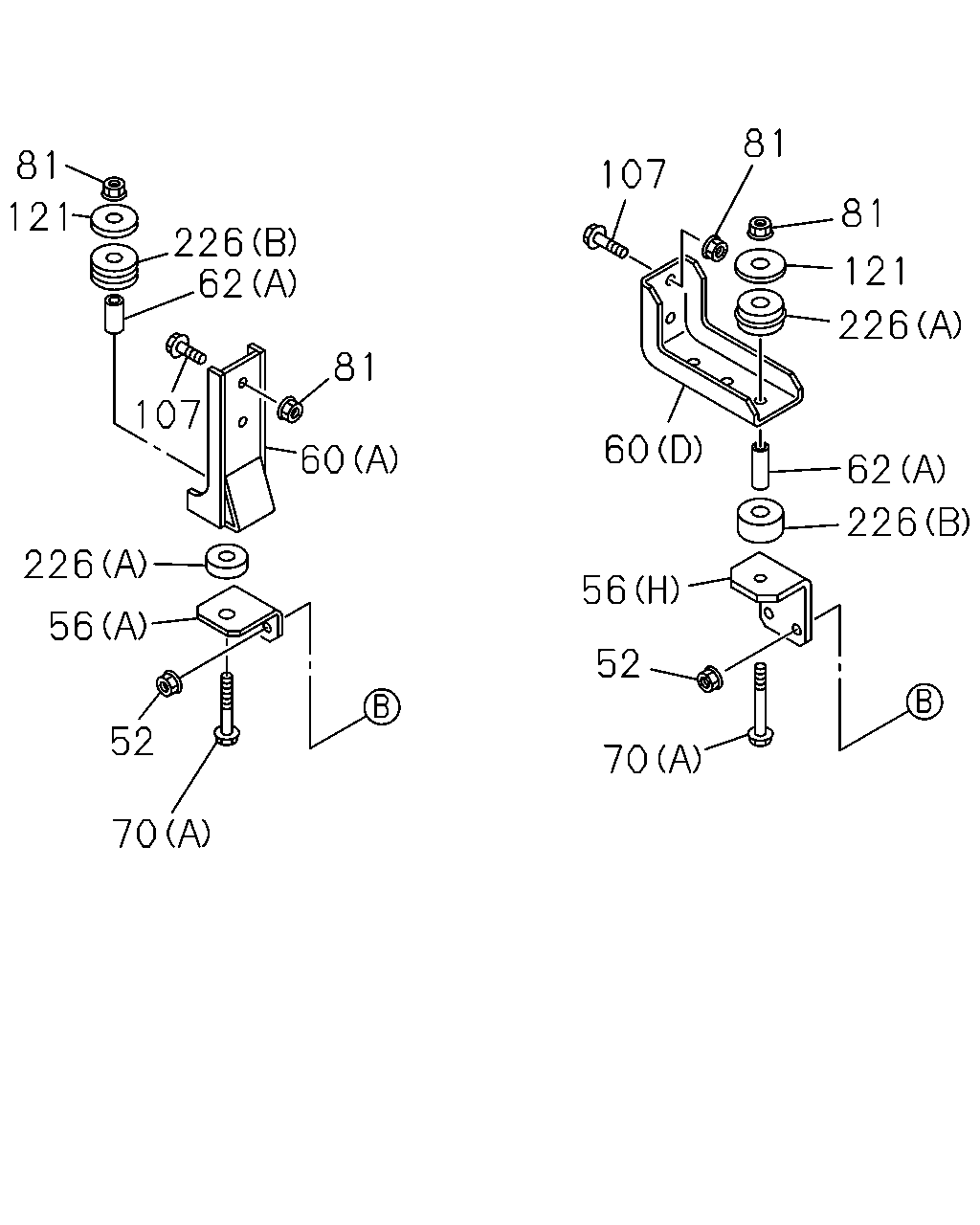

çizim 164566
81 81 107 81 121 226 62 121 226 81 107 60 60 62 226 226 56 56 52 52 70 70
BalonParca AdiParca NoAdetTipApplied Date
52 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 0906-1011
52 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 1012-
52 NUT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0906-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (F) L=94 		1-22131-575-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (E) L=180 		1-22131-521-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98071-312-0 01 1 1012-1309
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98245-537-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98077-361-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (H) 		8-98078-088-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) (D) 		8-98101-361-0 01 1 0906-1301
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98070-639-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (I) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (I) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (I) 		8-98233-450-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (E) 		8-98233-552-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) (F) 		8-98234-014-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (C) 		8-98098-129-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98070-640-0 01 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98245-521-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98245-531-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98245-531-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-641-0 01 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98070-641-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-98070-641-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-98070-641-0 01 1 1012-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0906-0906
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) L=22 		9-22159-024-0 01 1 1012-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0906-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 02 1 1012-
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 02 1 1012-
62 TUBE; DIST,BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) L=39 		8-98060-852-0 02 1 1012-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) M10X50 FLANGE 		0-28051-050-0 01 1 1012-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
70 BOLT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
70 BOLT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1011
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0906-
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0906-1011
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0906-1011
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0906-1011
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 02 1 1012-
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 02 1 1012-
121 WASHER; PL,BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) ID=11 OD=54 		1-09503-154-2 02 1 1012-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 02 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 02 1 1012-
226 RUBBER; CUSHION
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-94457-278-1 02 1 1012-

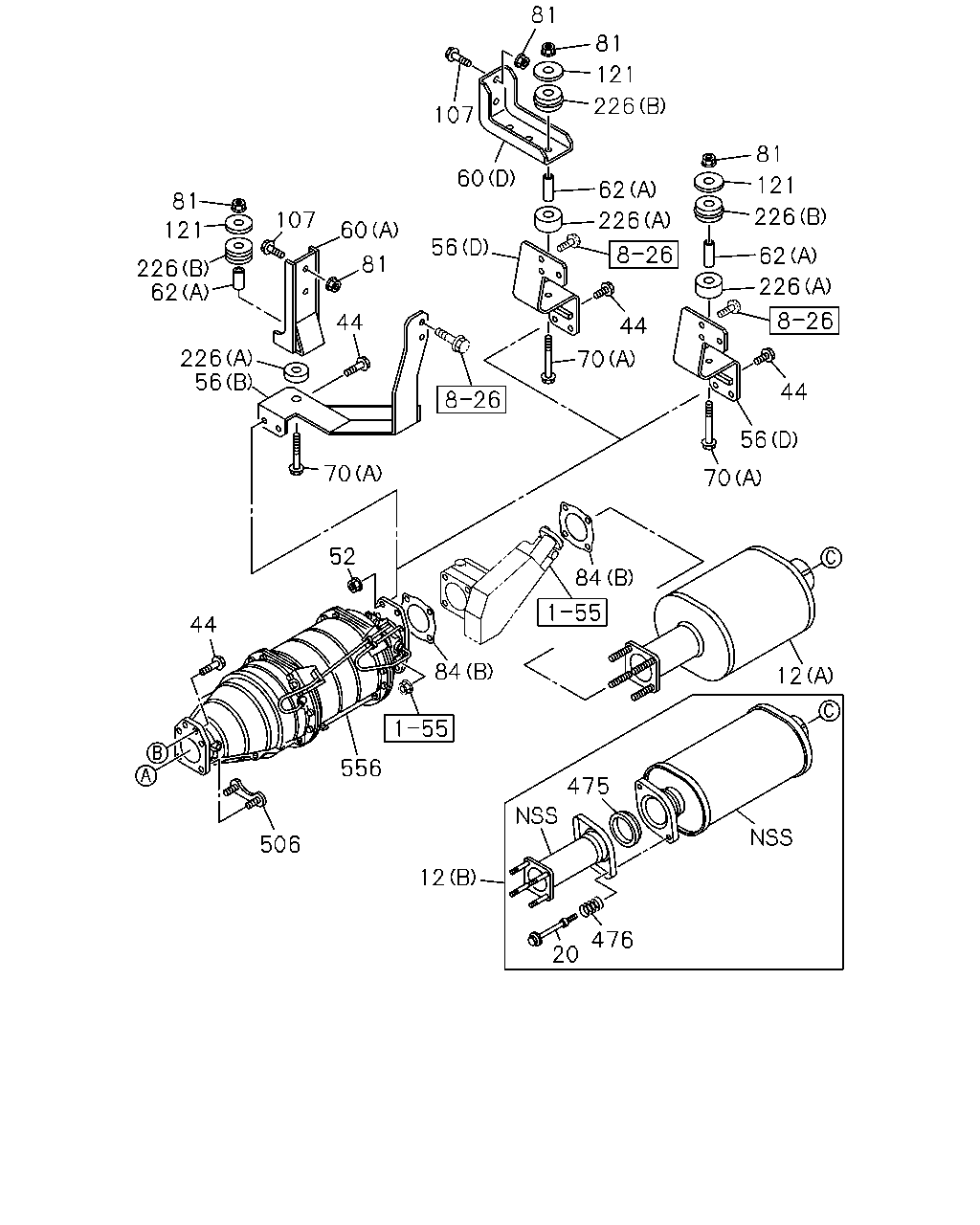

çizim 164571
506 556 44 52 84 475 476 20 12 84 12 70 56 226 62 226 121 81 81 226 121 81 107 60 62 56 226 44 70 107 44 60 81 226 121 62 226 81 56 70 44
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0906-1301
12 SILENCER ASM; EXH
(B) 		8-98234-507-0 01 1 1302-
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302-
44 BOLT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10X30 FLANGE 		0-28651-030-0 02 1 0906-0907
44 BOLT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10X35 FLANGE 		0-28651-035-0 02 1 0908-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0906-
52 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 0906-1011
52 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 1012-
52 NUT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0906-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (F) L=94 		1-22131-575-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (E) L=180 		1-22131-521-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98071-312-0 01 1 1012-1309
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98245-537-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98077-361-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (H) 		8-98078-088-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (E) L=204 		1-22131-520-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		1-22152-324-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-98072-104-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) (D) 		8-98101-361-0 01 1 0906-1301
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98070-639-0 01 1 0906-1011
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98070-639-0 01 1 1012-1301
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (I) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (I) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (I) 		8-98233-450-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (E) 		8-98233-552-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) (F) 		8-98234-014-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (C) 		8-98098-129-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98070-640-0 01 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98245-521-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98070-622-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98245-531-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (D) 		8-98245-531-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98070-628-0 01 1 1012-1301
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98070-628-0 02 1 1012-1309
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-641-0 01 1 0906-1011
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98070-641-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-98070-641-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-98070-641-0 01 1 1012-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0906-0906
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) L=22 		9-22159-024-0 01 1 1012-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0906-1011
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 02 1 1012-
62 TUBE; DIST,BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) L=39 		8-98060-852-0 02 1 1012-
62 TUBE; DIST,BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) L=39 		8-98060-852-0 02 1 1012-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) M10X50 FLANGE 		0-28051-050-0 01 1 1012-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-1011
70 BOLT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
70 BOLT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
70 BOLT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1011
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 01 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-1011
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0906-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 0906-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0906-
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0906-1011
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0906-1011
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0906-1011
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 02 1 1012-
121 WASHER; PL,BRKT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> ID=11 OD=54 		1-09503-154-2 02 1 1012-
121 WASHER; PL,BRKT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) ID=11 OD=54 		1-09503-154-2 02 1 1012-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0906-1011
226 RUBBER; CUSHION
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 02 1 1012-
226 RUBBER; CUSHION
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) VIN MODEL YEAR 2011<VZB> (B) 		8-94457-278-1 02 1 1012-
226 RUBBER; CUSHION
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (B) 		8-94457-278-1 02 1 1012-
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0906-1011
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1012-
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97613-331-6 01 1 0906-1010
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97622-883-4 01 1 1011-
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97606-314-5 01 1 0906-1011
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97622-899-4 01 1 1012-
çizim 164893
556 467 5 558 5 5 559 5 5 557 550 560 422 560 423 423 534 547 422 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 0906-1406
5 PROTECTOR; HEAT
(G) 		8-98255-001-0 01 1 1407-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (A) 		8-97605-172-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (B) 		8-97611-086-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (C) 		8-97611-087-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (D) 		8-97611-088-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (E) 		8-97611-089-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (F) 		8-97613-390-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (B) 		8-97611-098-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (C) 		8-97611-099-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (A) 		8-97611-100-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (F) 		8-97611-101-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (D) 		8-97611-102-0 01 1 0906-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (E) 		8-97611-103-0 01 1 0906-
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0906-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0906-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0906-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0906-
547 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 03 1 0906-
547 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 03 1 0906-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0906-
550 BRACKET; DPD
6HK1-TCC ENG(81L) (A) 		8-97611-083-0 01 1 0906-
550 BRACKET; DPD
6HK1-TCC ENG(81L) (B) 		8-97611-084-0 01 1 0906-
550 BRACKET; DPD
6HK1-TCS ENG(80L) (A) 		8-97611-096-0 01 1 0906-
550 BRACKET; DPD
6HK1-TCS ENG(80L) (B) 		8-97611-097-0 01 1 0906-
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97613-331-6 01 1 0906-1010
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97622-883-4 01 1 1011-
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97606-314-5 01 1 0906-1011
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97622-899-4 01 1 1012-
557 CATALYST ASM
6HK1-TCC ENG(81L) 		8-97608-055-8 01 1 0906-
557 CATALYST ASM
6HK1-TCS ENG(80L) 		8-97608-054-6 01 1 0906-
558 FILTER ASM
6HK1-TCC ENG(81L) 		8-97608-057-3 01 1 0906-
558 FILTER ASM
6HK1-TCS ENG(80L) 		8-97608-056-2 01 1 0906-
559 COVER; RR
6HK1-TCC ENG(81L) 		8-97611-078-0 01 1 0906-1010
559 COVER; RR
6HK1-TCC ENG(81L) 		8-97622-887-0 01 1 1011-
559 COVER; RR
6HK1-TCS ENG(80L) 		8-97611-090-0 01 1 0906-1011
559 COVER; RR
6HK1-TCS ENG(80L) 		8-97622-903-0 01 1 1012-
560 GASKET; DPD
6HK1-TCC ENG(81L) 		8-97611-080-0 02 1 0906-
560 GASKET; DPD
6HK1-TCS ENG(80L) 		8-97611-092-0 02 1 0906-
561 PIPE; DPD
6HK1-TCC ENG(81L) (A) 		8-97611-081-0 01 1 0906-1010
561 PIPE; DPD
6HK1-TCC ENG(81L) (A) 		8-97622-888-0 01 1 1011-
561 PIPE; DPD
6HK1-TCC ENG(81L) (B) 		8-97611-082-0 01 1 0906-1010
561 PIPE; DPD
6HK1-TCC ENG(81L) (B) 		8-97622-889-0 01 1 1011-
561 PIPE; DPD
6HK1-TCS ENG(80L) (A) 		8-97611-093-0 01 1 0906-1011
561 PIPE; DPD
6HK1-TCS ENG(80L) (A) 		8-97622-904-0 01 1 1012-
561 PIPE; DPD
6HK1-TCS ENG(80L) (B) 		8-97611-094-0 01 1 0906-1011
561 PIPE; DPD
6HK1-TCS ENG(80L) (B) 		8-97622-905-0 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
