◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#60819) — 70 parça

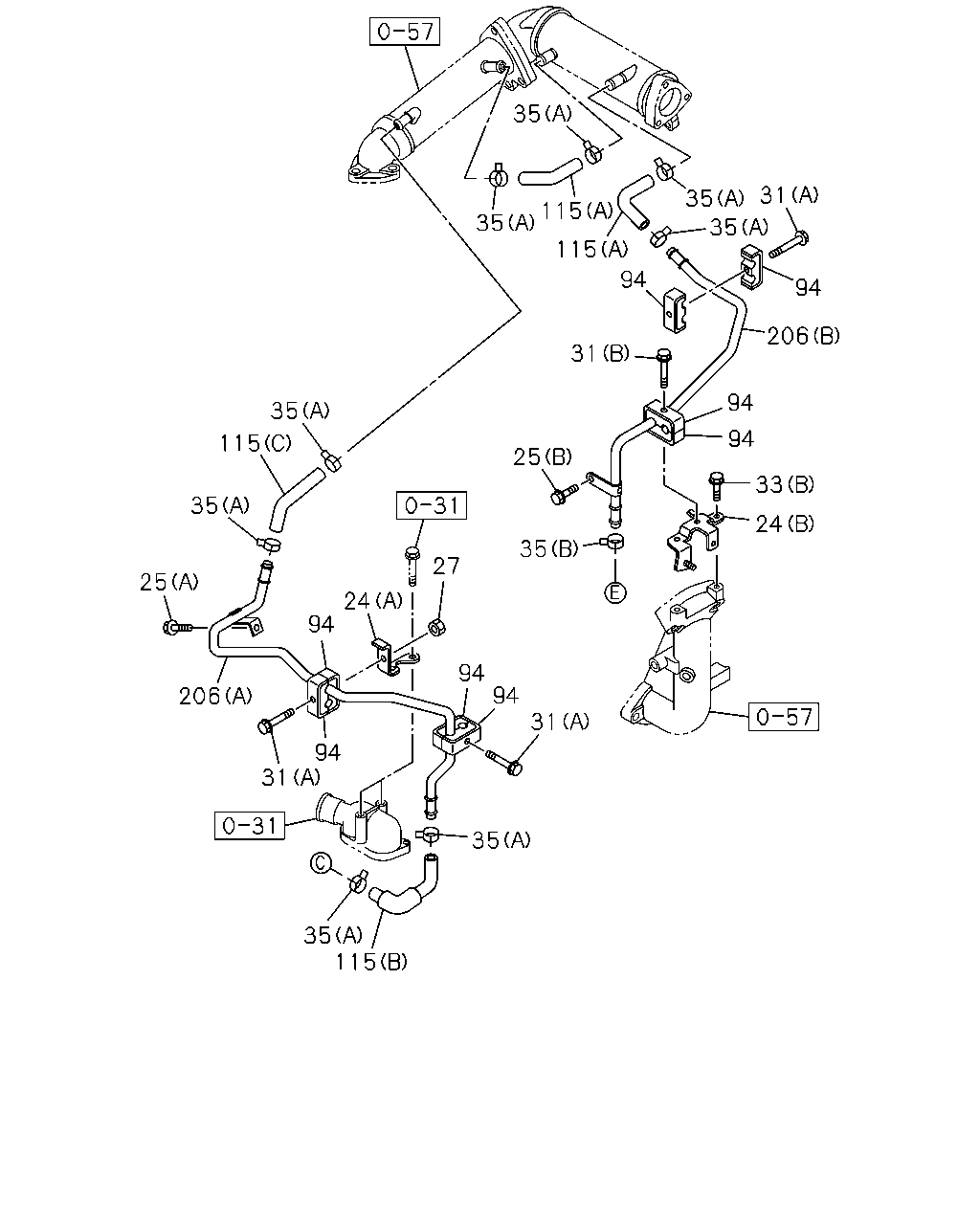

çizim 164501
35 35 115 115 31 94 25 35 24 33 94 94 206 94 35 35 31 35 115 35 25 206 31 35 115 35 31 94 94 94 94 27 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
(A) 		8-98000-557-2 01 1 0906- ● ●
24 BRACKET; WATER PIPE
(B) 		8-98051-626-1 01 1 0906- ● ●
25 BOLT; WATER PIPE
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0906- ● ●
25 BOLT; WATER PIPE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
27 NUT; PIPE FIX
M6 FLANGE 		0-91180-106-0 01 1 0906- ● ●
31 BOLT; CLIP
(B) M6X45 FLANGE 		0-28050-645-0 01 1 0906- ● ●
31 BOLT; CLIP
(A) M6X40 FLANGE 		0-28650-640-0 03 1 0906- ● ●
33 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
33 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0906- ● ●
35 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41) GENERATOR 24V90A(K44) EXC. KD PREPARATORY PACK<6HF> (A) ID=20 		8-98127-648-0 02 1 0906- ●
35 CLIP; RUBBER HOSE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) ID=20 		8-98127-648-0 02 1 0906- ●
35 CLIP; RUBBER HOSE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=20 		8-98127-648-0 02 1 0906- ●
35 CLIP; RUBBER HOSE
(B) ID=20.8 		8-94125-862-1 01 1 0906- ● ●
35 CLIP; RUBBER HOSE
(A) ID=20 		8-98127-648-0 07 1 0906-1104 ● ●
35 CLIP; RUBBER HOSE
(A) ID=20 		8-98127-648-0 08 1 1105- ● ●
94 CLIP; WATER PIPE 8-97605-129-1 08 1 0906- ● ●
115 HOSE; RUBBER
HEATER & DEFROSTER(C41) GENERATOR 24V90A(K44) EXC. KD PREPARATORY PACK<6HF> (D) 		8-97618-843-0 01 1 0906- ●
115 HOSE; RUBBER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) 		8-97618-843-0 01 1 0906- ●
115 HOSE; RUBBER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-97618-843-0 01 1 0906- ●
115 HOSE; RUBBER
(B) 		8-97606-735-1 01 1 0906- ● ●
115 HOSE; RUBBER
(A) 		8-97606-749-0 02 1 0906- ● ●
115 HOSE; RUBBER
(C) 		8-98043-192-0 01 1 0906- ● ●
206 PIPE; WATER,EGR COOLER
(A) 		8-97604-928-2 01 1 0906- ● ●
206 PIPE; WATER,EGR COOLER
(B) 		8-98000-480-1 01 1 0906- ● ●

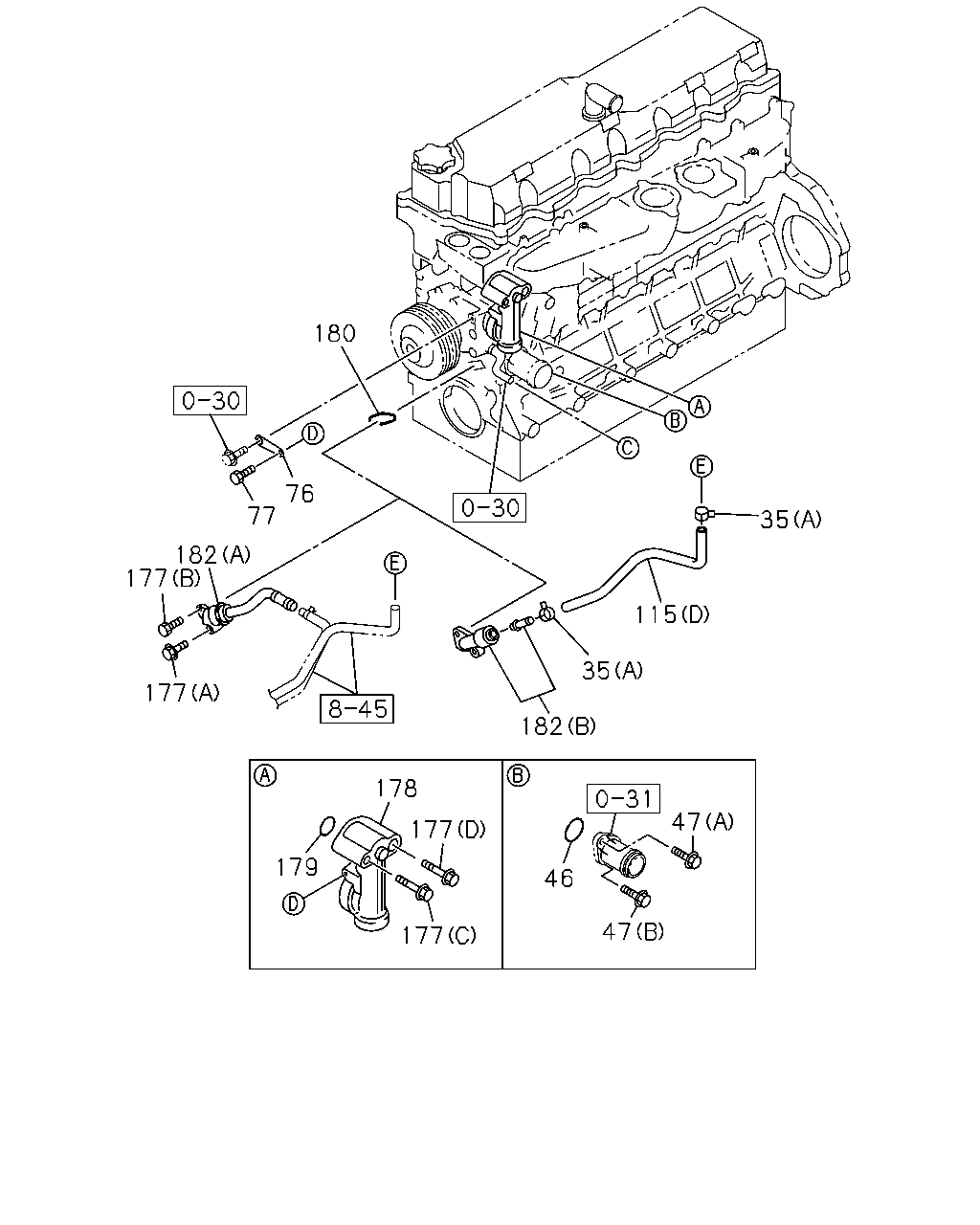

çizim 164533
180 76 77 35 182 177 115 35 177 182 178 47 177 179 46 47 177
BalonParca AdiParca NoAdetTipApplied Date A B
35 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41) GENERATOR 24V90A(K44) EXC. KD PREPARATORY PACK<6HF> (A) ID=20 		8-98127-648-0 02 1 0906- ●
35 CLIP; RUBBER HOSE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) ID=20 		8-98127-648-0 02 1 0906- ●
35 CLIP; RUBBER HOSE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=20 		8-98127-648-0 02 1 0906- ●
35 CLIP; RUBBER HOSE
(B) ID=20.8 		8-94125-862-1 01 1 0906- ● ●
35 CLIP; RUBBER HOSE
(A) ID=20 		8-98127-648-0 07 1 0906-1104 ● ●
35 CLIP; RUBBER HOSE
(A) ID=20 		8-98127-648-0 08 1 1105- ● ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 0906- ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 0906- ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0906- ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 0906- ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 0906- ● ●
115 HOSE; RUBBER
HEATER & DEFROSTER(C41) GENERATOR 24V90A(K44) EXC. KD PREPARATORY PACK<6HF> (D) 		8-97618-843-0 01 1 0906- ●
115 HOSE; RUBBER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) 		8-97618-843-0 01 1 0906- ●
115 HOSE; RUBBER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-97618-843-0 01 1 0906- ●
115 HOSE; RUBBER
(B) 		8-97606-735-1 01 1 0906- ● ●
115 HOSE; RUBBER
(A) 		8-97606-749-0 02 1 0906- ● ●
115 HOSE; RUBBER
(C) 		8-98043-192-0 01 1 0906- ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 0906- ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0906- ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 0906- ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 0906- ● ●
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 0906- ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 0906-1408 ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409- ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 0906- ● ●
182 DUCT; WATER,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR & DEFROSTER WO/HEATER(SAZ) GENERATOR 24V90A(K44) (A) 		8-94394-348-5 01 1 0906- ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-94394-348-5 01 1 0906- ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41) GENERATOR 24V90A(K44) KD PREPARATORY PACK<6HF> (A) 		8-94394-348-5 01 1 0906- ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-94394-348-5 01 1 0906- ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41) GENERATOR 24V90A(K44) EXC. KD PREPARATORY PACK<6HF> (B) 		8-94396-727-3 01 1 0906- ●
182 DUCT; WATER,HTR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-94396-727-3 01 1 0906- ●
182 DUCT; WATER,HTR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94396-727-3 01 1 0906- ●

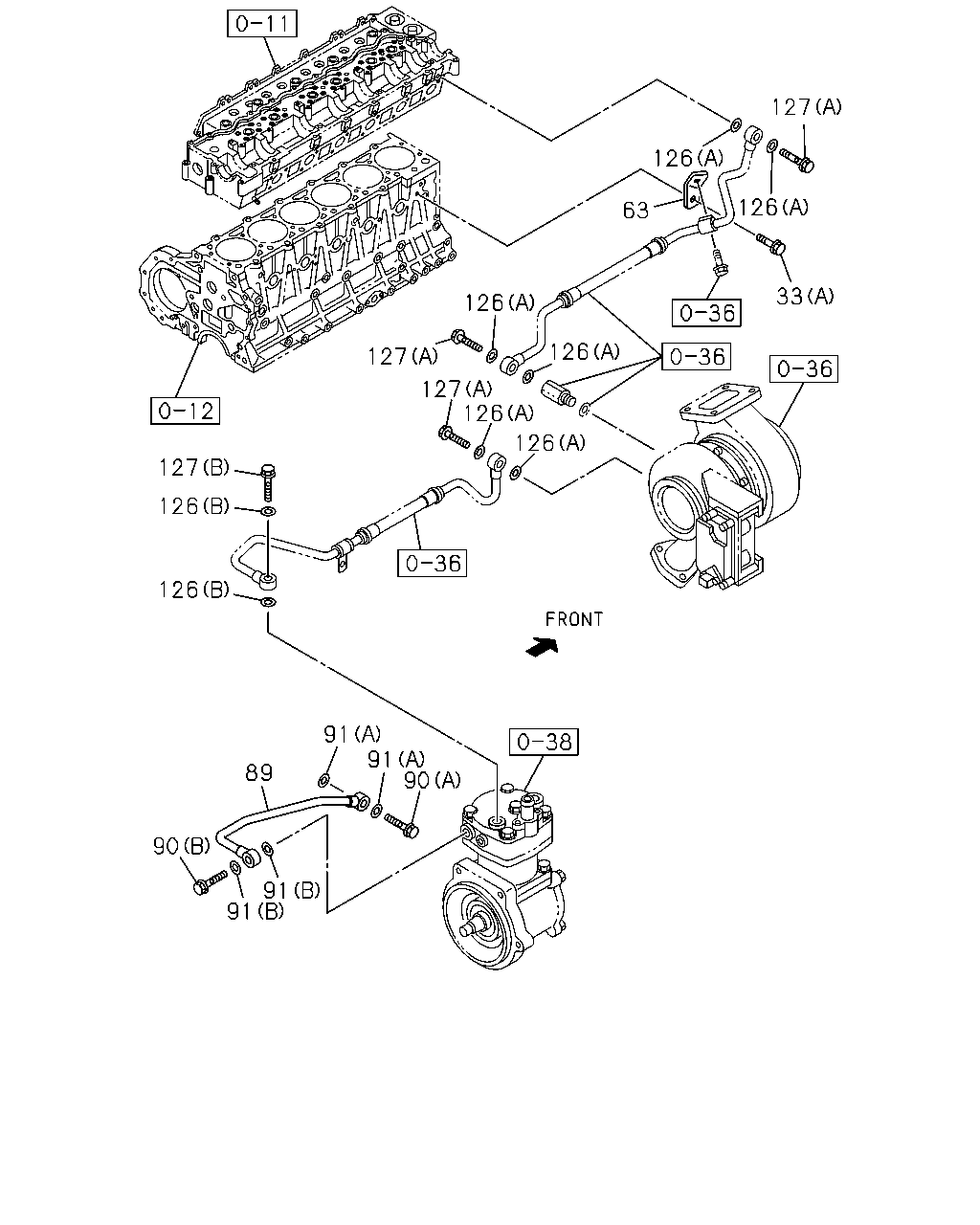

çizim 164546
127 126 126 63 33 126 126 127 127 126 126 127 126 126 91 91 90 89 90 91 91
BalonParca AdiParca NoAdetTipApplied Date A B
33 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
33 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0906- ● ●
63 BRACKET; WATER PIPE 8-98046-784-0 01 1 0906- ● ●
89 PIPE; WATER,AIR CMPR,IN 8-97610-086-0 01 1 0906- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 0906- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 0906- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0906-1312 ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 0906- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 06 1 0906-1312 ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 06 1 1401- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 02 1 0906- ● ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 03 1 0906- ● ●
127 BOLT; EYE
(B) M16X28 		8-94383-489-0 01 1 0906- ● ●
