0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#60815) — 88 parça
çizim 146435
11 10 1 2 13 8 107 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0712- ● ●
2 CABLE; BATTERY
L=280 		8-98035-647-1 01 1 0712- ●
2 CABLE; BATTERY
L=240 		1-82650-403-0 01 1 0712-0712 ● ●
2 CABLE; BATTERY
L=240 		1-82650-403-1 01 1 0712- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) L=3015 		8-98097-406-0 01 1 0712-0808 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) L=3030 		8-98122-341-1 01 1 0809- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2985 		8-98097-404-0 01 1 0712-0808 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3000 		8-98122-340-1 01 1 0809- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) L=3480 		8-98097-401-3 01 1 0712- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3440 		8-98097-399-3 01 1 0712- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0712- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0712- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0712-0712 ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0712-0902 ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0712-0902 ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0903- ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0712-1408 ● ●
112 TERMINAL; BATTERY 8-98290-356-0 01 1 1409- ● ●

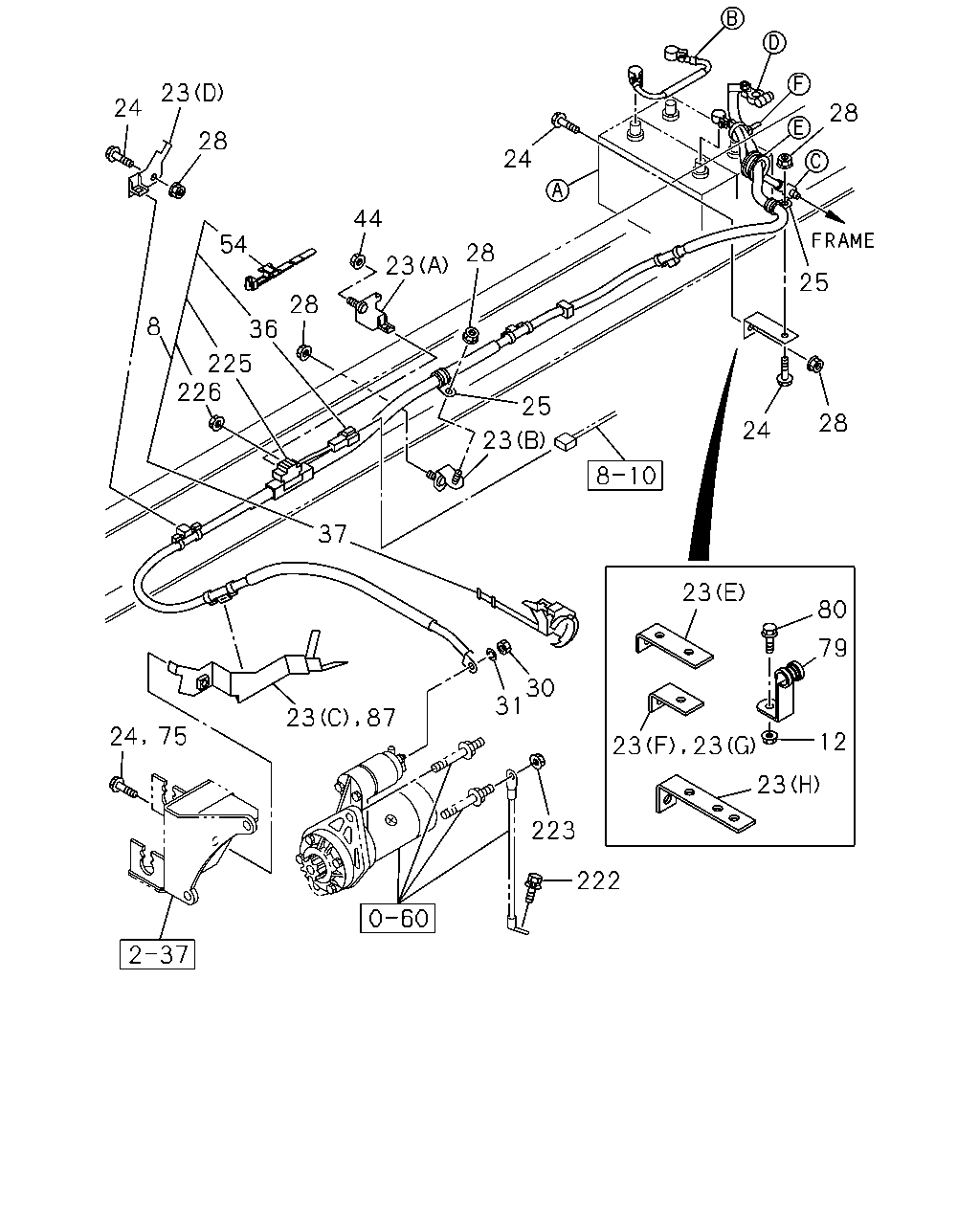

çizim 146436
23 24 28 28 24 44 54 28 23 25 28 8 36 225 226 25 28 24 23 37 23 80 79 30 31 24 75 12 23 223 222 23 87 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) L=3015 		8-98097-406-0 01 1 0712-0808 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) L=3030 		8-98122-341-1 01 1 0809- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2985 		8-98097-404-0 01 1 0712-0808 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3000 		8-98122-340-1 01 1 0809- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) L=3480 		8-98097-401-3 01 1 0712- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3440 		8-98097-399-3 01 1 0712- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0712- ●
23 BRACKET; CABLE CLIP TO FRAME
(H) L=115 		1-82698-360-0 01 1 0712- ●
23 BRACKET; CABLE CLIP TO FRAME
(G) L=95 		1-82699-085-0 02 1 0712-1107 ●
23 BRACKET; CABLE CLIP TO FRAME
(G) L=95 		1-82699-085-0 01 1 1108- ●
23 BRACKET; CABLE CLIP TO FRAME
(F) L=55 		1-47475-304-0 01 1 0712-0712 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(F) L=55 		1-47475-304-0 01 1 0712-0803 ●
23 BRACKET; CABLE CLIP TO FRAME
(F) L=95 		1-82699-085-0 03 1 0804- ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=90 B=25 		1-47476-630-0 01 1 0712-0712 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=90 B=25 		1-47476-630-0 01 1 0712-0803 ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=60 H=30 		1-47477-716-1 01 1 0712-0712 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=60 H=30 		1-47477-716-1 01 1 0712-0803 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 0712-0712 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98047-277-1 01 1 0712- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 02 1 0712-0712 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 02 1 0712-0803 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98053-927-1 01 1 0712-0712 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98053-927-1 01 1 0712-0803 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 03 1 0804- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 0712-0803 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 0804-1107 ●
24 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28661-035-0 02 1 0712-0803 ● ●
24 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28661-035-0 02 1 0804-0809 ●
24 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0810-0902 ●
24 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28661-035-0 01 1 0804-0902 ●
24 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28661-035-0 01 1 0903-0905 ● ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 0906- ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 02 1 0712-0712 ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0712-0803 ● ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 0804- ● ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 0712-0803 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0804-1107 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0804-1107 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0712- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 0712- ● ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 0712- ● ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0712- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0712-0712 ● ●
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 0712-1004 ● ●
75 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0803 ●
75 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
79 CLIP; BATTERY CABLE
ID=21 L=24 		8-98019-191-0 03 1 0712- ●
79 CLIP; BATTERY CABLE
ID=16 L=50 H=25 		1-09700-838-0 01 1 0712-0712 ● ●
79 CLIP; BATTERY CABLE
ID=16 L=50 H=25 		1-09700-838-0 01 1 0712-0803 ●
79 CLIP; BATTERY CABLE
ID=16 H=25 L=25 		1-09701-162-0 02 1 0712-0712 ● ●
79 CLIP; BATTERY CABLE
ID=16 H=25 L=25 		1-09701-162-0 02 1 0712-0803 ●
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
87 BRACKET; HARNESS 8-98053-927-1 01 1 0712-0803 ●
87 BRACKET; HARNESS 8-98053-927-1 01 1 0804-0809 ● ●
87 BRACKET; HARNESS
MZX6P M/T(RSW),MLD6Q M/T(X5J) 		8-98053-927-1 01 1 0810-0906 ● ●
87 BRACKET; HARNESS 8-98053-927-1 01 1 0907- ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0712- ● ●
223 NUT; EARTH CABLE
M10 FLANGE 		0-91180-210-0 01 1 0712- ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0712- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 0712- ● ●
