0-52 — OIL AND VACUUM PIPING; ENGINE (#6081) — 120 parça

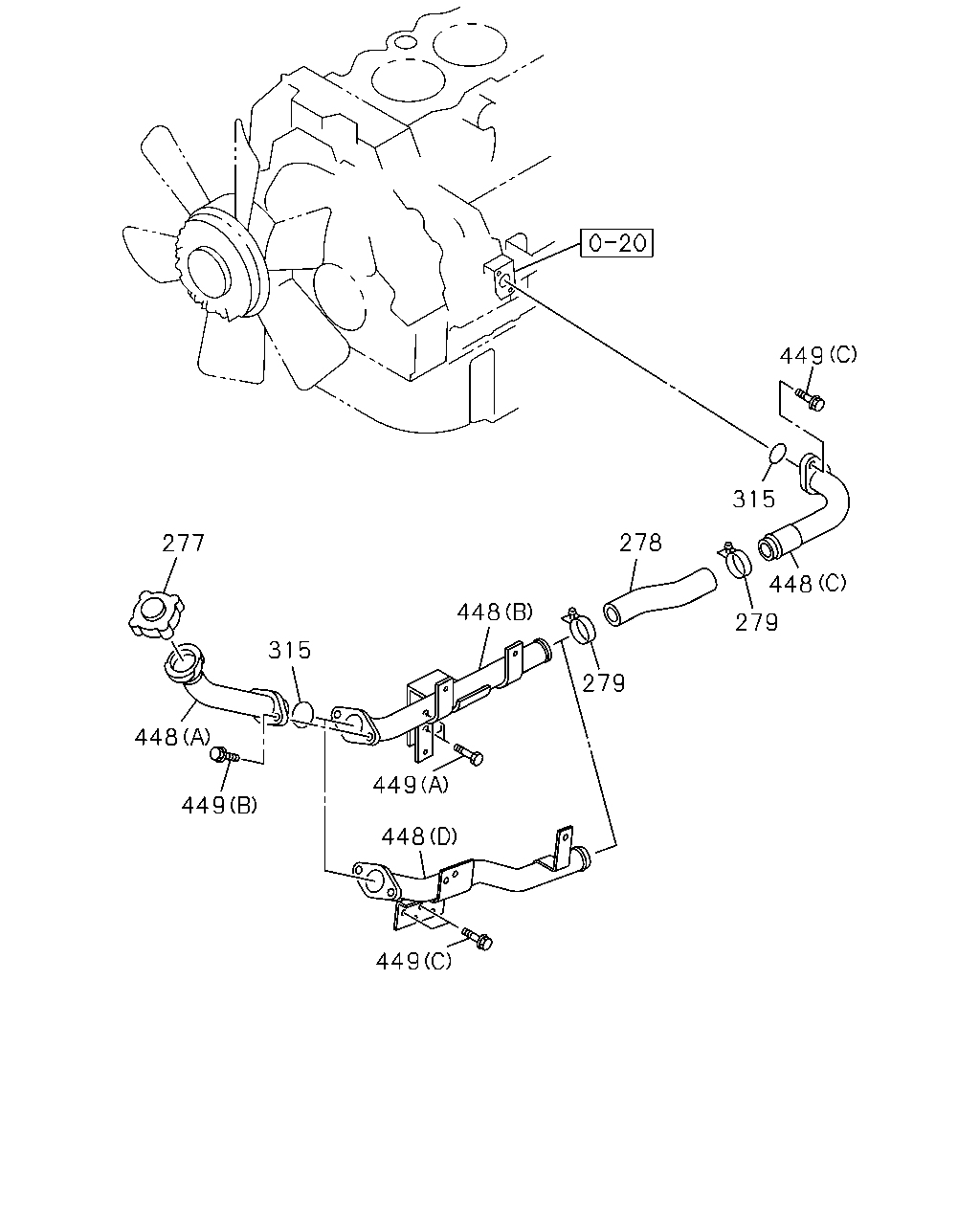

315 278 277 448 279 315 279 448 449 449 448 449 449 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
277	CAP; OIL FILLER	1-11750-020-0	01	1	9905-0611
277	CAP; OIL FILLER	1-11750-028-0	01	1	0612-
278	HOSE; RUBBER,OIL FILLER	1-11749-154-0	01	1	9905-0301
278	HOSE; RUBBER,OIL FILLER	1-11749-205-0	01	1	0302-
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9905-
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9905-
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	9905-
448	FILLER; OIL (C)	1-11740-227-2	01	1	9905-
448	FILLER; OIL (A)	1-11741-175-4	01	1	9905-
448	FILLER; OIL (B)	1-11741-218-0	01	1	9905-0301
448	FILLER; OIL (D)	1-11741-285-1	01	1	0302-0309
448	FILLER; OIL (D)	1-11741-303-0	01	1	0310-0310
448	FILLER; OIL (D)	1-11741-304-0	01	1	0311-
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	9905-0301
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	0302-0512
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	0302-0512
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0301
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28680-825-0	02	1	9905-0512
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-

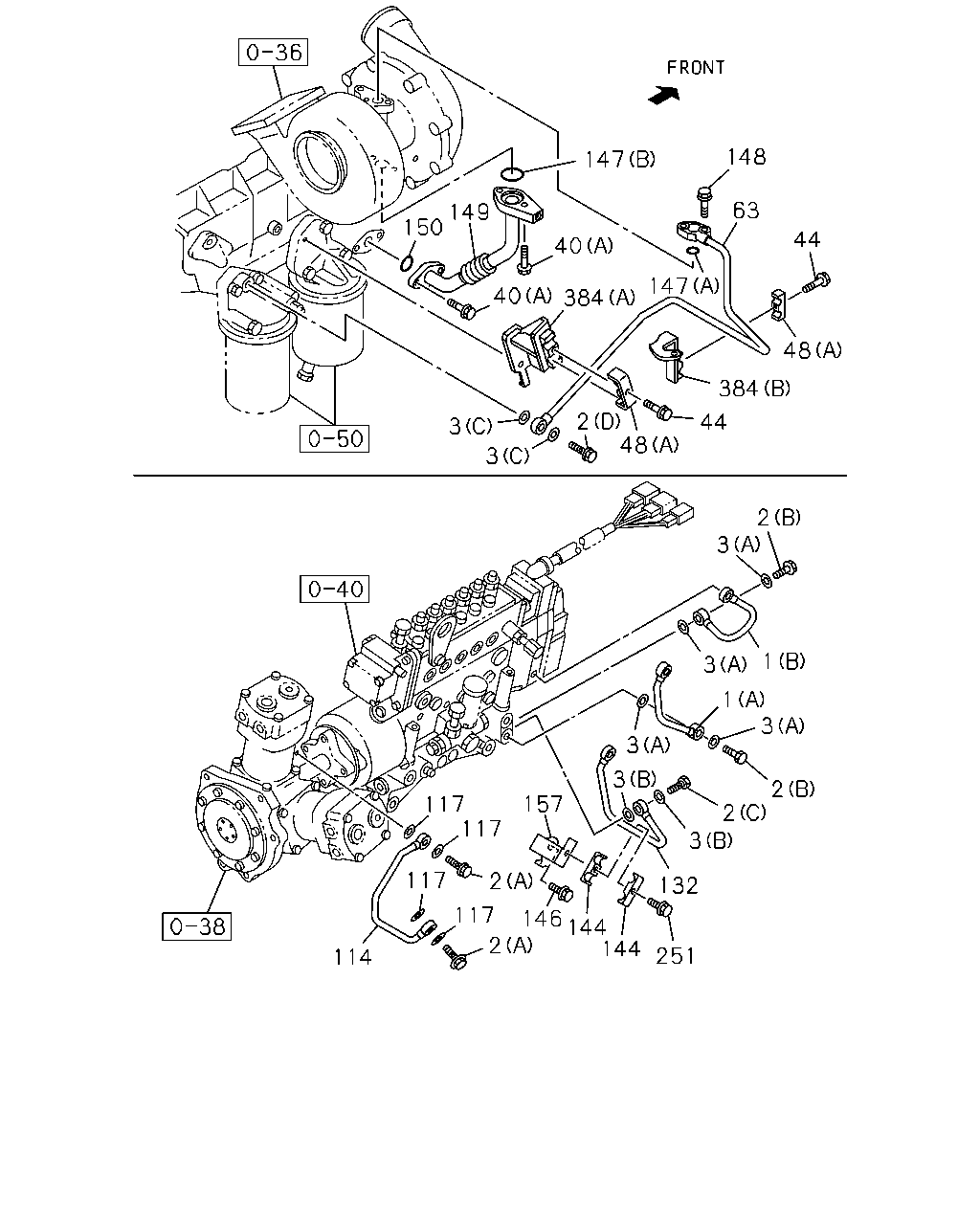

148 147 149 150 63 44 40 147 40 384 48 384 2 48 44 3 3 2 3 1 3 1 3 3 3 2 2 3 157 117 117 117 2 132 117 146 144 144 2 251 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	9905-0301
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	9905-0301
1	PIPE; OIL,INJ PUMP TO C/BL (C)	1-13313-765-0	01	1	0302-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9905-0301
2	BOLT; EYE,OIL PIPE (E) M10X21 FLANGE	1-09675-077-0	03	1	0302-0805
2	BOLT; EYE,OIL PIPE (E) M10X21 FLANGE	8-97372-238-0	03	1	0806-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9905-0301
2	BOLT; EYE,OIL PIPE (F) M14X27 FLANGE	1-09675-086-0	01	1	0302-
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9905-0301
2	BOLT; EYE,OIL PIPE (G) M10X28 FLANGE	8-97149-995-0	01	1	0302-0710
2	BOLT; EYE,OIL PIPE (G) M10X28	8-98037-823-0	01	1	0711-
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9905-0805
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9905-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-0301
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0302-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-0301
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=10.2 OD=16.0	9-09571-410-0	02	1	0302-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=14.2 OD=25	1-09630-141-0	02	1	0302-
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28181-030-0	04	1	9905-0301
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28181-025-0	02	1	0302-0512
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28151-025-0	02	1	0601-
40	BOLT; OIL PIPE (C) M10X50 FLANGE	0-28181-050-0	02	1	0302-0512
40	BOLT; OIL PIPE (C) M10X50 FLANGE	0-28151-050-0	02	1	0601-
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9905-0512
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0601-
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-0	02	1	9905-0301
48	CLIP; OIL PIPE (B) ID=9 & 9 L=25	1-09701-212-2	01	1	0302-
48	CLIP; OIL PIPE (C) ID=9 & 11 L=28	1-09701-265-1	01	1	0302-
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9905-0301
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-734-0	01	1	0302-
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9905-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9905-
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9905-0301
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-895-0	01	1	0302-
144	CLIP; OIL PIPE,INJ PUMP	1-09701-132-0	02	1	9905-0301
146	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	9905-0301
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9905-0301
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9905-0301
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1	8-94399-399-0	01	1	0302-
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9905-0301
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9905-0301
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-735-2	01	1	0302-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9905-
157	BRACKET; OIL PIPE	1-13345-188-0	01	1	9905-0301
251	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	9905-0301
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	9905-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	9905-0301
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-13345-210-0	01	1	0302-

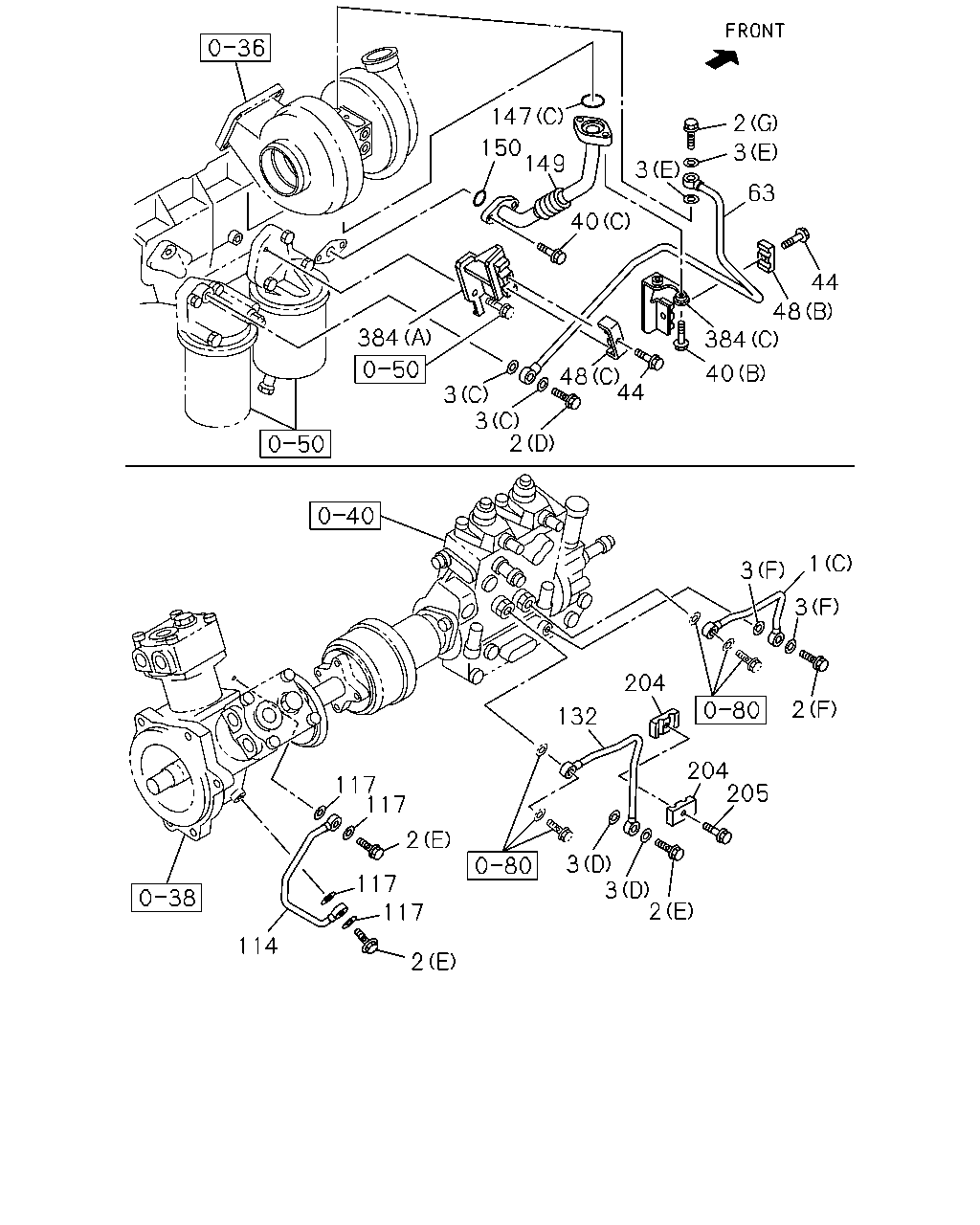

147 2 150 149 3 3 63 40 44 48 384 384 40 48 44 3 3 2 1 3 3 204 2 132 204 205 117 117 2 3 3 2 117 117 114 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	9905-0301
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	9905-0301
1	PIPE; OIL,INJ PUMP TO C/BL (C)	1-13313-765-0	01	1	0302-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9905-0301
2	BOLT; EYE,OIL PIPE (E) M10X21 FLANGE	1-09675-077-0	03	1	0302-0805
2	BOLT; EYE,OIL PIPE (E) M10X21 FLANGE	8-97372-238-0	03	1	0806-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9905-0301
2	BOLT; EYE,OIL PIPE (F) M14X27 FLANGE	1-09675-086-0	01	1	0302-
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9905-0301
2	BOLT; EYE,OIL PIPE (G) M10X28 FLANGE	8-97149-995-0	01	1	0302-0710
2	BOLT; EYE,OIL PIPE (G) M10X28	8-98037-823-0	01	1	0711-
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9905-0805
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9905-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-0301
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0302-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-0301
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=10.2 OD=16.0	9-09571-410-0	02	1	0302-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=14.2 OD=25	1-09630-141-0	02	1	0302-
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28181-030-0	04	1	9905-0301
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28181-025-0	02	1	0302-0512
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28151-025-0	02	1	0601-
40	BOLT; OIL PIPE (C) M10X50 FLANGE	0-28181-050-0	02	1	0302-0512
40	BOLT; OIL PIPE (C) M10X50 FLANGE	0-28151-050-0	02	1	0601-
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9905-0512
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0601-
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-0	02	1	9905-0301
48	CLIP; OIL PIPE (B) ID=9 & 9 L=25	1-09701-212-2	01	1	0302-
48	CLIP; OIL PIPE (C) ID=9 & 11 L=28	1-09701-265-1	01	1	0302-
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9905-0301
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-734-0	01	1	0302-
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9905-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9905-
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9905-0301
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-895-0	01	1	0302-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9905-0301
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9905-0301
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1	8-94399-399-0	01	1	0302-
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9905-0301
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-735-2	01	1	0302-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9905-
204	CLIP; OIL PIPE	1-09701-132-1	02	1	0302-1210
204	CLIP; OIL PIPE	1-09701-240-0	02	1	1211-
205	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0302-0512
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	9905-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	9905-0301
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-13345-210-0	01	1	0302-
