Isuzu WW
▶
TRUCKS
▶
EXY
▶
10805 - EXY RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

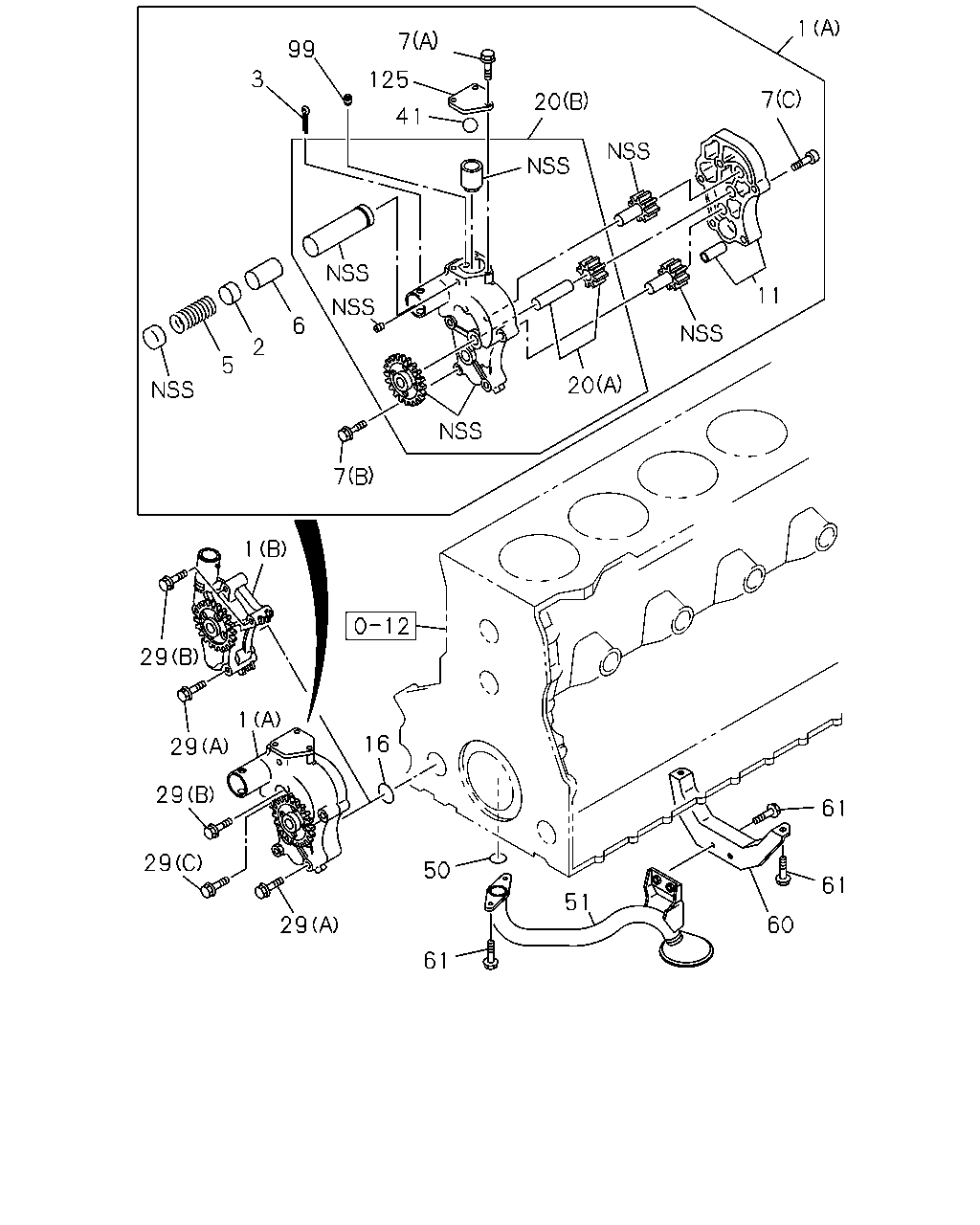

0-51 — OIL PUMP AND OIL STRAINER
(#6080) — 35 parça
3
99
7
125
41
20
1
7
20
11
6
2
7
5
1
16
50
51
60
61
61
61
29
29
29
29
1
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
(A)
1-13100-275-1
01
1
9905-0203
1
PUMP ASM; OIL
(A)
1-13100-306-1
01
1
0204-0401
1
PUMP ASM; OIL
(A)
1-13100-312-2
01
1
0402-1410
1
PUMP ASM; OIL
(B)
8-98276-988-0
01
1
1411-
2
SEAT; SPR
1-13165-017-0
01
1
0212-0301
3
PIN; SPLIT
L=60
9-08114-060-0
01
1
9905-1410
5
SPRING; COIL
1-09580-534-0
01
1
9905-1410
6
VALVE ASM; RELIEF,OIL PUMP
1-13161-024-0
01
1
9905-0301
7
BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE
0-28080-818-0
03
1
9905-1410
7
BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE
0-28181-060-0
01
1
9905-0512
7
BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE
0-28151-060-0
01
1
0601-1410
7
BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET
9-05820-835-0
02
1
9905-0211
7
BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET
0-58310-835-0
02
1
0212-0805
7
BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET
0-58330-835-0
02
1
0806-1410
11
COVER ASM; OIL PUMP
1-13113-068-0
01
1
9905-1410
16
GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7
1-09623-529-0
01
1
9905-
20
GEAR; DRIVE,OIL PUMP
(A)
1-13120-080-0
01
1
9905-1410
20
GEAR; DRIVE,OIL PUMP
(B)
1-13120-082-1
01
1
9905-0203
20
GEAR; DRIVE,OIL PUMP
(B)
1-13120-088-0
01
1
0204-0211
20
GEAR; DRIVE,OIL PUMP
(B)
1-13120-089-0
01
1
0212-1410
29
BOLT; OIL PUMP
(A) M10X85 FLANGE
8-94397-359-1
01
1
9905-1410
29
BOLT; OIL PUMP
(A) M10X85 FLANGE
8-94397-359-1
02
1
1411-
29
BOLT; OIL PUMP
(B) M10X107 FLANGE
8-94399-488-1
02
1
9905-1410
29
BOLT; OIL PUMP
(B) M10X60 FLANGE
0-28151-060-0
02
1
1411-
29
BOLT; OIL PUMP
(C) M10X80
9-05921-080-0
01
1
9905-1410
41
BALL; OIL RELIEF VLV
1-13161-021-0
01
1
9905-1410
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7
1-09623-529-0
01
1
9905-
51
STRAINER & PIPE ASM; OIL
1-13313-207-1
01
1
9905-1405
51
STRAINER & PIPE ASM; OIL
8-98260-260-0
01
1
1406-
60
BRACKET; OIL STRAINER
1-13345-180-1
01
1
9905-
61
BOLT; OIL STRAINER
M10X20 FLANGE
0-28181-020-0
06
1
9905-0512
61
BOLT; OIL STRAINER
M10X20 FLANGE
0-28151-020-0
06
1
0601-
99
PLUG; OIL PUMP
1-13163-002-0
01
1
9905-1410
125
COVER; BALL
1-13163-003-0
01
1
9905-0211
125
COVER; BALL
1-13163-004-0
01
1
0212-1410
