Isuzu WW
▶
TRUCKS
▶
FSS
▶
11419 - FSS(AUST)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#60792) — 35 parça
◀

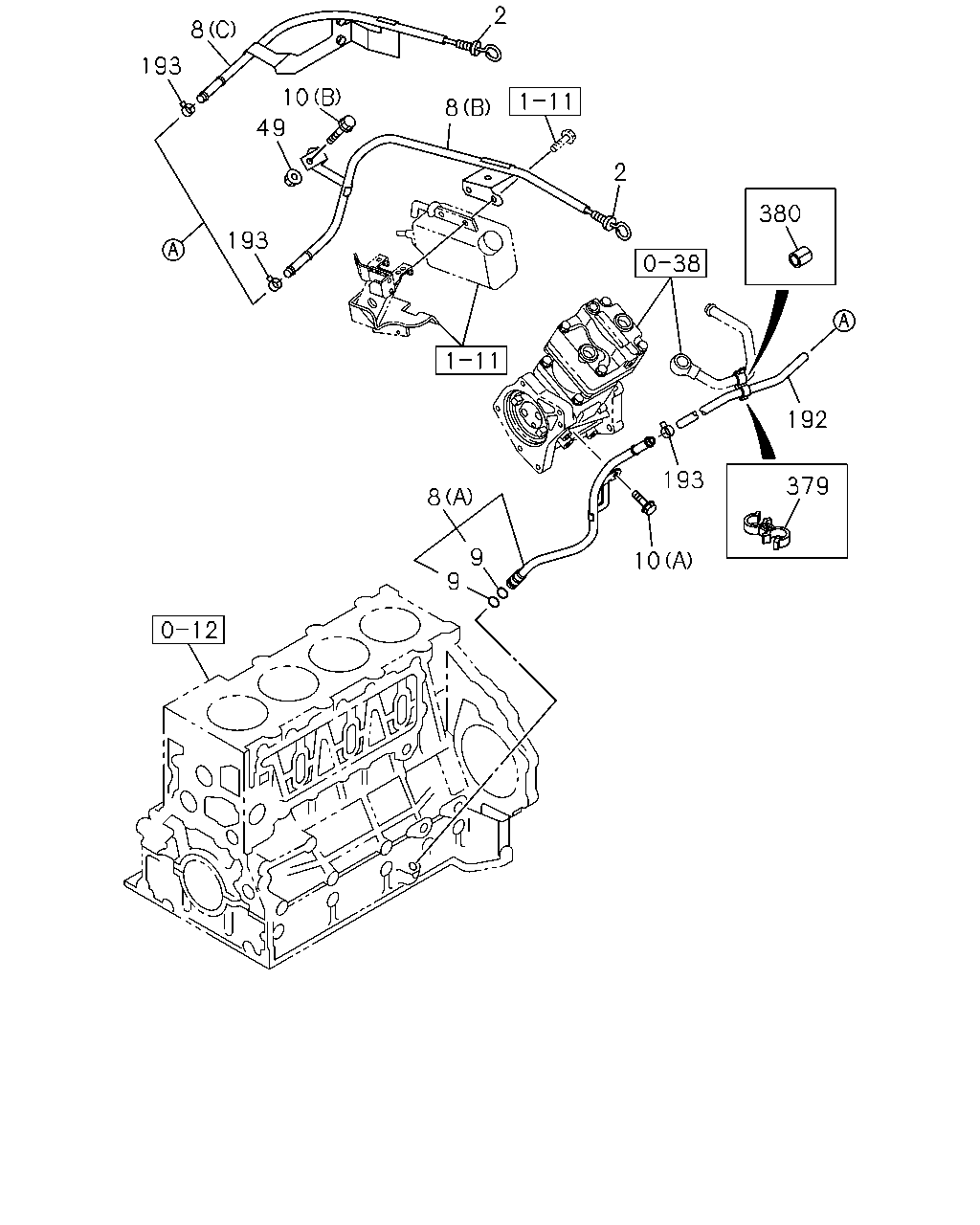

[013A] OIL LEVEL GAUGE (18 parça)

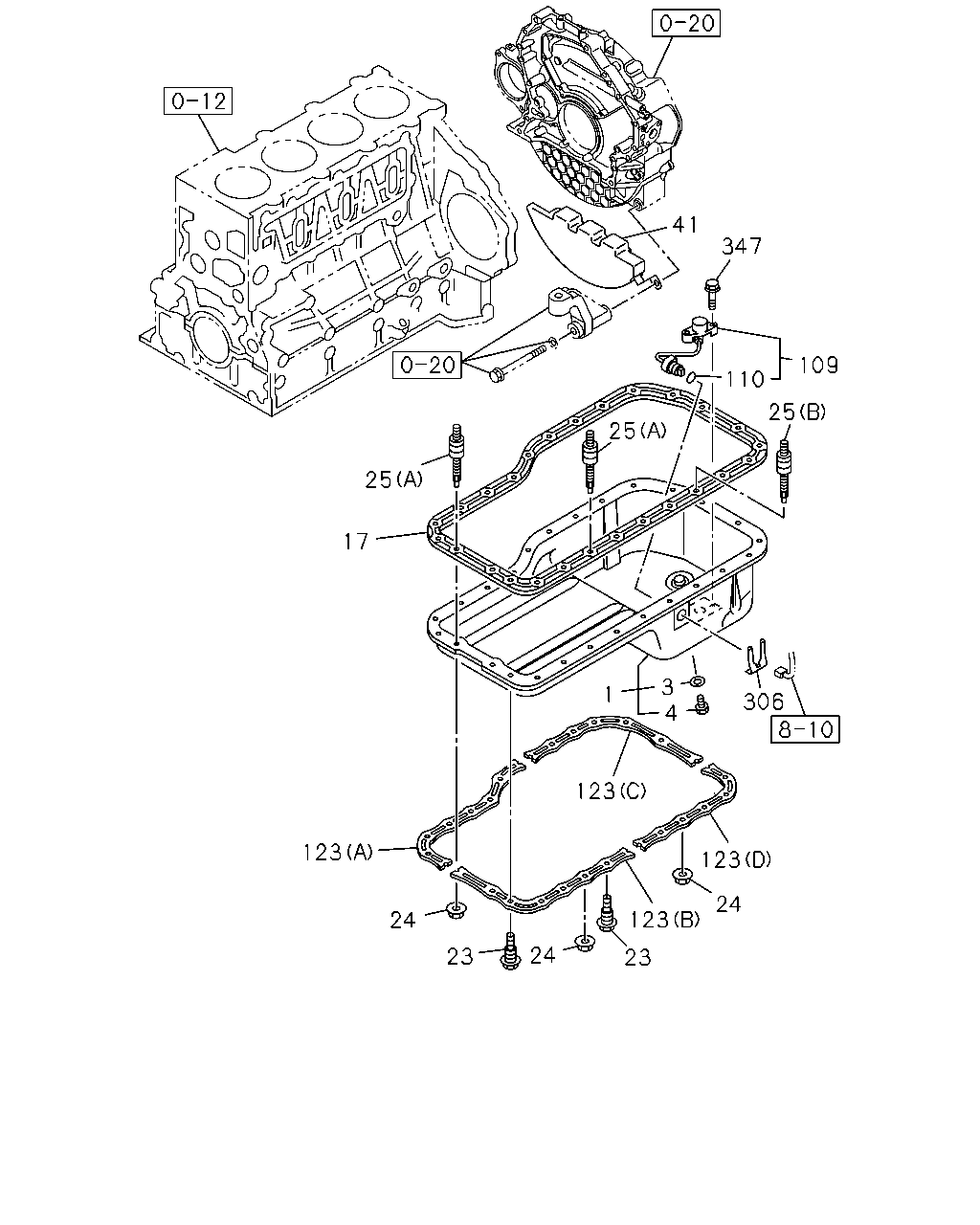

[013A] OIL PAN (17 parça)
▶
2
8
193
10
8
49
2
380
193
192
193
379
8
9
10
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
FSS STD SGL CAB(FC**M*)
8-97620-578-1
01
1
0712-1406
2
GAUGE; OIL LEVEL
FSS STD SGL CAB(FC**M*)
8-98245-513-0
01
1
1407-
2
GAUGE; OIL LEVEL
FSS STD DBL CAB(FC**W*)
8-98095-655-0
01
1
0712-0712
2
GAUGE; OIL LEVEL
FSS STD DBL CAB(FC**W*)
8-98110-261-0
01
1
0801-1406
2
GAUGE; OIL LEVEL
FSS STD DBL CAB(FC**W*)
8-98245-518-0
01
1
1407-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98009-115-1
01
1
0712-
8
TUBE; GUIDE,OIL LEVEL GAUGE
FSS STD SGL CAB(FC**M*) (B)
8-98084-771-0
01
1
0712-
8
TUBE; GUIDE,OIL LEVEL GAUGE
FSS STD DBL CAB(FC**W*) (C)
8-98091-027-0
01
1
0712-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0712-
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE
0-28050-612-0
01
1
0712-
10
BOLT; GUIDE TUBE
FSS STD SGL CAB(FC**M*) (B) M8X20 FLANGE
0-28650-820-0
01
1
0712-
49
NUT; GUIDE TUBE
FSS STD SGL CAB(FC**M*) M8 FLANGE
0-91180-108-0
01
1
0712-
49
NUT; GUIDE TUBE
FSS STD DBL CAB(FC**W*) M8 FLANGE
0-91180-108-0
02
1
0712-
192
HOSE; GUIDE TUBE
FSS STD SGL CAB(FC**M*) L=338
8-98054-843-0
01
1
0712-
192
HOSE; GUIDE TUBE
FSS STD DBL CAB(FC**W*) L=310
8-98092-068-0
01
1
0712-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
0712-
379
CLIP; PIPE TO HOSE
ID=18 & 18
8-94323-068-0
01
1
0712-
380
PROTECTOR; PIPE
ID=18 L=40
8-98070-445-0
01
1
0712-
41
347
109
110
25
25
25
17
3
4
1
306
123
123
123
24
123
24
24
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98039-422-0
01
1
0712-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
0712-
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
0712-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97364-386-0
01
1
0712-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
0712-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
13
1
0712-
25
STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
0712-
25
STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
0712-
41
RUBBER; SPACE
8-97380-615-0
01
1
0712-
109
SWITCH; OIL LEVEL
8-97328-993-1
01
1
0712-
110
GASKET; SW,OIL LEVEL
8-98048-191-0
01
1
0712-
123
RUBBER; SEAL OIL
(A)
8-97186-988-0
01
1
0712-
123
RUBBER; SEAL OIL
(B)
8-97186-994-0
01
1
0712-
123
RUBBER; SEAL OIL
(C)
8-97186-998-0
01
1
0712-
123
RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
0712-
306
CLIP; CONNECTOR
8-97229-219-0
01
1
0712-
347
BOLT; OIL LEVEL SW
M6X25 FLANGE
0-28650-625-0
02
1
0712-
