Sayfa 0-50 - Isuzu EPC

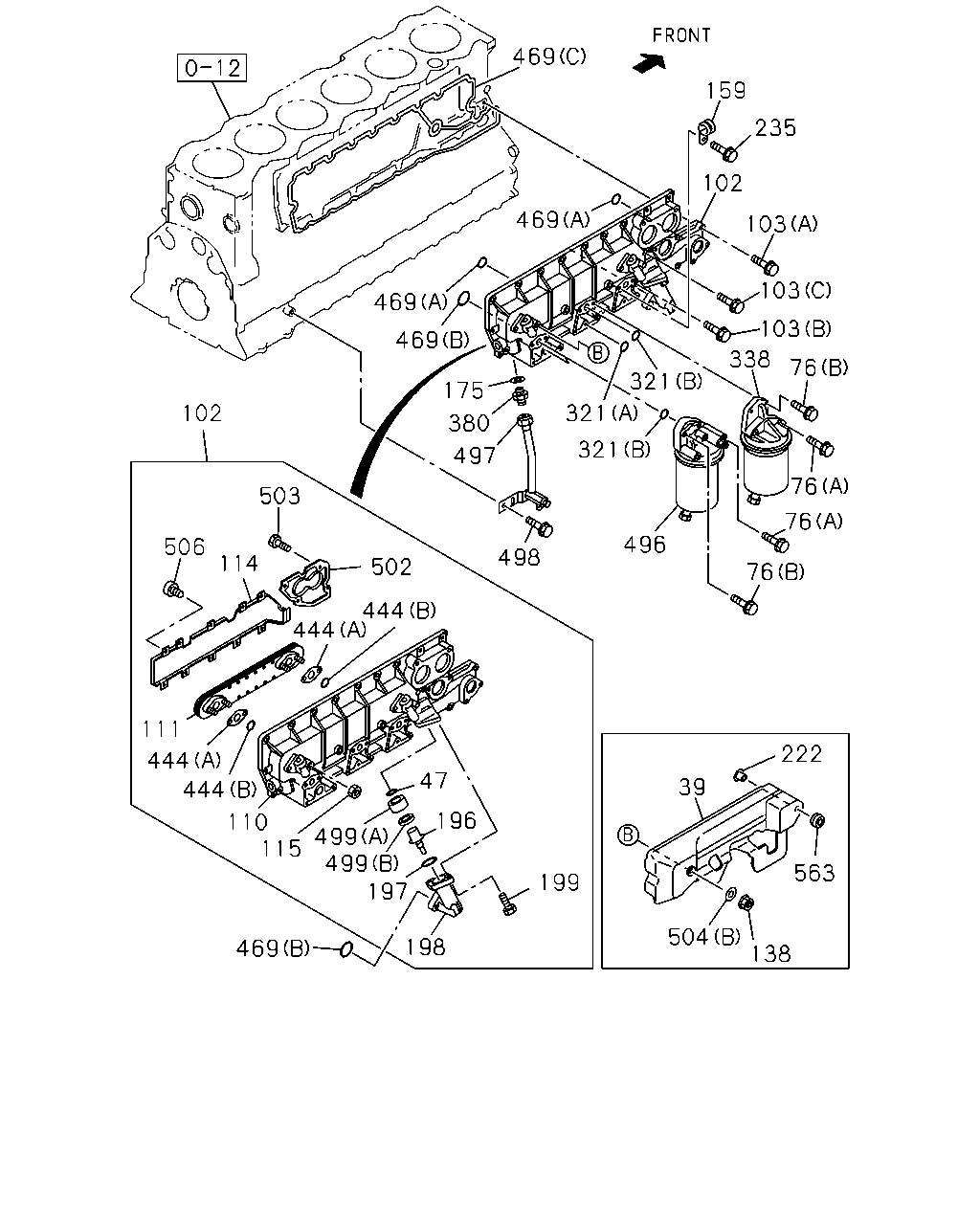

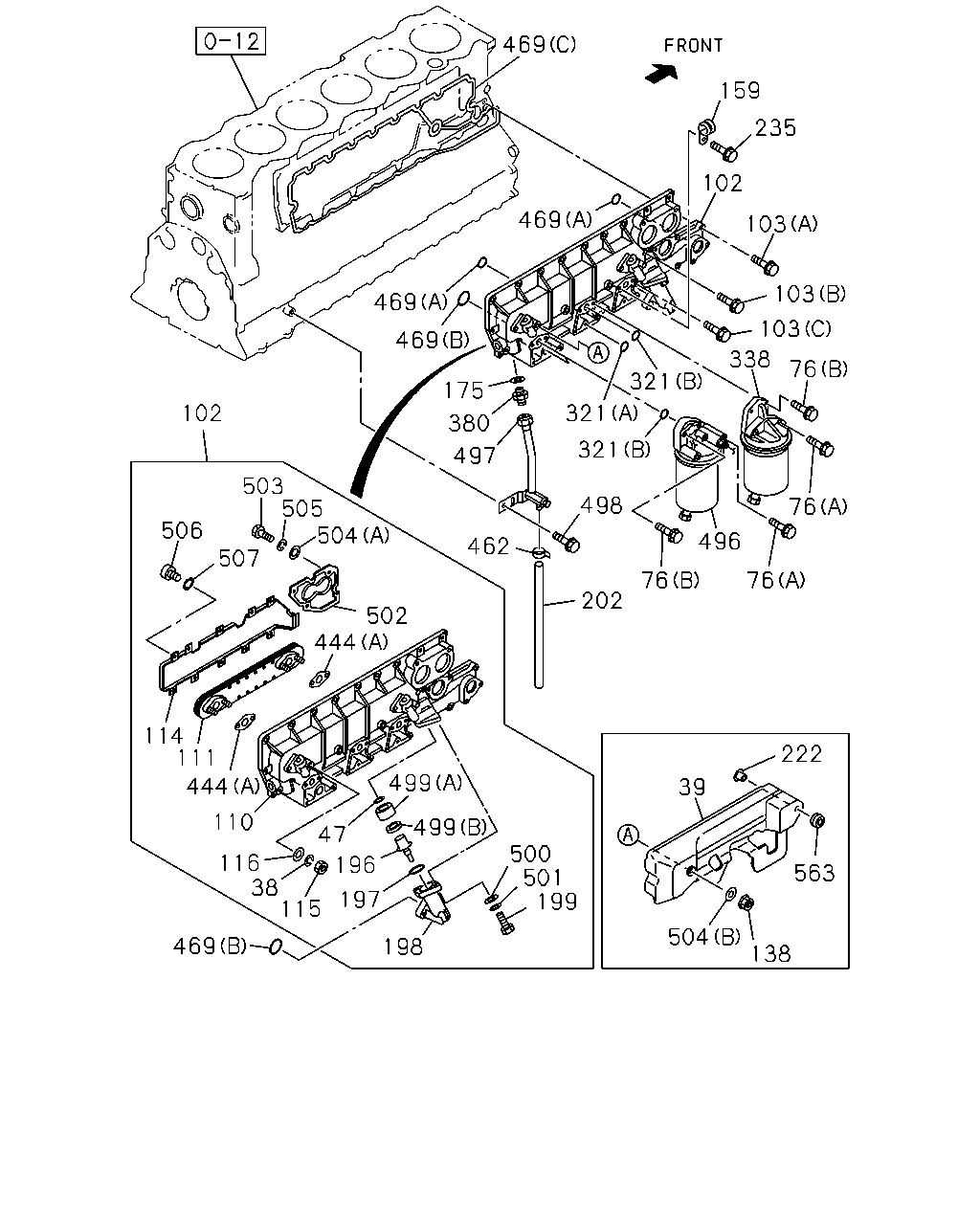

0-50 — OIL COOLER AND OIL FILTER (#6079) — 284 parça

496 265 2 71 292 282 509 508 282 292 281 280 290 287 288 290 287 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9905-0301
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0302-
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9905-0301
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-234-0	01	1	0302-0402
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-241-0	01	1	0403-
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	9905-0301
265	BODY; OIL FILTER	1-13211-216-1	01	1	9905-0301
280	CASE ASM; OIL FILTER (A)	1-13210-038-2	01	1	9905-0301
280	CASE ASM; OIL FILTER (B)	1-13211-282-0	01	1	0302-
280	CASE ASM; OIL FILTER (C)	1-13211-283-0	01	1	0302-
281	COVER; OIL FILTER	1-13211-206-1	01	1	9905-0301
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9905-0301
282	GASKET; BODY TO CASE (C)	1-09623-643-0	01	1	0302-
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9905-0301
282	GASKET; BODY TO CASE (D)	1-09623-644-0	01	1	0302-
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9905-0301
284	BOLT; CENTER,OIL FILTER (C)	1-13219-348-0	01	1	0302-1108
284	BOLT; CENTER,OIL FILTER (C)	8-98193-184-0	01	1	1109-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9905-0301
284	BOLT; CENTER,OIL FILTER (D)	1-13219-349-0	01	1	0302-
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9905-0301
287	GASKET; CENTER BOLT (C)	1-09623-647-0	01	1	0302-
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9905-0301
287	GASKET; CENTER BOLT (D)	1-09623-648-0	01	1	0302-
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	9905-0301
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	0302-
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-550-0	02	1	9905-0301
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-645-0	01	1	0302-
290	GASKET; PLUG,OIL DRAIN (C)	1-09623-646-0	01	1	0302-
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9905-0301
292	SPRING; ELEMENT (E)	1-09580-563-0	01	1	0302-
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9905-0301
292	SPRING; ELEMENT (D)	1-09580-562-0	01	1	0302-
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9905-0301
496	FILTER ASM; OIL	1-13200-862-7	01	1	9905-0301
496	FILTER ASM; OIL	1-13200-989-4	01	1	0302-1108
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	9905-0301
508	CHAMBER ASM; SW,FILTER	1-13260-113-1	01	1	0302-0410
508	CHAMBER ASM; SW,FILTER	1-13260-117-0	01	1	0411-
509	GASKET; SW	8-98013-480-0	01	1	0302-
509	GASKET; SW	1-09630-114-0	01	1	9905-0301

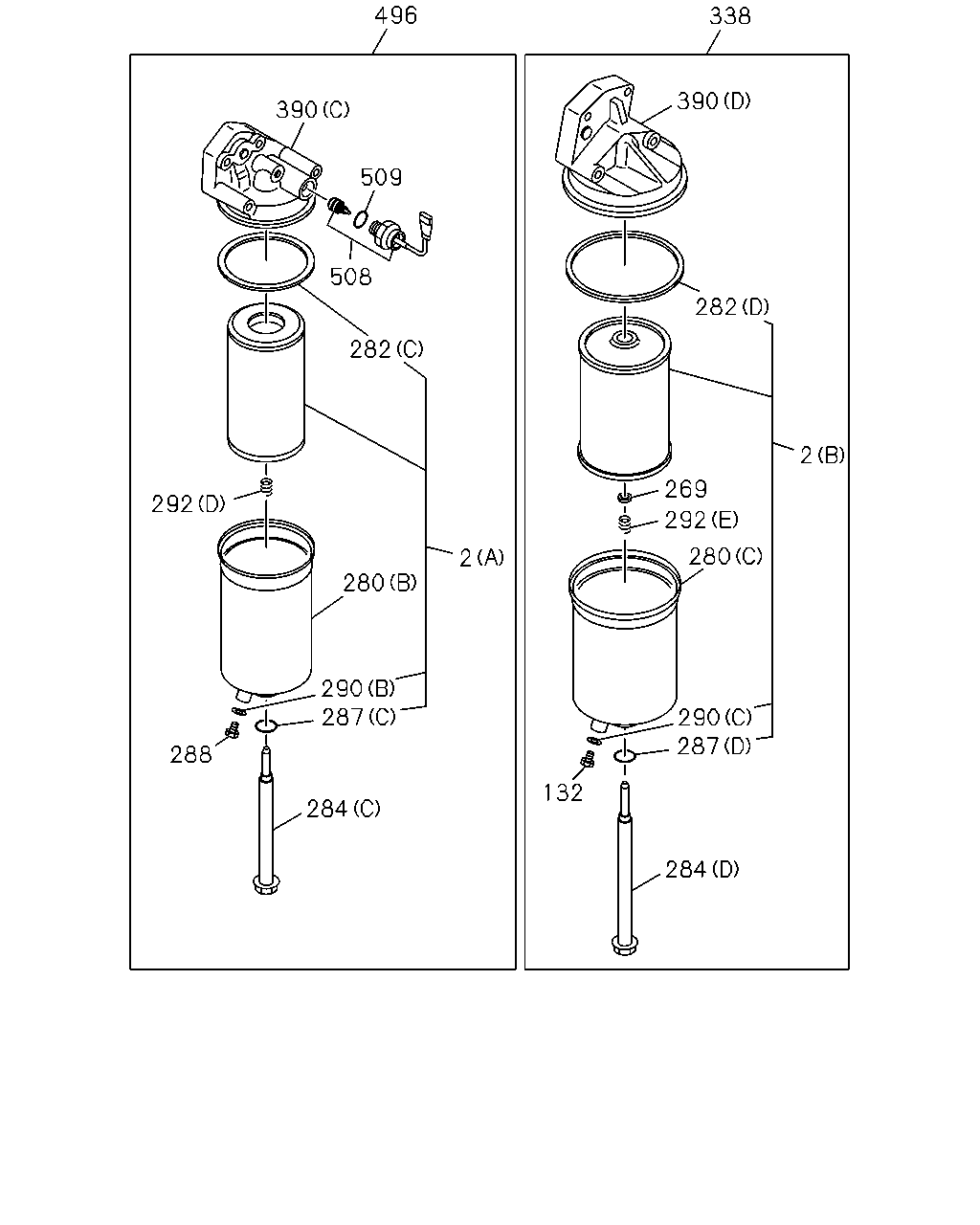

338 390 2 282 282 269 292 390 290 287 290 132 287 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9905-0301
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0302-
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9905-0301
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-234-0	01	1	0302-0402
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-241-0	01	1	0403-
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9905-0301
132	PLUG; PARTIAL OIL FILTER	1-13219-347-0	01	1	0302-
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	9905-0301
269	WASHER; ELEMENT,OIL FILTER	1-13234-007-0	01	1	0302-
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9905-0301
282	GASKET; BODY TO CASE (C)	1-09623-643-0	01	1	0302-
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9905-0301
282	GASKET; BODY TO CASE (D)	1-09623-644-0	01	1	0302-
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9905-0301
284	BOLT; CENTER,OIL FILTER (C)	1-13219-348-0	01	1	0302-1108
284	BOLT; CENTER,OIL FILTER (C)	8-98193-184-0	01	1	1109-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9905-0301
284	BOLT; CENTER,OIL FILTER (D)	1-13219-349-0	01	1	0302-
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9905-0301
287	GASKET; CENTER BOLT (C)	1-09623-647-0	01	1	0302-
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9905-0301
287	GASKET; CENTER BOLT (D)	1-09623-648-0	01	1	0302-
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-550-0	02	1	9905-0301
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-645-0	01	1	0302-
290	GASKET; PLUG,OIL DRAIN (C)	1-09623-646-0	01	1	0302-
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9905-0301
292	SPRING; ELEMENT (E)	1-09580-563-0	01	1	0302-
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9905-0301
292	SPRING; ELEMENT (D)	1-09580-562-0	01	1	0302-
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9905-0301
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9905-0301
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0302-
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9905-0301
390	BODY; OIL FILTER,PARTIAL (C)	1-13211-284-3	01	1	0302-
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9905-0301
390	BODY; OIL FILTER,PARTIAL (D)	1-13211-285-0	01	1	0302-

496 338 390 390 509 508 282 282 2 269 292 292 280 2 280 290 287 290 287 288 132 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9905-0301
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0302-
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9905-0301
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-234-0	01	1	0302-0402
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-241-0	01	1	0403-
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9905-0301
132	PLUG; PARTIAL OIL FILTER	1-13219-347-0	01	1	0302-
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	9905-0301
269	WASHER; ELEMENT,OIL FILTER	1-13234-007-0	01	1	0302-
280	CASE ASM; OIL FILTER (A)	1-13210-038-2	01	1	9905-0301
280	CASE ASM; OIL FILTER (B)	1-13211-282-0	01	1	0302-
280	CASE ASM; OIL FILTER (C)	1-13211-283-0	01	1	0302-
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9905-0301
282	GASKET; BODY TO CASE (C)	1-09623-643-0	01	1	0302-
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9905-0301
282	GASKET; BODY TO CASE (D)	1-09623-644-0	01	1	0302-
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9905-0301
284	BOLT; CENTER,OIL FILTER (C)	1-13219-348-0	01	1	0302-1108
284	BOLT; CENTER,OIL FILTER (C)	8-98193-184-0	01	1	1109-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9905-0301
284	BOLT; CENTER,OIL FILTER (D)	1-13219-349-0	01	1	0302-
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9905-0301
287	GASKET; CENTER BOLT (C)	1-09623-647-0	01	1	0302-
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9905-0301
287	GASKET; CENTER BOLT (D)	1-09623-648-0	01	1	0302-
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	9905-0301
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	0302-
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-550-0	02	1	9905-0301
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-645-0	01	1	0302-
290	GASKET; PLUG,OIL DRAIN (C)	1-09623-646-0	01	1	0302-
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9905-0301
292	SPRING; ELEMENT (E)	1-09580-563-0	01	1	0302-
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9905-0301
292	SPRING; ELEMENT (D)	1-09580-562-0	01	1	0302-
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9905-0301
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9905-0301
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0302-
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9905-0301
390	BODY; OIL FILTER,PARTIAL (C)	1-13211-284-3	01	1	0302-
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9905-0301
390	BODY; OIL FILTER,PARTIAL (D)	1-13211-285-0	01	1	0302-
496	FILTER ASM; OIL	1-13200-862-7	01	1	9905-0301
496	FILTER ASM; OIL	1-13200-989-4	01	1	0302-1108
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	9905-0301
508	CHAMBER ASM; SW,FILTER	1-13260-113-1	01	1	0302-0410
508	CHAMBER ASM; SW,FILTER	1-13260-117-0	01	1	0411-
509	GASKET; SW	8-98013-480-0	01	1	0302-
509	GASKET; SW	1-09630-114-0	01	1	9905-0301

199 196 47 499 499 197 198 469 115 110 444 444 444 111 444 114 506 503 102 502 39 222 563 504 138 469 469 469 469 175 497 380 498 496 321 321 321 338 103 103 103 102 235 159 76 76 76 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	COVER; OIL COOLER	1-19380-151-1	01	1	9905-0301
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9905-
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9905-0512
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-
76	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	04	1	9905-0301
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0302-0512
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-
102	COOLER ASM; OIL	1-21700-337-2	01	1	9905-0106
102	COOLER ASM; OIL	1-21700-320-2	01	1	0107-0301
102	COOLER ASM; OIL	1-21700-325-1	01	1	0302-0504
102	COOLER ASM; OIL	8-97604-715-5	01	1	0505-
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9905-0512
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9905-0512
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28156-011-0	01	1	0601-
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9905-
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	9905-0106
110	BODY; CASE,OIL COOLER	1-21721-091-7	01	1	0107-
111	CORE; OIL COOLER	1-21723-053-1	01	1	9905-0504
111	CORE; OIL COOLER	8-97606-643-1	01	1	0505-
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9905-
115	NUT; ELEMENT M10	9-09120-410-0	04	1	9905-9907
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	9908-0301
115	NUT; ELEMENT M10 FLANGE	0-91250-110-0	04	1	0302-0504
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0505-0602
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0603-
138	NUT M10 FLANGE	0-91150-110-0	02	1	9905-0301
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9905-
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9905-
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9905-0301
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0302-
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9905-
198	JOINT; THERMOSTAT	1-21726-054-0	01	1	9905-9907
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	9908-
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9905-0504
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0505-0512
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-
222	RUBBER; MTG,OIL COOLER	1-09337-020-0	02	1	9905-0301
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9905-0512
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9905-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9905-
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9905-0301
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0302-
380	CONNECTOR; WATER	1-09660-011-1	01	1	9905-
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0505-
444	GASKET; ELEMENT TO BODY (A)	1-21729-093-1	02	1	9905-0504
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0505-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9905-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9905-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9905-0109
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-
496	FILTER ASM; OIL	1-13200-862-7	01	1	9905-0301
496	FILTER ASM; OIL	1-13200-989-4	01	1	0302-1108
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9905-
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9905-0512
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-
499	SUPPORT; THERMOSTAT (A)	1-21729-101-0	01	1	9905-9907
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	9908-
499	SUPPORT; THERMOSTAT (B)	1-21729-102-0	01	1	9905-9907
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	9908-
502	COVER; THERMOSTAT	1-21722-041-0	01	1	9905-0106
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0107-
503	BOLT; COVER	1-21729-089-0	04	1	9905-0504
503	BOLT; COVER	8-98014-763-0	04	1	0505-1112
503	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	1201-
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9905-0504
504	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	02	1	9905-0301
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	9905-0504
506	SCREW; BAFFLE	1-09030-036-0	10	1	0505-1112
506	SCREW; BAFFLE	8-98197-829-0	10	1	1201-
563	TUBE; DISTANCE	1-19389-134-1	02	1	9905-0207
563	TUBE; DISTANCE	1-19389-329-0	02	1	0208-0301

115 38 469 116 110 444 114 111 196 197 47 499 499 198 500 501 199 444 507 502 504 503 506 505 102 39 222 563 504 138 202 462 497 380 175 469 469 321 321 321 498 496 76 76 76 76 338 103 103 103 469 102 235 159 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	04	1	9905-9907
39	COVER; OIL COOLER	1-19380-151-1	01	1	9905-0301
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9905-
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9905-0512
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-
76	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	04	1	9905-0301
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0302-0512
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-
102	COOLER ASM; OIL	1-21700-337-2	01	1	9905-0106
102	COOLER ASM; OIL	1-21700-320-2	01	1	0107-0301
102	COOLER ASM; OIL	1-21700-325-1	01	1	0302-0504
102	COOLER ASM; OIL	8-97604-715-5	01	1	0505-
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9905-0512
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9905-0512
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28156-011-0	01	1	0601-
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9905-
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	9905-0106
110	BODY; CASE,OIL COOLER	1-21721-091-7	01	1	0107-
111	CORE; OIL COOLER	1-21723-053-1	01	1	9905-0504
111	CORE; OIL COOLER	8-97606-643-1	01	1	0505-
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9905-
115	NUT; ELEMENT M10	9-09120-410-0	04	1	9905-9907
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	9908-0301
115	NUT; ELEMENT M10 FLANGE	0-91250-110-0	04	1	0302-0504
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0505-0602
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0603-
116	WASHER; PL,ELEMENT ID=10.5 OD=22	9-09160-610-0	04	1	9905-9907
138	NUT M10 FLANGE	0-91150-110-0	02	1	9905-0301
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9905-
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9905-
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9905-0301
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0302-
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9905-
198	JOINT; THERMOSTAT	1-21726-054-0	01	1	9905-9907
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	9908-
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9905-0504
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0505-0512
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9905-0206
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0401
222	RUBBER; MTG,OIL COOLER	1-09337-020-0	02	1	9905-0301
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9905-0512
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9905-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9905-
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9905-0301
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0302-
380	CONNECTOR; WATER	1-09660-011-1	01	1	9905-
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0505-
444	GASKET; ELEMENT TO BODY (A)	1-21729-093-1	02	1	9905-0504
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0505-
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	9905-0401
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9905-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9905-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9905-0109
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-
496	FILTER ASM; OIL	1-13200-862-7	01	1	9905-0301
496	FILTER ASM; OIL	1-13200-989-4	01	1	0302-1108
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9905-
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9905-0512
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-
499	SUPPORT; THERMOSTAT (A)	1-21729-101-0	01	1	9905-9907
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	9908-
499	SUPPORT; THERMOSTAT (B)	1-21729-102-0	01	1	9905-9907
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	9908-
500	WASHER; PL,JOINT ID=10.5 OD=22	9-09160-610-0	02	1	9905-0504
501	WASHER; LK,JOINT ID=10.2	9-09150-510-0	02	1	9905-0504
502	COVER; THERMOSTAT	1-21722-041-0	01	1	9905-0106
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0107-
503	BOLT; COVER	1-21729-089-0	04	1	9905-0504
503	BOLT; COVER	8-98014-763-0	04	1	0505-1112
503	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	1201-
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9905-0504
504	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	02	1	9905-0301
505	WASHER; LK,COVER	1-21729-091-0	04	1	9905-9907
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	9905-0504
506	SCREW; BAFFLE	1-09030-036-0	10	1	0505-1112
506	SCREW; BAFFLE	8-98197-829-0	10	1	1201-
507	WASHER; LK,BAFFLE	1-21729-092-0	10	1	9905-0504
563	TUBE; DISTANCE	1-19389-134-1	02	1	9905-0207
563	TUBE; DISTANCE	1-19389-329-0	02	1	0208-0301

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
