8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#60772) — 106 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

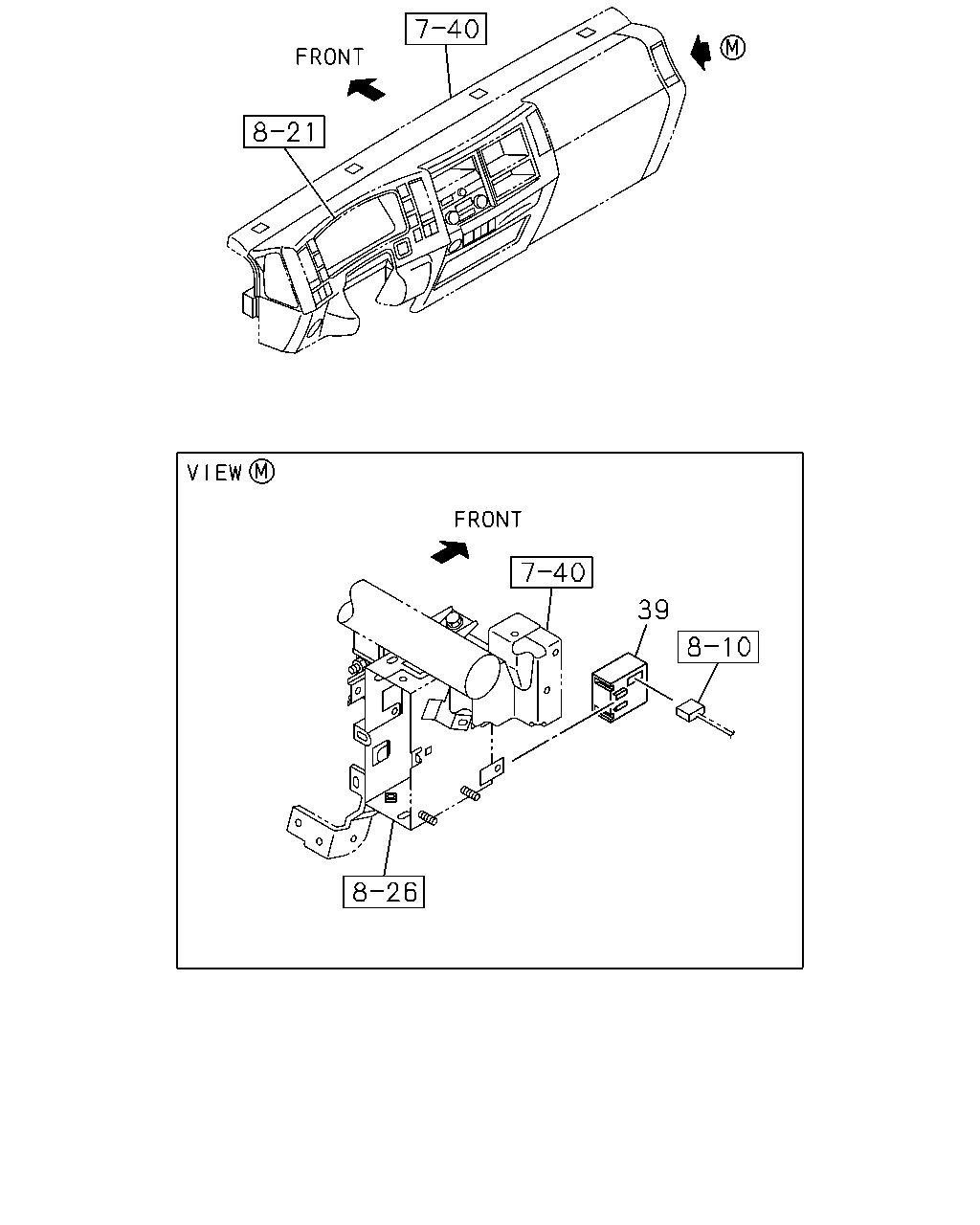

	39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	0809-

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-

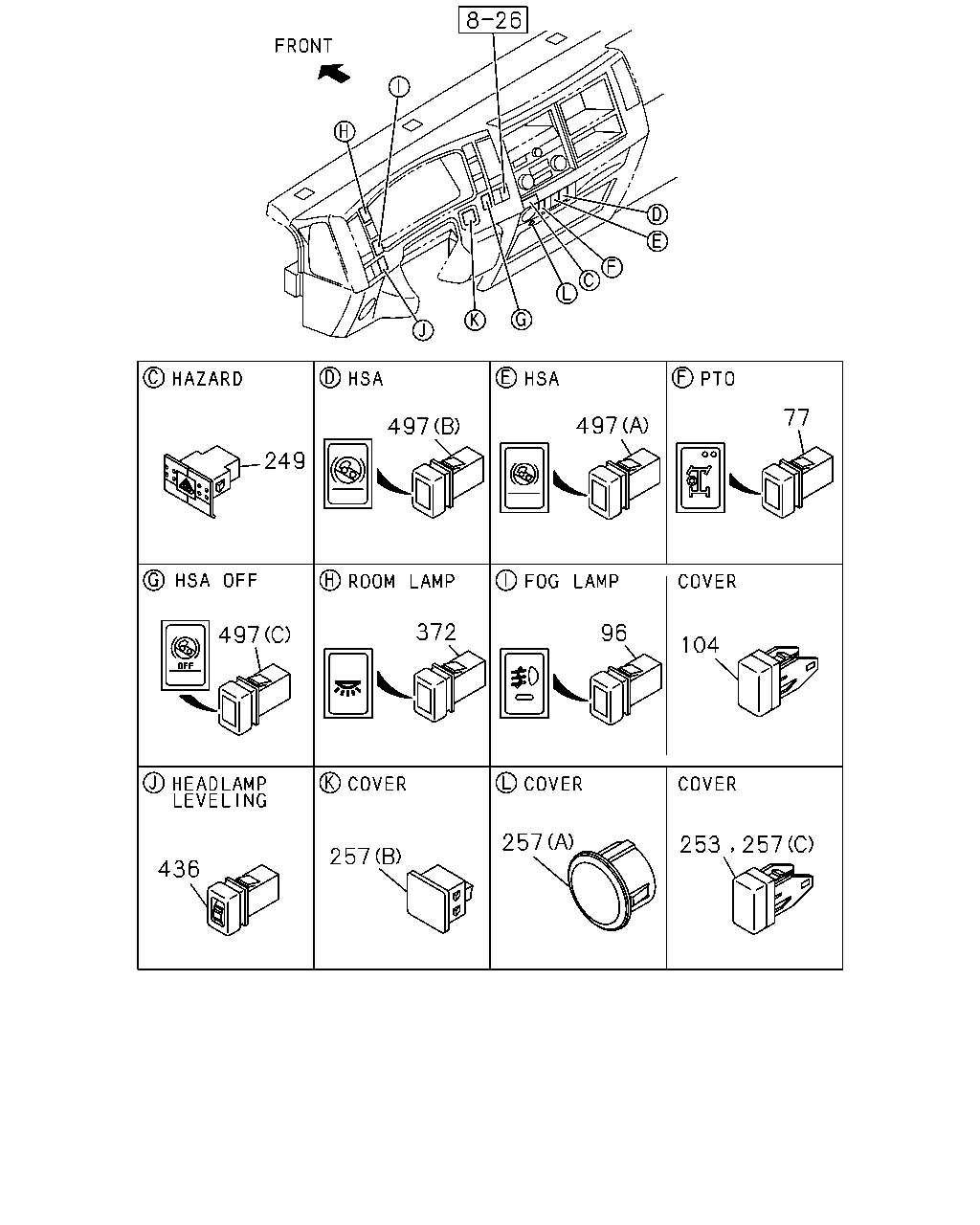

77 497 497 249 372 96 497 104 257 253 257 257 436

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97615-488-2	01	1	0809-
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0809-
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	0809-
249	SWITCH; HAZARD	8-97386-922-1	01	1	0809-
253	COVER; SW HOLE	8-98025-954-1	02	1	0809-
253	COVER; SW HOLE	8-98025-954-1	01	1	0809-
253	COVER; SW HOLE	8-98025-954-1	01	1	0809-
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0809-
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0809-
257	COVER; HOLE,SW (A)	8-98070-401-2	01	1	0809-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (D)	8-98029-917-0	01	1	0809-0812
257	COVER; HOLE,SW (D)	8-98029-917-0	01	1	0901-1011
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (D)	8-98029-917-0	01	1	1012-
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1012-
372	SWITCH; ROOM LAMP FLUORESCENT LAMP<6UC>	8-97386-917-2	01	1	0809-
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-97386-981-2	01	1	0809-
497	SWITCH; HSA H.S.A SYSTEM<6EP> (C) OFF	8-97386-923-1	01	1	0809-0812
497	SWITCH; HSA H.S.A SYSTEM<6EP> (B) RESET	8-98119-946-0	01	1	0809-0812
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-98119-947-0	01	1	0809-0812
497	SWITCH; HSA H.S.A SYSTEM<6EP> (C) OFF	8-97386-923-2	01	1	1012-
497	SWITCH; HSA H.S.A SYSTEM<6EP> (B) RESET	8-98119-946-0	01	1	1012-
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-98119-947-1	01	1	1012-

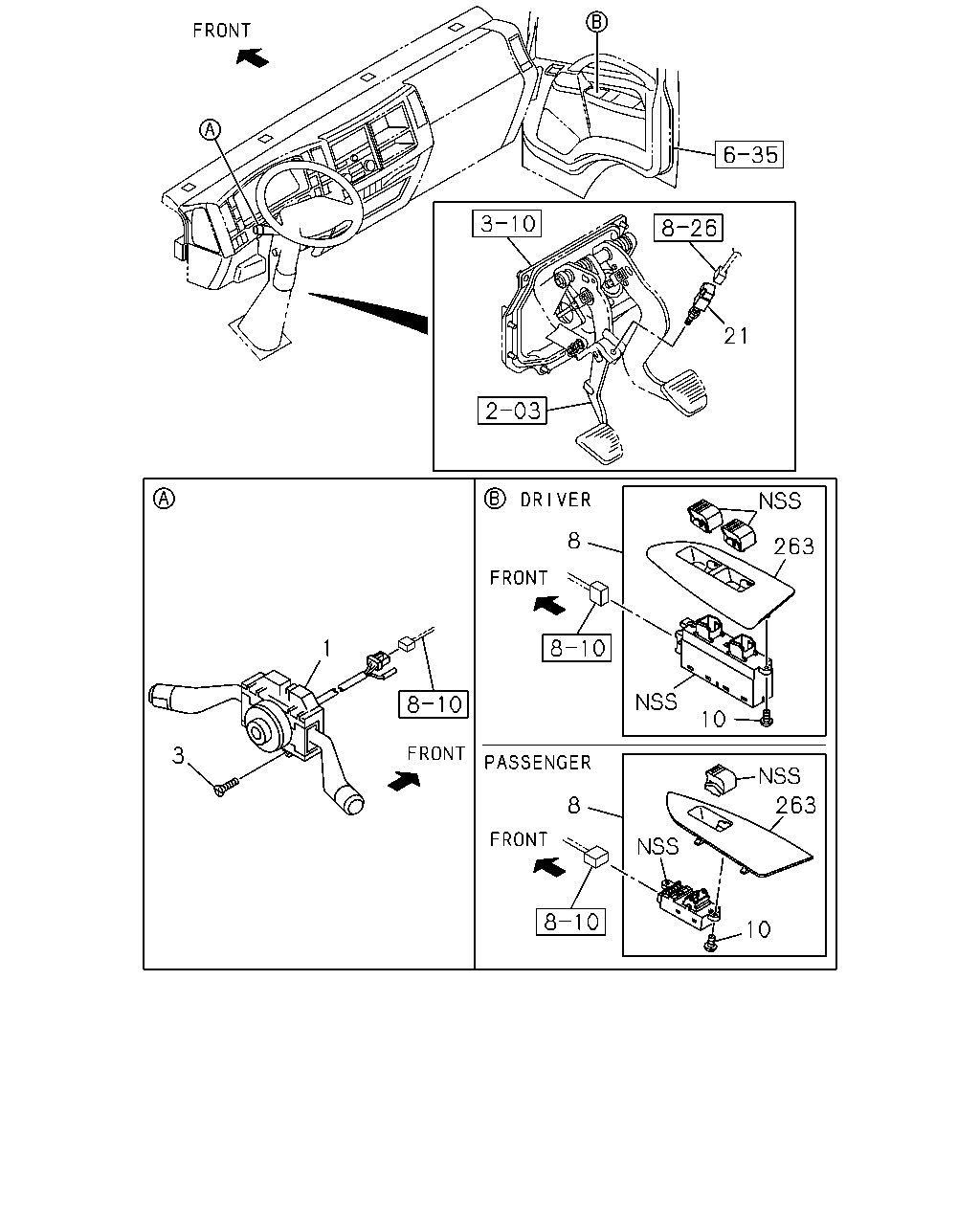

21 8 263 1 10 3 263 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB	8-98064-897-1	01	1	0809-1310
1	SWITCH; COMB	8-98243-718-0	01	1	1311-
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0809-
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98001-737-2	01	1	0809-1509
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98298-751-0	01	1	1510-
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98003-784-1	01	1	0809-0809
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98129-845-0	01	1	0810-1001
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98159-544-0	01	1	1002-1509
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98316-418-0	01	1	1510-
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	0809-
21	SWITCH; CLU TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-94337-761-0	01	1	0809-
21	SWITCH; CLU EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97358-248-0	01	1	0809-
263	COVER; SW POWER WINDOW FRT DOOR<A32> DRIVER	8-98153-838-0	01	1	0809-
263	COVER; SW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98153-843-0	01	1	0809-

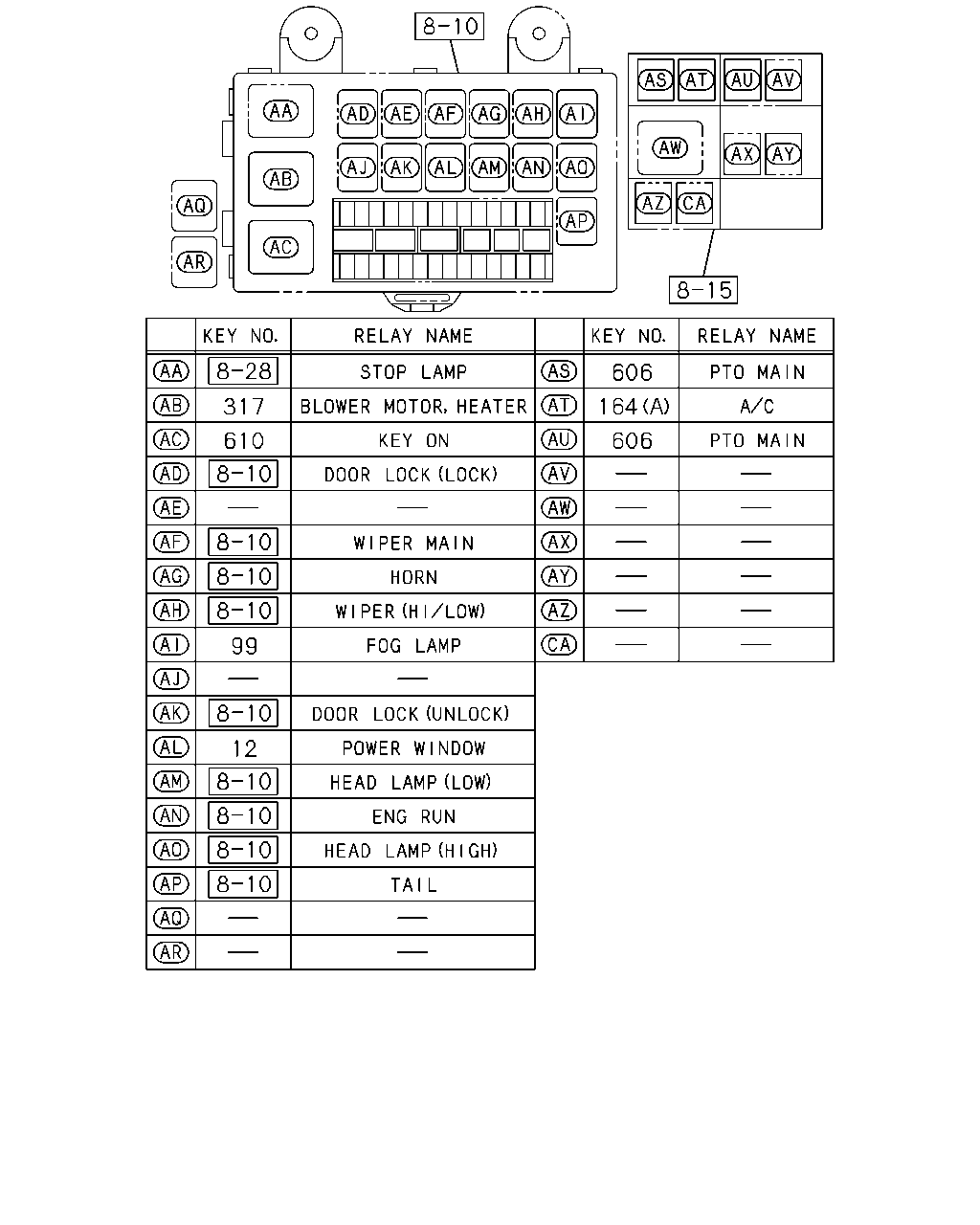

606 317 164 610 606 99 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-
610	RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-

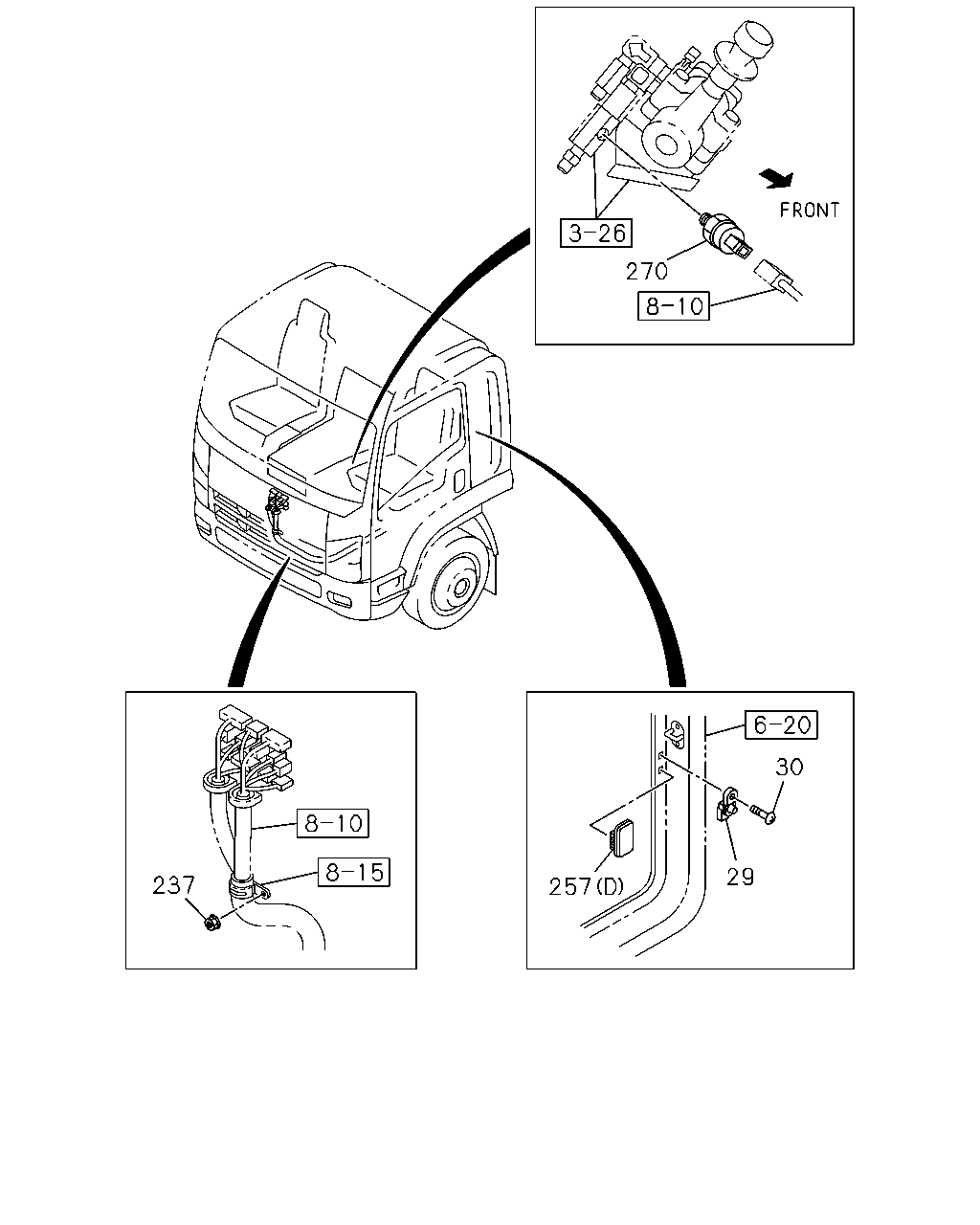

270 30 29 237 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0809-0812
29	SWITCH; DOOR H.S.A SYSTEM<6EP> BLACK	8-98022-211-0	01	1	0809-0812
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0901-1011
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	1012-
29	SWITCH; DOOR H.S.A SYSTEM<6EP> BLACK	8-98022-211-0	01	1	1012-
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0809-0812
30	SCREW; DOOR SW H.S.A SYSTEM<6EP> M5X18	8-98047-201-0	01	1	0809-0812
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0901-1011
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	1012-
30	SCREW; DOOR SW H.S.A SYSTEM<6EP> M5X18	8-98047-201-0	01	1	1012-
237	NUT M8 FLANGE	0-91180-108-0	01	1	0809-
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0809-
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0809-
257	COVER; HOLE,SW (A)	8-98070-401-2	01	1	0809-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (D)	8-98029-917-0	01	1	0809-0812
257	COVER; HOLE,SW (D)	8-98029-917-0	01	1	0901-1011
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (D)	8-98029-917-0	01	1	1012-
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0809-0812
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-1011
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1012-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1012-
270	SWITCH; PRESS,WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 2.0	8-98010-856-2	01	1	1012-
