Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#60770) — 381 parça

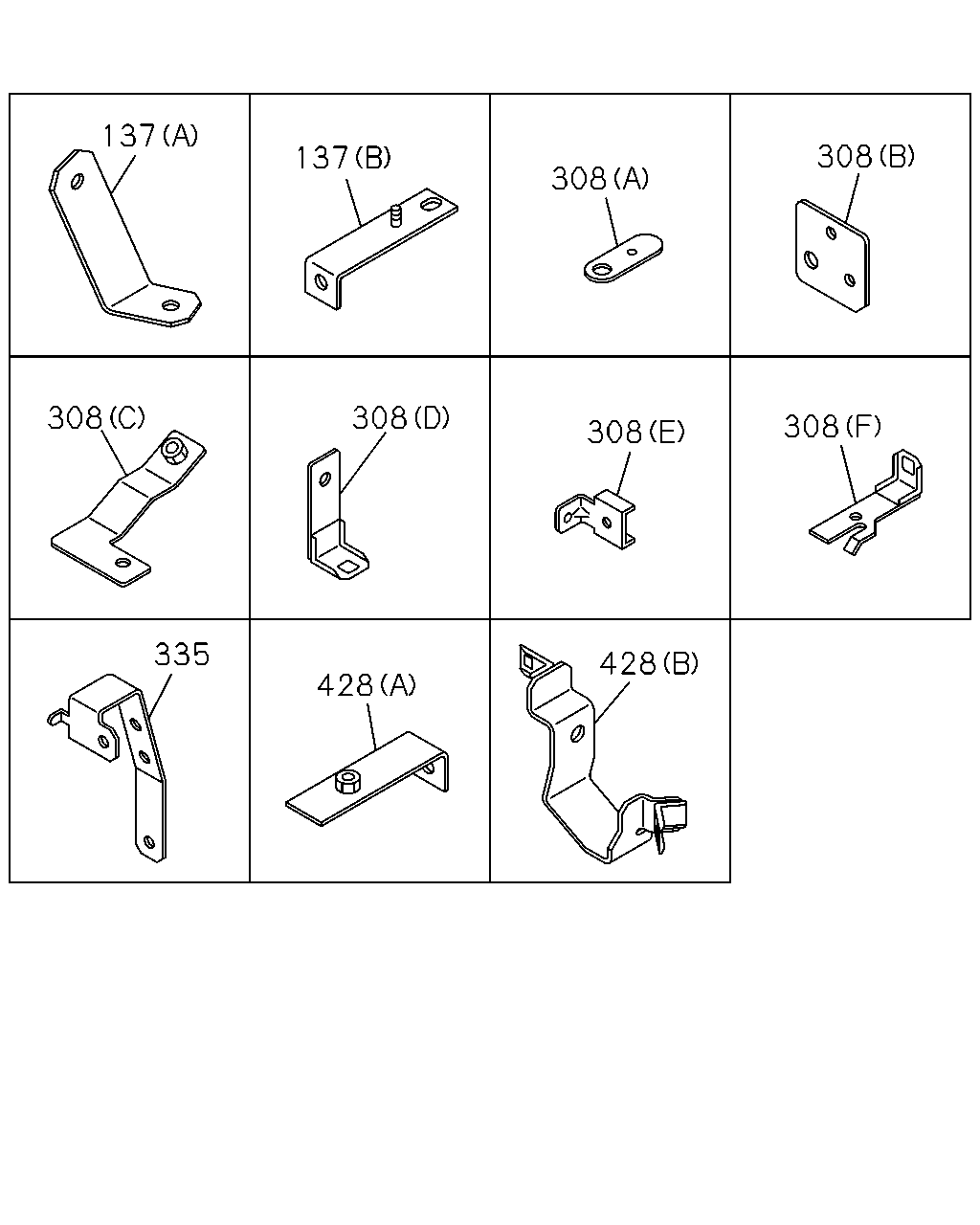

137 308 137 308 308 308 308 308 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	0809-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	0809-1101
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	1102-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97601-310-0	02	1	1102-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98032-178-0	01	1	0809-1011
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (C)	8-98032-178-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98075-824-0	01	1	0809-1011
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (D)	8-98075-824-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (E)	8-97614-078-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (F)	8-98021-291-2	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-97601-310-0	03	1	1102-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0809-
428	BRACKET (A)	1-47475-519-0	01	1	0809-1011
428	BRACKET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47475-519-0	01	1	1012-
428	BRACKET (B)	8-98090-952-0	01	1	0809-

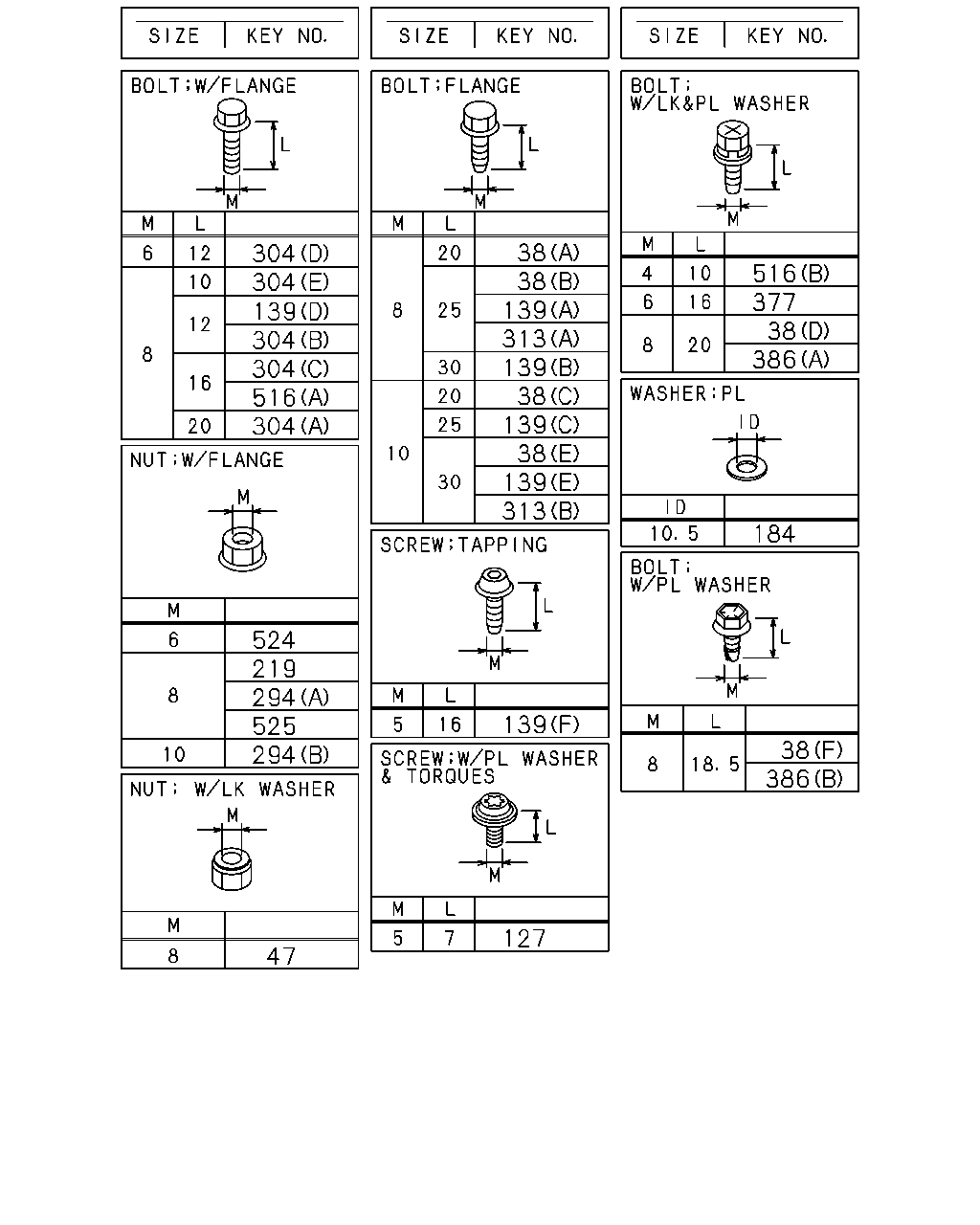

304 516 304 304 139 304 304 313 139 38 139 38 139 313 139 38 38 516 38 377 386 184 139 524 219 294 525 294 47 127 386 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-1011
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-1011
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-
38	BOLT; CLIP,HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0809-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0809-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0809-0811
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0809-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M10X30 FLANGE	0-28651-030-0	01	1	1012-
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) (C) M10X20 FLANGE	0-28751-020-0	01	1	0809-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0809-
139	BOLT; BRKT (D) M8X12 FLANGE	0-28050-812-0	01	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0810-1011
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-
139	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-
139	BOLT; BRKT (E) M10X30 FLANGE	0-28651-030-0	02	1	0809-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0809-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0809-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0809-0810
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0811-0812
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0901-1011
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1012-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0809-0811
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0812-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0809-1011
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0809-1011
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1012-
294	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	01	1	1012-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1012-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0901-1011
294	NUT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1012-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	0809-1011
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1012-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	04	1	0809-1011
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	04	1	1012-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	0809-1011
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (D) M6X12 FLANGE	0-28050-612-0	01	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (C) M8X16 FLANGE	0-28050-816-0	02	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-1101
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE	0-28050-820-0	01	1	1102-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1102-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) M8X10 FLANGE	0-28050-810-0	01	1	1102-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0809-0811
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0809-0811
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0812-1011
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0812-1011
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0811-1011
313	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0809-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0809-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0809-
516	BOLT; HARNESS MLD6W M/T(Y2C) (A) M8X16 FLANGE	0-28050-816-0	02	1	0809-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0809-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0809-
525	NUT; CLIP EURO3 SPECIFICATION<NT3> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1012-1101
525	NUT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1102-

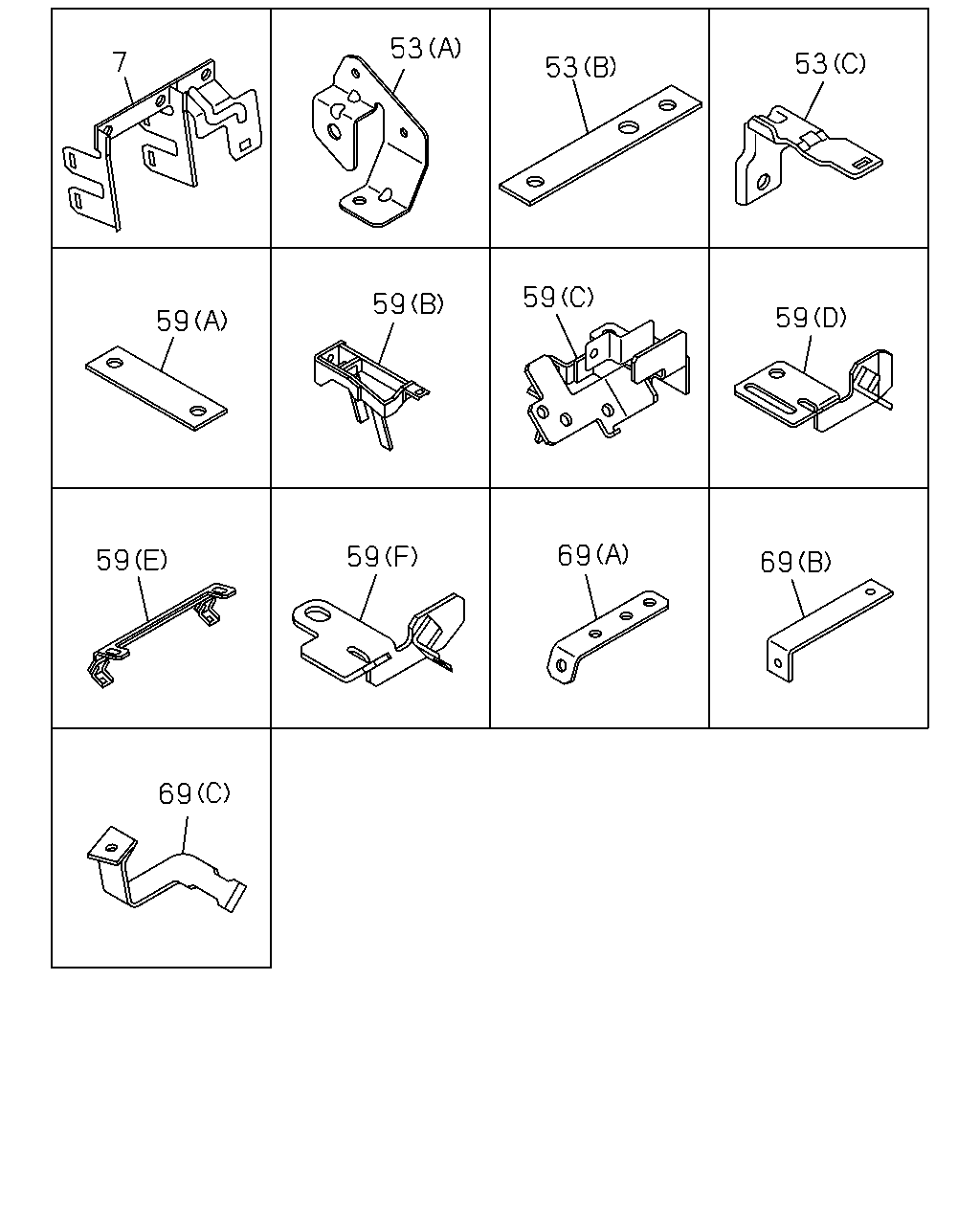

7 53 53 53 59 59 59 59 59 59 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0809-
53	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	0809-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	0809-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	0809-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	0809-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	0809-0809
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0809-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	0809-
59	BRACKET; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=85	8-98044-743-0	01	1	1012-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (B)	8-97627-325-0	01	1	0809-
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW) (B)	8-97609-264-2	01	1	0809-0906
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	0907-
69	BRACKET; CLIP (A)	1-82698-167-0	01	1	0809-0812
69	BRACKET; CLIP (B) L=95	1-82699-085-0	01	1	0901-
69	BRACKET; CLIP (C)	8-97616-357-3	01	1	0809-

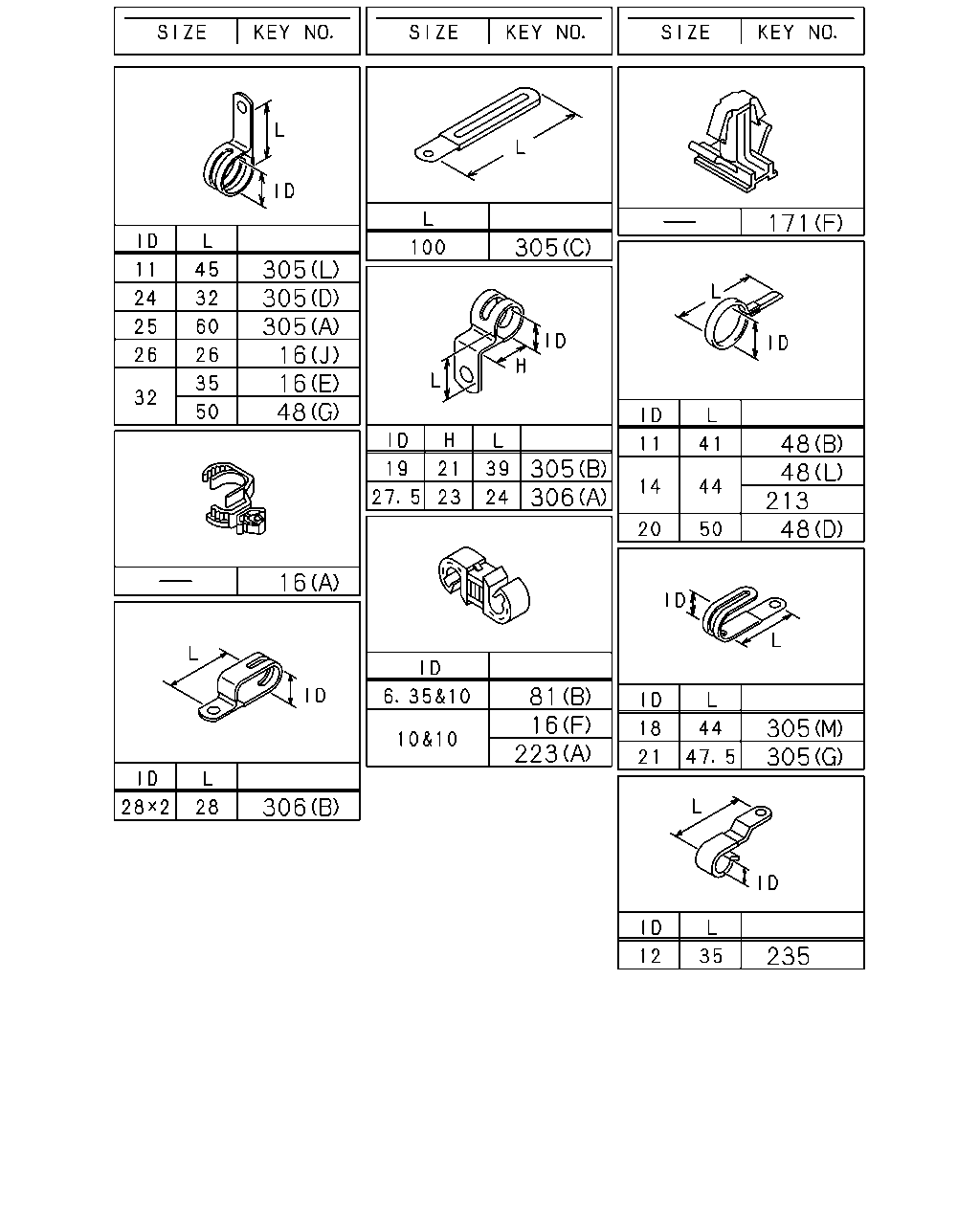

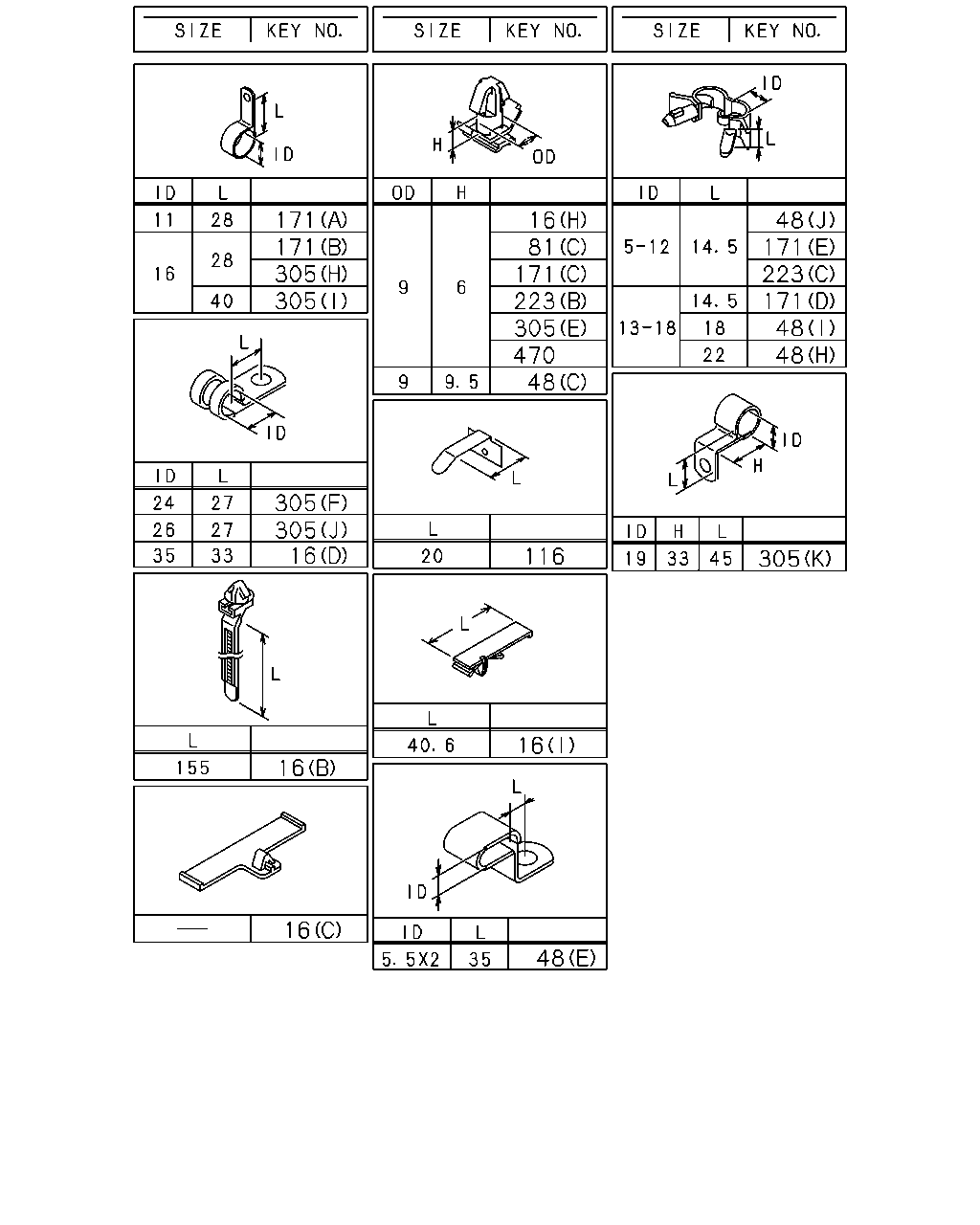

171 171 305 305 16 81 171 223 305 470 48 48 171 223 171 48 48 305 305 16 116 305 16 16 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0809-
16	CLIP; HARNESS (E) ID=32 L=35	1-09701-244-0	01	1	0809-0811
16	CLIP; HARNESS (J) ID=26 L=26	1-09701-236-0	01	1	0812-1011
16	CLIP; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=26 L=26	1-09701-236-0	01	1	1012-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	0809-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	0809-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	0809-0811
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (I) ID=13-18 L=18	1-09709-291-0	01	1	0809-1011
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=22	1-09709-292-0	01	1	1012-
48	CLIP; FRAME HARNESS (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0809-0811
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	0809-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0809-0809
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0809
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0809-0809
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0901
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0809-1011
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	1012-1201
48	CLIP; FRAME HARNESS (L) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1012-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) L=600	1-09707-107-1	01	1	1012-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	10	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (L) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (L) ID=14 L=44	9-09917-427-0	15	1	1008-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0809-0812
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	0809-0812
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0809-0809
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0809-1011
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	03	1	1012-
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	01	1	0809-1011
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 10	1-09709-277-1	01	1	1012-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-1012
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) ID=24 L=27	1-09700-809-0	03	1	1012-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (J) ID=26 L=27	1-09701-006-0	01	1	1102-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-1101
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=11 L=45	8-94296-897-1	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (L) ID=11 L=45	8-94296-897-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (M) ID=18 L=44	8-97367-985-1	01	1	1012-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0809-

14 16 102 208 48 225 503 14 48 206 14 48 194 206 217 225 503 1 1 1 503 81 225 530 14 178 538

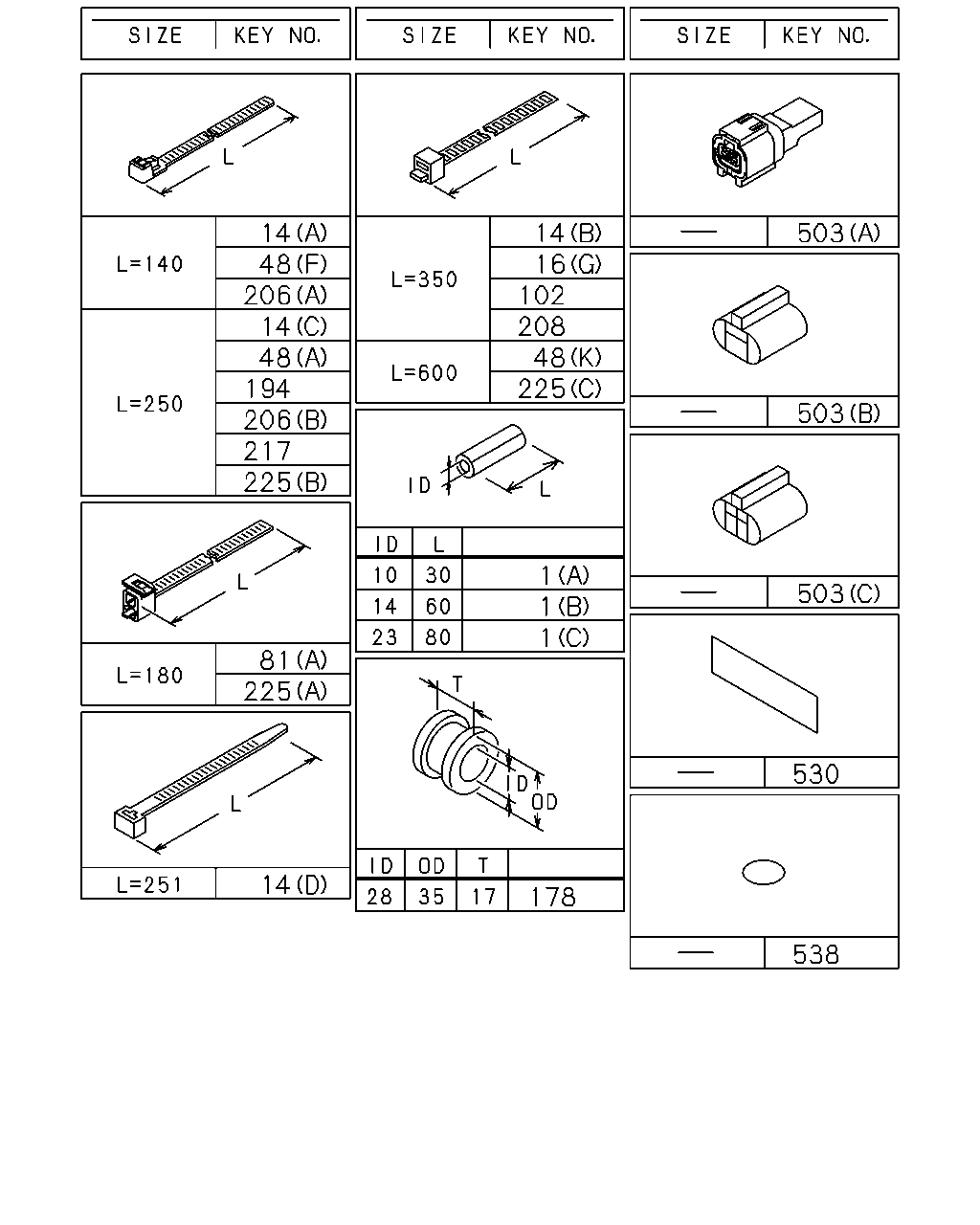

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0809-1011
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1012-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-1011
1	SLEEVE; RUBBER EURO3 SPECIFICATION<NT3> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1012-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1012-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0809-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	08	1	0809-1011
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (C) L=250	5-09707-030-1	08	1	1012-1205
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (C) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS (A) L=140	5-09707-031-1	01	1	0809-1109
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (C) L=250	5-09707-030-1	13	1	1012-1101
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=250	5-09707-030-1	13	1	1102-1104
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (D) L=251	8-97619-917-0	01	1	1012-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) L=250	5-09707-030-1	12	1	1102-1104
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (C) L=250	5-09707-030-1	13	1	1105-1205
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (C) L=250	8-98216-430-0	13	1	1206-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0809-
16	CLIP; HARNESS (E) ID=32 L=35	1-09701-244-0	01	1	0809-0811
16	CLIP; HARNESS (J) ID=26 L=26	1-09701-236-0	01	1	0812-1011
16	CLIP; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=26 L=26	1-09701-236-0	01	1	1012-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	0809-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	0809-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	0809-0811
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (I) ID=13-18 L=18	1-09709-291-0	01	1	0809-1011
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=22	1-09709-292-0	01	1	1012-
48	CLIP; FRAME HARNESS (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0809-0811
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	0809-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0809-0809
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0809
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0809-0809
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0901
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0809-1011
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	1012-1201
48	CLIP; FRAME HARNESS (L) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1012-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) L=600	1-09707-107-1	01	1	1012-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	10	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (L) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (L) ID=14 L=44	9-09917-427-0	15	1	1008-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0809-0812
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	0809-0812
102	CLIP; BAND L=350	1-09707-183-0	01	1	0809-0911
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-0811
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-1011
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1012-
178	GROMMET; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	01	1	1012-
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	04	1	0809-0811
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-1011
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-1011
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	02	1	1012-
178	GROMMET; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	02	1	1012-
194	CLIP; BAND L=250	5-09707-030-1	01	1	0809-
206	CLIP; FUEL TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	03	1	1012-
206	CLIP; FUEL TANK HARNESS WHEEL BASE 3700MM(37W) (A) L=140	5-09707-031-1	02	1	0809-0810
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	03	1	0811-1011
206	CLIP; FUEL TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=140	5-09707-031-1	03	1	1012-
206	CLIP; FUEL TANK HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (A) L=140	5-09707-031-1	03	1	0809-0810
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0809-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0809-0811
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0809-0811
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0812-
225	CLIP; AIR TANK HARNESS (C) L=600	1-09707-107-1	01	1	0809-1011
225	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=600	1-09707-107-1	01	1	1012-
225	CLIP; AIR TANK HARNESS (B) L=250	5-09707-030-1	06	1	0809-1011
225	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	01	1	1012-1012
225	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=180	1-09707-162-1	01	1	1012-
225	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	06	1	1012-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0809-1104
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1105-
503	CONNECTOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	1-82690-668-0	01	1	1105-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0809-0811
503	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	1-82690-666-0	01	1	1012-
503	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	1012-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0809-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0809-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0809-

171 305 305 305 305 16 16 48 48 48 213 48 305 306 16 81 16 223 305 305 306 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0809-
16	CLIP; HARNESS (E) ID=32 L=35	1-09701-244-0	01	1	0809-0811
16	CLIP; HARNESS (J) ID=26 L=26	1-09701-236-0	01	1	0812-1011
16	CLIP; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=26 L=26	1-09701-236-0	01	1	1012-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	0809-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	0809-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	0809-0811
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (I) ID=13-18 L=18	1-09709-291-0	01	1	0809-1011
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=22	1-09709-292-0	01	1	1012-
48	CLIP; FRAME HARNESS (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0809-0811
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	0809-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0809-0809
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0809
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0809-0809
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0901
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0809-1011
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	1012-1201
48	CLIP; FRAME HARNESS (L) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1012-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) L=600	1-09707-107-1	01	1	1012-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	10	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (L) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (L) ID=14 L=44	9-09917-427-0	15	1	1008-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0809-0812
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	0809-0812
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0809-0809
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0809-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0809-1011
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	03	1	1012-
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	01	1	0809-1011
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 10	1-09709-277-1	01	1	1012-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-1012
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1012-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) ID=12 L=35	5-09700-206-0	01	1	0809-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) ID=24 L=27	1-09700-809-0	03	1	1012-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (J) ID=26 L=27	1-09701-006-0	01	1	1102-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-1101
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=11 L=45	8-94296-897-1	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (L) ID=11 L=45	8-94296-897-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (M) ID=18 L=44	8-97367-985-1	01	1	1012-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
