0-41 — FUEL FILTER AND BRACKET (#6077) — 68 parça

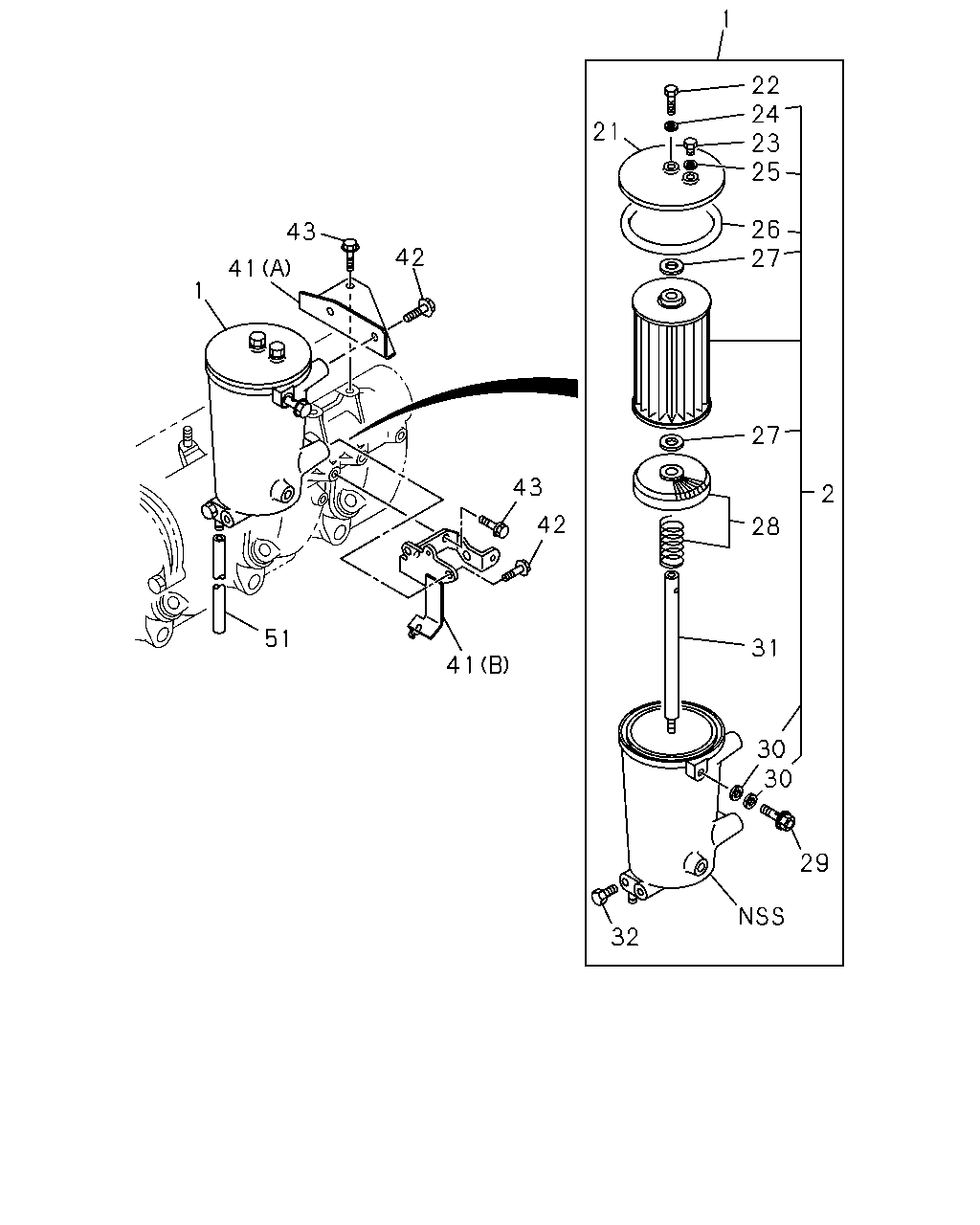

1 22 24 23 25 21 26 27 43 42 41 1 27 43 2 42 28 51 31 41 30 30 29 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER ASM; FUEL	1-13200-871-3	01	1	9905-0301
1	FILTER ASM; FUEL	1-13201-006-1	01	1	0302-1106
1	FILTER ASM; FUEL	8-98175-164-0	01	1	1107-
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	9905-1106
2	ELEMENT KIT; FUEL FILTER	8-98174-903-0	01	1	1107-
2	ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	1-87610-152-0	01	1	1107-
21	COVER; UPR,FUEL FILTER	1-13212-049-1	01	1	9905-
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	9905-
23	PLUG; COVER	1-13219-074-0	01	1	9905-
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	9905-
27	GASKET; ELEMENT	1-09630-007-0	02	1	9905-
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	9905-
29	VALVE; OVERFLOW	1-13260-074-0	01	1	9905-0301
29	VALVE; OVERFLOW	1-13260-116-0	01	1	0302-
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	9905-
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	9905-
41	BRACKET; FUEL FILTER (A)	1-13219-282-0	01	1	9905-0301
41	BRACKET; FUEL FILTER (C)	1-13219-350-2	01	1	0302-0808
41	BRACKET; FUEL FILTER (D)	8-97628-937-0	01	1	0809-
41	BRACKET; FUEL FILTER (B)	1-13219-301-2	01	1	9905-0301
41	BRACKET; FUEL FILTER (D)	1-13219-351-2	01	1	0302-0808
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	9905-0512
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28051-020-0	04	1	0601-0808
42	BOLT; FUEL FILTER M10X40 FLANGE	0-28051-040-0	04	1	0809-
43	BOLT; BRKT M10X60 FLANGE	0-28151-060-0	02	1	0809-
43	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	04	1	9905-0512
43	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	04	1	0601-0808
43	BOLT; BRKT M10X30 FLANGE	0-28151-030-0	02	1	0809-
51	PIPE; VINYL L=750 SERVICED BY L=10000	9-09914-909-0	01	1	9905-0301
51	PIPE; VINYL L=800 SERVICED BY L=10000	9-09914-909-0	01	1	0302-

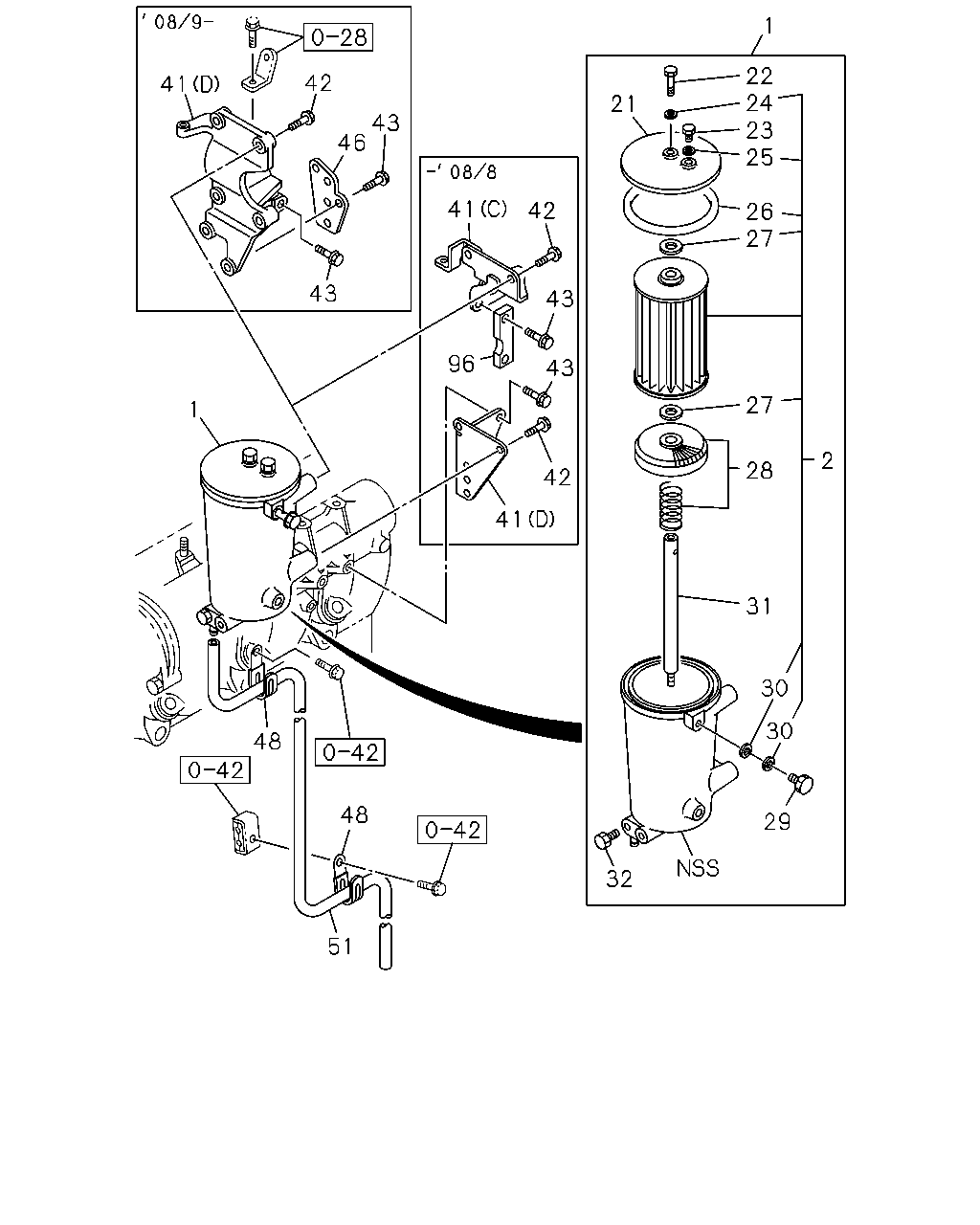

1 22 24 23 25 42 41 21 43 46 41 42 26 27 43 43 96 43 27 1 2 28 42 41 31 30 30 48 48 29 32 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER ASM; FUEL	1-13200-871-3	01	1	9905-0301
1	FILTER ASM; FUEL	1-13201-006-1	01	1	0302-1106
1	FILTER ASM; FUEL	8-98175-164-0	01	1	1107-
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	9905-1106
2	ELEMENT KIT; FUEL FILTER	8-98174-903-0	01	1	1107-
2	ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	1-87610-152-0	01	1	1107-
21	COVER; UPR,FUEL FILTER	1-13212-049-1	01	1	9905-
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	9905-
23	PLUG; COVER	1-13219-074-0	01	1	9905-
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	9905-
27	GASKET; ELEMENT	1-09630-007-0	02	1	9905-
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	9905-
29	VALVE; OVERFLOW	1-13260-074-0	01	1	9905-0301
29	VALVE; OVERFLOW	1-13260-116-0	01	1	0302-
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	9905-
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	9905-
41	BRACKET; FUEL FILTER (A)	1-13219-282-0	01	1	9905-0301
41	BRACKET; FUEL FILTER (C)	1-13219-350-2	01	1	0302-0808
41	BRACKET; FUEL FILTER (D)	8-97628-937-0	01	1	0809-
41	BRACKET; FUEL FILTER (B)	1-13219-301-2	01	1	9905-0301
41	BRACKET; FUEL FILTER (D)	1-13219-351-2	01	1	0302-0808
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	9905-0512
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28051-020-0	04	1	0601-0808
42	BOLT; FUEL FILTER M10X40 FLANGE	0-28051-040-0	04	1	0809-
43	BOLT; BRKT M10X60 FLANGE	0-28151-060-0	02	1	0809-
43	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	04	1	9905-0512
43	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	04	1	0601-0808
43	BOLT; BRKT M10X30 FLANGE	0-28151-030-0	02	1	0809-
46	BRACKET	8-97629-738-1	01	1	0809-
48	CLIP; VINYL PIPE ID=21 L=47.5	8-94178-108-0	01	1	0302-
51	PIPE; VINYL L=750 SERVICED BY L=10000	9-09914-909-0	01	1	9905-0301
51	PIPE; VINYL L=800 SERVICED BY L=10000	9-09914-909-0	01	1	0302-
