Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#60769) — 304 parça

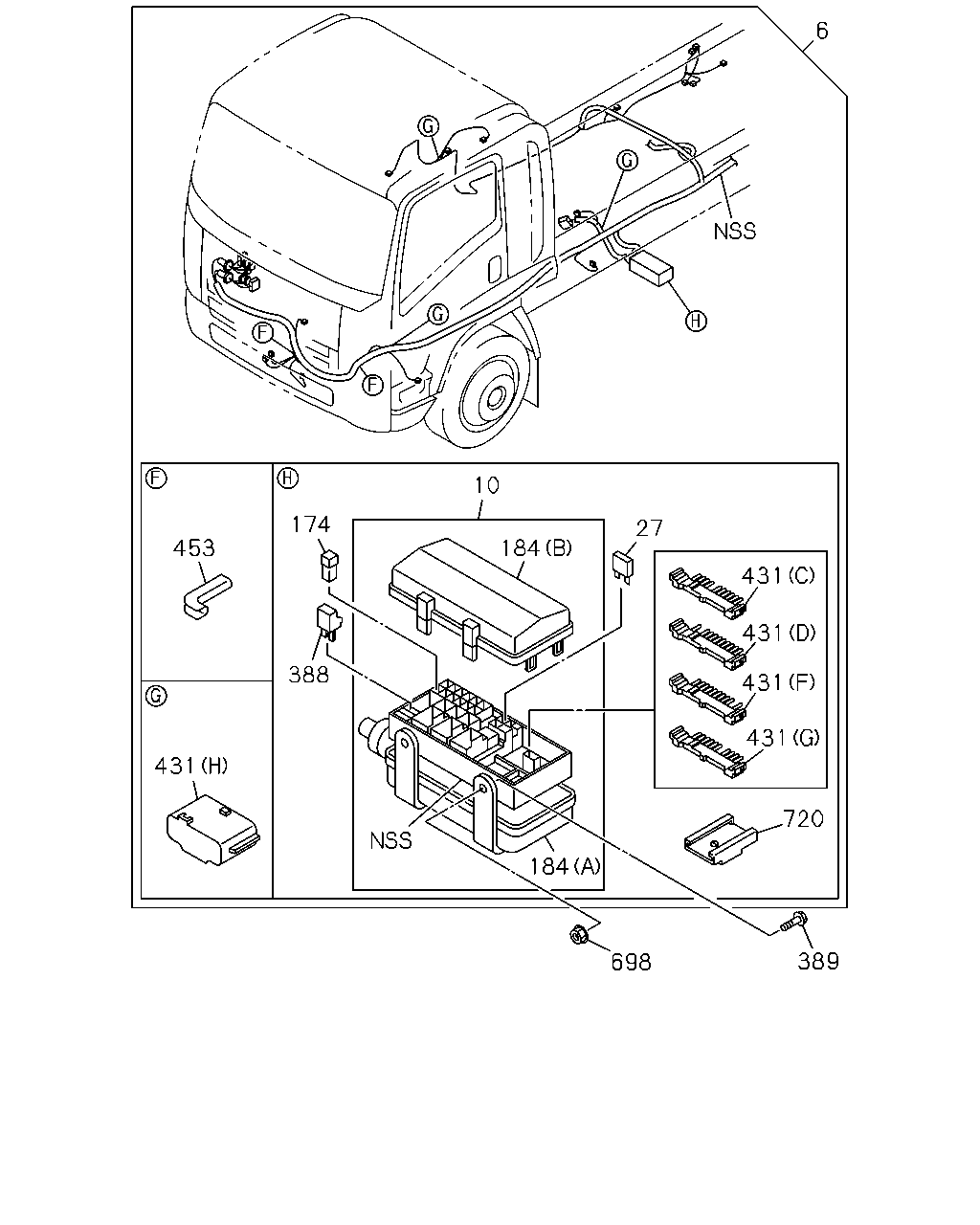

6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME	8-98064-989-2	01	1	0809-1011
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1012-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98172-509-0	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	0809-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	0809-
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	0809-1011
27	FUSE UNIT EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 15A BLUE	8-98054-258-0	03	1	1012-1405
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1406-
27	FUSE UNIT EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 15A BLUE	8-98054-258-0	02	1	1012-1405
27	FUSE UNIT EURO3 SPECIFICATION<NT3> 15A BLUE	8-98054-258-0	02	1	1012-1405
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	0809-1011
174	FUSE; SLOW BLOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	02	1	1012-1405
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1406-
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	0809-1011
174	FUSE; SLOW BLOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	02	1	1012-1405
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1406-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	0809-
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	03	1	0809-1106
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1107-
174	FUSE; SLOW BLOW EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	01	1	1012-1405
174	FUSE; SLOW BLOW EURO3 SPECIFICATION<NT3> 30A PINK	8-98079-191-0	01	1	1012-1405
174	FUSE; SLOW BLOW EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	01	1	1012-1405
174	FUSE; SLOW BLOW EURO3 SPECIFICATION<NT3> 40A GREEN	8-98079-192-0	01	1	1012-1405
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	0809-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	0809-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	0809-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0809-
431	CONNECTOR; JOINT EURO3 SPECIFICATION<NT3> (H) 6P BLACK	8-97616-194-0	02	1	1406-
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1406-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0809-
431	CONNECTOR; JOINT (G) 10P BLUE	1-82699-598-0	01	1	0809-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0809-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	01	1	0809-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	04	1	0809-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	09	1	0809-1011
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	01	1	1012-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	01	1	0809-1011
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	09	1	1012-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0809-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0809-1405
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1406-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0809-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0809-
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	0809-
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	0809-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	0809-

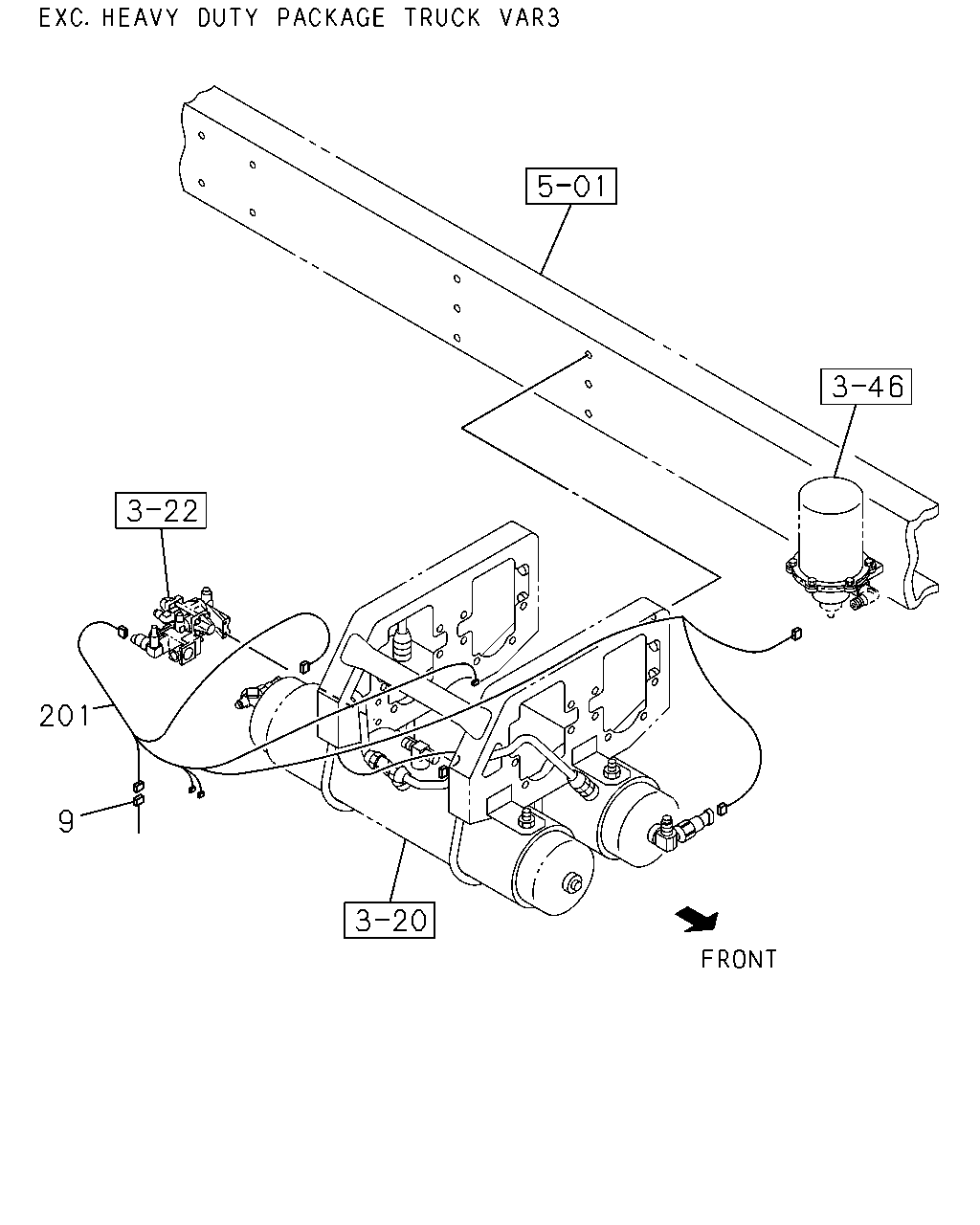

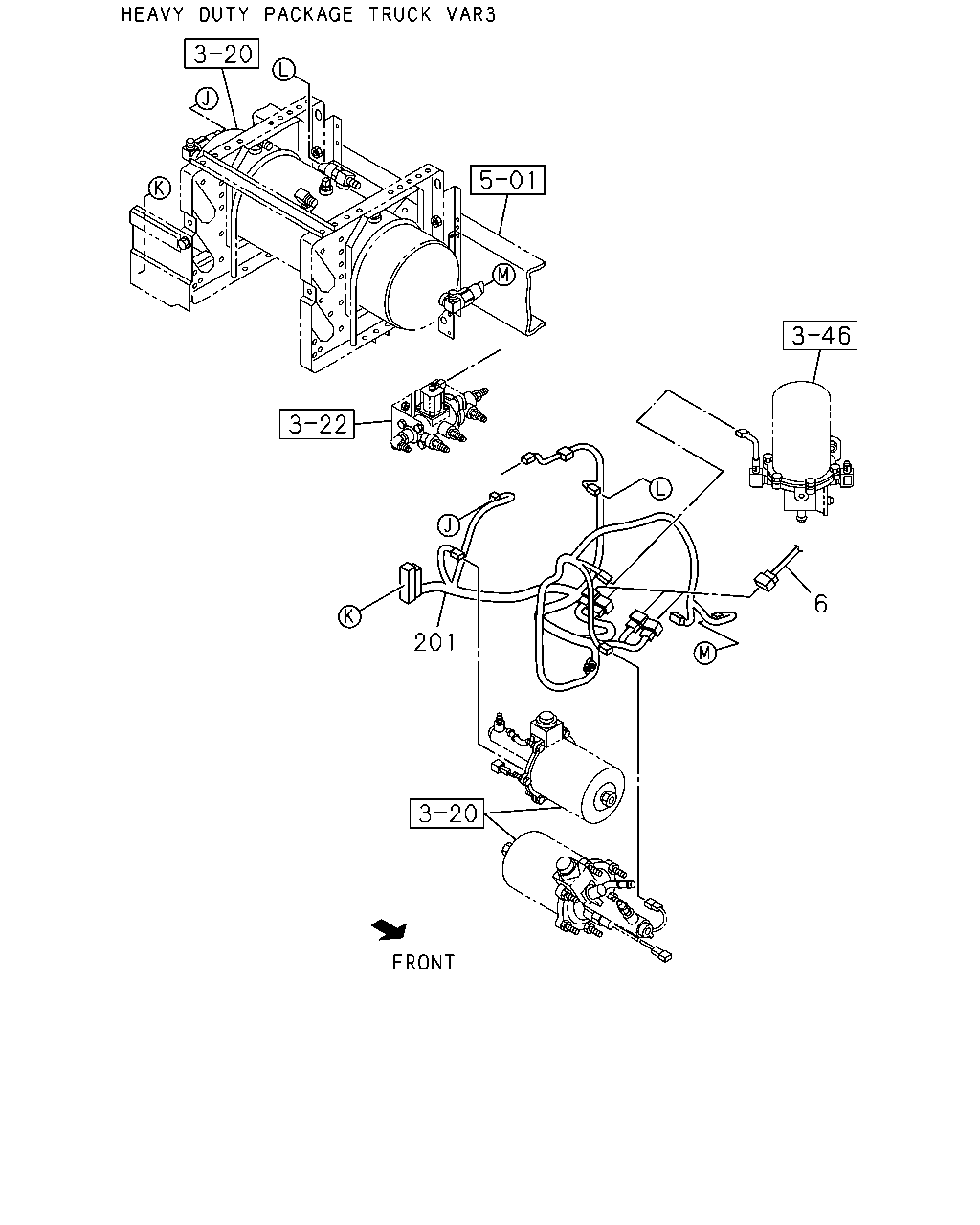

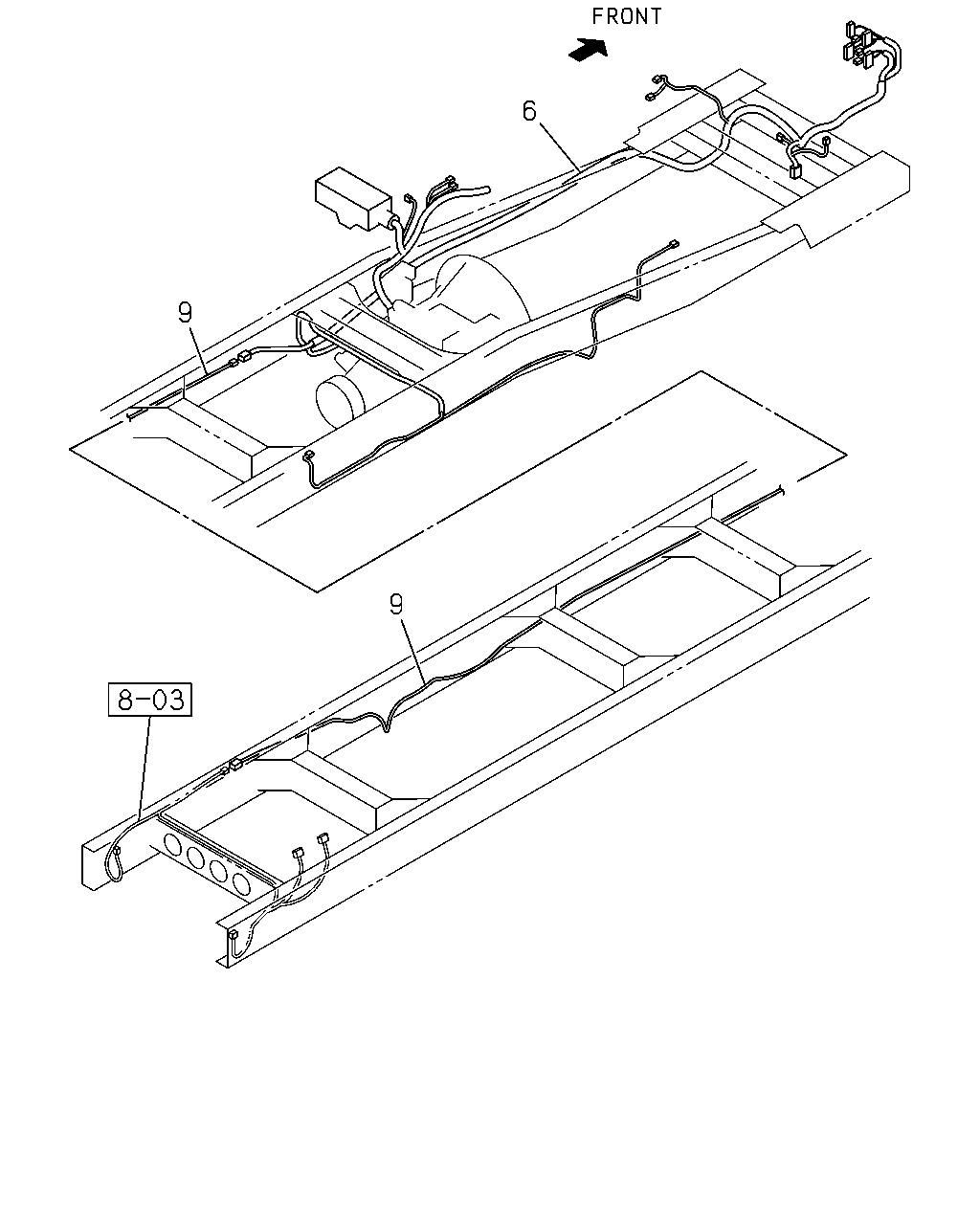

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME	8-98064-989-2	01	1	0809-1011
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1012-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98172-509-0	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
201	HARNESS; AIR TANK	8-98111-498-2	01	1	0809-1011
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-498-2	01	1	1012-
201	HARNESS; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98156-713-1	01	1	1012-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98156-712-1	01	1	1012-

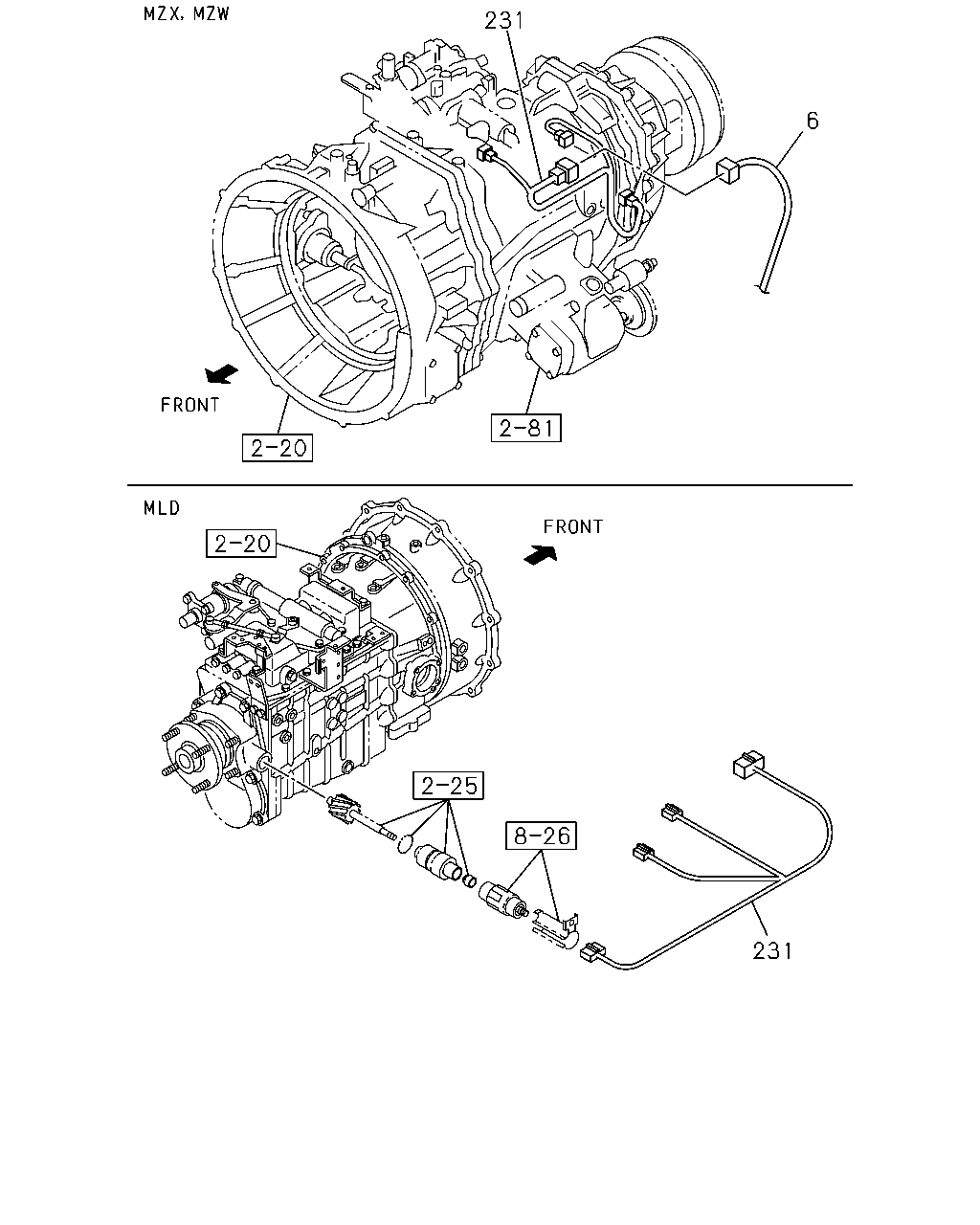

231 6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME	8-98064-989-2	01	1	0809-1011
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1012-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98172-509-0	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
231	HARNESS; TRANS MLD6W M/T(Y2C)	8-97626-769-1	01	1	0809-
231	HARNESS; TRANS MZX6P M/T(RSW)	8-97618-932-1	01	1	0809-0906
231	HARNESS; TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-97618-932-2	01	1	0907-

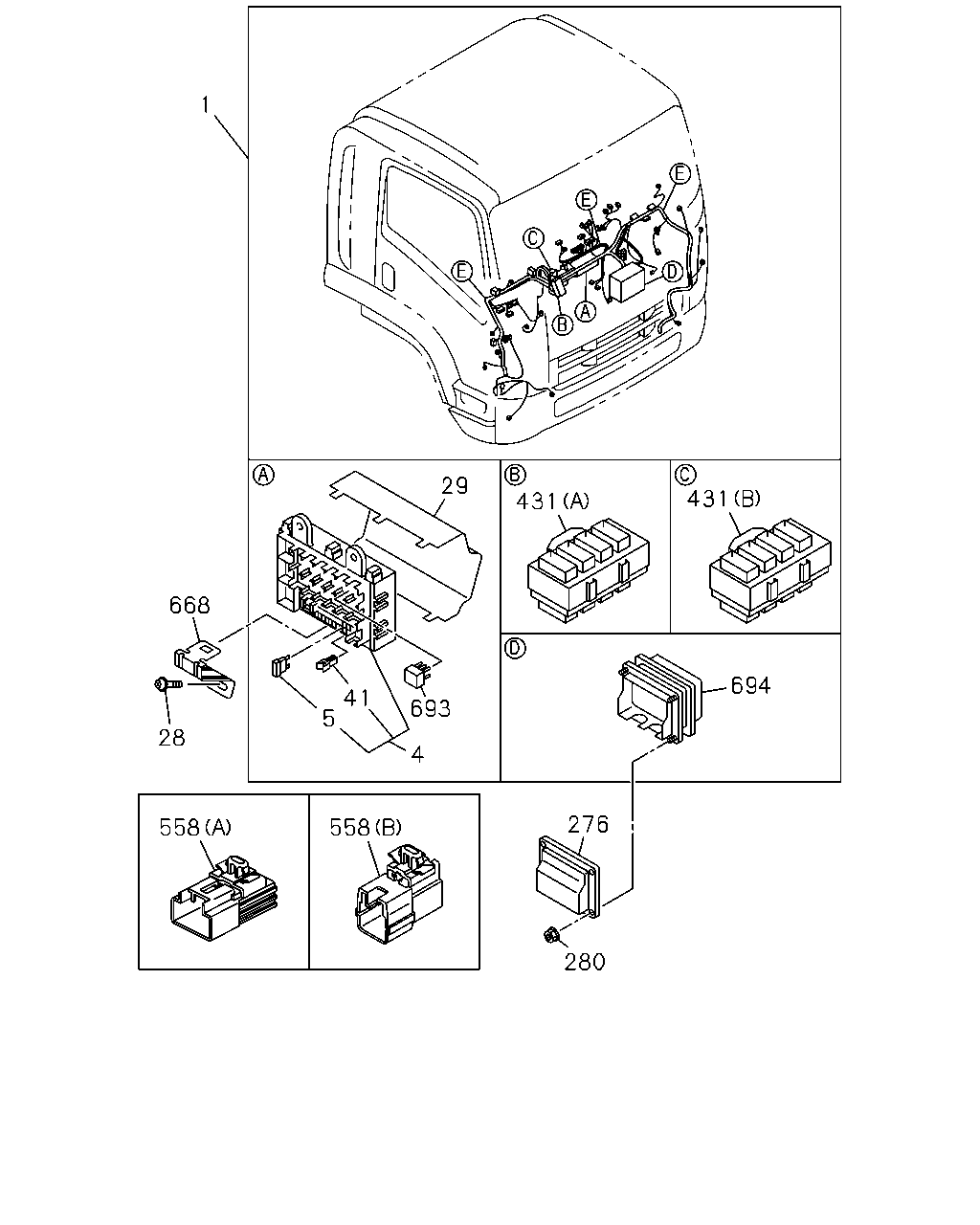

1 431 431 29 668 694 41 5 693 28 4 276 558 558 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1110-1203
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1204-1509
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-937-0	01	1	1510-
1	HARNESS; CAB	8-98084-005-4	01	1	0809-1012
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1101-1109
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1110-1203
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0809-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0809-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0809-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0809-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	0809-
28	SCREW; FUSE BOX T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0809-0908
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0909-
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE	0-28650-616-0	01	1	0909-
29	COVER; FUSE BOX	8-98056-968-0	01	1	0809-
41	PULLER; FUSE	8-98054-260-0	01	1	0809-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0809-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0809-
431	CONNECTOR; JOINT EURO3 SPECIFICATION<NT3> (H) 6P BLACK	8-97616-194-0	02	1	1406-
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1406-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0809-
431	CONNECTOR; JOINT (G) 10P BLUE	1-82699-598-0	01	1	0809-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0809-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	01	1	0809-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	04	1	0809-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	09	1	0809-1011
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	01	1	1012-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	01	1	0809-1011
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	09	1	1012-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0809-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0809-1405
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1406-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0809-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0809-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	0809-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	0809-
668	BRACKET; HARNESS	8-98111-712-1	01	1	0809-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0809-
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	0809-

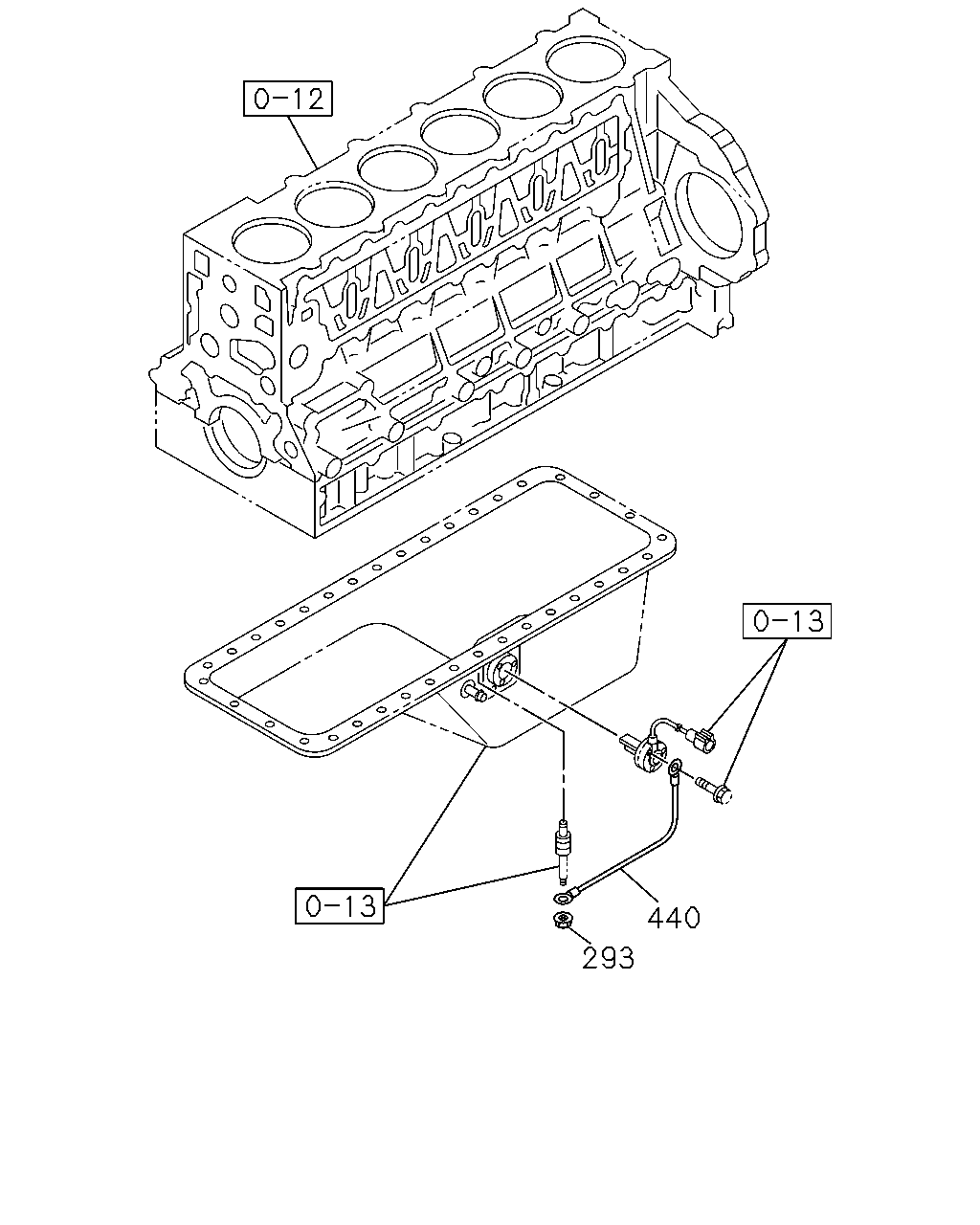

440 293

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	293	NUT EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	01	1	1012-
	440	CABLE; EARTH EURO3 SPECIFICATION<NT3>	8-97606-639-0	01	1	1012-

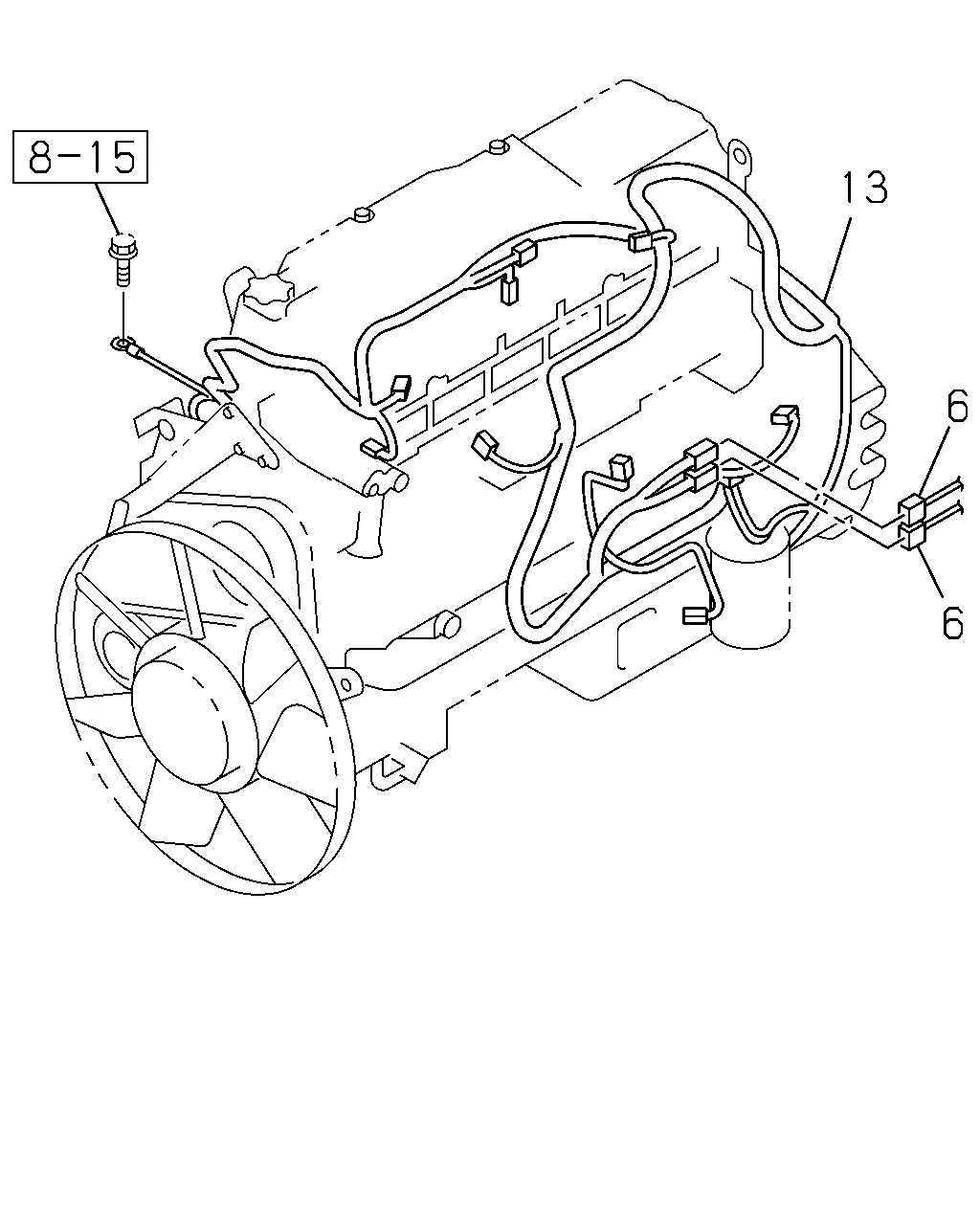

13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME	8-98064-989-2	01	1	0809-1011
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1012-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98172-509-0	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T>	8-98177-185-0	01	1	1012-
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) EXC. TURBO - CONVENTIONAL<Q5T>	8-98177-186-0	01	1	1012-
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V50A(K89)	8-98171-592-0	01	1	1102-
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2)	8-98166-334-0	01	1	1102-
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98075-770-4	01	1	0809-1011
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89)	8-98075-770-5	01	1	1012-
13	HARNESS; ENG GENERATOR 24V60A(KG2)	8-98075-771-4	01	1	0809-1011
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2)	8-98075-771-5	01	1	1012-

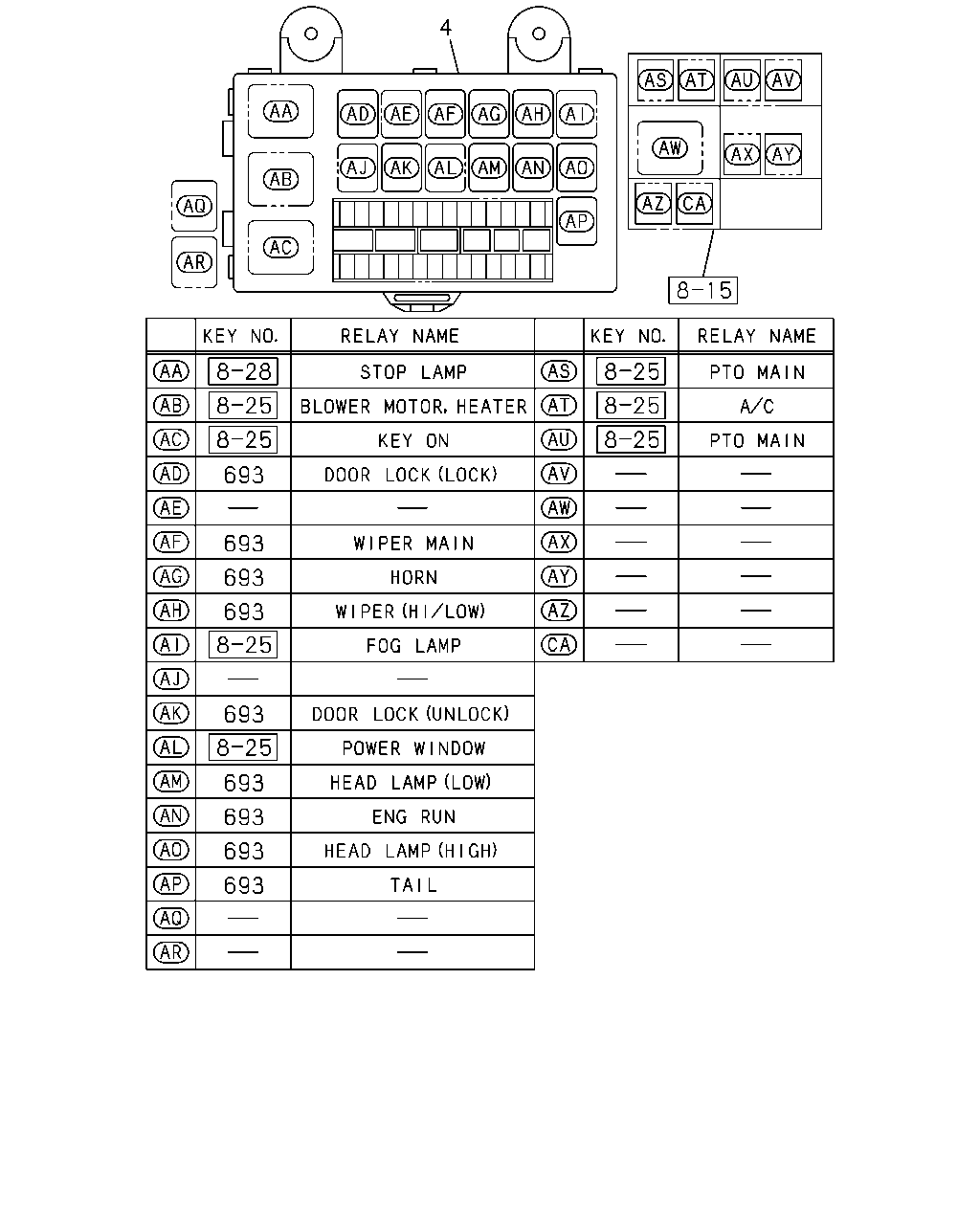

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0809-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0809-

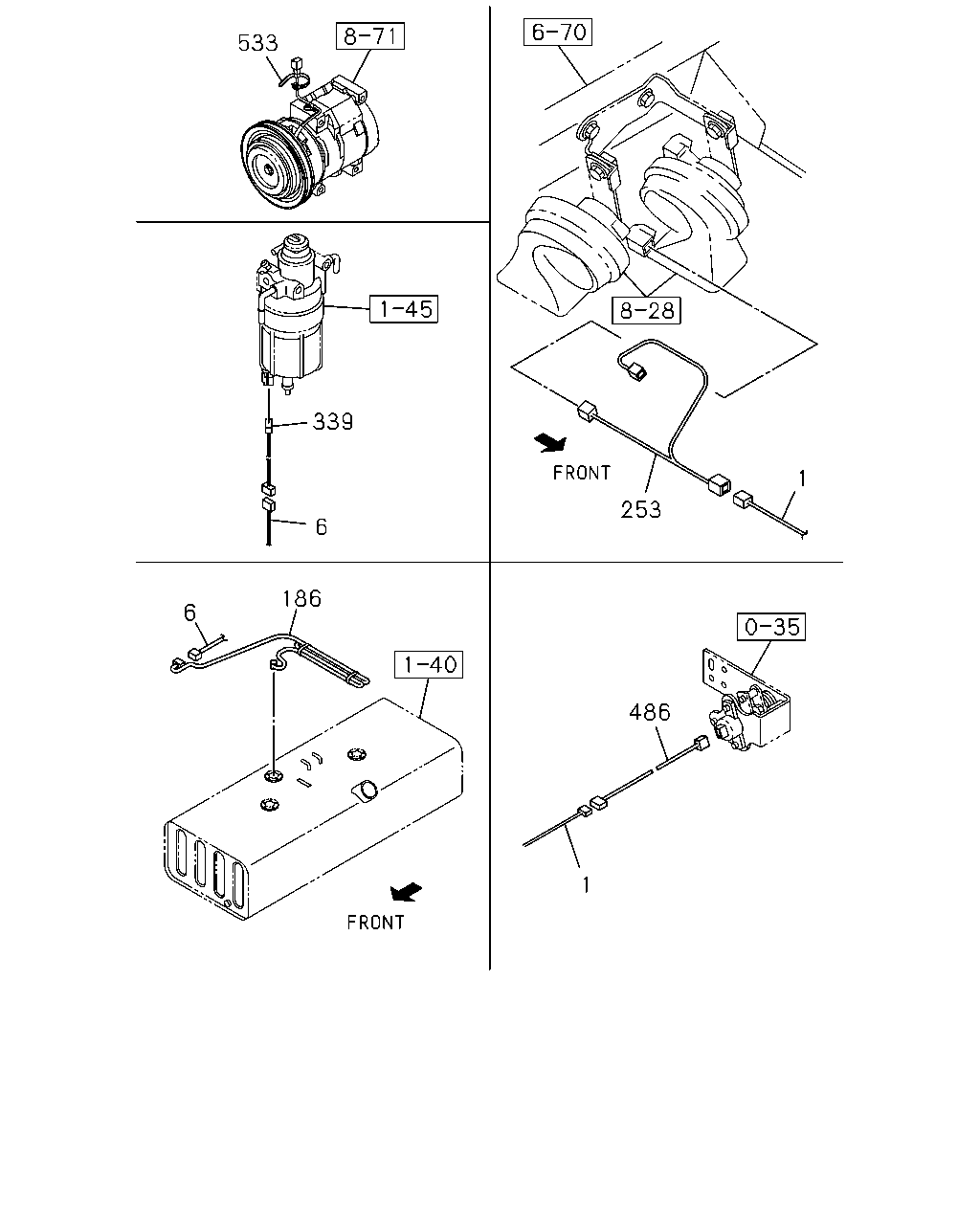

533 339 1 253 6 186 6 486 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1110-1203
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1204-1509
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-937-0	01	1	1510-
1	HARNESS; CAB	8-98084-005-4	01	1	0809-1012
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1101-1109
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1110-1203
6	HARNESS; FRAME	8-98064-989-2	01	1	0809-1011
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1012-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98172-509-0	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
186	HARNESS; FUEL TANK WHEEL BASE 3700MM(37W)	8-97619-079-0	01	1	0809-1011
186	HARNESS; FUEL TANK WHEEL BASE 3700MM(37W)	8-97619-079-0	01	1	1012-
253	HARNESS; EXT,HORN	8-98074-080-3	01	1	0809-
339	HARNESS; EXT,FUEL WHEEL BASE 3700MM(37W)	8-98117-681-1	01	1	0809-1011
339	HARNESS; EXT,FUEL WHEEL BASE 3700MM(37W)	8-98117-681-1	01	1	1012-
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W)	8-98117-682-1	01	1	0809-1011
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98117-682-1	01	1	1012-1102
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-131-0	01	1	1103-
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-756-0	01	1	1012-
339	HARNESS; EXT,FUEL WHEEL BASE 4800MM(48W)	8-98129-979-0	01	1	0809-1011
339	HARNESS; EXT,FUEL WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98129-979-0	01	1	1012-1102
339	HARNESS; EXT,FUEL WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-132-0	01	1	1103-
339	HARNESS; EXT,FUEL WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-758-0	01	1	1012-1107
339	HARNESS; EXT,FUEL WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-758-0	01	1	1108-
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	0809-
533	CLIP L=180	1-09707-162-1	01	1	0809-1206
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) L=180	1-09707-162-1	01	1	1207-

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME	8-98064-989-2	01	1	0809-1011
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1012-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98172-509-0	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1012-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98064-325-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98168-580-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98064-327-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98168-582-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98064-329-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98168-584-0	01	1	1008-

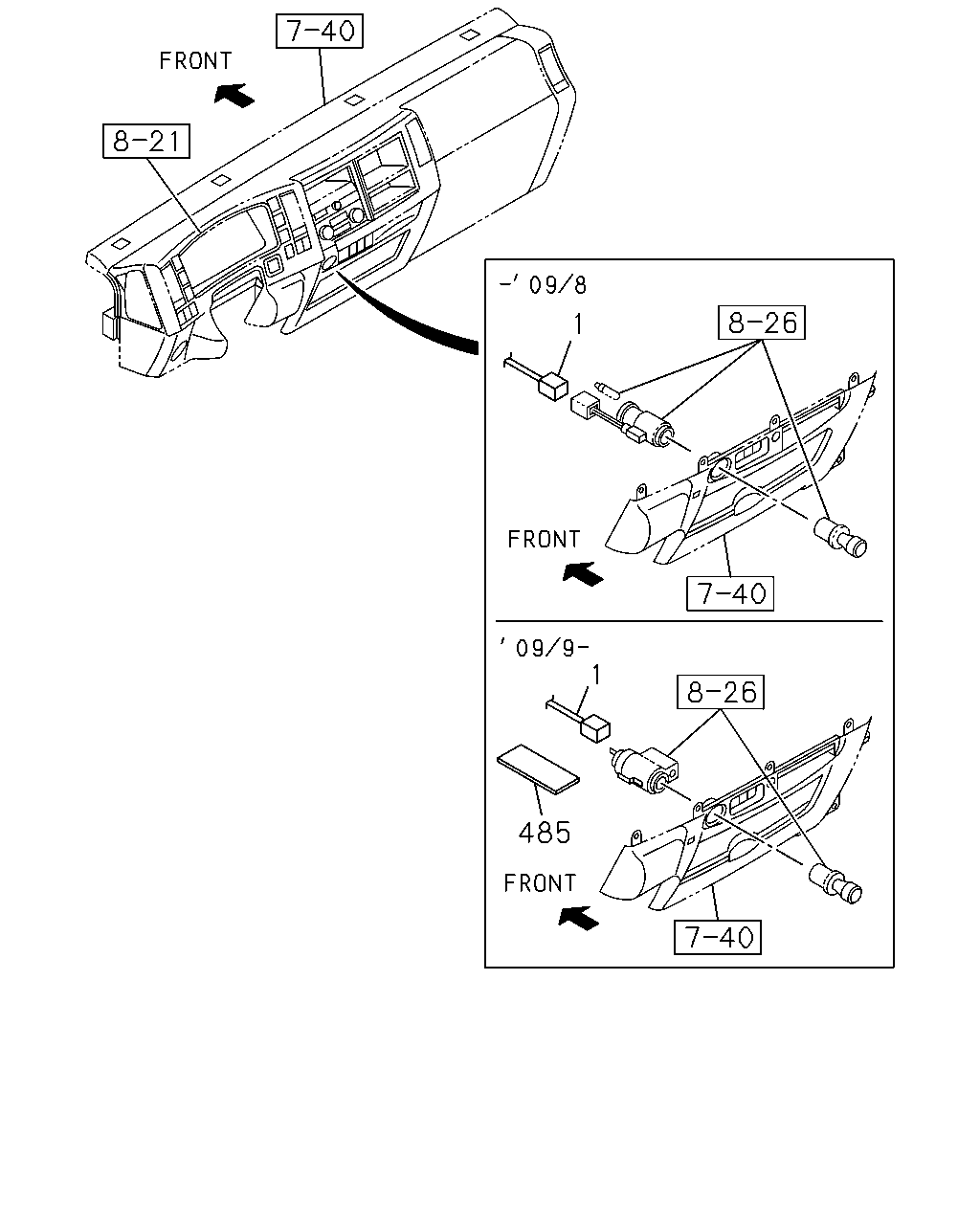

1 1 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1110-1203
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1204-1509
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-937-0	01	1	1510-
1	HARNESS; CAB	8-98084-005-4	01	1	0809-1012
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1101-1109
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1110-1203
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	0909-

1 2 2 314 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1110-1203
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1204-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1110-1203
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1204-1509
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-937-0	01	1	1510-
1	HARNESS; CAB	8-98084-005-4	01	1	0809-1012
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1110-1203
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1101-1109
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1110-1203
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0809-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0809-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0809-
431	CONNECTOR; JOINT EURO3 SPECIFICATION<NT3> (H) 6P BLACK	8-97616-194-0	02	1	1406-
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1406-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0809-
431	CONNECTOR; JOINT (G) 10P BLUE	1-82699-598-0	01	1	0809-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0809-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	01	1	0809-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	04	1	0809-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	09	1	0809-1011
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	01	1	1012-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	01	1	0809-1011
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	09	1	1012-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0809-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0809-1405
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1406-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0809-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0809-

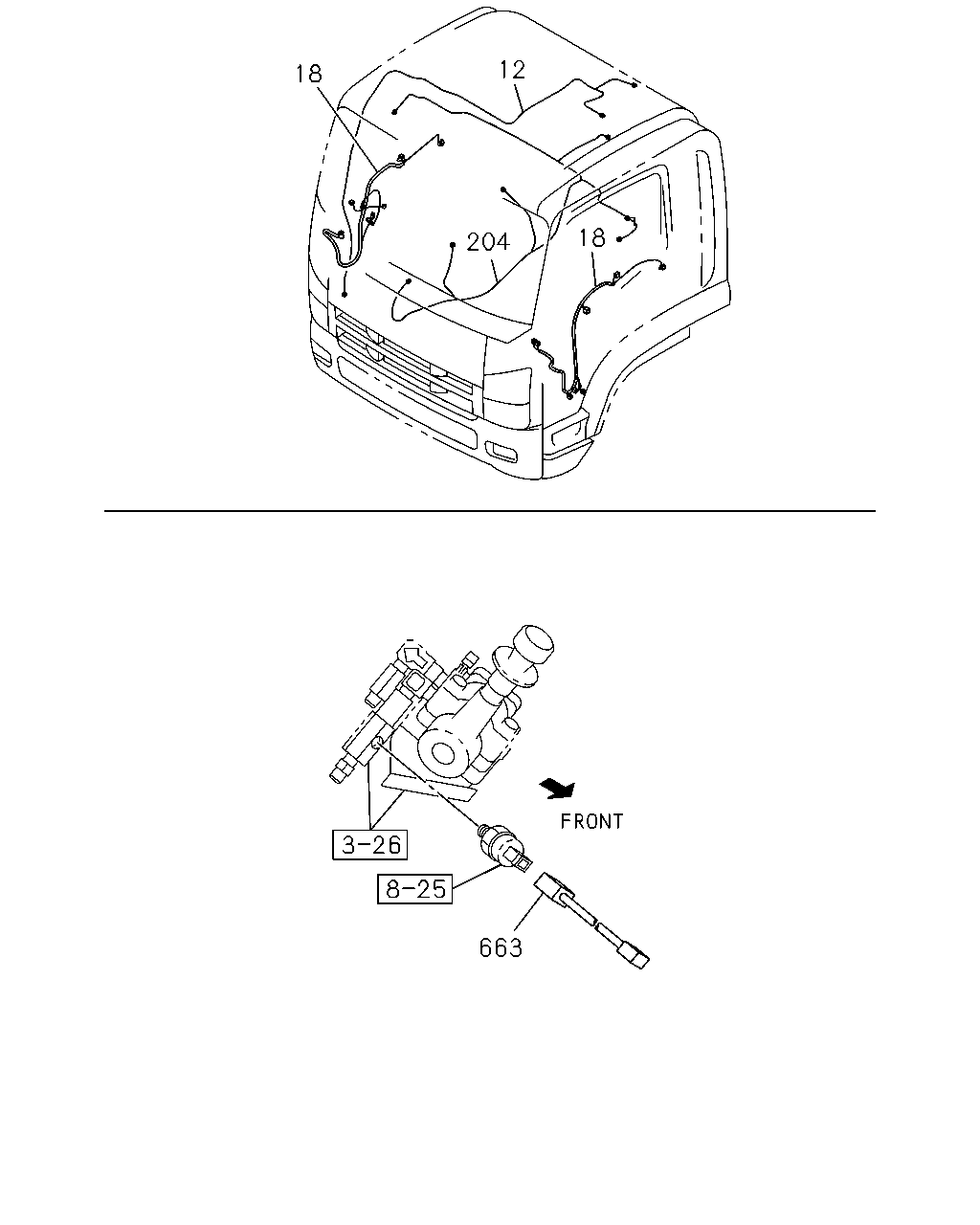

12 18 18 204 663

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98071-441-0	01	1	0809-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98084-248-1	01	1	0809-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98080-127-3	01	1	0809-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98178-803-0	01	1	1203-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98080-128-3	01	1	0809-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98178-804-0	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-285-2	01	1	0809-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98178-801-0	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-290-2	01	1	0809-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98178-802-0	01	1	1203-
204	HARNESS; CABLE,FLOOR MZX6P M/T(RSW),MLD6W M/T(Y2C)	8-98084-217-1	01	1	0809-0906
204	HARNESS; CABLE,FLOOR	8-98084-217-1	01	1	0907-
663	HARNESS; EXTENSION,RR WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98126-779-2	01	1	1012-

201 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98064-325-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98168-580-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98064-327-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98168-582-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98064-329-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98168-584-0	01	1	1008-
201	HARNESS; AIR TANK	8-98111-498-2	01	1	0809-1011
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-498-2	01	1	1012-
201	HARNESS; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98156-713-1	01	1	1012-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98156-712-1	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
