◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#60764) — 24 parça

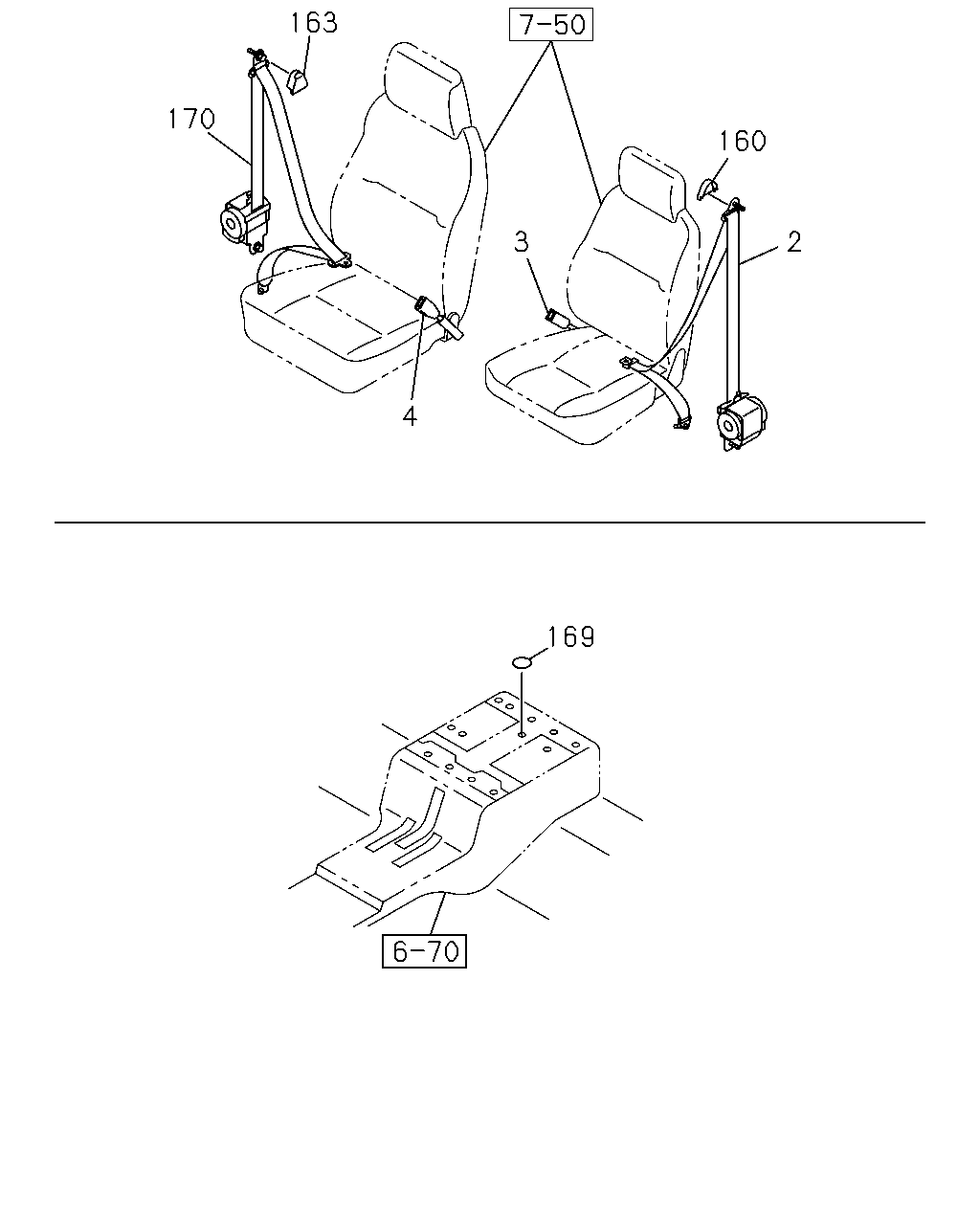

çizim 148942
163 170 160 2 3 4 169
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 0809-1209
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1407
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-2 01 1 0809-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97409-769-1 01 1 0809-1310
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-769-1 01 1 1311-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0809-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0809-
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 01 1 0809-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 0809-1209
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1407
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408-

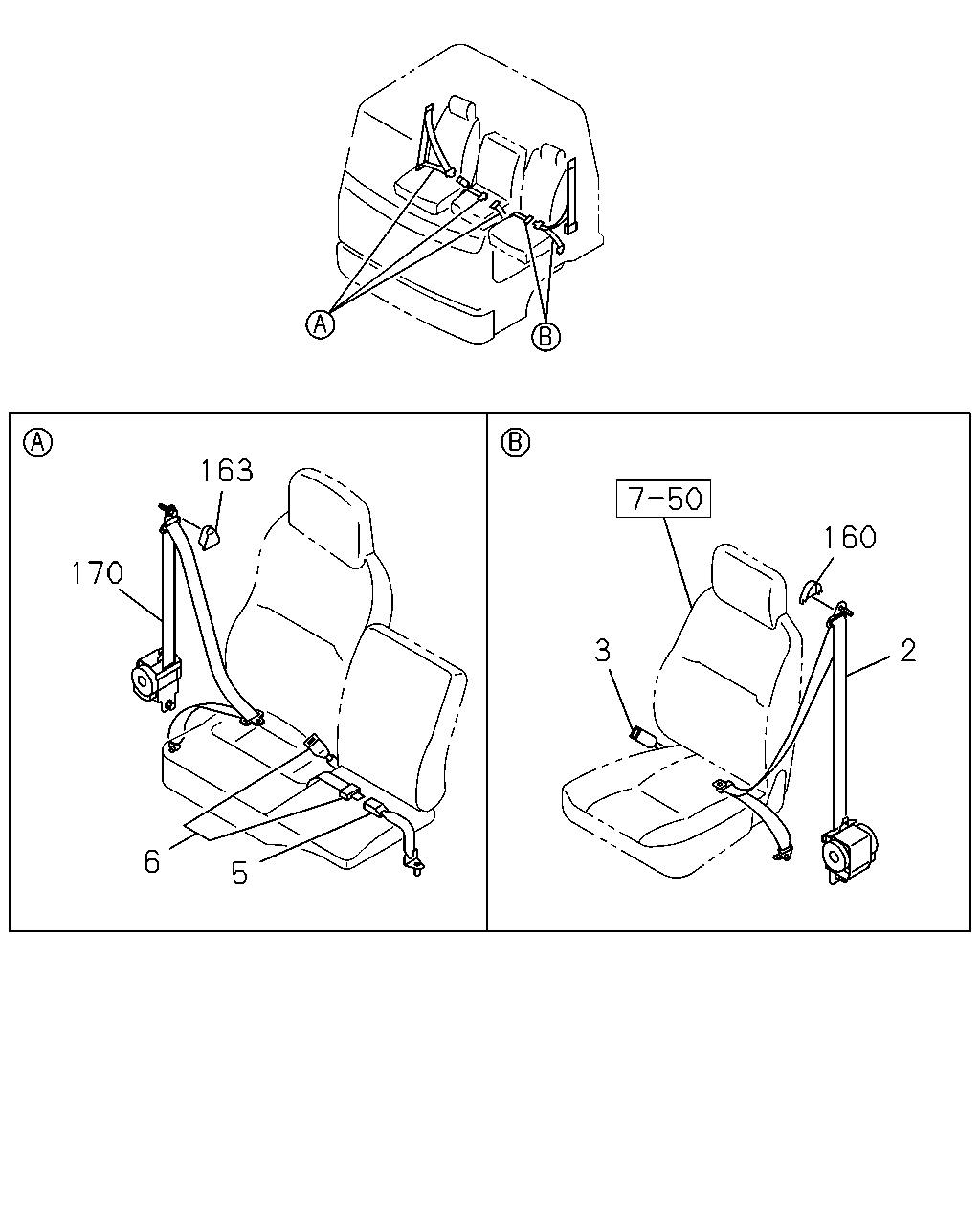

çizim 148953
163 160 170 2 3 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 0809-1209
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1407
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-2 01 1 0809-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 0809-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-767-3 01 1 0809-1209
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-660-1 01 1 1210-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0809-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0809-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 0809-1209
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1407
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
