Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#6076) — 273 parça

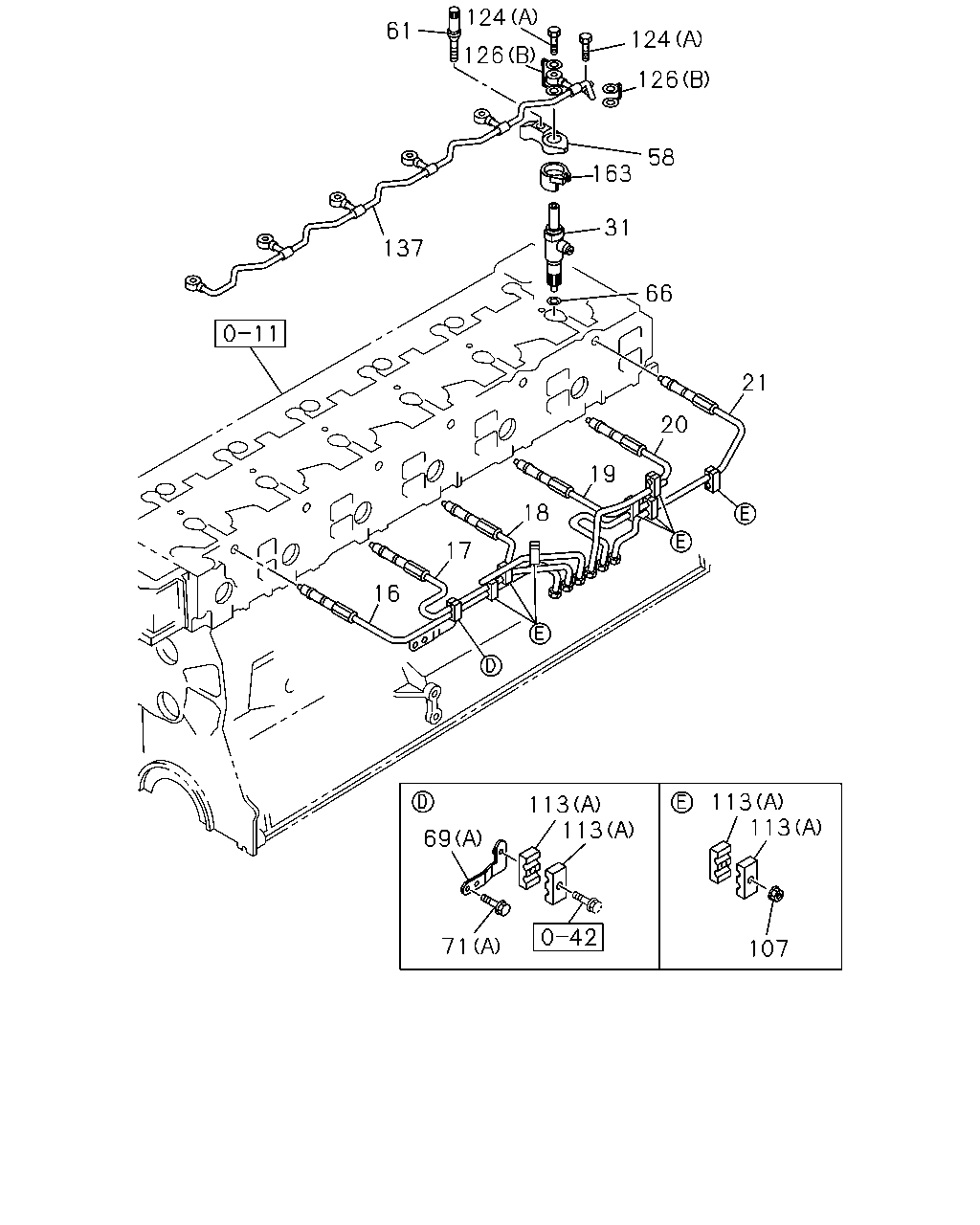

31 32 42 140 44 45 46 146 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	1-15300-377-0	06	1	9905-0301
31	NOZZLE ASM; INJ	1-15300-433-2	06	1	0302-
32	HOLDER ASM; NOZZLE	1-15330-117-0	06	1	9905-0301
33	NOZZLE; INJ	1-15311-295-0	06	1	9905-0301
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-137-0	06	1	9905-0301
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	9905-0301
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	9905-0301
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	9905-0301
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	1-15349-051-0	AR	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	1-15349-053-0	AR	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	1-15349-055-0	AR	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	1-15349-057-0	AR	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	1-15349-059-0	AR	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	1-15349-061-0	AR	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	1-15349-063-0	AR	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	1-15349-065-0	AR	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	1-15349-067-0	AR	1	9905-0301
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	1-15349-069-0	AR	1	9905-0301
146	SPACER; NOZZLE	1-15339-098-0	06	1	9905-0301

124 61 124 126 126 58 163 31 137 66 21 20 19 18 17 16 113 113 113 113 69 71 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1	1-15415-072-7	01	1	9905-0301
16	PIPE; INJ NO.1	1-15416-251-3	01	1	0302-
17	PIPE; INJ NO.2	1-15415-073-6	01	1	9905-0301
17	PIPE; INJ NO.2	1-15416-252-3	01	1	0302-
18	PIPE; INJ NO.3	1-15415-074-6	01	1	9905-0301
18	PIPE; INJ NO.3	1-15416-253-3	01	1	0302-
19	PIPE; INJ NO.4	1-15415-525-1	01	1	9905-0301
19	PIPE; INJ NO.4	1-15416-254-3	01	1	0302-
20	PIPE; INJ NO.5	1-15415-076-6	01	1	9905-0301
20	PIPE; INJ NO.5	1-15416-255-3	01	1	0302-
21	PIPE; INJ NO.6	1-15415-077-6	01	1	9905-0301
21	PIPE; INJ NO.6	1-15416-256-3	01	1	0302-
31	NOZZLE ASM; INJ	1-15300-377-0	06	1	9905-0301
31	NOZZLE ASM; INJ	1-15300-433-2	06	1	0302-
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	9905-0301
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-021-0	06	1	0302-
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	9905-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	9905-0301
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-021-1	06	1	0302-
69	BRACKET; INJ PIPE CLIP (A)	1-15419-334-0	01	1	9905-0301
69	BRACKET; INJ PIPE CLIP (E)	1-15419-662-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (B)	1-15419-664-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (C)	1-15419-665-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (D)	1-15419-666-0	01	1	0302-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9905-0301
71	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	04	1	0302-0512
71	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
71	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	0302-0512
71	BOLT; BRKT (B) M8X25 FLANGE	0-28050-825-0	02	1	0601-
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	9905-0301
113	CLIP; INJ PIPE (A)	1-09701-132-0	14	1	9905-0301
113	CLIP; INJ PIPE (C)	1-09701-172-2	06	1	0302-0606
113	CLIP; INJ PIPE (D)	8-97330-118-3	06	1	0607-
113	CLIP; INJ PIPE (B)	1-09701-173-1	06	1	0302-0606
113	CLIP; INJ PIPE (E)	8-97330-119-3	06	1	0607-
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	09	1	9905-0301
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0302-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	03	1	0302-
124	BOLT; EYE LEAK OFF PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0302-0805
124	BOLT; EYE LEAK OFF PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9905-0301
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=19.2	1-09630-085-0	01	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9905-0301
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	06	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6	8-98065-993-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.2	1-09630-084-0	02	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=20	8-98065-990-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	06	1	0302-
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	9905-0301
137	PIPE ASM; LEAK OFF	1-15416-435-2	01	1	0302-
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	9905-0301

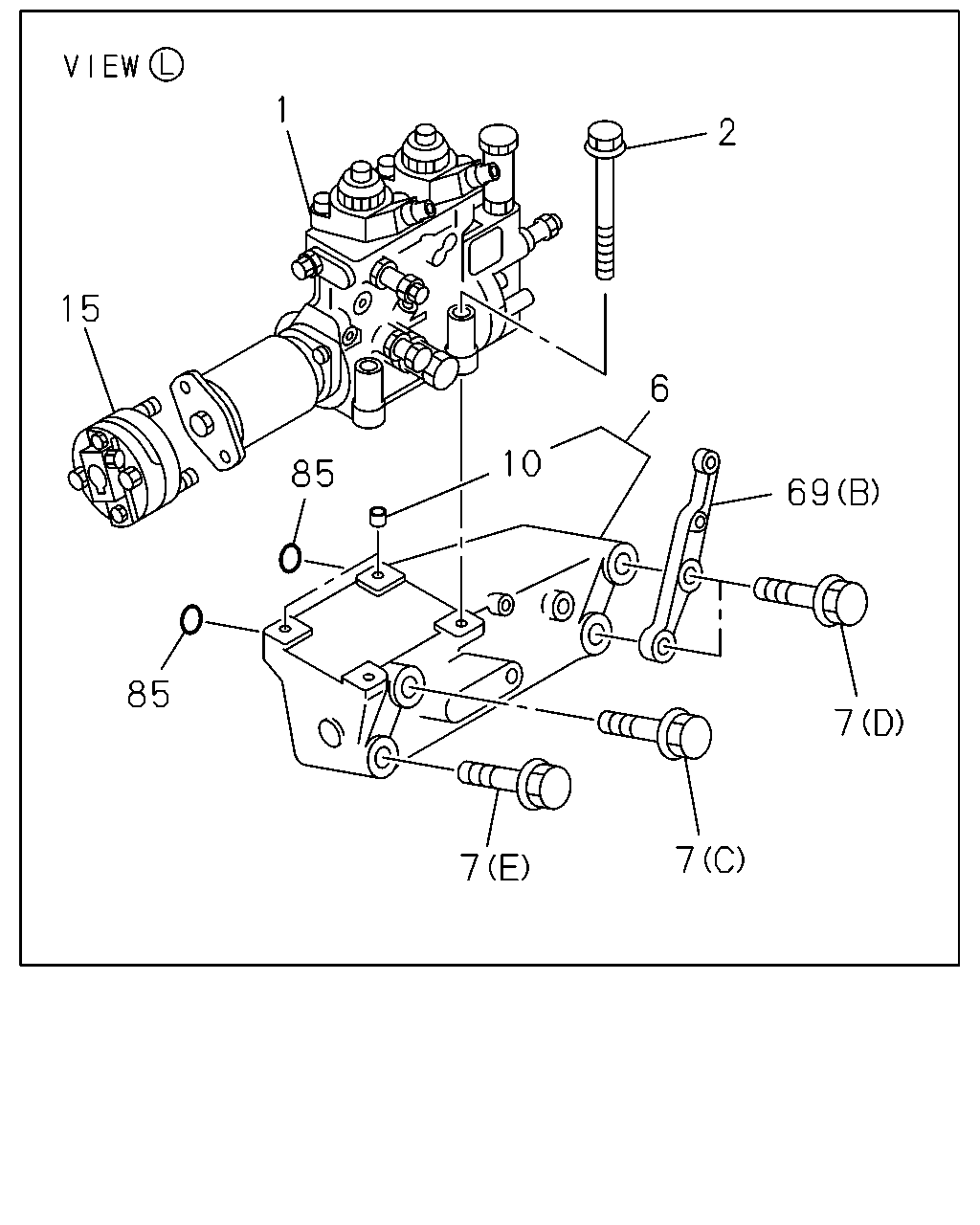

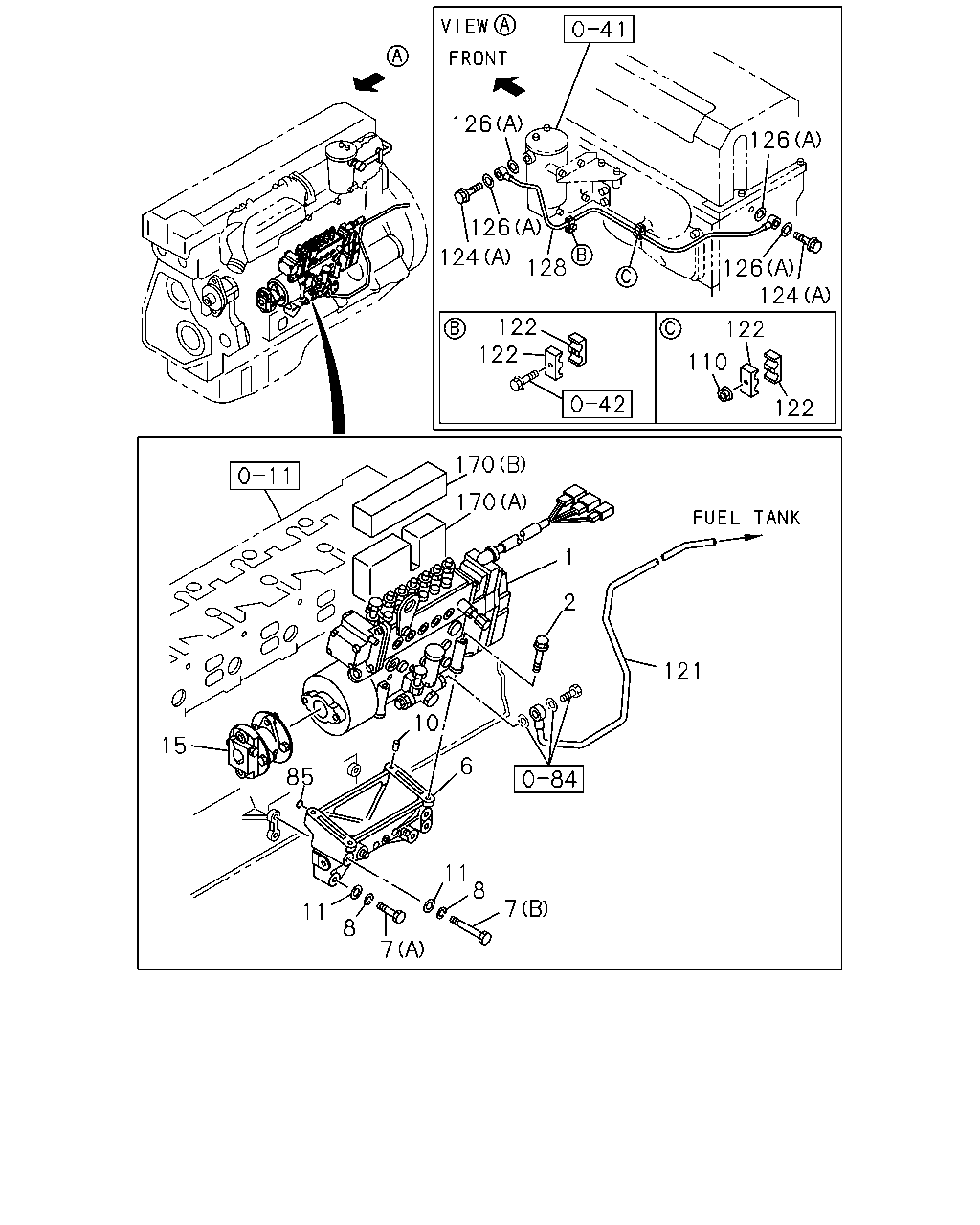

126 126 126 126 124 124 128 122 122 122 110 122 170 170 1 2 121 10 15 6 85 11 8 7 11 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-295-4	01	1	9905-0301
1	PUMP ASM; INJ	1-15603-267-8	01	1	0302-
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	9905-0301
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0302-0512
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	9905-0301
6	BRACKET; INJ PUMP TO C/BL	1-19751-177-0	01	1	0302-
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	9905-0301
7	BOLT; INJ PUMP BRKT (E) M14X90 FLANGE	0-28981-490-0	01	1	0302-0512
7	BOLT; INJ PUMP BRKT (E) M14X90 FLANGE	0-28951-490-0	01	1	0601-
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	9905-0301
7	BOLT; INJ PUMP BRKT (C) M14X120 FLANGE	0-28986-412-0	01	1	0302-0512
7	BOLT; INJ PUMP BRKT (C) M14X120 FLANGE	0-28956-412-0	01	1	0601-
7	BOLT; INJ PUMP BRKT (D) M14X140 FLANGE	0-28986-414-0	02	1	0302-0512
7	BOLT; INJ PUMP BRKT (D) M14X140 FLANGE	0-28956-414-0	02	1	0601-
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	04	1	9905-0301
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9905-0301
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0302-
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	04	1	9905-0301
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	9905-0301
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-200-0	01	1	0302-
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.8	1-09623-478-0	03	1	9905-0301
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.8	1-09623-478-0	02	1	0302-
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-0301
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	9905-0301
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-257-0	01	1	0302-
122	CLIP; LEAK OFF PIPE	1-09701-132-0	04	1	9905-0301
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	09	1	9905-0301
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0302-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	03	1	0302-
124	BOLT; EYE LEAK OFF PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0302-0805
124	BOLT; EYE LEAK OFF PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9905-0301
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=19.2	1-09630-085-0	01	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9905-0301
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	06	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6	8-98065-993-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.2	1-09630-084-0	02	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=20	8-98065-990-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	06	1	0302-
128	PIPE ASM; INJ	1-15415-543-1	01	1	9905-0301
128	PIPE ASM; INJ	1-15416-588-0	01	1	0302-
170	INSULATOR; INJ PUMP (A)	1-19389-160-0	01	1	9905-0301
170	INSULATOR; INJ PUMP (B)	1-19389-188-1	01	1	9905-0301

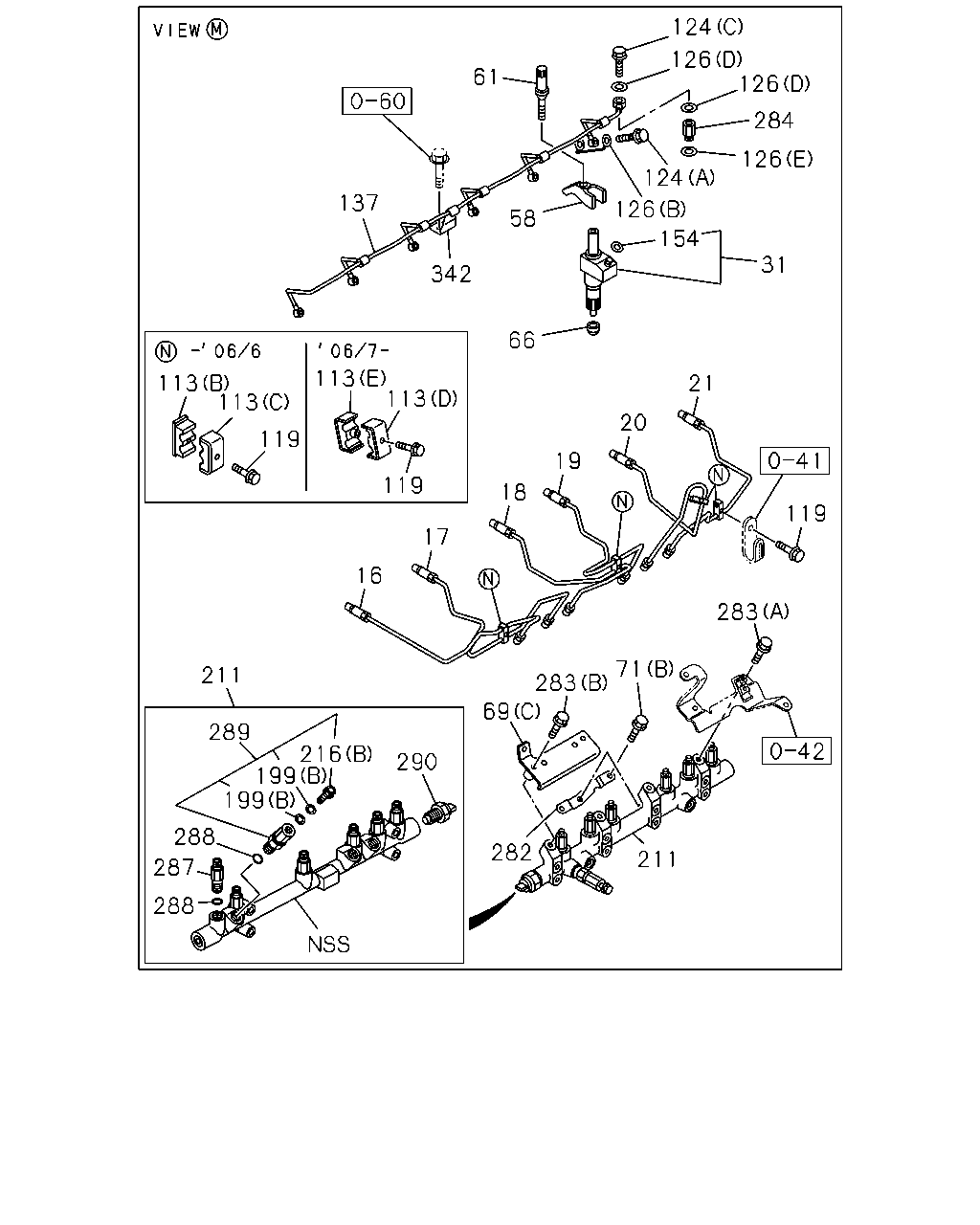

124 126 126 61 284 126 124 137 126 58 154 31 342 66 113 113 113 113 21 20 119 19 119 18 119 17 16 283 71 283 211 69 289 216 199 199 290 288 282 211 287 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1	1-15415-072-7	01	1	9905-0301
16	PIPE; INJ NO.1	1-15416-251-3	01	1	0302-
17	PIPE; INJ NO.2	1-15415-073-6	01	1	9905-0301
17	PIPE; INJ NO.2	1-15416-252-3	01	1	0302-
18	PIPE; INJ NO.3	1-15415-074-6	01	1	9905-0301
18	PIPE; INJ NO.3	1-15416-253-3	01	1	0302-
19	PIPE; INJ NO.4	1-15415-525-1	01	1	9905-0301
19	PIPE; INJ NO.4	1-15416-254-3	01	1	0302-
20	PIPE; INJ NO.5	1-15415-076-6	01	1	9905-0301
20	PIPE; INJ NO.5	1-15416-255-3	01	1	0302-
21	PIPE; INJ NO.6	1-15415-077-6	01	1	9905-0301
21	PIPE; INJ NO.6	1-15416-256-3	01	1	0302-
31	NOZZLE ASM; INJ	1-15300-377-0	06	1	9905-0301
31	NOZZLE ASM; INJ	1-15300-433-2	06	1	0302-
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	9905-0301
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-021-0	06	1	0302-
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	9905-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	9905-0301
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-021-1	06	1	0302-
69	BRACKET; INJ PIPE CLIP (A)	1-15419-334-0	01	1	9905-0301
69	BRACKET; INJ PIPE CLIP (E)	1-15419-662-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (B)	1-15419-664-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (C)	1-15419-665-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (D)	1-15419-666-0	01	1	0302-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9905-0301
71	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	04	1	0302-0512
71	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
71	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	0302-0512
71	BOLT; BRKT (B) M8X25 FLANGE	0-28050-825-0	02	1	0601-
113	CLIP; INJ PIPE (A)	1-09701-132-0	14	1	9905-0301
113	CLIP; INJ PIPE (C)	1-09701-172-2	06	1	0302-0606
113	CLIP; INJ PIPE (D)	8-97330-118-3	06	1	0607-
113	CLIP; INJ PIPE (B)	1-09701-173-1	06	1	0302-0606
113	CLIP; INJ PIPE (E)	8-97330-119-3	06	1	0607-
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28080-630-0	06	1	0302-0512
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-0605
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28660-630-0	06	1	0606-
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	09	1	9905-0301
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0302-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	03	1	0302-
124	BOLT; EYE LEAK OFF PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0302-0805
124	BOLT; EYE LEAK OFF PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9905-0301
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=19.2	1-09630-085-0	01	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9905-0301
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	06	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6	8-98065-993-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.2	1-09630-084-0	02	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=20	8-98065-990-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	06	1	0302-
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	9905-0301
137	PIPE ASM; LEAK OFF	1-15416-435-2	01	1	0302-
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	0302-1106
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0603-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0302-
211	RAIL ASM; COMMON	1-15651-008-3	01	1	0302-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0603-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0302-
282	BRACKET; COMMON RAIL	1-15659-001-0	01	1	0302-
283	BOLT; COMMON RAIL (A) M8X50 FLANGE	0-28080-850-0	02	1	0302-0512
283	BOLT; COMMON RAIL (A) M8X50 FLANGE	0-28050-850-0	02	1	0601-
283	BOLT; COMMON RAIL (B) M8X70 FLANGE	0-28080-870-0	02	1	0302-0512
283	BOLT; COMMON RAIL (B) M8X70 FLANGE	0-28050-870-0	02	1	0601-
284	ADAPTER; FUEL LEAK OFF	1-15419-525-2	01	1	0302-
287	DAMPER; FUEL FLOW	1-15641-053-0	06	1	0603-
287	DAMPER; FUEL FLOW	1-15641-048-0	06	1	0302-0602
288	GASKET ID=11 OD=16.3	1-15641-046-0	07	1	0302-
289	LIMITER; FUEL PRESS	1-15641-047-1	01	1	0302-
290	SENSOR; PRESS	1-80220-012-0	01	1	0302-1505
290	SENSOR; PRESS	8-98306-900-0	01	1	1506-
342	BRACKET; CLIP,LEAK OFF	1-15419-673-0	01	1	0302-

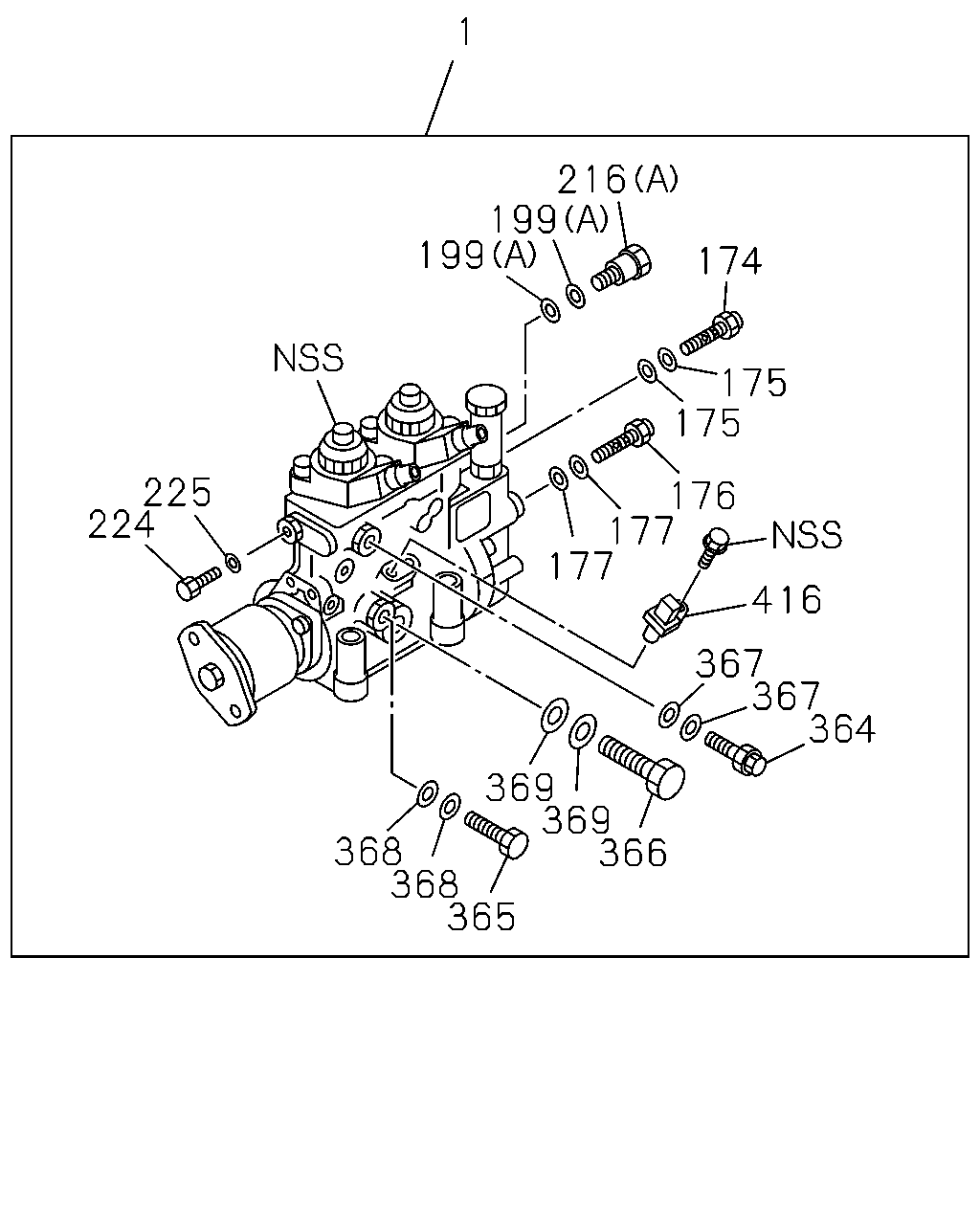

1 216 199 199 174 175 175 225 224 176 177 177 416 367 367 364 369 369 366 368 368 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-295-4	01	1	9905-0301
1	PUMP ASM; INJ	1-15603-267-8	01	1	0302-
174	BOLT; EYE,FUEL OUTLET,FEED PUMP	5-15759-003-0	01	1	0302-
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP	1-15619-507-0	02	1	0302-
176	BOLT; EYE,FEED PUMP	1-15619-509-0	01	1	0302-
177	GASKET; EYE BOLT,INL,FUEL FEED PUMP	1-15619-507-0	02	1	0302-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0603-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0302-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0603-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0302-
224	PLUG; INJ PUMP	1-15619-500-0	01	1	0302-
225	GASKET; PLUG	1-15619-502-0	01	1	0302-
364	VALVE; OVER FLOW,INJ PUMP	1-15619-496-0	01	1	0302-
365	BOLT; EYE,OIL INLET	9-88130-088-0	01	1	0302-
366	BOLT; EYE,OIL OUTLET	1-15619-497-0	01	1	0302-
367	GASKET; VALVE,OVER FLOW	1-15619-501-0	02	1	0302-
368	GASKET; EYE BOLT,OIL INLET	1-15619-508-0	02	1	0302-
369	GASKET; EYE BOLT,OIL OUTLET	1-15619-504-0	02	1	0302-
416	SENSOR; POSITION,PUMP	8-97174-899-0	01	1	0302-

128 210 121 210 124 124 126 126 126 128 126 126 128 124 128 126 69 113 113 69 71 119 69 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	BRACKET; INJ PIPE CLIP (A)	1-15419-334-0	01	1	9905-0301
69	BRACKET; INJ PIPE CLIP (E)	1-15419-662-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (B)	1-15419-664-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (C)	1-15419-665-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (D)	1-15419-666-0	01	1	0302-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9905-0301
71	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	04	1	0302-0512
71	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
71	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	0302-0512
71	BOLT; BRKT (B) M8X25 FLANGE	0-28050-825-0	02	1	0601-
113	CLIP; INJ PIPE (A)	1-09701-132-0	14	1	9905-0301
113	CLIP; INJ PIPE (C)	1-09701-172-2	06	1	0302-0606
113	CLIP; INJ PIPE (D)	8-97330-118-3	06	1	0607-
113	CLIP; INJ PIPE (B)	1-09701-173-1	06	1	0302-0606
113	CLIP; INJ PIPE (E)	8-97330-119-3	06	1	0607-
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28080-630-0	06	1	0302-0512
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-0605
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28660-630-0	06	1	0606-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	9905-0301
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-257-0	01	1	0302-
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	09	1	9905-0301
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0302-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	03	1	0302-
124	BOLT; EYE LEAK OFF PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0302-0805
124	BOLT; EYE LEAK OFF PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9905-0301
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=19.2	1-09630-085-0	01	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9905-0301
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	06	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6	8-98065-993-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.2	1-09630-084-0	02	1	0302-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=20	8-98065-990-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	06	1	0302-
128	PIPE ASM; INJ	1-15415-543-1	01	1	9905-0301
128	PIPE ASM; INJ	1-15416-588-0	01	1	0302-
210	PIPE; INJ,C/R (B)	1-15416-683-1	01	1	0302-
210	PIPE; INJ,C/R (A)	1-15416-697-1	01	1	0302-

1 2 15 6 10 85 69 85 7 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-295-4	01	1	9905-0301
1	PUMP ASM; INJ	1-15603-267-8	01	1	0302-
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	9905-0301
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0302-0512
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	9905-0301
6	BRACKET; INJ PUMP TO C/BL	1-19751-177-0	01	1	0302-
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	9905-0301
7	BOLT; INJ PUMP BRKT (E) M14X90 FLANGE	0-28981-490-0	01	1	0302-0512
7	BOLT; INJ PUMP BRKT (E) M14X90 FLANGE	0-28951-490-0	01	1	0601-
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	9905-0301
7	BOLT; INJ PUMP BRKT (C) M14X120 FLANGE	0-28986-412-0	01	1	0302-0512
7	BOLT; INJ PUMP BRKT (C) M14X120 FLANGE	0-28956-412-0	01	1	0601-
7	BOLT; INJ PUMP BRKT (D) M14X140 FLANGE	0-28986-414-0	02	1	0302-0512
7	BOLT; INJ PUMP BRKT (D) M14X140 FLANGE	0-28956-414-0	02	1	0601-
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9905-0301
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0302-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	9905-0301
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-200-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (A)	1-15419-334-0	01	1	9905-0301
69	BRACKET; INJ PIPE CLIP (E)	1-15419-662-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (B)	1-15419-664-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (C)	1-15419-665-0	01	1	0302-
69	BRACKET; INJ PIPE CLIP (D)	1-15419-666-0	01	1	0302-
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.8	1-09623-478-0	03	1	9905-0301
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.8	1-09623-478-0	02	1	0302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
