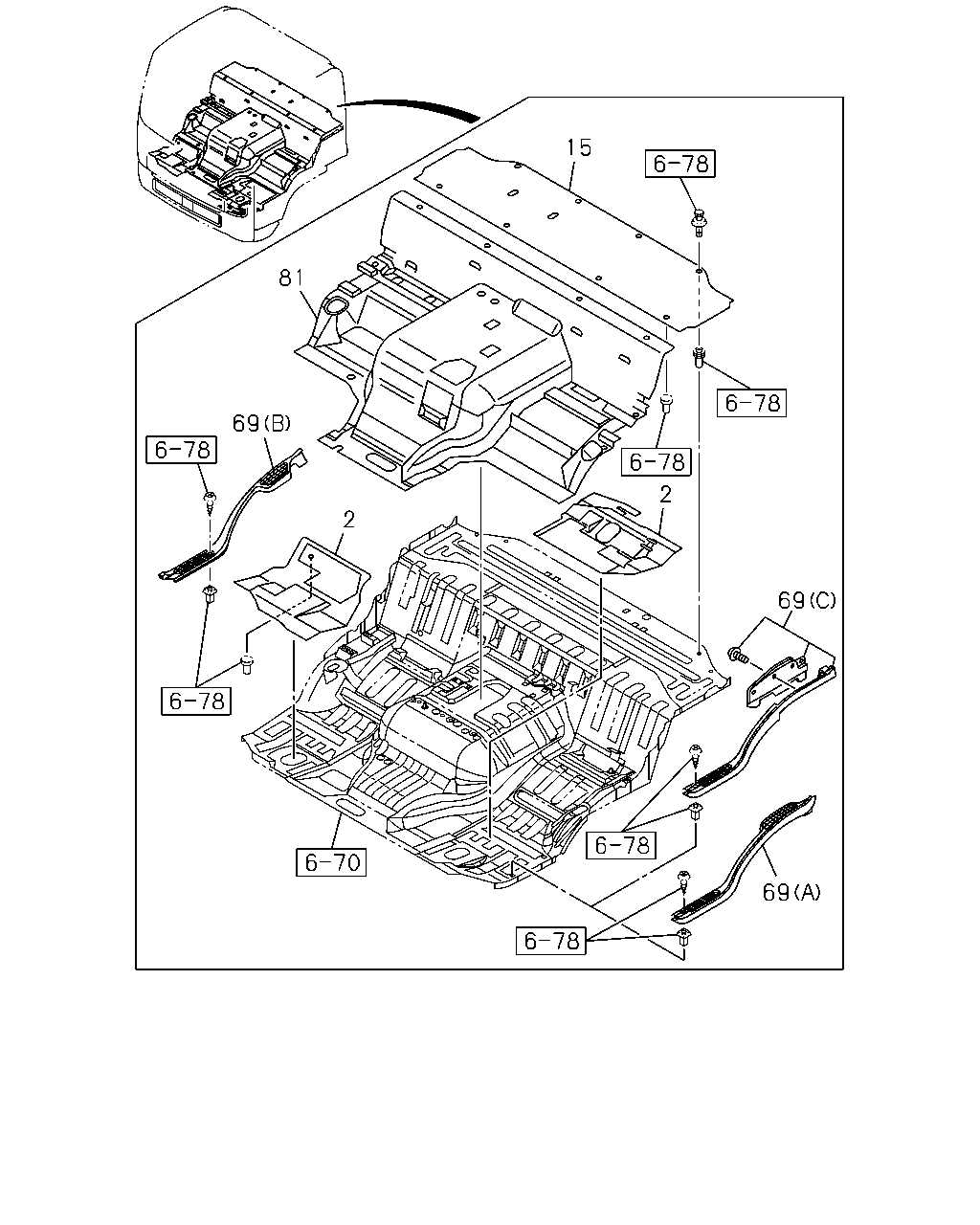

6-75 — MAT AND CARPET
(#60748) — 13 parça
15
81
69
2
2
69
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
GRAY
8-97414-993-3
01
1
0809-
2
MAT; FLOOR
GRAY
8-97415-003-1
01
1
0809-
15
MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97418-950-0
01
1
1004-
15
MAT; FLOOR REAR
EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY
8-97407-396-0
01
1
1004-1005
15
MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> GRAY
8-97407-403-1
01
1
0809-1003
15
MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY
8-97407-403-1
01
1
1004-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
(B) GRAY
8-97407-412-1
01
1
0809-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY
8-97409-776-2
01
1
0809-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY
8-97407-413-1
01
1
0809-
81
MAT; FLOOR,CENTER
GRAY
8-97409-773-3
01
1
0809-1003
81
MAT; FLOOR,CENTER
GRAY
8-97409-773-3
01
1
1004-1011
81
MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY
8-97409-773-3
01
1
1012-
81
MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY
8-97409-774-3
01
1
1012-
