◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#60747) — 60 parça

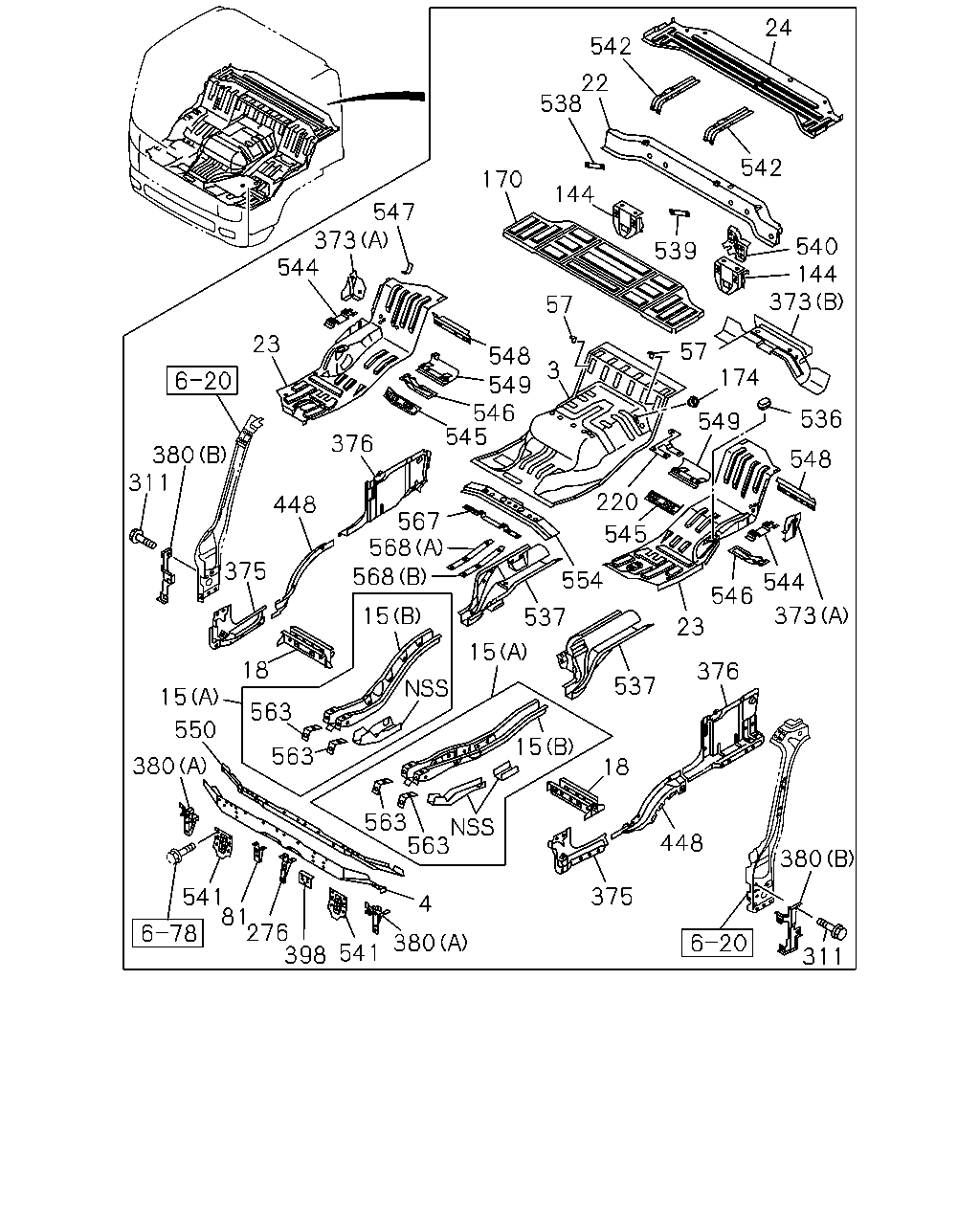

çizim 148938
24 542 22 538 542 170 144 547 373 544 540 144 373 539 57 23 57 548 549 546 545 3 174 549 536 376 380 311 548 220 448 567 568 545 375 568 554 544 546 373 15 537 23 15 18 376 537 15 563 550 563 15 380 18 563 563 448 380 375 541 81 276 398 4 380 541 311
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98036-244-5 01 1 0809-
4 FRAME; FLOOR,FRT 8-98077-806-1 01 1 0809-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0809-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0809-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0809-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0809-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 0809-
18 FRAME; FLOOR,CENTER SIDE 8-98017-380-2 01 1 0809-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 0809-
23 PANEL; FLOOR,SIDE 8-98080-738-0 01 1 0809-
23 PANEL; FLOOR,SIDE 8-98017-358-5 01 1 0809-
24 PANEL; BED PAN 8-97584-377-6 01 1 0809-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0809-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0809-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0809-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0809-
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 0809-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0809-
220 PATCH 8-97589-704-0 01 1 0809-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0809-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0809-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 0809-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0809-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0809-
375 CLOSING; PILLAR 8-98044-898-3 01 1 0809-
375 CLOSING; PILLAR 8-98044-897-3 01 1 0809-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0809-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0809-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 0809-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0809-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 0809-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0809-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0809-
448 CLOSING; ROCKER 8-97589-552-2 01 1 0809-
448 CLOSING; ROCKER 8-97589-551-2 01 1 0809-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0809-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0809-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0809-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0809-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 0809-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0809-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0809-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0809-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0809-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0809-
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 0809-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 0809-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0809-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0809-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0809-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0809-
549 BRACKET; SEAT RR 8-98017-370-1 01 1 0809-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 0809-
550 CLOSING ASM; MTG,FRT 8-97589-709-3 01 1 0809-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 0809-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0809-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 0809-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 0809-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 0809-
