Isuzu WW
▶
TRUCKS
▶
FSR
▶
11417 - FSR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

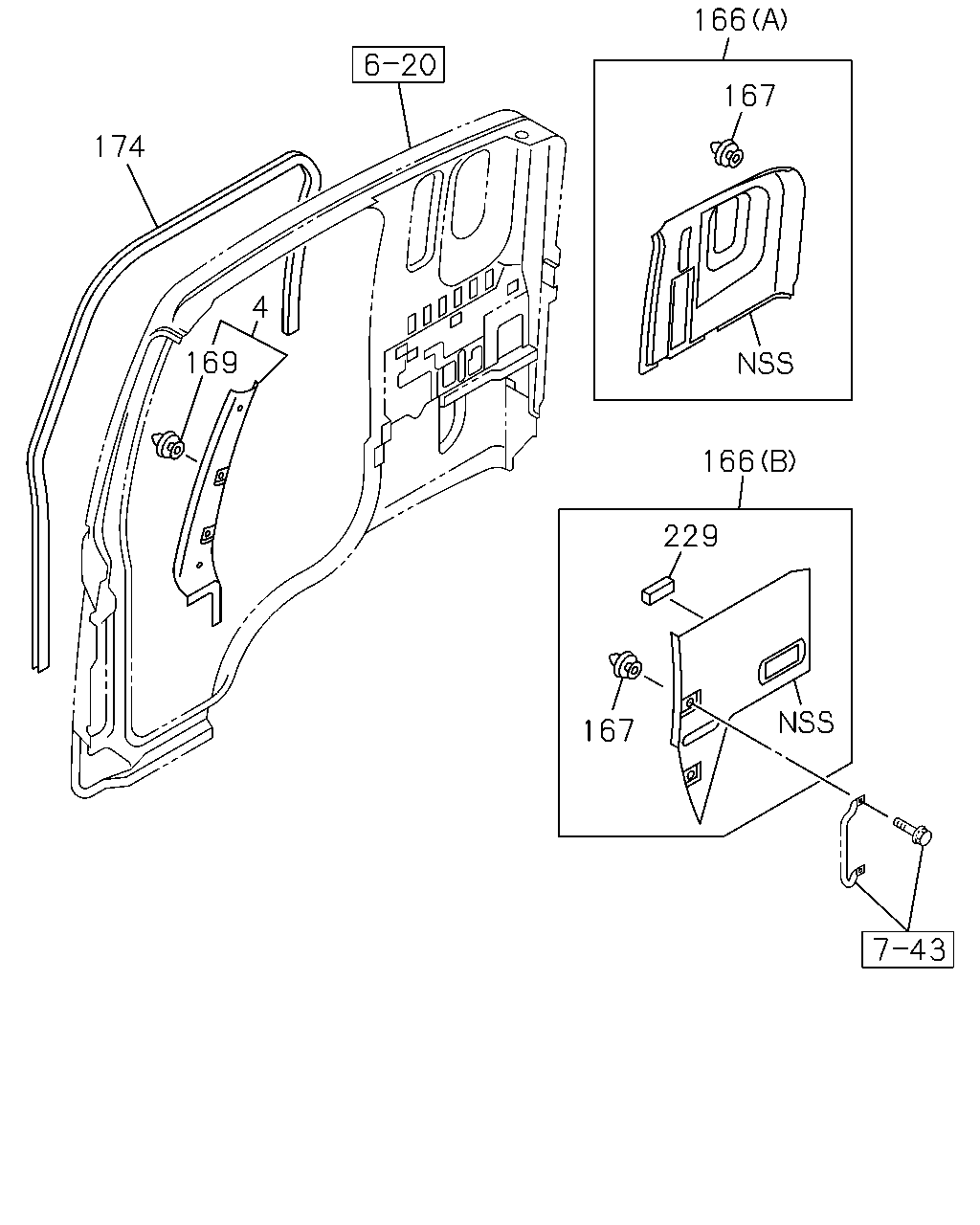

6-43 - SIDE TRIM
▶
6-43 — SIDE TRIM
(#60743) — 17 parça
166
167
174
4
169
166
229
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97407-416-1
01
1
0809-
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97407-415-1
01
1
0809-
166
TRIM; RR PILLAR
(B) GRAY
8-97407-460-1
01
1
0809-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97415-651-0
01
1
0809-
166
TRIM; RR PILLAR
(B) GRAY
8-97407-459-1
01
1
0809-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97415-652-0
01
1
0809-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
12
1
0809-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
04
1
0809-
169
CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK
8-94279-974-1
04
1
0809-
174
FINISHER; BODY SIDE
DARK GRAY
8-97412-918-1
01
1
0809-0912
174
FINISHER; BODY SIDE
8-98155-184-0
01
1
1001-1509
174
FINISHER; BODY SIDE
8-98249-514-0
01
1
1510-
174
FINISHER; BODY SIDE
DARK GRAY
8-97412-917-1
01
1
0809-0912
174
FINISHER; BODY SIDE
8-98155-183-0
01
1
1001-1509
174
FINISHER; BODY SIDE
8-98249-513-0
01
1
1510-
229
SEAL
8-98080-972-0
02
1
0809-
229
SEAL
8-98080-972-0
02
1
0809-
