0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#6074) — 157 parça

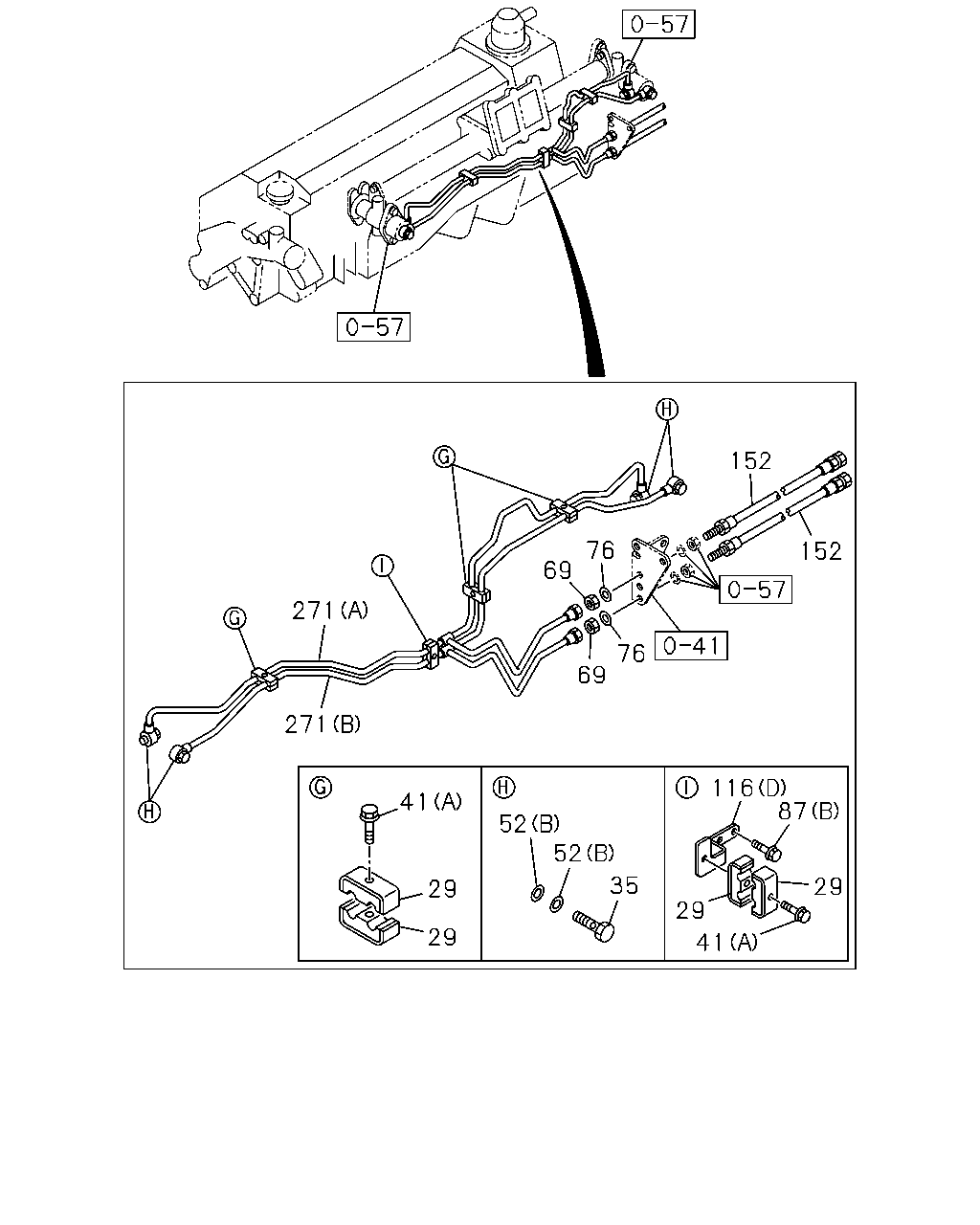

152 76 152 69 271 76 69 271 116 87 41 52 52 35 29 29 29 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; AIR PIPE	1-09701-132-1	08	1	0302-1210
29	CLIP; AIR PIPE	1-09701-240-0	08	1	1211-
35	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	04	1	0302-
41	BOLT; CLIP (A) M6X30 FLANGE	0-28080-630-0	04	1	0302-0512
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0601-
41	BOLT; CLIP (B) M8X40 FLANGE	0-28080-840-0	02	1	0302-0512
41	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	04	1	9905-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	08	1	0302-
69	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0302-
76	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0302-0603
76	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-0512
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28080-612-0	02	1	0302-0512
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-
116	BRACKET; AIR PIPE (A)	1-19199-212-0	01	1	9905-0104
116	BRACKET; AIR PIPE (B)	1-19199-386-0	01	1	0105-0301
116	BRACKET; AIR PIPE (C)	1-15419-530-3	01	1	0302-
116	BRACKET; AIR PIPE (D)	1-19199-339-2	01	1	0302-
152	HOSE; FLEX L=280	1-09363-610-0	02	1	0302-
271	PIPE; AIR,EGR CONT (A)	1-19193-236-0	01	1	0302-
271	PIPE; AIR,EGR CONT (B)	1-19193-237-0	01	1	0302-

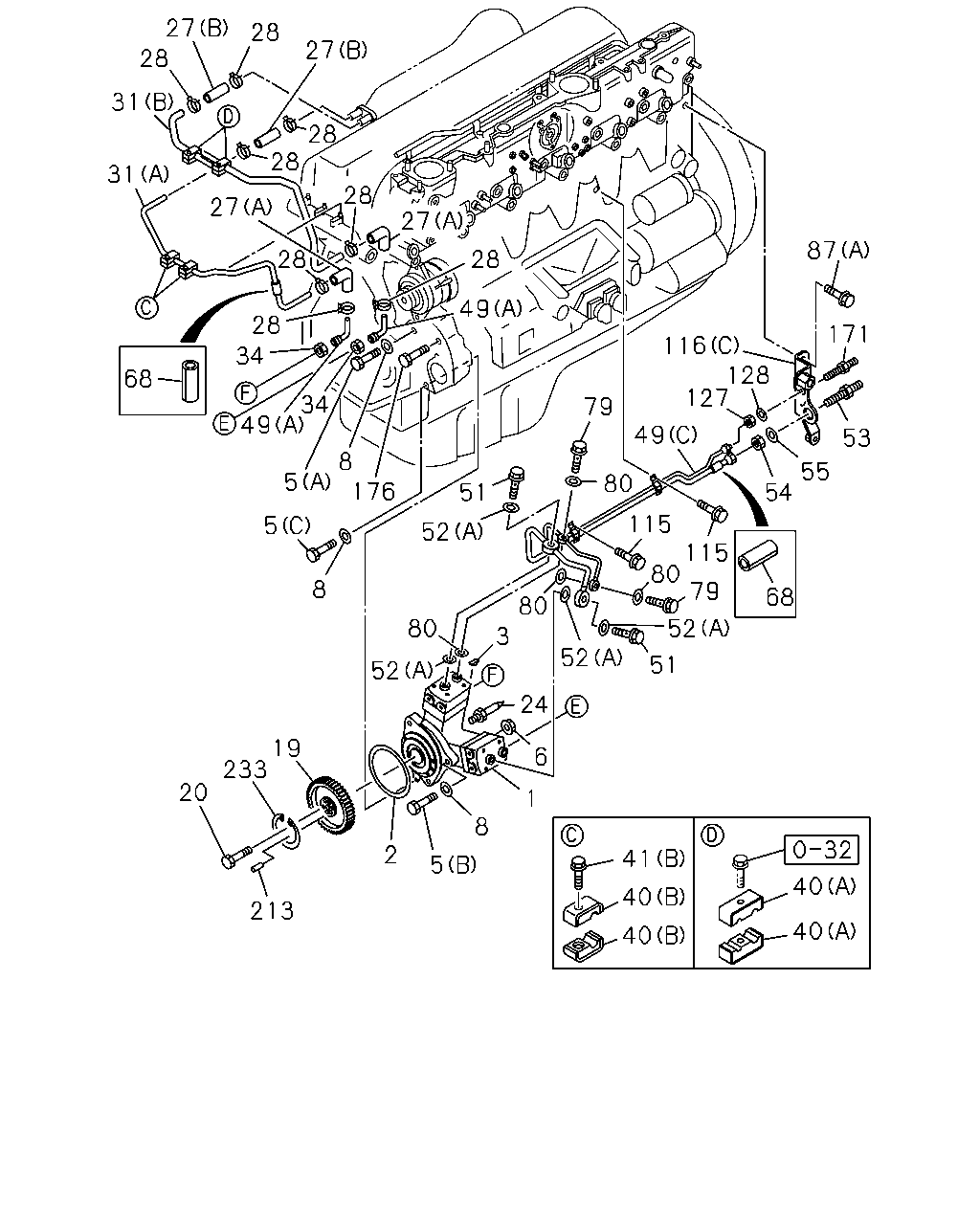

27 28 28 27 31 28 28 31 28 27 27 28 87 28 49 28 171 116 128 127 34 68 34 79 49 49 53 8 55 54 5 80 176 51 115 5 52 115 80 79 8 80 3 68 80 52 52 51 52 24 19 233 6 20 1 8 2 41 5 40 40 213 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	9905-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9905-
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9905-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9905-
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9905-0512
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9905-0104
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9905-0512
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0601-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9905-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9905-0301
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0302-
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9905-0202
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0203-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9905-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	9905-
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9905-
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9905-
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9905-
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9905-0301
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-278-0	01	1	0302-
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9905-0301
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19193-455-0	01	1	0302-
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9905-
40	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0302-
40	CLIP; AIR PIPE (B) ID=17 L=17	1-09701-284-0	04	1	0302-
41	BOLT; CLIP (A) M6X30 FLANGE	0-28080-630-0	04	1	0302-0512
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0601-
41	BOLT; CLIP (B) M8X40 FLANGE	0-28080-840-0	02	1	0302-0512
41	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9905-0104
49	PIPE; AIR,CHARGE (B)	1-19193-371-0	01	1	0105-0301
49	PIPE; AIR,CHARGE (C)	1-19193-132-0	01	1	0302-
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9905-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	02	1	9905-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	04	1	9905-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	08	1	0302-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-0603
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	9905-0301
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0302-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9905-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-0301
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	04	1	0302-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-0512
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28080-612-0	02	1	0302-0512
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9905-0512
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-
116	BRACKET; AIR PIPE (A)	1-19199-212-0	01	1	9905-0104
116	BRACKET; AIR PIPE (B)	1-19199-386-0	01	1	0105-0301
116	BRACKET; AIR PIPE (C)	1-15419-530-3	01	1	0302-
116	BRACKET; AIR PIPE (D)	1-19199-339-2	01	1	0302-
127	NUT; UNION M12	9-09840-280-0	01	1	0302-
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0302-0603
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
171	UNION M12 L=62.5	9-09223-206-1	01	1	0302-0607
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9905-0301
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0302-0512
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9905-
233	RING; FRICTION	1-12529-003-0	01	1	9905-0205

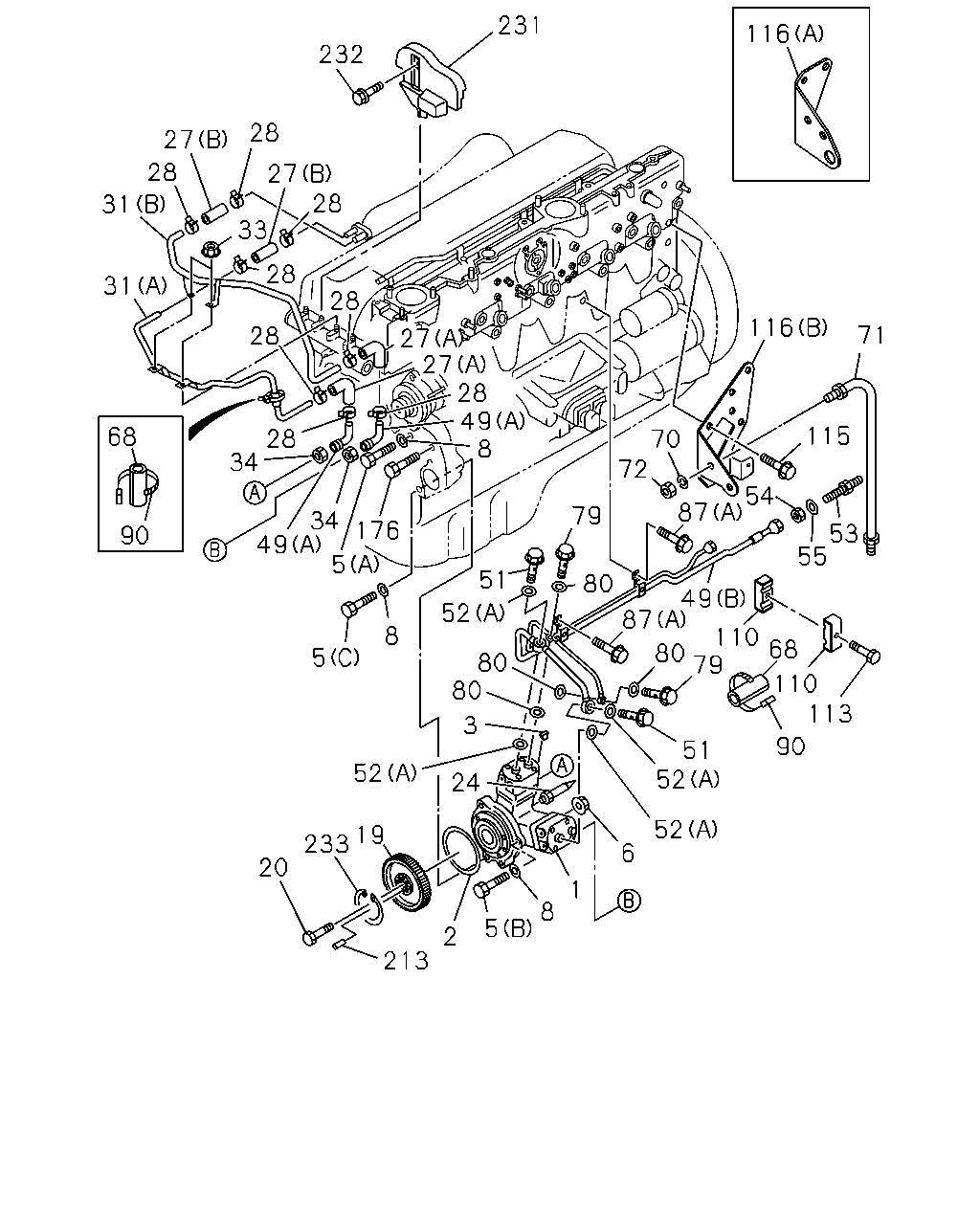

231 116 232 28 27 28 27 28 31 33 28 31 28 116 71 28 27 27 28 49 8 54 87 70 72 115 68 28 34 79 34 176 53 55 90 49 5 51 80 49 52 87 8 110 80 68 79 5 80 80 110 113 3 90 51 52 52 24 52 19 233 6 20 1 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	9905-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9905-
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9905-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9905-
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9905-0512
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9905-0104
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9905-0512
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0601-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9905-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9905-0301
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0302-
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9905-0202
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0203-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9905-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	9905-
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9905-
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9905-
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9905-
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9905-0301
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-278-0	01	1	0302-
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9905-0301
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19193-455-0	01	1	0302-
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9905-0301
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9905-
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9905-0104
49	PIPE; AIR,CHARGE (B)	1-19193-371-0	01	1	0105-0301
49	PIPE; AIR,CHARGE (C)	1-19193-132-0	01	1	0302-
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9905-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	02	1	9905-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	04	1	9905-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	08	1	0302-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-0603
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	9905-0301
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0302-
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9905-0301
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9905-0301
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9905-0301
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9905-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-0301
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	04	1	0302-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-0512
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28080-612-0	02	1	0302-0512
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9905-0301
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9905-0104
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9905-0104
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9905-0512
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-
116	BRACKET; AIR PIPE (A)	1-19199-212-0	01	1	9905-0104
116	BRACKET; AIR PIPE (B)	1-19199-386-0	01	1	0105-0301
116	BRACKET; AIR PIPE (C)	1-15419-530-3	01	1	0302-
116	BRACKET; AIR PIPE (D)	1-19199-339-2	01	1	0302-
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9905-0301
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0302-0512
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9905-
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	9905-0301
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	9905-0301
233	RING; FRICTION	1-12529-003-0	01	1	9905-0205
