0-37 — TURBOCHARGER (#6073) — 79 parça
çizim 37500
10 23 18 23 17 17 17 17 45 22
BalonParca AdiParca NoAdetTipApplied Date
10 REPAIR KIT; TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14453-069-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(B) ASM PART: B = 1-14400-391-3 		1-14419-117-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(C) ASM PART: A = 1-14400-328-2 		1-14455-026-0 04 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(A) ASM PART: B = 1-14400-391-3 		1-14459-062-0 02 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-09100-015-0 04 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14453-027-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14459-063-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(A) SMALL ASM PART: A = 1-14400-328-2 		1-14453-025-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(B) LARGE ASM PART: A = 1-14400-328-2 		1-14453-026-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(C) ASM PART: B = 1-14400-391-3 		1-14459-059-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-09100-014-0 04 1 -

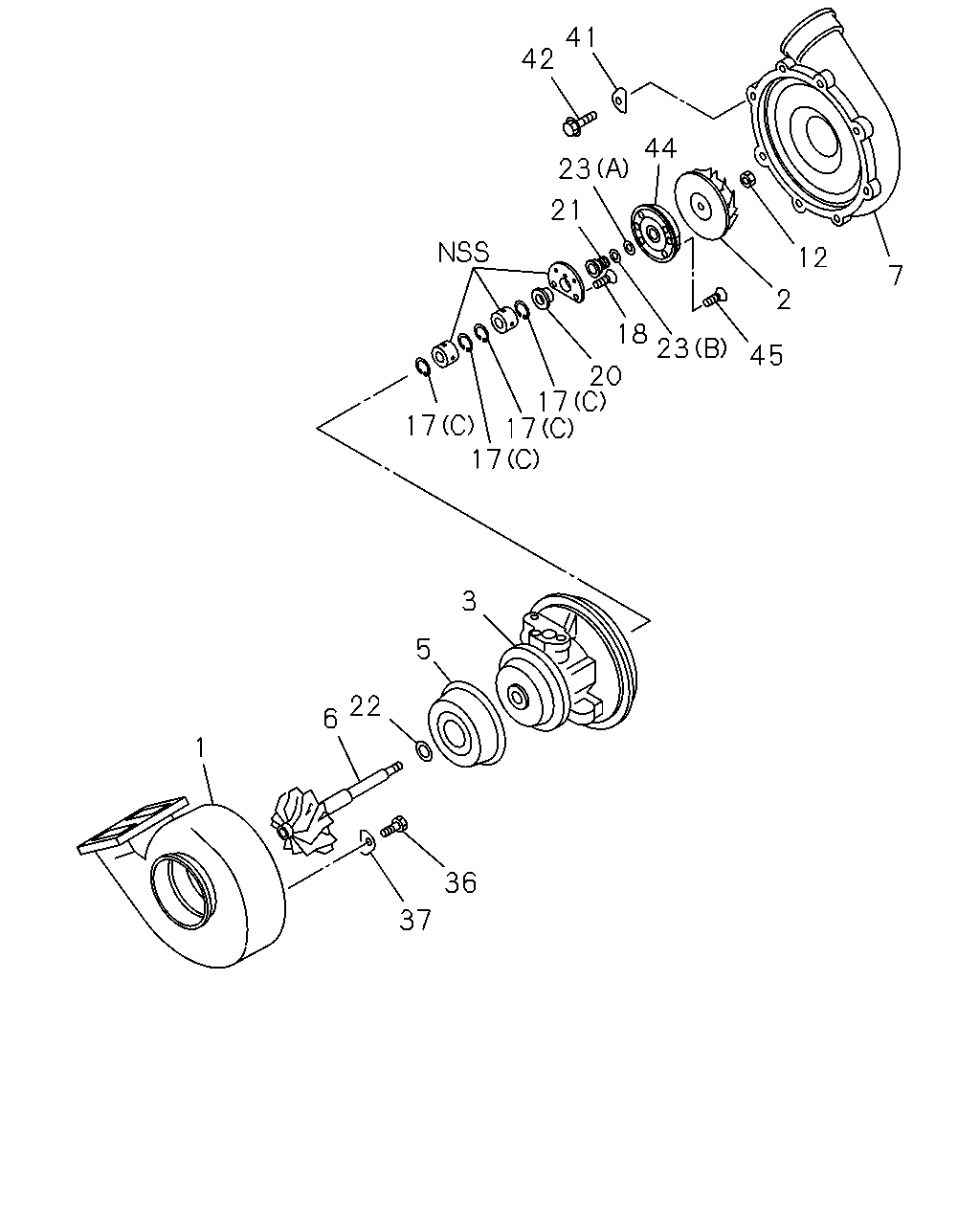

çizim 38122
41 42 44 23 21 12 7 2 18 23 45 20 17 17 17 17 3 5 22 6 1 36 37
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14415-107-0 01 1 -
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14415-126-2 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14451-061-0 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14451-074-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14411-059-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14411-072-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14425-017-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14425-045-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14450-056-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14450-063-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14414-101-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14414-123-1 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-328-2 		1-09400-119-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: B = 1-14400-391-3 		1-14459-057-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(B) ASM PART: B = 1-14400-391-3 		1-14419-117-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(C) ASM PART: A = 1-14400-328-2 		1-14455-026-0 04 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(A) ASM PART: B = 1-14400-391-3 		1-14459-062-0 02 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-09100-015-0 04 1 -
20 BUSHING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14453-070-0 01 1 -
21 THROWER; OIL,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14455-036-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14453-027-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14459-063-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(A) SMALL ASM PART: A = 1-14400-328-2 		1-14453-025-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(B) LARGE ASM PART: A = 1-14400-328-2 		1-14453-026-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(C) ASM PART: B = 1-14400-391-3 		1-14459-059-0 01 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 1-14400-328-2 		1-09000-405-0 10 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: B = 1-14400-391-3 		1-14379-119-0 10 1 -
37 PLATE; LK,TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14421-018-0 10 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14421-016-0 06 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-09000-404-0 11 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14425-018-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-09100-014-0 04 1 -

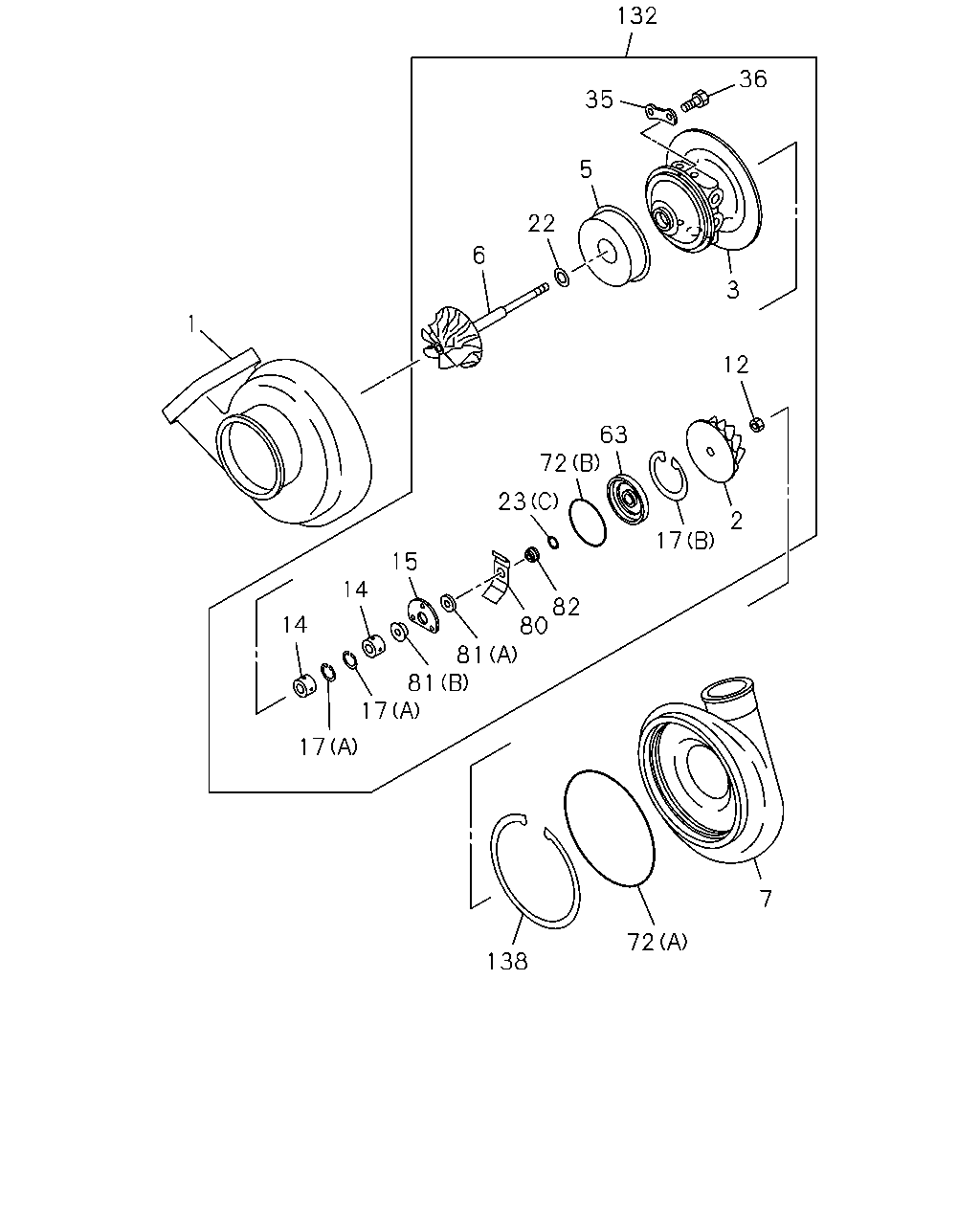

çizim 38180
132 36 35 5 22 6 3 1 12 63 72 23 2 17 15 14 82 80 14 81 81 17 17 7 72 138
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14415-107-0 01 1 -
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14415-126-2 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14451-061-0 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14451-074-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14411-059-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14411-072-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14425-017-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14425-045-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14450-056-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14450-063-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14414-101-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14414-123-1 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-328-2 		1-09400-119-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: B = 1-14400-391-3 		1-14459-057-0 01 1 -
14 BEARING; JOURNAL,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14411-065-0 02 1 -
15 BEARING; THRUST,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14411-060-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(B) ASM PART: B = 1-14400-391-3 		1-14419-117-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(C) ASM PART: A = 1-14400-328-2 		1-14455-026-0 04 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(A) ASM PART: B = 1-14400-391-3 		1-14459-062-0 02 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-328-2 		1-14453-027-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14459-063-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(A) SMALL ASM PART: A = 1-14400-328-2 		1-14453-025-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(B) LARGE ASM PART: A = 1-14400-328-2 		1-14453-026-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(C) ASM PART: B = 1-14400-391-3 		1-14459-059-0 01 1 -
35 CLAMP; TURBINE HSG,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14421-031-0 05 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 1-14400-328-2 		1-09000-405-0 10 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: B = 1-14400-391-3 		1-14379-119-0 10 1 -
63 INSERT; IMPELLER,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14425-037-0 01 1 -
72 GASKET; BRG HSG,TURBOCHARGER
(A) ASM PART: B = 1-14400-391-3 		1-14414-107-0 01 1 -
72 GASKET; BRG HSG,TURBOCHARGER
(B) ASM PART: B = 1-14400-391-3 		1-14419-118-0 01 1 -
80 DEFLECTOR; OIL,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14419-147-0 01 1 -
81 RING; THRUST,TURBOCHARGER
(A) ASM PART: B = 1-14400-391-3 		1-14459-060-0 01 1 -
81 RING; THRUST,TURBOCHARGER
(B) ASM PART: B = 1-14400-391-3 		1-14459-061-0 01 1 -
82 SLEEVE; SPACER,TURBOCHARGER
ASM PART: B = 1-14400-391-3 		1-14455-044-0 01 1 -
132 CARTRIDGE; TURBO
ASM PART: B = 1-14400-391-3 		1-14425-044-0 01 1 -
138 RING; SNAP,BLOWER HSG
ASM PART: B = 1-14400-391-3 		1-14459-056-0 01 1 -
