◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#60728) — 69 parça

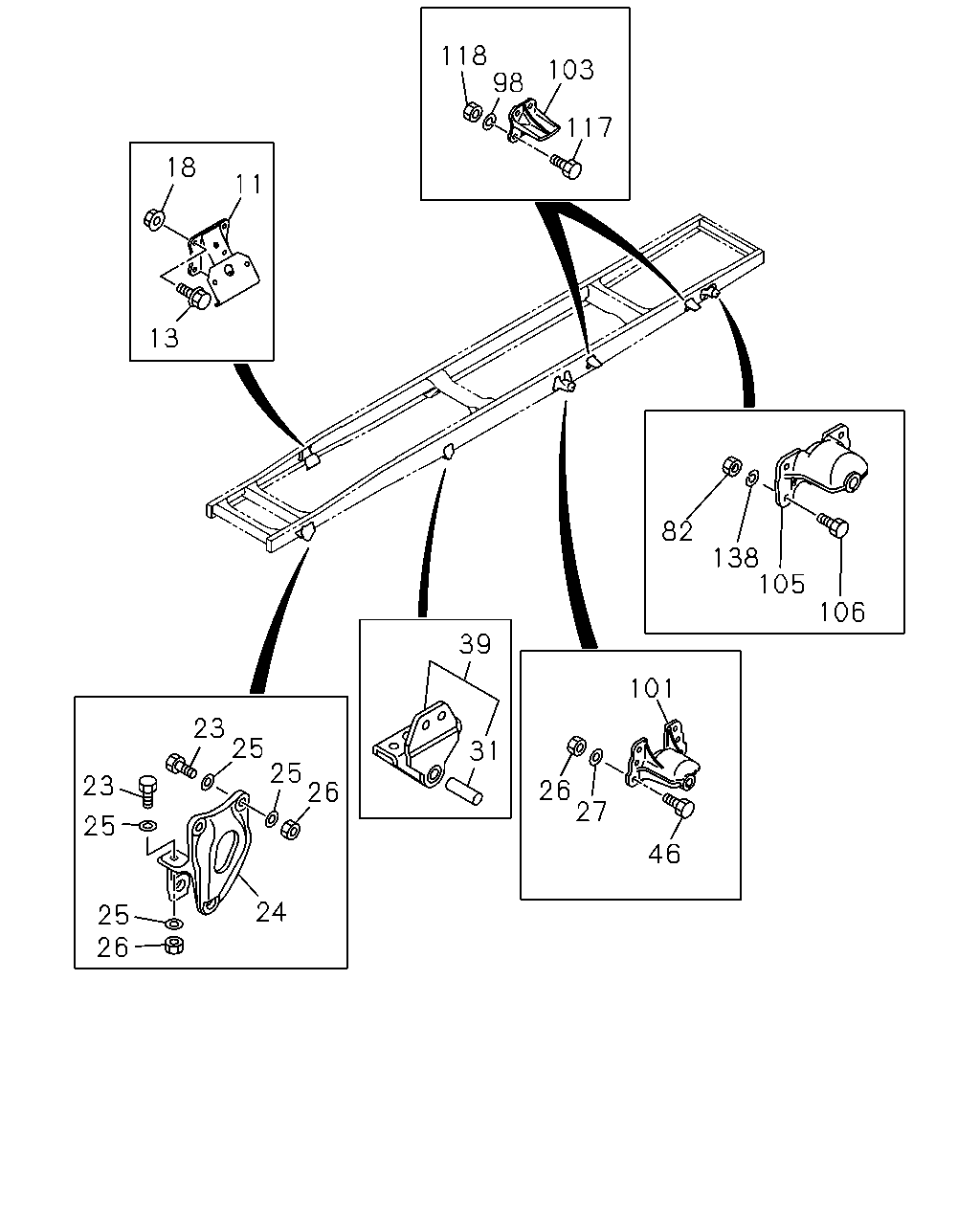

çizim 148867
118 98 103 117 18 11 13 82 138 105 106 39 101 23 25 25 26 31 23 26 27 25 46 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-502-0 02 1 1012- ● ● ●
11 BRACKET; ENG MTG 8-97619-830-0 02 1 0809-1011 ● ● ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-830-0 02 1 1012- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 1012- ● ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 1012- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-262-1 01 1 0809-1011 ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 1012- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-263-1 01 1 0809-0906 ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-263-1 01 1 0907-1011 ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 1012- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0809- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0809- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0809- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0809- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 0809- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0809- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 0809- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0809- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0809- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0809- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0809- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 0809- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0809- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0809- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0809- ● ● ●

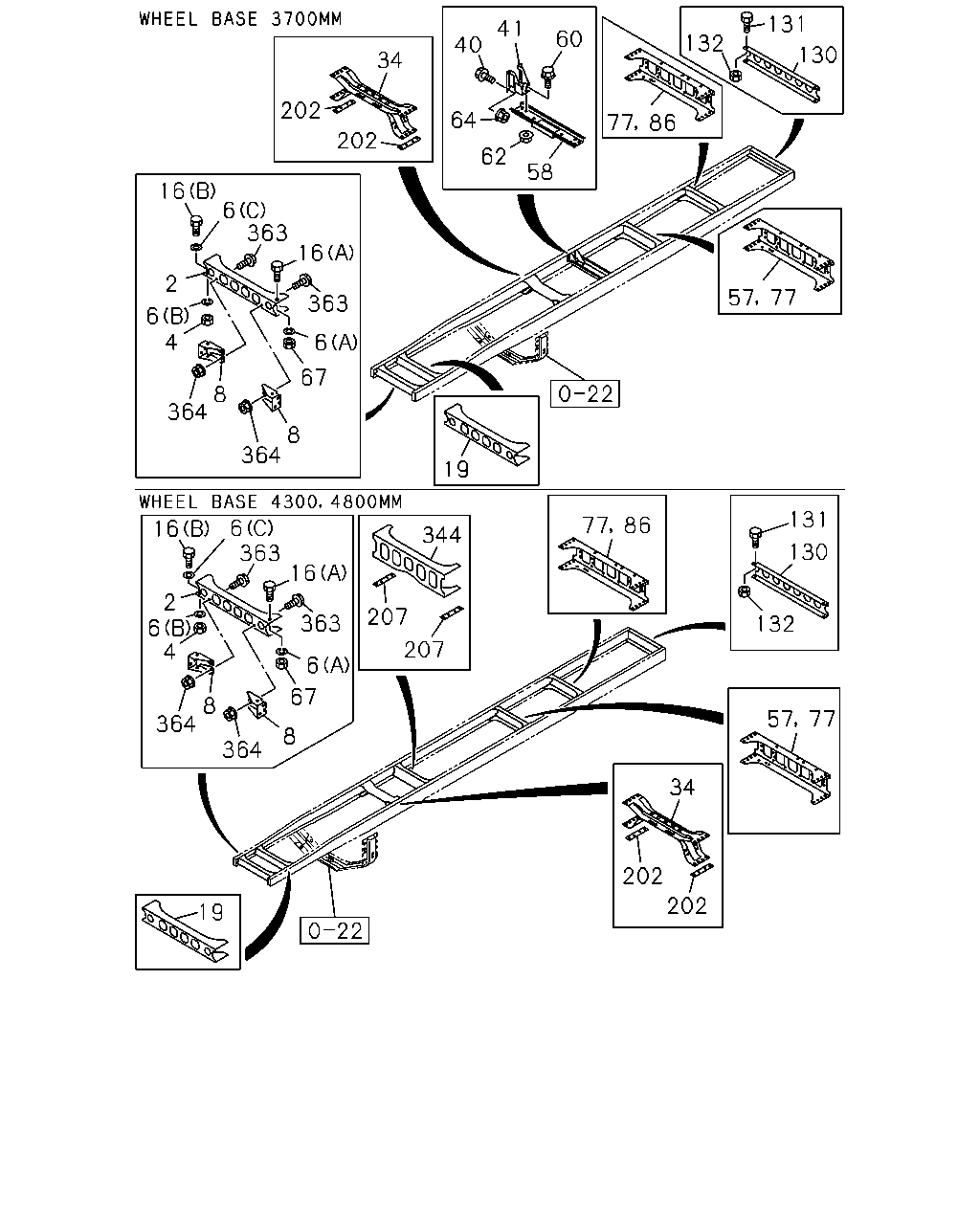

çizim 148888
131 41 60 132 40 130 34 202 64 77 86 62 58 16 6 363 16 6 4 2 57 77 363 6 67 8 364 8 364 19 6 363 131 86 77 16 344 130 16 2 6 4 207 363 132 207 6 67 8 364 57 77 8 364 34 202 202 19
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 0809- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0809- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0809- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0809- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0809- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 0809- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 0809- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0809- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0809- ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 0809- ● ● ●
34 MEMBER; CROSS,3RD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-755-0 01 1 1012- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-754-0 01 1 0809-1011 ● ● ●
34 MEMBER; CROSS,3RD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-754-0 01 1 1012- ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0809- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0809- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0809- ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-935-1 01 1 0809-1011 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 01 1 1012- ● ● ●
58 MEMBER; CENTER BRG
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97629-975-0 01 1 1012- ●
58 MEMBER; CENTER BRG
MLD6W M/T(Y2C) 		8-97619-113-0 01 1 0809-1011 ●
58 MEMBER; CENTER BRG
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-113-0 01 1 1012- ●
58 MEMBER; CENTER BRG
MZX6P M/T(RSW) 		8-97620-971-0 01 1 0809-0906 ●
58 MEMBER; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97620-971-0 01 1 0907-1011 ●
58 MEMBER; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-971-0 01 1 1012- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0809- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0809- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0809- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0809- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1012- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-935-1 01 1 0809-1011 ● ● ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 01 1 1012- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0809- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0809- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0809- ● ● ●
202 SPACER; 3RD C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-757-0 02 1 1012- ● ● ●
207 SPACER; 4TH C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1012- ● ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1012- ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0809-1011 ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1012- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0809- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0809- ● ● ●
