Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#60723) — 166 parça

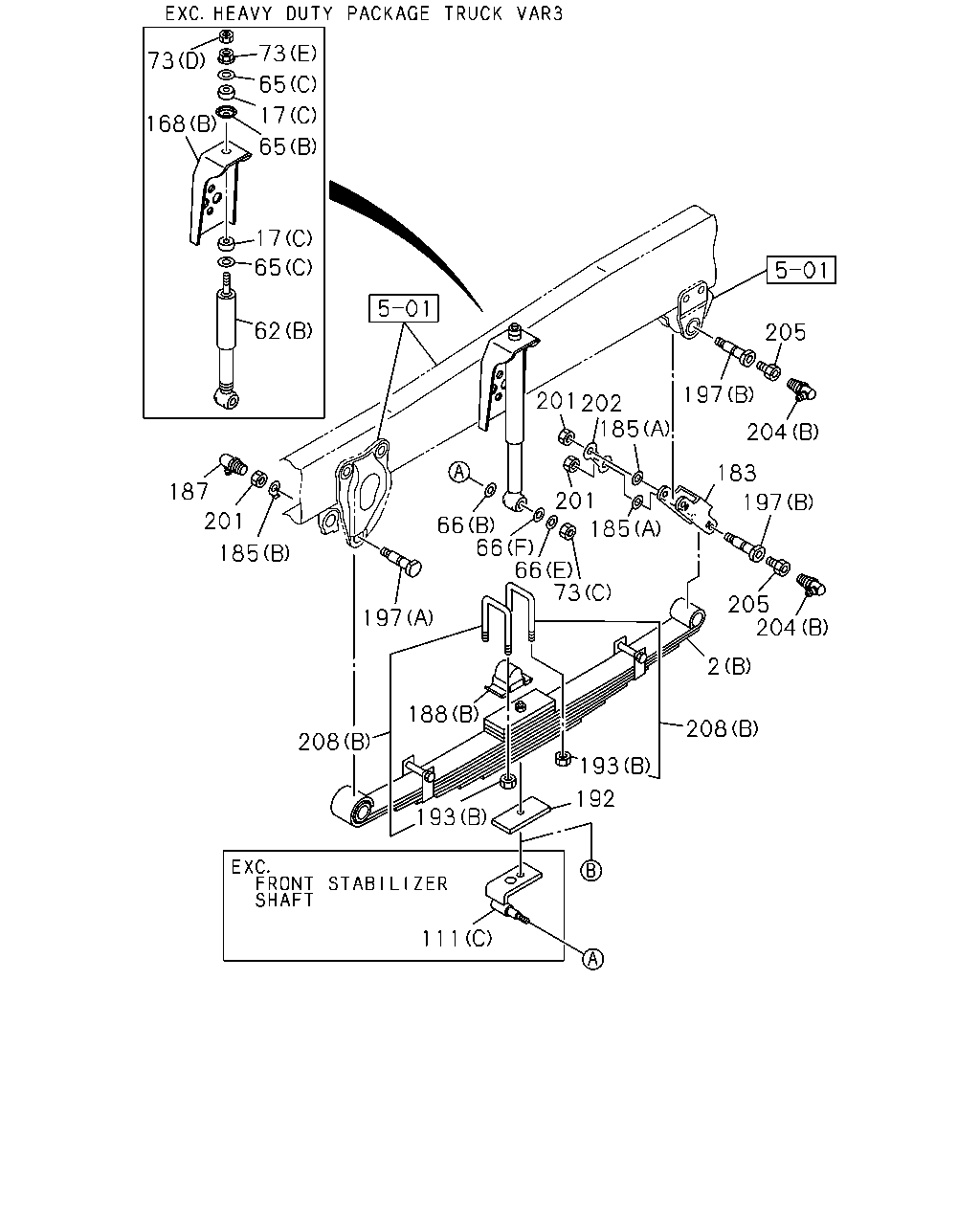

73 73 65 17 168 65 17 65 62 205 197 201 202 185 204 183 187 201 197 201 66 66 66 73 185 185 205 204 197 2 188 208 208 193 192 193 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. (B) 7-LEAF	8-98017-559-0	01	1	0809-1011
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 7-LEAF	8-98017-559-0	01	1	1012-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. (B) 7-LEAF	8-98017-558-0	01	1	0809-1011
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 7-LEAF	8-98017-558-0	01	1	1012-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98063-484-0	01	1	1012-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98229-529-0	01	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98063-483-0	01	1	1012-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98229-528-0	01	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 6-LEAF	8-98017-557-0	01	1	1012-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 6-LEAF	8-98017-556-0	01	1	1012-
17	BUSHING; RUBBER,S/ABS (C)	1-51631-004-0	04	1	0809-1011
17	BUSHING; RUBBER,S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-51631-004-0	04	1	1012-
17	BUSHING; RUBBER,S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51631-009-1	04	1	1012-
17	BUSHING; RUBBER,S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	9-51631-050-0	04	1	1012-
62	ABSORBER ASM; SHOCK,FRT (B)	8-98060-332-0	02	1	0809-1011
62	ABSORBER ASM; SHOCK,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98060-332-0	02	1	1012-
62	ABSORBER ASM; SHOCK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51630-302-1	02	1	1012-
65	WASHER; S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=14.5	9-51631-051-0	04	1	1012-
65	WASHER; S/ABS (B)	1-51631-023-0	02	1	0809-1011
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51631-023-0	02	1	1012-
65	WASHER; S/ABS (C) ID=10.5 OD=40 T=3.2	8-98010-405-0	04	1	0809-1011
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=10.5 OD=40 T=3.2	8-98010-405-0	04	1	1012-
66	WASHER; LK,S/ABS SETTING (E) ID=12.2	0-91510-812-0	02	1	0809-1011
66	WASHER; LK,S/ABS SETTING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=12.2	0-91510-812-0	02	1	1012-
66	WASHER; LK,S/ABS SETTING (B) ID=17 OD=30	0-91610-516-0	02	1	0809-
66	WASHER; LK,S/ABS SETTING (F) ID=12.5	1-09503-171-0	02	1	0809-1011
66	WASHER; LK,S/ABS SETTING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=12.5	1-09503-171-0	02	1	1012-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=23	1-51631-019-0	02	1	1012-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=17	1-51631-020-0	02	1	1012-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=16.8	1-51631-022-0	04	1	1012-
73	NUT; BRKT,SHOCK (C) M12	0-91110-512-0	02	1	0809-1011
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12	0-91110-512-0	02	1	1012-
73	NUT; BRKT,SHOCK (D) M10	0-91111-510-0	02	1	0809-1011
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10	0-91111-510-0	02	1	1012-
73	NUT; BRKT,SHOCK (E) M10 FLANGE	0-91180-210-0	02	1	0809-1011
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M10 FLANGE	0-91180-210-0	02	1	1012-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16	0-91110-516-0	02	1	1012-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	8-98010-412-0	04	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-587-4	01	1	0809-1011
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-587-4	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-586-4	01	1	0809-1011
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-586-4	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-655-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-654-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-591-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-590-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-642-2	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-641-2	01	1	1012-
168	BRACKET; S/ABS,FRT SUSP (B)	1-51681-494-0	02	1	0809-1011
168	BRACKET; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-494-0	02	1	1012-
168	BRACKET; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51681-820-0	02	1	1012-
183	SHACKLE; FRT SUSP	1-51162-037-0	02	1	0809-
185	WASHER; LK,PIN (A) ID=25.5	8-98010-404-0	04	1	0809-
185	WASHER; LK,PIN (B) ID=23	8-98010-411-0	02	1	0809-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0809-
188	RUBBER; CLAMP,U-BOLT,FRT SPR (B)	1-51172-112-0	02	1	0809-1011
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51172-112-0	02	1	1012-
188	RUBBER; CLAMP,U-BOLT,FRT SPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51172-124-0	02	1	1012-
192	PIECE; DIST T=4.5	1-51177-149-0	AR	1	0809-
193	NUT; U BOLT (B) M16	8-97360-121-0	08	1	0809-1011
193	NUT; U BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16	8-97360-121-0	08	1	1012-
193	NUT; U BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M18 FLANGE	1-09440-039-1	08	1	1012-
197	PIN; FRT SPR,FRT (B)	8-98060-333-0	04	1	0809-
197	PIN; FRT SPR,FRT (A)	8-98060-335-0	02	1	0809-
201	NUT; PIN LK M22	0-91111-522-0	06	1	0809-
202	PLATE; LK,SPR PIN	8-98010-648-0	02	1	0809-
204	NIPPLE; GREASE,RR (B) PT1/8 ELBOW	0-90301-610-0	04	1	0809-1011
204	NIPPLE; GREASE,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW	0-90301-610-0	04	1	1012-
204	NIPPLE; GREASE,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	1012-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	04	1	0809-
208	U-BOLT SET; FRT SPRING (B) L=165	1-87870-483-0	04	1	0809-1011
208	U-BOLT SET; FRT SPRING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=165	1-87870-483-0	04	1	1012-
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=165	1-87870-444-0	04	1	1012-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=180	1-87870-484-0	04	1	1012-

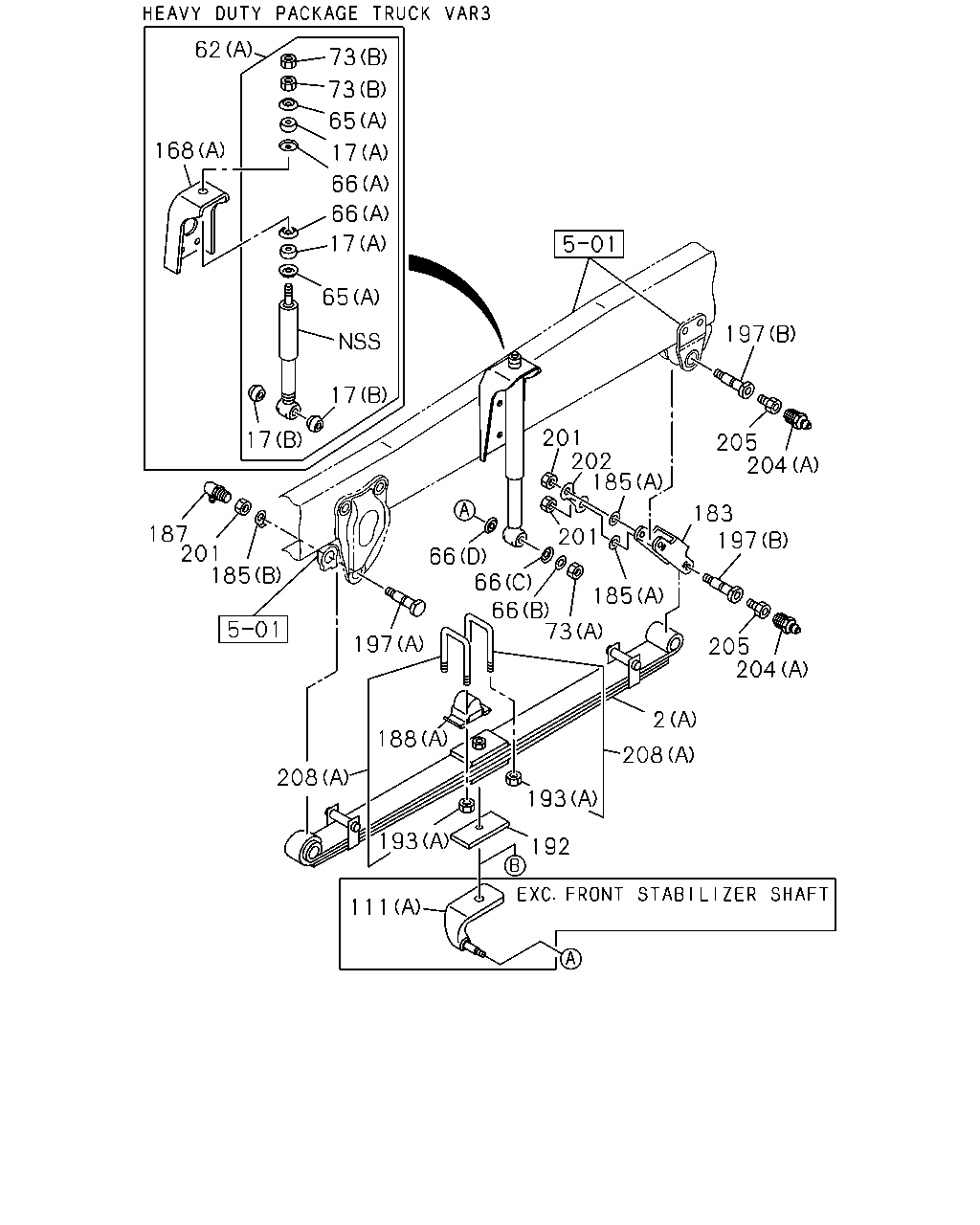

201 185 202 183 197 205 197 188 193 208 111 192 193 208 2 204 204 205 197 185 201 187 17 17 65 17 66 66 17 65 73 73 62 168 73 66 66 66 201 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. (B) 7-LEAF	8-98017-559-0	01	1	0809-1011
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 7-LEAF	8-98017-559-0	01	1	1012-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. (B) 7-LEAF	8-98017-558-0	01	1	0809-1011
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 7-LEAF	8-98017-558-0	01	1	1012-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98063-484-0	01	1	1012-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98229-529-0	01	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98063-483-0	01	1	1012-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 3-LEAF	8-98229-528-0	01	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 6-LEAF	8-98017-557-0	01	1	1012-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 6-LEAF	8-98017-556-0	01	1	1012-
17	BUSHING; RUBBER,S/ABS (C)	1-51631-004-0	04	1	0809-1011
17	BUSHING; RUBBER,S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-51631-004-0	04	1	1012-
17	BUSHING; RUBBER,S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51631-009-1	04	1	1012-
17	BUSHING; RUBBER,S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	9-51631-050-0	04	1	1012-
62	ABSORBER ASM; SHOCK,FRT (B)	8-98060-332-0	02	1	0809-1011
62	ABSORBER ASM; SHOCK,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98060-332-0	02	1	1012-
62	ABSORBER ASM; SHOCK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51630-302-1	02	1	1012-
65	WASHER; S/ABS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=14.5	9-51631-051-0	04	1	1012-
65	WASHER; S/ABS (B)	1-51631-023-0	02	1	0809-1011
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51631-023-0	02	1	1012-
65	WASHER; S/ABS (C) ID=10.5 OD=40 T=3.2	8-98010-405-0	04	1	0809-1011
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=10.5 OD=40 T=3.2	8-98010-405-0	04	1	1012-
66	WASHER; LK,S/ABS SETTING (E) ID=12.2	0-91510-812-0	02	1	0809-1011
66	WASHER; LK,S/ABS SETTING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=12.2	0-91510-812-0	02	1	1012-
66	WASHER; LK,S/ABS SETTING (B) ID=17 OD=30	0-91610-516-0	02	1	0809-
66	WASHER; LK,S/ABS SETTING (F) ID=12.5	1-09503-171-0	02	1	0809-1011
66	WASHER; LK,S/ABS SETTING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=12.5	1-09503-171-0	02	1	1012-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=23	1-51631-019-0	02	1	1012-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=17	1-51631-020-0	02	1	1012-
66	WASHER; LK,S/ABS SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=16.8	1-51631-022-0	04	1	1012-
73	NUT; BRKT,SHOCK (C) M12	0-91110-512-0	02	1	0809-1011
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12	0-91110-512-0	02	1	1012-
73	NUT; BRKT,SHOCK (D) M10	0-91111-510-0	02	1	0809-1011
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M10	0-91111-510-0	02	1	1012-
73	NUT; BRKT,SHOCK (E) M10 FLANGE	0-91180-210-0	02	1	0809-1011
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M10 FLANGE	0-91180-210-0	02	1	1012-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16	0-91110-516-0	02	1	1012-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	8-98010-412-0	04	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-587-4	01	1	0809-1011
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-587-4	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-586-4	01	1	0809-1011
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-586-4	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-655-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-654-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-591-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-590-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-642-2	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-641-2	01	1	1012-
168	BRACKET; S/ABS,FRT SUSP (B)	1-51681-494-0	02	1	0809-1011
168	BRACKET; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-494-0	02	1	1012-
168	BRACKET; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51681-820-0	02	1	1012-
183	SHACKLE; FRT SUSP	1-51162-037-0	02	1	0809-
185	WASHER; LK,PIN (A) ID=25.5	8-98010-404-0	04	1	0809-
185	WASHER; LK,PIN (B) ID=23	8-98010-411-0	02	1	0809-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0809-
188	RUBBER; CLAMP,U-BOLT,FRT SPR (B)	1-51172-112-0	02	1	0809-1011
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51172-112-0	02	1	1012-
188	RUBBER; CLAMP,U-BOLT,FRT SPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-51172-124-0	02	1	1012-
192	PIECE; DIST T=4.5	1-51177-149-0	AR	1	0809-
193	NUT; U BOLT (B) M16	8-97360-121-0	08	1	0809-1011
193	NUT; U BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16	8-97360-121-0	08	1	1012-
193	NUT; U BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M18 FLANGE	1-09440-039-1	08	1	1012-
197	PIN; FRT SPR,FRT (B)	8-98060-333-0	04	1	0809-
197	PIN; FRT SPR,FRT (A)	8-98060-335-0	02	1	0809-
201	NUT; PIN LK M22	0-91111-522-0	06	1	0809-
202	PLATE; LK,SPR PIN	8-98010-648-0	02	1	0809-
204	NIPPLE; GREASE,RR (B) PT1/8 ELBOW	0-90301-610-0	04	1	0809-1011
204	NIPPLE; GREASE,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW	0-90301-610-0	04	1	1012-
204	NIPPLE; GREASE,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	1012-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	04	1	0809-
208	U-BOLT SET; FRT SPRING (B) L=165	1-87870-483-0	04	1	0809-1011
208	U-BOLT SET; FRT SPRING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=165	1-87870-483-0	04	1	1012-
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=165	1-87870-444-0	04	1	1012-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=180	1-87870-484-0	04	1	1012-

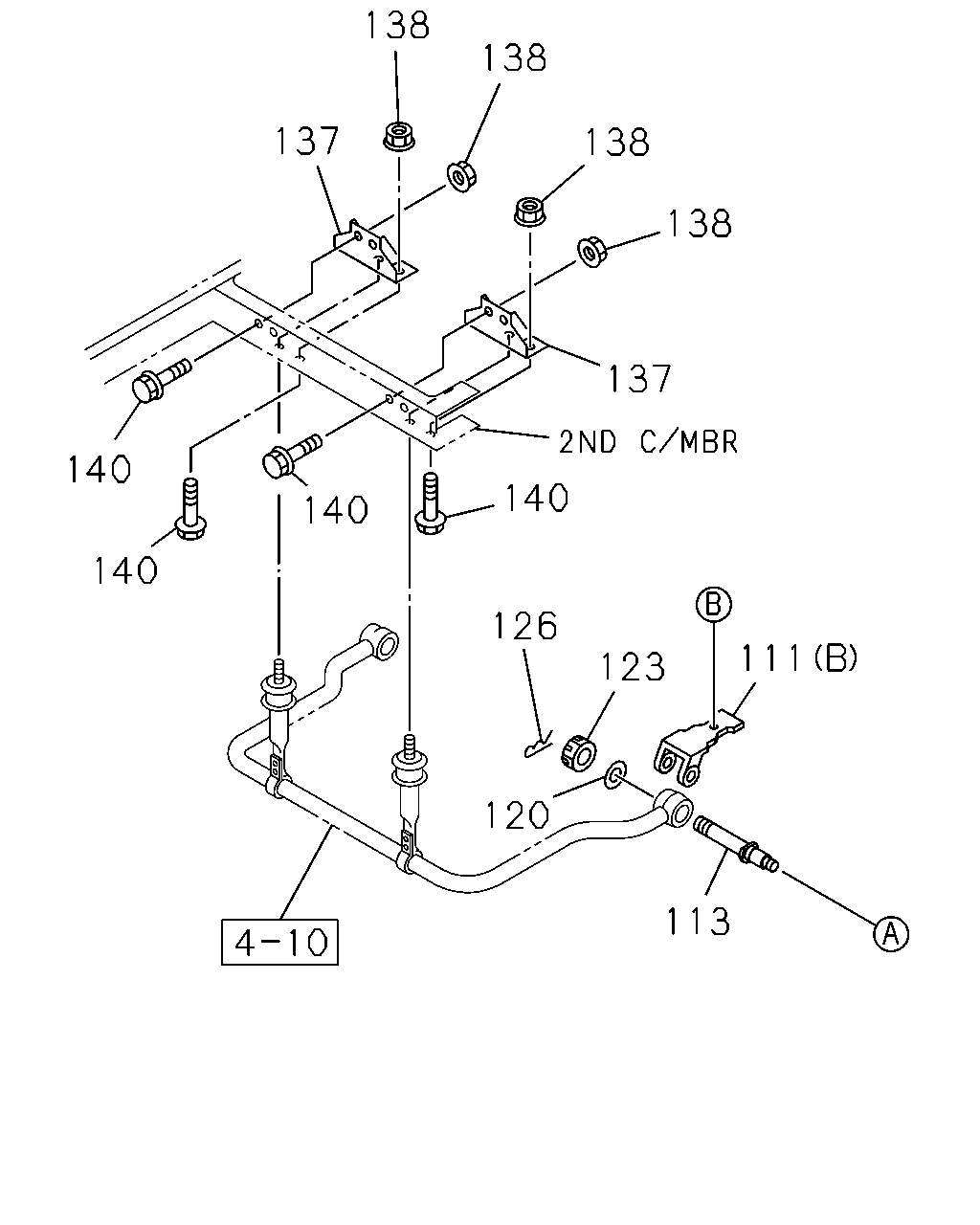

138 138 137 138 138 137 140 140 140 140 126 111 123 120 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-587-4	01	1	0809-1011
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-587-4	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-586-4	01	1	0809-1011
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C)	1-51681-586-4	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-655-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-654-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-591-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-51681-590-1	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-642-2	01	1	1012-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-641-2	01	1	1012-
113	PIN; SUPPORTER FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98019-317-0	02	1	1012-
113	PIN; SUPPORTER FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98010-654-0	02	1	1012-
120	WASHER; PL,SUPPORT BRKT TO BODY FRONT STABILIZER SHAFT<F59> ID=23	0-91614-522-0	02	1	1012-
123	NUT; PIN TO SUPPORTER FRONT STABILIZER SHAFT<F59> M22	0-91116-522-0	02	1	1012-
126	PIN; SPLIT,STAB FRONT STABILIZER SHAFT<F59> OD=4.6 L=45	0-81125-045-0	02	1	1012-
137	BRACKET; STAB BAR TO FRAME FRONT STABILIZER SHAFT<F59>	1-51781-060-2	02	1	1012-
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10 FLANGE	0-91180-210-0	08	1	1012-
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X25 FLANGE	0-28651-025-0	08	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
