4-40 — STEERING UNIT (#60721) — 204 parça

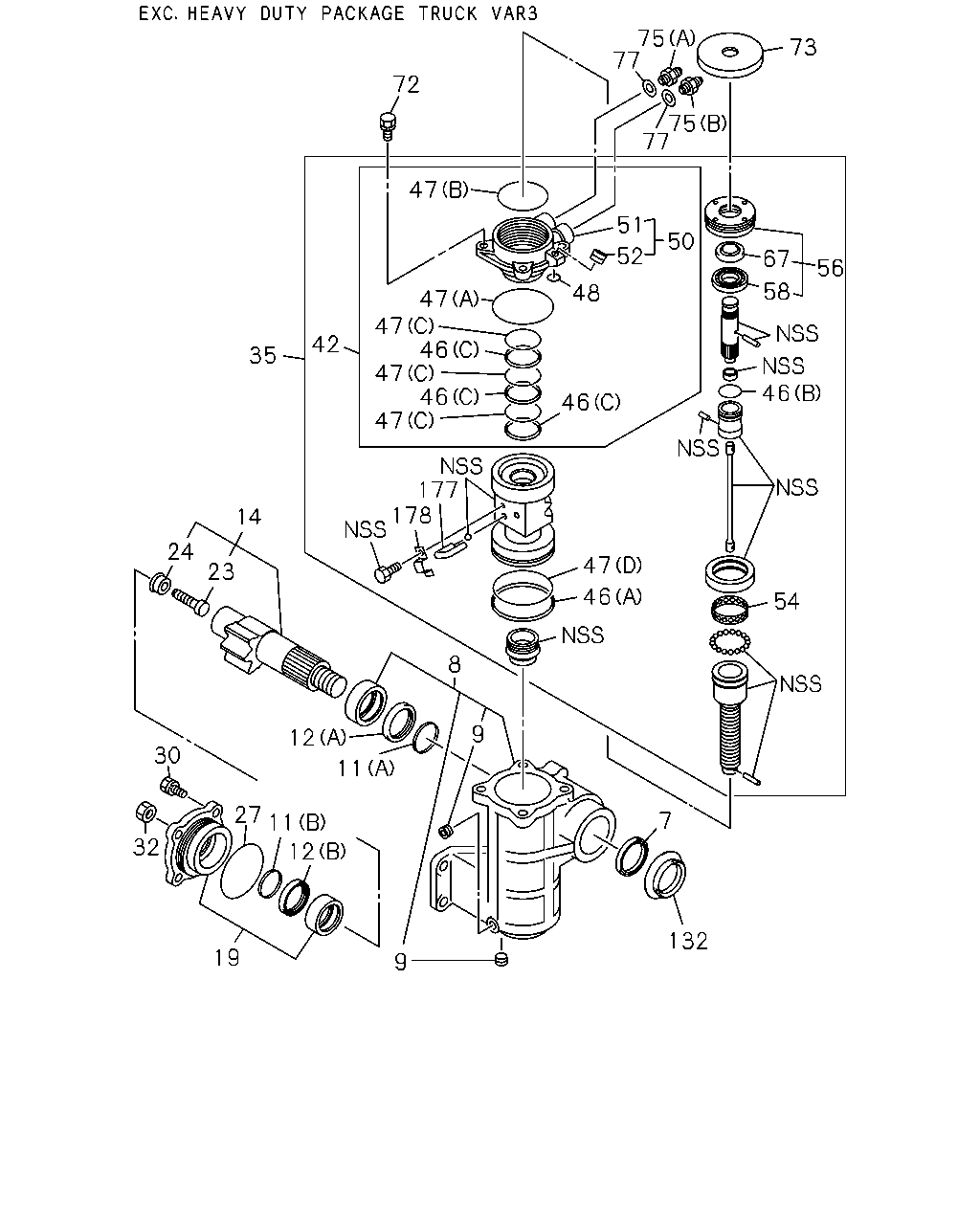

çizim 148856
75 77 73 72 75 77 47 51 50 52 67 56 58 48 47 47 46 47 46 47 42 35 46 46 177 178 14 24 47 23 46 54 8 9 12 30 11 27 11 7 32 12 132 19 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-929-2 		8-98083-837-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98159-679-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44320-012-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98159-681-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44269-037-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-929-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-929-2 		8-98095-567-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98095-591-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44560-055-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44560-071-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-948-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: B = 1-44000-948-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: B = 1-44000-948-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-929-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44560-054-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44560-070-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44561-016-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44561-018-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44159-065-0 02 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98086-347-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44159-034-0 01 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44159-064-0 01 1 -

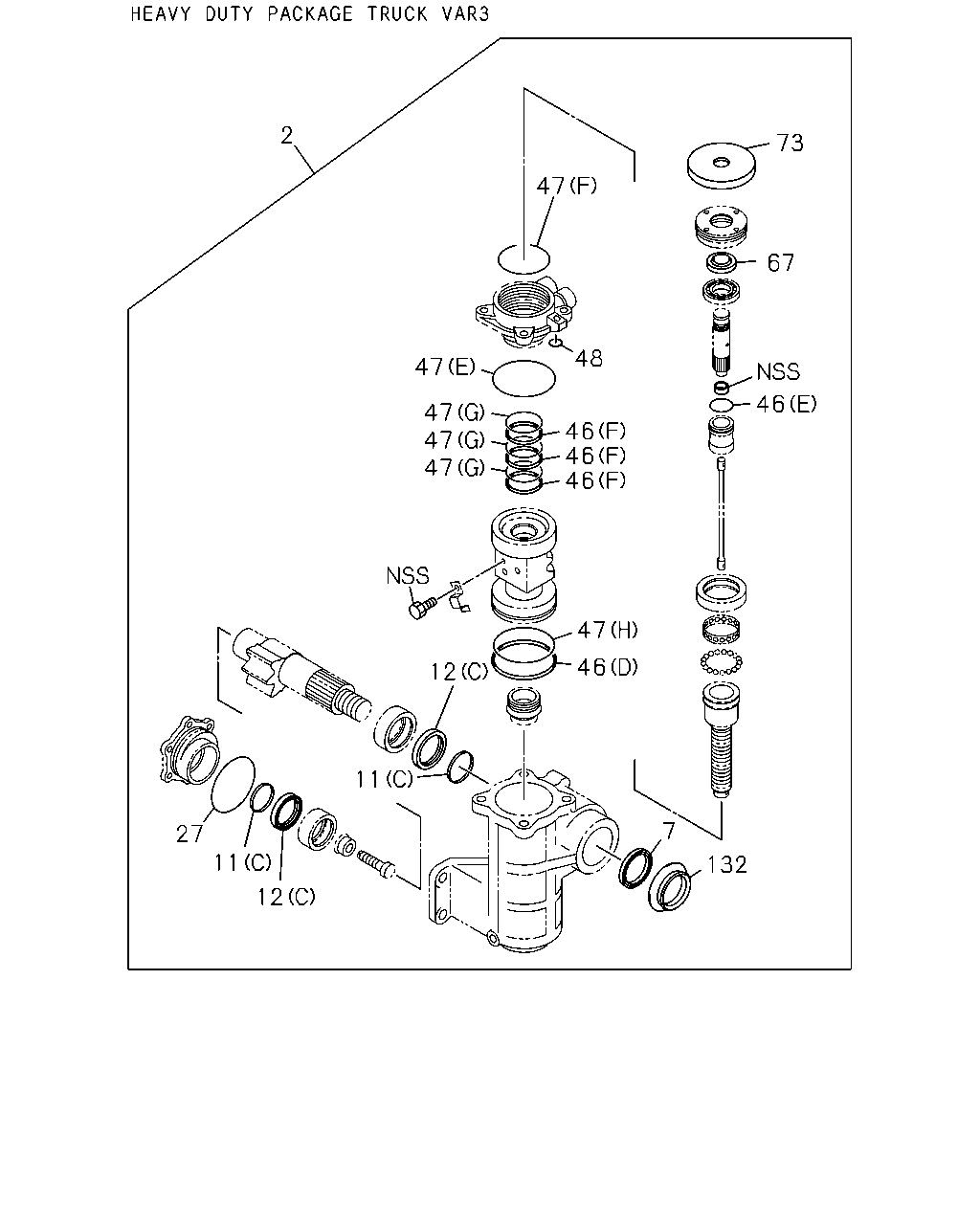

çizim 148858
2 73 47 67 48 47 46 47 47 47 46 46 46 47 46 12 11 7 27 11 132 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-929-2 		1-85574-090-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 1-44000-948-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-948-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: B = 1-44000-948-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: B = 1-44000-948-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-929-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44159-119-0 01 1 -

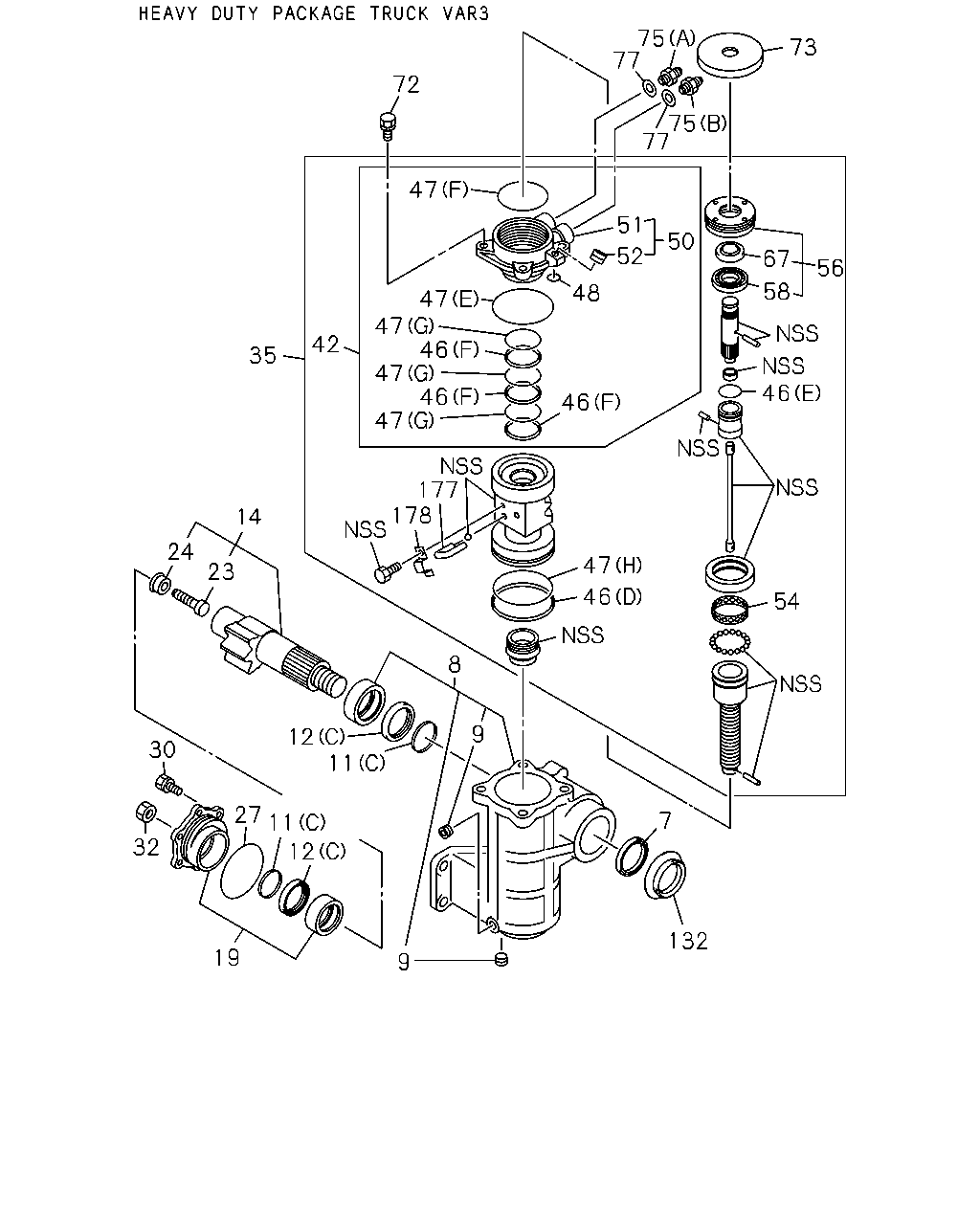

çizim 148863
75 77 73 72 75 77 47 51 50 52 67 56 58 48 47 47 46 47 46 47 42 35 46 46 177 178 14 24 47 23 46 54 8 9 12 11 30 27 11 7 32 12 132 19 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-929-2 		8-98083-837-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98159-679-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44320-012-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98159-681-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44269-037-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-929-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-929-2 		8-98095-567-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98095-591-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44560-055-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44560-071-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-948-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: B = 1-44000-948-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: B = 1-44000-948-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-929-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44560-054-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44560-070-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44561-016-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44561-018-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44159-065-0 02 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98086-347-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44159-034-0 01 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44159-064-0 01 1 -

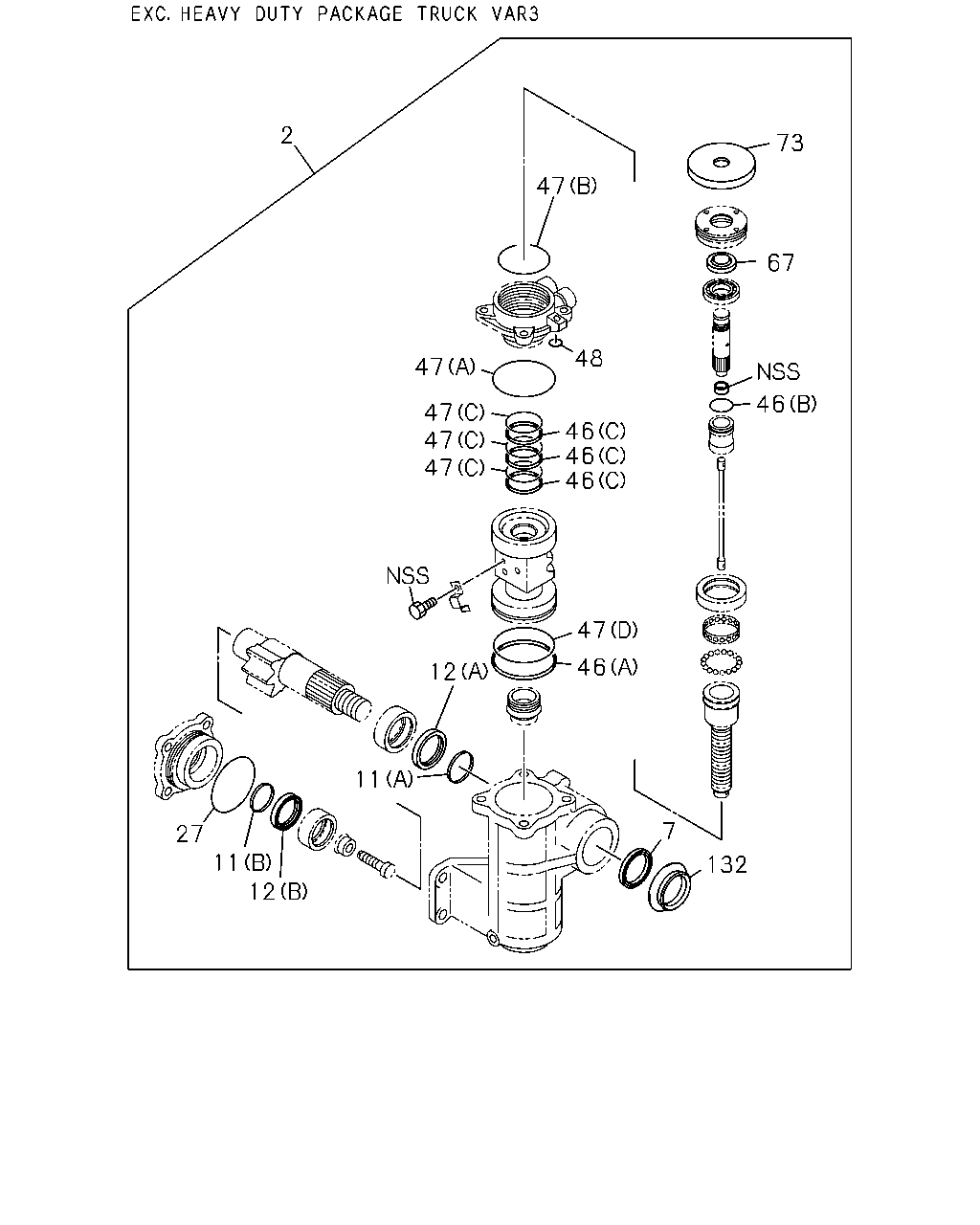

çizim 148878
2 73 47 67 48 47 46 47 47 47 46 46 46 47 46 12 11 7 27 11 12 132
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-929-2 		1-85574-090-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 1-44000-948-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-948-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-948-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: B = 1-44000-948-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: B = 1-44000-948-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: B = 1-44000-948-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: B = 1-44000-948-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-929-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-929-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-929-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-929-2 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-948-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-948-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-929-2, B = 1-44000-948-2 		1-44159-119-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
