4-36 — POWER STEERING CONTROL; ENGINE SIDE (#60720) — 13 parça

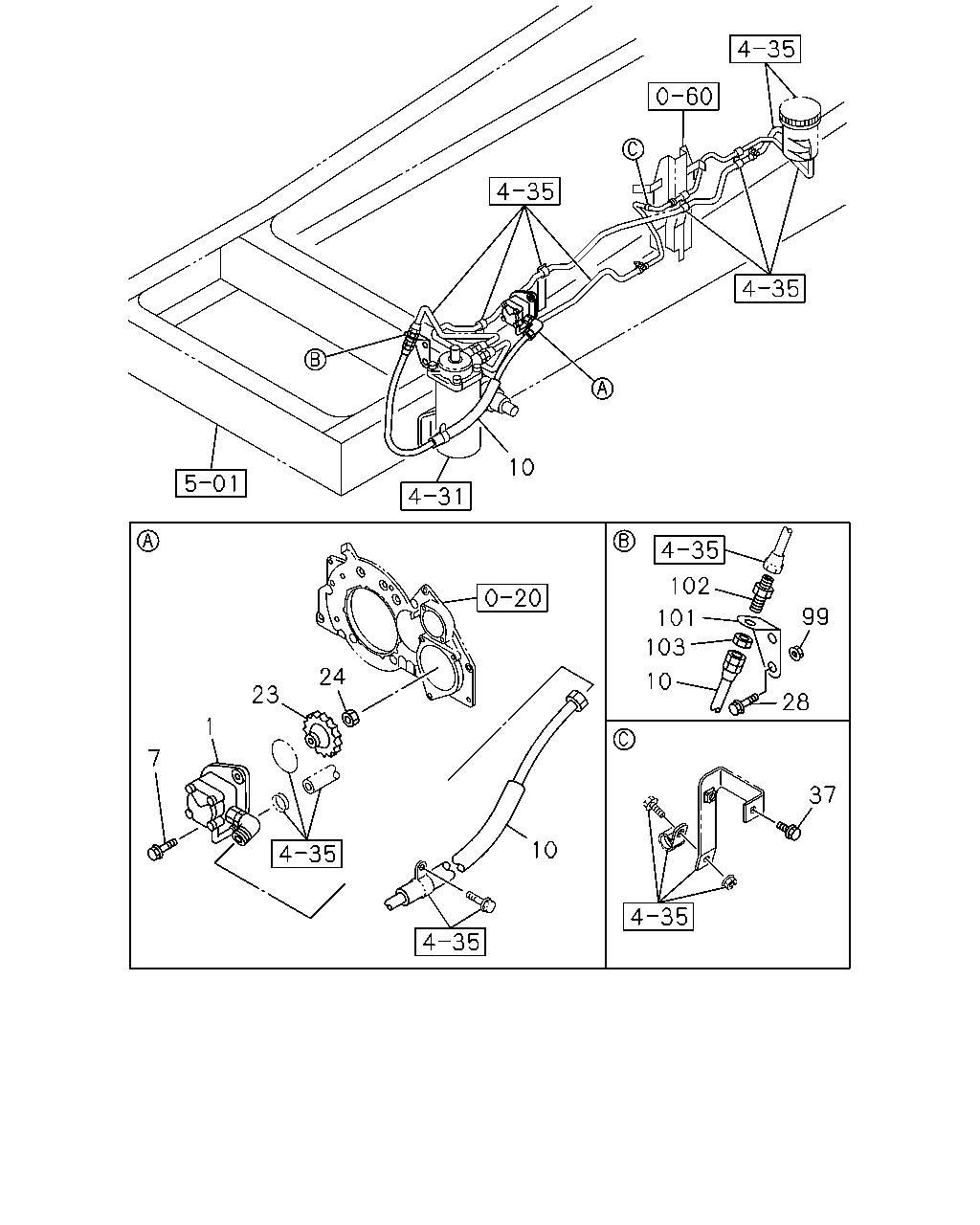

çizim 148877
10 102 99 101 103 24 10 23 28 1 7 37 10
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-627-1 01 1 0809-1011
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-19500-628-1 01 1 1012-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-19500-627-1 01 1 1012-
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0809-
10 HOSE; FLEX,P/S OIL PUMP,INL
L=820 		1-09365-224-0 01 1 0809-
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0809-
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0809-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
37 BOLT; P/S PUMP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0809-
101 BRACKET; UNION 8-98050-832-0 01 1 0809-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0809-
103 NUT; UNION
M22 		0-91111-522-0 01 1 0809-
