1 |

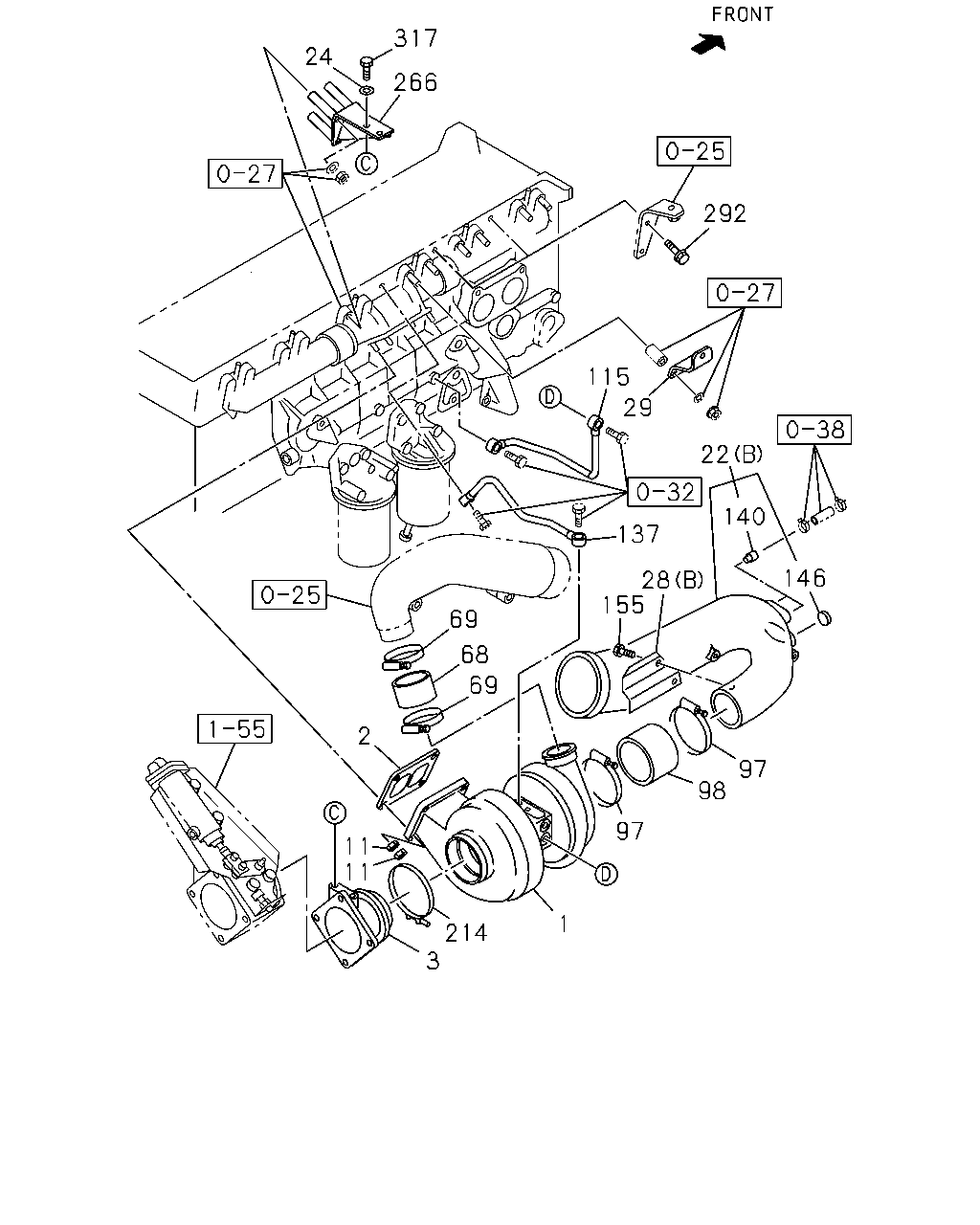

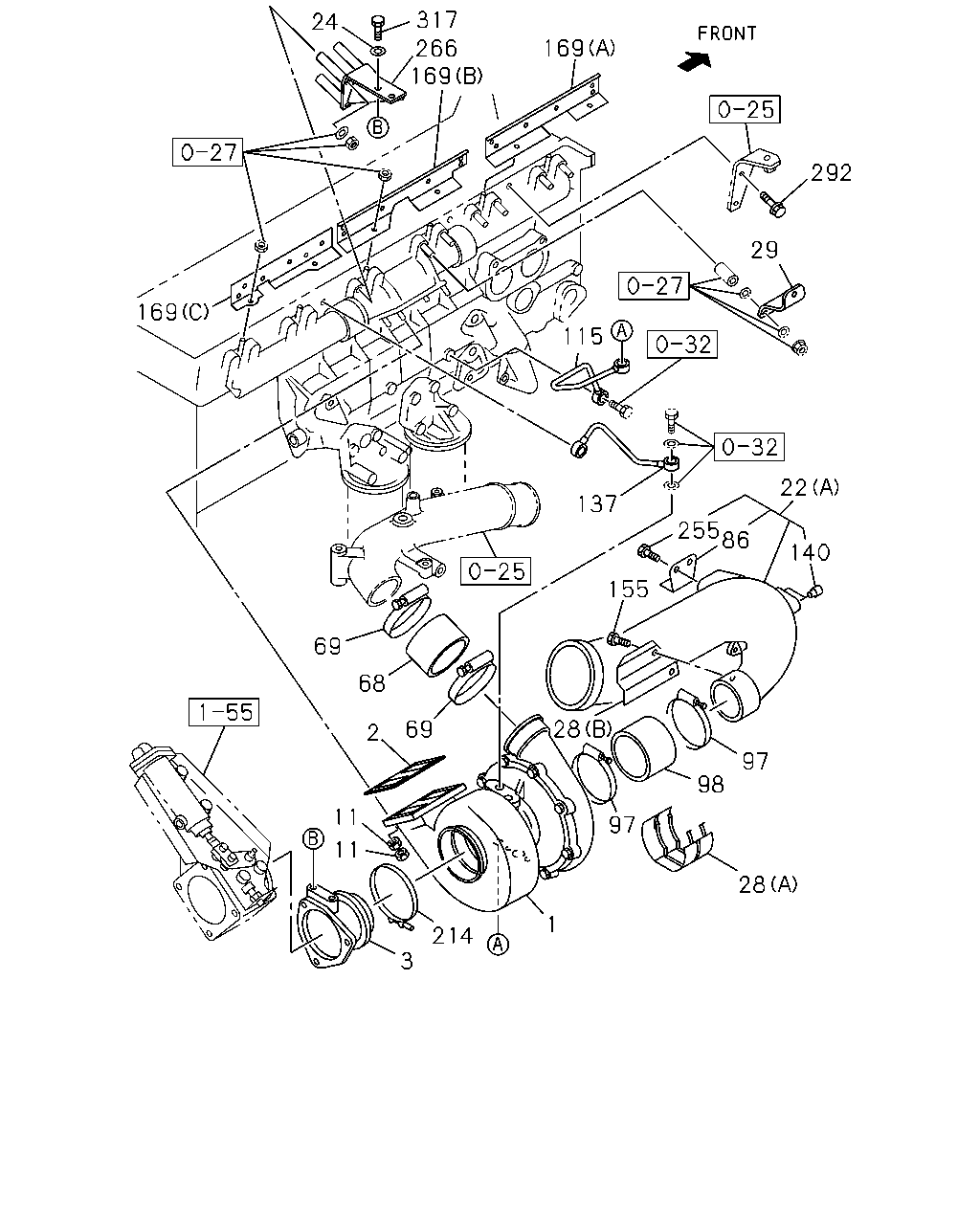

TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
1-14400-328-2 |
01 |
1 |
9905-0301 |
| |
1 |
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
1-14400-391-3 |
01 |
1 |
0302- |
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14145-187-0 |
01 |
1 |
9905-0301 |
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14145-140-1 |
01 |
1 |
0302- |
| |
3 |
PIPE; EXH,TURBOCHARGER
|
1-14144-542-1 |
01 |
1 |
9905-0301 |
| |
3 |
PIPE; EXH,TURBOCHARGER
|
1-14144-632-4 |
01 |
1 |
0302- |
| |
11 |
NUT; TURBOCHARGER
M10
|
1-09420-005-0 |
08 |
1 |
9905- |
| |
22 |
DUCT; INL,ACL TO TURBOCHARGER
(A)
|
1-14134-084-1 |
01 |
1 |
9905-0301 |
| |
22 |
DUCT; INL,ACL TO TURBOCHARGER
(B)
|
1-14134-445-1 |
01 |
1 |
0302- |
| |
24 |
WASHER; PL,PIPE
ID=10.5 OD=22
|
1-09500-007-0 |
02 |
1 |
9905- |
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
(A)
|
1-14181-244-0 |
01 |
1 |
9905-0301 |
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
(B)
|
1-14181-272-0 |
01 |
1 |
9905- |
| |
29 |
BRACKET; INL PIPE,ACL TO TURBOCHARGER
|
1-14119-392-0 |
01 |
1 |
9905- |
| |
68 |
HOSE; RUBBER,TURBOCHARGER TO INL COVER
|
1-09360-917-0 |
01 |
1 |
9905-0301 |
| |
68 |
HOSE; RUBBER,TURBOCHARGER TO INL COVER
|
1-09361-124-0 |
01 |
1 |
0302- |
| |
69 |
CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95
|
1-09707-114-0 |
02 |
1 |
9905-0301 |
| |
69 |
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
|
8-94320-428-0 |
02 |
1 |
0302-0306 |
| |
69 |
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
|
1-09707-202-0 |
02 |
1 |
0307-0808 |
| |
69 |
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
|
8-94320-428-0 |
02 |
1 |
0809- |
| |
86 |
BRACKET; INL PIPE
|
1-14119-361-0 |
01 |
1 |
9905-0301 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
|
1-09707-200-0 |
04 |
1 |
0603-0809 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
|
1-09707-200-0 |
02 |
1 |
0810-0812 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=104-142
|
1-09707-155-0 |
02 |
1 |
0901- |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
|
1-09707-144-0 |
02 |
1 |
9905-0301 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=104-142
|
1-09707-155-0 |
02 |
1 |
0302-0306 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
|
1-09707-200-0 |
02 |
1 |
0307-0602 |
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80
|
1-09360-356-1 |
01 |
1 |
9905-0301 |
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
|
1-09360-987-1 |
01 |
1 |
0302- |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
|
1-13721-686-0 |
01 |
1 |
9905-0011 |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
|
1-13721-605-0 |
01 |
1 |
0012-0301 |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
|
1-13721-826-1 |
01 |
1 |
0302- |
| |
137 |
PIPE; WATER,TURBOCHARGER IN
|
1-13721-651-0 |
01 |
1 |
9905-0011 |
| |
137 |
PIPE; WATER,TURBOCHARGER IN
|
1-13721-506-2 |
01 |
1 |
0012-0301 |
| |
137 |
PIPE; WATER,TURBOCHARGER IN
|
1-13721-827-0 |
01 |
1 |
0302- |
| |
140 |
PIPE; AIR PIPE
|
9-14119-228-1 |
02 |
1 |
9905- |
| |
155 |
BOLT; HEAT PROTECTOR
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
9905-0512 |
| |
155 |
BOLT; HEAT PROTECTOR
M8X12 FLANGE
|
0-28050-812-0 |
02 |
1 |
0601- |
| |
169 |
PROTECTOR; HEAT,HD COVER
(A)
|
1-14181-301-1 |
01 |
1 |
9905-0110 |
| |
169 |
PROTECTOR; HEAT,HD COVER
(B)
|
1-14181-302-1 |
01 |
1 |
9905-0301 |
| |
169 |
PROTECTOR; HEAT,HD COVER
(C)
|
1-14181-320-0 |
01 |
1 |
9905-0301 |
| |
214 |
BAND; "V",TURBOCHARGER TO EXH PIPE
|
1-09709-094-1 |
01 |
1 |
9905-0609 |
| |
214 |
BAND; "V",TURBOCHARGER TO EXH PIPE
|
8-98059-890-0 |
01 |
1 |
0610- |
| |
255 |
BOLT; INL PIPE
M10X20 FLANGE
|
0-28181-020-0 |
02 |
1 |
9905-0301 |
| |
266 |
BRACKET; EXH PIPE
|
1-14149-195-0 |
01 |
1 |
9905-0301 |
| |
266 |
BRACKET; EXH PIPE
|
1-14149-219-3 |
01 |
1 |
0302- |
| |
292 |
BOLT; BRKT TO CYL HD
M10X16 FLANGE
|
0-28181-016-0 |
04 |
1 |
9905-0512 |
| |
292 |
BOLT; BRKT TO CYL HD
M10X16 FLANGE
|
0-28151-016-0 |
04 |
1 |
0601- |
| |
317 |
BOLT; EXH PIPE
M10X20
|
1-09020-073-2 |
02 |
1 |
9905- |
