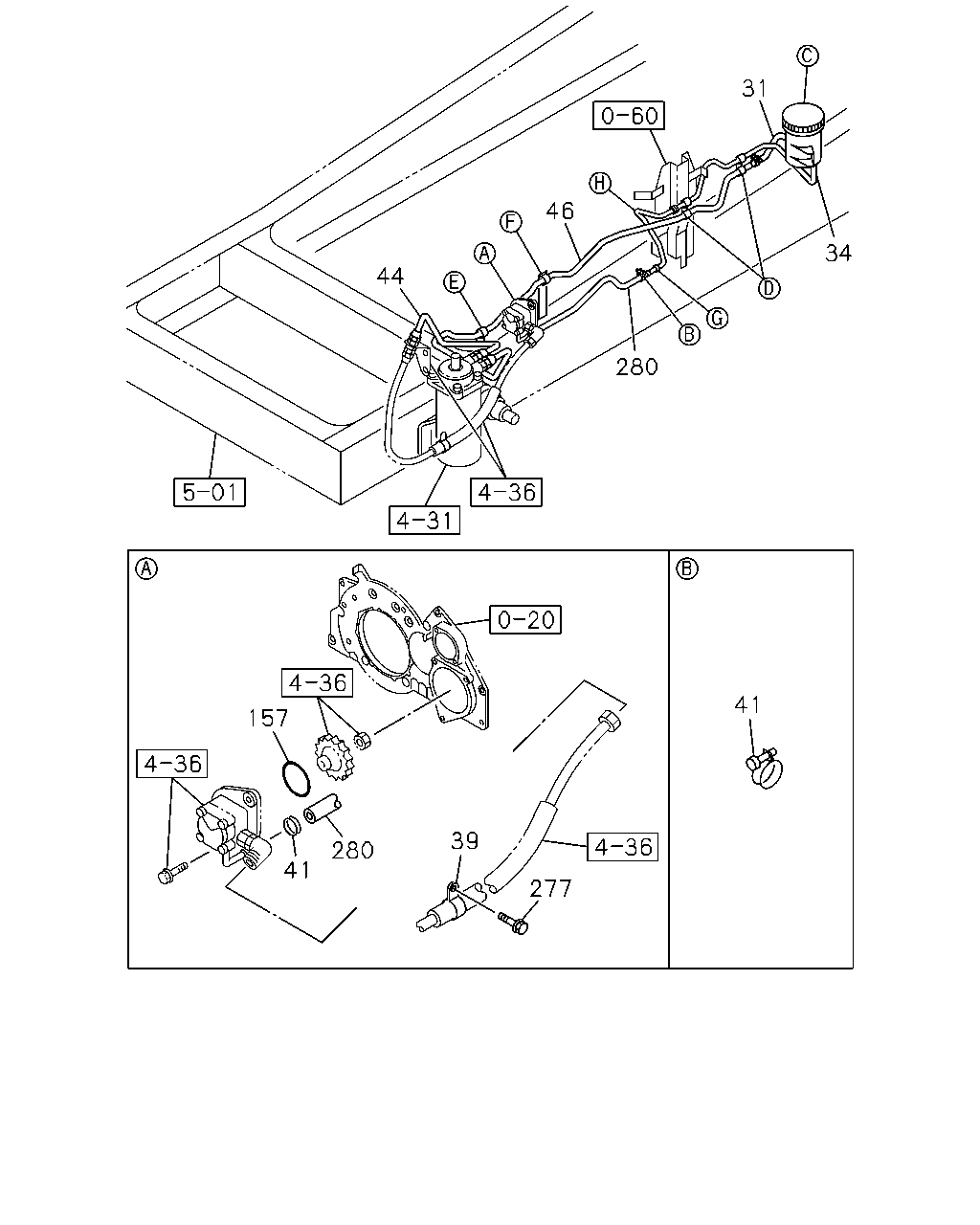

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#60719) — 48 parça

31 46 34 44 280 41 157 39 280 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	0809-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0809-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0809-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0809-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98112-952-0	01	1	0809-1011
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98112-952-0	01	1	1012-
44	PIPE; OIL,P/S UNIT TO NIPPLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98089-889-1	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1878	8-98104-595-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1878	8-98104-595-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1885	8-98098-577-0	01	1	1012-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0809-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0809-
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	0809-

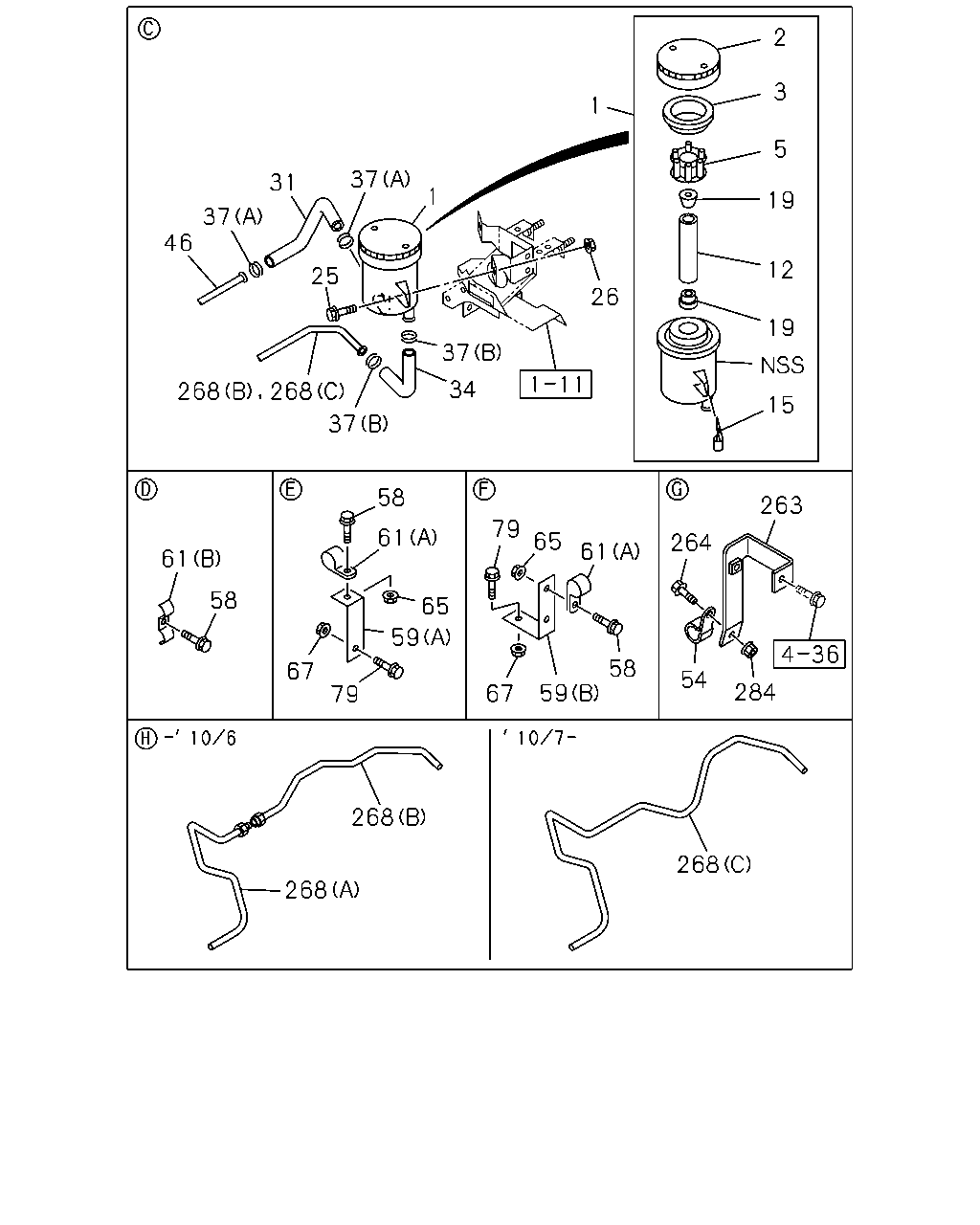

2 3 1 5 37 31 1 19 37 46 12 25 26 19 37 34 15 37 58 263 79 61 65 264 61 61 58 65 59 58 59 67 54 284 67 79 268 268 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0809-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0809-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0809-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0809-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0809-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0809-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0809-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0809-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0809-
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	0809-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0809-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0809-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0809-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1878	8-98104-595-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1878	8-98104-595-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1885	8-98098-577-0	01	1	1012-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0809-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0809-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
59	BRACKET; CLIP,OIL PIPE (B)	1-21464-481-0	01	1	0809-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0809-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	0809-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0809-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-0906
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0809-
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	0809-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0809-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-961-0	01	1	0809-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1007-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-962-0	01	1	0809-1006
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0809-
