◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#60718) — 28 parça

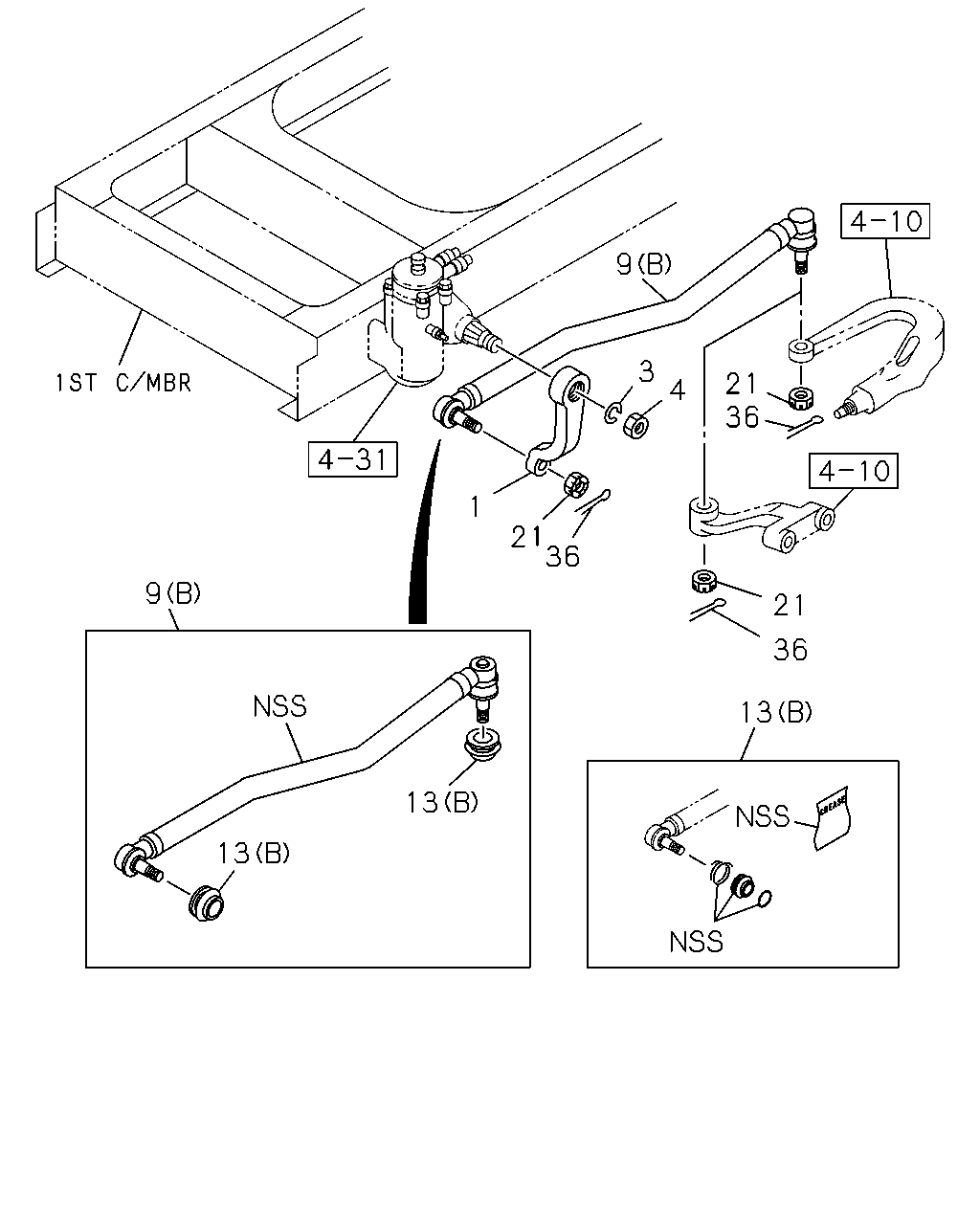

çizim 148630
9 3 21 36 4 1 21 36 9 21 36 13 13 13
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 8-98065-071-1 01 1 0809-1011
1 ARM; PITMAN,STRG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98065-071-1 01 1 1012-
1 ARM; PITMAN,STRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98085-760-1 01 1 1012-
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-055-0 01 1 0809-
4 NUT; PITMAN ARM
M30 		1-09400-166-0 01 1 0809-
9 LINK; DRAG
(A) 		1-44380-134-0 01 1 0809-1011
9 LINK; DRAG
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-44380-134-0 01 1 1012-
9 LINK; DRAG
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-44380-303-0 01 1 1012-
9 LINK; DRAG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-44380-305-0 01 1 1012-
13 BOOT; DRAG LINK
(A) 		1-85574-046-0 02 1 0809-1011
13 BOOT; DRAG LINK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-85574-046-0 02 1 1012-
13 BOOT; DRAG LINK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-85574-063-0 02 1 1012-
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-031-0 02 1 0809-
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		0-81124-025-0 02 1 0809-

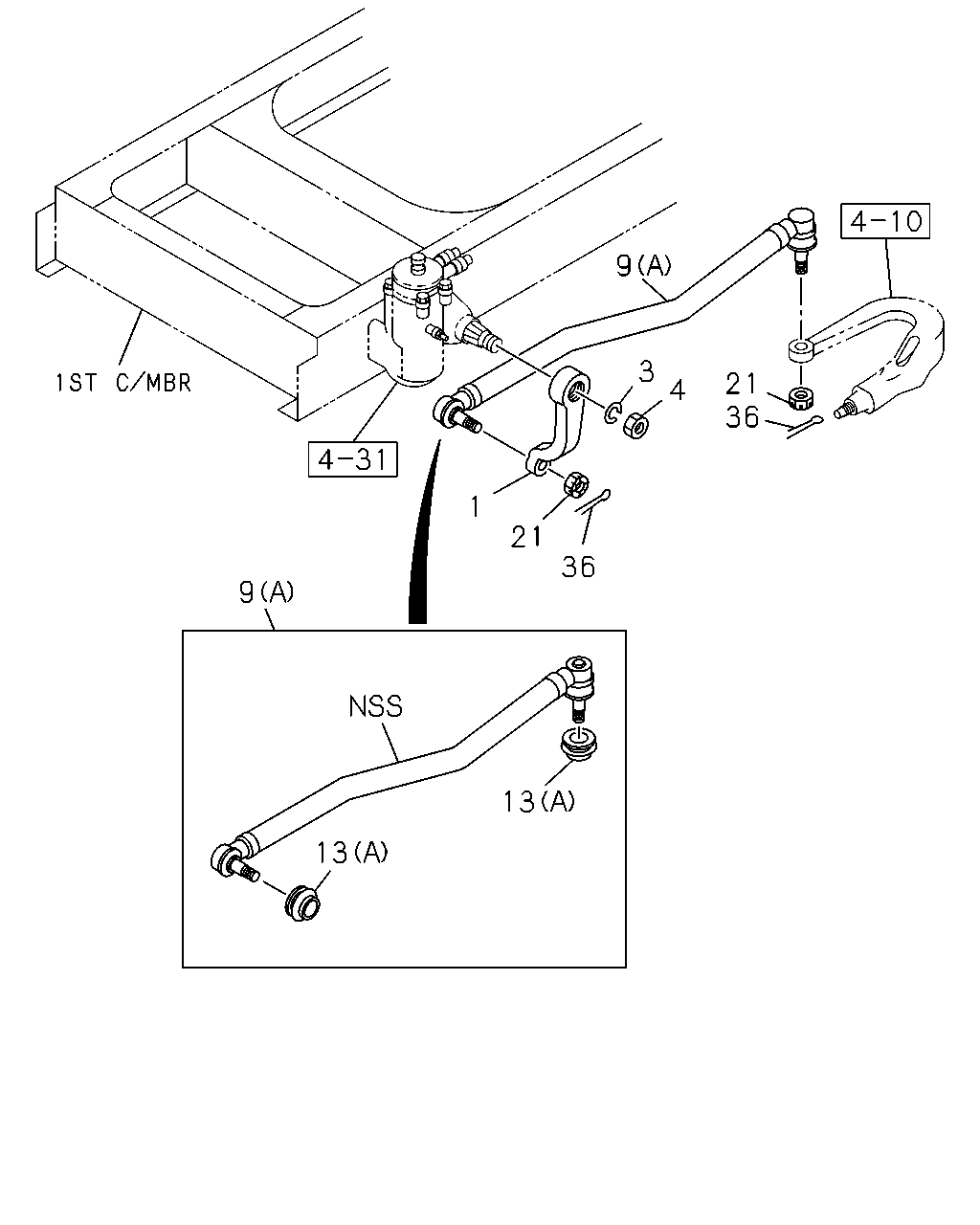

çizim 148860
9 3 21 36 4 1 21 36 9 13 13
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 8-98065-071-1 01 1 0809-1011
1 ARM; PITMAN,STRG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98065-071-1 01 1 1012-
1 ARM; PITMAN,STRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98085-760-1 01 1 1012-
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-055-0 01 1 0809-
4 NUT; PITMAN ARM
M30 		1-09400-166-0 01 1 0809-
9 LINK; DRAG
(A) 		1-44380-134-0 01 1 0809-1011
9 LINK; DRAG
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-44380-134-0 01 1 1012-
9 LINK; DRAG
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-44380-303-0 01 1 1012-
9 LINK; DRAG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-44380-305-0 01 1 1012-
13 BOOT; DRAG LINK
(A) 		1-85574-046-0 02 1 0809-1011
13 BOOT; DRAG LINK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-85574-046-0 02 1 1012-
13 BOOT; DRAG LINK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-85574-063-0 02 1 1012-
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-031-0 02 1 0809-
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		0-81124-025-0 02 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
