Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#60712) — 479 parça

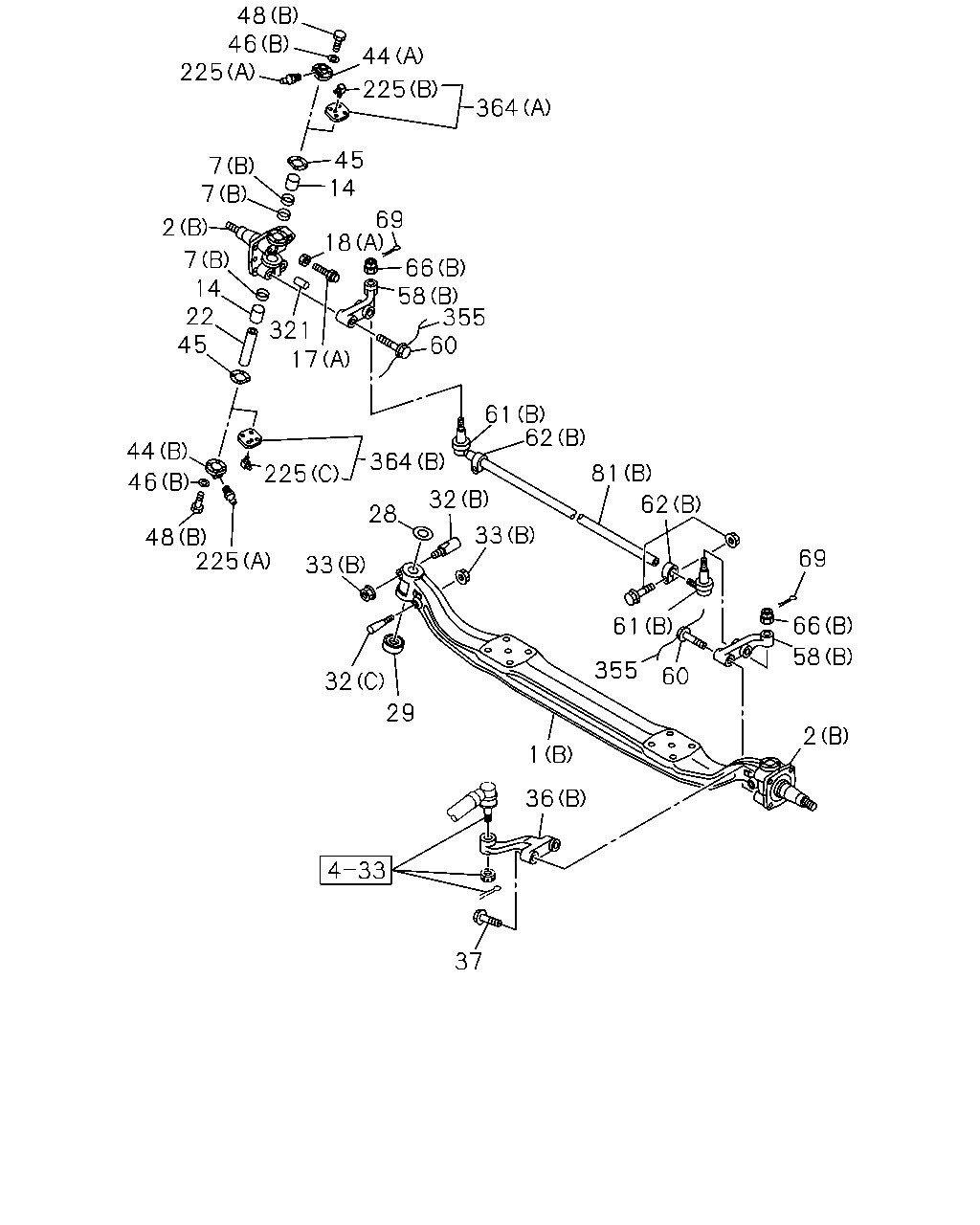

48 46 225 7 7 2 7 14 22 45 321 17 45 44 225 364 14 18 69 66 58 355 60 61 62 81 62 69 66 58 2 60 61 355 33 32 364 28 1 36 37 29 32 33 225 225 48 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT (A)	8-98057-479-1	01	1	0809-1011
1	AXLE; FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98057-479-2	01	1	1012-
1	AXLE; FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43111-173-0	01	1	1012-
2	KNUCKLE; FRT AXLE (A)	1-43131-127-1	01	1	0809-1011
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43131-127-1	01	1	1012-
2	KNUCKLE; FRT AXLE (A)	1-43132-127-1	01	1	0809-1011
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43132-127-1	01	1	1012-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43131-131-0	01	1	1012-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43132-131-0	01	1	1012-
7	SEAL; OIL,KING PIN (A)	1-09625-005-1	02	1	0809-1011
7	SEAL; OIL,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-005-1	02	1	1012-
7	SEAL; OIL,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09625-648-0	06	1	1012-
14	BUSHING; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43141-014-0	04	1	1012-
17	BOLT; STOPPER KNUCKLE (D) M14X47	1-09009-191-0	01	1	0809-1011
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-191-0	01	1	1012-
17	BOLT; STOPPER KNUCKLE (B) M14X60	8-98075-155-0	02	1	0809-1011
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X60	8-98075-155-0	02	1	1012-
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14X53	8-98065-261-0	02	1	1012-1509
17	BOLT; STOPPER KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09009-184-0	02	1	1012-
18	NUT; STOPPER BOLT,KNUCKLE (B) M14	0-91112-814-0	03	1	0809-1011
18	NUT; STOPPER BOLT,KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14	0-91112-814-0	03	1	1012-
18	NUT; STOPPER BOLT,KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-096-0	02	1	1012-
22	PIN; KING,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43161-018-0	02	1	1012-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.80	1-43171-341-0	AR	1	1012-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=1.00	1-43171-342-0	AR	1	1012-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.12	1-43171-343-0	AR	1	1012-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.25	1-43171-344-0	AR	1	1012-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.40	1-43171-345-0	AR	1	1012-
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.60	1-43171-346-0	AR	1	1012-
29	BEARING; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09829-047-0	02	1	1012-
32	BOLT; KEY,KING PIN (A)	1-43116-013-0	02	1	0809-1011
32	BOLT; KEY,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43116-013-1	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=70	1-43116-009-0	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=64	1-43116-010-0	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=102	1-43116-011-0	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=96	1-43116-012-0	02	1	1012-
33	NUT; KEY BOLT (A) M10	0-91110-510-0	02	1	0809-1011
33	NUT; KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10	0-91110-510-0	02	1	1012-
33	NUT; KEY BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09440-093-0	04	1	1012-
36	ARM; KNUCKLE (A)	1-43133-055-8	01	1	0809-1011
36	ARM; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43133-055-8	01	1	1012-
36	ARM; KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-563-0	01	1	1012-1509
36	ARM; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43133-086-0	01	1	1012-
37	BOLT; KNUCKLE ARM HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09000-780-0	02	1	1012-
44	COVER; KING PIN (C)	1-43175-031-0	02	1	0809-1011
44	COVER; KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-031-0	02	1	1012-
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-028-0	02	1	1012-1311
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-029-0	02	1	1012-1311
45	GASKET; KING PIN COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42319-207-0	04	1	1012-
46	WASHER; LK,COVER (A) ID=12.2	0-91510-812-0	02	1	0809-1011
46	WASHER; LK,COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=12.2	0-91510-812-0	02	1	1012-
46	WASHER; LK,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43171-347-0	16	1	1012-1311
48	BOLT; COVER (A) M12X25	1-09009-081-0	02	1	0809-1011
48	BOLT; COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X25	1-09009-081-0	02	1	1012-
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09000-781-0	16	1	1012-1311
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98308-436-0	16	1	1312-
58	ARM; TIE ROD (A)	1-43134-034-4	01	1	0809-1011
58	ARM; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43134-034-4	01	1	1012-
58	ARM; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-564-2	01	1	1012-1509
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43134-064-0	01	1	1012-
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43135-061-0	01	1	1012-
60	BOLT; TIE ROD ARM HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09000-779-0	04	1	1012-
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-748-1	01	1	1012-1509
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-749-1	01	1	1012-1509
61	ROD END; TIE ROD (A)	1-43150-761-1	01	1	0809-1011
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-761-1	01	1	1012-1106
61	ROD END; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-761-1	01	1	1107-
61	ROD END; TIE ROD (A)	1-43150-762-1	01	1	0809-1011
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-762-1	01	1	1012-1106
61	ROD END; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-762-1	01	1	1107-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH THREAD	1-43150-875-0	01	1	1012-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH THREAD	1-43150-876-0	01	1	1012-
62	CLAMP; TIE ROD (A)	1-43159-002-3	02	1	0809-1011
62	CLAMP; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-002-3	02	1	1012-1106
62	CLAMP; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-002-3	02	1	1107-
62	CLAMP; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43159-125-0	02	1	1012-
66	NUT; TIE ROD END (A) M16 SLOTTED	1-09442-031-0	02	1	0809-1011
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 SLOTTED	1-09442-031-0	02	1	1012-
66	NUT; TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09442-029-0	02	1	1012-
69	PIN; SPLIT,TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09987-282-0	02	1	1012-
81	ROD; TIE (A)	1-43151-133-0	01	1	0809-1011
81	ROD; TIE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43151-133-0	01	1	1012-
81	ROD; TIE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98038-703-1	01	1	1012-1509
81	ROD; TIE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43151-156-0	01	1	1012-
225	NIPPLE; GREASE,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-036-0	02	1	1312-
225	NIPPLE; GREASE,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43004-702-0	04	1	1012-1311
225	NIPPLE; GREASE,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-035-0	02	1	1312-
321	BUSHING; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-83129-474-0	02	1	1012-
355	WIRE; LOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43004-703-0	06	1	1012-
364	COVER ASM; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-038-0	02	1	1312-
364	COVER ASM; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-039-0	02	1	1312-

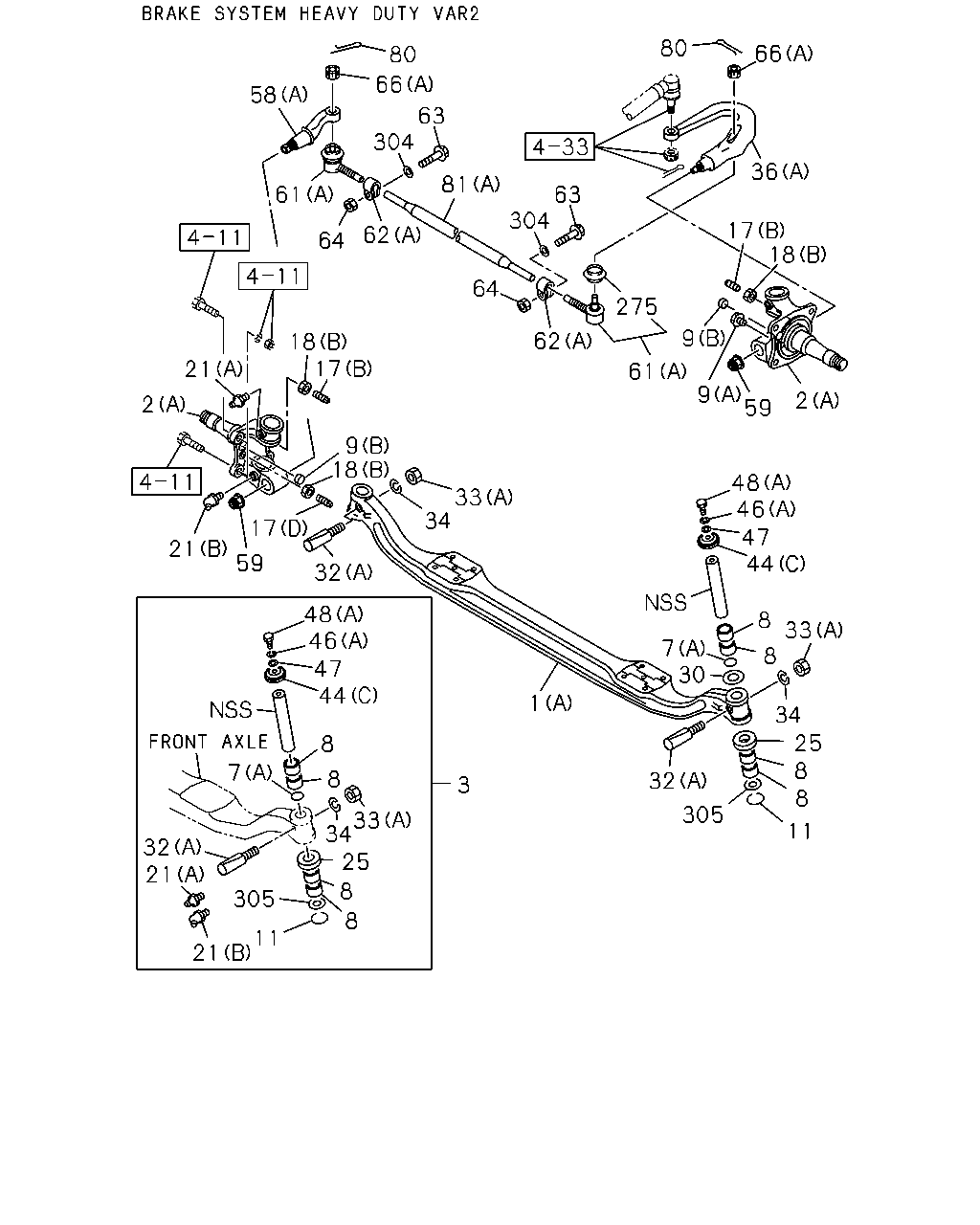

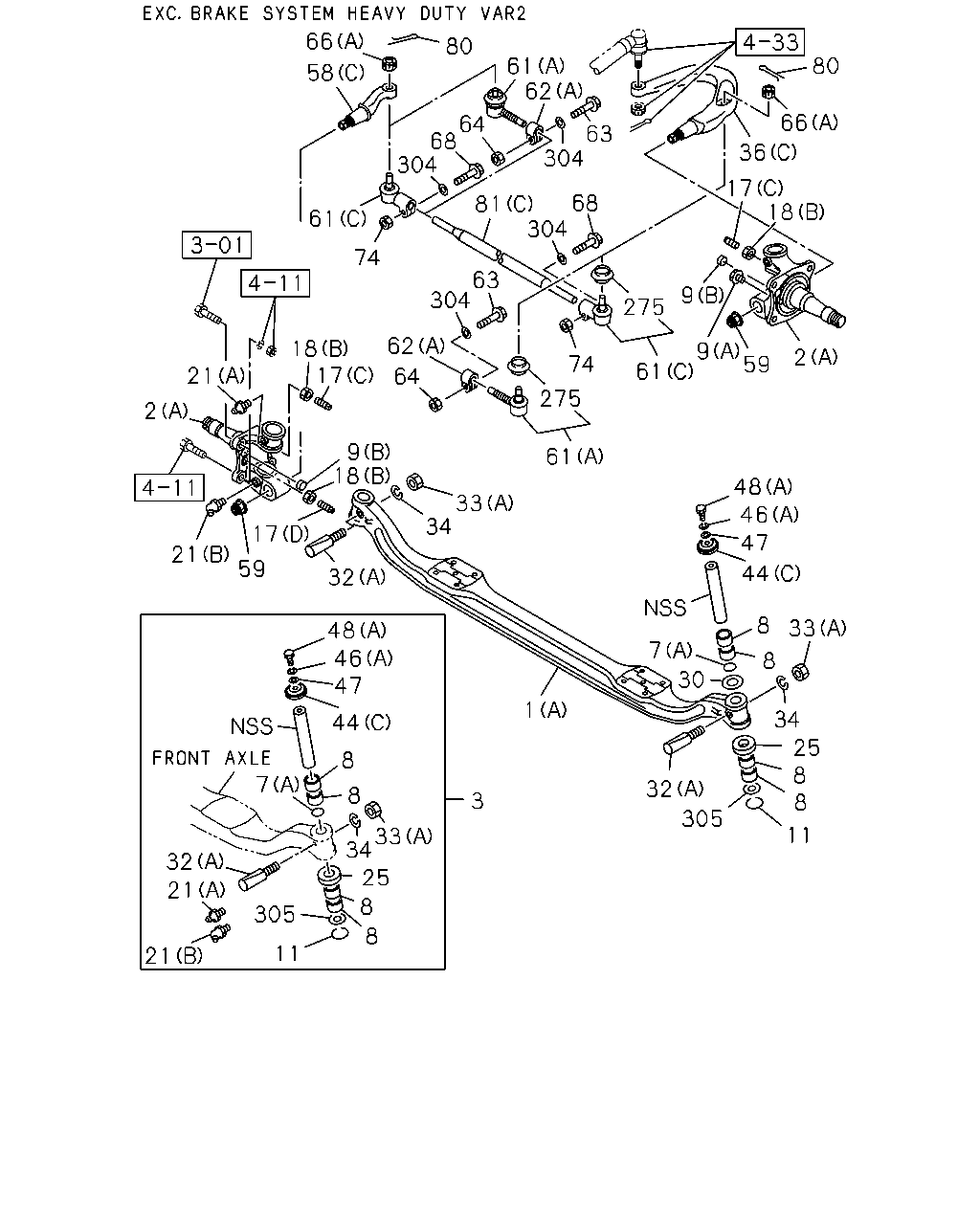

66 80 61 62 58 66 64 68 304 63 304 36 17 18 81 68 304 61 74 63 304 9 275 62 18 17 9 61 59 2 74 21 64 275 2 9 18 61 48 46 47 33 34 17 21 59 44 32 8 33 48 46 47 7 8 30 1 34 25 8 8 44 7 8 32 8 3 305 11 33 34 25 32 21 8 305 8 11 21 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT (A)	8-98057-479-1	01	1	0809-1011
1	AXLE; FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98057-479-2	01	1	1012-
1	AXLE; FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43111-173-0	01	1	1012-
2	KNUCKLE; FRT AXLE (A)	1-43131-127-1	01	1	0809-1011
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43131-127-1	01	1	1012-
2	KNUCKLE; FRT AXLE (A)	1-43132-127-1	01	1	0809-1011
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43132-127-1	01	1	1012-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43131-131-0	01	1	1012-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43132-131-0	01	1	1012-
3	KING PIN SET	1-87831-295-1	01	1	0809-1011
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-295-2	01	1	1012-
3	KING PIN SET	1-87831-296-1	01	1	0809-1011
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-296-2	01	1	1012-
7	SEAL; OIL,KING PIN (A)	1-09625-005-1	02	1	0809-1011
7	SEAL; OIL,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-005-1	02	1	1012-
7	SEAL; OIL,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09625-648-0	06	1	1012-
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	0809-1011
8	BEARING; NEEDLE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09811-339-0	08	1	1012-
9	PLUG; KNUCKLE (B) OD=22	1-09600-011-2	02	1	0809-1011
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=22	1-09600-011-2	02	1	1012-
9	PLUG; KNUCKLE (A) M14X14	8-97329-621-0	01	1	0809-1011
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X14	8-97329-621-0	01	1	1012-
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	0809-1011
11	RING; SNAP,KNUCKLE PLUG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09589-017-1	02	1	1012-
17	BOLT; STOPPER KNUCKLE (D) M14X47	1-09009-191-0	01	1	0809-1011
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-191-0	01	1	1012-
17	BOLT; STOPPER KNUCKLE (B) M14X60	8-98075-155-0	02	1	0809-1011
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X60	8-98075-155-0	02	1	1012-
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14X53	8-98065-261-0	02	1	1012-1509
17	BOLT; STOPPER KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09009-184-0	02	1	1012-
18	NUT; STOPPER BOLT,KNUCKLE (B) M14	0-91112-814-0	03	1	0809-1011
18	NUT; STOPPER BOLT,KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14	0-91112-814-0	03	1	1012-
18	NUT; STOPPER BOLT,KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-096-0	02	1	1012-
21	NIPPLE; GREASE,KING PIN (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	0809-1011
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	1012-
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0809-1011
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1012-
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	0809-1011
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-031-0	01	1	1012-
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	0809-1011
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-033-1	01	1	1012-
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.900	1-43171-261-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.912	1-43171-262-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.925	1-43171-263-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.937	1-43171-264-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.950	1-43171-265-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.962	1-43171-266-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.975	1-43171-267-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.987	1-43171-268-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.000	1-43171-269-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.012	1-43171-270-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.025	1-43171-271-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.037	1-43171-272-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.050	1-43171-273-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.062	1-43171-274-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.075	1-43171-275-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.087	1-43171-276-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.100	1-43171-277-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.112	1-43171-278-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.125	1-43171-279-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.137	1-43171-280-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.150	1-43171-281-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.162	1-43171-311-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.175	1-43171-312-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.187	1-43171-313-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.200	1-43171-314-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.212	1-43171-315-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.225	1-43171-316-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.237	1-43171-317-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.250	1-43171-318-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.262	1-43171-319-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.275	1-43171-320-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.287	1-43171-321-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.300	1-43171-322-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.312	1-43171-323-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.325	1-43171-324-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.337	1-43171-325-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.350	1-43171-326-0	AR	1	1012-
32	BOLT; KEY,KING PIN (A)	1-43116-013-0	02	1	0809-1011
32	BOLT; KEY,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43116-013-1	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=70	1-43116-009-0	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=64	1-43116-010-0	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=102	1-43116-011-0	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=96	1-43116-012-0	02	1	1012-
33	NUT; KEY BOLT (A) M10	0-91110-510-0	02	1	0809-1011
33	NUT; KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10	0-91110-510-0	02	1	1012-
33	NUT; KEY BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09440-093-0	04	1	1012-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0809-1011
34	WASHER; LK,KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10.2	0-91510-510-0	02	1	1012-
36	ARM; KNUCKLE (A)	1-43133-055-8	01	1	0809-1011
36	ARM; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43133-055-8	01	1	1012-
36	ARM; KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-563-0	01	1	1012-1509
36	ARM; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43133-086-0	01	1	1012-
44	COVER; KING PIN (C)	1-43175-031-0	02	1	0809-1011
44	COVER; KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-031-0	02	1	1012-
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-028-0	02	1	1012-1311
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-029-0	02	1	1012-1311
46	WASHER; LK,COVER (A) ID=12.2	0-91510-812-0	02	1	0809-1011
46	WASHER; LK,COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=12.2	0-91510-812-0	02	1	1012-
46	WASHER; LK,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43171-347-0	16	1	1012-1311
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0809-1011
47	WASHER; PL,COVER,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	02	1	1012-
48	BOLT; COVER (A) M12X25	1-09009-081-0	02	1	0809-1011
48	BOLT; COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X25	1-09009-081-0	02	1	1012-
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09000-781-0	16	1	1012-1311
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98308-436-0	16	1	1312-
58	ARM; TIE ROD (A)	1-43134-034-4	01	1	0809-1011
58	ARM; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43134-034-4	01	1	1012-
58	ARM; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-564-2	01	1	1012-1509
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43134-064-0	01	1	1012-
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43135-061-0	01	1	1012-
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0809-1011
59	NUT; TIE ROD ARM EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M27 FLANGE	1-09449-082-0	02	1	1012-
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-748-1	01	1	1012-1509
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-749-1	01	1	1012-1509
61	ROD END; TIE ROD (A)	1-43150-761-1	01	1	0809-1011
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-761-1	01	1	1012-1106
61	ROD END; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-761-1	01	1	1107-
61	ROD END; TIE ROD (A)	1-43150-762-1	01	1	0809-1011
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-762-1	01	1	1012-1106
61	ROD END; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-762-1	01	1	1107-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH THREAD	1-43150-875-0	01	1	1012-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH THREAD	1-43150-876-0	01	1	1012-
62	CLAMP; TIE ROD (A)	1-43159-002-3	02	1	0809-1011
62	CLAMP; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-002-3	02	1	1012-1106
62	CLAMP; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-002-3	02	1	1107-
62	CLAMP; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43159-125-0	02	1	1012-
63	BOLT; CLAMP TIE ROD M12X45 FLANGE	0-28061-245-0	02	1	0809-1011
63	BOLT; CLAMP TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	1012-1106
63	BOLT; CLAMP TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	1107-
64	NUT; CLAMP M12	0-91110-512-0	02	1	0809-1011
64	NUT; CLAMP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	1012-1106
64	NUT; CLAMP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	1107-
66	NUT; TIE ROD END (A) M16 SLOTTED	1-09442-031-0	02	1	0809-1011
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 SLOTTED	1-09442-031-0	02	1	1012-
66	NUT; TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09442-029-0	02	1	1012-
68	BOLT; TIE ROD END EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	1012-1106
68	BOLT; TIE ROD END EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	1107-1509
74	NUT; TIE ROD END EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	1012-1106
74	NUT; TIE ROD END EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	1107-1509
80	PIN; SPLIT,ROD END OD=3.7 L=22	0-81124-022-0	02	1	0809-1011
80	PIN; SPLIT,ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=3.7 L=22	0-81124-022-0	02	1	1012-
81	ROD; TIE (A)	1-43151-133-0	01	1	0809-1011
81	ROD; TIE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43151-133-0	01	1	1012-
81	ROD; TIE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98038-703-1	01	1	1012-1509
81	ROD; TIE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43151-156-0	01	1	1012-
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	0809-1011
275	BOOT; ROD END,TIE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85574-046-0	02	1	1012-
304	WASHER; PL ID=12.5	0-91614-512-0	02	1	0809-1011
304	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5	0-91614-512-0	02	1	1012-
305	COVER; KNUCKLE	1-43175-030-0	02	1	0809-1011
305	COVER; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43175-030-0	02	1	1012-

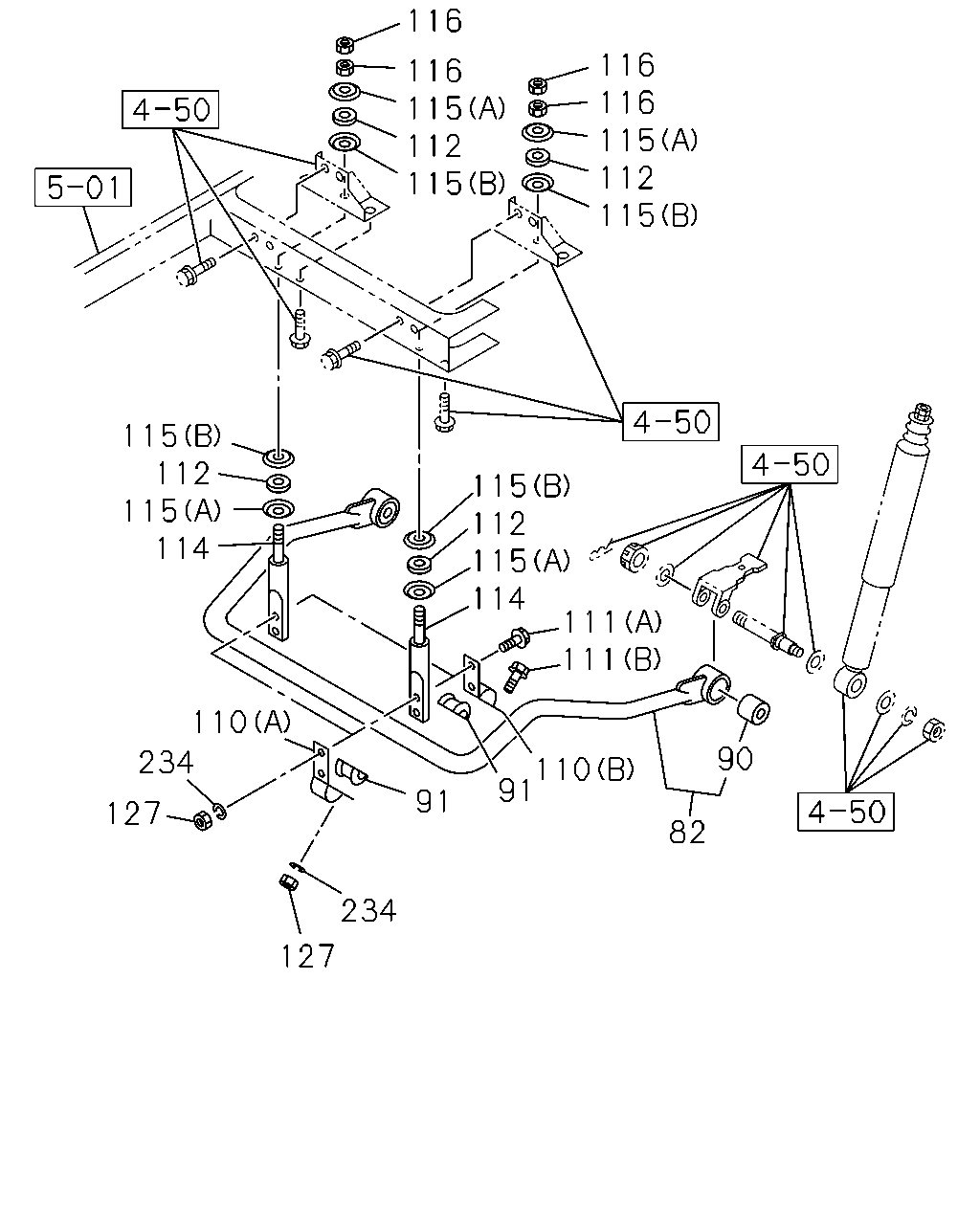

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 111 111 110 90 234 110 91 91 127 82 234 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51770-114-0	01	1	1012-
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	1012-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1012-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1012-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1012-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28051-230-0	02	1	1012-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE	0-28051-250-0	04	1	1012-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1012-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-082-0	02	1	1012-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1012-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1012-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1012-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1012-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1012-

80 66 80 66 58 63 304 36 81 63 304 61 17 18 62 64 64 275 9 62 18 17 21 61 9 59 2 2 9 18 48 46 47 44 33 34 17 21 59 32 48 46 47 44 8 33 8 7 30 1 34 25 8 8 8 7 8 32 3 305 33 34 25 11 32 21 8 305 8 11 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT (A)	8-98057-479-1	01	1	0809-1011
1	AXLE; FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98057-479-2	01	1	1012-
1	AXLE; FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43111-173-0	01	1	1012-
2	KNUCKLE; FRT AXLE (A)	1-43131-127-1	01	1	0809-1011
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43131-127-1	01	1	1012-
2	KNUCKLE; FRT AXLE (A)	1-43132-127-1	01	1	0809-1011
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43132-127-1	01	1	1012-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43131-131-0	01	1	1012-
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43132-131-0	01	1	1012-
3	KING PIN SET	1-87831-295-1	01	1	0809-1011
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-295-2	01	1	1012-
3	KING PIN SET	1-87831-296-1	01	1	0809-1011
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-296-2	01	1	1012-
7	SEAL; OIL,KING PIN (A)	1-09625-005-1	02	1	0809-1011
7	SEAL; OIL,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-005-1	02	1	1012-
7	SEAL; OIL,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09625-648-0	06	1	1012-
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	0809-1011
8	BEARING; NEEDLE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09811-339-0	08	1	1012-
9	PLUG; KNUCKLE (B) OD=22	1-09600-011-2	02	1	0809-1011
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=22	1-09600-011-2	02	1	1012-
9	PLUG; KNUCKLE (A) M14X14	8-97329-621-0	01	1	0809-1011
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X14	8-97329-621-0	01	1	1012-
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	0809-1011
11	RING; SNAP,KNUCKLE PLUG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09589-017-1	02	1	1012-
17	BOLT; STOPPER KNUCKLE (D) M14X47	1-09009-191-0	01	1	0809-1011
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-191-0	01	1	1012-
17	BOLT; STOPPER KNUCKLE (B) M14X60	8-98075-155-0	02	1	0809-1011
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X60	8-98075-155-0	02	1	1012-
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14X53	8-98065-261-0	02	1	1012-1509
17	BOLT; STOPPER KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09009-184-0	02	1	1012-
18	NUT; STOPPER BOLT,KNUCKLE (B) M14	0-91112-814-0	03	1	0809-1011
18	NUT; STOPPER BOLT,KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14	0-91112-814-0	03	1	1012-
18	NUT; STOPPER BOLT,KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-096-0	02	1	1012-
21	NIPPLE; GREASE,KING PIN (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	0809-1011
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	1012-
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0809-1011
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1012-
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	0809-1011
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-031-0	01	1	1012-
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	0809-1011
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-033-1	01	1	1012-
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.900	1-43171-261-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.912	1-43171-262-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.925	1-43171-263-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.937	1-43171-264-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.950	1-43171-265-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.962	1-43171-266-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.975	1-43171-267-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.987	1-43171-268-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.000	1-43171-269-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.012	1-43171-270-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.025	1-43171-271-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.037	1-43171-272-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.050	1-43171-273-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.062	1-43171-274-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.075	1-43171-275-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.087	1-43171-276-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.100	1-43171-277-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.112	1-43171-278-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.125	1-43171-279-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.137	1-43171-280-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.150	1-43171-281-1	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.162	1-43171-311-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.175	1-43171-312-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.187	1-43171-313-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.200	1-43171-314-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.212	1-43171-315-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.225	1-43171-316-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.237	1-43171-317-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.250	1-43171-318-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.262	1-43171-319-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.275	1-43171-320-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.287	1-43171-321-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.300	1-43171-322-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.312	1-43171-323-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.325	1-43171-324-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.337	1-43171-325-0	AR	1	1012-
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	0809-1011
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.350	1-43171-326-0	AR	1	1012-
32	BOLT; KEY,KING PIN (A)	1-43116-013-0	02	1	0809-1011
32	BOLT; KEY,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43116-013-1	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=70	1-43116-009-0	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=64	1-43116-010-0	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=102	1-43116-011-0	02	1	1012-
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=96	1-43116-012-0	02	1	1012-
33	NUT; KEY BOLT (A) M10	0-91110-510-0	02	1	0809-1011
33	NUT; KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10	0-91110-510-0	02	1	1012-
33	NUT; KEY BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09440-093-0	04	1	1012-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0809-1011
34	WASHER; LK,KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10.2	0-91510-510-0	02	1	1012-
36	ARM; KNUCKLE (A)	1-43133-055-8	01	1	0809-1011
36	ARM; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43133-055-8	01	1	1012-
36	ARM; KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-563-0	01	1	1012-1509
36	ARM; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43133-086-0	01	1	1012-
44	COVER; KING PIN (C)	1-43175-031-0	02	1	0809-1011
44	COVER; KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-031-0	02	1	1012-
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-028-0	02	1	1012-1311
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-029-0	02	1	1012-1311
46	WASHER; LK,COVER (A) ID=12.2	0-91510-812-0	02	1	0809-1011
46	WASHER; LK,COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=12.2	0-91510-812-0	02	1	1012-
46	WASHER; LK,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43171-347-0	16	1	1012-1311
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0809-1011
47	WASHER; PL,COVER,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	02	1	1012-
48	BOLT; COVER (A) M12X25	1-09009-081-0	02	1	0809-1011
48	BOLT; COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X25	1-09009-081-0	02	1	1012-
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09000-781-0	16	1	1012-1311
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98308-436-0	16	1	1312-
58	ARM; TIE ROD (A)	1-43134-034-4	01	1	0809-1011
58	ARM; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43134-034-4	01	1	1012-
58	ARM; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-564-2	01	1	1012-1509
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43134-064-0	01	1	1012-
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43135-061-0	01	1	1012-
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0809-1011
59	NUT; TIE ROD ARM EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M27 FLANGE	1-09449-082-0	02	1	1012-
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-748-1	01	1	1012-1509
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-749-1	01	1	1012-1509
61	ROD END; TIE ROD (A)	1-43150-761-1	01	1	0809-1011
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-761-1	01	1	1012-1106
61	ROD END; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-761-1	01	1	1107-
61	ROD END; TIE ROD (A)	1-43150-762-1	01	1	0809-1011
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-762-1	01	1	1012-1106
61	ROD END; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43150-762-1	01	1	1107-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH THREAD	1-43150-875-0	01	1	1012-
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH THREAD	1-43150-876-0	01	1	1012-
62	CLAMP; TIE ROD (A)	1-43159-002-3	02	1	0809-1011
62	CLAMP; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-002-3	02	1	1012-1106
62	CLAMP; TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-002-3	02	1	1107-
62	CLAMP; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43159-125-0	02	1	1012-
63	BOLT; CLAMP TIE ROD M12X45 FLANGE	0-28061-245-0	02	1	0809-1011
63	BOLT; CLAMP TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	1012-1106
63	BOLT; CLAMP TIE ROD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	1107-
64	NUT; CLAMP M12	0-91110-512-0	02	1	0809-1011
64	NUT; CLAMP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	1012-1106
64	NUT; CLAMP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	1107-
66	NUT; TIE ROD END (A) M16 SLOTTED	1-09442-031-0	02	1	0809-1011
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 SLOTTED	1-09442-031-0	02	1	1012-
66	NUT; TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09442-029-0	02	1	1012-
80	PIN; SPLIT,ROD END OD=3.7 L=22	0-81124-022-0	02	1	0809-1011
80	PIN; SPLIT,ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=3.7 L=22	0-81124-022-0	02	1	1012-
81	ROD; TIE (A)	1-43151-133-0	01	1	0809-1011
81	ROD; TIE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43151-133-0	01	1	1012-
81	ROD; TIE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98038-703-1	01	1	1012-1509
81	ROD; TIE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43151-156-0	01	1	1012-
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	0809-1011
275	BOOT; ROD END,TIE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85574-046-0	02	1	1012-
304	WASHER; PL ID=12.5	0-91614-512-0	02	1	0809-1011
304	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5	0-91614-512-0	02	1	1012-
305	COVER; KNUCKLE	1-43175-030-0	02	1	0809-1011
305	COVER; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43175-030-0	02	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
