◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#60711) — 172 parça

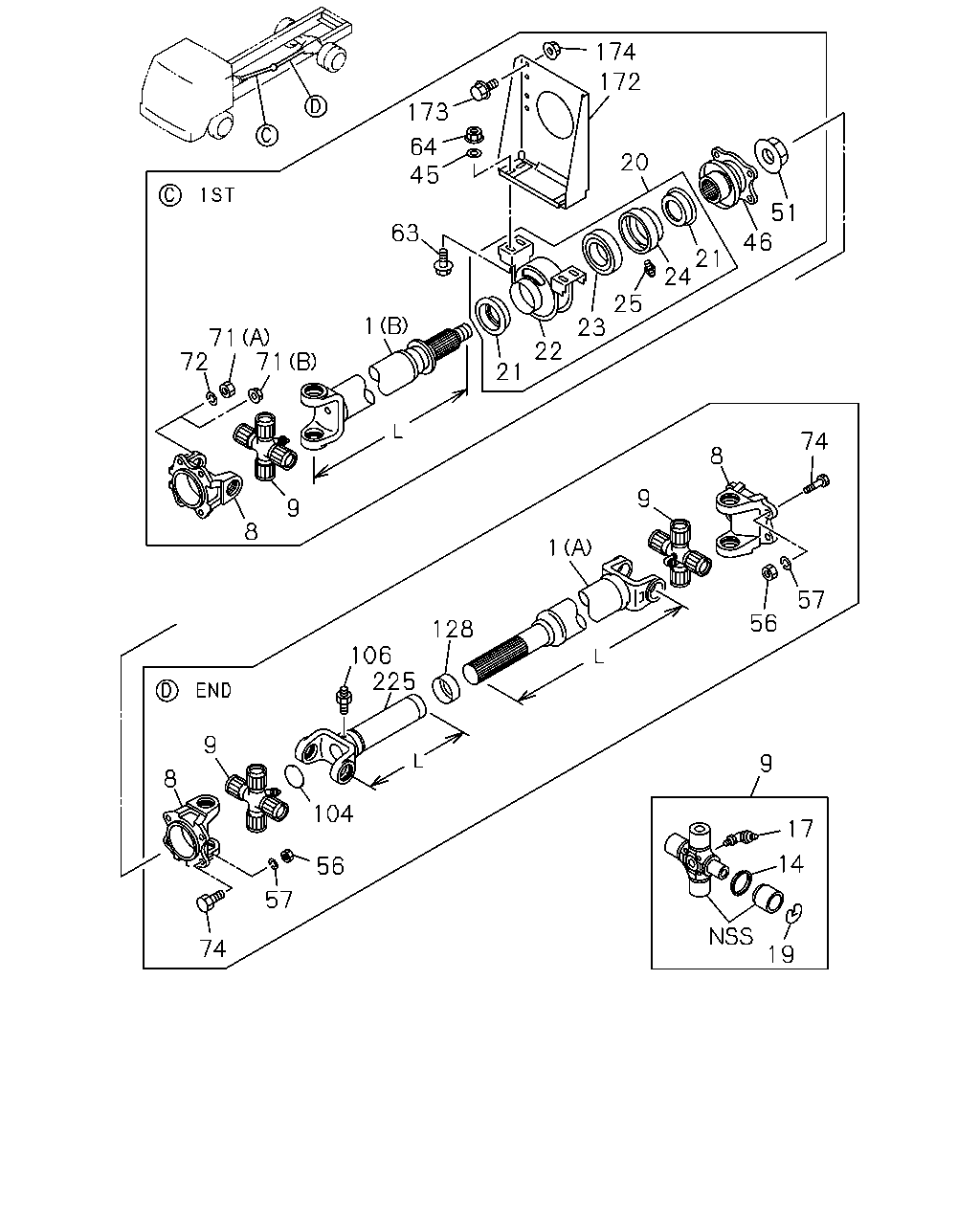

çizim 148840
174 172 173 64 45 20 51 46 63 21 24 25 23 1 71 72 71 22 21 74 8 9 9 8 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=721 		8-98069-696-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 0809-1011 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=759 		8-98069-568-0 01 1 1012- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) PARKING BRAKE DRUM 10"(B1T) (B) L=749 		8-98119-422-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=649 		8-98069-608-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=649 		8-98069-608-0 01 1 0907-1011 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=649 		8-98069-608-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) L=639 		8-98090-946-0 01 1 1012- ●
1 SHAFT; PROP
(A) L=1116 		8-98069-665-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=949 		8-98110-584-0 01 1 0809-1011 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=949 		8-98110-584-0 01 1 1012- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) PARKING BRAKE DRUM 10"(B1T) (B) L=934 		1-37152-984-0 01 1 1012-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) PARKING BRAKE DRUM 10"(B1T) (B) L=934 		8-98069-595-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=839 		8-98069-569-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 0907-1011 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=839 		8-98069-569-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) L=824 		8-98113-451-0 01 1 1012- ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1169 		8-98110-585-0 01 1 0809-1011 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=1169 		8-98110-585-0 01 1 1012- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) PARKING BRAKE DRUM 10"(B1T) (B) L=1154 		8-98119-423-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1059 		8-98069-580-0 01 1 0907-1011 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=1059 		8-98069-580-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) L=1044 		8-98113-450-0 01 1 1012- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-056-3 02 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-056-3 01 1 0809-1011 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37211-056-3 01 1 1012- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37211-054-1 01 1 1012-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98178-052-0 01 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 0809- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 01 1 0809-1011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98048-925-1 01 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37300-102-1 AR 1 1012-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98048-925-1 AR 1 1112- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0809- ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 0809-1011 ● ● ●
14 COVER; DUST,SPIDER
EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98020-800-0 04 1 1012-1111 ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37319-012-0 04 1 1012-1111 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
END PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 0809-1011 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-881-0 01 1 1012-1111 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		1-37510-105-0 01 1 1012-1111 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0809- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0809- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0809- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 0809-1011 ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-882-0 01 1 1012-1111 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST
PARKING BRAKE DRUM 10"(B1T) 		1-37529-068-0 01 1 1012-1111 ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 0809-1011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-889-0 01 1 1012- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
PARKING BRAKE DRUM 10"(B1T) MT6 STRAIGHT 		1-09380-006-0 01 1 1012- ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0809- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 0809-1011 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-815-0 01 1 1012-1111 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) 		1-37245-071-0 01 1 1012-1111 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0809- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0809- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0809- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0809- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0809- ● ● ●
71 NUT; YOKE
(A) M14 		0-91110-514-0 04 1 0809-1011 ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) (A) M14 		0-91110-514-0 04 1 1012- ● ● ●
71 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) (B) M16 FLANGE 		1-09449-065-0 04 1 1012- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0809-1011 ● ● ●
72 WASHER; LK,YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) ID=14.2 		0-91510-614-0 04 1 1012- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0809- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0809- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0809- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0809- ● ● ●
172 BRACKET; CENTER BRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98044-077-0 01 1 1012- ●
172 BRACKET; CENTER BRG 8-98044-076-0 01 1 0809-1011 ●
172 BRACKET; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98044-076-0 01 1 1012- ●
172 BRACKET; CENTER BRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98044-076-0 01 1 1012- ●
172 BRACKET; CENTER BRG 1-37515-118-0 01 1 0809-1011 ●
172 BRACKET; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37515-118-0 01 1 1012- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0809- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0809- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0809- ● ● ●

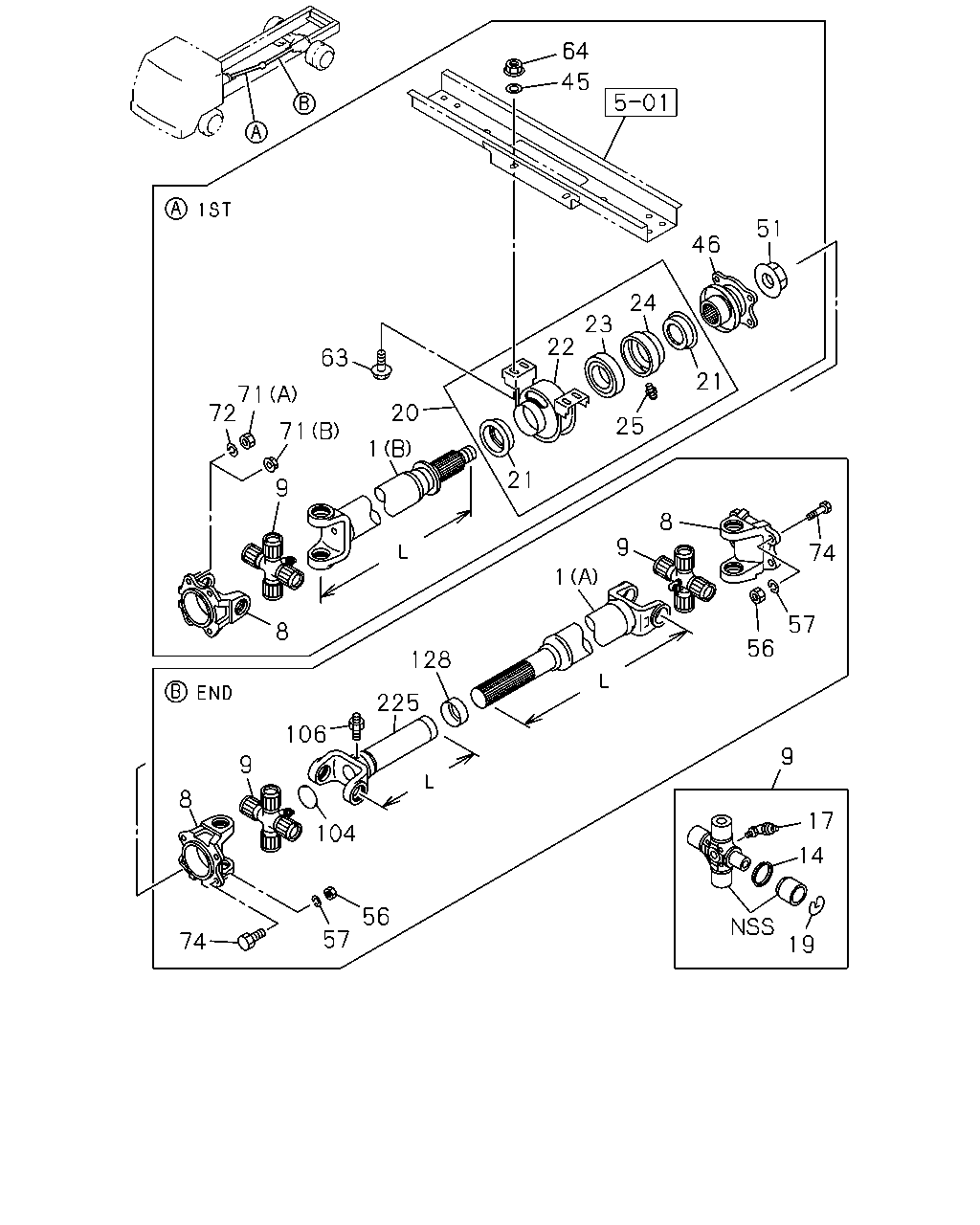

çizim 148842
64 45 1 51 46 24 23 22 63 21 71 72 20 25 71 1 9 21 8 9 74 1 57 8 56 128 225 106 9 9 8 17 104 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=721 		8-98069-696-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 0809-1011 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=759 		8-98069-568-0 01 1 1012- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) PARKING BRAKE DRUM 10"(B1T) (B) L=749 		8-98119-422-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=649 		8-98069-608-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=649 		8-98069-608-0 01 1 0907-1011 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=649 		8-98069-608-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) L=639 		8-98090-946-0 01 1 1012- ●
1 SHAFT; PROP
(A) L=1116 		8-98069-665-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=949 		8-98110-584-0 01 1 0809-1011 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=949 		8-98110-584-0 01 1 1012- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) PARKING BRAKE DRUM 10"(B1T) (B) L=934 		1-37152-984-0 01 1 1012-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) PARKING BRAKE DRUM 10"(B1T) (B) L=934 		8-98069-595-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=839 		8-98069-569-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 0907-1011 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=839 		8-98069-569-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) L=824 		8-98113-451-0 01 1 1012- ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1169 		8-98110-585-0 01 1 0809-1011 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=1169 		8-98110-585-0 01 1 1012- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) PARKING BRAKE DRUM 10"(B1T) (B) L=1154 		8-98119-423-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1059 		8-98069-580-0 01 1 0907-1011 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=1059 		8-98069-580-0 01 1 1012- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) L=1044 		8-98113-450-0 01 1 1012- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-056-3 02 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-056-3 01 1 0809-1011 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37211-056-3 01 1 1012- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37211-054-1 01 1 1012-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98178-052-0 01 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 0809- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 01 1 0809-1011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98048-925-1 01 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37300-102-1 AR 1 1012-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98048-925-1 AR 1 1112- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0809- ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 0809-1011 ● ● ●
14 COVER; DUST,SPIDER
EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98020-800-0 04 1 1012-1111 ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37319-012-0 04 1 1012-1111 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
END PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 0809-1011 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-881-0 01 1 1012-1111 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		1-37510-105-0 01 1 1012-1111 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0809- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0809- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0809- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 0809-1011 ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-882-0 01 1 1012-1111 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST
PARKING BRAKE DRUM 10"(B1T) 		1-37529-068-0 01 1 1012-1111 ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 0809-1011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-889-0 01 1 1012- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
PARKING BRAKE DRUM 10"(B1T) MT6 STRAIGHT 		1-09380-006-0 01 1 1012- ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0809- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 0809-1011 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-815-0 01 1 1012-1111 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) 		1-37245-071-0 01 1 1012-1111 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0809- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0809- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0809- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0809- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0809- ● ● ●
71 NUT; YOKE
(A) M14 		0-91110-514-0 04 1 0809-1011 ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) (A) M14 		0-91110-514-0 04 1 1012- ● ● ●
71 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) (B) M16 FLANGE 		1-09449-065-0 04 1 1012- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0809-1011 ● ● ●
72 WASHER; LK,YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) ID=14.2 		0-91510-614-0 04 1 1012- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0809- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0809- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0809- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0809- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0809- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
