0-35 — ENGINE CONTROL VALVE AND LEVER (#6071) — 54 parça

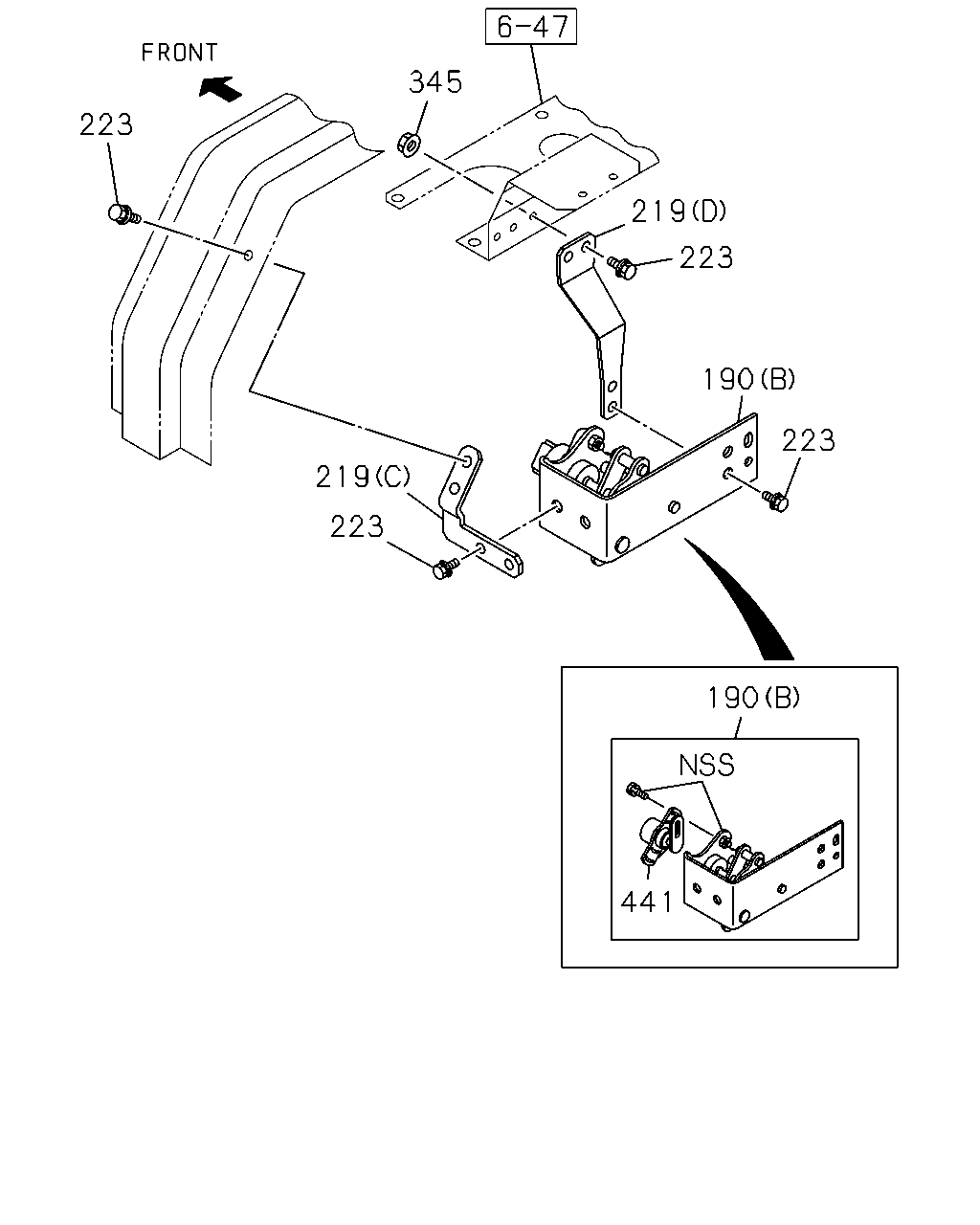

345 223 219 223 190 223 219 223 190 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	9905-0206
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	8-97219-466-4	01	1	0207-
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	9905-9910
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-511-0	01	1	9911-0206
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-580-0	01	1	0207-
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-460-2	01	1	9905-9910
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-512-0	01	1	9911-0206
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-582-0	01	1	0207-
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	07	1	9905-9910
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	08	1	9911-0008
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	06	1	0009-0512
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28650-820-0	06	1	0601-
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE	0-28680-825-0	02	1	0009-0512
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE	0-28650-825-0	02	1	0601-
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	9905-9910
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	02	1	9911-0602
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91180-108-0	02	1	0603-
441	SENSOR; THROTTLE POSITION PTO CONTROL OPERATION CAB BACK<TBZ>	8-97200-308-0	01	1	0207-

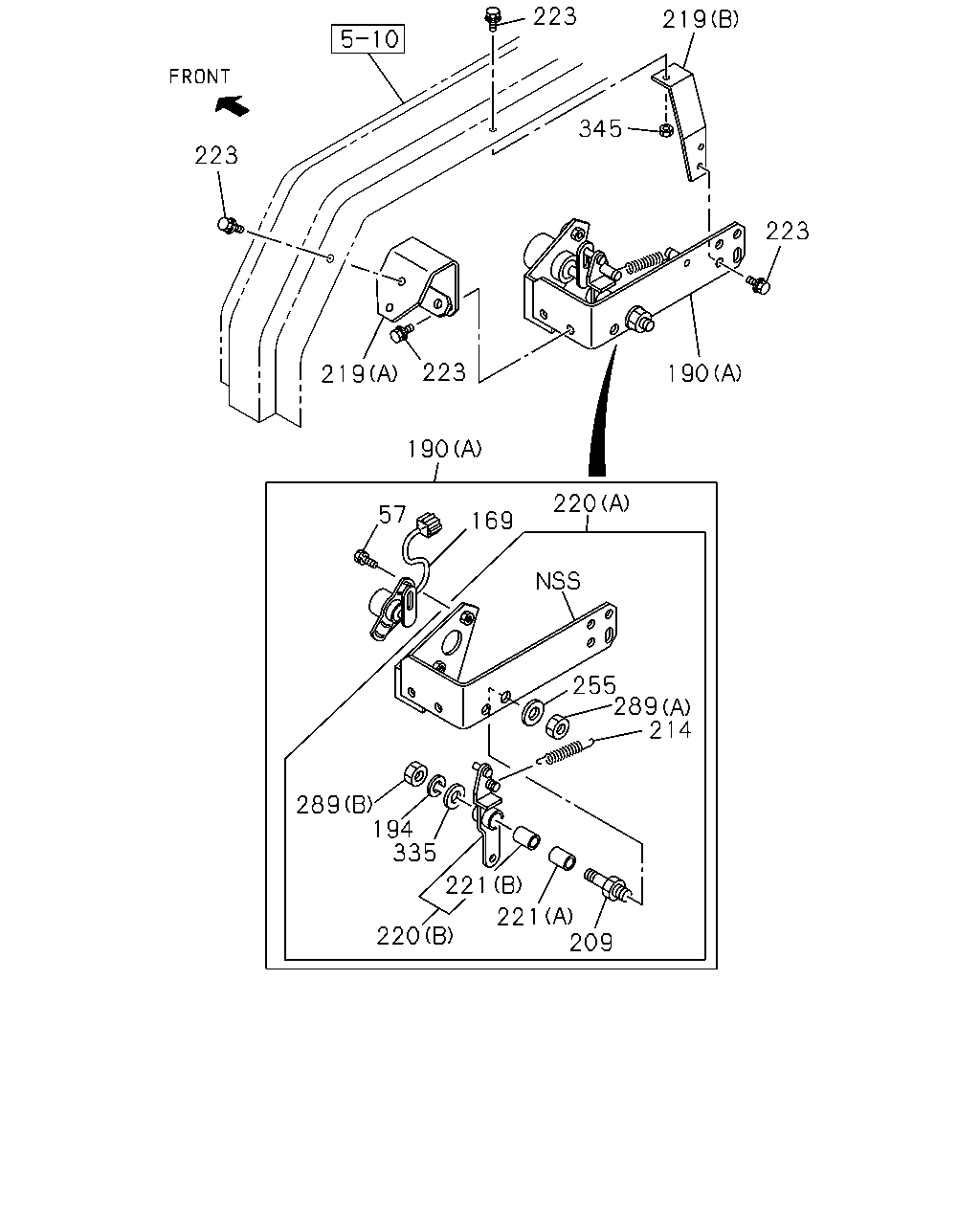

223 219 345 223 223 223 190 219 190 220 57 169 255 214 289 194 335 221 221 209 220 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	BOLT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9905-0206
169	SENSOR PTO CONTROL OPERATION CAB BACK<TBZ>	1-81534-010-0	01	1	9905-0206
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-504-0	01	1	9905-0206
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	8-97219-466-4	01	1	0207-
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	9-09150-508-0	01	1	9905-0206
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ>	1-14336-002-1	01	1	9905-0206
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	9905-0206
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	9905-9910
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-511-0	01	1	9911-0206
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23335-580-0	01	1	0207-
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-460-2	01	1	9905-9910
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-512-0	01	1	9911-0206
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-582-0	01	1	0207-
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23311-357-0	01	1	9905-0206
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-505-0	01	1	9905-0206
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-09330-057-0	01	1	9905-0206
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-09330-058-0	01	1	9905-0206
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	07	1	9905-9910
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	08	1	9911-0008
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	06	1	0009-0512
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28650-820-0	06	1	0601-
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE	0-28680-825-0	02	1	0009-0512
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE	0-28650-825-0	02	1	0601-
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	9-09150-510-0	01	1	9905-0206
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	9-09110-410-0	01	1	9905-0206
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	9-09111-408-0	01	1	9905-0206
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ>	5-09503-135-0	01	1	9905-0206
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	9905-9910
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	02	1	9911-0602
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91180-108-0	02	1	0603-

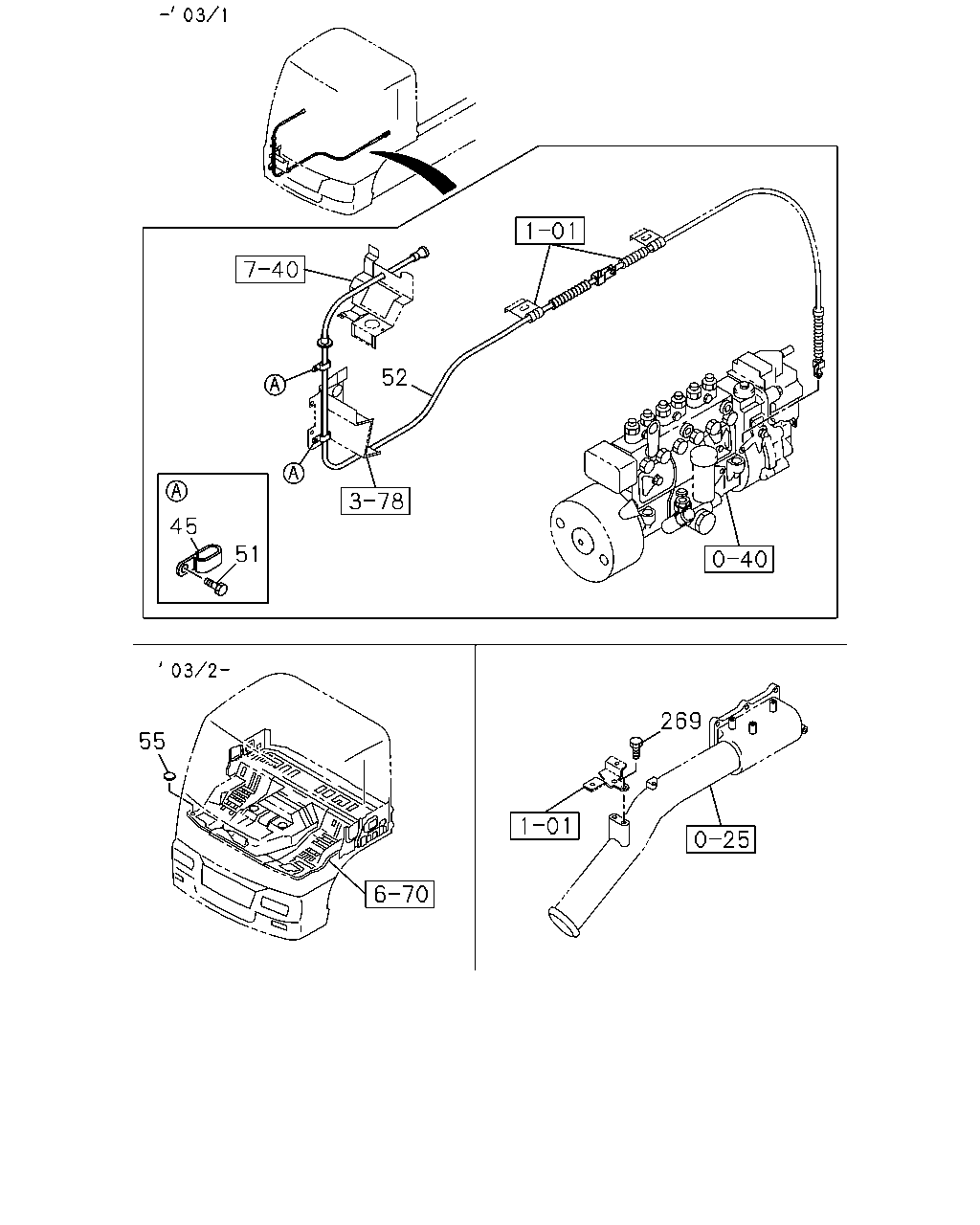

52 45 51 269 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	CLIP; FUEL CUT CABLE ID=11 L=20	9-09525-035-0	02	1	9905-0301
51	BOLT; CLIP,FUEL CUT CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-0301
52	CABLE; FUEL CUT L=3334	1-73907-534-0	01	1	9905-0301
55	GROMMET; FUEL CUT CABLE OD=30	8-94107-655-0	01	1	0302-
269	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0302-0512
269	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-
