◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#60708) — 81 parça

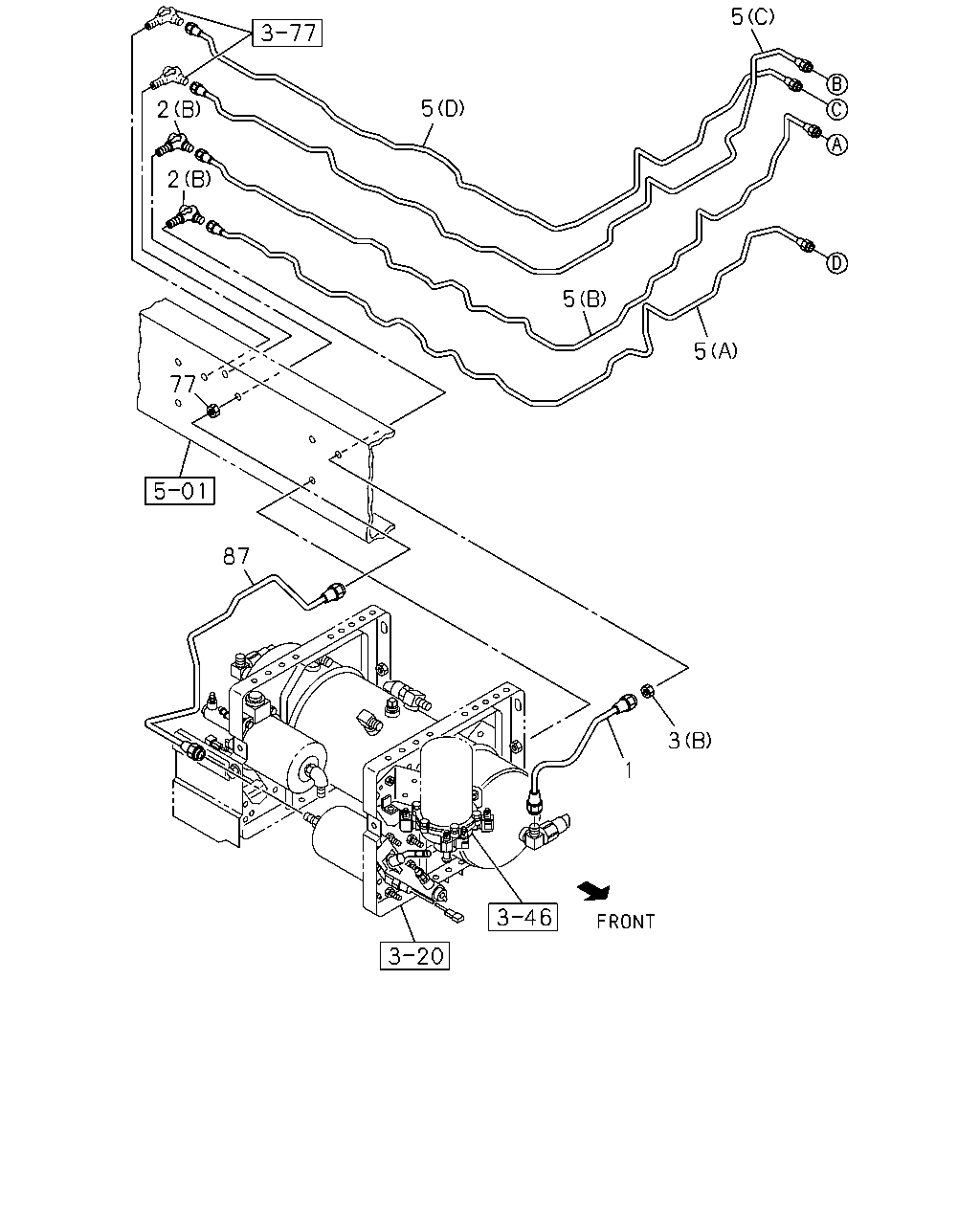

çizim 148831
5 5 2 2 5 5 77 87 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=1026 SERVICED BY L=1100 		1-47428-875-0 01 1 0809-1011
1 PIPE; AIR,AIR TANK TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1026 SERVICED BY L=1100 		1-47428-875-0 01 1 1012-
1 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=290 		8-98044-172-0 01 1 1012-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0809-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0809-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0809-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-
5 PIPE; AIR,UNION TO UNION
(B) L=3298 SERVICED BY L=3300 		1-47428-886-0 01 1 0809-0810
5 PIPE; AIR,UNION TO UNION
(B) L=3307 SERVICED BY L=3500 		1-47428-887-0 01 1 0811-1011
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3489 SERVICED BY L=3500 		1-47428-887-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
(A) L=3154 SERVICED BY L=3300 		1-47428-886-0 01 1 0809-1011
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3051 SERVICED BY L=3300 		1-47428-886-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
(C) L=3440 		8-98125-934-1 01 1 0809-1011
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3440 		8-98125-934-1 01 1 1012-
5 PIPE; AIR,UNION TO UNION
(D) L=3528 		8-98125-936-0 01 1 0809-0810
5 PIPE; AIR,UNION TO UNION
(D) L=3537 		8-98135-202-0 01 1 0811-1011
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3537 		8-98135-202-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3493 SERVICED BY L=3500 		1-47428-887-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3352 		8-98165-233-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3154 SERVICED BY L=3300 		1-47428-886-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3307 SERVICED BY L=3500 		1-47428-887-0 01 1 1012-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0809-
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=668 SERVICED BY L=700 		1-47428-870-0 01 1 0809-0812
87 PIPE; AIR,UNION TO AIR MASTER
L=668 SERVICED BY L=700 		1-47428-870-0 01 1 0901-1011
87 PIPE; AIR,UNION TO AIR MASTER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=668 SERVICED BY L=700 		1-47428-870-0 01 1 1012-
87 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900 		1-47428-873-0 01 1 1012-

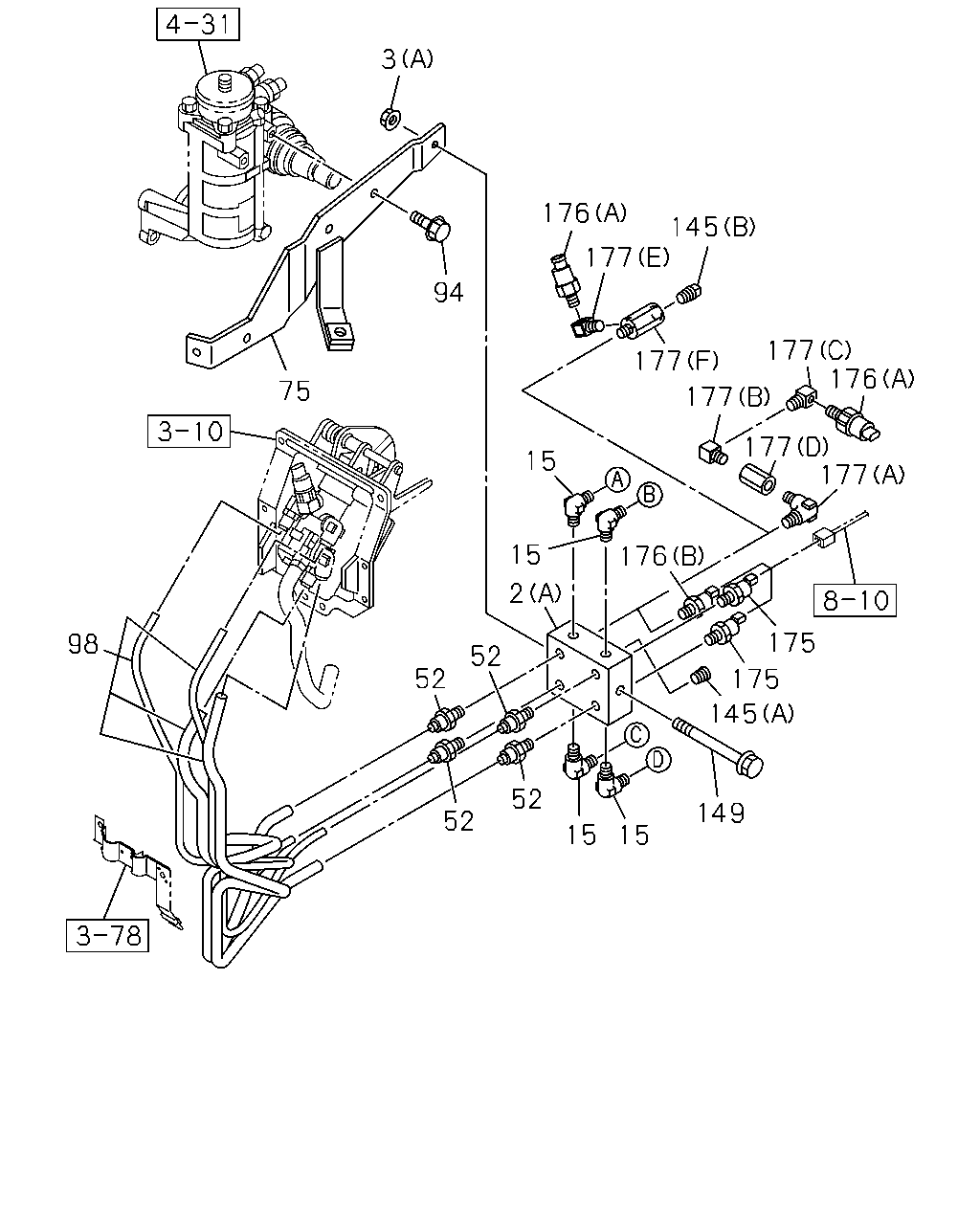

çizim 148834
3 176 145 177 94 177 176 177 75 177 177 177 15 15 176 2 175 98 52 52 175 145 52 149 52 15 15
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0809-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0809-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0809-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0809-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0809-
75 BRACKET; UNION 8-98124-802-0 01 1 0809-
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0809-0901
94 BOLT; BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0902-0902
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0902-0911
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0912-
98 TUBE; NYLON 8-98123-961-0 01 1 0809-
145 PLUG
(A) PT1/4 		9-99204-513-0 01 1 0809-
145 PLUG
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/2 		9-09204-521-0 01 1 1012-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0809-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0809-
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7 		8-97622-710-0 01 1 0809-0812
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) STAMP 0.7 		8-97622-710-0 01 1 1012-
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> (B) STAMP 0.3 		8-98010-857-0 01 1 0809-0812
176 SWITCH; AIR PRESS
(B) STAMP 0.3 		8-98010-857-0 01 1 0901-1011
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> (B) STAMP 0.3 		8-98010-857-0 01 1 1012-
177 CONNECTOR
H.S.A SYSTEM<6EP> (A) 		1-09650-433-0 01 1 0809-0812
177 CONNECTOR
H.S.A SYSTEM<6EP> (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-0812
177 CONNECTOR
H.S.A SYSTEM<6EP> (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0809-0812
177 CONNECTOR
H.S.A SYSTEM<6EP> (D) 		1-09660-881-0 01 1 0809-0812
177 CONNECTOR
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) PT1/4 2WAY 		1-09660-693-0 01 1 1012-
177 CONNECTOR
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-98134-010-0 01 1 1012-

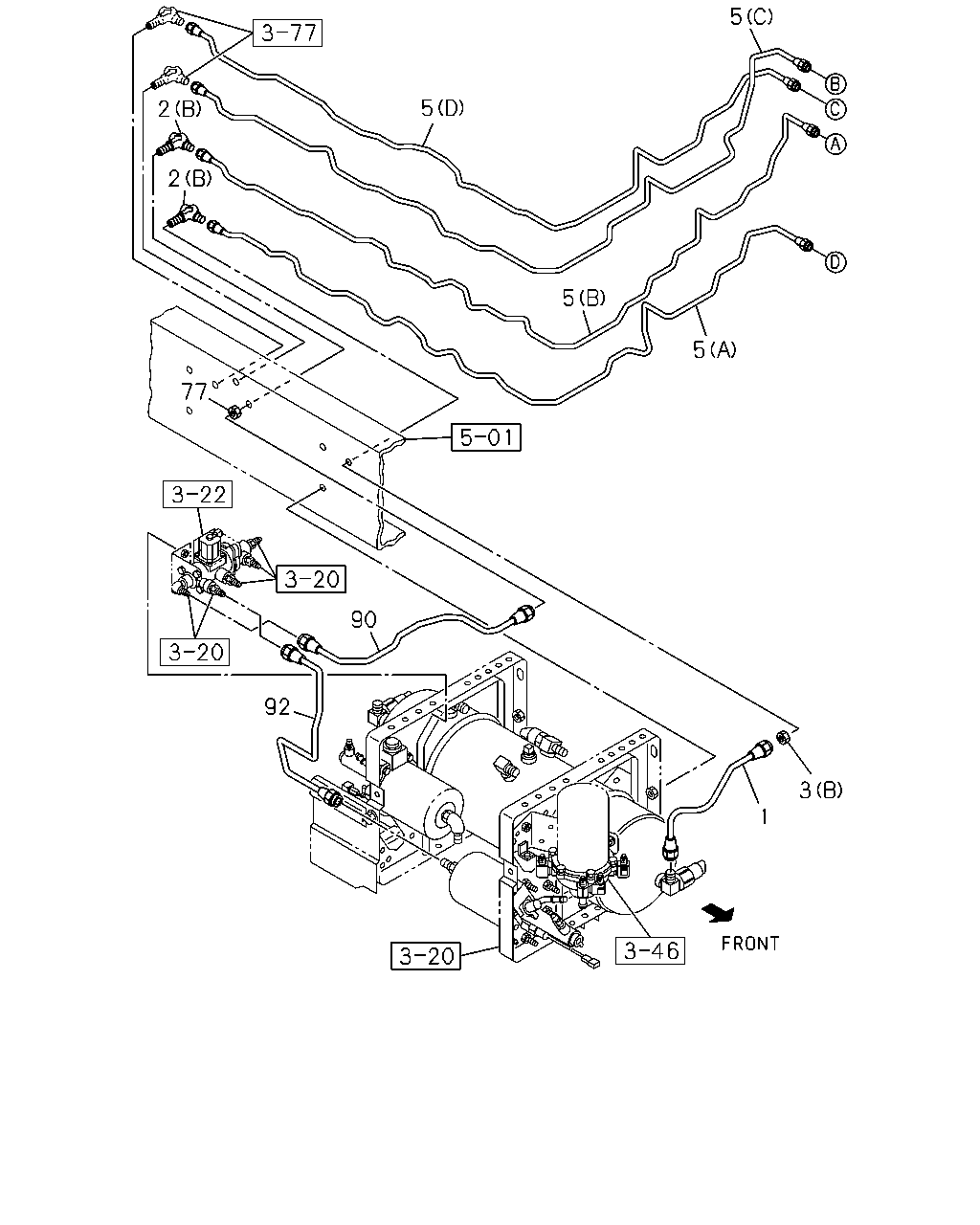

çizim 148864
5 5 2 2 5 5 77 90 92 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=1026 SERVICED BY L=1100 		1-47428-875-0 01 1 0809-1011
1 PIPE; AIR,AIR TANK TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1026 SERVICED BY L=1100 		1-47428-875-0 01 1 1012-
1 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=290 		8-98044-172-0 01 1 1012-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0809-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0809-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0809-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-
5 PIPE; AIR,UNION TO UNION
(B) L=3298 SERVICED BY L=3300 		1-47428-886-0 01 1 0809-0810
5 PIPE; AIR,UNION TO UNION
(B) L=3307 SERVICED BY L=3500 		1-47428-887-0 01 1 0811-1011
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3489 SERVICED BY L=3500 		1-47428-887-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
(A) L=3154 SERVICED BY L=3300 		1-47428-886-0 01 1 0809-1011
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3051 SERVICED BY L=3300 		1-47428-886-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
(C) L=3440 		8-98125-934-1 01 1 0809-1011
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3440 		8-98125-934-1 01 1 1012-
5 PIPE; AIR,UNION TO UNION
(D) L=3528 		8-98125-936-0 01 1 0809-0810
5 PIPE; AIR,UNION TO UNION
(D) L=3537 		8-98135-202-0 01 1 0811-1011
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3537 		8-98135-202-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3493 SERVICED BY L=3500 		1-47428-887-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3352 		8-98165-233-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3154 SERVICED BY L=3300 		1-47428-886-0 01 1 1012-
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3307 SERVICED BY L=3500 		1-47428-887-0 01 1 1012-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0809-
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=511 SERVICED BY L=550 		1-47428-867-0 01 1 0809-0812
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=493 		8-98077-878-0 01 1 1012-
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=511 SERVICED BY L=550 		1-47428-867-0 01 1 1012-
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=568 SERVICED BY L=600 		1-47428-868-0 01 1 0809-0812
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=532 SERVICED BY L=550 		1-47428-867-0 01 1 1012-
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=568 SERVICED BY L=600 		1-47428-868-0 01 1 1012-
