Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#60707) — 334 parça

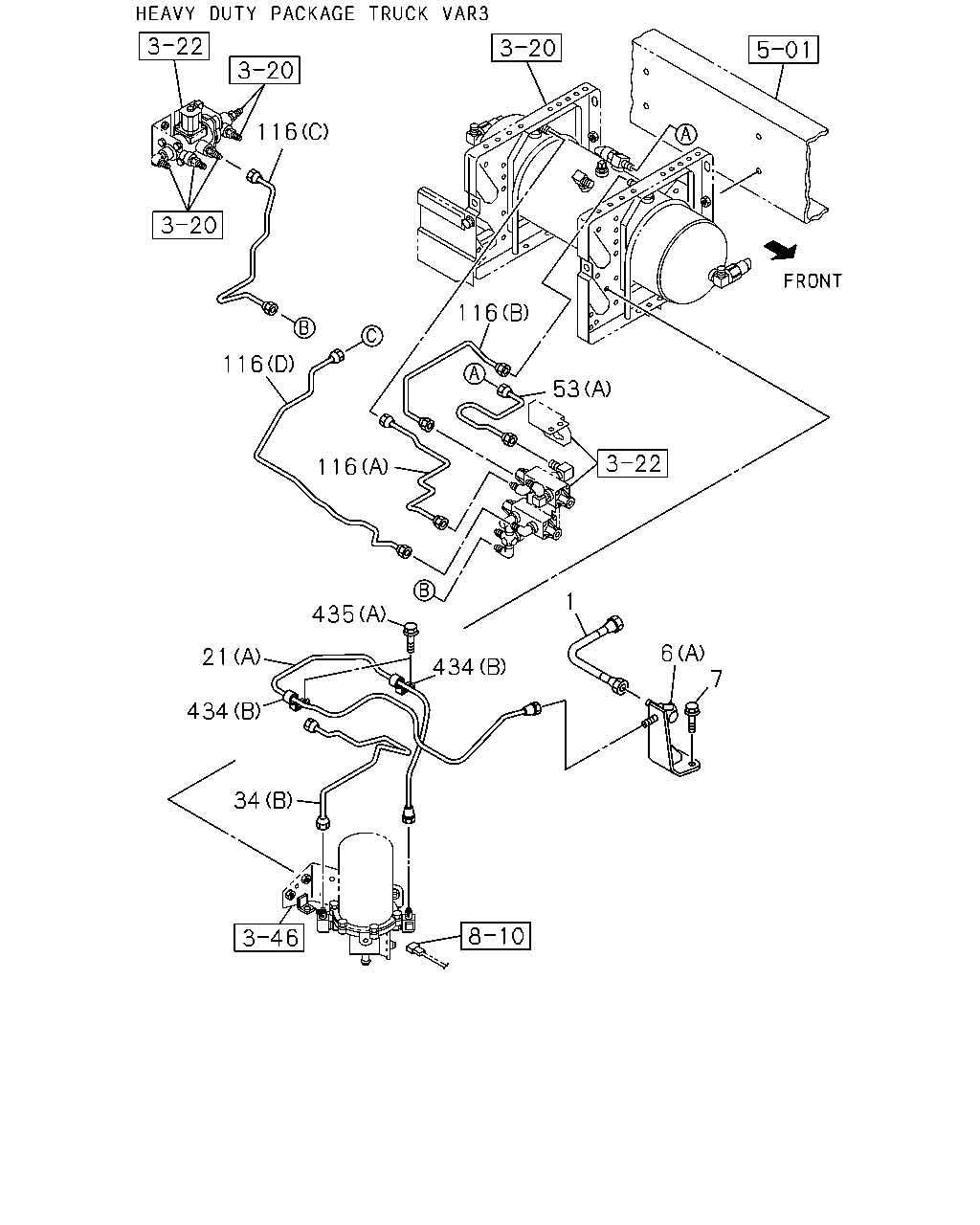

116 116 53 116 1 435 6 7 21 434 434 34 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1011
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	1012-1107
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1108-
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98120-436-0	01	1	0809-0903
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98133-392-0	01	1	0904-1011
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98133-392-0	01	1	1012-1107
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK EURO3 SPECIFICATION<NT3> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98079-987-1	01	1	1012-1107
6	BRACKET; FLEX HOSE,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1108-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=397	8-98111-639-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1025	8-98111-640-1	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1108-
34	PIPE; AIR AIR DRYER<PS7> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	0809-1011
34	PIPE; AIR AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	1012-1107
34	PIPE; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1012-1107
34	PIPE; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1012-1107
34	PIPE; AIR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1108-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1012-1107
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98131-454-0	01	1	0809-0810
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98133-846-0	01	1	0811-1011
53	PIPE; AIR,AIR TANK TO VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-846-0	01	1	1012-
53	PIPE; AIR,AIR TANK TO VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98061-086-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV (F)	8-98120-149-0	01	1	0809-1011
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98120-149-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV (G) L=402	8-98120-150-0	01	1	0809-1011
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) L=402	8-98120-150-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> (H) L=945 SERVICED BY L=1000	1-47428-814-0	01	1	0809-0812
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> (E)	8-98120-159-0	01	1	0809-0810
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) L=945 SERVICED BY L=1000	1-47428-814-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV EXC. H.S.A SYSTEM<6EP> (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	0809-0810
116	PIPE; AIR,PROTECTION VLV (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	0811-1011
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382	8-98077-880-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1012-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0809-0811
434	CLIP EXC. AIR DRYER<PS7> (D) ID=10 & 15	1-09709-279-1	01	1	0809-1011
434	CLIP EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1012-1107
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1108-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. RIGID SEAT WO/ARM REST<TAZ> (E) ID=24 L=24	1-09701-001-1	01	1	1012-1107
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	0809-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0809-1011
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1012-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1012-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1012-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1009-1011
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	1012-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	1012-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1110-
435	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
435	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
435	BOLT; CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE	0-28650-820-0	01	1	0809-

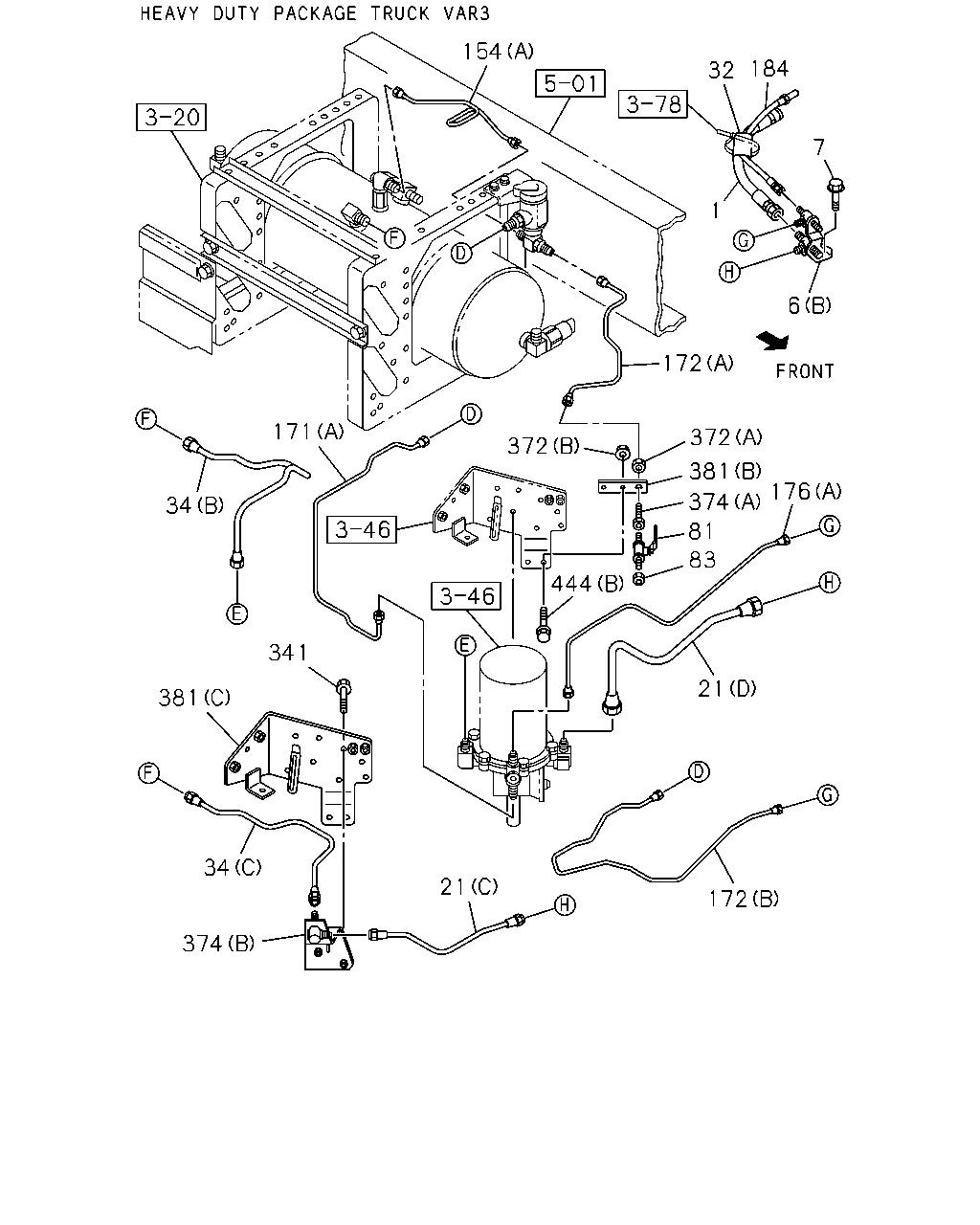

116 172 116 184 32 171 7 1 116 116 6 21 176 154 34 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1011
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	1012-1107
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1108-
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98120-436-0	01	1	0809-0903
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98133-392-0	01	1	0904-1011
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98133-392-0	01	1	1012-1107
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK EURO3 SPECIFICATION<NT3> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98079-987-1	01	1	1012-1107
6	BRACKET; FLEX HOSE,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1108-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=397	8-98111-639-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1025	8-98111-640-1	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1108-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1011
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	1012-1107
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1108-
34	PIPE; AIR AIR DRYER<PS7> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	0809-1011
34	PIPE; AIR AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	1012-1107
34	PIPE; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1012-1107
34	PIPE; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1012-1107
34	PIPE; AIR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1108-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1012-1107
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98131-454-0	01	1	0809-0810
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98133-846-0	01	1	0811-1011
53	PIPE; AIR,AIR TANK TO VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-846-0	01	1	1012-
53	PIPE; AIR,AIR TANK TO VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98061-086-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV (F)	8-98120-149-0	01	1	0809-1011
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98120-149-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV (G) L=402	8-98120-150-0	01	1	0809-1011
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) L=402	8-98120-150-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> (H) L=945 SERVICED BY L=1000	1-47428-814-0	01	1	0809-0812
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> (E)	8-98120-159-0	01	1	0809-0810
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) L=945 SERVICED BY L=1000	1-47428-814-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV EXC. H.S.A SYSTEM<6EP> (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	0809-0810
116	PIPE; AIR,PROTECTION VLV (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	0811-1011
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382	8-98077-880-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	1012-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1012-
154	PIPE; AIR,AIR TANK TO AIR GOV (B)	8-98131-453-0	01	1	0809-1011
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	1012-1107
154	PIPE; AIR,AIR TANK TO AIR GOV TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	1108-
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1012-1107
154	PIPE; AIR,AIR TANK TO AIR GOV TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	0809-1011
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	1012-1107
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1012-1107
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	1012-1107
171	PIPE; AIR,GOV TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7> (C)	8-98130-857-0	01	1	0809-1011
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	0809-1011
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	1012-1107
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1012-1107
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	1012-1107
176	PIPE; AIR,AIR DRYER TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	1108-
184	HOSE; FLEX,AIR GOV L=340	1-09363-622-0	01	1	0809-1011
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=340	1-09363-622-0	01	1	1012-1107
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=340	1-09363-622-0	01	1	1108-

154 184 32 7 1 6 172 171 372 372 381 176 374 34 81 83 444 341 21 381 34 21 172 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1011
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	1012-1107
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1108-
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98120-436-0	01	1	0809-0903
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98133-392-0	01	1	0904-1011
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98133-392-0	01	1	1012-1107
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK EURO3 SPECIFICATION<NT3> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98079-987-1	01	1	1012-1107
6	BRACKET; FLEX HOSE,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1108-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=397	8-98111-639-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1025	8-98111-640-1	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1012-1107
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1108-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1011
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	1012-1107
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1108-
34	PIPE; AIR AIR DRYER<PS7> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	0809-1011
34	PIPE; AIR AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	1012-1107
34	PIPE; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1012-1107
34	PIPE; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1012-1107
34	PIPE; AIR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1108-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1012-1107
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
81	COCK; AIR EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	1012-1107
81	COCK; AIR TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	1108-
83	CAP; AIR COCK EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	1012-1107
83	CAP; AIR COCK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	1108-
154	PIPE; AIR,AIR TANK TO AIR GOV (B)	8-98131-453-0	01	1	0809-1011
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	1012-1107
154	PIPE; AIR,AIR TANK TO AIR GOV TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	1108-
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1012-1107
154	PIPE; AIR,AIR TANK TO AIR GOV TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	0809-1011
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	1012-1107
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1012-1107
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	1012-1107
171	PIPE; AIR,GOV TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7> (C)	8-98130-857-0	01	1	0809-1011
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	0809-1011
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	1012-1107
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1012-1107
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	1012-1107
176	PIPE; AIR,AIR DRYER TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	1108-
184	HOSE; FLEX,AIR GOV L=340	1-09363-622-0	01	1	0809-1011
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=340	1-09363-622-0	01	1	1012-1107
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=340	1-09363-622-0	01	1	1108-
341	BOLT; BRKT EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	1012-1107
341	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	1108-
372	NUT EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE	0-91180-108-0	02	1	1012-1107
372	NUT TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE	0-91180-108-0	02	1	1108-
372	NUT EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12	9-09840-280-0	01	1	1012-1107
372	NUT TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12	9-09840-280-0	01	1	1108-
374	CONNECTOR EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98135-407-0	01	1	1012-1107
374	CONNECTOR TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98135-407-0	01	1	1108-
374	CONNECTOR EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09654-280-1	01	1	1012-1107
374	CONNECTOR TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09654-280-1	01	1	1108-
381	BRACKET EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1012-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1108-
381	BRACKET EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	1012-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	1108-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98119-700-0	01	1	0809-
444	BOLT; UNION EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	1012-1107
444	BOLT; UNION TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	1108-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-

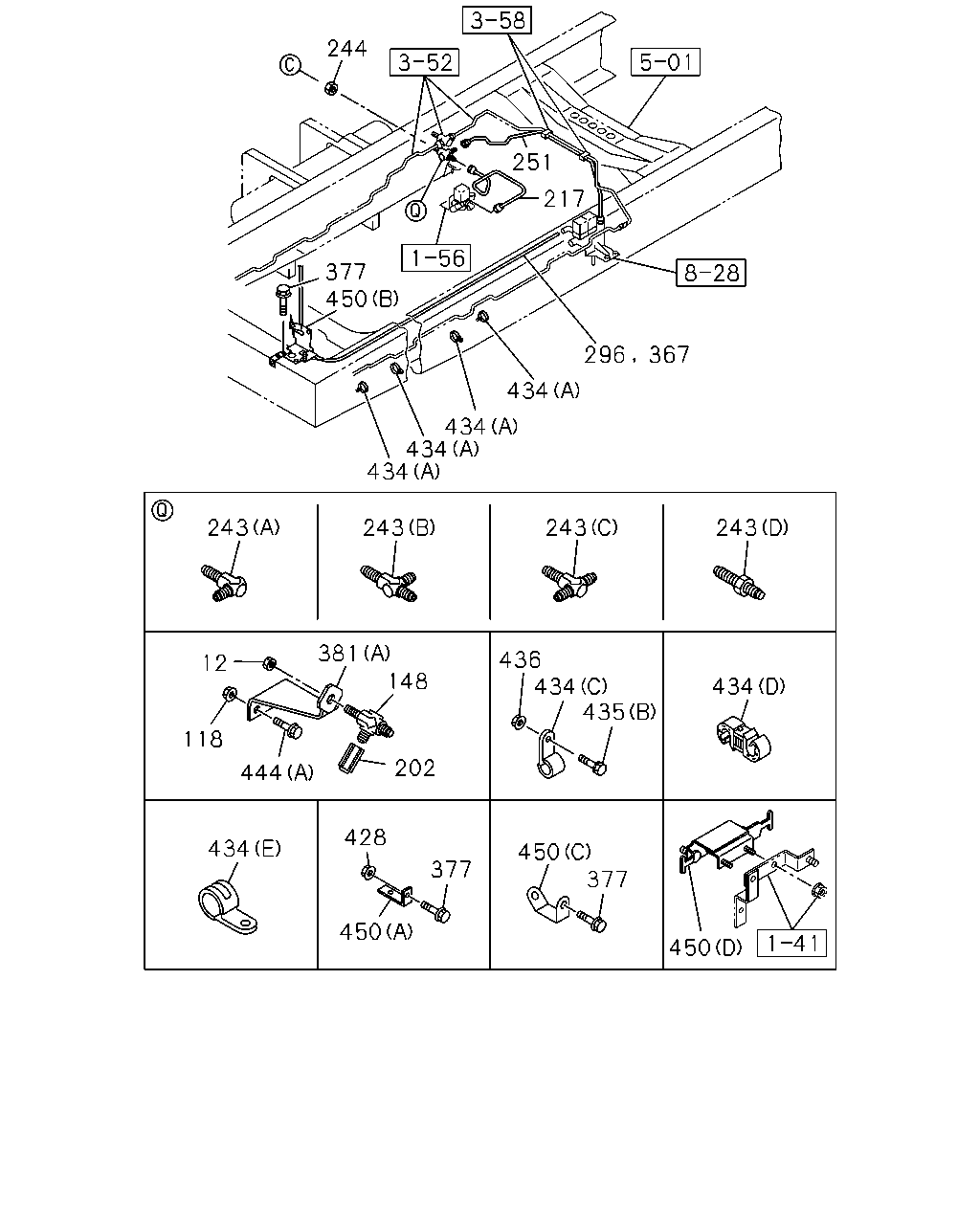

244 251 217 377 450 296 367 434 434 434 434 243 243 243 243 381 436 434 435 12 148 434 118 202 444 428 434 450 377 377 450 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	0809-
118	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE	0-91180-210-0	02	1	0809-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY	1-09654-059-2	01	1	0809-
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-
217	PIPE; VAC,UNION TO MAG VLV SERVICED BY L=600	1-47428-809-0	01	1	0809-1011
217	PIPE; VAC,UNION TO MAG VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SERVICED BY L=600	1-47428-809-0	01	1	1012-
217	PIPE; VAC,UNION TO MAG VLV PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=456	8-98067-434-0	01	1	1012-
217	PIPE; VAC,UNION TO MAG VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=456	8-98067-434-0	01	1	1012-
217	PIPE; VAC,UNION TO MAG VLV RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> L=480	8-98120-257-0	01	1	1012-
243	UNION; AIR PIPE PTO CONTROL<SV6> (C) M12 3WAY	0-92138-606-0	01	1	0809-1011
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) M12 3WAY	0-92138-606-0	01	1	0809-1011
243	UNION; AIR PIPE PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 3WAY	0-92138-606-0	01	1	1012-
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 3WAY	0-92138-606-0	01	1	1012-
243	UNION; AIR PIPE PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1012-
243	UNION; AIR PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY	0-92138-906-0	01	1	1012-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> (D) M12 L=66.5	0-92113-306-0	01	1	1012-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 ELBOW	0-92125-206-0	01	1	0809-1011
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW	0-92125-206-0	01	1	1012-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0809-
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1012-
251	PIPE; AIR,UNION TO MAG VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1012-
251	PIPE; AIR,UNION TO MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=989 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1011
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> L=989 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1011
251	PIPE; AIR,UNION TO MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=989 SERVICED BY L=1000	1-47428-814-0	01	1	1012-
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=989 SERVICED BY L=1000	1-47428-814-0	01	1	1012-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	0809-
377	BOLT; BRKT FIX EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	03	1	0809-1011
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1012-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	03	1	1012-
377	BOLT; BRKT FIX EXC. RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	0809-1011
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1012-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	1012-
381	BRACKET EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1012-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1108-
381	BRACKET EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	1012-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	1108-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98119-700-0	01	1	0809-
428	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0811-
428	NUT; BRKT EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-1011
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1012-
428	NUT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1012-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0809-0811
434	CLIP EXC. AIR DRYER<PS7> (D) ID=10 & 15	1-09709-279-1	01	1	0809-1011
434	CLIP EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1012-1107
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1108-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. RIGID SEAT WO/ARM REST<TAZ> (E) ID=24 L=24	1-09701-001-1	01	1	1012-1107
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	0809-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0809-1011
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1012-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1012-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1012-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1009-1011
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	1012-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	1012-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1110-
435	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
435	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
435	BOLT; CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
444	BOLT; UNION EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	1012-1107
444	BOLT; UNION TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	1108-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-
450	BRACKET; CLIP (D)	8-98077-895-1	01	1	0811-
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	1-47477-694-0	01	1	0809-1011
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	1012-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A)	1-47477-694-0	01	1	1012-
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0809-1011
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1012-1107
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	1012-1107
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98180-947-0	01	1	1108-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98180-947-0	01	1	1108-
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	0809-1011
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	1012-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
