3-55 — BRAKE PIPING; OIL,REAR (#60705) — 104 parça

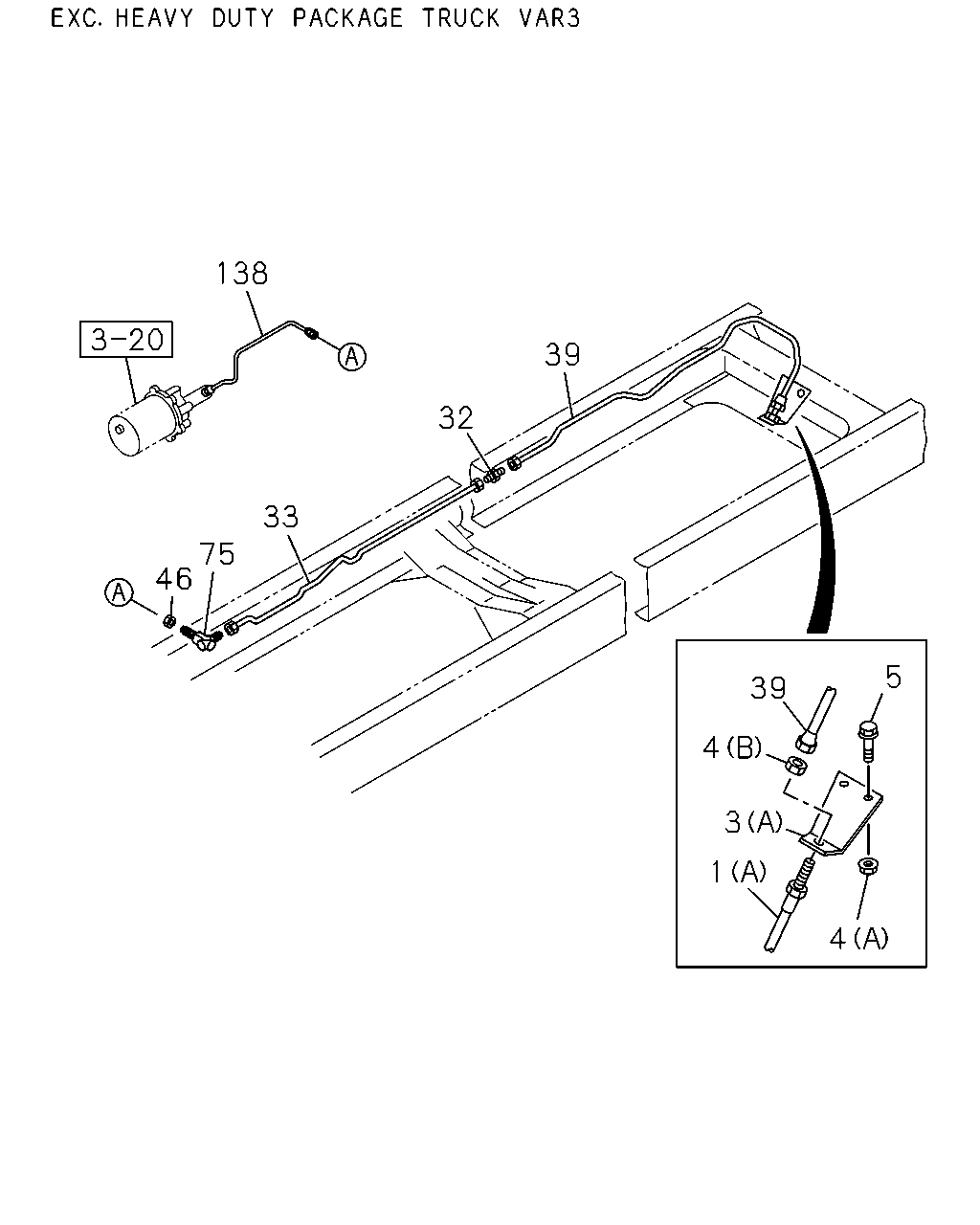

çizim 148814
138 39 32 33 75 46 5 39 4 3 1 4
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
(A) L=730 		0-05213-730-0 01 1 0809-1011
1 HOSE; FLEX,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730 		0-05213-730-0 01 1 1012-
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=485 		8-98057-386-1 01 1 1012-
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98119-699-1 01 1 0809-1011
3 BRACKET; FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98119-699-1 01 1 1012-
3 BRACKET; FLEX HOSE,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98065-999-2 01 1 1012-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M12 		9-09840-280-0 01 1 0809-1011
4 NUT; BRKT,FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 		9-09840-280-0 01 1 1012-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0809-
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 0809-1011
32 UNION; OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40 		0-92113-006-0 01 1 1012-
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0809-0809
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0810-1011
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900 		1-47428-729-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099 		8-98123-538-0 01 1 1012-1109
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099 		8-98123-538-0 01 1 1110-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0809-0809
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0810-1011
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622 		8-98069-807-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0809-0809
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0810-1011
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124 		8-98076-347-0 01 1 1012-
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1710 		8-98106-485-0 01 1 1012-
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 0809-1011
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 1012-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0809-1011
46 NUT; UNION,OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 		9-09840-280-0 01 1 1012-
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 01 1 1012-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 0809-1011
75 UNION; OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW 		0-92125-206-0 01 1 1012-
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 01 1 1012-
138 PIPE; HYDRAULIC UNIT
L=420 		8-98120-163-0 01 1 0809-1011
138 PIPE; HYDRAULIC UNIT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=420 		8-98120-163-0 01 1 1012-
138 PIPE; HYDRAULIC UNIT
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=497 		8-98108-125-0 01 1 1012-

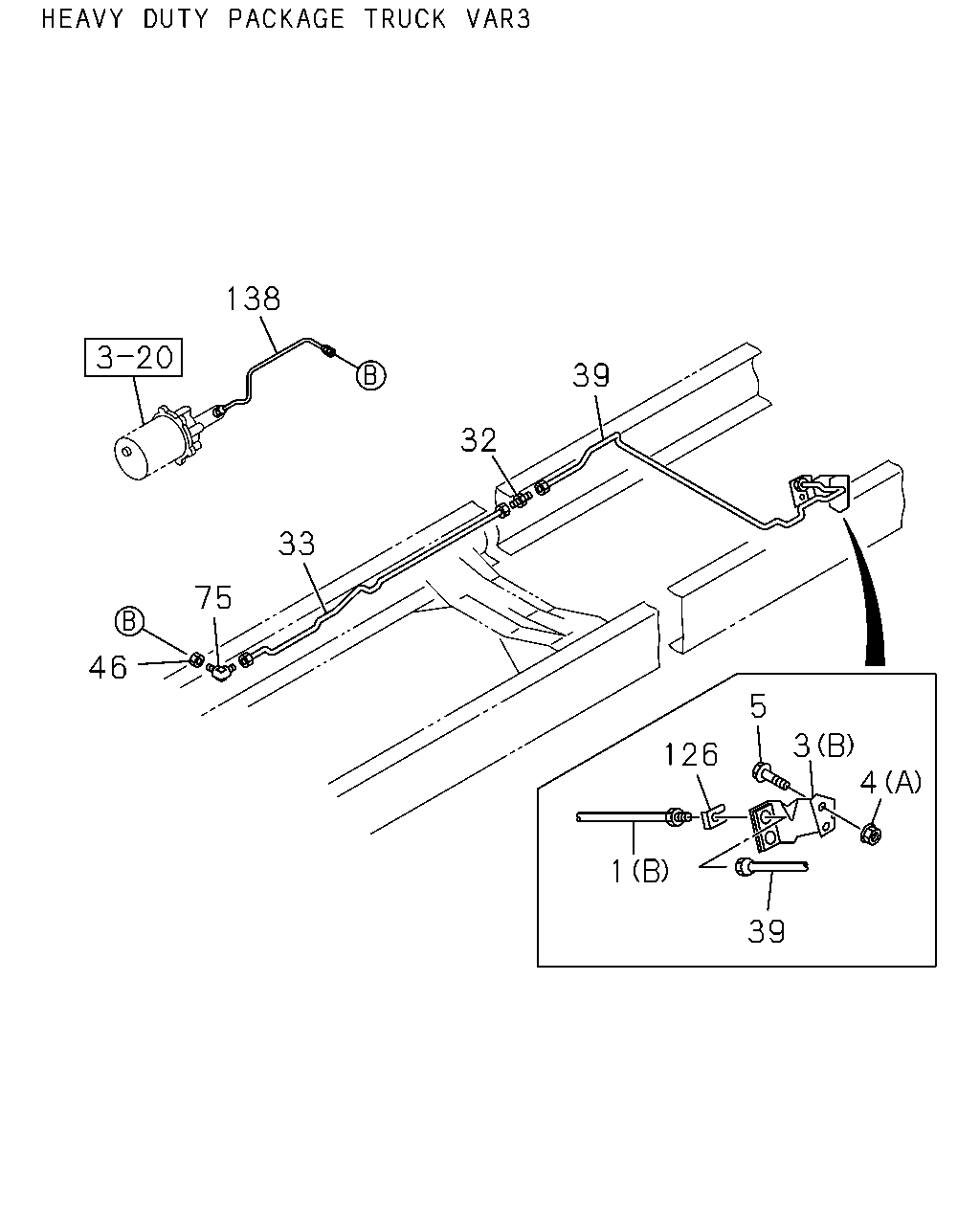

çizim 148822
138 39 32 33 75 46 5 3 4 126 1 39
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
(A) L=730 		0-05213-730-0 01 1 0809-1011
1 HOSE; FLEX,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730 		0-05213-730-0 01 1 1012-
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=485 		8-98057-386-1 01 1 1012-
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98119-699-1 01 1 0809-1011
3 BRACKET; FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98119-699-1 01 1 1012-
3 BRACKET; FLEX HOSE,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98065-999-2 01 1 1012-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M12 		9-09840-280-0 01 1 0809-1011
4 NUT; BRKT,FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 		9-09840-280-0 01 1 1012-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0809-
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 0809-1011
32 UNION; OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40 		0-92113-006-0 01 1 1012-
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0809-0809
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0810-1011
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900 		1-47428-729-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099 		8-98123-538-0 01 1 1012-1109
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099 		8-98123-538-0 01 1 1110-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0809-0809
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0810-1011
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622 		8-98069-807-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0809-0809
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0810-1011
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 1012-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124 		8-98076-347-0 01 1 1012-
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1710 		8-98106-485-0 01 1 1012-
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 0809-1011
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 1012-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0809-1011
46 NUT; UNION,OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 		9-09840-280-0 01 1 1012-
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 01 1 1012-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 0809-1011
75 UNION; OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW 		0-92125-206-0 01 1 1012-
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 01 1 1012-
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97360-054-0 01 1 1012-
138 PIPE; HYDRAULIC UNIT
L=420 		8-98120-163-0 01 1 0809-1011
138 PIPE; HYDRAULIC UNIT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=420 		8-98120-163-0 01 1 1012-
138 PIPE; HYDRAULIC UNIT
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=497 		8-98108-125-0 01 1 1012-

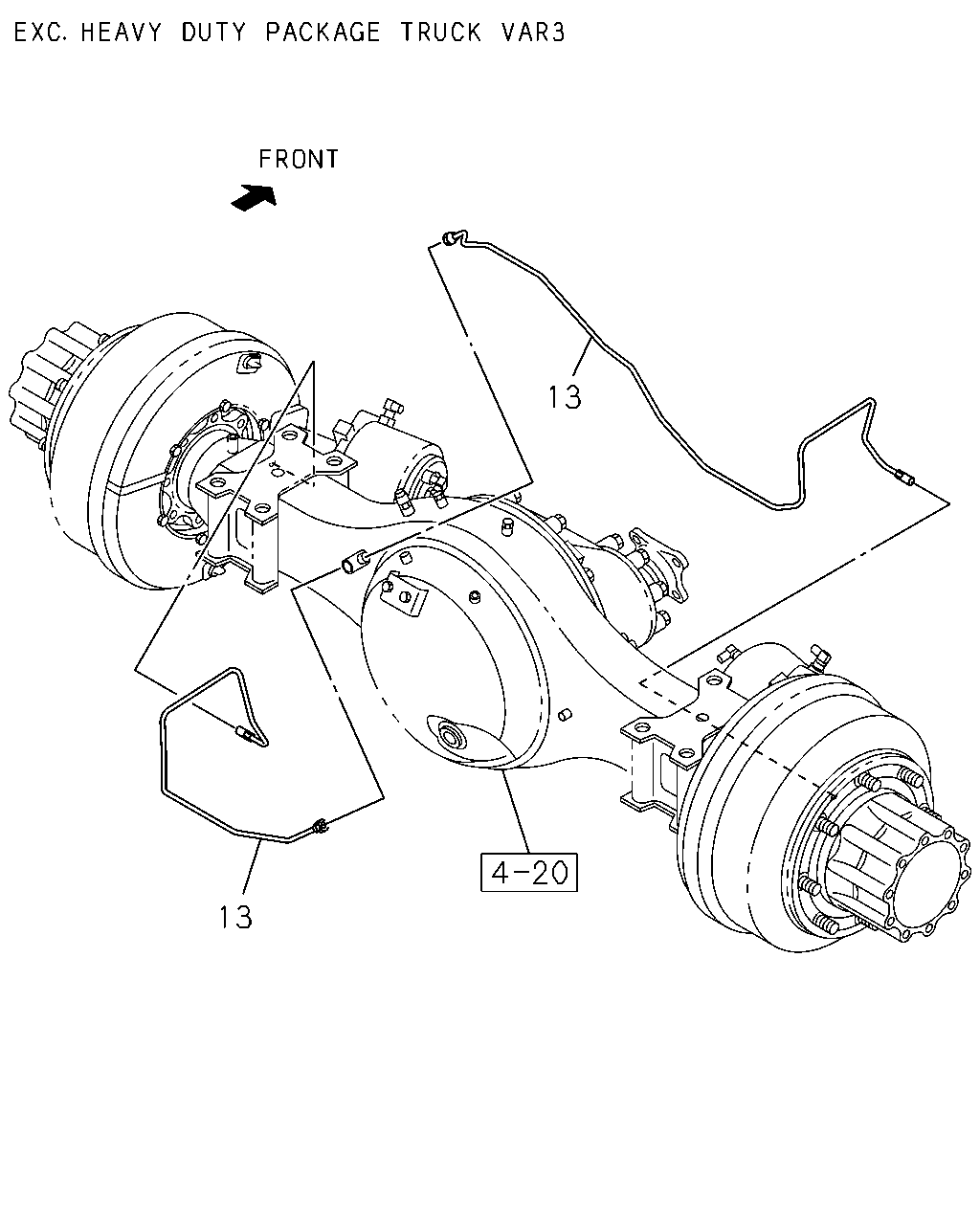

çizim 148824
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE
L=600 		8-98012-468-0 01 1 0809-1011
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=600 		8-98012-468-0 01 1 1012-
13 PIPE; BRK,RR AXLE
L=1190 		8-98012-467-0 01 1 0809-1011
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1190 		8-98012-467-0 01 1 1012-
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98029-656-0 01 1 1012-1302
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98207-112-0 01 1 1303-
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98029-655-1 01 1 1012-1302
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98207-111-0 01 1 1303-
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98029-686-0 01 1 1012-
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98029-685-1 01 1 1012-

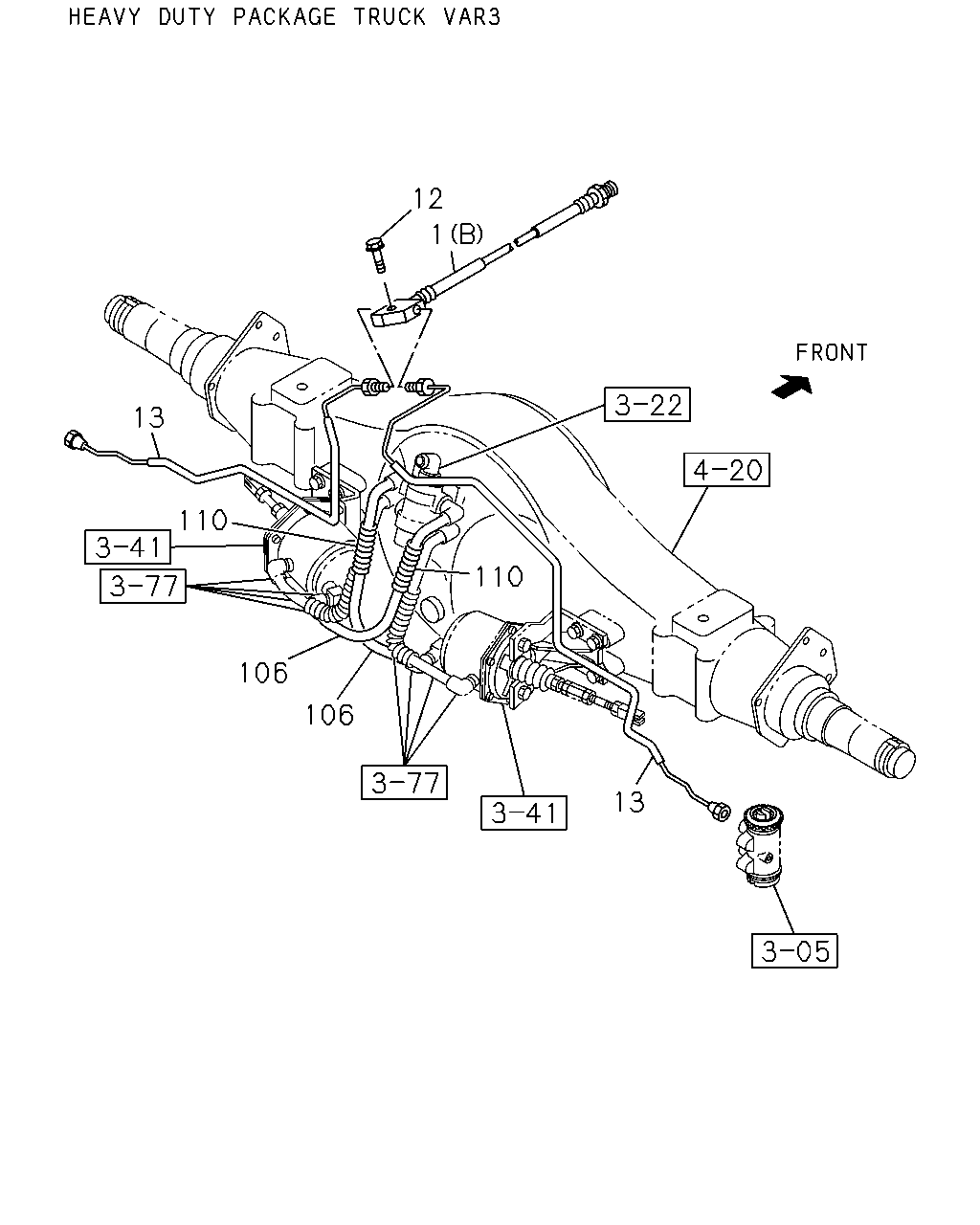

çizim 148829
12 1 13 110 106 106 13 110
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
(A) L=730 		0-05213-730-0 01 1 0809-1011
1 HOSE; FLEX,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730 		0-05213-730-0 01 1 1012-
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=485 		8-98057-386-1 01 1 1012-
12 BOLT; FLEX HOSE TO RR AXLE
M8X35 FLANGE 		0-28650-835-0 01 1 0809-0901
12 BOLT; FLEX HOSE TO RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE 		0-28650-835-0 01 1 1012-
13 PIPE; BRK,RR AXLE
L=600 		8-98012-468-0 01 1 0809-1011
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=600 		8-98012-468-0 01 1 1012-
13 PIPE; BRK,RR AXLE
L=1190 		8-98012-467-0 01 1 0809-1011
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1190 		8-98012-467-0 01 1 1012-
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98029-656-0 01 1 1012-1302
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98207-112-0 01 1 1303-
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98029-655-1 01 1 1012-1302
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98207-111-0 01 1 1303-
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98029-686-0 01 1 1012-
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98029-685-1 01 1 1012-
106 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98061-971-0 02 1 1012-
110 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FIGKEY377-223 SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1012-
