3-52 — BRAKE PIPING; OIL,FRONT (#60704) — 85 parça

18 19 18 24 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PIPE; OIL,UNION TO FRT FLEX HOSE (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	0809-1011
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	0809-1011
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	1012-
19	UNION; OIL PIPE (C) M12 L=40	0-92113-006-0	02	1	0809-1011
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	1012-
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0809-1011
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	1012-
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0809-1011
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1012-
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	1012-
132	PIPE; OIL,BRK,HYD UNIT (B) L=407	8-98120-162-0	01	1	0809-1011
132	PIPE; OIL,BRK,HYD UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	1012-
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1467	8-98135-796-0	01	1	1012-

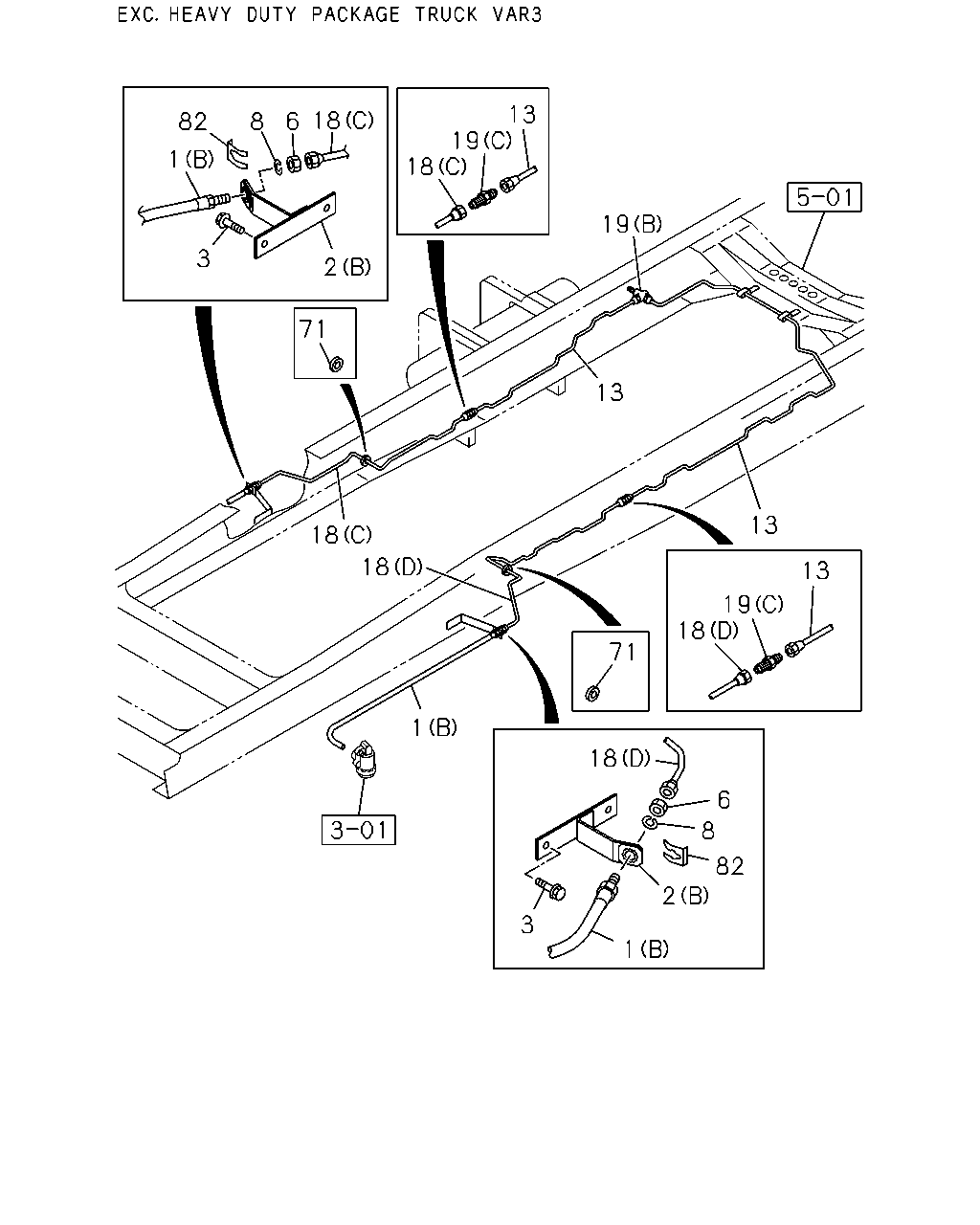

13 19 18 18 82 8 6 1 19 3 2 71 13 13 18 18 13 19 18 71 1 18 6 8 82 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK (B)	8-98119-714-0	02	1	0809-1011
1	HOSE; FLEX,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	1012-
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	1012-
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98119-698-1	02	1	0809-1011
2	BRACKET; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	1012-
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1012-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0809-
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0809-1011
6	NUT; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	02	1	1012-
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0809-1011
8	GASKET; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=9 OD=17	9-09920-472-0	02	1	1012-
13	PIPE; OIL,UNION TO UNION L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0809-1011
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0809-1011
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	0809-1011
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	0809-1011
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	1012-
19	UNION; OIL PIPE (C) M12 L=40	0-92113-006-0	02	1	0809-1011
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	1012-
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0809-1011
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	1012-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0809-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0809-1307
82	PLATE; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	02	1	1308-

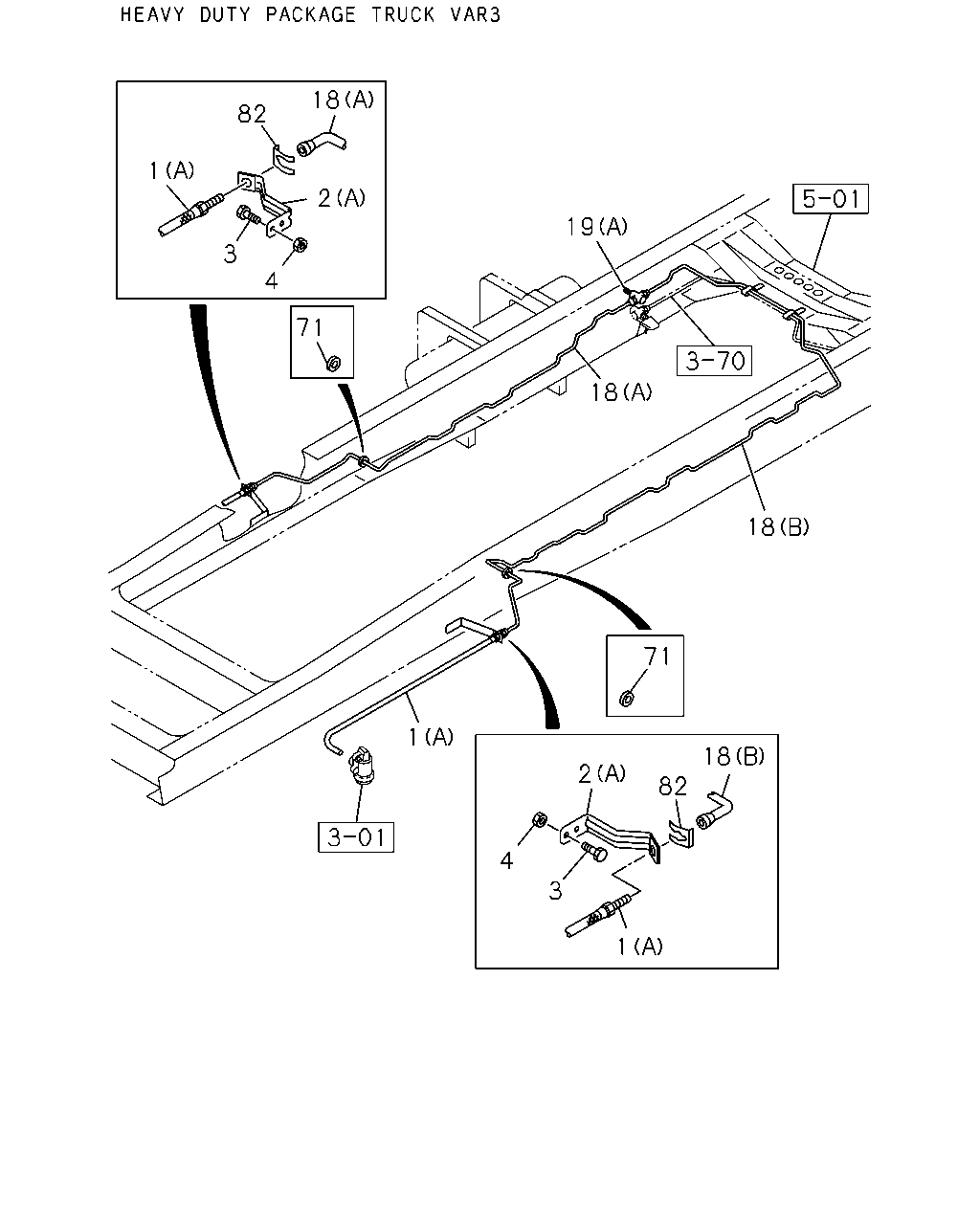

18 82 1 2 19 3 4 71 18 18 71 1 18 2 82 4 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK (B)	8-98119-714-0	02	1	0809-1011
1	HOSE; FLEX,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	1012-
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	1012-
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98119-698-1	02	1	0809-1011
2	BRACKET; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	1012-
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1012-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0809-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0809-0906
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	0809-1011
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	0809-1011
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	1012-
19	UNION; OIL PIPE (C) M12 L=40	0-92113-006-0	02	1	0809-1011
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	1012-
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0809-1011
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	1012-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0809-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0809-1307
82	PLATE; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	02	1	1308-

3 13 19 24 13 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0809-
13	PIPE; OIL,UNION TO UNION L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0809-1011
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0809-1011
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1012-
19	UNION; OIL PIPE (C) M12 L=40	0-92113-006-0	02	1	0809-1011
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	1012-
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0809-1011
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	1012-
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0809-1011
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1012-
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	1012-
132	PIPE; OIL,BRK,HYD UNIT (B) L=407	8-98120-162-0	01	1	0809-1011
132	PIPE; OIL,BRK,HYD UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	1012-
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1467	8-98135-796-0	01	1	1012-
