◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-33 - AIR MASTER ▶

3-33 — AIR MASTER (#60700) — 107 parça

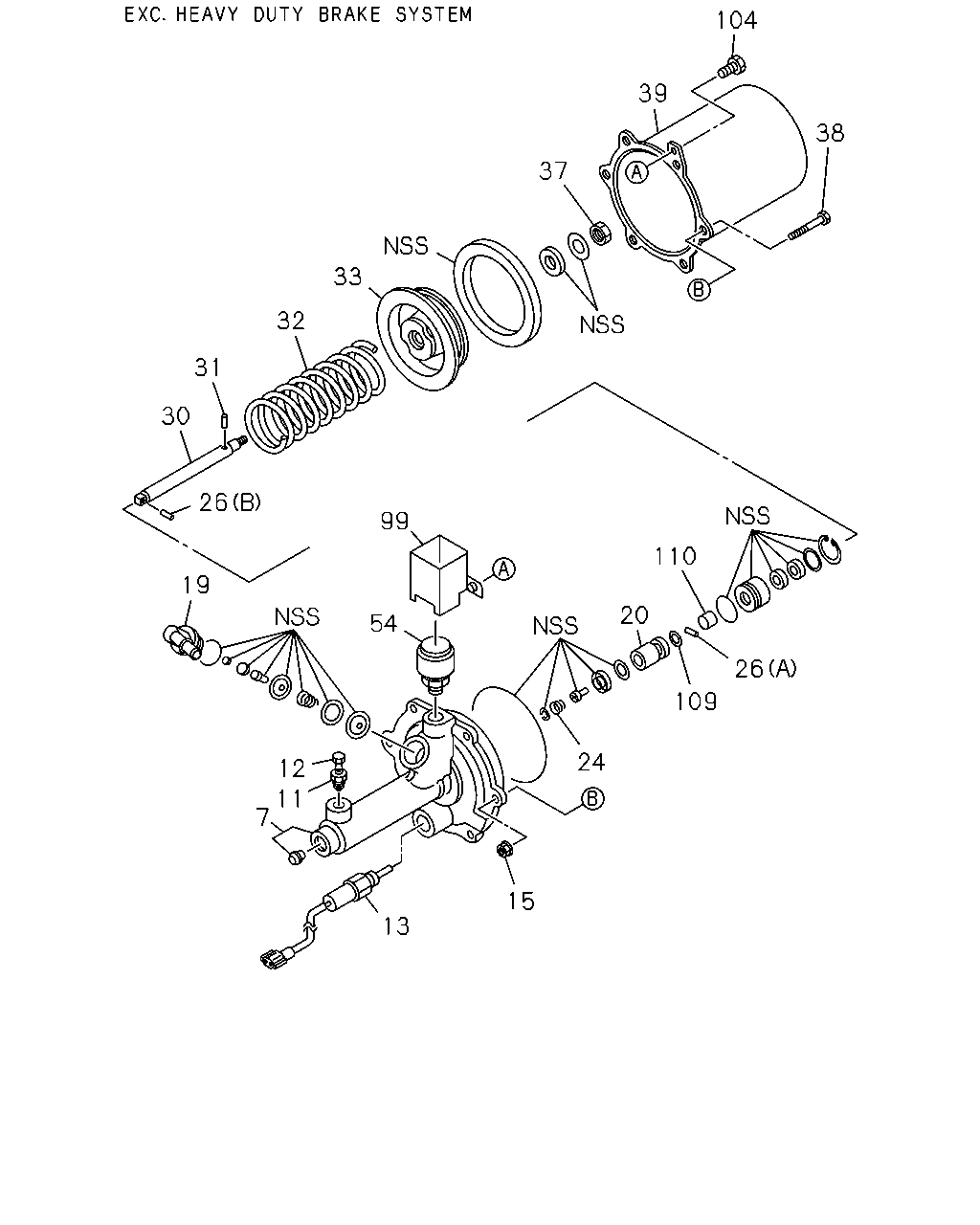

104 39 38 37 33 32 31 30 26 99 110 19 20 54 26 109 24 12 11 7 15 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-663-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-826-0	1-47841-095-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-197-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-196-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-206-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-200-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER M10 FLANGE ASM PART: A = 1-47800-663-1	8-97096-430-0	07	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-195-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-204-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-663-1	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-826-0	1-47821-053-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: B = 1-47800-826-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-111-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-663-1	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: B = 1-47800-826-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: B = 1-47800-826-0	1-47829-141-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: B = 1-47800-826-0	1-47829-102-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: B = 1-47800-826-0	1-47829-103-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-663-1	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47824-035-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47829-104-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-106-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: B = 1-47800-826-0	1-47829-105-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-663-1	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-199-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	9-83315-078-0	06	1	-
39	SHELL; CYL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47811-137-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-187-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-194-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-202-0	01	1	-
104	BOLT; BRKT,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-201-0	01	1	-
109	CLIP; PIN,AIR MASTER ASM PART: B = 1-47800-826-0	1-47829-098-0	01	1	-
110	GUIDE; PIN,AIR MASTER ASM PART: B = 1-47800-826-0	1-47829-142-0	01	1	-

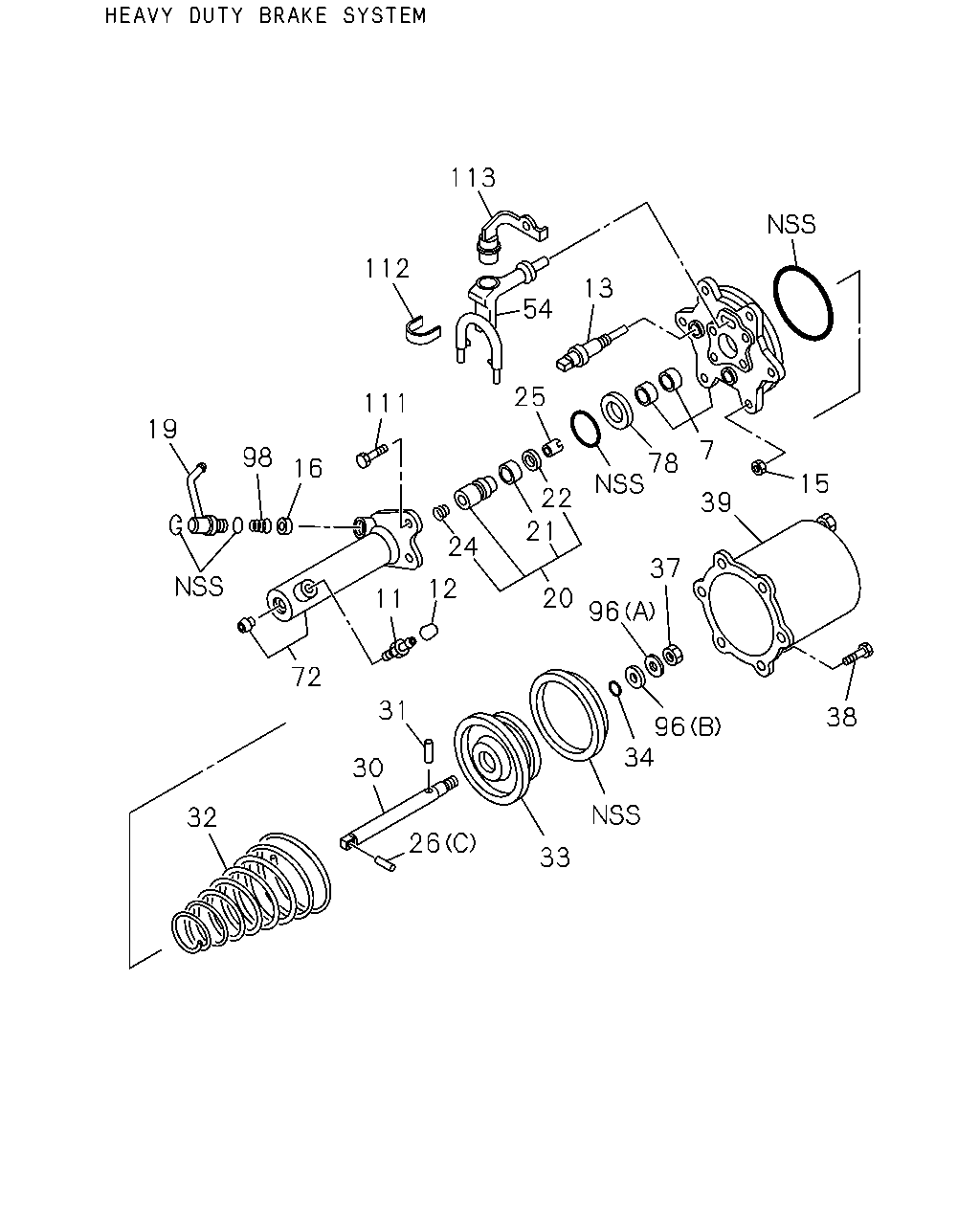

113 112 13 54 25 111 19 7 98 78 16 15 22 39 21 24 37 12 20 11 96 72 31 38 96 34 30 32 26 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-663-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-826-0	1-47841-095-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-197-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-196-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-206-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-200-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER M10 FLANGE ASM PART: A = 1-47800-663-1	8-97096-430-0	07	1	-
16	VALVE ASM ASM PART: A = 1-47800-663-1	1-47812-024-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-195-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-204-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-663-1	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-826-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-663-1	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-663-1	9-83325-077-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: B = 1-47800-826-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-663-1	1-47812-023-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-663-1	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: B = 1-47800-826-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: B = 1-47800-826-0	1-47829-141-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: B = 1-47800-826-0	1-47829-102-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: B = 1-47800-826-0	1-47829-103-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-663-1	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47824-035-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47829-104-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-663-1	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: B = 1-47800-826-0	1-47829-105-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-663-1	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-199-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	9-83315-078-0	06	1	-
39	SHELL; CYL,AIR MASTER ASM PART: B = 1-47800-826-0	1-47811-137-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-187-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-194-0	01	1	-
72	CYLINDER; AIR MASTER ASM PART: A = 1-47800-663-1	1-47811-139-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-110-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-663-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-663-1	1-47829-053-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-663-1	1-47819-205-0	01	1	-
111	BOLT; CYL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-203-0	03	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-188-0	01	1	-
113	HOLDER; EXH COVER,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-207-0	01	1	-

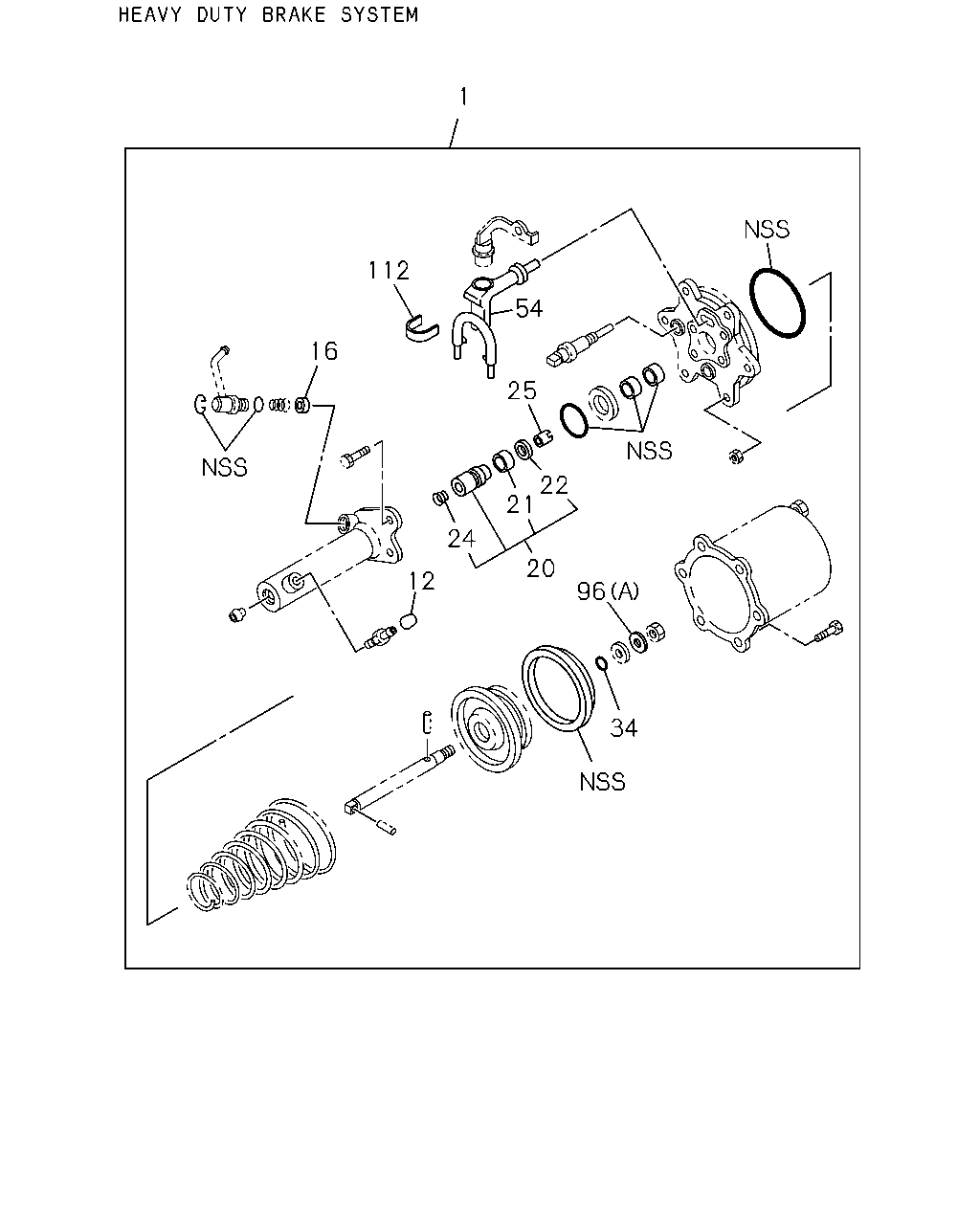

1 112 16 54 25 22 21 24 20 12 96 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-663-1	1-85576-208-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: B = 1-47800-826-0	1-85576-480-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83335-044-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-663-1	1-47812-024-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-663-1	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-826-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-663-1	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-663-1	9-83325-077-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: B = 1-47800-826-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-663-1	1-47812-023-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-663-1	9-09561-111-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-187-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: B = 1-47800-826-0	1-47819-194-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-663-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-663-1	1-47829-053-0	01	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-188-0	01	1	-

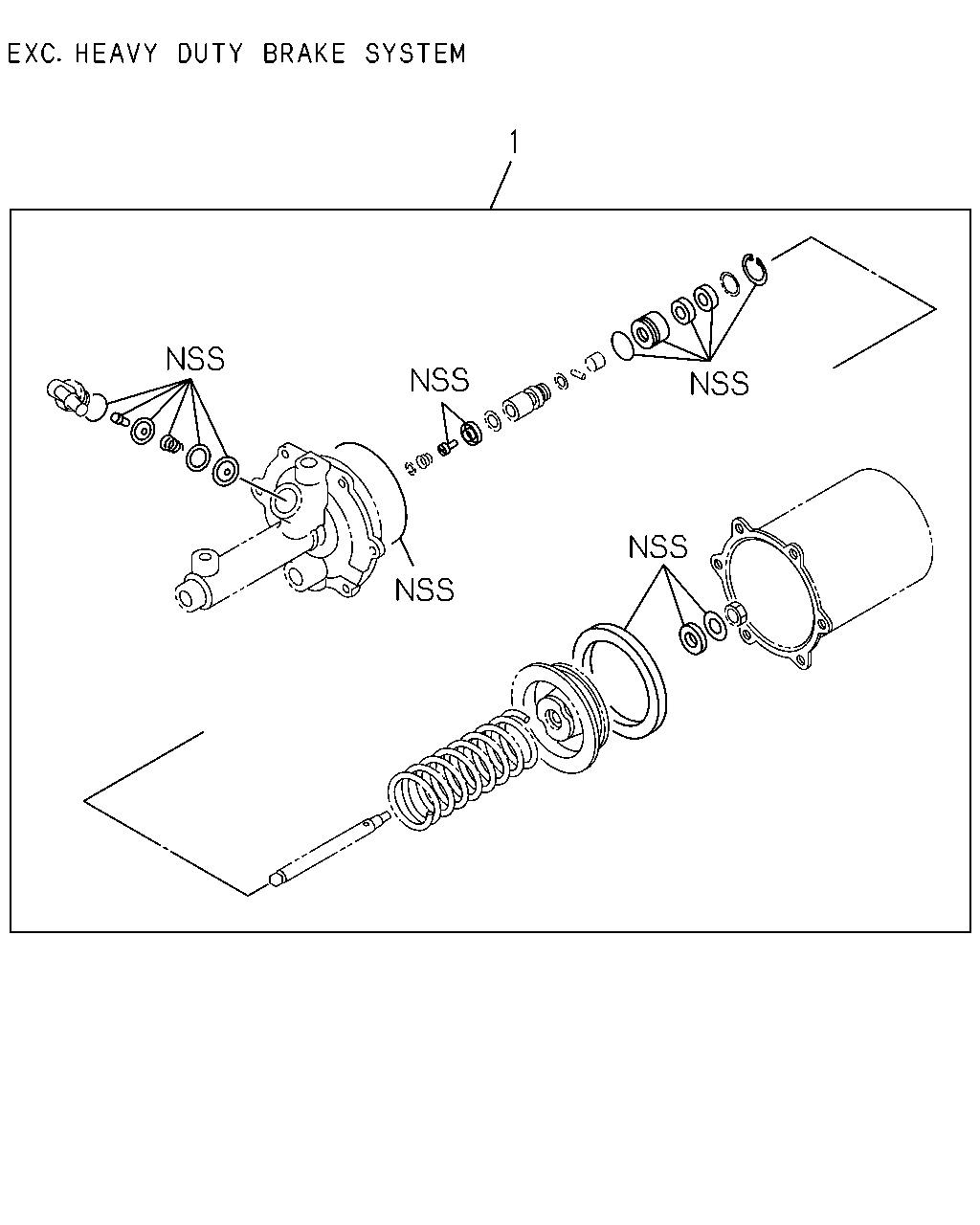

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-663-1	1-85576-208-0	01	1	-
	1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: B = 1-47800-826-0	1-85576-480-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
