Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

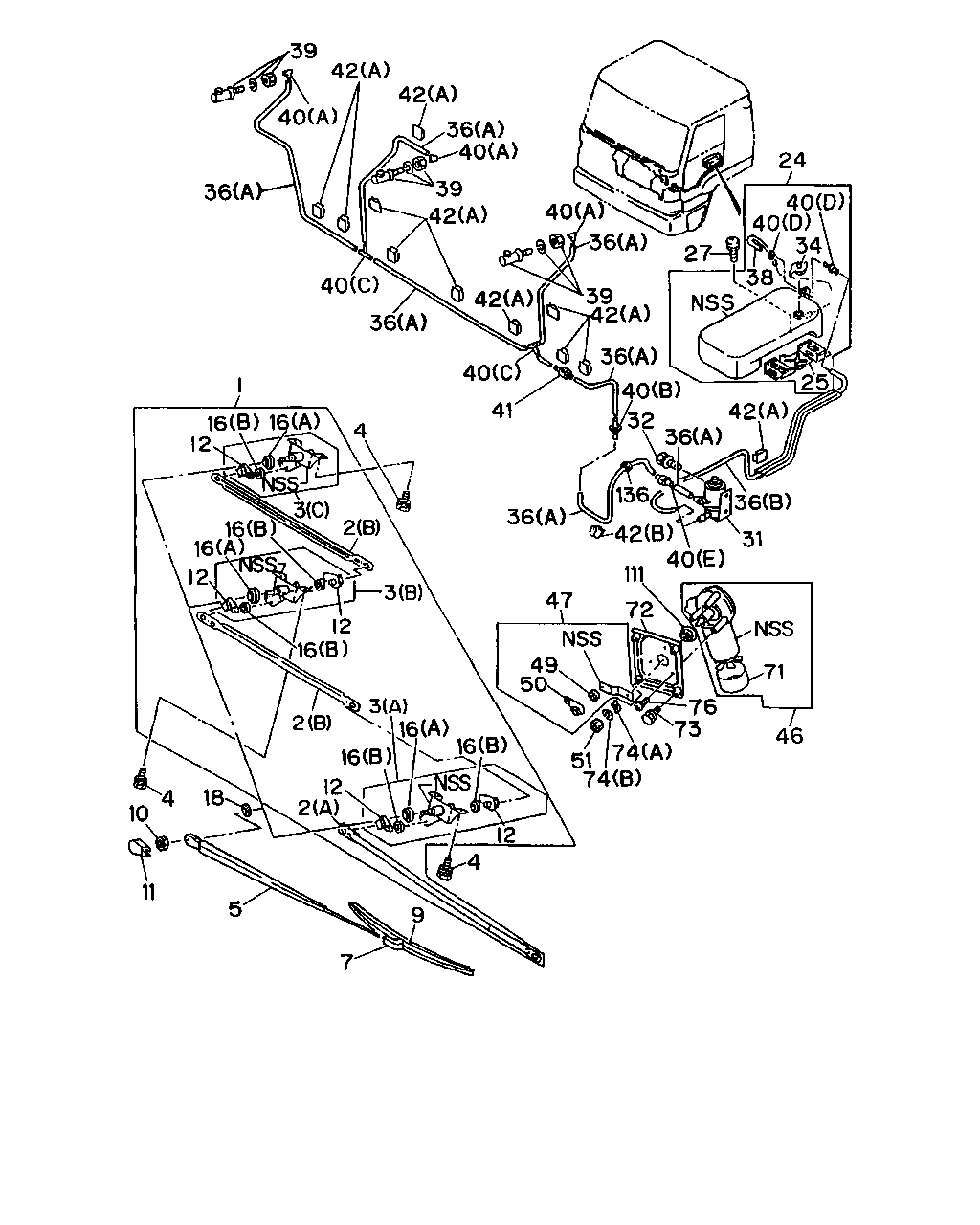

8-80 — WINDSHIELD WIPER AND WASHER
(#607) — 53 parça
39
42
40
42
36
40
39
42
40
36
27
40
40
24
34
38
25
42
36
32
40
36
42
39
36
31
40
42
136
36
111
72
47
71
46
76
73
74
74
51
49
50
16
12
4
9
7
5
11
10
4
18
2
12
16
16
3
2
16
12
3
2
3
4
12
16
16
12
16
16
1
41
40
42
36
40
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINK ASM; FRT WIPER
1-83312-039-3
01
1
8712-
2
LINK; FRT WIPER
(A)
1-83312-040-0
01
1
8712-8802
2
LINK; FRT WIPER
(A)
1-83312-073-0
01
1
8803-
2
LINK; FRT WIPER
(B)
1-83312-041-0
02
1
8712-
3
PIVOT ASM; FRT WIPER
(A)
1-83313-064-0
01
1
8712-
3
PIVOT ASM; FRT WIPER
(B)
1-83313-065-0
01
1
8712-
3
PIVOT ASM; FRT WIPER
(C)
1-83313-066-0
01
1
8712-
4
BOLT; WIPER LINK TO BODY
M6X20
1-09980-279-0
06
1
8712-
5
ARM; WIPER
1-83314-056-0
03
1
8712-
7
BLADE; WIPER
1-83315-009-0
03
1
8712-
9
RUBBER; FRT WIPER BLADE
1-83355-001-0
03
1
8712-
10
NUT; WIPER ARM TO WIPER PIVOT
M10
9-09111-410-0
03
1
8712-
11
COVER; WIPER ARM
1-83319-004-1
03
1
8712-
12
RETAINER; BALL JOINT,FRT WIPER LINK
5-83318-029-0
05
1
8712-
16
SEAL; BALL JOINT
(A)
1-83318-022-0
03
1
8712-
16
SEAL; BALL JOINT
(B)
8-94235-628-0
05
1
8712-
18
GROMMET; WIPER PIVOT HOLE
1-09983-060-1
03
1
8712-
24
TANK ASM; WASHER
1-83332-017-6
01
1
8712-
25
BRACKET; WASHER TANK
1-83338-002-0
01
1
8712-
27
BOLT; WASHER TANK
M6X20 W/PL WASHER
5-09981-023-0
02
1
8712-9104
27
BOLT; WASHER TANK
M6X14 W/LK&PL WASHER
9-03920-614-0
02
1
9105-
31
PUMP ASM; WINDSHIELD WASHER
1-83331-005-1
01
1
8712-
32
BOLT; WASHER PUMP
M6X16 W/LK&PL WASHER
9-01960-616-0
02
1
8712-9204
32
BOLT; WASHER PUMP
M6X16 W/LK&PL WASHER
0-50140-616-0
02
1
9205-
34
CAP; WASHER TANK
5-83362-004-0
01
1
8712-8801
34
CAP; WASHER TANK
1-83362-012-0
01
1
8802-
36
HOSE; WASHER
(B) L=10000
8-94153-780-0
01
1
8712-
36
HOSE; WASHER
(A) L=10000
9-09914-906-0
04
1
8712-
38
HOSE; JOINT,TANK
L=10000
9-09914-906-0
01
1
8712-
39
NOZZLE; WINDSHIELD WASHER
1-83334-019-2
03
1
8712-8912
39
NOZZLE; WINDSHIELD WASHER
1-83334-027-0
03
1
9001-
40
JOINT; WASHER HOSE
(A)
1-83339-004-0
03
1
8712-
40
JOINT; WASHER HOSE
(E)
1-83339-005-0
01
1
8712-
40
JOINT; WASHER HOSE
(D) WHITE
1-83339-006-0
01
1
8712-
40
JOINT; WASHER HOSE
(B)
1-83363-002-0
01
1
8712-
40
JOINT; WASHER HOSE
(C) 3WAY
5-83363-003-0
02
1
8712-
41
VALVE; CHECK,WASHER TANK
1-83338-007-1
01
1
8712-
42
CLIP; WASHER HOSE
(A) ID=7
1-09987-055-0
14
1
8712-9003
42
CLIP; WASHER HOSE
(B)
1-09987-121-0
01
1
8712-
42
CLIP; WASHER HOSE
(A) 1 SET=5 PIECE
1-09987-214-0
14
1
9004-
46
MOTOR ASM; FRT WINDSHIELD WIPER
1-83311-037-1
01
1
8712-
47
ARM; CRANK,WIPER MOTOR
1-83314-064-1
01
1
8712-
49
SEAL; BALL JOINT,CRANK ARM,FRT WIPER
8-94235-628-0
01
1
8712-
50
RETAINER; BALL JOINT,CRANK ARM,FRT WIP
5-83318-029-0
01
1
8712-
51
NUT; WIPER MOTOR LINK
M8
9-09111-408-0
01
1
8712-
71
COVER; WIPER MOTOR
1-83318-021-0
01
1
8712-
72
BRACKET; WIPER MOTOR
1-83318-019-0
01
1
8712-
73
BOLT
1-09980-410-0
04
1
8712-
74
WASHER; ARM TO MOTOR
(A)
1-83319-005-1
01
1
8712-
74
WASHER; ARM TO MOTOR
(B) ID=8.2
9-09150-508-0
01
1
8712-
76
SCREW; BRKT TO WIPER MOTOR
8-94232-910-0
03
1
8712-
111
SEAL; FRT WIPER MOTOR TO BRKT
1-83318-020-0
01
1
8712-
136
GROMMET; HOSE,WASHER TANK
1-83338-009-0
01
1
8712-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
