◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#60698) — 257 parça

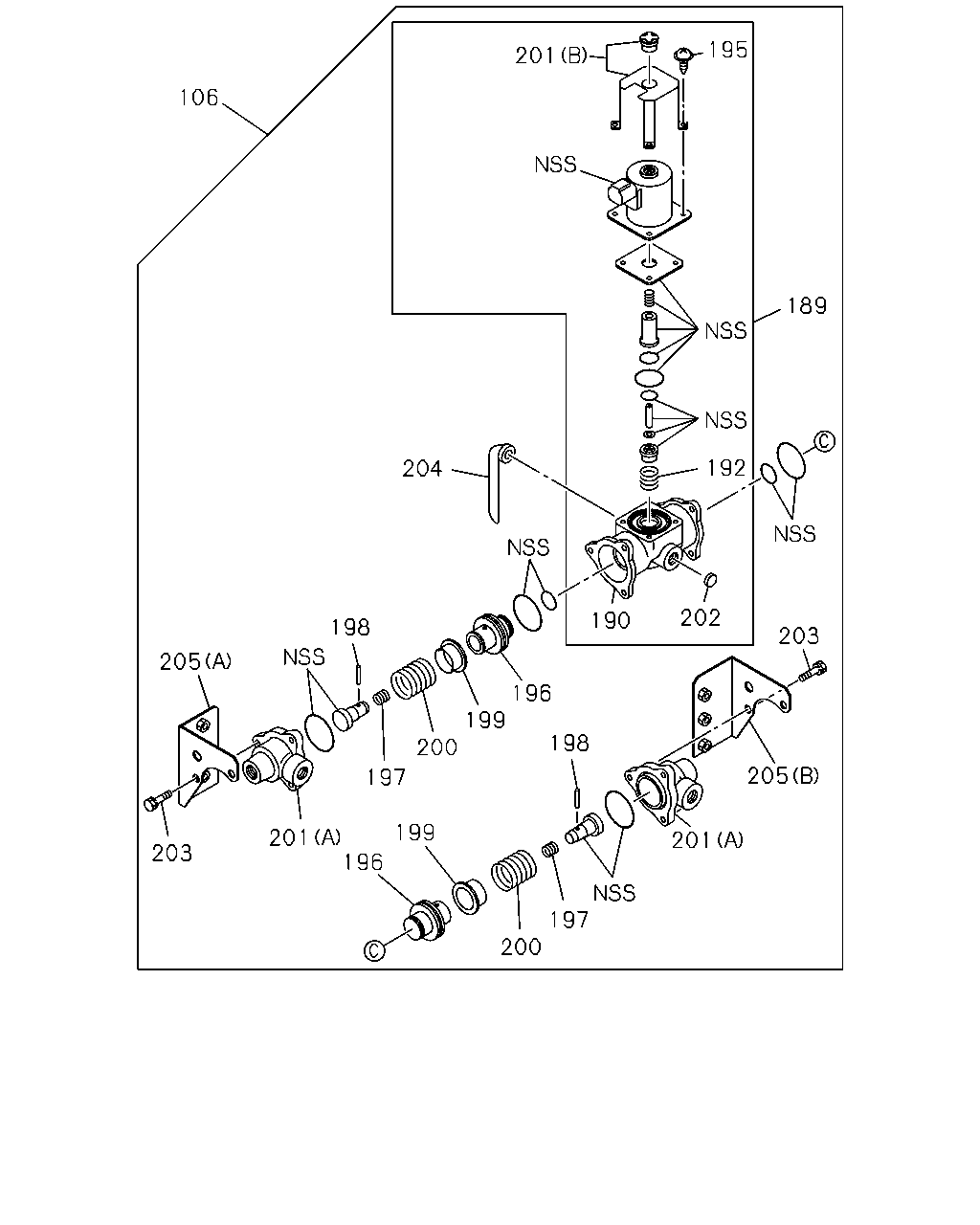

çizim 148789
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-0 01 1 0809-0812
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1012-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0809-0812
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1012-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0809-0812
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1012-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0809-0812
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1012-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0809-0812
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1012-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0809-0812
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1012-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0809-0812
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1012-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0809-0812
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1012-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0809-0812
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1012-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0809-0812
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1012-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0809-0812
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0809-0812
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1012-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1012-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0809-0812
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1012-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0809-0812
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1012-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0809-0812
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1012-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0809-0812
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0809-0812
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (C) 		8-98120-228-0 01 1 0809-0812
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1012-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1012-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98120-228-1 01 1 1012-

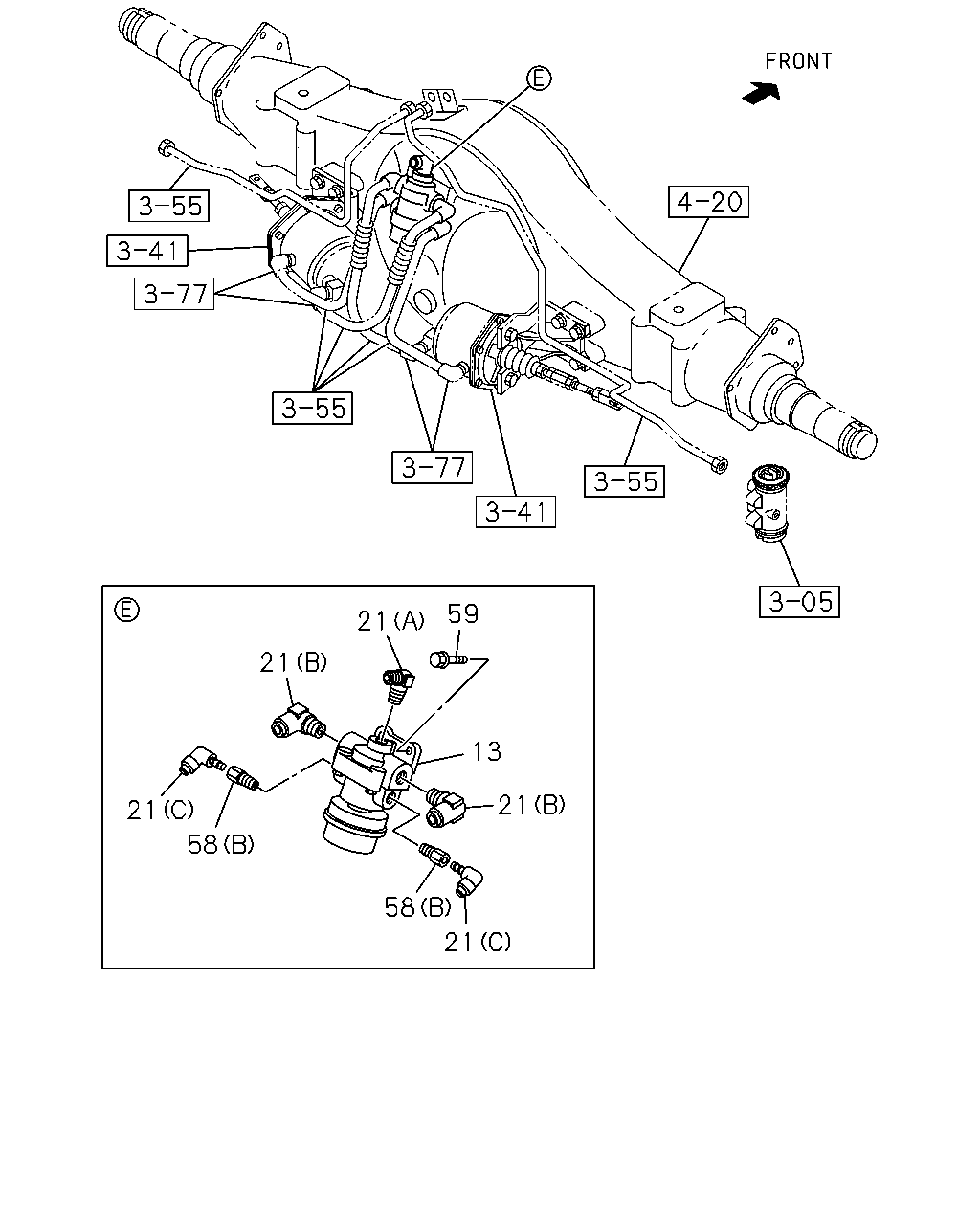

çizim 148791
59 21 21 13 21 21 58 58 21
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-783-0 01 1 1012-
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1012-
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1012-
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR 		1-09661-816-0 02 1 1012-
58 ADAPTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-
58 ADAPTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (D) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-98035-011-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) 		1-09656-704-0 01 1 1204-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0809-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 1012-
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28050-820-0 02 1 1012-
çizim 148800
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0809-1011
240 REPAIR KIT; AIR CONT GOV
EURO3 SPECIFICATION<NT3> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-85576-467-0 01 1 1012-1107
240 REPAIR KIT; AIR CONT GOV
EURO2 SPECIFICATION<NT2> 		1-85576-467-0 01 1 1012-1107
240 REPAIR KIT; AIR CONT GOV
TURBO - CONVENTIONAL<Q5T> 		1-85576-467-0 01 1 1108-

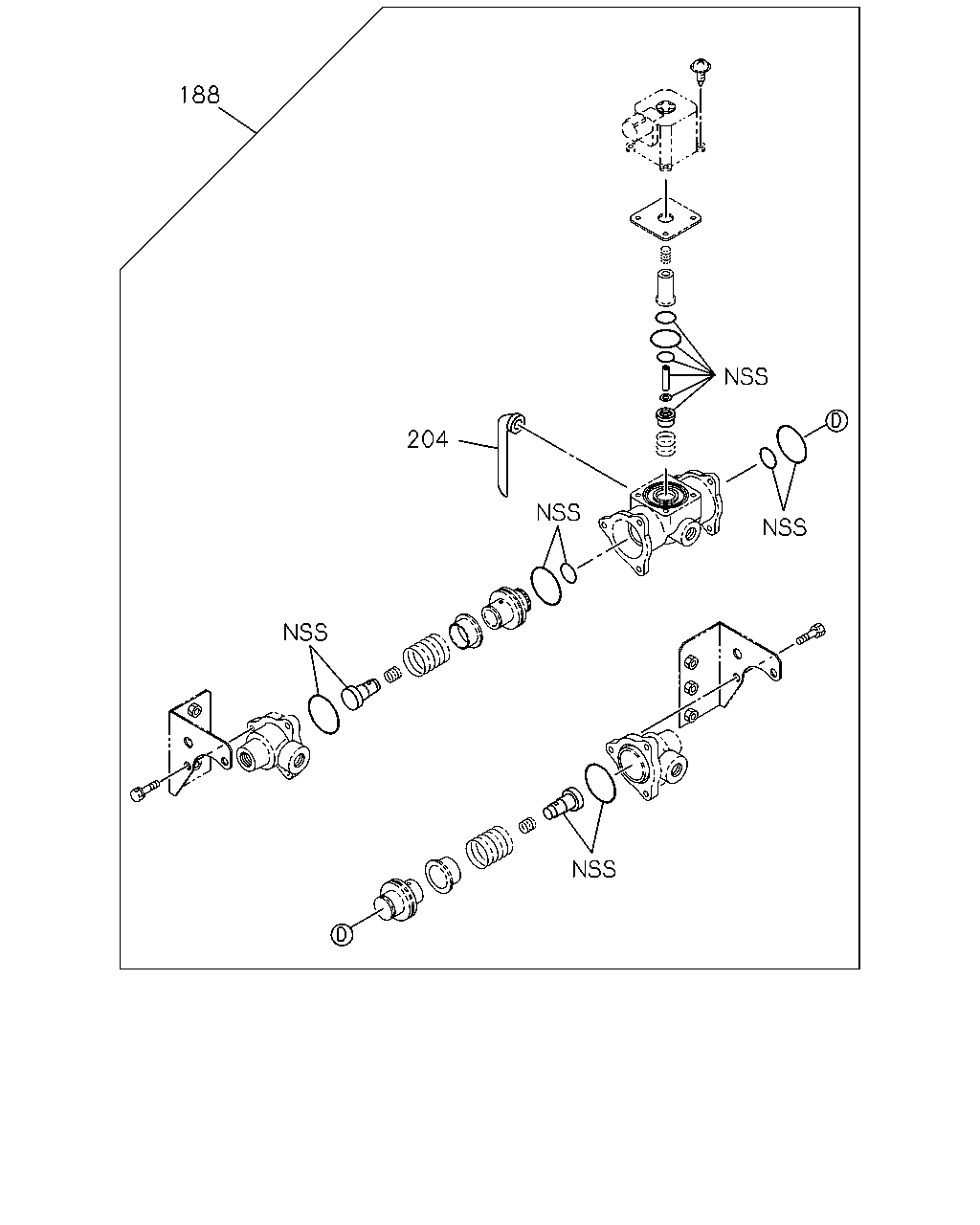

çizim 148804
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-0 01 1 0809-0812
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1012-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0809-0812
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1012-

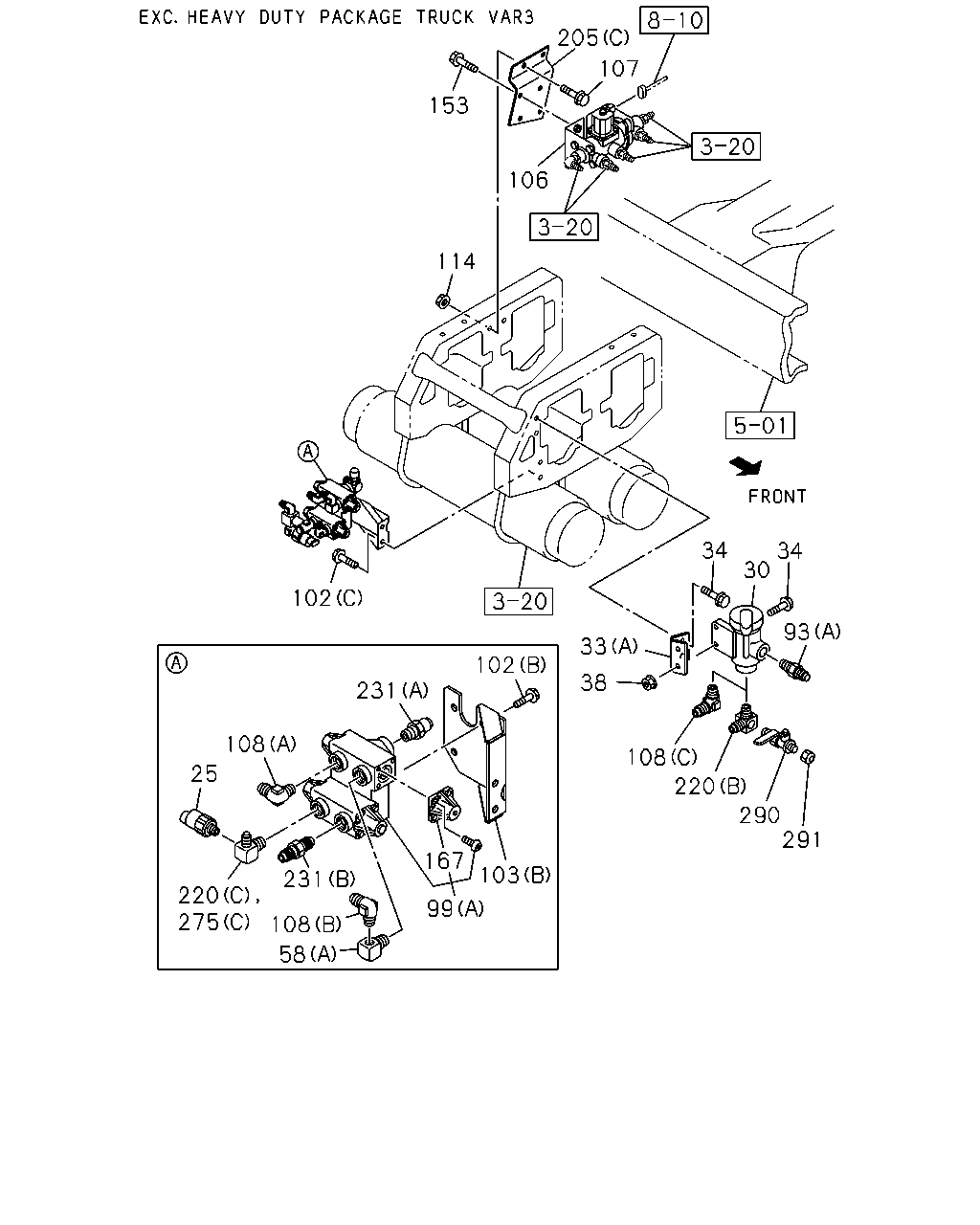

çizim 148810
205 106 153 107 114 34 34 93 30 291 290 220 108 38 102 33 102 231 108 25 220 275 108 58 231 167 99 103
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 0809-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 0809-1011
30 GOVERNOR; AIR CONT
EURO3 SPECIFICATION<NT3> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48350-093-2 01 1 1012-1107
30 GOVERNOR; AIR CONT
EURO2 SPECIFICATION<NT2> 		1-48350-093-2 01 1 1012-1107
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1108-
33 BRACKET; GOV,AIR CONT
(A) 		8-98120-459-0 01 1 0809-1011
33 BRACKET; GOV,AIR CONT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98120-459-0 01 1 1012-1107
33 BRACKET; GOV,AIR CONT
TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98120-459-1 01 1 1108-
33 BRACKET; GOV,AIR CONT
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98133-401-0 01 1 1012-1107
33 BRACKET; GOV,AIR CONT
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98133-401-0 01 1 1108-
34 BOLT; BRKT,GOV
M8X25 FLANGE 		0-28650-825-0 02 1 0809-1011
34 BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107
34 BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107
34 BOLT; BRKT,GOV
EURO3 SPECIFICATION<NT3> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107
34 BOLT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE 		0-28650-825-0 02 1 1108-
34 BOLT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE 		0-28650-825-0 02 1 1108-
38 NUT; BRKT,GOV
M8 FLANGE 		0-91180-108-0 02 1 0809-1005
38 NUT; BRKT,GOV
TIRE INFLATOR DEVICE<SG4> M8 FLANGE 		0-91180-108-0 02 1 1006-1011
38 NUT; BRKT,GOV
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1012-1107
38 NUT; BRKT,GOV
TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1012-1107
38 NUT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> M8 FLANGE 		0-91180-108-0 02 1 1108-
38 NUT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> M8 FLANGE 		0-91180-108-0 02 1 1108-
38 NUT; BRKT,GOV
EXC. TIRE INFLATOR DEVICE<SG4> M8 FLANGE 		0-91180-108-0 04 1 1006-1011
38 NUT; BRKT,GOV
EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 04 1 1012-1107
38 NUT; BRKT,GOV
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 04 1 1012-1107
38 NUT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 04 1 1108-
58 ADAPTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-
58 ADAPTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (D) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-98035-011-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) 		1-09656-704-0 01 1 1204-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0809-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 1012-
93 CONNECTOR; GOV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-1011
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 1012-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 1108-
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1012-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1108-
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1012-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1108-
93 CONNECTOR; GOV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1108-
99 VALVE; PROTECTION
(B) 		1-48110-287-0 01 1 0809-1011
99 VALVE; PROTECTION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-48110-287-3 01 1 1012-
99 VALVE; PROTECTION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48110-287-3 01 1 1012-
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-48110-288-3 01 1 1012-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-
102 BOLT; PROTECTION VALVE
(C) M10X30 FLANGE 		0-28651-030-0 02 1 0809-1011
102 BOLT; PROTECTION VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X30 FLANGE 		0-28651-030-0 02 1 1012-
102 BOLT; PROTECTION VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1012-
103 BRACKET; PROTECTION VALVE
(B) 		8-98111-527-1 01 1 0809-1011
103 BRACKET; PROTECTION VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98111-527-1 01 1 1012-
103 BRACKET; PROTECTION VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98034-985-1 01 1 1012-1311
103 BRACKET; PROTECTION VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98221-293-0 01 1 1312-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-0 01 1 0809-0812
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1012-
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0809-0812
107 BOLT; VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 03 1 1012-
107 BOLT; VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 02 1 1012-
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0809-
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0809-1011
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1012-
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 1012-1107
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 1108-
108 CONNECTOR; ELBOW
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1012-
108 CONNECTOR; ELBOW
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1012-
108 CONNECTOR; ELBOW
EXC. TIRE INFLATOR DEVICE<SG4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1107
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1107
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1108-
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1108-
114 NUT; VLV
H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 0809-0812
114 NUT; VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1012-
153 BOLT; BRKT
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 04 1 0809-0812
153 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 04 1 1012-
167 COVER; VALVE 1-48119-625-0 03 1 0809-1011
167 COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48119-625-0 04 1 1012-
167 COVER; VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48119-625-0 03 1 1012-
167 COVER; VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 03 1 1012-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0809-0812
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0809-0812
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (C) 		8-98120-228-0 01 1 0809-0812
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1012-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1012-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98120-228-1 01 1 1012-
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP> (C) 		8-98131-540-0 01 1 0809-0812
220 CONNECTOR; 3WAY
(C) 		8-98131-540-0 01 1 0901-1011
220 CONNECTOR; 3WAY
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (C) 		8-98131-540-0 01 1 1012-
220 CONNECTOR; 3WAY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1012-1203
220 CONNECTOR; 3WAY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1012-1203
220 CONNECTOR; 3WAY
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0809-1011
220 CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 1012-1107
220 CONNECTOR; 3WAY
EURO3 SPECIFICATION<NT3> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 1012-1107
220 CONNECTOR; 3WAY
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 1108-
231 CONNECTOR; NYLON TUBE
(A) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 0809-1011
231 CONNECTOR; NYLON TUBE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 1012-
231 CONNECTOR; NYLON TUBE
H.S.A SYSTEM<6EP> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-0812
231 CONNECTOR; NYLON TUBE
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (C) 		8-98024-621-0 01 1 0809-0812
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09656-704-0 01 1 1012-1203
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98024-621-0 01 1 1012-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98035-011-0 01 1 1012-1203
290 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 0809-1011
290 COCK; AIR,INFLATOR
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09680-099-0 01 1 1012-1107
290 COCK; AIR,INFLATOR
EURO3 SPECIFICATION<NT3> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09680-099-0 01 1 1012-1107
290 COCK; AIR,INFLATOR
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09680-099-0 01 1 1108-
291 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 0809-1011
291 CAP; AIR COCK
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-48319-102-0 01 1 1012-1107
291 CAP; AIR COCK
EURO3 SPECIFICATION<NT3> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-48319-102-0 01 1 1012-1107
291 CAP; AIR COCK
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-48319-102-0 01 1 1108-

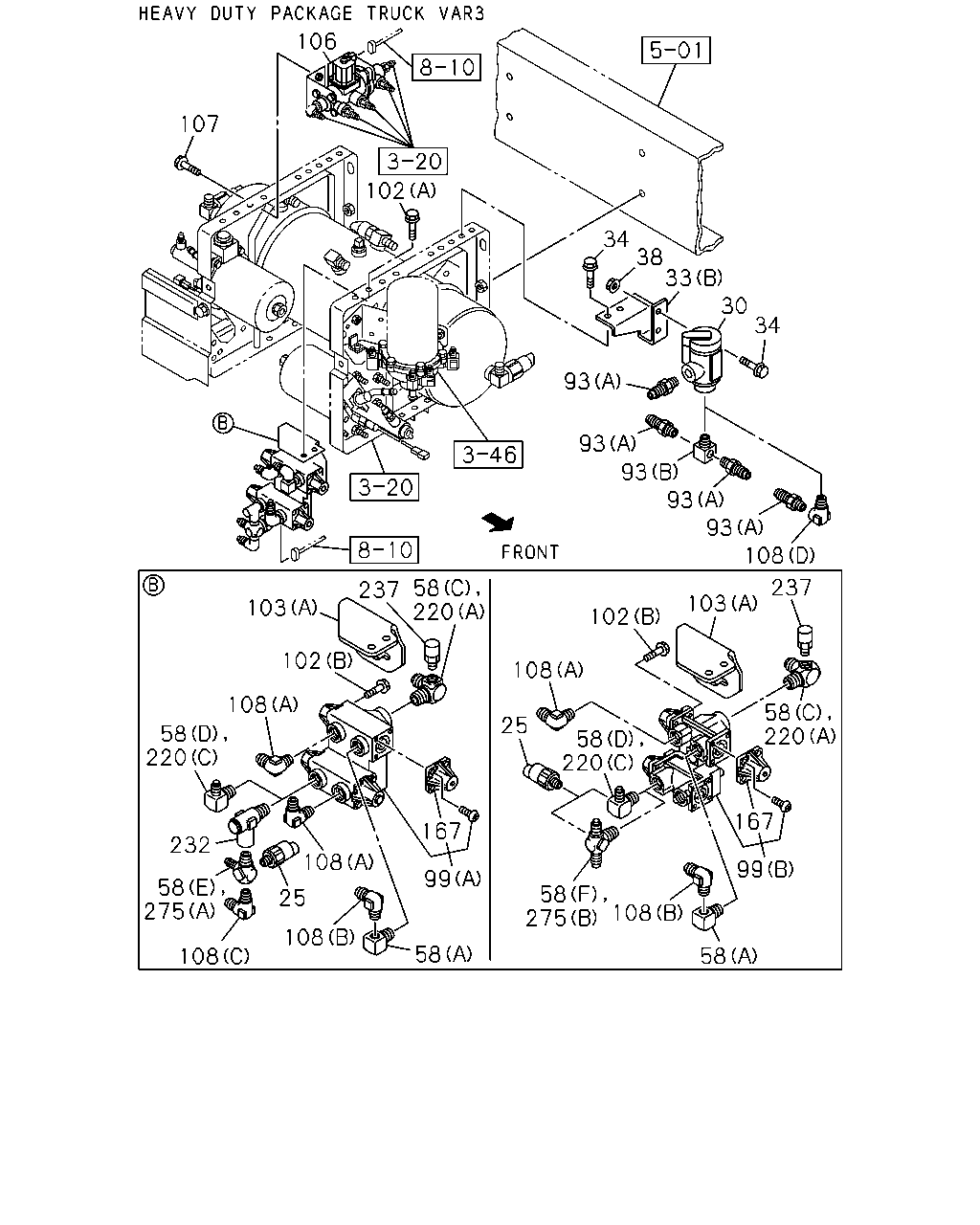

çizim 148827
106 107 102 34 38 33 30 34 93 93 93 93 93 108 237 103 102 108 25 58 220 58 220 167 99 108 58 275 58 58 99 167 220 58 237 103 102 108 58 220 232 58 275 25 108 108 108
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 0809-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 0809-1011
30 GOVERNOR; AIR CONT
EURO3 SPECIFICATION<NT3> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48350-093-2 01 1 1012-1107
30 GOVERNOR; AIR CONT
EURO2 SPECIFICATION<NT2> 		1-48350-093-2 01 1 1012-1107
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1108-
33 BRACKET; GOV,AIR CONT
(A) 		8-98120-459-0 01 1 0809-1011
33 BRACKET; GOV,AIR CONT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98120-459-0 01 1 1012-1107
33 BRACKET; GOV,AIR CONT
TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98120-459-1 01 1 1108-
33 BRACKET; GOV,AIR CONT
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98133-401-0 01 1 1012-1107
33 BRACKET; GOV,AIR CONT
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98133-401-0 01 1 1108-
34 BOLT; BRKT,GOV
M8X25 FLANGE 		0-28650-825-0 02 1 0809-1011
34 BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107
34 BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107
34 BOLT; BRKT,GOV
EURO3 SPECIFICATION<NT3> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107
34 BOLT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE 		0-28650-825-0 02 1 1108-
34 BOLT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE 		0-28650-825-0 02 1 1108-
38 NUT; BRKT,GOV
M8 FLANGE 		0-91180-108-0 02 1 0809-1005
38 NUT; BRKT,GOV
TIRE INFLATOR DEVICE<SG4> M8 FLANGE 		0-91180-108-0 02 1 1006-1011
38 NUT; BRKT,GOV
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1012-1107
38 NUT; BRKT,GOV
TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1012-1107
38 NUT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> M8 FLANGE 		0-91180-108-0 02 1 1108-
38 NUT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> M8 FLANGE 		0-91180-108-0 02 1 1108-
38 NUT; BRKT,GOV
EXC. TIRE INFLATOR DEVICE<SG4> M8 FLANGE 		0-91180-108-0 04 1 1006-1011
38 NUT; BRKT,GOV
EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 04 1 1012-1107
38 NUT; BRKT,GOV
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 04 1 1012-1107
38 NUT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 04 1 1108-
58 ADAPTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-
58 ADAPTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (D) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-98035-011-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) 		1-09656-704-0 01 1 1204-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0809-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 1012-
93 CONNECTOR; GOV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-1011
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 1012-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 1108-
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1012-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1108-
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1012-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1108-
93 CONNECTOR; GOV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1108-
99 VALVE; PROTECTION
(B) 		1-48110-287-0 01 1 0809-1011
99 VALVE; PROTECTION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-48110-287-3 01 1 1012-
99 VALVE; PROTECTION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48110-287-3 01 1 1012-
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-48110-288-3 01 1 1012-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-
102 BOLT; PROTECTION VALVE
(C) M10X30 FLANGE 		0-28651-030-0 02 1 0809-1011
102 BOLT; PROTECTION VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X30 FLANGE 		0-28651-030-0 02 1 1012-
102 BOLT; PROTECTION VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1012-
103 BRACKET; PROTECTION VALVE
(B) 		8-98111-527-1 01 1 0809-1011
103 BRACKET; PROTECTION VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98111-527-1 01 1 1012-
103 BRACKET; PROTECTION VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98034-985-1 01 1 1012-1311
103 BRACKET; PROTECTION VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98221-293-0 01 1 1312-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-0 01 1 0809-0812
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1012-
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0809-0812
107 BOLT; VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 03 1 1012-
107 BOLT; VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 02 1 1012-
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0809-
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0809-1011
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1012-
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 1012-1107
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 1108-
108 CONNECTOR; ELBOW
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1012-
108 CONNECTOR; ELBOW
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1012-
108 CONNECTOR; ELBOW
EXC. TIRE INFLATOR DEVICE<SG4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1107
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1107
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1108-
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1108-
167 COVER; VALVE 1-48119-625-0 03 1 0809-1011
167 COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48119-625-0 04 1 1012-
167 COVER; VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48119-625-0 03 1 1012-
167 COVER; VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 03 1 1012-
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP> (C) 		8-98131-540-0 01 1 0809-0812
220 CONNECTOR; 3WAY
(C) 		8-98131-540-0 01 1 0901-1011
220 CONNECTOR; 3WAY
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (C) 		8-98131-540-0 01 1 1012-
220 CONNECTOR; 3WAY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1012-1203
220 CONNECTOR; 3WAY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1012-1203
220 CONNECTOR; 3WAY
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0809-1011
220 CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 1012-1107
220 CONNECTOR; 3WAY
EURO3 SPECIFICATION<NT3> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 1012-1107
220 CONNECTOR; 3WAY
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 1108-
232 VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1012-
237 VALVE; SAFETY 1-48320-012-2 01 1 0809-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (C) 		8-98024-621-0 01 1 0809-0812
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09656-704-0 01 1 1012-1203
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98024-621-0 01 1 1012-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98035-011-0 01 1 1012-1203
çizim 426410
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-452-1 01 1 0809-1011
241 REPAIR KIT; PROTECTION VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-85576-452-2 01 1 1012-
241 REPAIR KIT; PROTECTION VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-452-2 01 1 1012-
241 REPAIR KIT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-85576-451-2 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
