3-20 — AIR TANK (#60697) — 453 parça

43 28 28 172 172 64 64 43 8 172 43 64 1 126 166 8 126 10 1 9 5 9 10 7 7 6 344 6 58 42 42 58 58 58 213 58 42 42 58 58 213 58 3 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (D)	1-48370-500-0	01	1	0809-1011
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48370-500-0	01	1	1012-
1	TANK ASM; AIR (C)	1-48370-501-0	01	1	0809-1011
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-501-0	01	1	1012-
1	TANK ASM; AIR EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1012-1107
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1108-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	1012-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1011
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-1011
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1012-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	01	1	1012-
5	UNION; AIR TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1011
5	UNION; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1012-1101
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0809-1011
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1012-
6	COCK; DRAIN,AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1012-1107
6	COCK; DRAIN,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1012-1107
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1108-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0809-1011
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1012-
7	GASKET; DRAIN COCK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	03	1	1012-1107
7	GASKET; DRAIN COCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	03	1	1012-1107
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1108-
8	CONNECTOR; AIR TANK (A) M16X2 & PT3/8 3WAY	1-09656-455-2	01	1	0809-1011
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16X2 & PT3/8 3WAY	1-09656-455-2	01	1	1012-
8	CONNECTOR; AIR TANK (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	0809-1011
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	1012-
8	CONNECTOR; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1012-1107
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1108-
8	CONNECTOR; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1012-1107
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1108-
8	CONNECTOR; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1012-1107
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1108-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	02	1	0809-1011
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	02	1	1012-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	03	1	1012-1107
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	03	1	1108-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0809-1011
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	1012-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/4	9-09204-526-0	01	1	1012-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	01	1	1108-
28	BRACKET; AIR TANK (C)	1-53318-338-6	02	1	0809-1011
28	BRACKET; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-53318-338-6	02	1	1012-
28	BRACKET; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-4	01	1	1012-1107
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-5	01	1	1108-
28	BRACKET; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-4	01	1	1012-1107
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-5	01	1	1108-
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0809-1011
42	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=8.4 OD=18	0-91610-608-0	04	1	1012-
42	WASHER; PL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	04	1	1012-
43	BOLT; STAY,AIR TANK,MAIN (C) M8X20 FLANGE	0-28650-820-0	04	1	0809-1011
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X20 FLANGE	0-28650-820-0	04	1	1012-
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0809-1011
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10X25 FLANGE	0-28651-025-0	04	1	1012-
43	BOLT; STAY,AIR TANK,MAIN EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	06	1	1012-1107
43	BOLT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	06	1	1108-
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0809-1011
58	NUT; BAND,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	16	1	1012-
64	STAY; AIR TANK,MAIN (C)	1-48317-349-0	02	1	0809-1011
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48317-349-0	02	1	1012-
64	STAY; AIR TANK,MAIN (D)	1-53318-293-1	01	1	0809-1011
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-53318-293-1	01	1	1012-
64	STAY; AIR TANK,MAIN EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-510-3	02	1	1012-1107
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-510-3	02	1	1108-
64	STAY; AIR TANK,MAIN EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-511-2	01	1	1012-1107
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-511-2	01	1	1108-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1107
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1108-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0809-1011
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1012-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1012-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1102-
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	04	1	0809-1011
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1012-
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0809-1011
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	04	1	1012-
172	NUT; STAY,AIR TANK,MAIN EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1012-1107
172	NUT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1108-
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0809-1011
213	BOLT; U AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=97.5	1-48317-323-1	02	1	1012-
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0809-1011
213	BOLT; U AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=195	1-48317-367-2	02	1	1012-
344	CONNECTOR; 4WAY	8-98131-623-0	01	1	0809-0810
344	CONNECTOR; 4WAY	8-98134-204-0	01	1	0811-1011
344	CONNECTOR; 4WAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98134-204-0	01	1	1012-

81 223 148 223 223 223 223 83 37 42 237 238 138 239 178 240 83 86 145 217 125 217 271 145 125 152 217 145 139 271 153 81 126 145 140 151 151 178 177 35 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1108-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0809-1011
37	BOLT; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	04	1	1012-
37	BOLT; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	06	1	1012-
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0809-1011
42	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=8.4 OD=18	0-91610-608-0	04	1	1012-
42	WASHER; PL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	04	1	1012-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-663-1	02	1	0809-1011
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-663-1	02	1	1012-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-826-0	02	1	1012-
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	0809-1011
83	NUT; AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	08	1	1012-
83	NUT; AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	09	1	1012-
86	SEAL; DUST	1-47529-019-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0809-1011
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1012-
125	HOSE; OIL TANK TO AIR MASTER (D)	8-98098-558-0	01	1	0809-1011
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98098-558-0	01	1	1012-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98051-217-0	01	1	1012-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-218-1	01	1	1012-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1107
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1108-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1101
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0809-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0809-1011
139	BRACKET; OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47537-081-2	01	1	1012-
139	BRACKET; OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-105-0	01	1	1012-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0809-1011
140	BOLT; OIL TANK TO BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X20 FLANGE	0-28651-020-0	02	1	1012-
140	BOLT; OIL TANK TO BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1012-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0809-
148	CONNECTOR; AIR MASTER M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0809-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0809-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0809-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1108-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-1011
177	HOSE; RUBBER,DRAIN EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-
177	HOSE; RUBBER,DRAIN EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	0809-1011
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=12 & 12	1-09709-280-1	01	1	1012-
178	CLIP; HOSE (D)	9-09917-171-0	01	1	0809-1011
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	9-09917-171-0	01	1	1012-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0809-1011
178	CLIP; HOSE EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-
178	CLIP; HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=13-18 L=14.5	1-09709-290-0	08	1	1012-
178	CLIP; HOSE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-
178	CLIP; HOSE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-
217	BRACKET; RUBBER HOSE (C) L=112	1-47475-694-1	01	1	0809-1011
217	BRACKET; RUBBER HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=112	1-47475-694-1	01	1	1012-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98082-871-0	01	1	1012-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98085-273-1	02	1	1012-
223	UNION H.S.A SYSTEM<6EP> (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-0812
223	UNION H.S.A SYSTEM<6EP> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0812
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0809-0812
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1012-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1012-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	1012-
237	CAP; OIL TANK	1-47525-030-0	01	1	0809-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0809-
239	FILTER; DUST	1-47529-017-0	01	1	0809-
240	HOLDER; FILTER	1-47529-018-0	01	1	0809-
271	NUT; BRKT,HOSE (A) M8 FLANGE	0-91180-108-0	01	1	0809-1011
271	NUT; BRKT,HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1012-
271	NUT; BRKT,HOSE (B) M10 FLANGE	0-91180-210-0	02	1	0809-1011
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	1012-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1012-

30 31 10 10 8 126 1 34 203 203 8 126 3 5 8 40 40 7 6 124 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

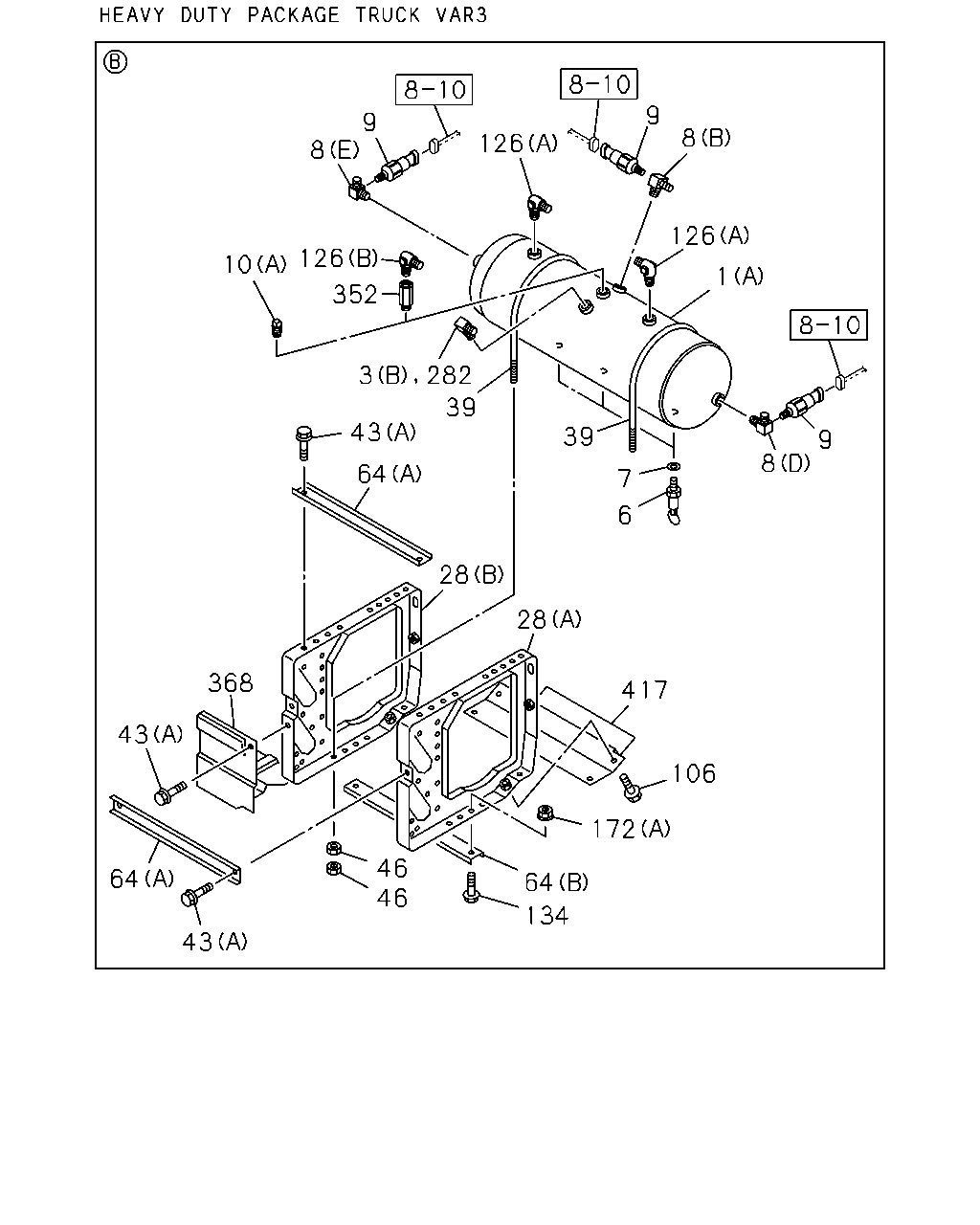

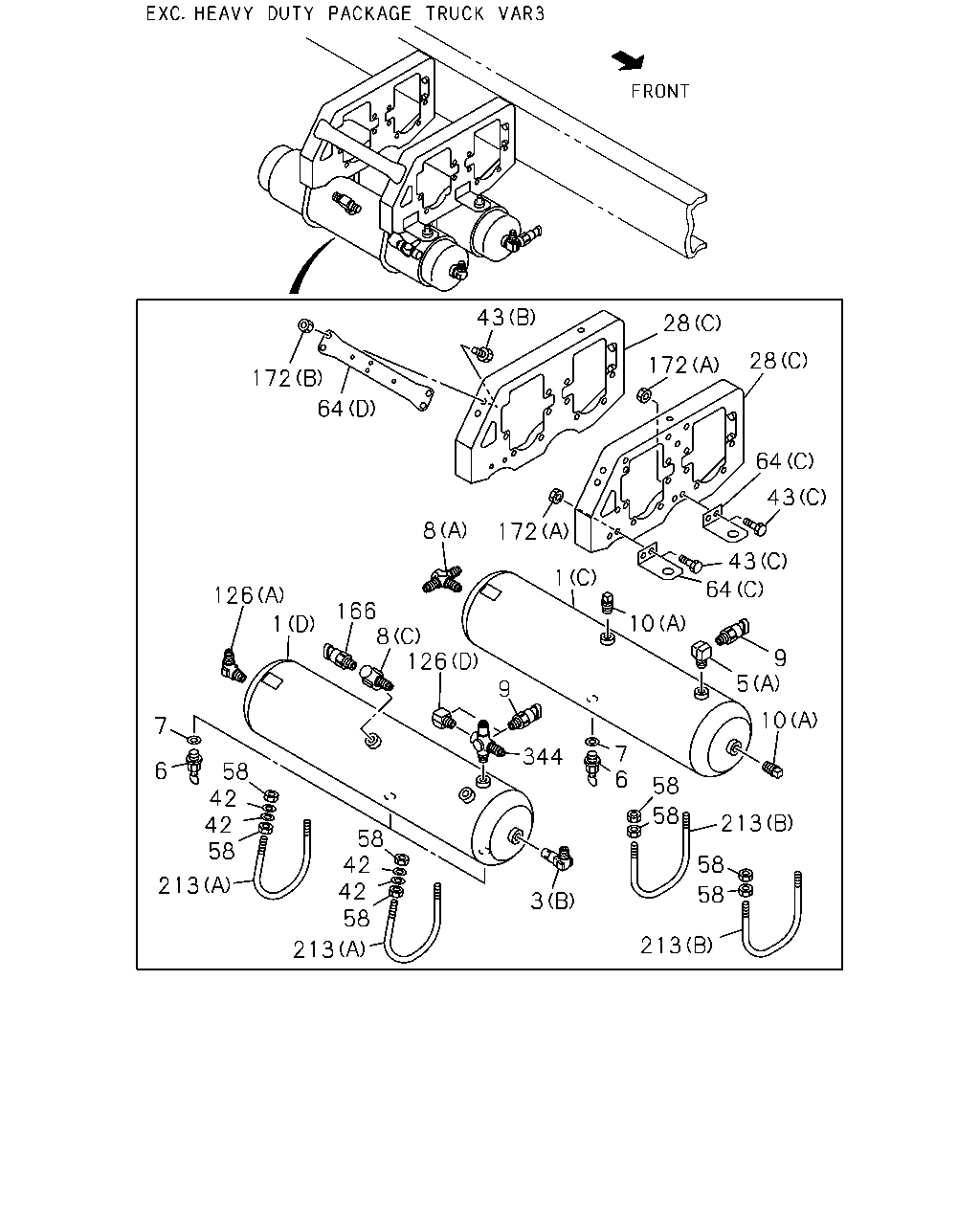

1	TANK ASM; AIR (D)	1-48370-500-0	01	1	0809-1011
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48370-500-0	01	1	1012-
1	TANK ASM; AIR (C)	1-48370-501-0	01	1	0809-1011
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-501-0	01	1	1012-
1	TANK ASM; AIR EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1012-1107
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1108-

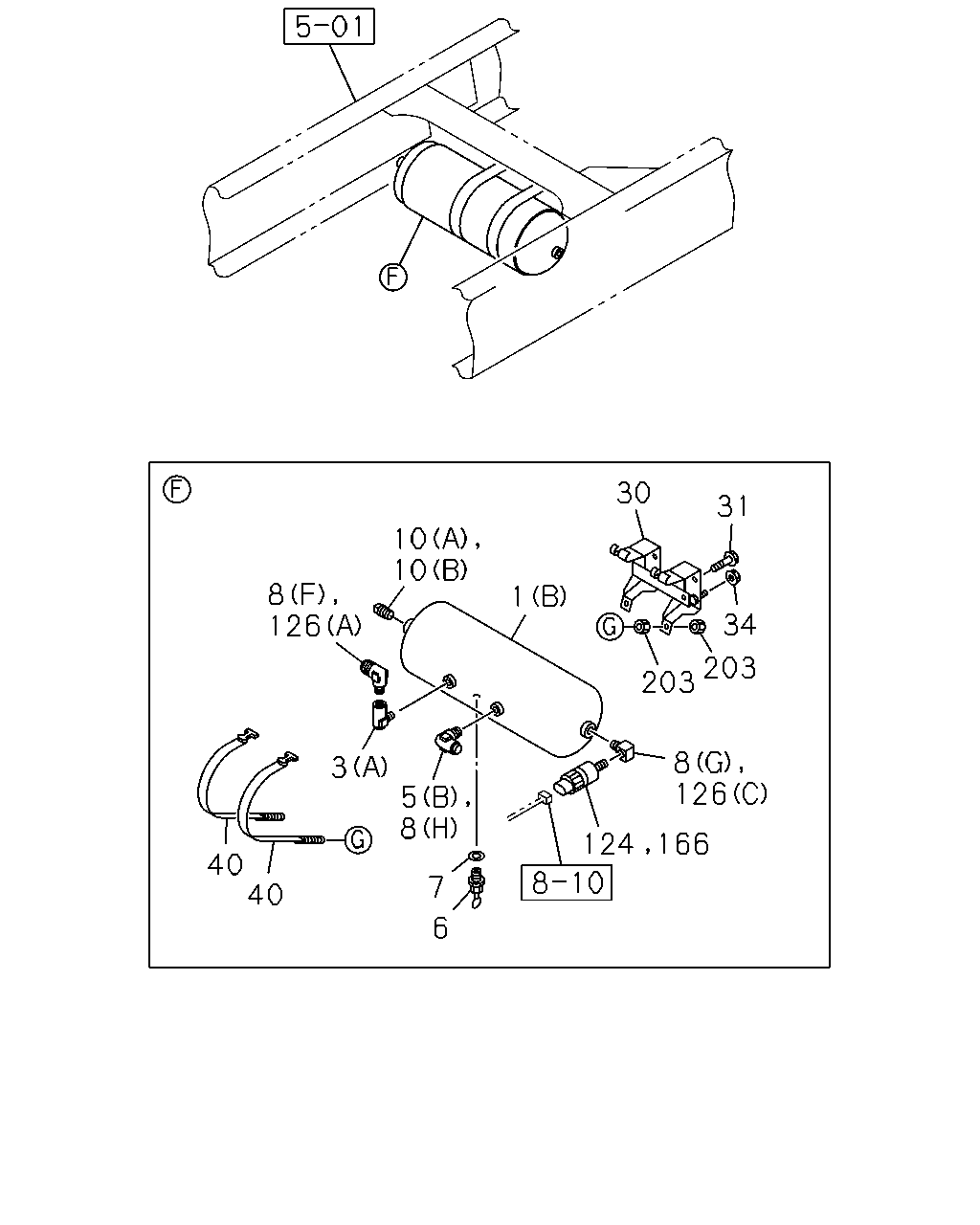

1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	1012-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1011
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-1011
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1012-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	01	1	1012-
5	UNION; AIR TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1011
5	UNION; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1012-1101
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0809-1011
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1012-
6	COCK; DRAIN,AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1012-1107
6	COCK; DRAIN,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1012-1107
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1108-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0809-1011
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1012-
7	GASKET; DRAIN COCK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	03	1	1012-1107
7	GASKET; DRAIN COCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	03	1	1012-1107
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1108-
8	CONNECTOR; AIR TANK (A) M16X2 & PT3/8 3WAY	1-09656-455-2	01	1	0809-1011
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16X2 & PT3/8 3WAY	1-09656-455-2	01	1	1012-
8	CONNECTOR; AIR TANK (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	0809-1011
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	1012-
8	CONNECTOR; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1012-1107
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1108-
8	CONNECTOR; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1012-1107
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1108-
8	CONNECTOR; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1012-1107
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1108-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0809-1011
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	1012-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/4	9-09204-526-0	01	1	1012-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	01	1	1108-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	1012-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1012-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1012-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	1012-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1102-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1107
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1108-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0809-1011
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1012-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1012-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1102-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	1012-

145 138 237 178 125 145 138 238 239 145 125 145 140 151 151 240 153 139 86 81 126 152 223 148 223 223 94 223 37 223 80 271 178 208 177 178 271 217 72 83 209 305 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

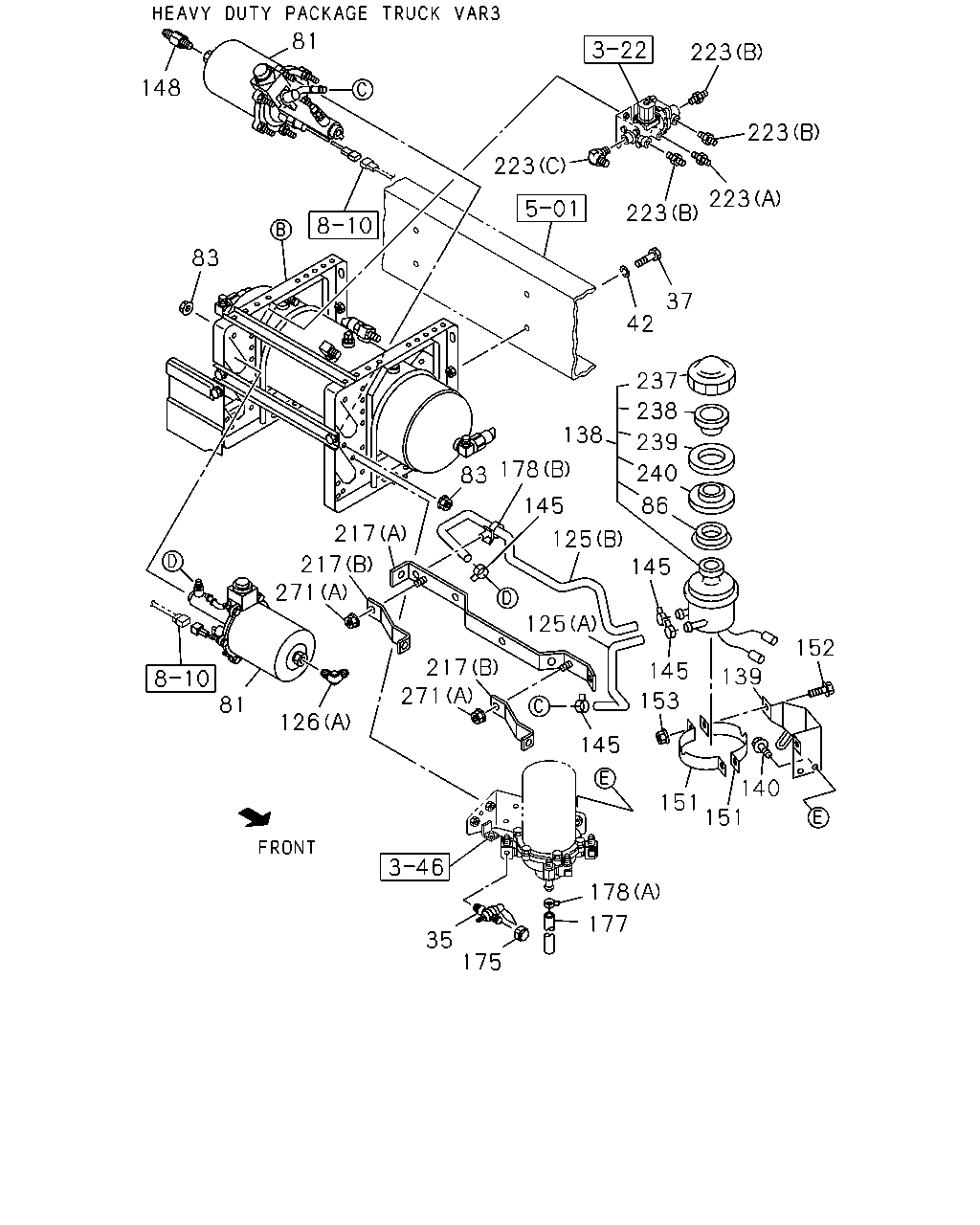

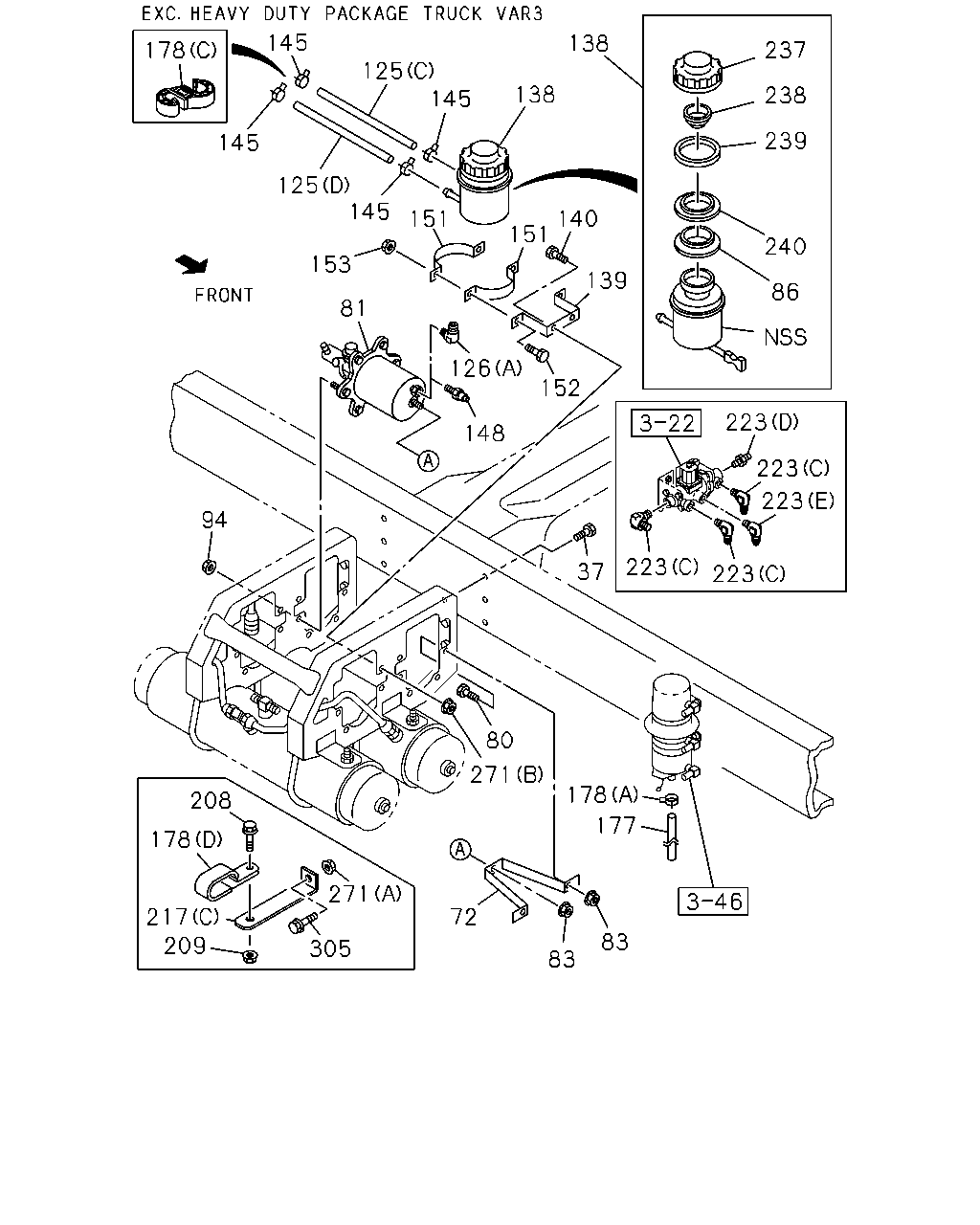

37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0809-1011
37	BOLT; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	04	1	1012-
37	BOLT; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	06	1	1012-
72	BRACKET; AIR MASTER	8-98120-254-0	02	1	0809-1011
72	BRACKET; AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98120-254-0	02	1	1012-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0809-1011
80	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	04	1	1012-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-663-1	02	1	0809-1011
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-663-1	02	1	1012-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-826-0	02	1	1012-
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	0809-1011
83	NUT; AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	08	1	1012-
83	NUT; AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	09	1	1012-
86	SEAL; DUST	1-47529-019-0	01	1	0809-
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	10	1	0809-1011
94	NUT; BRKT FIX EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	10	1	1012-1307
94	NUT; BRKT FIX EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	06	1	1308-
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0809-1011
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1012-
125	HOSE; OIL TANK TO AIR MASTER (D)	8-98098-558-0	01	1	0809-1011
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98098-558-0	01	1	1012-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98051-217-0	01	1	1012-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-218-1	01	1	1012-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1107
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1108-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1101
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0809-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0809-1011
139	BRACKET; OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47537-081-2	01	1	1012-
139	BRACKET; OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-105-0	01	1	1012-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0809-1011
140	BOLT; OIL TANK TO BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X20 FLANGE	0-28651-020-0	02	1	1012-
140	BOLT; OIL TANK TO BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1012-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0809-
148	CONNECTOR; AIR MASTER M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0809-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0809-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0809-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-1011
177	HOSE; RUBBER,DRAIN EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-
177	HOSE; RUBBER,DRAIN EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	0809-1011
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=12 & 12	1-09709-280-1	01	1	1012-
178	CLIP; HOSE (D)	9-09917-171-0	01	1	0809-1011
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	9-09917-171-0	01	1	1012-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0809-1011
178	CLIP; HOSE EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-
178	CLIP; HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=13-18 L=14.5	1-09709-290-0	08	1	1012-
178	CLIP; HOSE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-
178	CLIP; HOSE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-
208	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-1011
208	BOLT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	1012-
209	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0809-1011
209	NUT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	1012-
217	BRACKET; RUBBER HOSE (C) L=112	1-47475-694-1	01	1	0809-1011
217	BRACKET; RUBBER HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=112	1-47475-694-1	01	1	1012-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98082-871-0	01	1	1012-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98085-273-1	02	1	1012-
223	UNION H.S.A SYSTEM<6EP> (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-0812
223	UNION H.S.A SYSTEM<6EP> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-0812
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0809-0812
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1012-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1012-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	1012-
237	CAP; OIL TANK	1-47525-030-0	01	1	0809-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0809-
239	FILTER; DUST	1-47529-017-0	01	1	0809-
240	HOLDER; FILTER	1-47529-018-0	01	1	0809-
271	NUT; BRKT,HOSE (A) M8 FLANGE	0-91180-108-0	01	1	0809-1011
271	NUT; BRKT,HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1012-
271	NUT; BRKT,HOSE (B) M10 FLANGE	0-91180-210-0	02	1	0809-1011
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	1012-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1012-
305	BOLT; BRKT,HOSE M8X20 FLANGE	0-28650-820-0	01	1	0809-1011
305	BOLT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	1012-

241

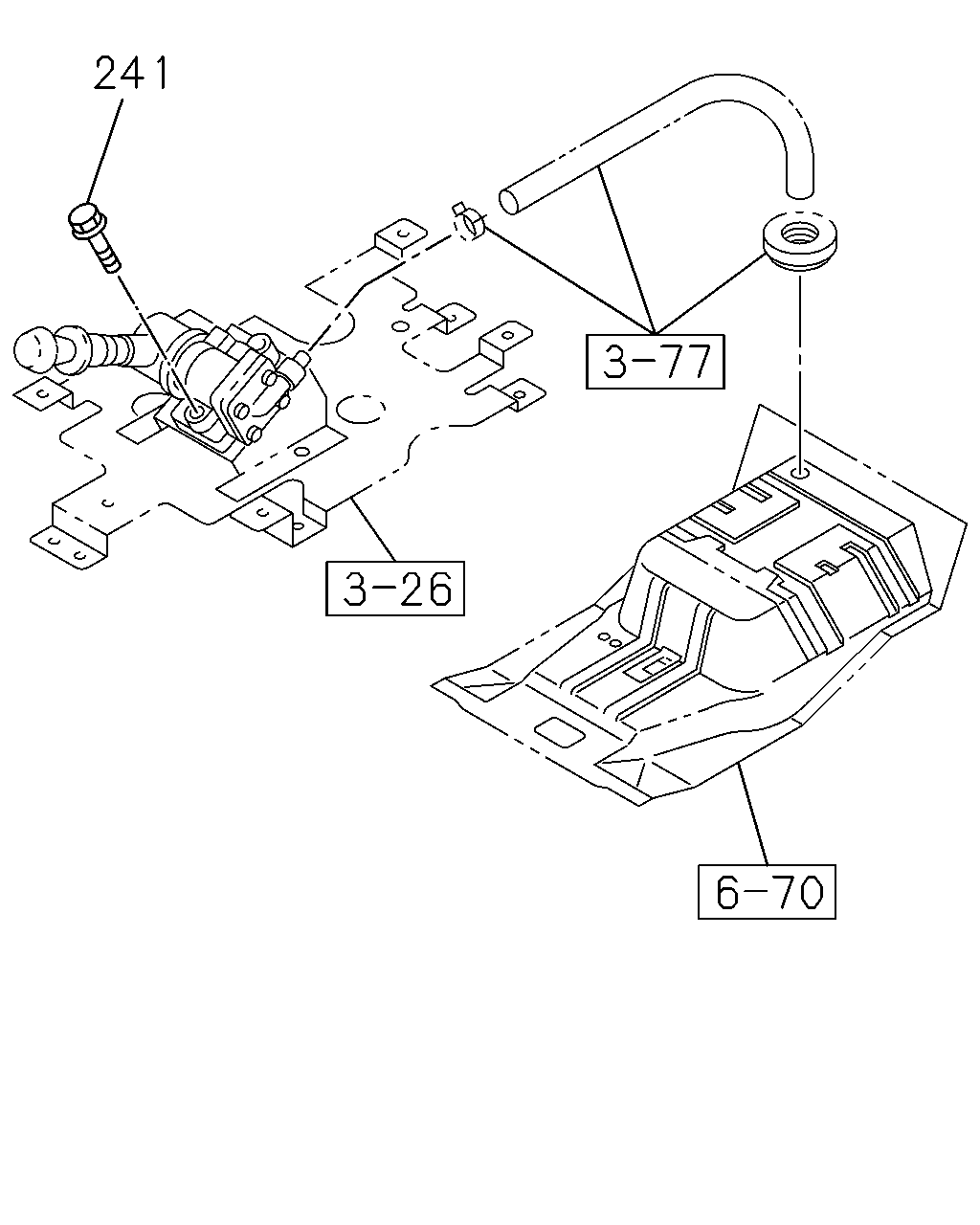

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1012-

9 9 8 8 126 126 126 10 1 352 39 43 39 9 8 64 7 6 28 28 368 417 43 106 172 46 46 64 64 134 43 282 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (D)	1-48370-500-0	01	1	0809-1011
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48370-500-0	01	1	1012-
1	TANK ASM; AIR (C)	1-48370-501-0	01	1	0809-1011
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-501-0	01	1	1012-
1	TANK ASM; AIR EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1012-1107
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1108-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	1012-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1011
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-1011
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1012-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	01	1	1012-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0809-1011
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1012-
6	COCK; DRAIN,AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1012-1107
6	COCK; DRAIN,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1012-1107
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1108-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0809-1011
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1012-
7	GASKET; DRAIN COCK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	03	1	1012-1107
7	GASKET; DRAIN COCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	03	1	1012-1107
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1108-
8	CONNECTOR; AIR TANK (A) M16X2 & PT3/8 3WAY	1-09656-455-2	01	1	0809-1011
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16X2 & PT3/8 3WAY	1-09656-455-2	01	1	1012-
8	CONNECTOR; AIR TANK (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	0809-1011
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	1012-
8	CONNECTOR; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1012-1107
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1108-
8	CONNECTOR; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1012-1107
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1108-
8	CONNECTOR; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1012-1107
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1108-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	02	1	0809-1011
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	02	1	1012-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	03	1	1012-1107
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	03	1	1108-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0809-1011
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	1012-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/4	9-09204-526-0	01	1	1012-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	01	1	1108-
28	BRACKET; AIR TANK (C)	1-53318-338-6	02	1	0809-1011
28	BRACKET; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-53318-338-6	02	1	1012-
28	BRACKET; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-4	01	1	1012-1107
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-5	01	1	1108-
28	BRACKET; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-4	01	1	1012-1107
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-5	01	1	1108-
39	U-BOLT; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98022-041-0	02	1	1012-1107
39	U-BOLT; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98022-041-0	02	1	1108-
43	BOLT; STAY,AIR TANK,MAIN (C) M8X20 FLANGE	0-28650-820-0	04	1	0809-1011
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X20 FLANGE	0-28650-820-0	04	1	1012-
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0809-1011
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10X25 FLANGE	0-28651-025-0	04	1	1012-
43	BOLT; STAY,AIR TANK,MAIN EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	06	1	1012-1107
43	BOLT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	06	1	1108-
46	NUT; U-BOLT EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	08	1	1012-1107
46	NUT; U-BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	08	1	1108-
64	STAY; AIR TANK,MAIN (C)	1-48317-349-0	02	1	0809-1011
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48317-349-0	02	1	1012-
64	STAY; AIR TANK,MAIN (D)	1-53318-293-1	01	1	0809-1011
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-53318-293-1	01	1	1012-
64	STAY; AIR TANK,MAIN EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-510-3	02	1	1012-1107
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-510-3	02	1	1108-
64	STAY; AIR TANK,MAIN EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-511-2	01	1	1012-1107
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-511-2	01	1	1108-
106	BOLT; COVER EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	1012-1107
106	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	1108-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1107
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1108-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1101
134	BOLT; COVER FIX EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	1012-1107
134	BOLT; COVER FIX HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	1108-
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	04	1	0809-1011
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1012-
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0809-1011
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	04	1	1012-
172	NUT; STAY,AIR TANK,MAIN EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1012-1107
172	NUT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1108-
282	UNION; 2 WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1108-
352	CONNECTOR; STRAIGHT EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98133-234-0	01	1	1012-1107
352	CONNECTOR; STRAIGHT TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98133-234-0	01	1	1108-
368	COVER; AIR TANK EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98061-625-3	01	1	1012-1107
368	COVER; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98061-625-3	01	1	1108-
417	COVER; HARNESS EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-401-0	01	1	1012-1107
417	COVER; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-401-0	01	1	1108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
