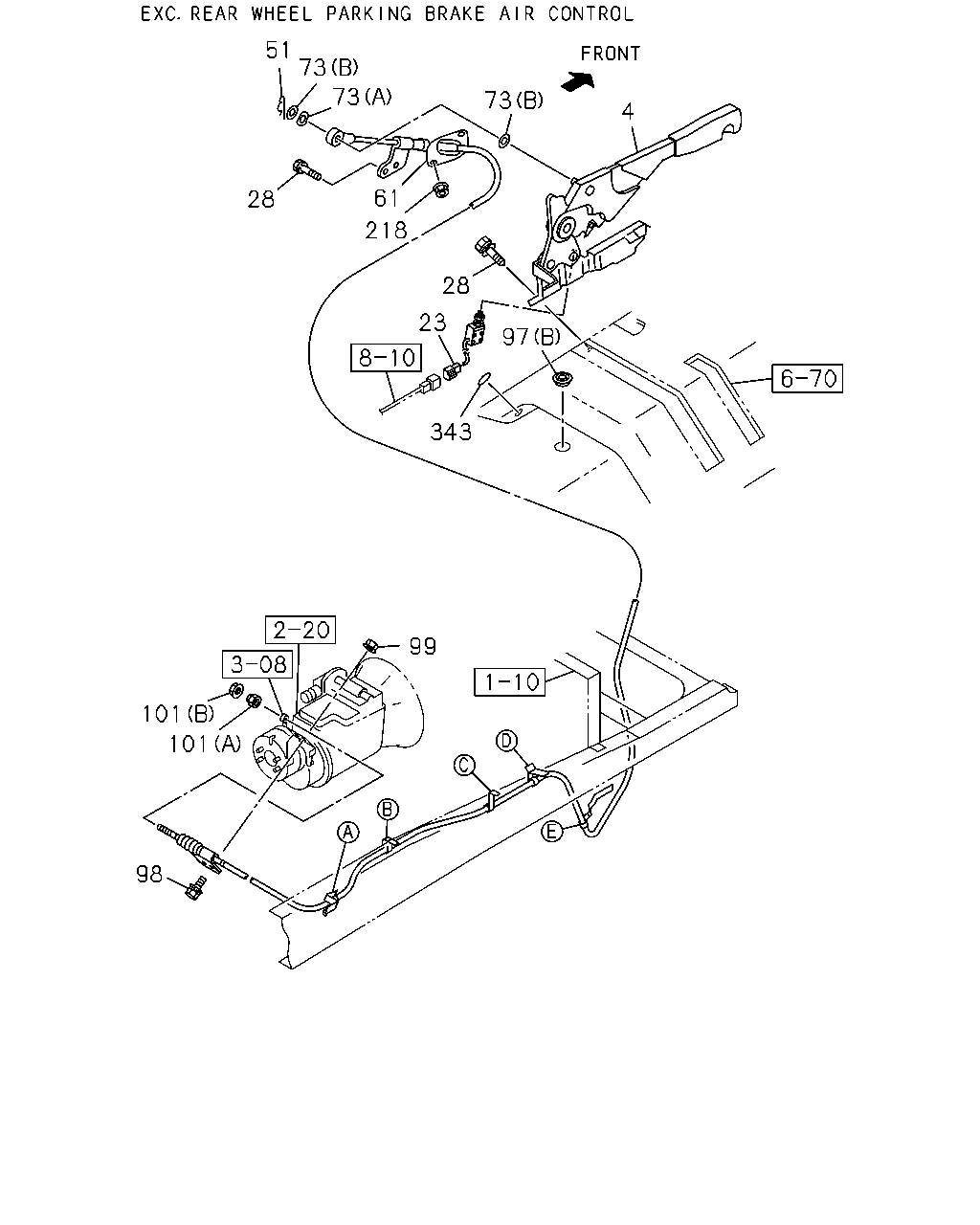

3-11 — PARKING BRAKE CONTROL (#60696) — 84 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE (B) OD=35	8-94122-971-0	01	1	0809-1011
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1012-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1012-

51 73 73 73 4 61 28 218 28 23 97 343 99 101 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK	1-79996-565-0	01	1	0809-1011
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-565-0	01	1	1012-
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	0809-1011
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	1012-
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0809-0904
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-1011
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1012-
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	0809-1011
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	1012-
61	CABLE; PARKING BRK MLD6W M/T(Y2C) L=4752	8-98131-013-0	01	1	0809-0901
61	CABLE; PARKING BRK MLD6W M/T(Y2C) L=4664	8-98135-024-1	01	1	0902-1011
61	CABLE; PARKING BRK MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=4664	8-98135-024-1	01	1	1012-
61	CABLE; PARKING BRK MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4664	8-98135-023-1	01	1	1012-
61	CABLE; PARKING BRK MZX6P M/T(RSW) L=4832	8-98064-883-3	01	1	0809-0901
61	CABLE; PARKING BRK MZX6P M/T(RSW) L=4744	8-98135-021-1	01	1	0902-0906
61	CABLE; PARKING BRK MZX6P M/T(RSW),MZW6P M/T(RSZ) L=4744	8-98135-021-1	01	1	0907-1011
61	CABLE; PARKING BRK MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4744	8-98135-021-1	01	1	1012-
73	WASHER; PL,CABLE (A) ID=17 OD=30	0-91610-516-0	01	1	0809-1011
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	1012-
73	WASHER; PL,CABLE (B) ID=19	8-94206-429-1	02	1	0809-1011
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	1012-
97	GROMMET; PARKING BRK CABLE (B) OD=35	8-94122-971-0	01	1	0809-1011
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1012-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1012-
98	BOLT; RR COVER M10X30 FLANGE	0-28651-030-0	02	1	0809-1011
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1012-
99	NUT; CONT CABLE M10 FLANGE	0-91180-210-0	02	1	0809-1011
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1012-
101	NUT; CABLE TO LEVER (B) M8 FLANGE	0-91180-108-0	01	1	0809-1011
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	1012-
101	NUT; CABLE TO LEVER (A)	1-46259-007-0	01	1	0809-1011
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-46259-007-0	01	1	1012-
218	NUT; BRKT,PARKING BRK CABLE M8 FLANGE	0-91180-108-0	02	1	0809-1011
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1012-
343	SEAL OD=25 BLACK	1-76798-019-0	08	1	0809-1011
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	08	1	1012-

87 235 235 235 227 236 235 237 227 236 228 227 235 228 235 236 227 87 228 336 351 46 227 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	0-95235-535-0	01	1	0809-1011
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	1012-
87	NUT M8 FLANGE	0-91180-108-0	02	1	0809-1011
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1012-
227	CLIP; RAD (B) ID=13 L=20	0-95235-235-0	02	1	0809-1011
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20	0-95235-235-0	02	1	1012-
227	CLIP; RAD (A) ID=13 L=32	0-95235-265-0	01	1	0809-1011
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 L=32	0-95235-265-0	01	1	1012-
227	CLIP; RAD (C) ID=16 H=30 L=30	1-09701-080-0	01	1	0809-1011
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30	1-09701-080-0	01	1	1012-
227	CLIP; RAD (D) ID=9.5	5-09709-020-0	01	1	0809-1011
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=9.5	5-09709-020-0	01	1	1012-
228	BOLT; CLIP RAD MTG M8X16 FLANGE	0-28050-816-0	01	1	0809-1011
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	01	1	1012-
228	BOLT; CLIP RAD MTG M8X25 FLANGE	0-28650-825-0	02	1	0809-1011
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1012-
228	BOLT; CLIP RAD MTG M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0809-1011
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1012-
228	BOLT; CLIP RAD MTG MLD6W M/T(Y2C) M8X25 FLANGE	0-28650-825-0	01	1	0901-1011
228	BOLT; CLIP RAD MTG MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	01	1	1012-
235	BRACKET; CONT CABLE TO FRAME (C)	1-82699-199-0	01	1	0809-1011
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-82699-199-0	01	1	1012-
235	BRACKET; CONT CABLE TO FRAME (A)	8-98100-151-0	01	1	0809-1011
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-151-0	01	1	1012-
235	BRACKET; CONT CABLE TO FRAME MLD6W M/T(Y2C) (E)	8-97624-417-0	01	1	0809-0812
235	BRACKET; CONT CABLE TO FRAME MLD6W M/T(Y2C) (F)	8-98137-033-0	01	1	0901-1011
235	BRACKET; CONT CABLE TO FRAME MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98137-033-0	01	1	1012-
235	BRACKET; CONT CABLE TO FRAME MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98111-492-0	01	1	1012-
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW) (B)	8-98077-903-2	01	1	0809-0906
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98077-903-2	01	1	0907-1011
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98077-903-2	01	1	1012-
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	0809-1011
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1012-
236	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	02	1	0809-1011
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1012-1504
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28051-030-0	02	1	1505-
237	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	0809-0812
237	NUT; BRKT TO FRAME MZX6P M/T(RSW) M10 FLANGE	0-91180-210-0	01	1	0901-0906
237	NUT; BRKT TO FRAME MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE	0-91180-210-0	01	1	0907-1011
237	NUT; BRKT TO FRAME MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1012-
237	NUT; BRKT TO FRAME MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1012-
336	BRACKET; RADIATOR	8-98044-680-0	01	1	0809-1011
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-680-0	01	1	1012-
351	BOLT; CLIP M8X25 W/WASHER	0-51640-825-0	03	1	0809-1011
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	1012-
