Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#60694) — 343 parça

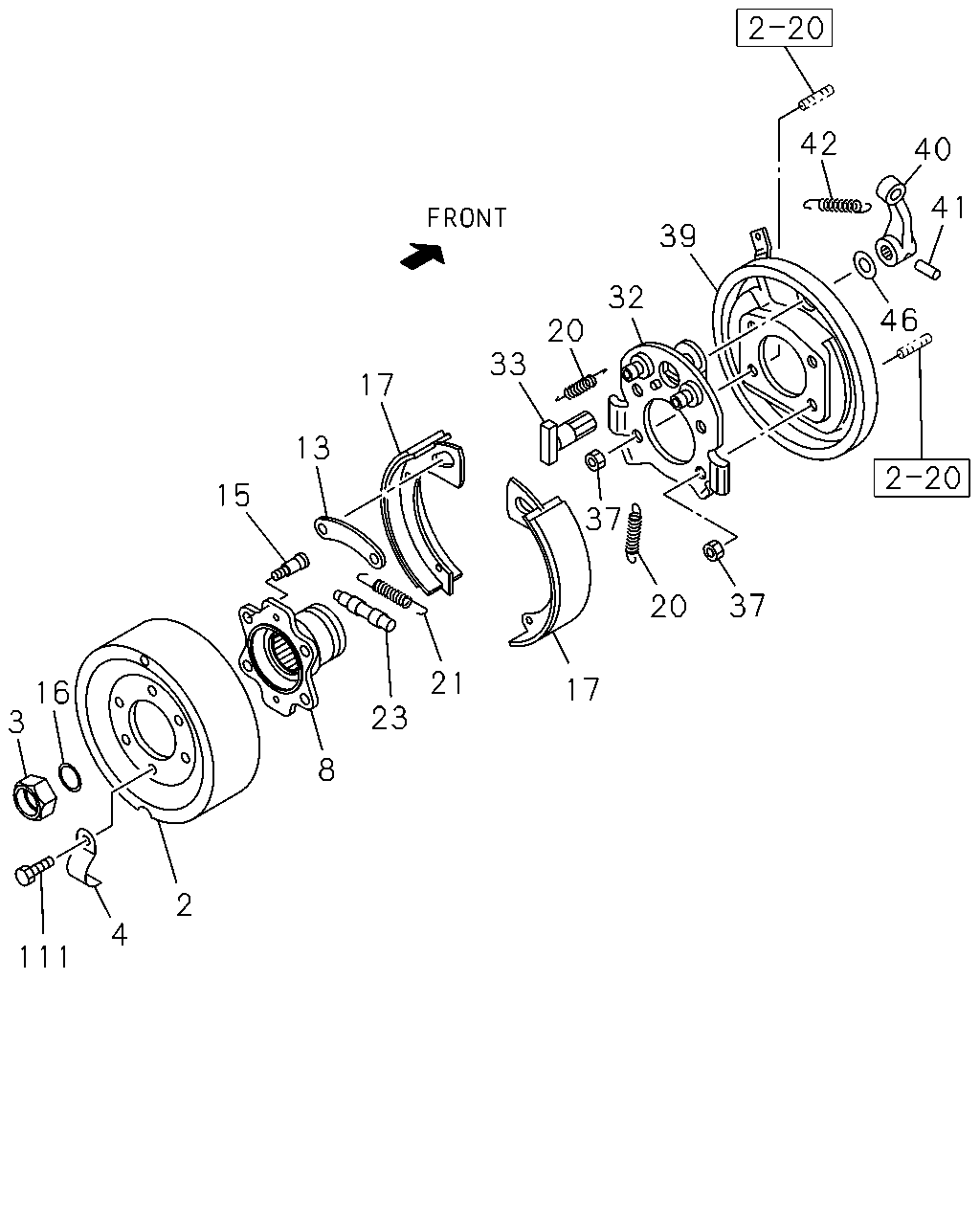

42 40 41 39 32 46 20 33 17 13 15 37 37 20 21 17 16 3 23 8 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0809-0906	●	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0907-1011	●	●	●
2	DRUM; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1012-	●	●	●
2	DRUM; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46211-019-0	01	1	1012-	●	●	●
3	NUT; LK M36 FLANGE	8-98014-140-0	01	1	0809-1011		●
3	NUT; LK PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M36 FLANGE	8-98014-140-0	01	1	1012-		●
4	COVER; ADJ HOLE PARKING BRAKE DRUM 10"(B1T)	1-46219-030-0	02	1	1012-		●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0809-1011		●
4	COVER; ADJ HOLE PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1012-		●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0809-0906	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0907-0912	●	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1002		●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	8-98153-193-0	01	1	1012-	●	●	●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1001-1002	●		●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1003-1011	●	●	●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1012-	●	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0809-0906	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0907-1011	●	●	●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1012-	●	●	●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-46239-002-0	01	1	1012-	●	●	●
15	BOLT; FLANGE PARKING BRAKE DRUM 10"(B1T) M16X55	8-98023-172-0	04	1	1012-		●
15	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	0809-1011		●
15	BOLT; FLANGE PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1012-		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0809-1011		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) ID=47 T=5	1-09623-380-0	01	1	1012-		●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0809-0906	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0907-1011	●	●	●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1012-	●	●	●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46220-022-1	02	1	1012-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0809-0906	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0907-1011	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1012-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-09942-434-0	02	1	1012-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0809-0906	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0907-1011	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1012-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	9-09942-516-0	01	1	1012-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0809-0906	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0907-1011	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1012-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	1-46240-003-0	01	1	1012-	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0809-0906	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0907-1011	●	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1012-	●	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-039-0	01	1	1012-	●	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0809-0906	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0907-1011	●	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1012-	●	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46251-010-0	01	1	1012-	●	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0809-0906	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0907-1011	●	●	●
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1012-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0809-1011		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-019-0	01	1	1012-		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-038-0	01	1	1012-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	0809-0906	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	0907-1011	●		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1012-	●		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0809-1011		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-043-0	01	1	1012-		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46252-046-0	01	1	1012-	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	0809-0906	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	0907-1011	●		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1012-	●		●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0809-0906	●	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0907-1011	●	●	●
41	PIN; KNOCK,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09878-594-0	01	1	1012-	●	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0809-0906	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0907-1011	●	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1012-	●	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 10"(B1T)	1-09583-104-0	01	1	1012-	●	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0809-0906	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0907-1011	●	●	●
46	WASHER; LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1012-	●	●	●
46	WASHER; LEVER PARKING BRAKE DRUM 10"(B1T)	9-09855-362-0	01	1	1012-	●	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0809-0906		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	0809-0906	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	0907-1009	●		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-1011	●	●	●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER	0-50740-820-0	02	1	1012-	●	●	●

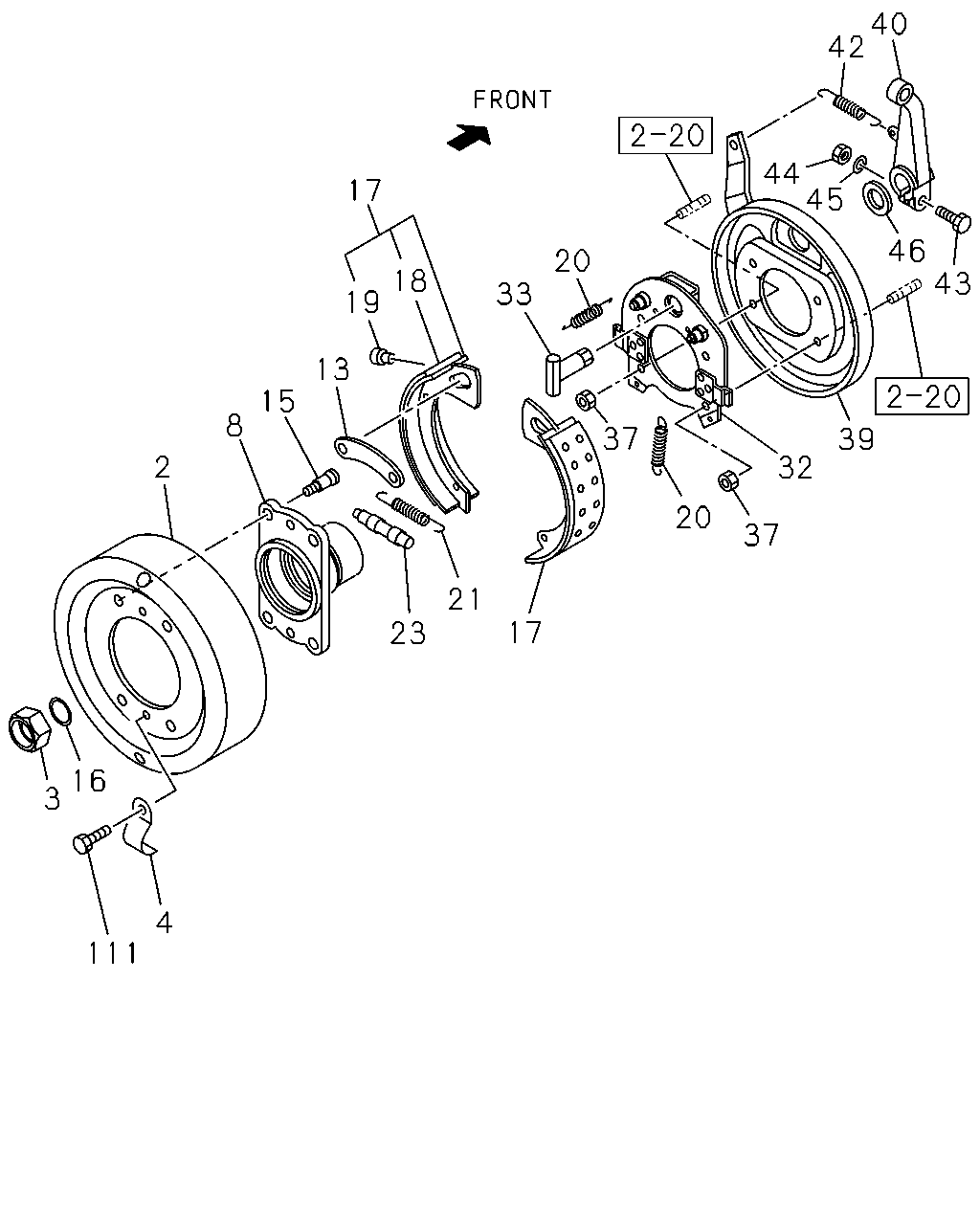

40 42 44 45 17 46 43 20 18 33 19 13 15 8 37 39 2 32 20 37 21 17 23 16 3 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0809-0906	●	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0907-1011	●	●	●
2	DRUM; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1012-	●	●	●
2	DRUM; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46211-019-0	01	1	1012-	●	●	●
3	NUT; LK M36 FLANGE	8-98014-140-0	01	1	0809-1011		●
3	NUT; LK PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M36 FLANGE	8-98014-140-0	01	1	1012-		●
4	COVER; ADJ HOLE PARKING BRAKE DRUM 10"(B1T)	1-46219-030-0	02	1	1012-		●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0809-1011		●
4	COVER; ADJ HOLE PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1012-		●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0809-0906	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0907-0912	●	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1002		●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	8-98153-193-0	01	1	1012-	●	●	●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1001-1002	●		●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1003-1011	●	●	●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1012-	●	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0809-0906	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0907-1011	●	●	●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1012-	●	●	●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-46239-002-0	01	1	1012-	●	●	●
15	BOLT; FLANGE PARKING BRAKE DRUM 10"(B1T) M16X55	8-98023-172-0	04	1	1012-		●
15	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	0809-1011		●
15	BOLT; FLANGE PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1012-		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0809-1011		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) ID=47 T=5	1-09623-380-0	01	1	1012-		●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0809-0906	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0907-1011	●	●	●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1012-	●	●	●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46220-022-1	02	1	1012-	●	●	●
18	LINING; BRK,PARKING PARKING BRAKE DRUM 10"(B1T)	1-46225-023-0	02	1	1012-	●	●	●
19	RIVET; LINING,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-09732-058-0	32	1	1012-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0809-0906	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0907-1011	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1012-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-09942-434-0	02	1	1012-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0809-0906	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0907-1011	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1012-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	9-09942-516-0	01	1	1012-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0809-0906	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0907-1011	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1012-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	1-46240-003-0	01	1	1012-	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0809-0906	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0907-1011	●	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1012-	●	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-039-0	01	1	1012-	●	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0809-0906	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0907-1011	●	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1012-	●	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46251-010-0	01	1	1012-	●	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0809-0906	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0907-1011	●	●	●
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1012-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0809-1011		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-019-0	01	1	1012-		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-038-0	01	1	1012-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	0809-0906	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	0907-1011	●		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1012-	●		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0809-1011		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-043-0	01	1	1012-		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46252-046-0	01	1	1012-	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	0809-0906	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	0907-1011	●		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1012-	●		●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0809-0906	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0907-1011	●	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1012-	●	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 10"(B1T)	1-09583-104-0	01	1	1012-	●	●	●
43	BOLT; LEVER TO CM/SHF PARKING BRAKE DRUM 10"(B1T)	8-98061-595-0	01	1	1012-		●
44	NUT; LEVER TO CM/SHF PARKING BRAKE DRUM 10"(B1T) M10	0-91111-510-0	01	1	1012-		●
45	WASHER; LK,LEVER TO CM/SHF PARKING BRAKE DRUM 10"(B1T) ID=10.2	0-91510-510-0	01	1	1012-		●
46	WASHER; LEVER	9-09855-367-0	01	1	0809-0906	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0907-1011	●	●	●
46	WASHER; LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1012-	●	●	●
46	WASHER; LEVER PARKING BRAKE DRUM 10"(B1T)	9-09855-362-0	01	1	1012-	●	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0809-0906		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	0809-0906	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	0907-1009	●		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-1011	●	●	●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER	0-50740-820-0	02	1	1012-	●	●	●

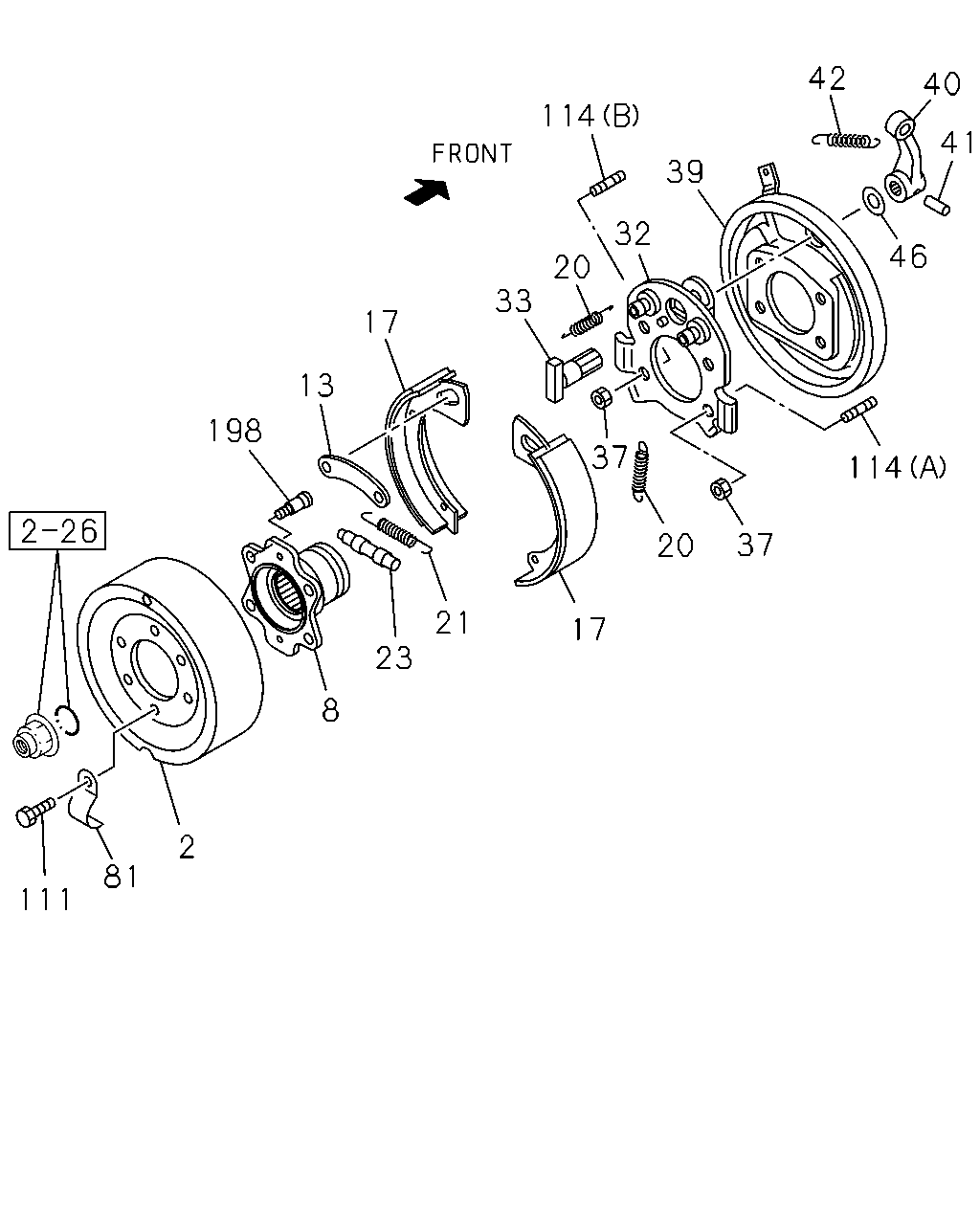

42 40 114 41 39 32 46 20 33 17 13 198 37 114 37 20 21 17 23 8 2 81 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0809-0906	●	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0907-1011	●	●	●
2	DRUM; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1012-	●	●	●
2	DRUM; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46211-019-0	01	1	1012-	●	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0809-0906	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0907-0912	●	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1002		●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	8-98153-193-0	01	1	1012-	●	●	●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1001-1002	●		●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1003-1011	●	●	●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1012-	●	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0809-0906	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0907-1011	●	●	●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1012-	●	●	●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-46239-002-0	01	1	1012-	●	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0809-0906	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0907-1011	●	●	●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1012-	●	●	●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46220-022-1	02	1	1012-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0809-0906	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0907-1011	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1012-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-09942-434-0	02	1	1012-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0809-0906	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0907-1011	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1012-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	9-09942-516-0	01	1	1012-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0809-0906	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0907-1011	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1012-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	1-46240-003-0	01	1	1012-	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0809-0906	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0907-1011	●	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1012-	●	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-039-0	01	1	1012-	●	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0809-0906	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0907-1011	●	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1012-	●	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46251-010-0	01	1	1012-	●	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0809-0906	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0907-1011	●	●	●
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1012-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0809-1011		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-019-0	01	1	1012-		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-038-0	01	1	1012-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	0809-0906	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	0907-1011	●		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1012-	●		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0809-1011		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-043-0	01	1	1012-		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46252-046-0	01	1	1012-	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	0809-0906	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	0907-1011	●		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1012-	●		●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0809-0906	●	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0907-1011	●	●	●
41	PIN; KNOCK,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09878-594-0	01	1	1012-	●	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0809-0906	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0907-1011	●	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1012-	●	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 10"(B1T)	1-09583-104-0	01	1	1012-	●	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0809-0906	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0907-1011	●	●	●
46	WASHER; LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1012-	●	●	●
46	WASHER; LEVER PARKING BRAKE DRUM 10"(B1T)	9-09855-362-0	01	1	1012-	●	●	●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	0809-0906	●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	0907-1011	●		●
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1012-	●		●
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46219-030-0	02	1	1012-	●		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0809-0906		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	0809-0906	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	0907-1009	●		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-1011	●	●	●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER	0-50740-820-0	02	1	1012-	●	●	●
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-0906	●
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0907-1011	●		●
114	STUD; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1012-	●		●
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906	●
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-1011	●		●
114	STUD; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1012-	●		●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	0809-0906	●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	0907-1011	●		●
198	BOLT; KNURL PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1012-	●		●
198	BOLT; KNURL PARKING BRAKE DRUM 10"(B1T) M16X55	8-98023-172-0	04	1	1012-	●		●

130 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
130	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0809-0906	●
130	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-1011	●	●
130	BOLT; BRKT PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M10X25 FLANGE	0-28751-025-0	03	1	1012-	●	●
197	BRACKET; CENTER BRAKE CABLE	8-98020-897-1	01	1	0809-0906	●
197	BRACKET; CENTER BRAKE CABLE	8-98020-897-1	01	1	0907-1011	●	●
197	BRACKET; CENTER BRAKE CABLE PARKING BRAKE DRUM 8.5"(B1S)	8-98020-897-1	01	1	1012-	●	●
197	BRACKET; CENTER BRAKE CABLE PARKING BRAKE DRUM 10"(B1T)	8-98009-002-1	01	1	1012-	●	●

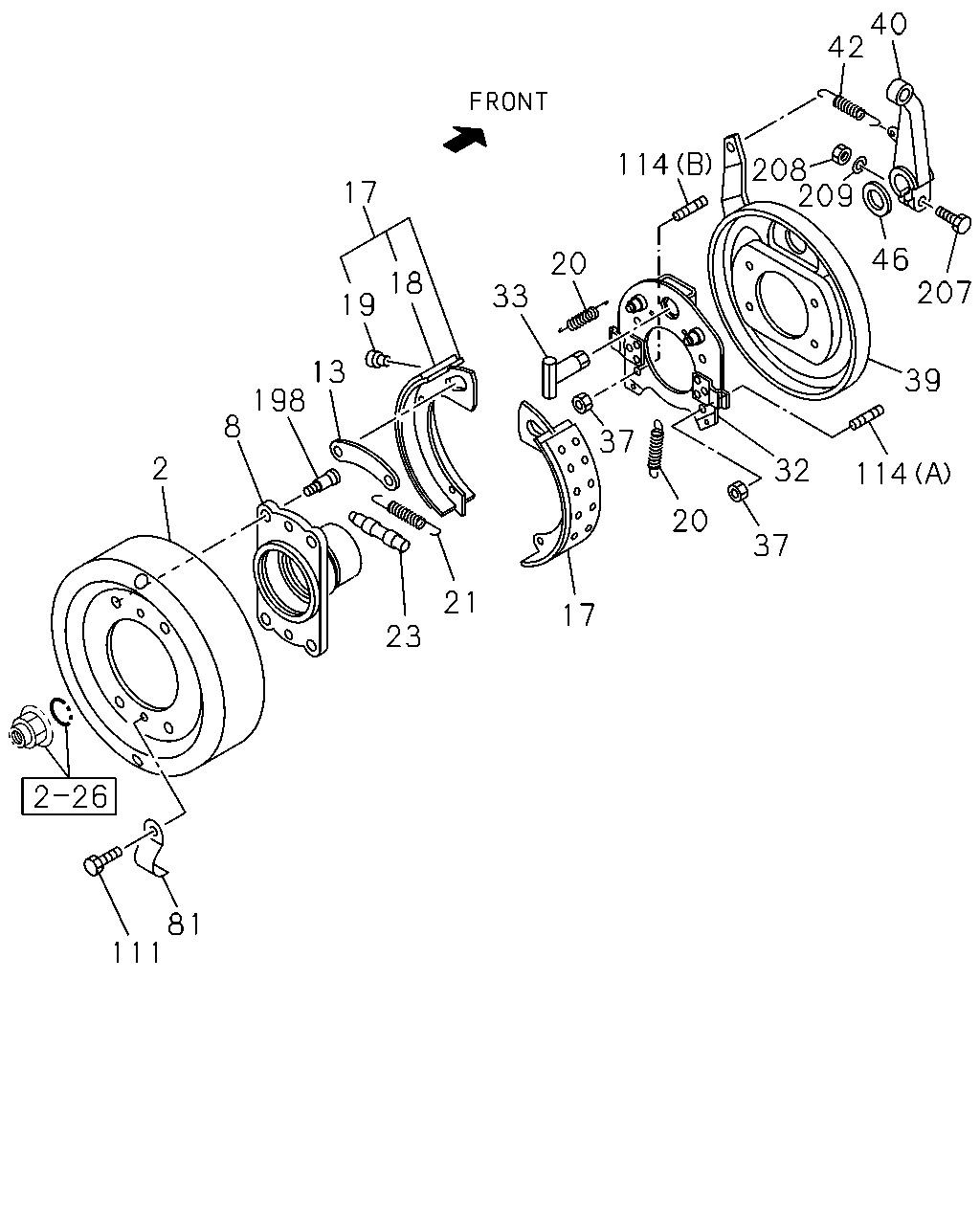

40 42 114 208 209 17 46 207 20 18 33 19 13 198 39 8 37 2 32 114 20 37 21 17 23 81 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0809-0906	●	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0907-1011	●	●	●
2	DRUM; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1012-	●	●	●
2	DRUM; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46211-019-0	01	1	1012-	●	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0809-0906	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0907-0912	●	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1002		●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	8-98153-193-0	01	1	1012-	●	●	●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1001-1002	●		●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1003-1011	●	●	●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1012-	●	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0809-0906	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0907-1011	●	●	●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1012-	●	●	●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-46239-002-0	01	1	1012-	●	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0809-0906	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0907-1011	●	●	●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1012-	●	●	●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46220-022-1	02	1	1012-	●	●	●
18	LINING; BRK,PARKING PARKING BRAKE DRUM 10"(B1T)	1-46225-023-0	02	1	1012-	●	●	●
19	RIVET; LINING,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-09732-058-0	32	1	1012-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0809-0906	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0907-1011	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1012-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-09942-434-0	02	1	1012-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0809-0906	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0907-1011	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1012-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	9-09942-516-0	01	1	1012-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0809-0906	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0907-1011	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1012-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	1-46240-003-0	01	1	1012-	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0809-0906	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0907-1011	●	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1012-	●	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-039-0	01	1	1012-	●	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0809-0906	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0907-1011	●	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1012-	●	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46251-010-0	01	1	1012-	●	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0809-0906	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0907-1011	●	●	●
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1012-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0809-1011		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-019-0	01	1	1012-		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-038-0	01	1	1012-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	0809-0906	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	0907-1011	●		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1012-	●		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0809-1011		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-043-0	01	1	1012-		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46252-046-0	01	1	1012-	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	0809-0906	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	0907-1011	●		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1012-	●		●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0809-0906	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0907-1011	●	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1012-	●	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 10"(B1T)	1-09583-104-0	01	1	1012-	●	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0809-0906	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0907-1011	●	●	●
46	WASHER; LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1012-	●	●	●
46	WASHER; LEVER PARKING BRAKE DRUM 10"(B1T)	9-09855-362-0	01	1	1012-	●	●	●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	0809-0906	●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	0907-1011	●		●
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1012-	●		●
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46219-030-0	02	1	1012-	●		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0809-0906		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	0809-0906	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	0907-1009	●		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-1011	●	●	●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER	0-50740-820-0	02	1	1012-	●	●	●
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-0906	●
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0907-1011	●		●
114	STUD; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1012-	●		●
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906	●
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-1011	●		●
114	STUD; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1012-	●		●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	0809-0906	●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	0907-1011	●		●
198	BOLT; KNURL PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1012-	●		●
198	BOLT; KNURL PARKING BRAKE DRUM 10"(B1T) M16X55	8-98023-172-0	04	1	1012-	●		●
207	BOLT; LEVER PARKING BRAKE DRUM 10"(B1T)	8-98061-595-0	01	1	1012-	●		●
208	NUT; LEVER PARKING BRAKE DRUM 10"(B1T) M10	0-91111-510-0	01	1	1012-	●		●
209	WASHER; SP,LEVER PARKING BRAKE DRUM 10"(B1T) ID=10.2	0-91510-510-0	01	1	1012-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
