◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#60693) — 312 parça

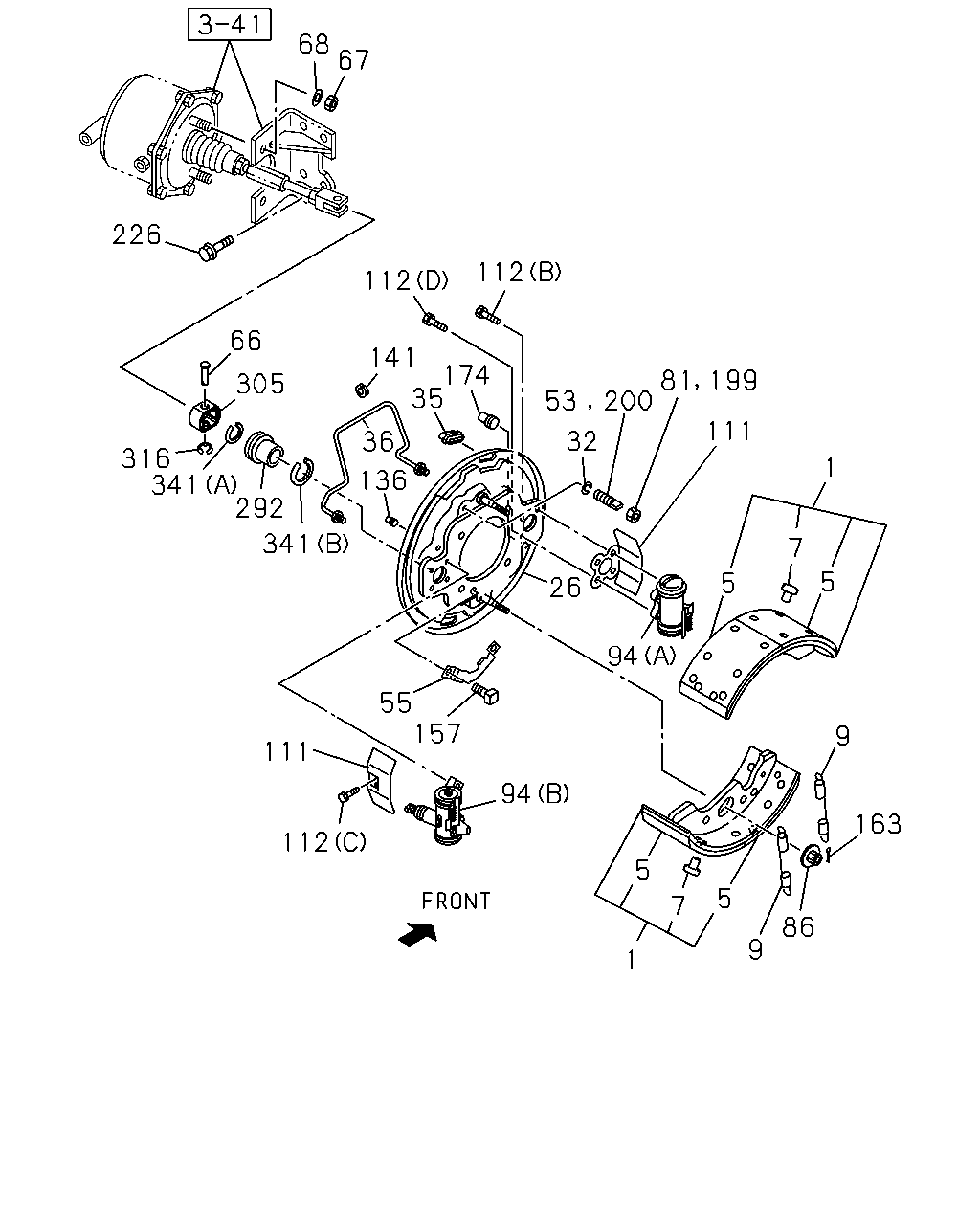

çizim 148788
68 67 226 112 112 66 141 174 35 81 199 305 111 32 36 316 341 1 136 292 341 7 5 5 26 94 55 157 9 111 94 163 112 5 5 7 86 9 1 53 200
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
LEADING 		1-47170-498-0 01 1 0809-1011
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-47170-498-0 01 1 1012-
1 SHOE; BRK,RR
TRAILING 		1-47170-499-0 01 1 0809-1011
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-47170-499-0 01 1 1012-
1 SHOE; BRK,RR
LEADING 		1-47170-496-0 01 1 0809-1011
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-47170-496-0 01 1 1012-
1 SHOE; BRK,RR
TRAILING 		1-47170-497-0 01 1 0809-1011
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-47170-497-0 01 1 1012-
1 SHOE; BRK,RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-003-0 04 1 1012-
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 0809-1011
5 LINING; RR BRK SHOE,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-812-0 08 1 1012-
5 LINING; RR BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 1012-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 40 1 0809-1011
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=18.5 		1-09732-034-0 40 1 1012-
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 40 1 0809-1011
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=15.5 		1-09732-053-0 40 1 1012-
7 RIVET; LINING,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 96 1 1012-
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 0809-1011
9 SPRING; RETURN,BRK SHOE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-359-0 04 1 1012-
9 SPRING; RETURN,BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-346-0 04 1 1012-
26 PLATE; BACK,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47150-645-0 01 1 1012-
26 PLATE; BACK,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47150-644-0 01 1 1012-
26 PLATE; BACK,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47150-677-0 01 1 1012-
26 PLATE; BACK,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47150-676-0 01 1 1012-
32 WASHER; LK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09985-346-0 04 1 1411-
32 WASHER; LK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.2 		0-91510-512-0 04 1 1012-1410
32 WASHER; LK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2 		0-91510-512-0 04 1 1411-
35 GROMMET; CHECK HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-033-0 04 1 1012-
36 PIPE; OIL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49162-057-0 01 1 1012-1410
36 PIPE; OIL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49167-875-0 01 1 1411-
36 PIPE; OIL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49162-056-0 01 1 1012-1410
36 PIPE; OIL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-49167-876-0 01 1 1411-
36 PIPE; OIL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47421-727-0 02 1 1012-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0809-1011
53 BOLT; LOCK PLATE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X16 		0-20851-016-0 02 1 1012-
53 BOLT; LOCK PLATE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-050-0 02 1 1012-
55 PLATE; LK,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47139-169-0 04 1 1411-
55 PLATE; LK,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47139-064-0 04 1 1012-1410
55 PLATE; LK,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47139-064-0 04 1 1411-
66 PIN; JAW JOINT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09744-128-0 02 1 1012-
67 NUT; POWER CHAMBER FIX
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91110-516-0 04 1 1012-
68 WASHER; LK,CHAMBER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 		0-91510-816-0 04 1 1012-
81 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09400-167-0 02 1 1411-
81 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09400-100-0 02 1 1012-1410
81 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09400-100-0 02 1 1411-
86 NUT; FLANGE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09440-102-0 04 1 1411-
86 NUT; FLANGE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09440-003-0 04 1 1012-1410
86 NUT; FLANGE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09440-003-0 04 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		8-98289-367-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		8-98289-368-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
(C) 		1-47601-046-1 02 1 0809-1003
94 CYLINDER; WHEEL,RR BRK
(C) 		8-98166-405-0 02 1 1004-1011
94 CYLINDER; WHEEL,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98166-405-0 02 1 1012-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-011-1 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-011-1 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-010-1 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-010-1 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-187-0 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-185-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-186-0 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-184-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-199-0 01 1 1012-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-198-0 01 1 1012-
111 COVER; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47159-233-0 04 1 1411-
111 COVER; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-164-0 04 1 1012-1410
111 COVER; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47159-164-0 04 1 1411-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47159-231-0 08 1 1411-
112 BOLT; WHEEL CYL SETTING
(A) M12X32 W/LK WASHER 		0-50051-232-0 04 1 0809-0906
112 BOLT; WHEEL CYL SETTING
(A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 0907-1011
112 BOLT; WHEEL CYL SETTING
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 1012-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14 		1-47159-183-0 08 1 1012-1410
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 		1-47159-183-0 08 1 1411-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE 		8-94134-103-0 08 1 1012-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 		1-47159-184-0 06 1 1012-1410
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47159-232-0 06 1 1411-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 		1-47159-184-0 08 1 1012-
136 GROMMET
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09956-640-0 04 1 1012-
141 PROTECTOR; RR BRK PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47143-008-0 02 1 1012-
157 BOLT; RR BRK SET
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09060-021-0 16 1 1411-
157 BOLT; RR BRK SET
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X50 SQUARE HEAD 		1-09060-013-0 16 1 1012-1410
157 BOLT; RR BRK SET
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50 SQUARE HEAD 		1-09060-013-0 16 1 1411-
163 PIN; SPLIT,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09740-098-0 04 1 1411-
163 PIN; SPLIT,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09874-040-0 04 1 1012-1410
163 PIN; SPLIT,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09874-040-0 04 1 1411-
174 COVER; CYL,RR WHEEL CYL 1-47159-197-0 02 1 0809-1011
174 COVER; CYL,RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-197-0 02 1 1012-
174 COVER; CYL,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47154-008-0 04 1 1012-
174 COVER; CYL,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47154-008-0 02 1 1012-
199 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09400-167-0 02 1 1411-
199 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09400-100-0 02 1 1012-1410
199 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09400-100-0 02 1 1411-
200 BOLT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-050-0 02 1 1012-
226 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE 		0-28651-435-0 08 1 1012-
292 BOOT; ROD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47616-107-0 02 1 1012-
305 GUIDE; SLACK ADJ
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46346-023-0 02 1 1012-
316 RING; SNAP
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 		0-91805-509-0 02 1 1012-
341 SPRING; ASSIST,BOOT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47619-175-0 02 1 1012-
341 SPRING; ASSIST,BOOT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47619-176-0 02 1 1012-

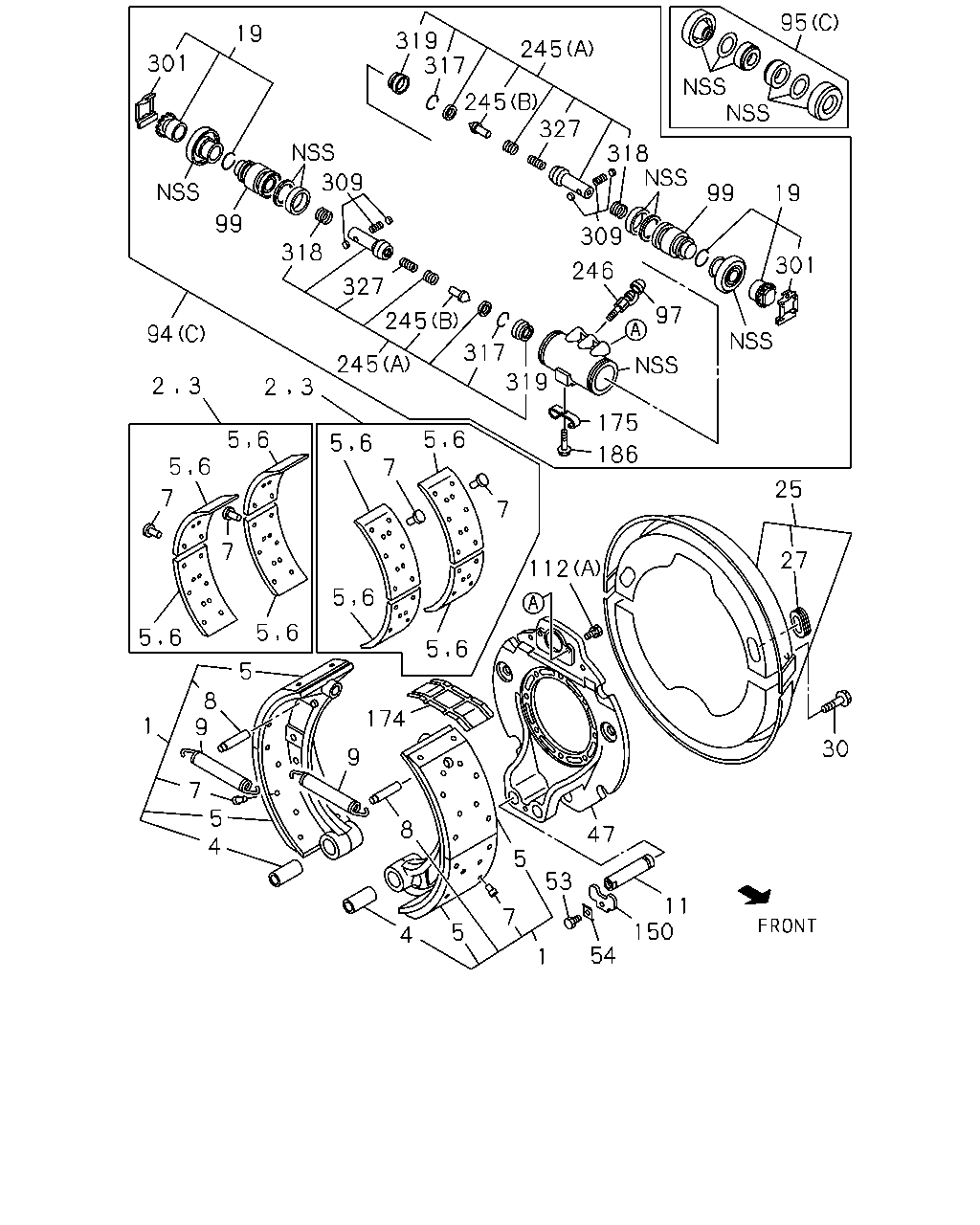

çizim 148795
95 19 319 317 245 301 245 327 318 309 99 19 309 99 318 301 246 327 97 245 94 317 245 319 2 3 2 3 175 186 7 25 7 7 7 27 112 5 8 9 174 1 30 9 7 5 4 8 47 5 53 11 150 7 5 4 54 1 5 6 5 6 5 6 5 6 5 6 6 5 6 5 6 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
LEADING 		1-47170-498-0 01 1 0809-1011
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-47170-498-0 01 1 1012-
1 SHOE; BRK,RR
TRAILING 		1-47170-499-0 01 1 0809-1011
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-47170-499-0 01 1 1012-
1 SHOE; BRK,RR
LEADING 		1-47170-496-0 01 1 0809-1011
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-47170-496-0 01 1 1012-
1 SHOE; BRK,RR
TRAILING 		1-47170-497-0 01 1 0809-1011
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-47170-497-0 01 1 1012-
1 SHOE; BRK,RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47170-003-0 04 1 1012-
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 0809-1011
2 LINING SET; RR BRK,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-88311-390-0 01 1 1012-
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 0809-1011
2 LINING SET; RR BRK,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-88311-394-0 01 1 1012-
2 LINING SET; RR BRK,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-839-1 02 1 1012-
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 0809-1011
3 LINING SET; RR BRK,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-88311-391-0 01 1 1012-
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 0809-1011
3 LINING SET; RR BRK,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-88311-395-0 01 1 1012-
3 LINING SET; RR BRK,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-840-1 02 1 1012-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-011-0 04 1 0809-1011
4 BUSHING; BRK SHOE,RR WHEEL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47112-011-0 04 1 1012-
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 0809-1011
5 LINING; RR BRK SHOE,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-812-0 08 1 1012-
5 LINING; RR BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 1012-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 0809-1011
6 LINING; RR BRK SHOE,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-813-0 08 1 1012-
6 LINING; RR BRK SHOE,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-162-0 08 1 1012-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 40 1 0809-1011
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=18.5 		1-09732-034-0 40 1 1012-
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 40 1 0809-1011
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=15.5 		1-09732-053-0 40 1 1012-
7 RIVET; LINING,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 96 1 1012-
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 0809-1011
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47119-134-0 04 1 1012-
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 0809-1011
9 SPRING; RETURN,BRK SHOE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-359-0 04 1 1012-
9 SPRING; RETURN,BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-346-0 04 1 1012-
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 		1-47131-038-0 04 1 0809-1011
11 PIN; ANCHOR,RR WHEEL BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=106.5 		1-47131-038-0 04 1 1012-
19 ADJUSTER; RR BRK 1-47621-015-0 04 1 0809-1011
19 ADJUSTER; RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47621-015-0 04 1 1012-
25 COVER SET; RR BRK DRUM 1-47151-458-1 02 1 0809-1011
25 COVER SET; RR BRK DRUM
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47151-458-1 02 1 1012-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0809-1011
27 COVER; CHECK HOLE,DRUM COVER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-151-0 04 1 1012-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0809-1011
30 BOLT; DRUM COVER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X12 		1-47159-187-0 12 1 1012-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-577-0 02 1 0809-1011
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47137-577-0 02 1 1012-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0809-1011
53 BOLT; LOCK PLATE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X16 		0-20851-016-0 02 1 1012-
53 BOLT; LOCK PLATE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-050-0 02 1 1012-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0809-1011
54 WASHER; LK,ANCHOR PIN,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47133-011-0 02 1 1012-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		8-98289-367-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		8-98289-368-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
(C) 		1-47601-046-1 02 1 0809-1003
94 CYLINDER; WHEEL,RR BRK
(C) 		8-98166-405-0 02 1 1004-1011
94 CYLINDER; WHEEL,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98166-405-0 02 1 1012-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-011-1 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-011-1 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-010-1 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-010-1 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-187-0 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-185-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-186-0 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-184-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-199-0 01 1 1012-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-198-0 01 1 1012-
95 CUP SET; RR WHEEL CYL
(C) 		1-87830-922-0 02 1 0809-1011
95 CUP SET; RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-87830-922-0 02 1 1012-
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 02 1 1012-
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-87831-246-1 02 1 1012-
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 04 1 1012-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0809-1011
97 CAP; BLEEDER,RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12 		1-47619-011-0 02 1 1012-
97 CAP; BLEEDER,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-479-0 02 1 1012-
99 PISTON; RR WHEEL CYL 1-47624-357-0 04 1 0809-1011
99 PISTON; RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-357-0 04 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD 		1-47624-349-0 01 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD 		1-47624-351-0 01 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD 		1-47624-350-0 01 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD 		1-47624-352-0 01 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-350-0 02 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-349-0 02 1 1012-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47159-231-0 08 1 1411-
112 BOLT; WHEEL CYL SETTING
(A) M12X32 W/LK WASHER 		0-50051-232-0 04 1 0809-0906
112 BOLT; WHEEL CYL SETTING
(A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 0907-1011
112 BOLT; WHEEL CYL SETTING
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 1012-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14 		1-47159-183-0 08 1 1012-1410
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 		1-47159-183-0 08 1 1411-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE 		8-94134-103-0 08 1 1012-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 		1-47159-184-0 06 1 1012-1410
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47159-232-0 06 1 1411-
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 		1-47159-184-0 08 1 1012-
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 0809-1011
150 PLATE; LK,ANCHOR PIN
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47133-005-0 02 1 1012-
174 COVER; CYL,RR WHEEL CYL 1-47159-197-0 02 1 0809-1011
174 COVER; CYL,RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-197-0 02 1 1012-
174 COVER; CYL,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47154-008-0 04 1 1012-
174 COVER; CYL,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47154-008-0 02 1 1012-
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 0809-1011
175 HANGER; RR WHEEL BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-145-0 02 1 1012-
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 0809-1011
186 BOLT; HANGER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 W/LK WASHER 		0-50540-816-0 02 1 1012-
245 SHAFT
(A) 		1-47623-027-1 04 1 0809-1011
245 SHAFT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47623-027-1 04 1 1012-
245 SHAFT
(B) 		1-47629-121-0 04 1 0809-1011
245 SHAFT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47629-121-0 04 1 1012-
246 BLEEDER 1-47615-002-0 02 1 0809-1011
246 BLEEDER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47615-002-0 02 1 1012-
301 CLIP; ANTI LOTATION 1-47621-016-0 04 1 0809-1011
301 CLIP; ANTI LOTATION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47621-016-0 04 1 1012-
309 SPRING; ADJUSTER SHAFT 1-09580-544-0 04 1 0809-1011
309 SPRING; ADJUSTER SHAFT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09580-544-0 04 1 1012-
317 RING; RETAINER 1-47629-119-0 04 1 0809-1011
317 RING; RETAINER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-119-0 04 1 1012-
318 SPRING; ADJ 1-09580-542-0 04 1 0809-1011
318 SPRING; ADJ
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09580-542-0 04 1 1012-
319 RING; DRIVE 1-47629-120-0 04 1 0809-1011
319 RING; DRIVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-120-0 04 1 1012-
327 SPRING; ADJ 1-09580-543-0 04 1 0809-1011
327 SPRING; ADJ
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09580-543-0 04 1 1012-

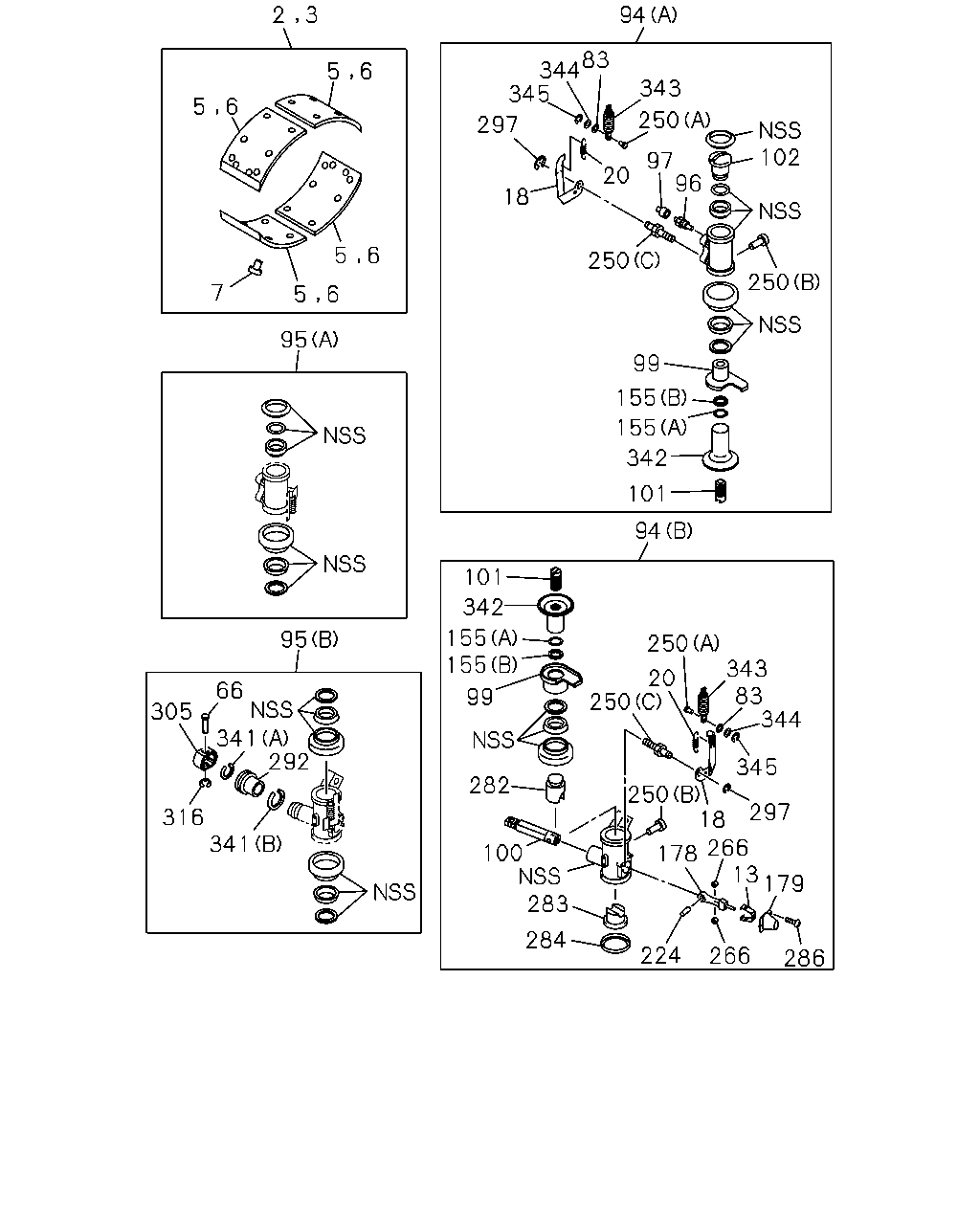

çizim 148803
2 3 94 83 344 345 5 6 343 5 6 250 297 102 97 96 20 18 5 6 250 250 7 5 6 95 99 155 155 342 101 94 101 342 155 155 95 250 343 83 344 20 250 66 99 305 341 292 345 250 18 282 297 316 341 266 178 13 179 100 283 284 224 266 286
BalonParca AdiParca NoAdetTipApplied Date
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 0809-1011
2 LINING SET; RR BRK,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-88311-390-0 01 1 1012-
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 0809-1011
2 LINING SET; RR BRK,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-88311-394-0 01 1 1012-
2 LINING SET; RR BRK,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-839-1 02 1 1012-
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 0809-1011
3 LINING SET; RR BRK,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-88311-391-0 01 1 1012-
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 0809-1011
3 LINING SET; RR BRK,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-88311-395-0 01 1 1012-
3 LINING SET; RR BRK,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-840-1 02 1 1012-
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 0809-1011
5 LINING; RR BRK SHOE,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-812-0 08 1 1012-
5 LINING; RR BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 1012-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 0809-1011
6 LINING; RR BRK SHOE,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-813-0 08 1 1012-
6 LINING; RR BRK SHOE,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-162-0 08 1 1012-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 40 1 0809-1011
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=18.5 		1-09732-034-0 40 1 1012-
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 40 1 0809-1011
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=15.5 		1-09732-053-0 40 1 1012-
7 RIVET; LINING,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09732-029-0 96 1 1012-
13 CLIP; ROLLER PIN,BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47619-139-0 02 1 1012-
18 LEVER; AUTO ADJ
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-164-0 02 1 1012-
18 LEVER; AUTO ADJ
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-165-0 02 1 1012-
20 SPRING; ADJ LEVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-345-0 04 1 1012-
66 PIN; JAW JOINT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09744-128-0 02 1 1012-
83 WASHER; PL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-108-0 04 1 1012-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		8-98289-367-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		8-98289-368-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
(C) 		1-47601-046-1 02 1 0809-1003
94 CYLINDER; WHEEL,RR BRK
(C) 		8-98166-405-0 02 1 1004-1011
94 CYLINDER; WHEEL,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98166-405-0 02 1 1012-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-011-1 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-011-1 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-010-1 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-010-1 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-187-0 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-185-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-186-0 01 1 1012-1410
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-184-0 01 1 1411-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-199-0 01 1 1012-
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-198-0 01 1 1012-
95 CUP SET; RR WHEEL CYL
(C) 		1-87830-922-0 02 1 0809-1011
95 CUP SET; RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-87830-922-0 02 1 1012-
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 02 1 1012-
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-87831-246-1 02 1 1012-
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 04 1 1012-
96 SCREW; BLEEDER,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-477-0 02 1 1012-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0809-1011
97 CAP; BLEEDER,RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12 		1-47619-011-0 02 1 1012-
97 CAP; BLEEDER,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-479-0 02 1 1012-
99 PISTON; RR WHEEL CYL 1-47624-357-0 04 1 0809-1011
99 PISTON; RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-357-0 04 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD 		1-47624-349-0 01 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD 		1-47624-351-0 01 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD 		1-47624-350-0 01 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD 		1-47624-352-0 01 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-350-0 02 1 1012-
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-349-0 02 1 1012-
100 ROD; PUSH,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47619-169-0 02 1 1012-1410
100 ROD; PUSH,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98290-467-0 02 1 1411-
101 SCREW; ADJ,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-053-0 02 1 1012-
101 SCREW; ADJ,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-054-0 02 1 1012-
102 PISTON; REAR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-333-0 02 1 1012-
102 PISTON; REAR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-333-0 04 1 1012-
155 WASHER; PL,WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47629-150-0 04 1 1012-
155 WASHER; PL,WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47629-151-0 04 1 1012-
178 WEDGE; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47619-168-0 02 1 1012-
179 COVER; WEDGE,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47619-141-0 02 1 1012-
224 PIN; ROD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47619-130-0 02 1 1012-
250 PIN; RETAINING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47619-106-0 04 1 1012-
250 PIN; RETAINING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47629-112-0 04 1 1012-
250 PIN; RETAINING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47629-262-0 04 1 1012-
266 ROLLER; WEDGE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47619-138-0 04 1 1012-
282 PLUNGER; INNER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-255-0 02 1 1012-
283 PLUNGER; OUTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-256-0 01 1 1012-1410
283 PLUNGER; OUTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-257-0 01 1 1012-1410
283 PLUNGER; OUTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-257-0 02 1 1411-
284 BOOT; PISTON
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47616-093-0 02 1 1012-
286 SCREW; COVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47619-132-0 06 1 1012-
292 BOOT; ROD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47616-107-0 02 1 1012-
297 RING; SNAP
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-263-0 04 1 1012-
305 GUIDE; SLACK ADJ
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46346-023-0 02 1 1012-
316 RING; SNAP
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 		0-91805-509-0 02 1 1012-
341 SPRING; ASSIST,BOOT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47619-175-0 02 1 1012-
341 SPRING; ASSIST,BOOT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47619-176-0 02 1 1012-
342 GEAR; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-159-0 02 1 1012-
342 GEAR; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-158-0 02 1 1012-
343 SPRING; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-141-0 04 1 1012-
344 WASHER; WAVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-107-0 04 1 1012-
345 RETAINER; LEVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-109-0 04 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
