0-32 — WATER PIPING; ENGINE (#6069) — 172 parça

91 91 90 91 90 89 91 92 91 90 91 90 91 90 91 91 91 90 91 89 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

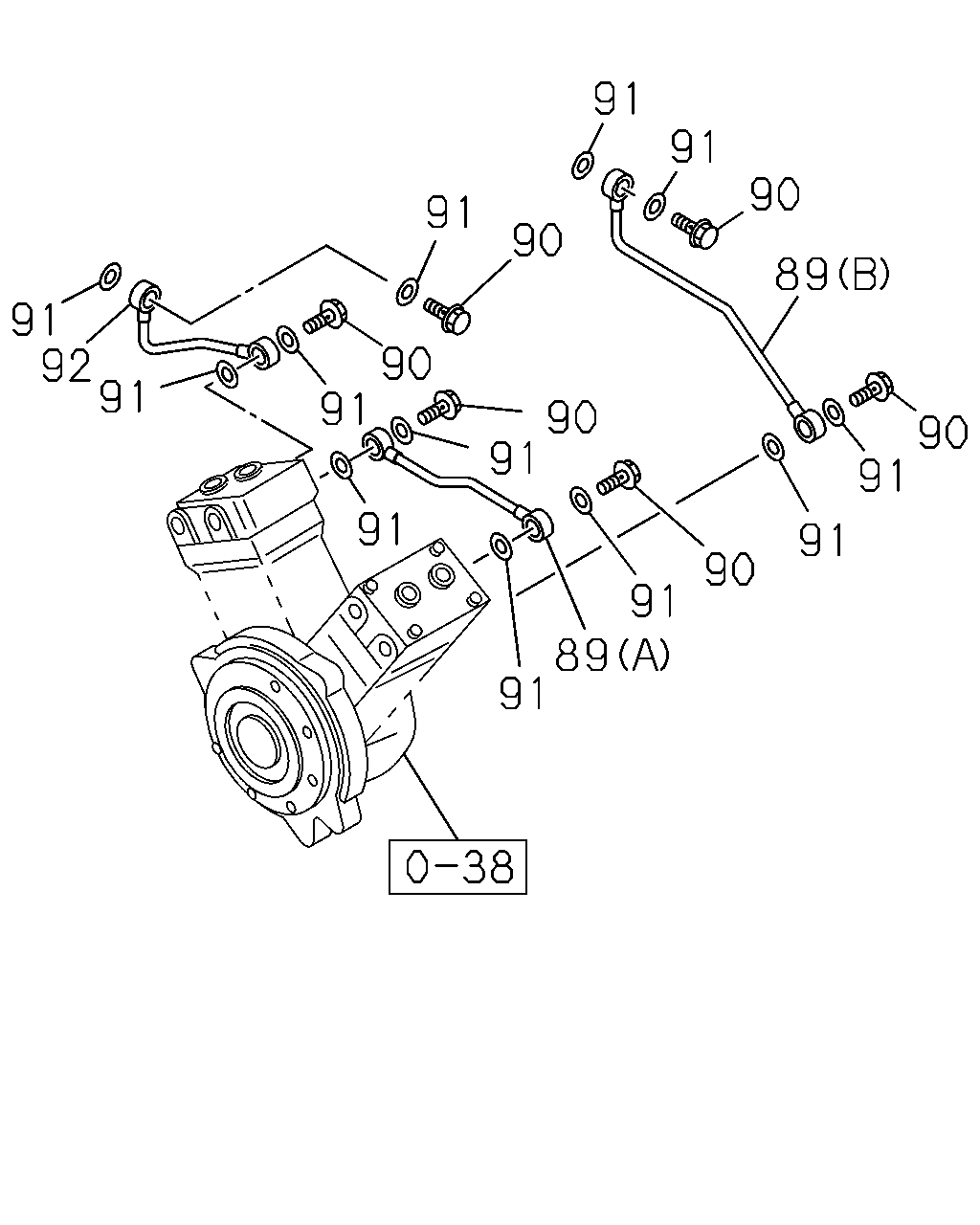

89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-575-0	01	1	9905-0011
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0012-
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-595-0	01	1	9905-0011
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0012-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	06	1	9905-0004
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0005-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	12	1	9905-0011
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0012-
92	PIPE; WATER,AIR CMPR,OUT	1-13711-596-1	01	1	9905-0011
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0012-

56 147 147 127 147 147 127 147 147 127 56 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

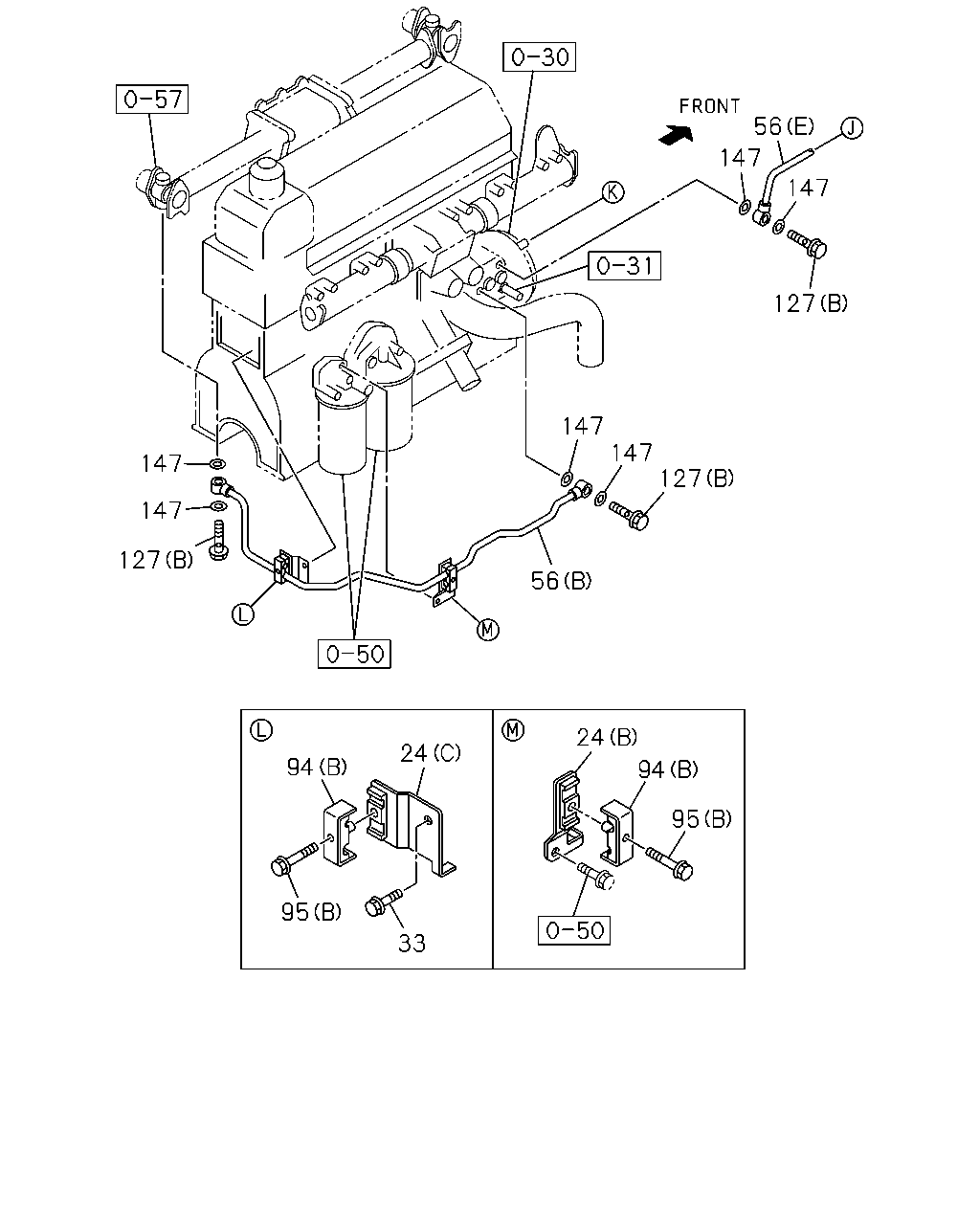

24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0302-
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0302-
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0302-
33	BOLT; BRKT M14X20 FLANGE	0-28981-420-0	01	1	0302-0512
33	BOLT; BRKT M14X20 FLANGE	0-28951-420-0	01	1	0601-
56	PIPE; WATER OUTLET (A)	1-13721-763-0	01	1	9905-0108
56	PIPE; WATER OUTLET (A)	1-13721-587-1	01	1	0109-0301
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0302-
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0302-0606
56	PIPE; WATER OUTLET (C)	8-98039-673-0	01	1	0607-
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0302-
56	PIPE; WATER OUTLET (E)	1-13721-958-0	01	1	0302-
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0302-
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0302-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0302-
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0302-
95	BOLT; CLIP (B) M6X35 FLANGE	0-28050-635-0	04	1	0708-
95	BOLT; CLIP (B) M6X70 FLANGE	0-28080-670-0	02	1	0302-0512
95	BOLT; CLIP (B) M6X70 FLANGE	0-28050-670-0	02	1	0601-
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	9905-0301
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	06	1	0302-0512
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	06	1	0601-0707
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	02	1	0708-
127	BOLT; EYE (A) M14X27 FLANGE	1-09675-086-0	04	1	9905-0004
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-
127	BOLT; EYE (D) M10X21 FLANGE	1-09675-077-0	01	1	0302-0805
127	BOLT; EYE (D) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	07	1	0302-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-230-0	01	1	0302-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0302-

95 95 110 110 95 110 104 109 105 105 105 112 111 112 59 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

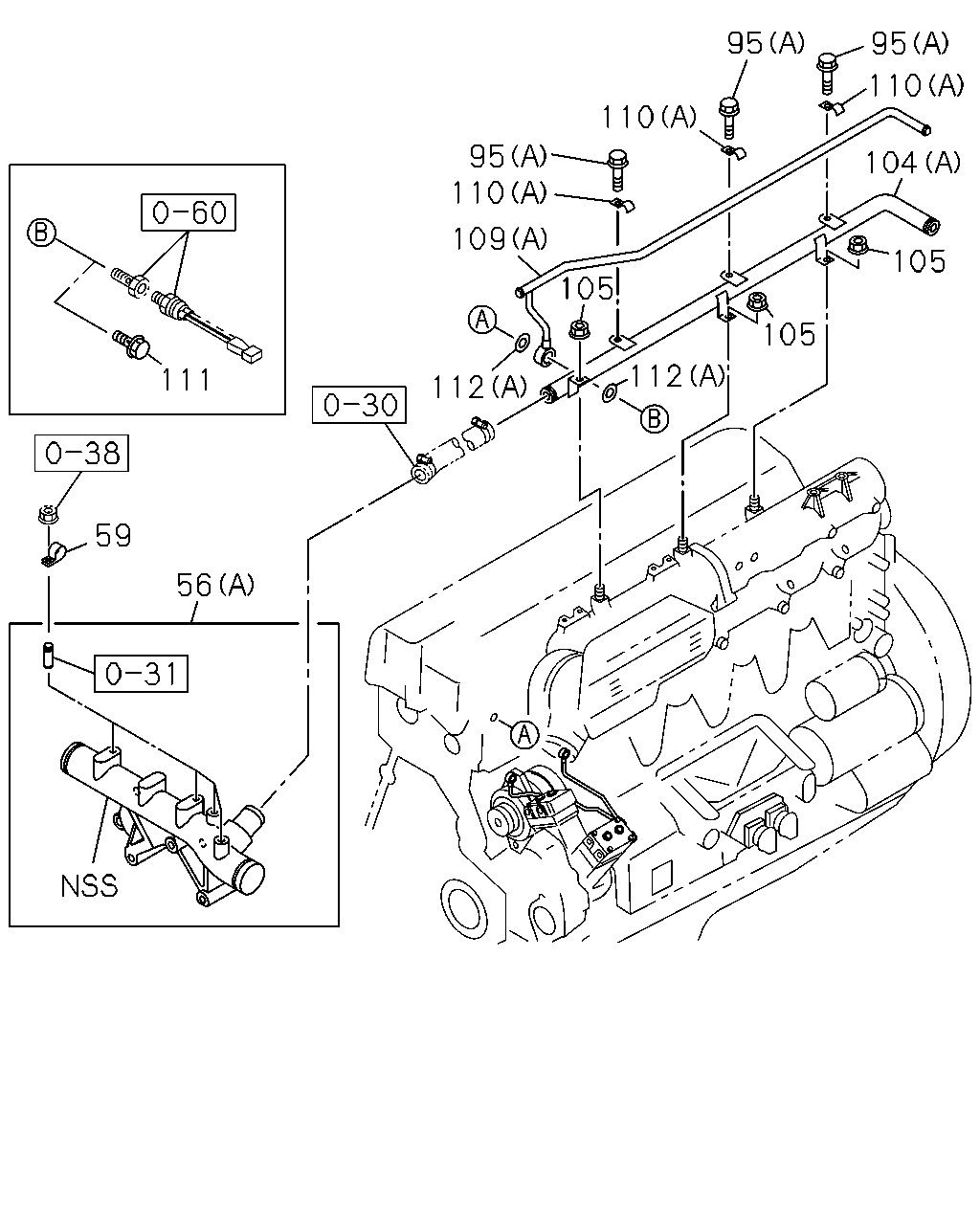

56	PIPE; WATER OUTLET (A)	1-13721-763-0	01	1	9905-0108
56	PIPE; WATER OUTLET (A)	1-13721-587-1	01	1	0109-0301
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0302-
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0302-0606
56	PIPE; WATER OUTLET (C)	8-98039-673-0	01	1	0607-
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0302-
56	PIPE; WATER OUTLET (E)	1-13721-958-0	01	1	0302-
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	9905-0301
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0302-0606
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0607-
95	BOLT; CLIP (B) M6X35 FLANGE	0-28050-635-0	04	1	0708-
95	BOLT; CLIP (B) M6X70 FLANGE	0-28080-670-0	02	1	0302-0512
95	BOLT; CLIP (B) M6X70 FLANGE	0-28050-670-0	02	1	0601-
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	9905-0301
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	06	1	0302-0512
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	06	1	0601-0707
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	02	1	0708-
104	PIPE; WATER CHARGE (A)	1-13721-647-0	01	1	9905-0301
104	PIPE; WATER CHARGE (B)	1-13721-913-2	01	1	0302-1208
104	PIPE; WATER CHARGE (B)	8-98228-041-0	01	1	1209-
105	NUT; PIPE M10 FLANGE	0-91150-210-0	03	1	9905-0301
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-764-0	01	1	9905-0011
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-648-0	01	1	0012-0301
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	1-13721-833-1	01	1	0302-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-2	01	1	0302-
110	CLIP; AIR PIPE (A) ID=9.7 L=20	1-09700-878-1	03	1	9905-0301
110	CLIP; AIR PIPE (C) ID=9 & 9 L=25	1-09701-180-0	04	1	0302-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0302-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 FLANGE	1-09675-086-0	01	1	9905-0004
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-0101
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-0011
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0012-0301
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	0302-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	0302-

127 126 126 126 126 127 126 126 126 88 127 126 127 87 88 87 88 1 65 88 48 176 50 50 50 88 65 48 50 88 65 1 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

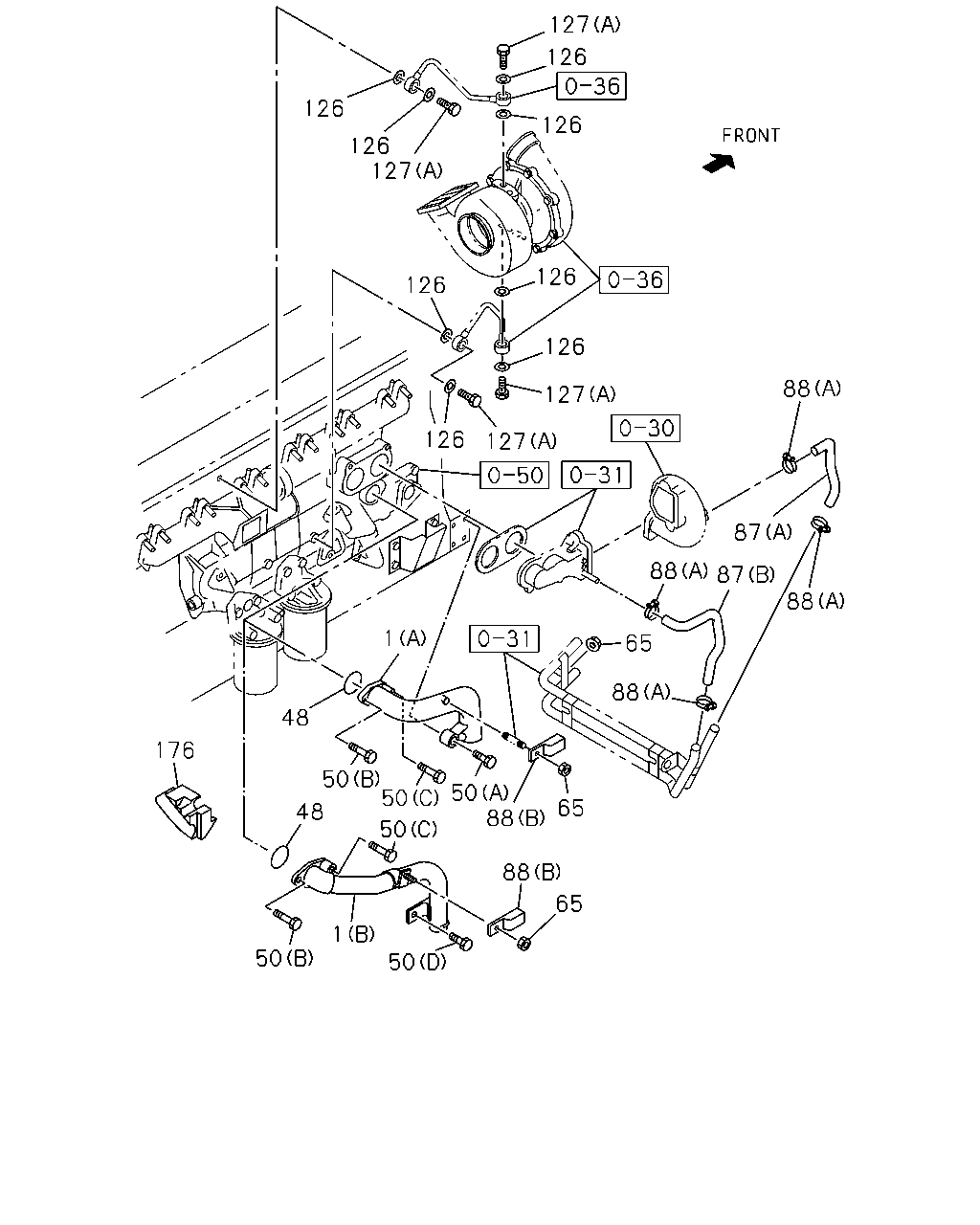

1	PIPE; WATER PUMP,INL (A)	1-13711-718-0	01	1	9905-0106
1	PIPE; WATER PUMP,INL (A)	1-13711-611-2	01	1	0107-0512
1	PIPE; WATER PUMP,INL (B)	8-97606-255-2	01	1	0601-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9905-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	9905-0512
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0601-
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	9905-0512
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0601-
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	9905-0512
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28981-425-0	01	1	0601-0601
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28951-425-0	01	1	0601-
65	NUT M10 FLANGE	0-91180-110-0	02	1	0603-
65	NUT M10 FLANGE	0-91150-110-0	02	1	9905-
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	9905-
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	9905-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	9905-
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	9905-1206
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	9905-0011
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0012-0703
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0704-
127	BOLT; EYE (A) M14X27 FLANGE	1-09675-086-0	04	1	9905-0004
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-
127	BOLT; EYE (D) M10X21 FLANGE	1-09675-077-0	01	1	0302-0805
127	BOLT; EYE (D) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	07	1	0302-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-230-0	01	1	0302-
176	INSULATOR; WATER PIPE	1-19389-189-1	01	1	9905-0301

127 112 107 107 112 127 127 109 104 147 147 109 147 170 147 146 112 58 113 112 58 112 112 127 147 147 147 127 147 147 56 35 170 35 115 35 115 147 127 35 56 207 35 30 153 153 206 35 56 115 115 153 115 153 206 95 110 31 94 94 95 31 94 94 94 94 31 24 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

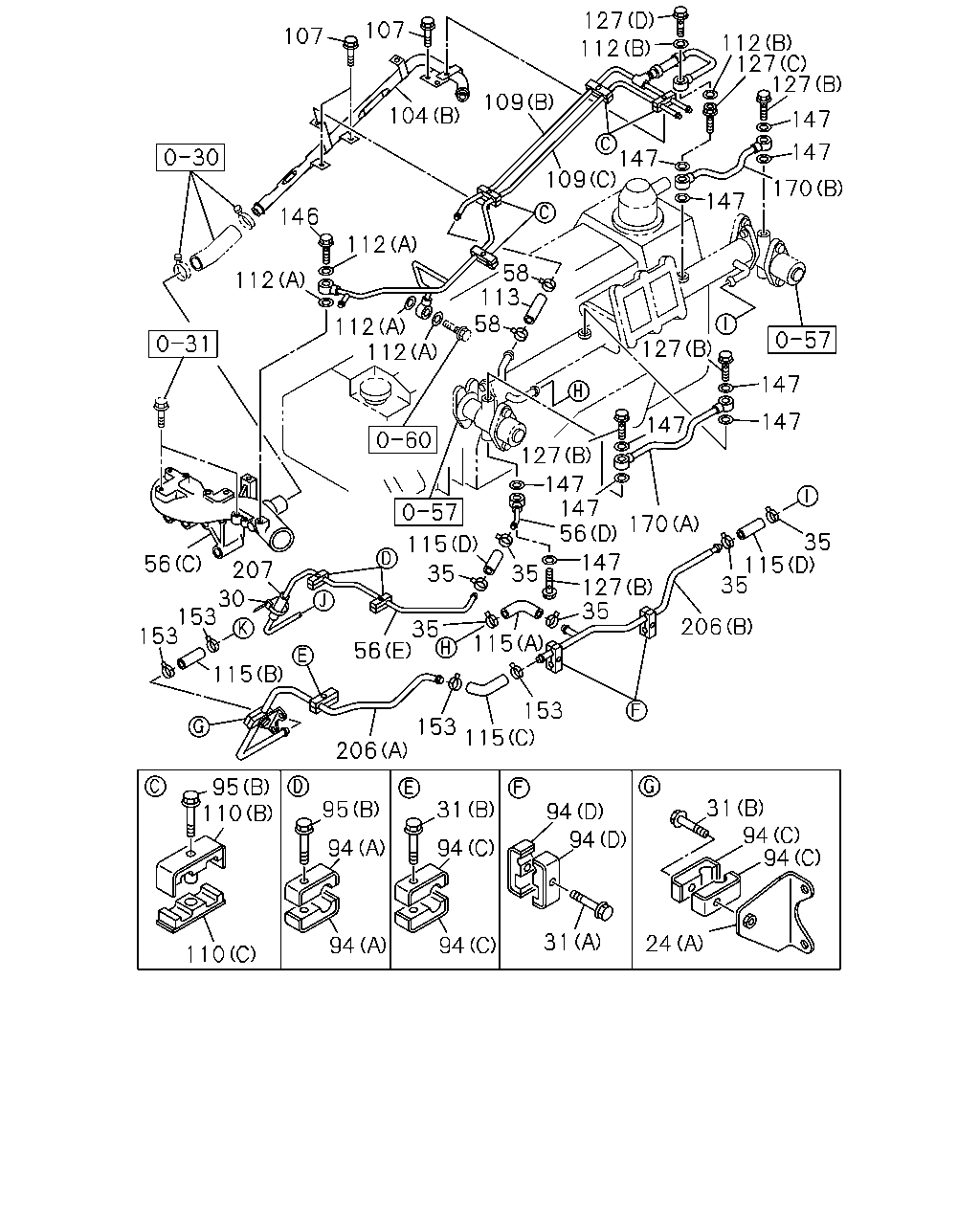

24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0302-
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0302-
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0302-
30	CLIP; HARNESS L=140	5-09707-031-1	04	1	0302-0407
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0408-1205
30	CLIP; HARNESS L=140	8-98216-431-0	02	1	1206-
31	BOLT; CLIP (A) M6X70 FLANGE	0-28080-670-0	02	1	0404-0512
31	BOLT; CLIP (A) M6X70 FLANGE	0-28050-670-0	02	1	0601-
31	BOLT; CLIP (A) M6X40 FLANGE	0-28080-640-0	02	1	0302-0512
31	BOLT; CLIP (A) M6X40 FLANGE	0-28050-640-0	02	1	0601-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28080-840-0	02	1	0302-0512
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0302-
56	PIPE; WATER OUTLET (A)	1-13721-763-0	01	1	9905-0108
56	PIPE; WATER OUTLET (A)	1-13721-587-1	01	1	0109-0301
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0302-
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0302-0606
56	PIPE; WATER OUTLET (C)	8-98039-673-0	01	1	0607-
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0302-
56	PIPE; WATER OUTLET (E)	1-13721-958-0	01	1	0302-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0302-
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0302-
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0302-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0302-
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0302-
95	BOLT; CLIP (B) M6X35 FLANGE	0-28050-635-0	04	1	0708-
95	BOLT; CLIP (B) M6X70 FLANGE	0-28080-670-0	02	1	0302-0512
95	BOLT; CLIP (B) M6X70 FLANGE	0-28050-670-0	02	1	0601-
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	9905-0301
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	06	1	0302-0512
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	06	1	0601-0707
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	02	1	0708-
104	PIPE; WATER CHARGE (A)	1-13721-647-0	01	1	9905-0301
104	PIPE; WATER CHARGE (B)	1-13721-913-2	01	1	0302-1208
104	PIPE; WATER CHARGE (B)	8-98228-041-0	01	1	1209-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0302-0512
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0601-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-764-0	01	1	9905-0011
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-648-0	01	1	0012-0301
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	1-13721-833-1	01	1	0302-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-2	01	1	0302-
110	CLIP; AIR PIPE (A) ID=9.7 L=20	1-09700-878-1	03	1	9905-0301
110	CLIP; AIR PIPE (C) ID=9 & 9 L=25	1-09701-180-0	04	1	0302-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0302-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-0011
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0012-0301
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	0302-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	0302-
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0302-
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0302-
115	HOSE; RUBBER (C)	1-09360-378-0	01	1	0302-0305
115	HOSE; RUBBER (C)	1-09361-081-1	01	1	0306-
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0302-
115	HOSE; RUBBER (D) L=60	8-97079-996-0	02	1	0302-
127	BOLT; EYE (A) M14X27 FLANGE	1-09675-086-0	04	1	9905-0004
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-
127	BOLT; EYE (D) M10X21 FLANGE	1-09675-077-0	01	1	0302-0805
127	BOLT; EYE (D) M10X21 FLANGE	8-97372-238-0	01	1	0806-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	07	1	0302-
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-230-0	01	1	0302-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0302-
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0302-
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0302-
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0302-
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0302-
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0302-
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0302-
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0302-
