0-31 — THERMOSTAT AND HOUSING (#6068) — 39 parça

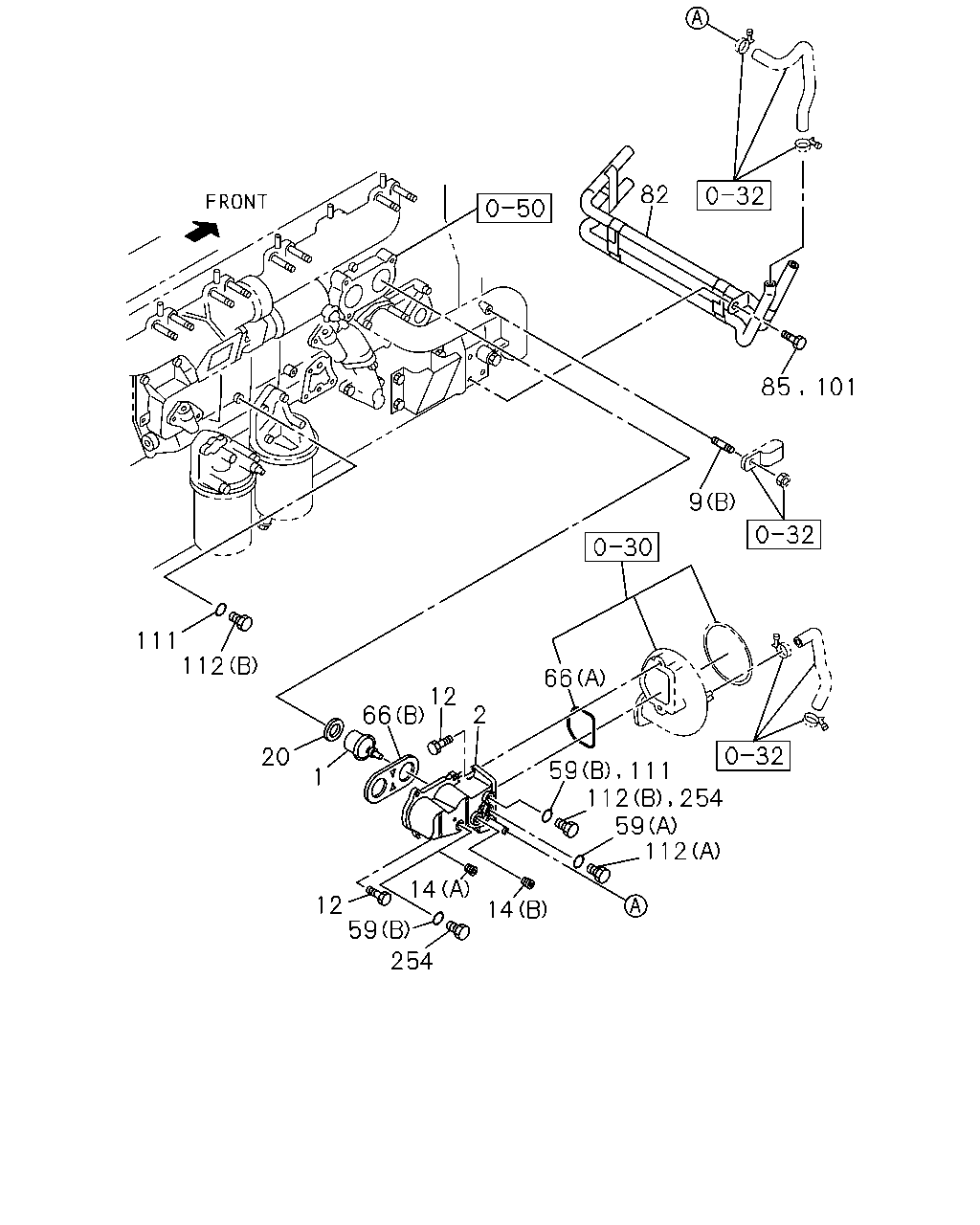

82 85 101 9 111 112 66 12 66 2 20 59 111 59 112 1 14 12 59 14 254 112 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	THERMOSTAT 82 CELSIUS	8-98271-161-0	02	1	9905-
2	HOUSING; THERMOSTAT	1-13710-530-0	01	1	9905-0105
2	HOUSING; THERMOSTAT	1-13710-577-0	01	1	0106-0303
2	HOUSING; THERMOSTAT	1-13710-550-1	01	1	0304-1012
2	HOUSING; THERMOSTAT	8-98173-668-0	01	1	1101-
9	STUD; WATER PIPE (A) M8X20 L=32	9-04110-820-0	04	1	9905-0301
9	STUD; WATER PIPE (B) M10X20 L=35	9-04411-020-0	01	1	9905-0512
12	BOLT; HSG M10X25 FLANGE	0-28181-025-0	05	1	9905-0512
12	BOLT; HSG M10X25 FLANGE	0-28151-025-0	05	1	0601-
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9905-0105
14	PLUG; SW (B) PT3/8	8-94475-259-0	01	1	9905-
20	RING; SEAL ID=59 OD=66.1	1-13779-011-0	02	1	9905-
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	9905-1012
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0106-0301
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	9905-1111
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-98205-844-0	01	1	1112-
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	9905-
82	PIPE; WATER,HTR	1-13721-670-0	01	1	9905-0301
82	PIPE; WATER,HTR	1-13722-039-0	01	1	0302-
85	BOLT; CLIP M14X20 FLANGE	0-28981-420-0	01	1	9905-0301
101	BOLT; PIPE M10X20 FLANGE	0-28081-020-0	01	1	0302-0512
101	BOLT; PIPE M10X20 FLANGE	0-28051-020-0	01	1	0601-
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=25	1-09630-141-0	02	1	9905-0105
112	PLUG (A) M12X9	1-09604-095-0	01	1	9905-0805
112	PLUG (A) M12X9	8-98047-054-0	01	1	0806-1012
112	PLUG (B) M14X9	9-99202-314-0	02	1	9905-0105
254	PLUG; HSG M16X12	9-99202-316-0	02	1	0106-0301

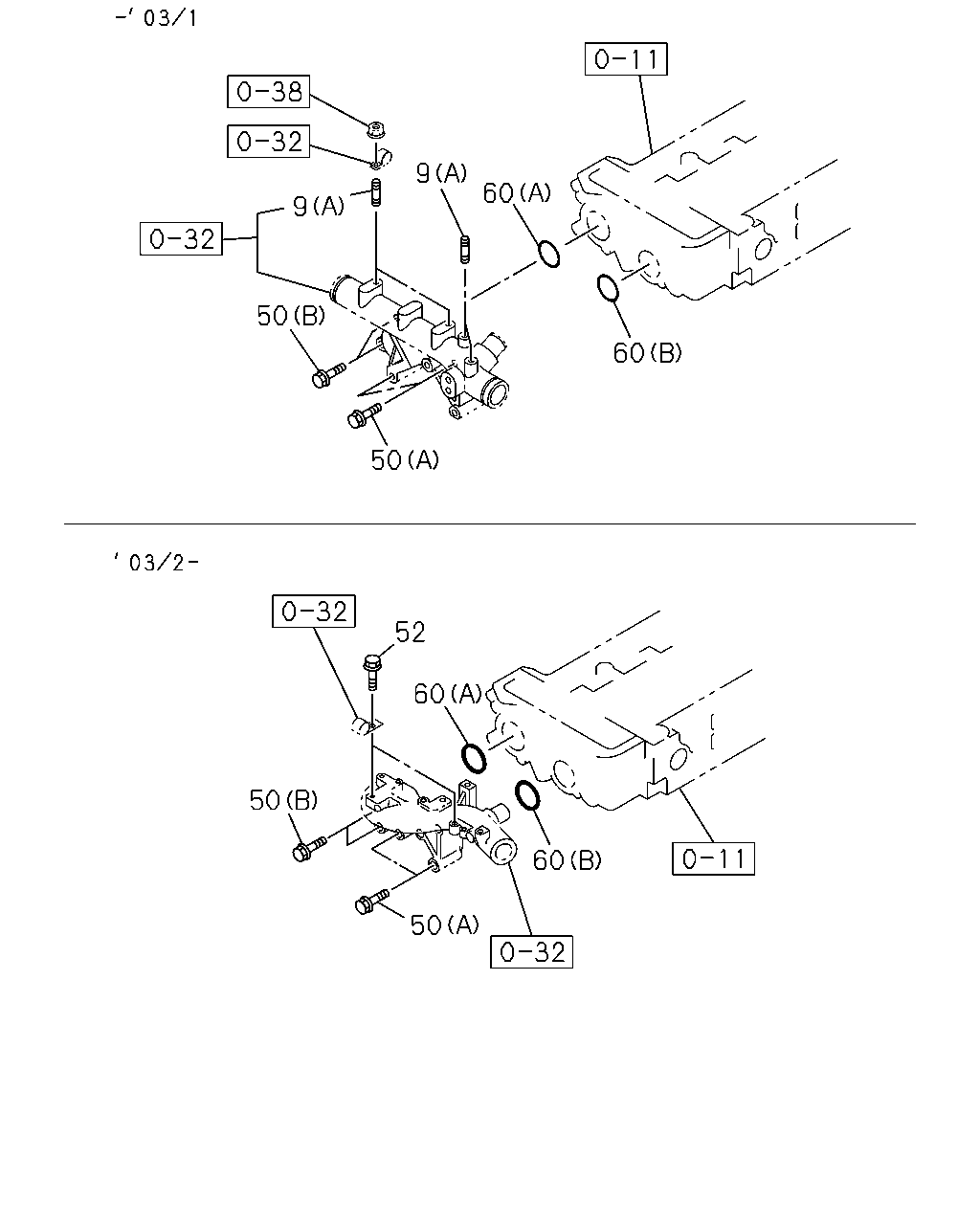

9 60 9 50 60 50 52 60 50 60 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	STUD; WATER PIPE (A) M8X20 L=32	9-04110-820-0	04	1	9905-0301
9	STUD; WATER PIPE (B) M10X20 L=35	9-04411-020-0	01	1	9905-0512
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28181-050-0	02	1	9905-0301
50	BOLT; OUTLET PIPE (B) M10X55 FLANGE	8-94399-863-1	02	1	0302-0805
50	BOLT; OUTLET PIPE (B) M10X55 FLANGE	8-97365-449-0	02	1	0806-
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	01	1	9905-0301
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	02	1	0302-0606
50	BOLT; OUTLET PIPE (A) M10X90 FLANGE	0-28151-090-0	02	1	0607-
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0302-0512
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	9905-
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	9905-
